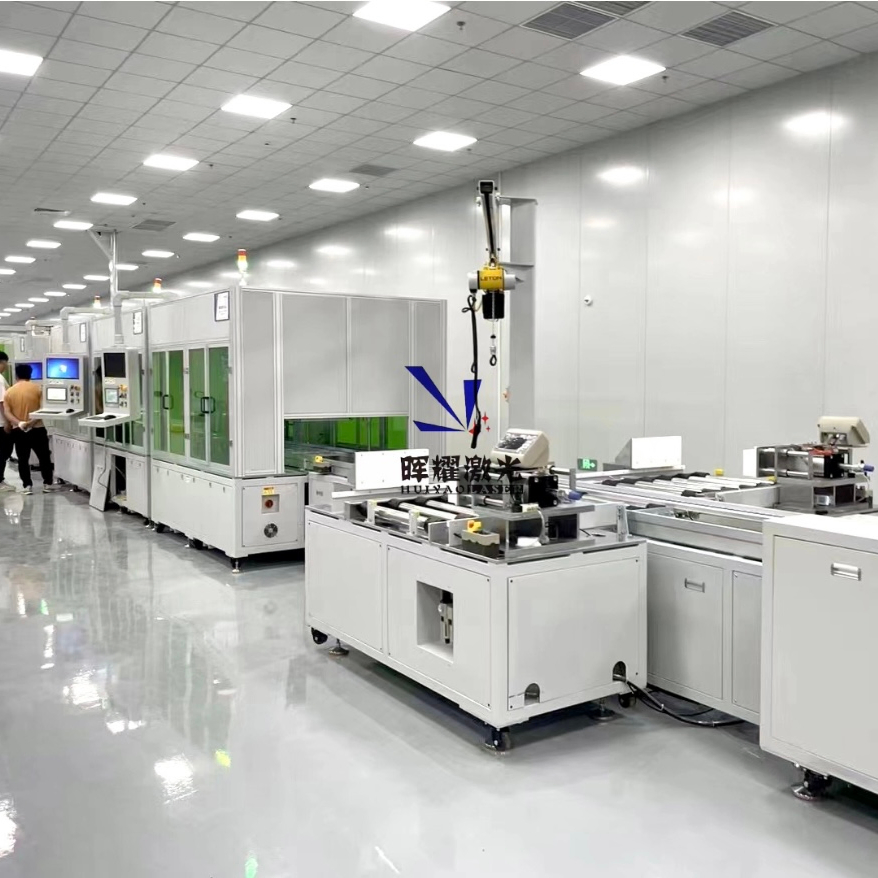

Energy Storage Battery Module Automated Assembly and Welding Production Line
Energy Storage Battery Module Automated Assembly and Welding Production Line
Energy Storage Battery Module Automated Assembly and Welding Production Line
Energy Storage Battery Module Automated Assembly and Welding Production Line
Energy Storage Battery Module Automated Assembly and Welding Production Line
1 / 5
Energy Storage Battery Module Automated Assembly and Welding Production Line
Energy Storage Battery Module Automated Assembly and Welding Production Line
Energy Storage Battery Module Automated Assembly and Welding Production Line
Energy Storage Battery Module Automated Assembly and Welding Production Line
Energy Storage Battery Module Automated Assembly and Welding Production Line

Energy Storage Battery Module Automated Assembly and Welding Production Line

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
automatic line
Condition
New
Automation
Automation
After-sales Service
Lifetime After-Sales
Application Field
New Energy Industry
Repeatability
0.01mm
Cooling Method
Water Cooling
Laser Wavelength
1080nm
Position Accuracy
±0.02mm
Weight
6000 Kg
Dimension
35m*9m*3m
Capacity
10ppm
Max Speed
500mm/S
Certification
ISO, CE
Warranty
2 Years
Production Capacity
100 Set/Sets Per Month

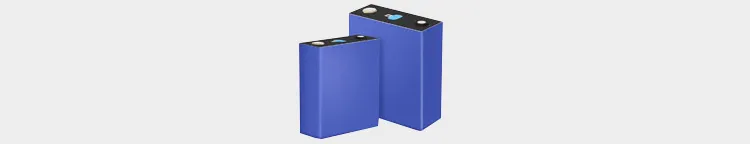

Production Process
Production Process

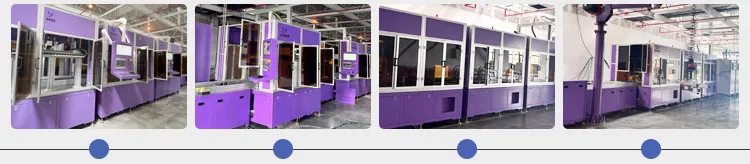

Lithium battery automated assembly workflow:

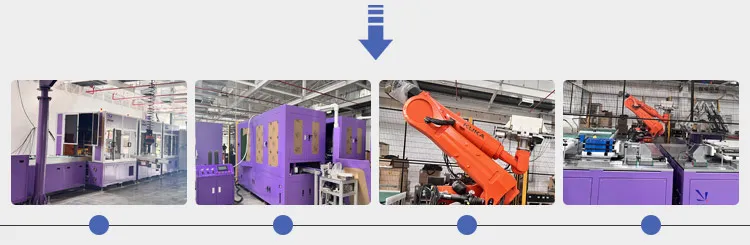

Online cantilever crane
Plasma cleaning

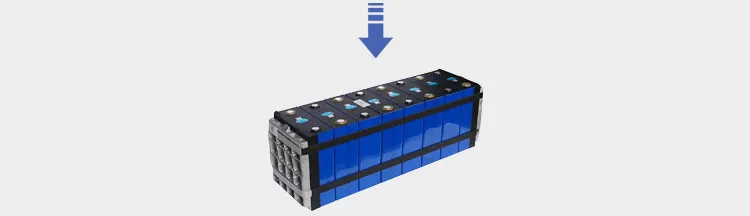

Laser welding

Includes online cantilever crane, plasma cleaning and gluing, module stacking with robot, pressing, pole photography, laser cleaning, and laser welding.

Product Features
01
Feature 1

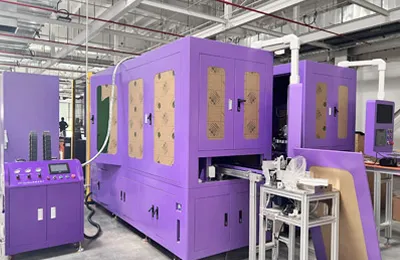

Compatible with a variety of sizes of module specifications, quick type change.
02
Feature 2

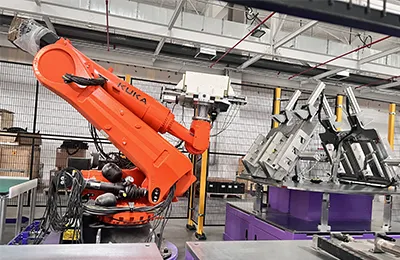

Realize intelligent chemical station and reduce the labor load of personnel.
03
Feature 3

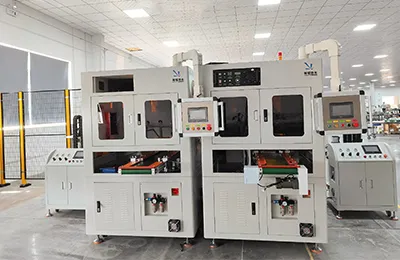

The battery cell section is flexibly associated with the module welding section and can be operated independently.
04
Feature 4

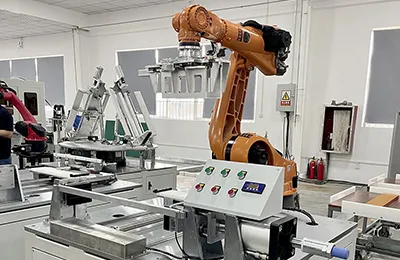

The cell section is equipped with cell sorting, plasma cleaning, cell gluing, cell stacking, etc.
05
Feature 5

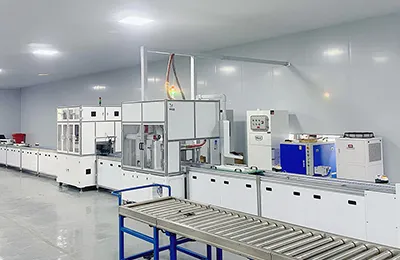

The welding section has the functions of loading module scan code binding, pole cleaning, laser welding, and EOL detection.
Technical Specifications
XYZ TravelCustomizable
R AxisOptional, 360° rotation
Position Accuracy±0.02mm
Repeatability Accuracy±0.01mm
Motion SourceStep motor or Servo motor
Max Speed500mm/s
Cooling MethodWater cooling
Laser Wavelength1080nm
Observation SystemCCD system
Welding Penetration0.1~3.0mm
Product Application
Application

The application range includes electric vehicles, energy storage equipment, solar photovoltaic, and other lithium battery module assembly fields.

Company Profile & Strength
Company
Workshop

The company is a high-tech enterprise specializing in research, development, and manufacturing of equipment in the new energy industry. We provide comprehensive high-end intelligent equipment including laser welding, battery cell assembly lines, and module PACK automatic lines. Covering more than 10,000 square meters, we have multiple automated production lines and advanced processing equipment with ISO9001 and ISO45001 certifications.

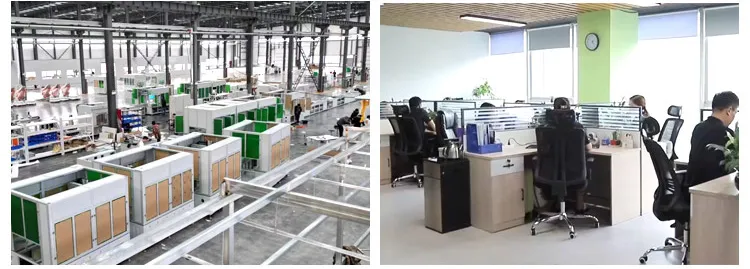

Facilities
Inventory
Customers
Certificates
Exhibition
Delivery
FAQ
Which procedure secures your quality?
Our company has its own R&D and production base. Products are calibrated by professionals before leaving the factory to ensure precision and authority.
How about your after-sales service system?
The guarantee period is 12 months with lifetime repair. We have agents in several countries for door-to-door service, and 24-hour technical support online.
How do you solve power supply and plug differences?
We can equip the machines with transformers and plugs that comply with your local requirements and country standards.
What are the available payment methods?
We support multiple payment methods including T/T, L/C, and D/P.
What is the packing method for shipping?
We use standard export wooden box packaging to ensure the safety of the equipment during international transport.
Can you customize the color or add our brand?
Yes, we can print your logo on products and packages and customize colors if you meet our MOQ requirements.
