Advanced Laser Marking Solutions for Durable Metal and Plastic

Customization:	Available
After-sales Service:	Online Service
Warranty:	12 Months

Send Inquiry

Product Description

Basic Information

Model NO.

HMLY-01

Laser Visibility

Visible

Applicable Material

Metal

Cooling System

Air Cooling

Technical Class

Continuous Wave Laser

Laser Wavelength

Fiber Laser

Laser Classification

Semiconductor Laser

Type

Semiconductor Laser Marking Machine

Marking Method

Scanning Marking

Laser Output Power

3, 5, 8 or 10W

Fiber Length

Minimum Character Size

0.15mm

Power

AC 220V/50Hz

Working Temperature

10-40 Degrees

Cooling Method

Water Cooling

Character Depth

0.3mm to 1mm

Laser Frequency

20-80Hz

Origin

China

Product Description

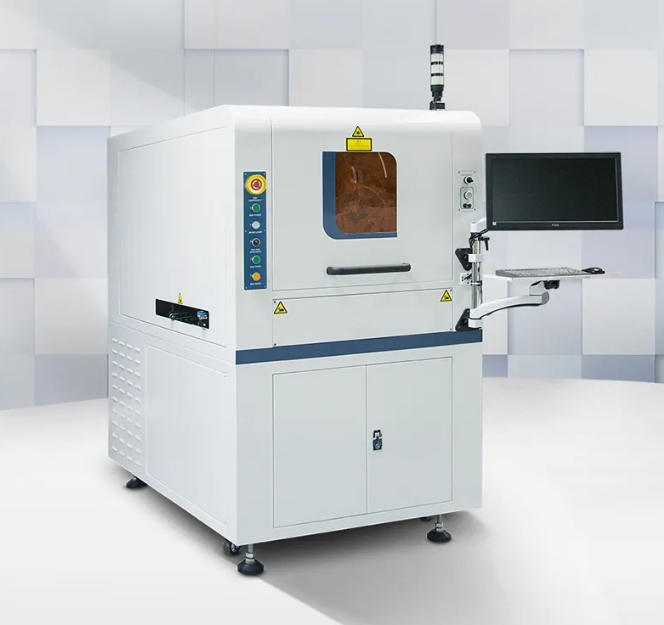

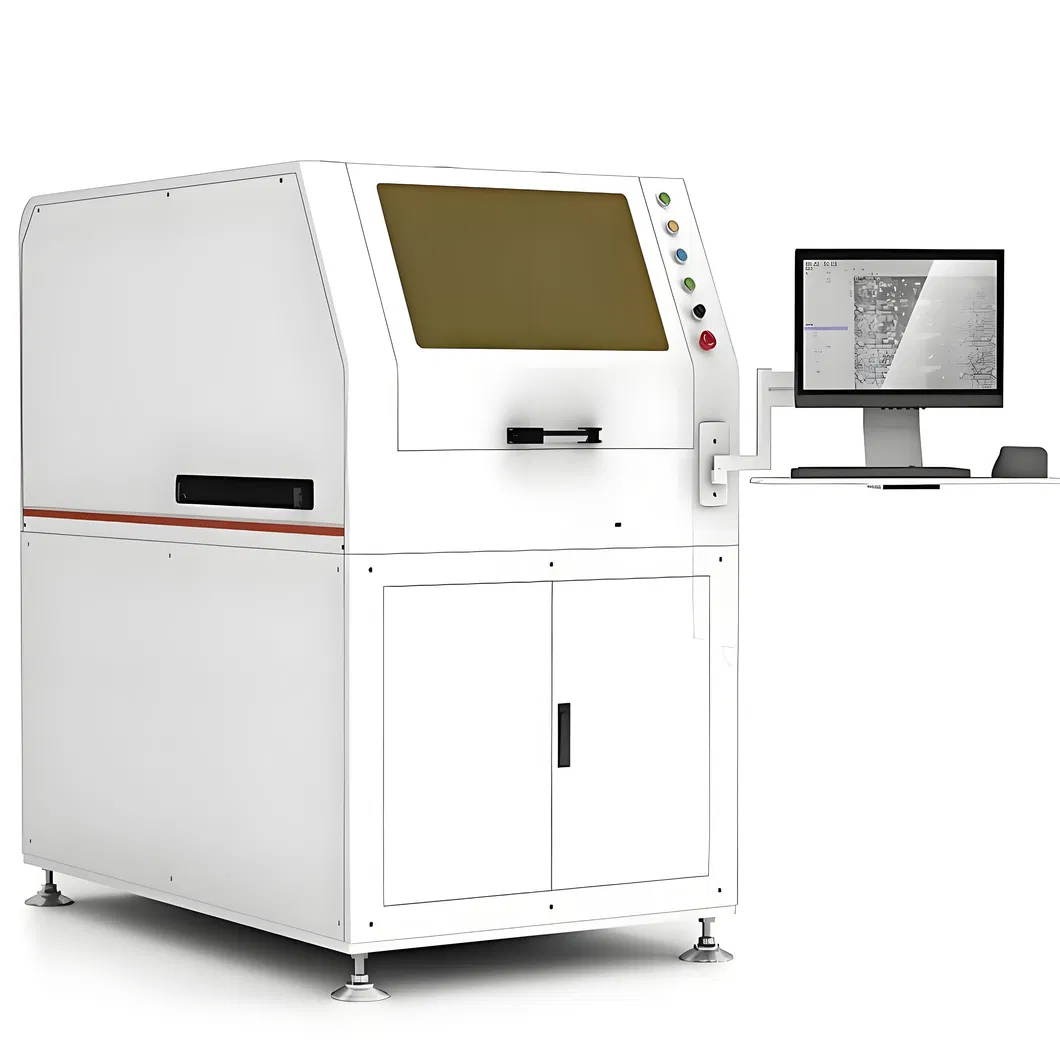

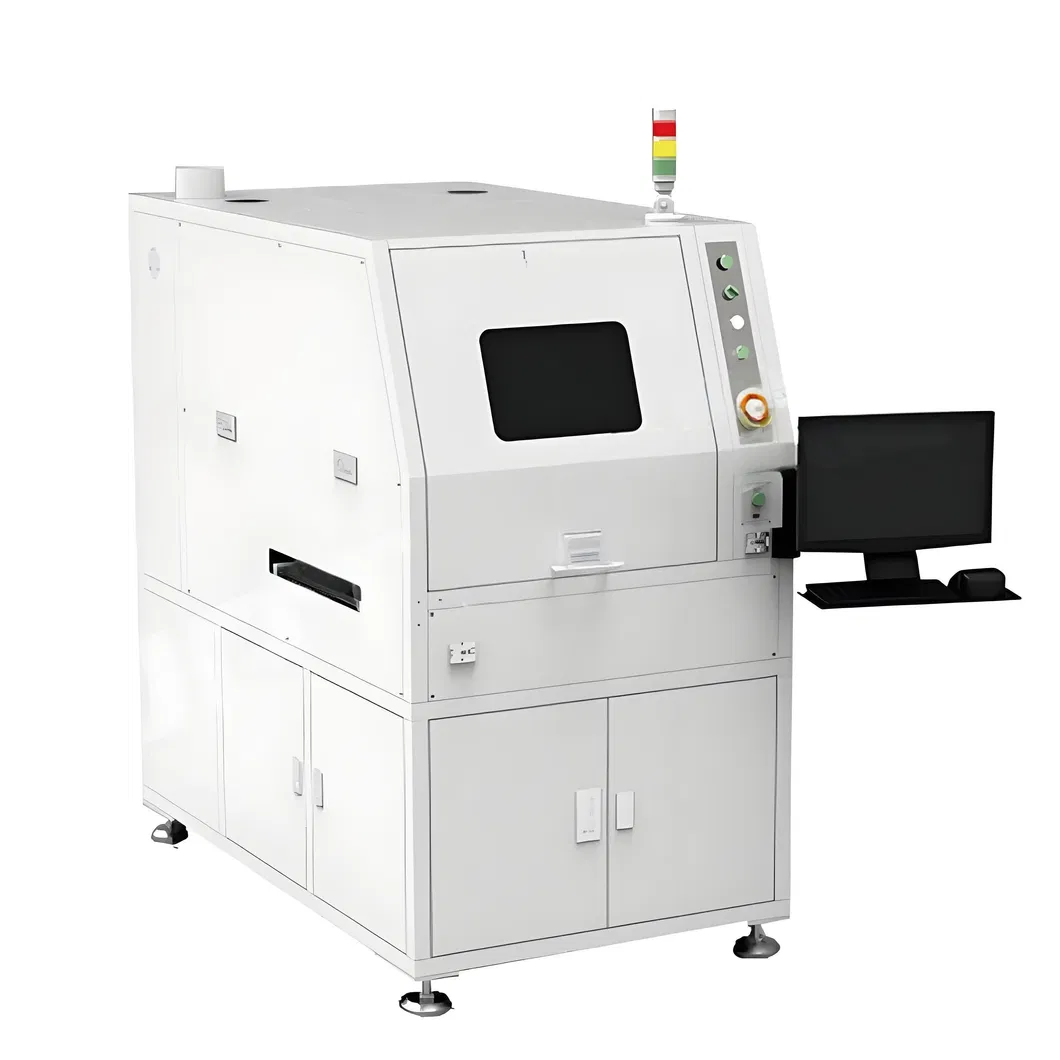

High Quality PCB laser marking system

This system realizes fully automatic online dynamic marking for the PCB industry, and achieves fully automatic loading and unloading through the SMEMA standard interface.

Key Features:

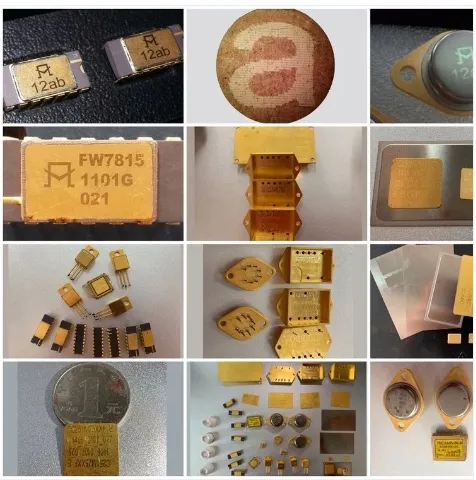

PCB blue oil, green oil, white oil, copper plate and other laser marking applications.
Machinable characters, bar codes, two-dimensional codes, trademark logo, etc.
High Precision CCD Positioning and two dimensional code recognition.
The width of the tracks can be adjusted, the orientation of the board in and out of the board is optional.
Fully automatic online, can connect to SMT flow line, support SMEMA standard.

Product Parameters

Laser	Scan Range	Max Power Consumption	Operating Height	Sample Size	Device Dimensions	Weight
Optical fiber / UV / CO2	50x50mm (customizable)	2.5kW	900±20mm	50x50mm - 460x510mm	1000x600x1700mm	Less than 1.5 tons

Our Advantages

1. Innovation-Driven Solutions: Pioneering advanced semiconductor equipment with 10+ patents, constantly evolving for emerging tech nodes.

2. Global Compliance & Quality: ISO 9001 & CE certified manufacturing, ensuring precision (±5µm) and reliability for fab-ready integration.

3. End-to-End Customer Support: 24/7 technical assistance + on-site training, minimizing downtime and maximizing your yield.

4. Worldwide Logistics Network: Efficient SECURE & TIMELY global shipments (30+ countries), with customs-cleared documentation.

5. Sustainable Manufacturing: Eco-conscious production: FFU filtration, energy-efficient lasers, and waste-reduction protocols.

Technical Highlights:

Multi-material compatibility (PCB/IC/metal/glass/ceramics)
On-the-fly marking & encoder sync
10μm precision | 100K+ hours lifespan
MES/ERP integration support

Packaging & Shipping

Frequently Asked Questions

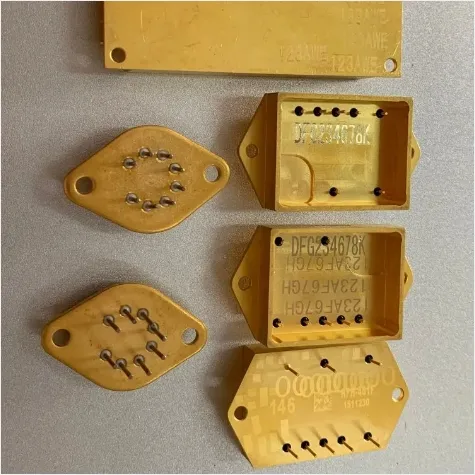

1. What materials can your laser marking systems process? Our systems support Electronics (PCBs, IC wafers), Metals (Stainless steel, aluminum), and Non-metals (Glass, ceramics, composites).

2. What's the smallest character size achievable? Standard precision achieves 0.05mm (50μm), while high-precision UV lasers can reach up to 0.01mm (10μm) for micro-components.

3. Can the system integrate with automated production lines? Yes. It supports on-the-fly marking, encoder synchronization for conveyors, and MES/ERP connectivity for dynamic data like QR codes.

4. How does laser marking compare to inkjet engraving? Laser marking offers higher permanence and speed (ms/character) with superior precision (10μm-100μm) compared to inkjet or mechanical methods.

5. Is the process safe for delicate materials like thin glass or PCBs? Yes, our cold lasers (UV/Green) ensure zero thermal stress, making them ideal for wafers and thin glass without causing cracks.

6. What is the typical lifespan of the laser source? Fiber laser sources typically last between 80,000 to 100,000 hours, while UV laser sources last between 30,000 to 50,000 hours.
