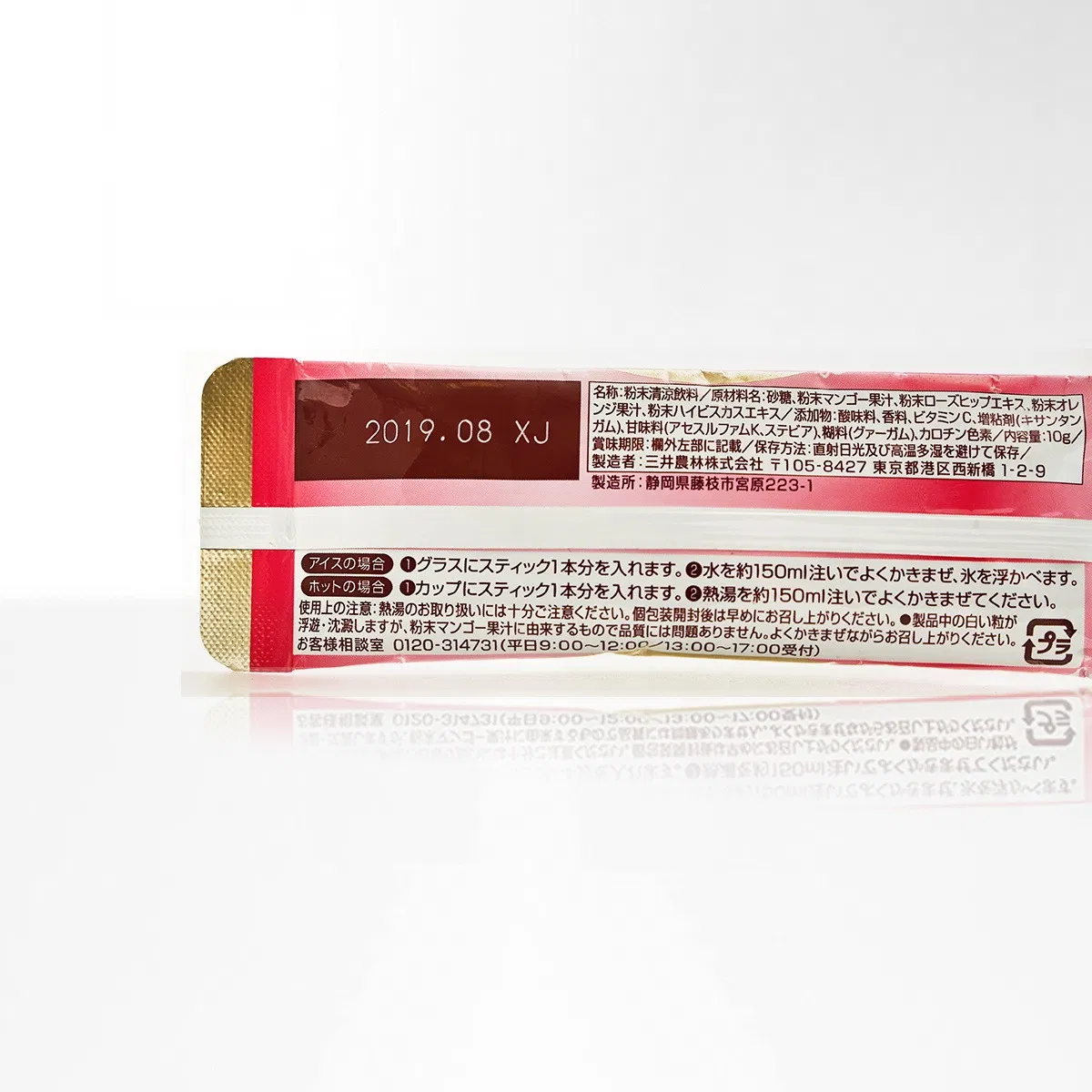

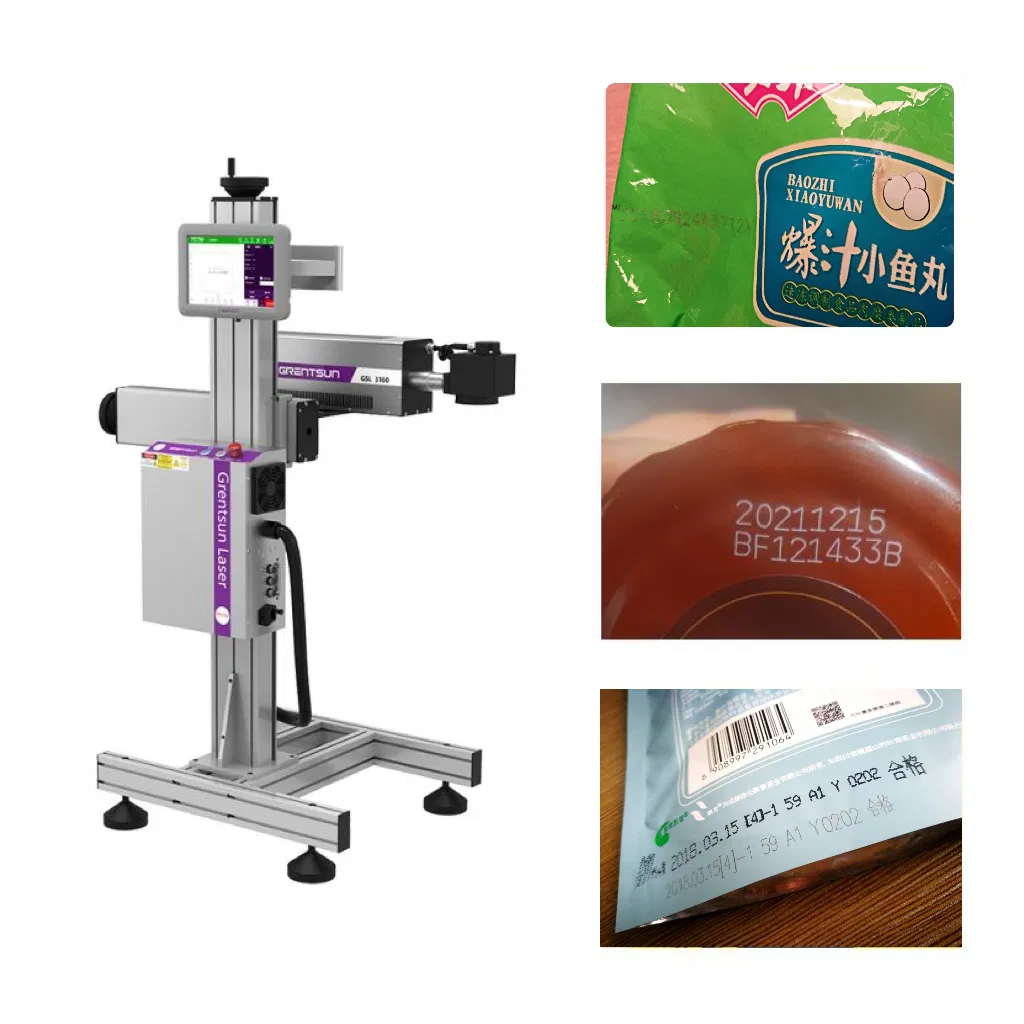

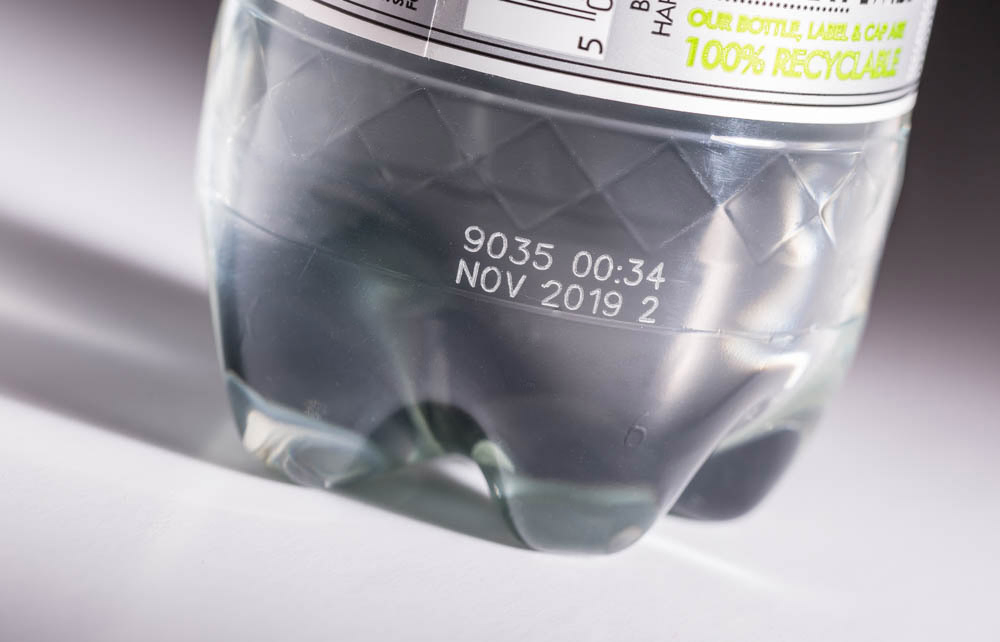

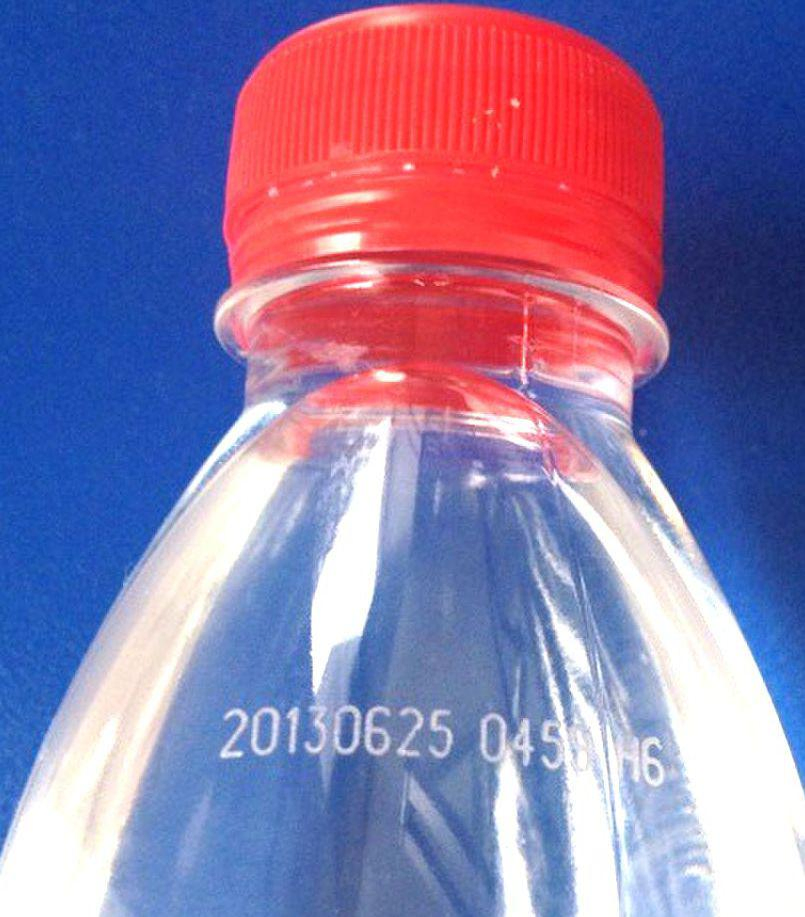

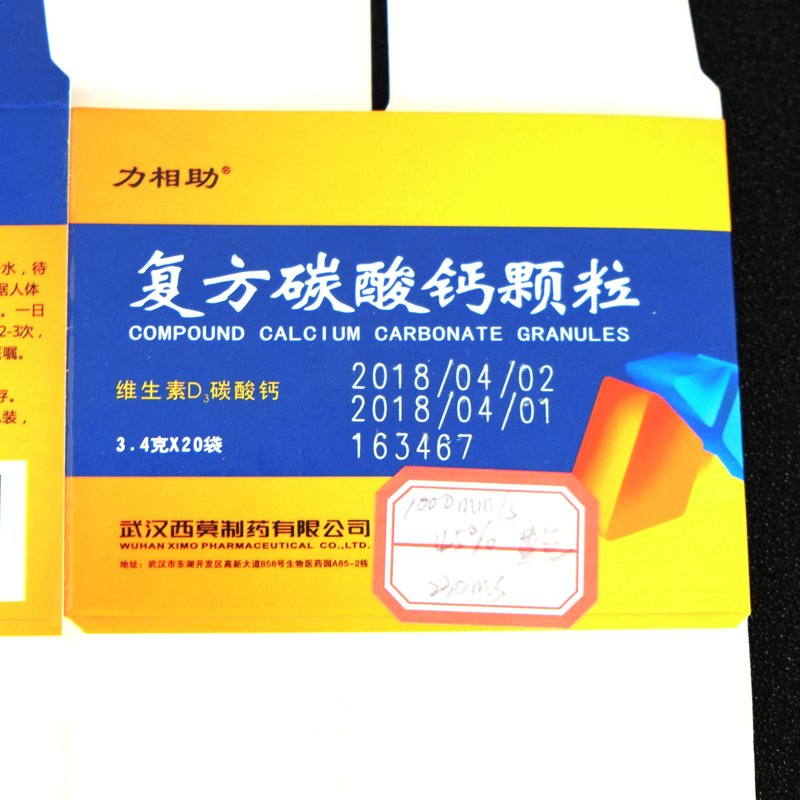

CO2 Laser Marking Machine, Eco Friendly, High Speed Permanent Laser Coding System for Pet Bottle Glass PVC Pipe Date Batch Qr Code Packaging Marking

Still deciding? Get samples of $ !
Order Sample

Product Description

📋 Basic Information
Model NO.GSL3130
Laser VisibilityInvisible
Applicable MaterialPet PP Coated Metal Glass Paper Leather
Cooling SystemAir Cooling
Technical ClassPulse Laser
Laser WavelengthCO2 Laser
Laser ClassificationGaseous Laser
TypeCO2 Laser Marking Machine
Marking MethodScanning Marking
Wavelength9.3/10.2/10.6um
Power30W
Weight70kg
OriginChina
HS Code8456110090
📦 Packaging & Delivery

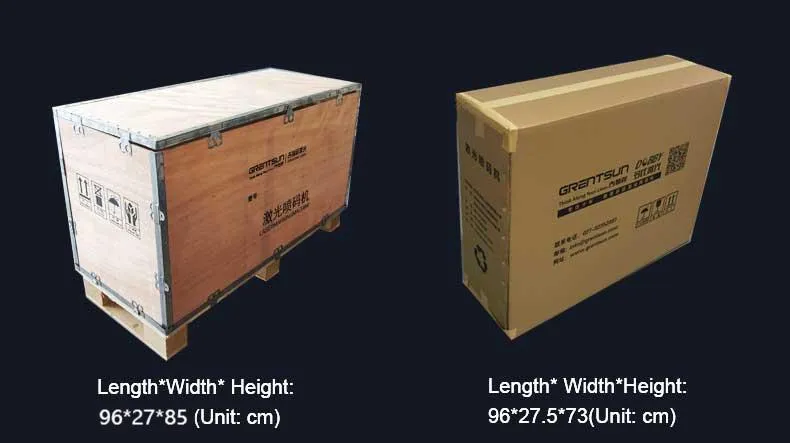

Package Size96.00cm * 27.00cm * 85.00cm
Package Gross Weight45.000kg
Transport PackageNon-Log Plywood Case
🛠️ Product Description

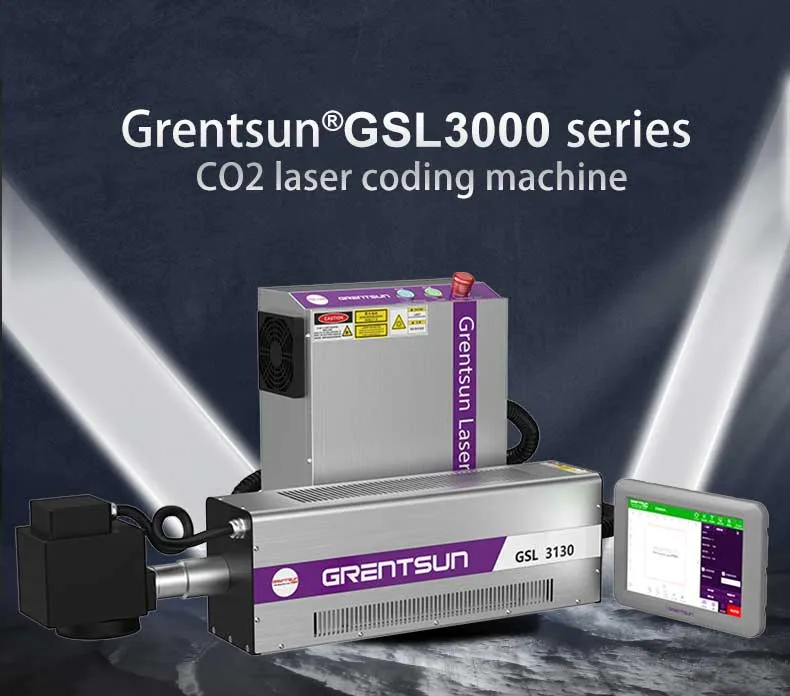

Name of SeriesGSL3000 Series CO2 Laser Coding Machine
Laser Power30W/40W/60W/100W
Laser Wavelength10.6μm
Repeat Positioning Accuracy0.005mm
Marking Depth0.01-5mm(varies with material)
Max.Marking Speed6000mm/s-12000mm/s
Standard Marking Area110mm*110mm
Lifetime of source25,000hrs-30,000hrs
Warranty1 year on complete machine, 2 years on laser source
Frequently Asked Questions
How can I get the most suitable and best machine for me?
Please let us know what material you want to process and your detailed usage, and our professional service will provide instructions and recommendations based on technician and engineer experience.
Compared with other suppliers, what are your machine's advantages?
We use high-quality laser sources (such as Raycus) with a 2-year warranty and original BJ Jcz control cards for stable performance. We also adopt genuine EZCAD software for powerful functionality and high configuration for all components.
How is the payment handled?
We accept Telegraphic Transfer (T/T), Western Union (WU), and trade insurance orders.
Is it easy to operate for a first-time user?
Yes, the EZCAD software is user-friendly. We provide manuals and guide videos. If needed, our technicians can assist via online help software, phone, or email.
What is the guarantee in case the machine breaks down?
The whole machine has a 1-year warranty, and the laser source has 2 years. We provide free replacement for non-consumable parts if the issues are caused by quality faults.
If the machine has a problem at my location, what should I do?
If the machine has a problem under normal use within the warranty period, we will send free parts and provide sincere technical guidance to solve the issue.
