Basic Info.
Model NO.LBGX-300
Laser VisibilityInvisible
Applicable MaterialMetal and Nonmetal
Cooling SystemAir Cooling
Technical ClassPulse Laser
Laser WavelengthFiber Laser
Laser ClassificationSolid Laser
TypeOptical Fiber Laser Marking Machine
Marking MethodScanning Marking
Consumable ItemsNo
Working Life100,000hours
Protection CoverCan Be Customized
Laser DeviceUV Laser/Fiber Laser/CO2 Laser/YAG
Laser Power20W/30W/50W
Transport PackageWrapping Film & Export Standard Wooden Cases
Specification750*771*1440mm h
TrademarkLabel Laser
OriginChina
HS Code8456110090
Production Capacity200 Units/Month
Product Description

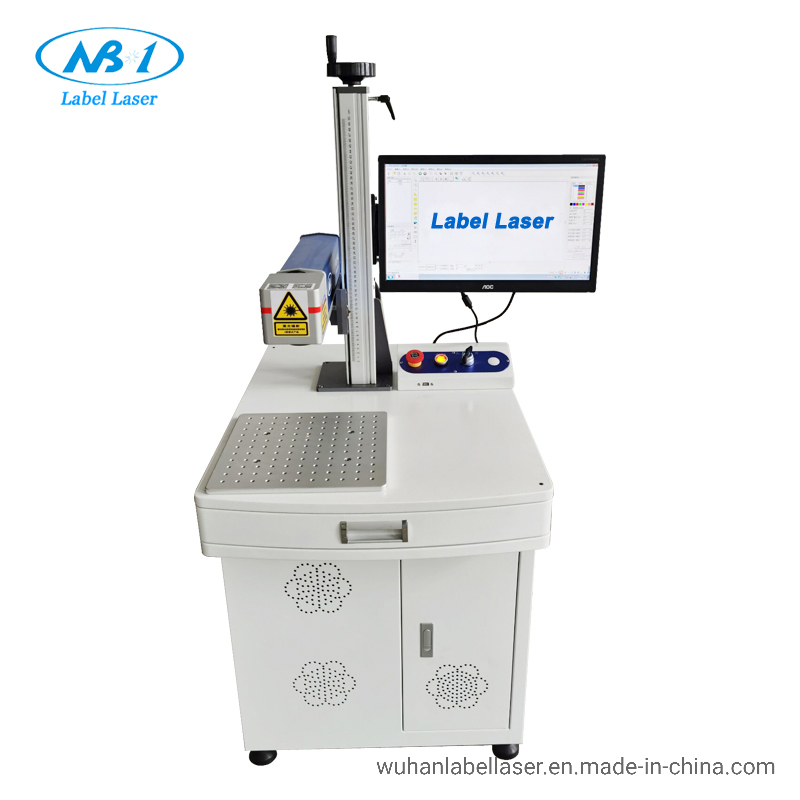

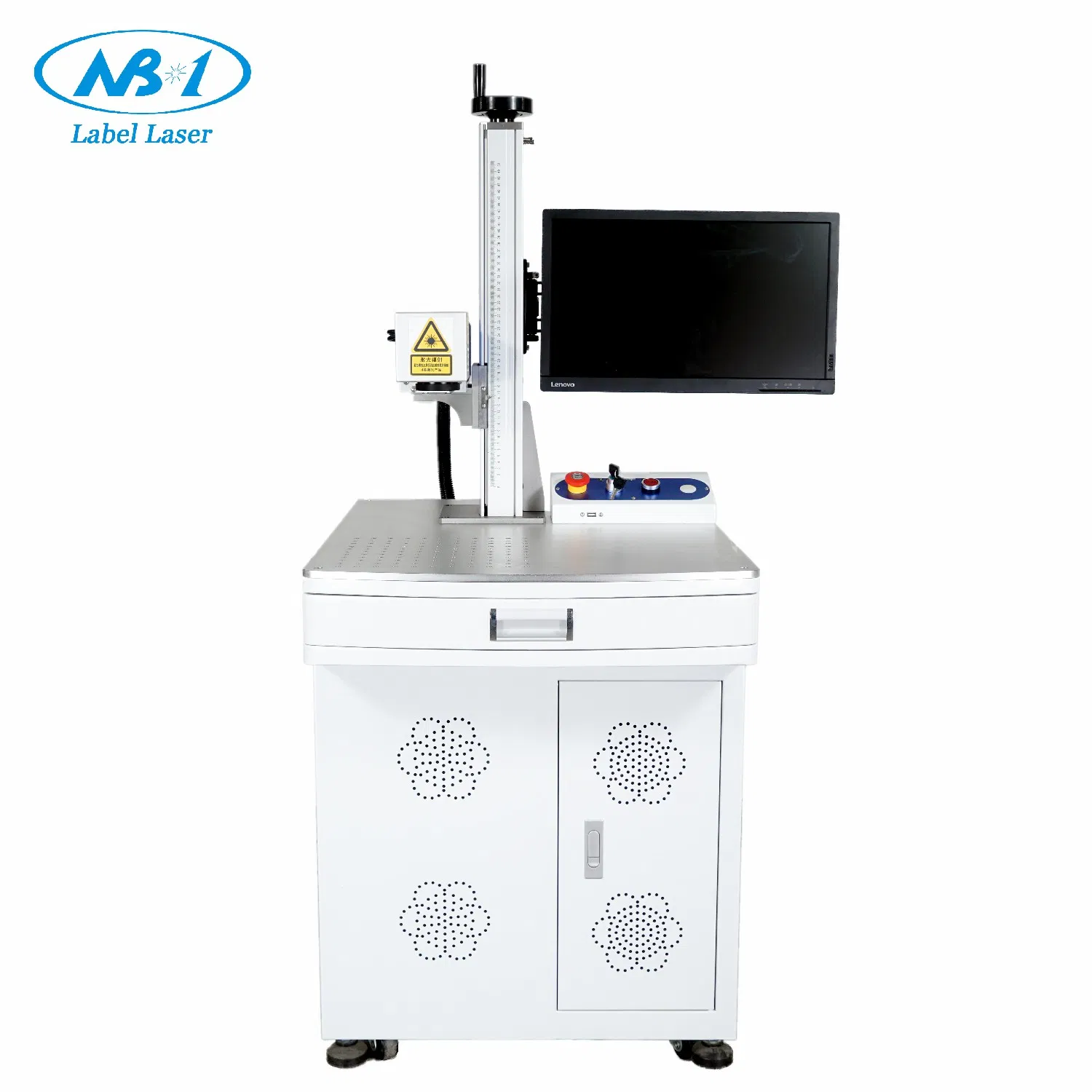

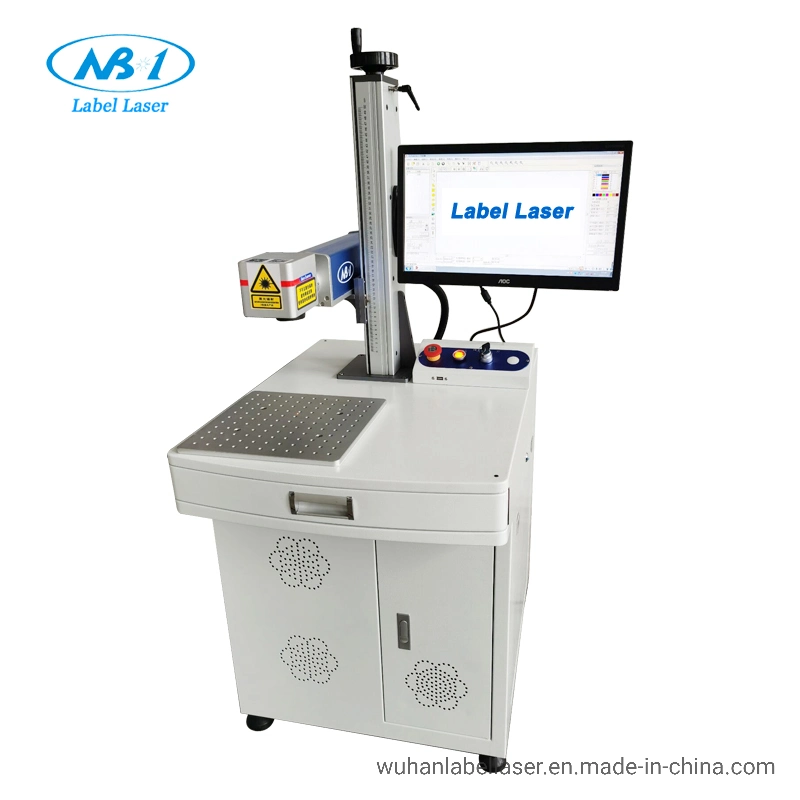

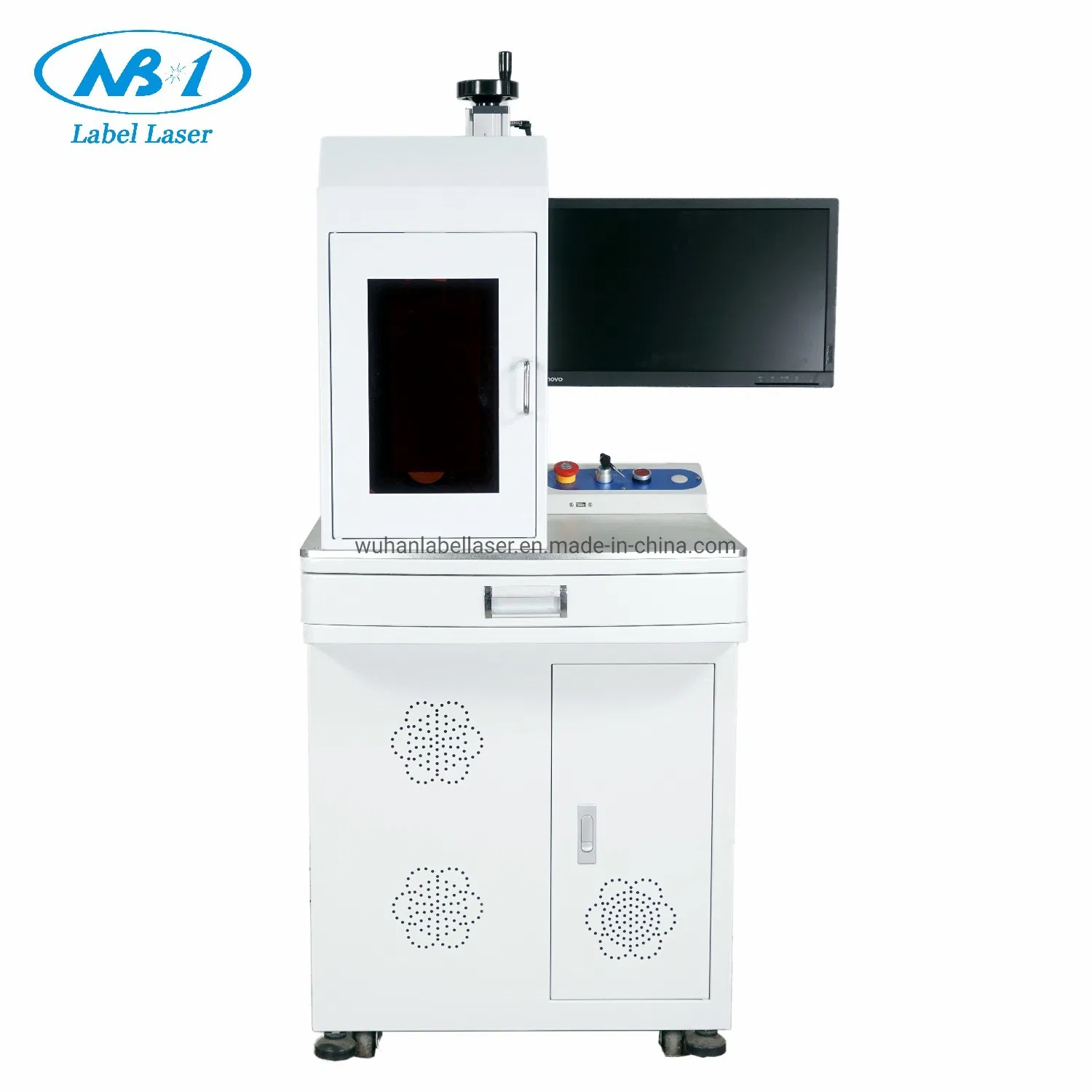

CO2 UV Fiber Laser Marking Machine 20W 30W 50W 70W 100W 200W 300W for Metal Steel Plastic Wood Nonmetal
Laser marking is typically a delicate process of creating a depth by removing the surface material, especially with the purpose of modifying its reflectivity and contrast. Our laser marking systems are designed for non-contact processes. They offer better and more reliable solutions in terms of stability and deformity.
| Functional Parameter |
Performance Parameter |
| Marking Laser |
YAG Laser |
YVO 4 /1064nm |
| Avg. Output Power |
20W/30W/50W/70W/100W/150W/200W/300W/500W |
| Q FSW |
20-100 KHz |
| Guide |
Semiconductor Laser |
LED Indicator Light (Red color) |
| Marking Area (mm) |
110*110, 145*145, 175*175, 230*230, 300*300 etc. |
| Marking Depth (mm) |
≤ 0.6 |
| Repetition Precision |
±0.001mm |
| Marking Speed |
≤50mm/second (for characters height of 3mm / 3-4 numbers/s) |
| Mini Character (mm) |
0.3 |
| Power Supply |
220V±10%, 50HZ |
| Machine Power |
Max 500w |
| Working Environment |
+5~35 ºC |
| Type of Cooling |
Air Cooling |
| Storage Temperature |
-5~40 ºC (no frost and dew) |

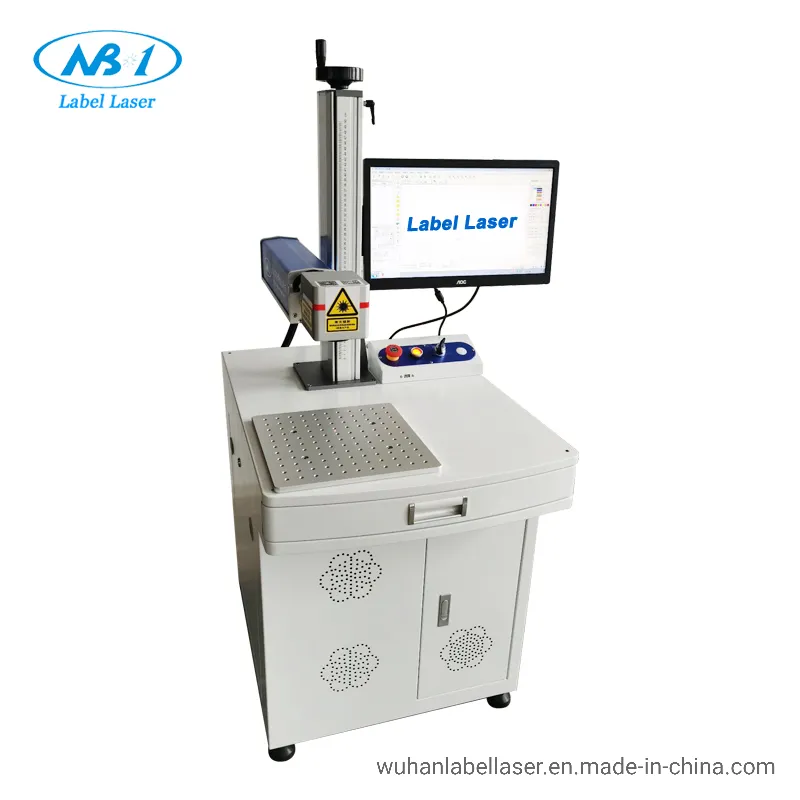

Details Show
Performance Features
Excellent laser beam quality and processability make it possible to mark on flat as well as circumference surfaces.
- Low-energy, low operating cost, no consumables, maintenance-free.
- Work online with barcode and label printer.
- Professional marking software with wide application operated under WIN7 8 10.
- Super high speed marking capability.
- High stability, long service life, up to 100,000 hours.
Application Fields
- Material: Metal and most nonmetal.
- Industry: Auto spare parts, Hardware tools, Precision machinery, Electrical products, Electronic parts, IT, Medical equipment, Jewelry, etc.
- Working type: Static marking, On-line marking, Flying marking.

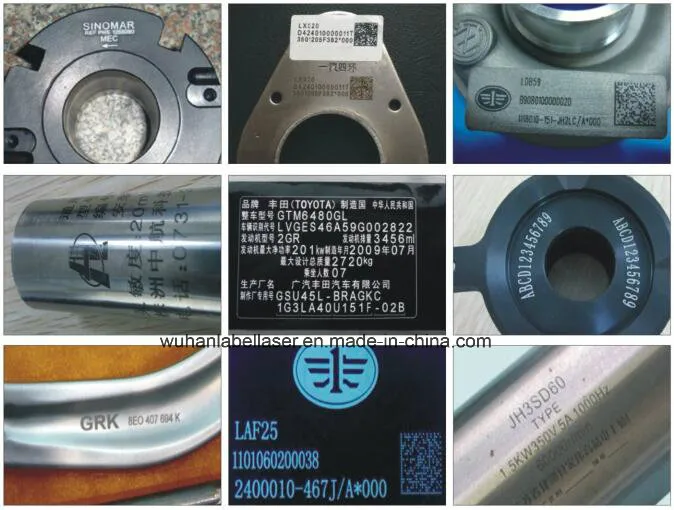

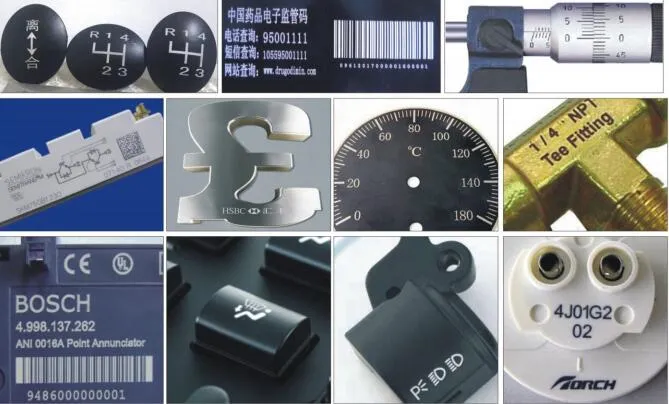

Sample Show
About Our Expertise
Specializing in the R & D, production and sales of laser marking machines, pneumatic marking machines, and laser cleaning machines since 2006. We provide "Laser + automation" and "Laser + intelligence" solutions to meet evolving market demands.
Our intelligent workstations combine mechanical manufacturing, motion control, CCD vision, and MES communication to realize production line automation and system integration.
Why Choose Us?
- 19 years of researching and manufacturing experience.
- Advanced technology and dedicated R&D group.
- More than 3000+ successful marking solution cases globally.
- 100% Quality Control.
- Utility Model Patent Certificates and software copyrights.
- ISO, CE, SGS certified.
Packing & Shipping
Packing: Anti-collision foam + wrapping film + Export standard wooden case.
Shipping: Main transportation by sea; Options for air or railway transportation.

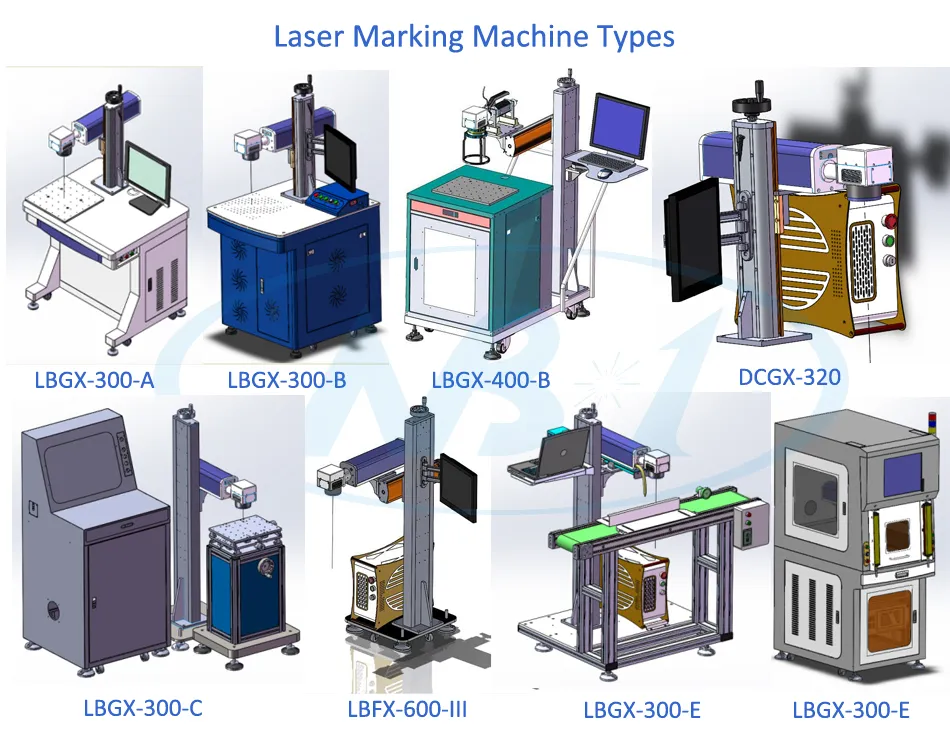

More Products
Frequently Asked Questions
Q: What is laser marking and how does the machine work?
A: Laser marking is a delicate process of creating depth or modifying surface contrast by removing material using a laser beam. Our systems are non-contact, ensuring high stability and preventing material deformity.
Q: How to operate the machine? Is training necessary?
A: The machine is controlled by software and is user-friendly. We provide an operation manual with pictures. Most operators can master it quickly even without prior experience.
Q: What kind of after-sales service do you provide if a problem occurs?
A: We offer a one-year warranty for the entire machine. During this period, we provide technical support to solve any operational or technical issues.
Q: Can I add a customized protection cover to the machine?
A: Yes, we accept requests for customized protection covers to meet your specific safety or environmental requirements.
Q: Are there any consumables required for the fiber laser marking machine?
A: No, there are no consumables required for fiber laser marking machines, making them highly economical and cost-efficient for long-term use.
Q: What is the typical working life of the laser device?
A: The laser device features high stability and a long service life, typically lasting up to 100,000 hours of operation.
