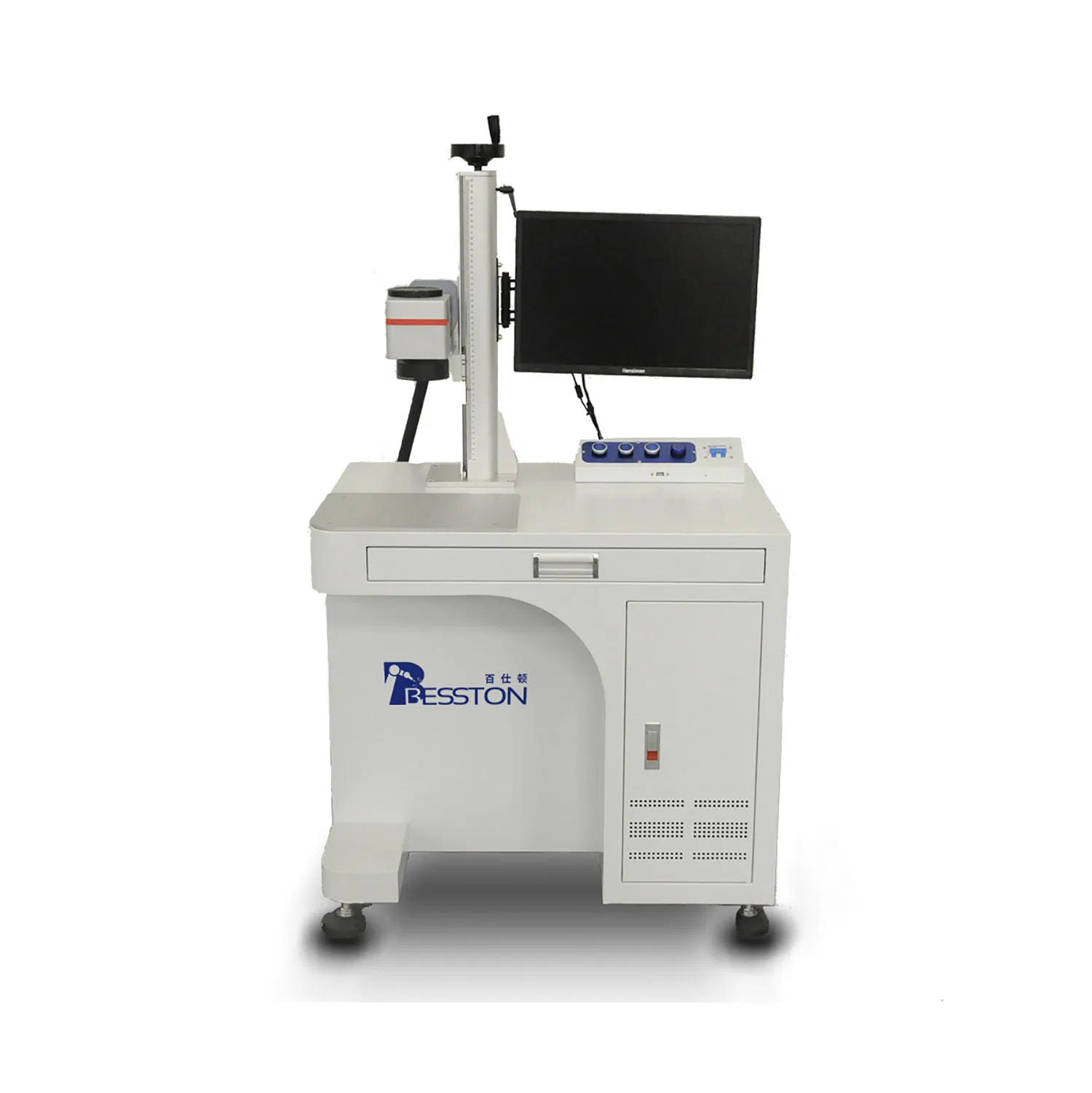

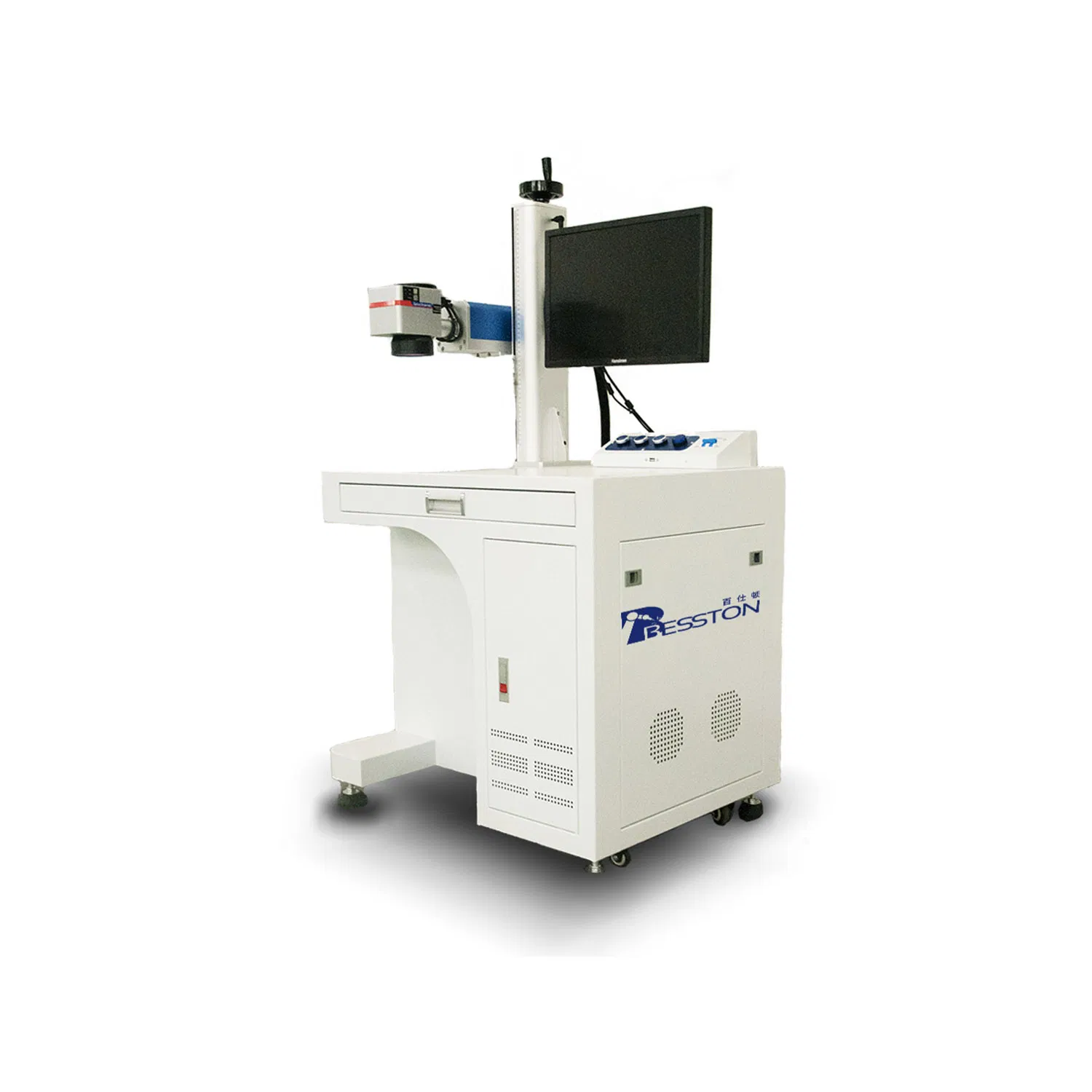

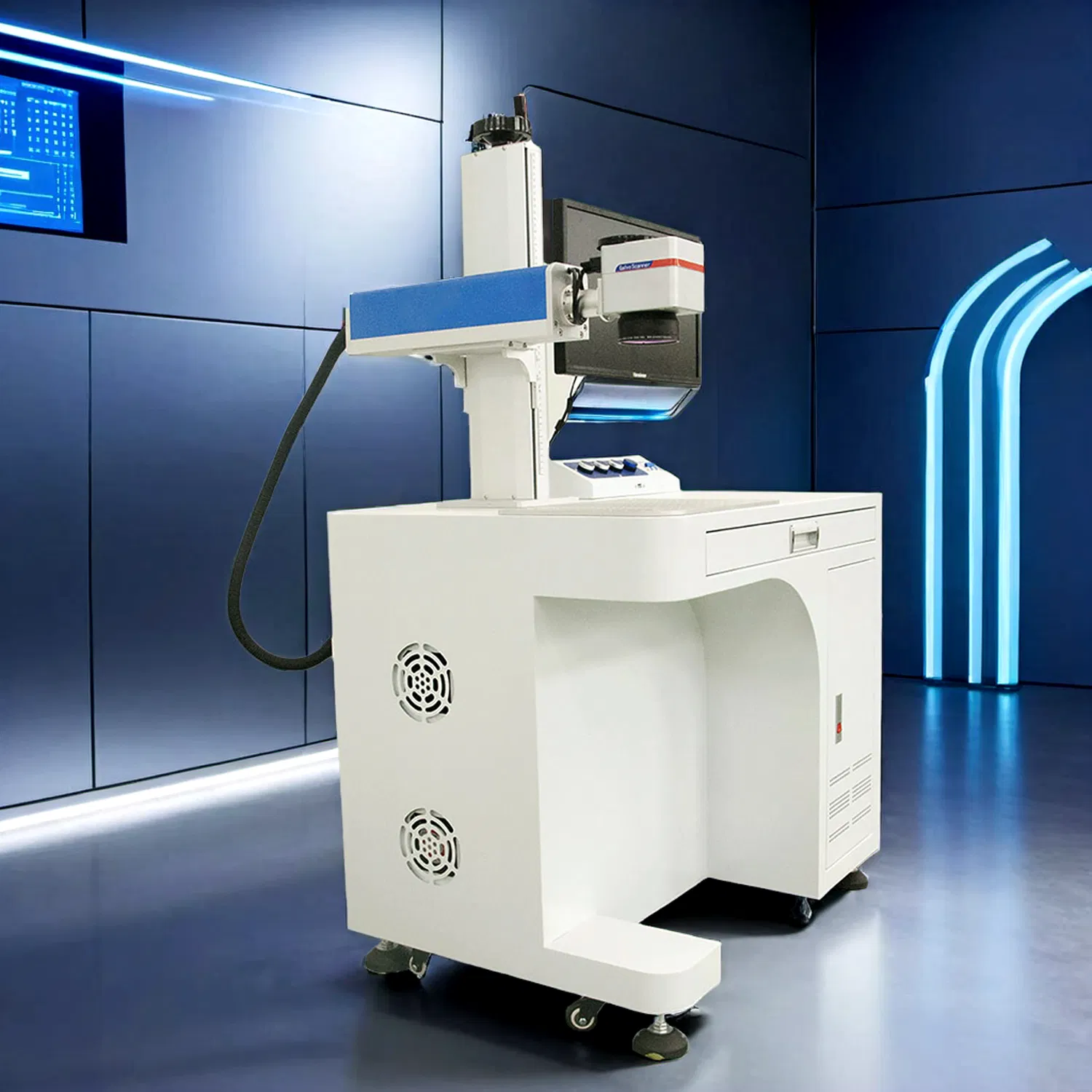

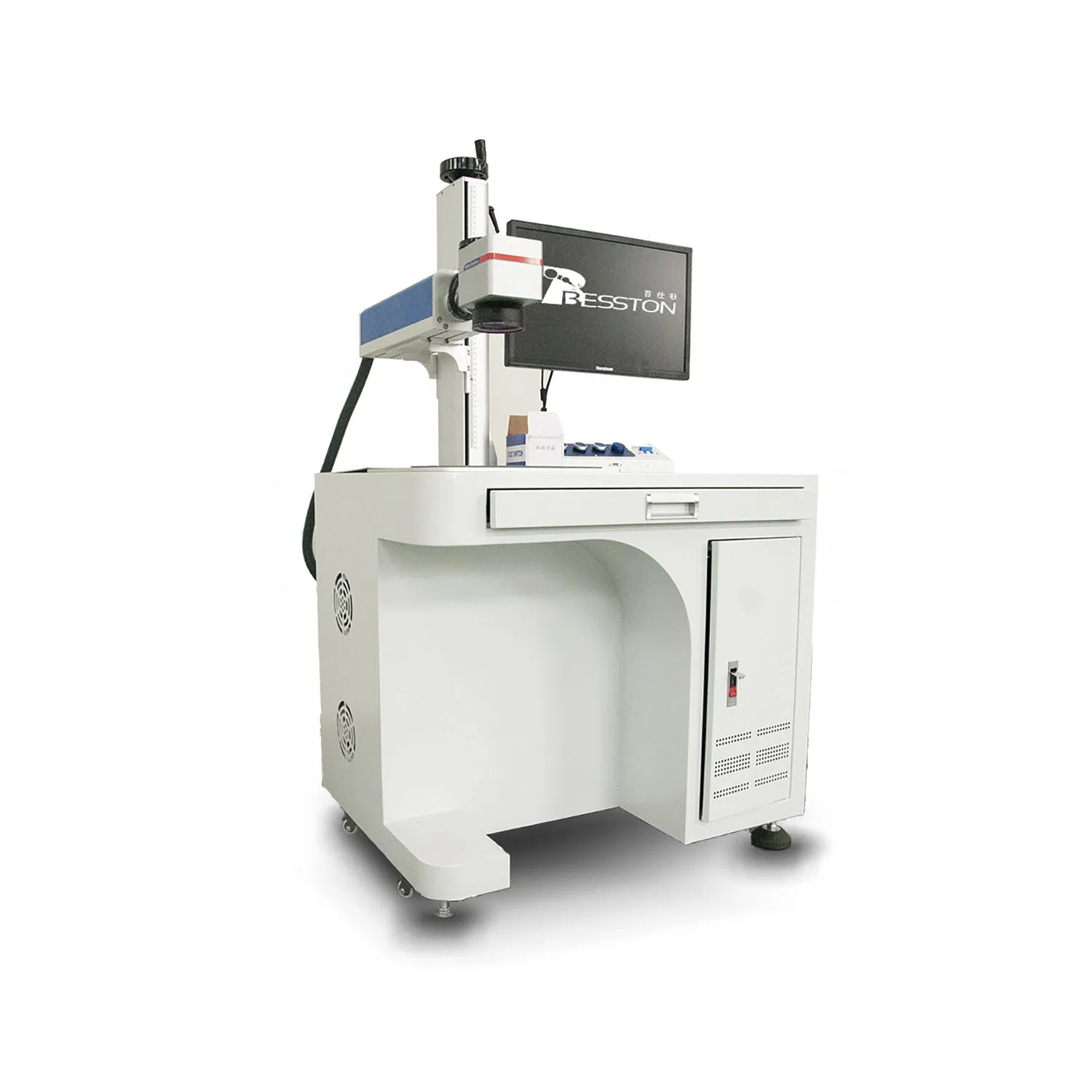

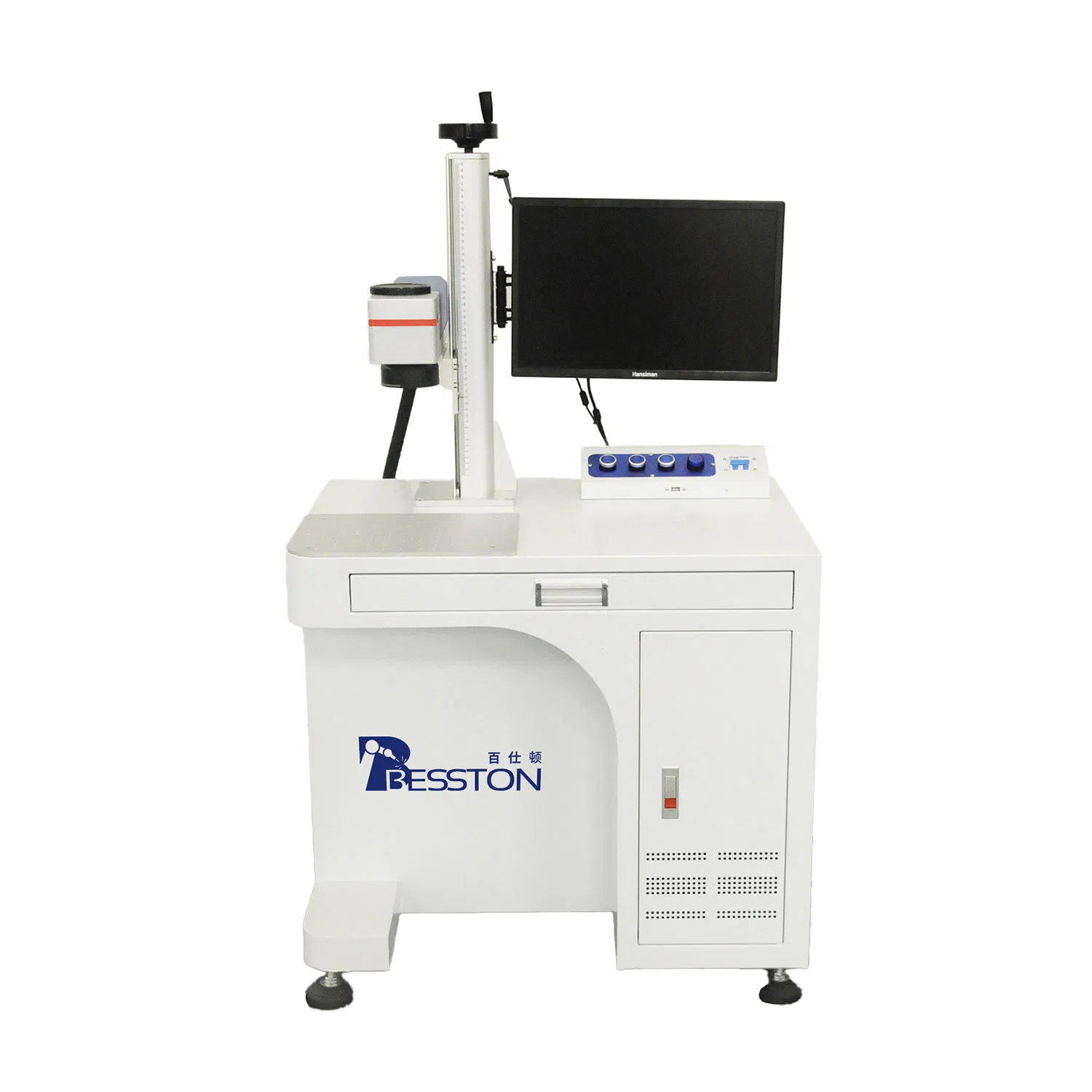

Desktop UV Laser Marking Machine for Glass and Acrylic
Desktop UV Laser Marking Machine for Glass and Acrylic
Desktop UV Laser Marking Machine for Glass and Acrylic
Desktop UV Laser Marking Machine for Glass and Acrylic
Desktop UV Laser Marking Machine for Glass and Acrylic
1 / 5
Desktop UV Laser Marking Machine for Glass and Acrylic
Desktop UV Laser Marking Machine for Glass and Acrylic
Desktop UV Laser Marking Machine for Glass and Acrylic
Desktop UV Laser Marking Machine for Glass and Acrylic
Desktop UV Laser Marking Machine for Glass and Acrylic

Desktop UV Laser Marking Machine for Glass and Acrylic

Customization: Available
After-sales Service: 24-Hour After-Sales Service
Warranty: One Year
Send Inquiry

Product Description

Technical Specifications
Model NO.FLM-20W
Laser VisibilityInvisible
Applicable MaterialMetal
Cooling SystemAir Cooling
Technical ClassContinuous Wave Laser
Laser WavelengthFiber Laser
Marking MethodScanning Marking
Average Output Power20W
Marking Depth0.01-0.4mm
Repeatability0.002mm
Beam Quality<1.5m2
Transport PackageWooden Box
Specification95*67*120

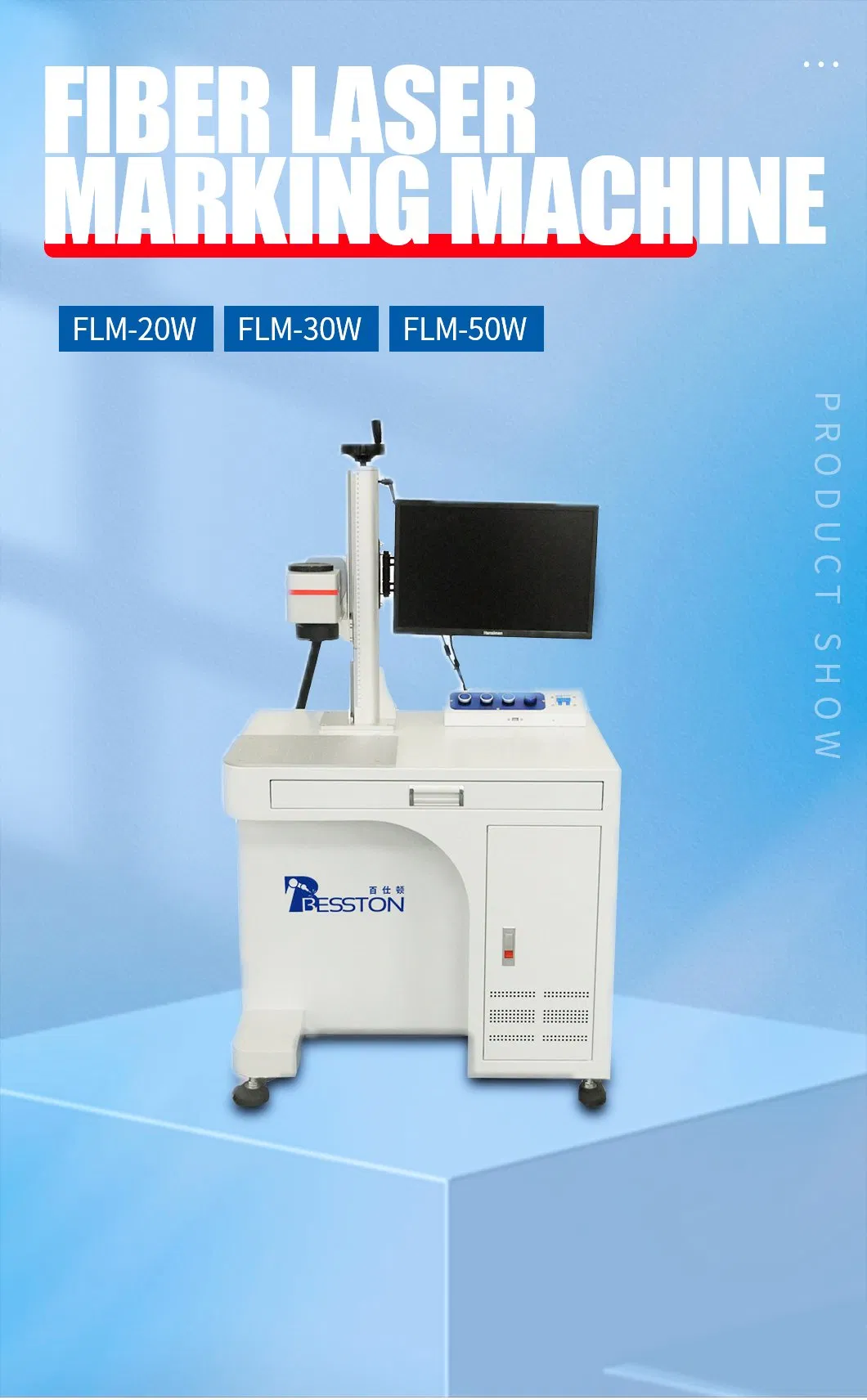

Fiber Laser Marking Machine

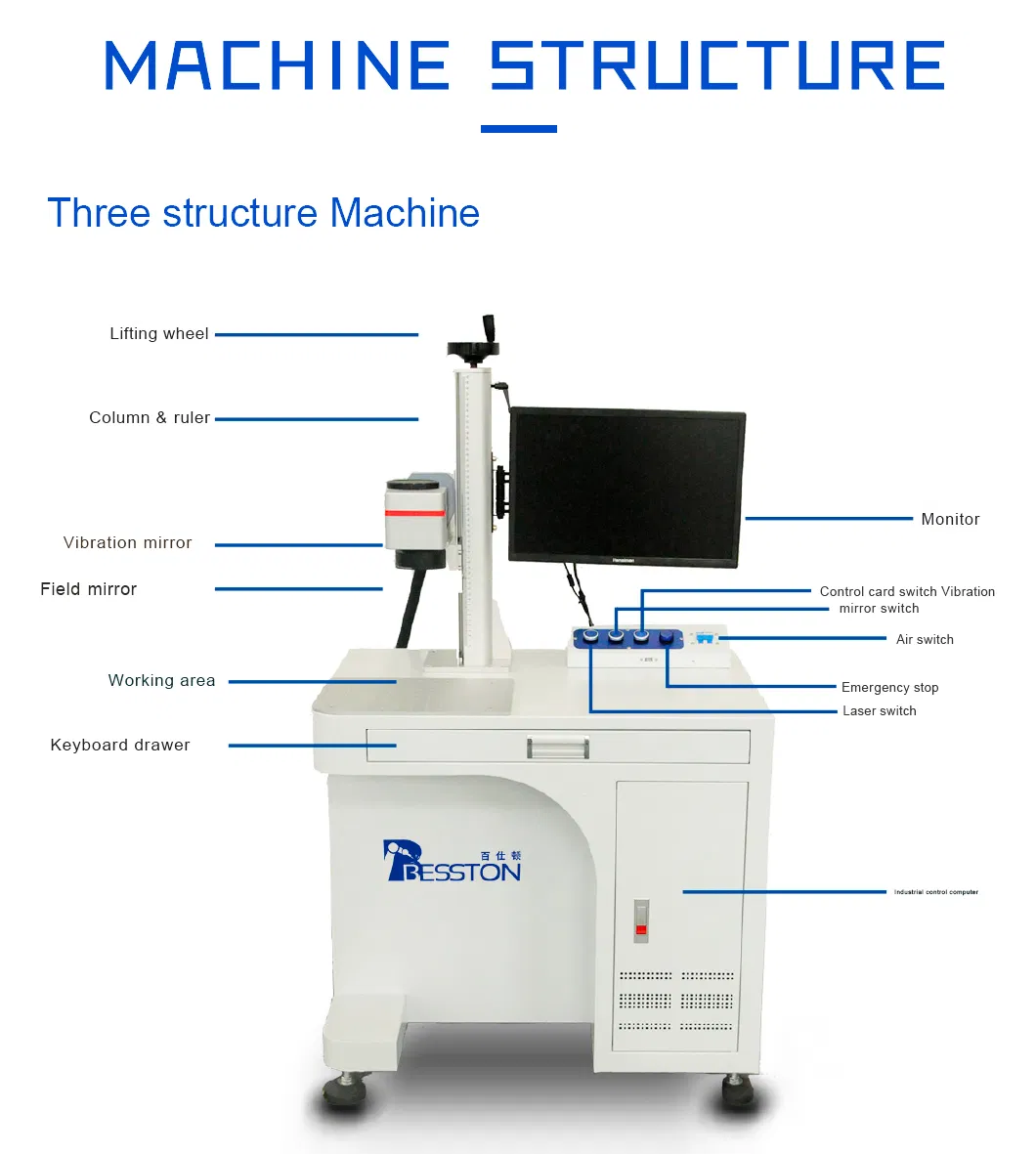

Desktop Laser Equipment
Product Model Comparison
Feature FLM-20W FLM-30W FLM-50W
Average output power20W30W50W
Marking width70mm×70mm | 110mm×110mm | 150mm×150mm | 175mm×175mm
Marking depth0.01-0.4mm0.01-0.4mm0.01-0.6mm
Repeatability0.002mm0.002mm0.002mm
Marking speed>800 standard characters/second
Power supply220V/50HZ/<350W220V/50HZ/<400W
Product Introduction

Fiber laser marking machine is a high-performance laser processing equipment utilizing fiber laser as the core light source. It transmits laser energy through high-quality fiber optics and uses a high-speed galvanometer system for precision engraving, ideal for text, patterns, and QR codes.

  • Fiber Laser: Core component using rare earth-doped fibers for high-stability excitation.
  • Galvanometer System: High-speed X/Y-axis motors for precise beam control.
  • Control System: Advanced software and hardware for easy parameter adjustment.
  • Versatile Workbench: Adaptable platform for workpieces of various shapes and sizes.
Application & Samples
Laser Marking Application Laser Marking Samples
Detailed View
Frequently Asked Questions
What materials can this fiber laser machine mark?
This machine is primarily designed for metal materials, providing high-precision marking on stainless steel, aluminum, brass, and more.
What is the expected lifespan of the laser source?
Fiber lasers are known for their high stability and long service life, typically offering up to 100,000 hours of operation.
Is the cooling system difficult to maintain?
No, the machine uses an air cooling system which is highly efficient and requires minimal maintenance compared to water-cooled systems.
What is the maximum marking speed?
The system can achieve marking speeds of over 800 standard characters per second thanks to its high-speed galvanometer.
Does the machine support rotating marking for cylindrical objects?
Yes, the workbench can be equipped with optional accessories like rotating shafts to adapt to workpieces of different shapes.
What are the power requirements for installation?
The machine operates on a standard 220V single-phase power supply at 50HZ, with power consumption typically under 400W.
