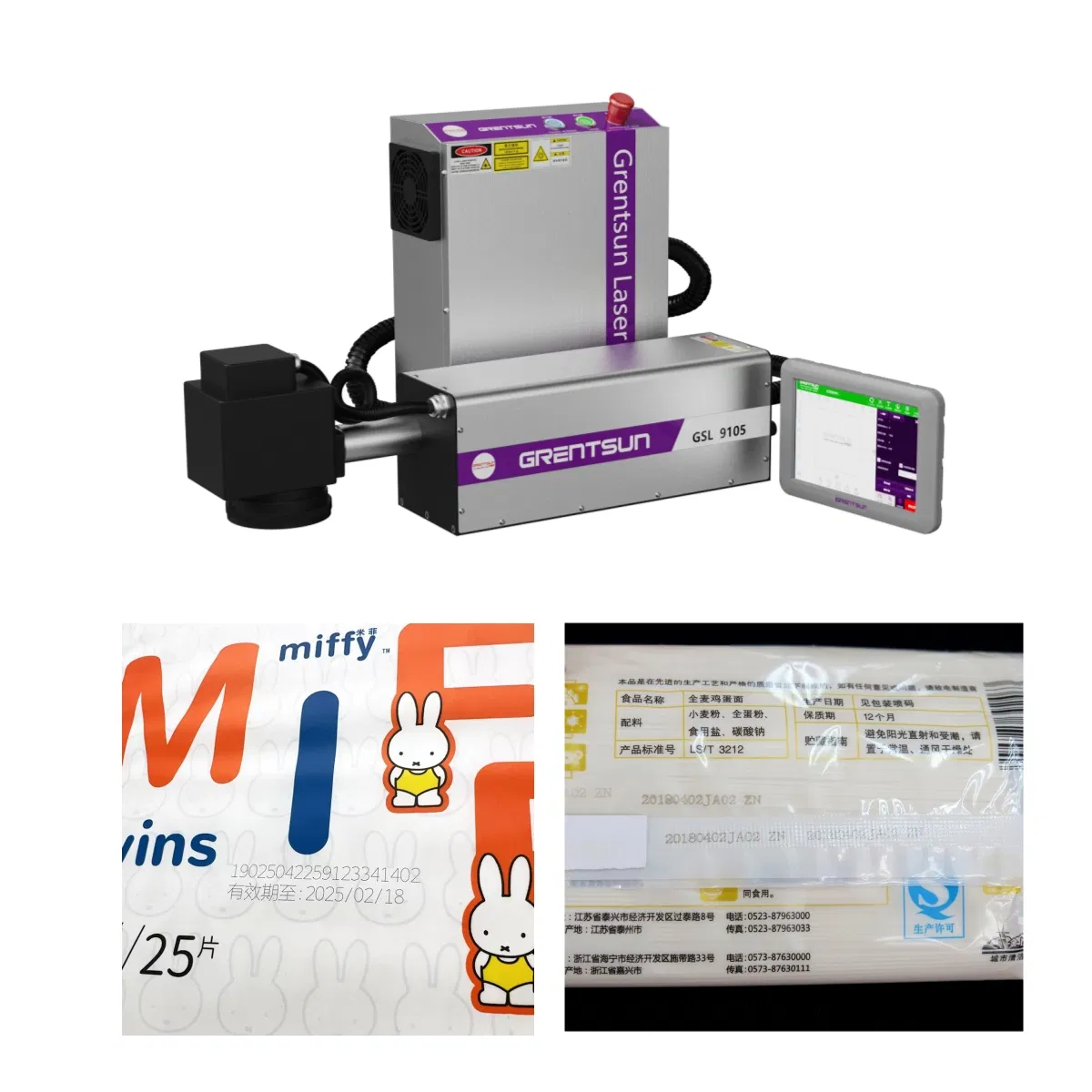

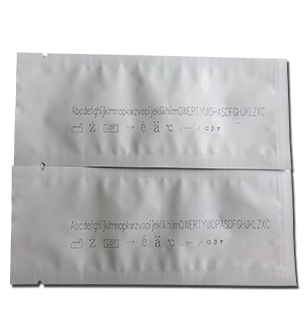

Low MOQ Factory Price Sanitary Pad Laser Coding Machine 5W UV Date Coding System 355nm with High Speed Galvo
Low MOQ Factory Price Sanitary Pad Laser Coding Machine 5W UV Date Coding System 355nm with High Speed Galvo
Low MOQ Factory Price Sanitary Pad Laser Coding Machine 5W UV Date Coding System 355nm with High Speed Galvo
Low MOQ Factory Price Sanitary Pad Laser Coding Machine 5W UV Date Coding System 355nm with High Speed Galvo
Low MOQ Factory Price Sanitary Pad Laser Coding Machine 5W UV Date Coding System 355nm with High Speed Galvo
1 / 5
Low MOQ Factory Price Sanitary Pad Laser Coding Machine 5W UV Date Coding System 355nm with High Speed Galvo
Low MOQ Factory Price Sanitary Pad Laser Coding Machine 5W UV Date Coding System 355nm with High Speed Galvo
Low MOQ Factory Price Sanitary Pad Laser Coding Machine 5W UV Date Coding System 355nm with High Speed Galvo
Low MOQ Factory Price Sanitary Pad Laser Coding Machine 5W UV Date Coding System 355nm with High Speed Galvo
Low MOQ Factory Price Sanitary Pad Laser Coding Machine 5W UV Date Coding System 355nm with High Speed Galvo

Low MOQ Factory Price Sanitary Pad Laser Coding Machine 5W UV Date Coding System 355nm with High Speed Galvo

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Overview
Product Description
Product Parameters
Company Profile

Basic Info.

Model NO.
GSL9105
Laser Visibility
Invisible
Applicable Material
Nonmetal
Cooling System
Water Cooling
Technical Class
Pulse Laser
Laser Wavelength
UV Laser
Laser Classification
Solid Laser
Type
UV Laser Marking Machine
Marking Method
Scanning Marking
Laser Power
3W 5W 10W 15W
Max.Marking Speed
6000mm/S-12000mm/S
Standard Marking Area
110mm*110mm
Laser Source
Jpt
Wavelength
355nm
IP Level
IP54 / IP 65 Optional
Certification
CCC, PSE, FDA, RoHS, ISO, CE

Packaging & Delivery

Package Size
76.00cm * 32.00cm * 92.00cm
Gross Weight
75.000kg
Lead Time
15 days (1 - 10 Pieces)

Product Description

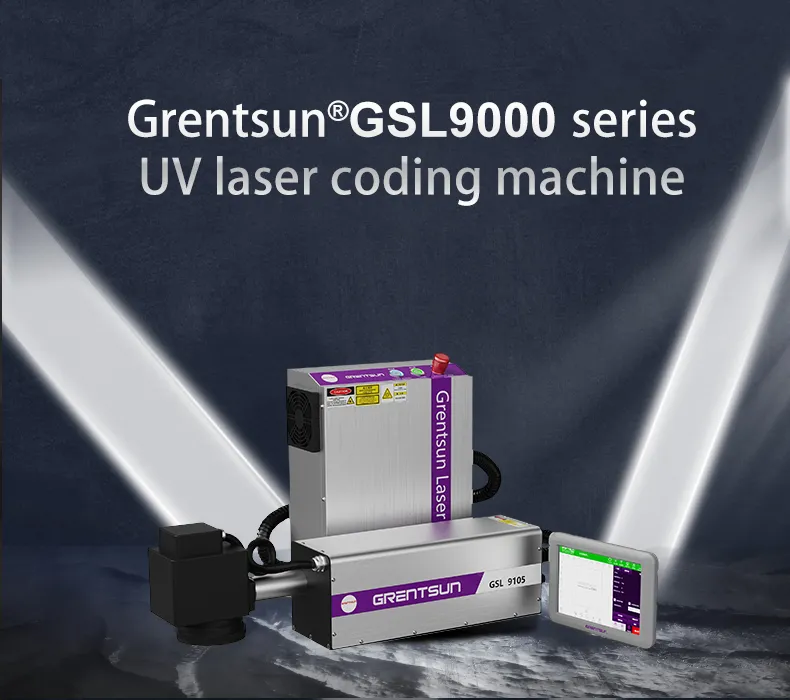

UV Laser Coding Machine 1
UV Laser Coding Machine 2

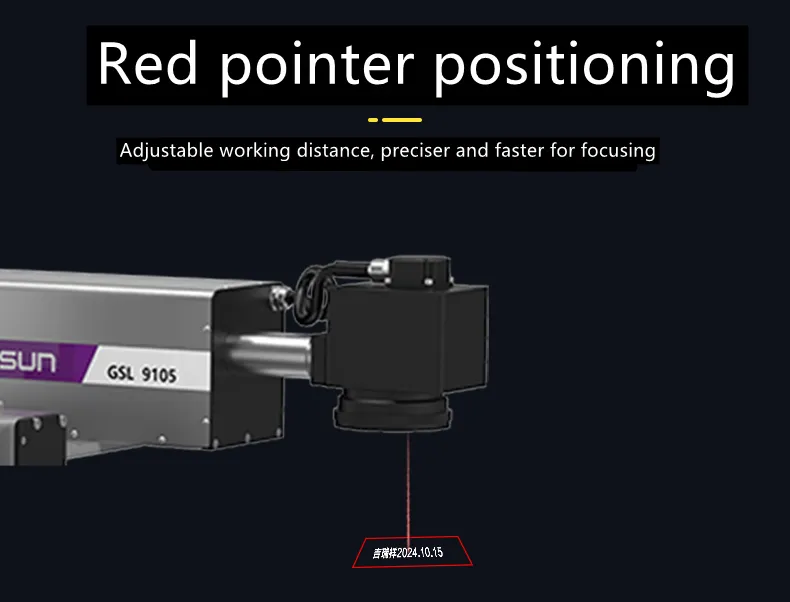

UV Laser Coding Machine 3
UV Laser Coding Machine 4

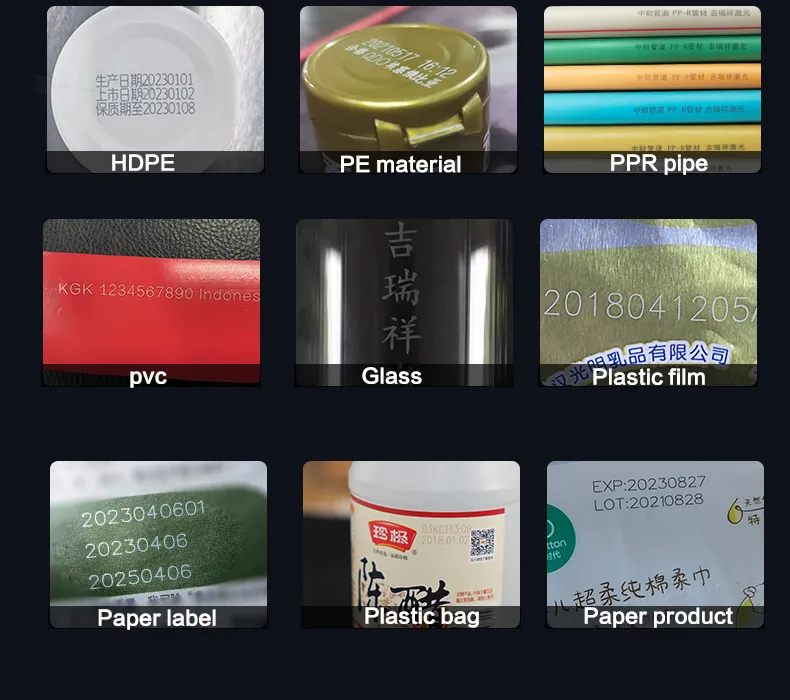

UV Laser Coding Machine 5
UV Laser Coding Machine 6
UV Laser Coding Machine 7
UV Laser Coding Machine 8

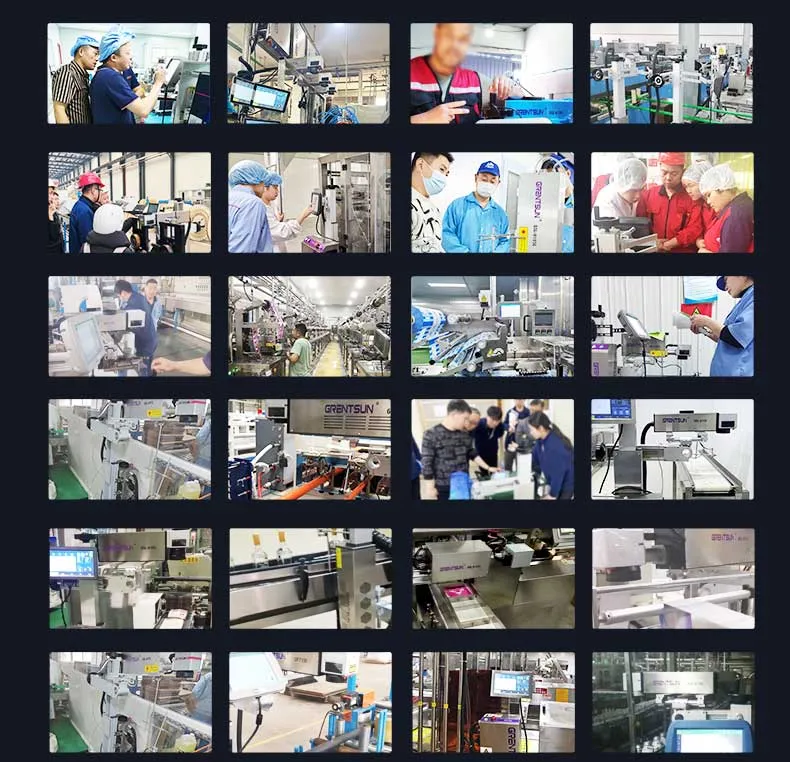

UV Laser Coding Machine 9

Product Parameters

Name of SeriesGSL9000 series laser coding machine
Laser Power3W/5W/10W/15W
Working environment5-40'C(41-104°F)10%-90% No densation
Laser Wavelength355nm
Laser Beam QualityM2:<1.2
Repeat Positioning Accuracy0.003mm
Min.Linear Width0.01mm
Marking Depth0.01-1mm(varies with material)
Max.Marking Speed12000mm/s
Standard Marking Area110*110mm
Ranted Power<800W
Rated Voltage220V/50HZ/15A & 110V/50Hz/15A
CoolingWater Cooling/Air Cooling
Lifetime of source25,000hrs-30,000hrs
Warranty1 year for complete machine, 2 years for core parts

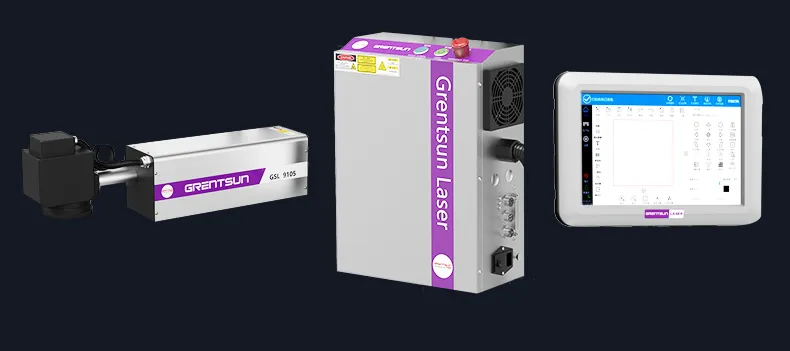

Technical Drawing 1

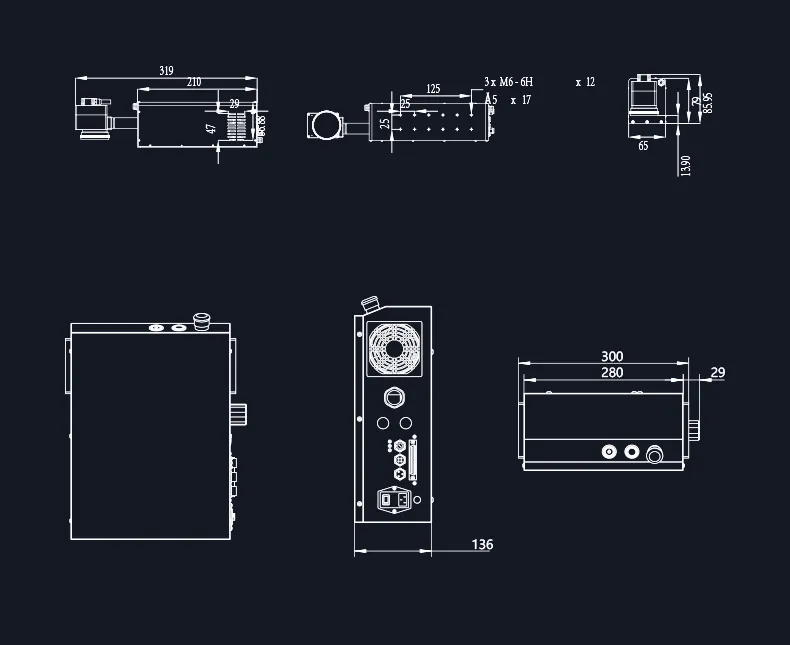

Technical Drawing 2
Technical Drawing 3

Company Profile

Company View 1
Company View 2
Company View 3

Frequently Asked Questions

How can I get the most suitable and best machine for me?
Please contact our customer service and let them know what material you want to process and your detailed usage. Our professional team will provide instructions and recommendations based on extensive technician and engineer experience.
Compared with other suppliers, what is your machine's advantage?
We use top-tier components like Raycus laser sources (offering a 2-year warranty) and original BJ Jcz control cards for stable performance and Win10 support. We also utilize genuine EZCAD software for powerful functionality.
What are the available payment methods?
We accept Telegraphic Transfer (T/T) to our official company bank account, Western Union (WU), and trade insurance orders.
Is the machine easy to operate for a first-time user?
Yes, the EZCAD software is very user-friendly. We provide comprehensive manuals and guide videos. Additionally, our technicians can assist via "Teamviewer" online help software or phone/email if needed.
What is the guarantee in case of a breakdown?
The whole machine has a 1-year warranty, and the Raycus laser source has a 2-year warranty. We replace non-consumable parts for free if issues are caused by quality faults, guided by our technician's troubleshooting.
What should I do if the machine has a problem at my location?
Under normal use within the warranty period, we will send free replacement parts and our technicians will provide sincere guidance to solve the problem.
