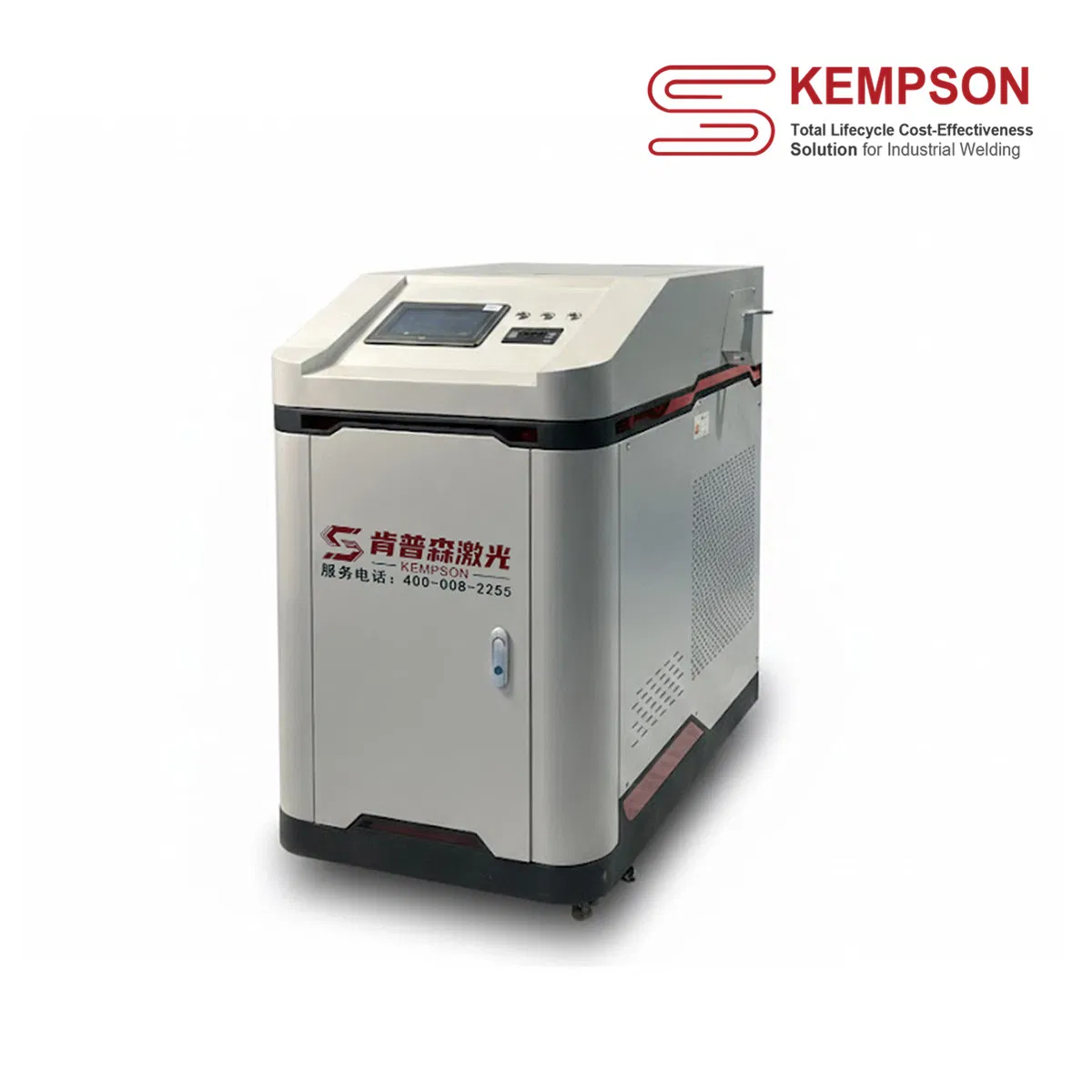

3000W Water-Cooled Fiber Laser Welding System for Power Industry Equipment CE Certified
3000W Water-Cooled Fiber Laser Welding System for Power Industry Equipment CE Certified
3000W Water-Cooled Fiber Laser Welding System for Power Industry Equipment CE Certified
3000W Water-Cooled Fiber Laser Welding System for Power Industry Equipment CE Certified
3000W Water-Cooled Fiber Laser Welding System for Power Industry Equipment CE Certified
1 / 5
3000W Water-Cooled Fiber Laser Welding System for Power Industry Equipment CE Certified
3000W Water-Cooled Fiber Laser Welding System for Power Industry Equipment CE Certified
3000W Water-Cooled Fiber Laser Welding System for Power Industry Equipment CE Certified
3000W Water-Cooled Fiber Laser Welding System for Power Industry Equipment CE Certified
3000W Water-Cooled Fiber Laser Welding System for Power Industry Equipment CE Certified

3000W Water-Cooled Fiber Laser Welding System for Power Industry Equipment CE Certified

Customization: Available
After-sales Service: Service Networks Are Established Worldwide
Warranty: 3-Year Warranty for The Entire Machine
Send Inquiry

Product Description

Basic Information
Application
Electronic Industry, Automotive Industry, Manufacturing Industry, Sheet Metal Industry
Technical Class
Continuous Wave Laser
Control
Manual
Power Density
Deep Fusion Welding
Laser Classification
Optical Fiber Laser
Laser Power
3000W / 4000W
Weld Bead Width
8mm
HS Code
8515809090
Product Description
Fiber Laser Welding System
The dedicated water-cooled laser welding machine for thick plates breaks through industry bottlenecks, enabling single-stroke welding of thick materials. This equipment is compatible with single-wire, dual-wire, and triple-wire processes, designed for high-load production environments. Featuring an independently developed core welding system, it offers one-time forming without secondary grinding, significantly reducing operational costs and supporting 24/7 continuous operation.

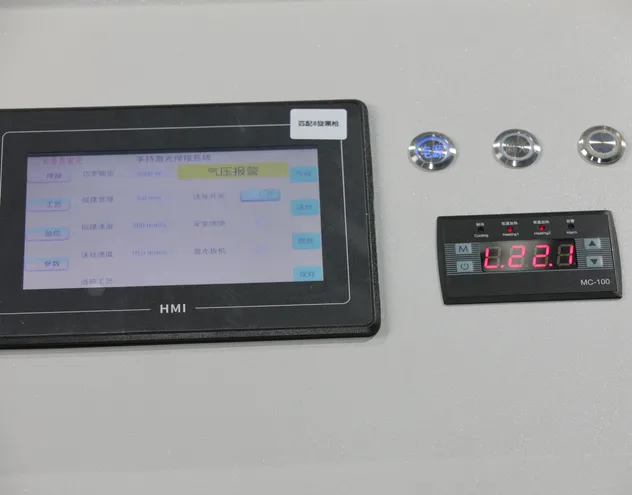

Welding Detail 1

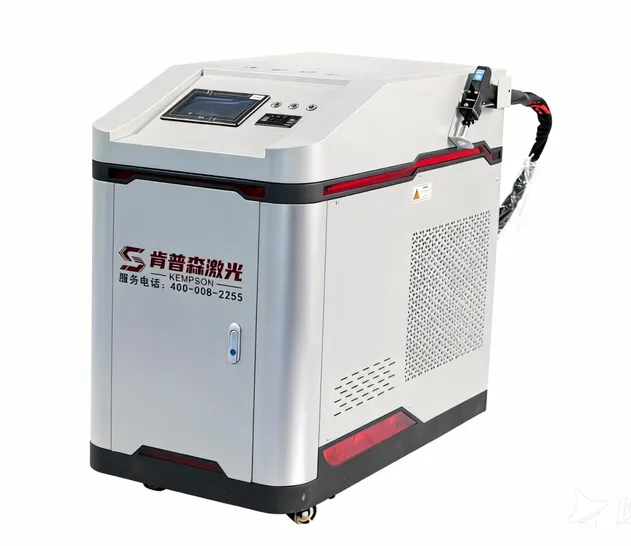

Welding Detail 2

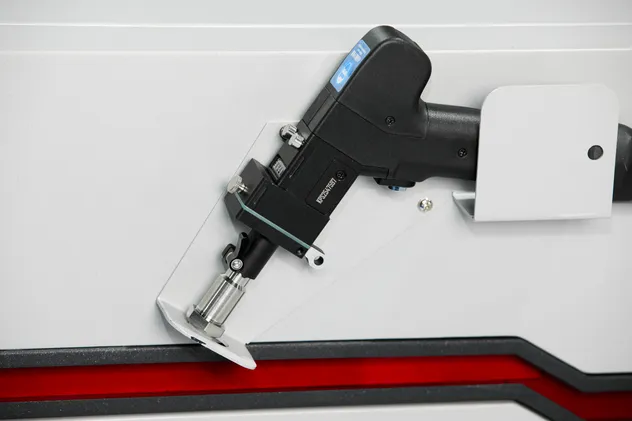

Welding Detail 3
Key Features: Efficient water circulation for 24/7 operation; Uniform weld spots with zero damage; Widened bead up to 8mm; Deep penetration for 0.5-12mm plates.
Versatility: Three-mode switching with single, dual, or triple wire feeding options. One machine handles both thin and thick plates effortlessly.
Technical Specifications
Model KPS-LHW3000 KPS-LHW4000
Laser Power 3000W 4000W
Stainless Steel (Fillet Weld) 9mm 11mm
Carbon Steel (Welding Seam) 10mm 12mm
Aluminum Alloy (Welding Seam) 8.5mm 10.5mm
Wire Diameter Φ0.8—2.0mm Φ0.8—2.0mm
Cooling Method Water-cooled Water-cooled
Equipment Weight ≈235kg ≈250kg
Equipment Size 1.12 * 0.58 * 0.88m

* Standard 10-meter fiber optic cable included for flexible long-distance welding.

Core Components & Structure

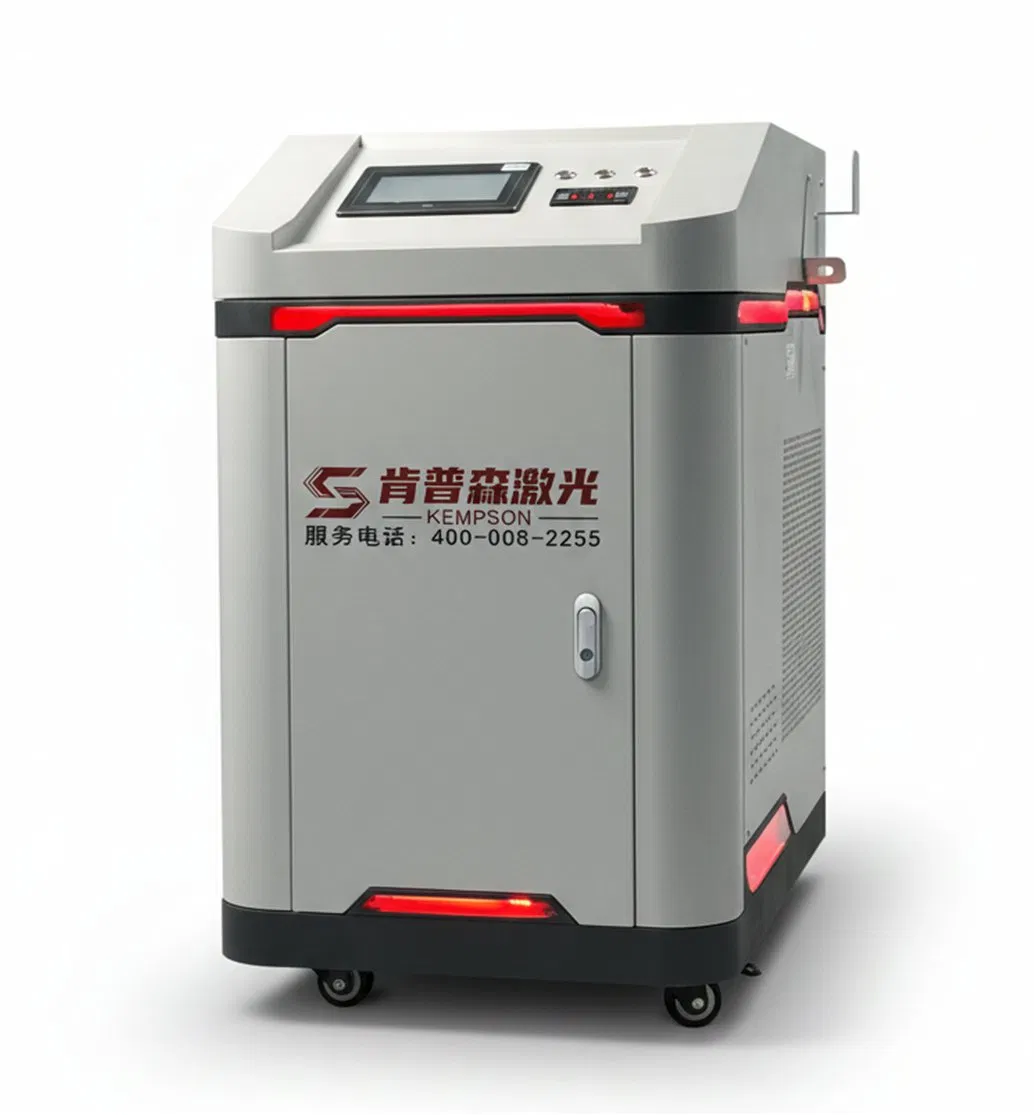

Structure Diagram
  • 1. High Reflection Laser Source: Stable energy-saving chip.

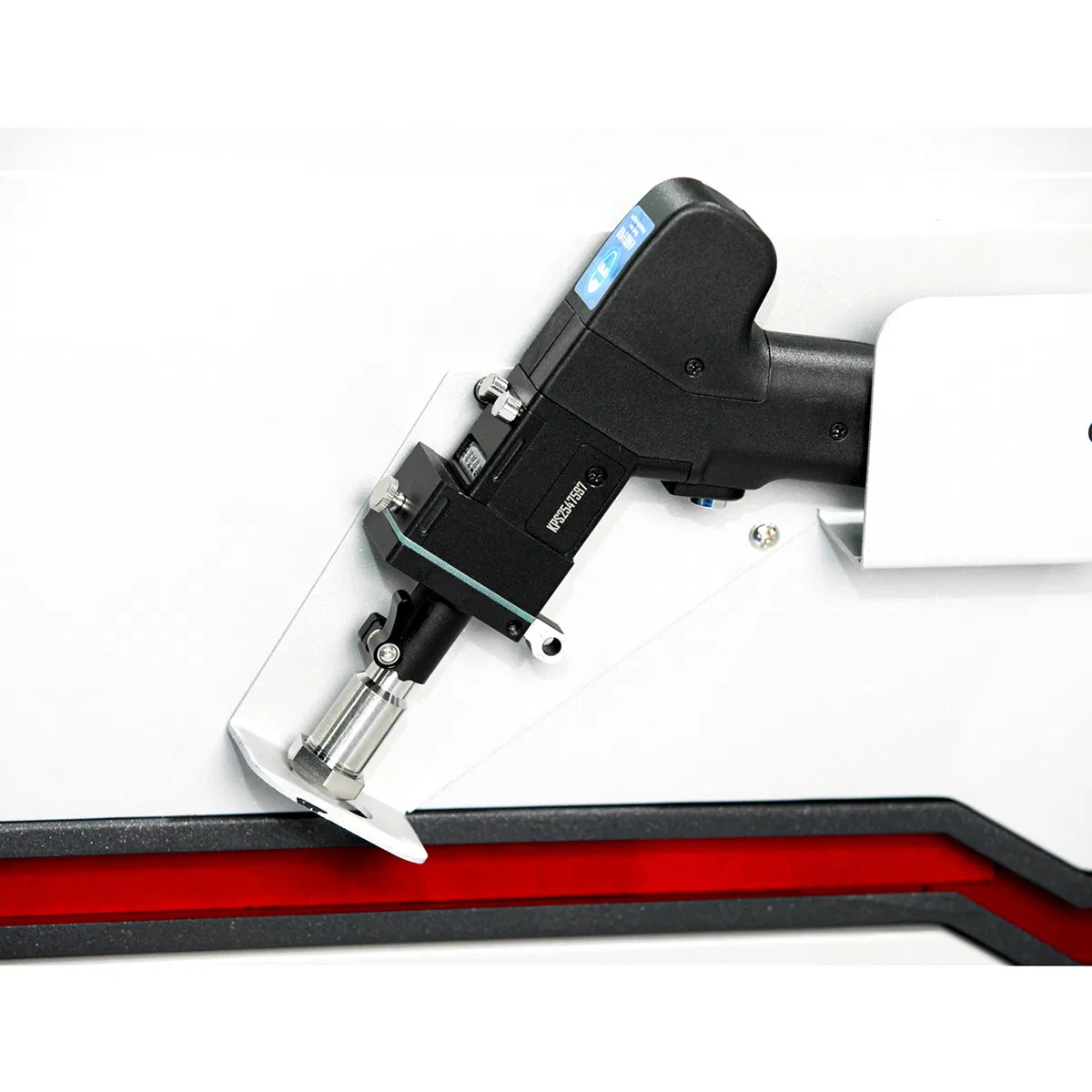

  • 2. Anti-spatter Torch: Reusable lenses to minimize costs.
  • 3. Protection System: Filters power supply clutter.
  • 4. Cooling System: Military-grade heat dissipation.

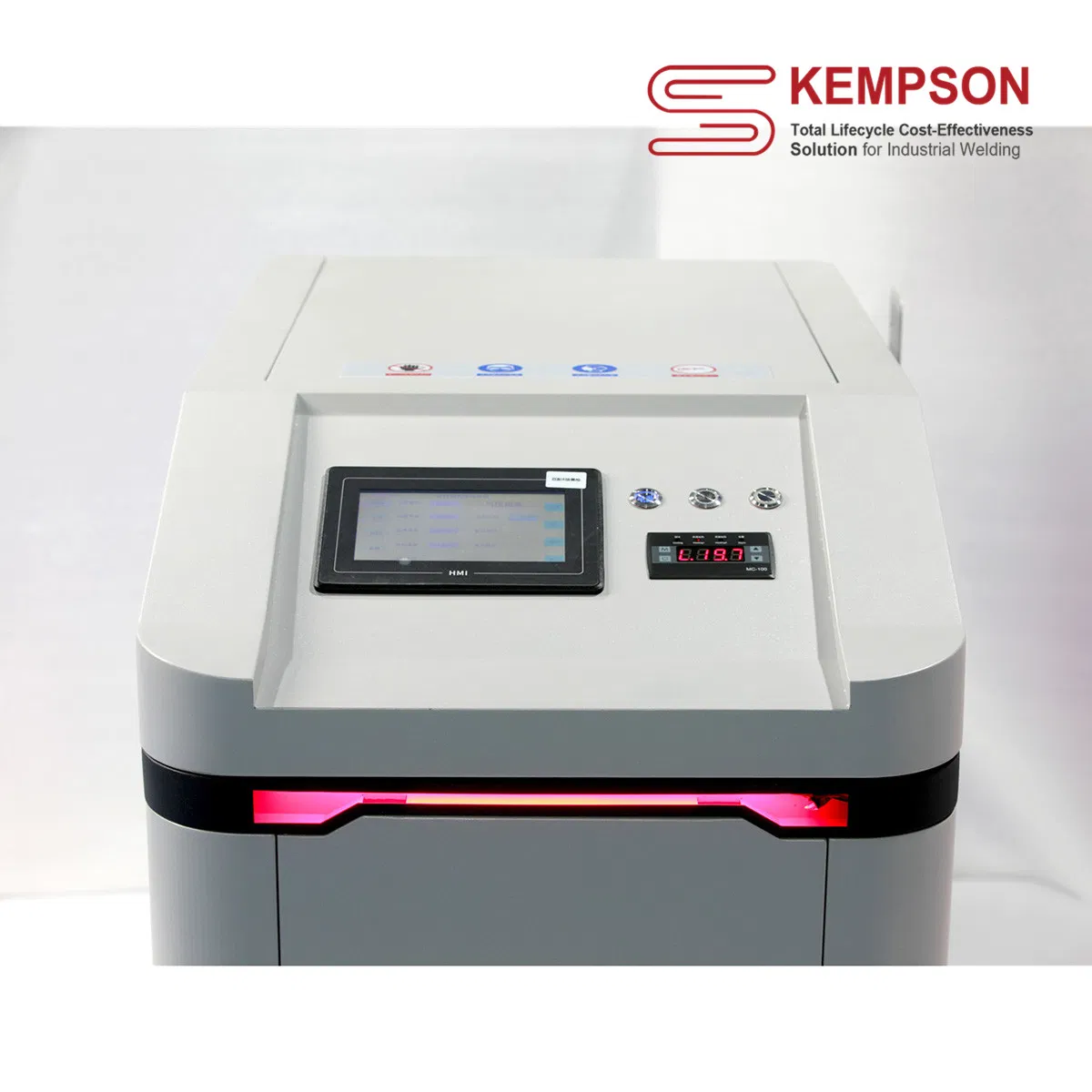

  • 5. Control System: Intelligent Schneider components.
  • 6. Wire Feeder: Four-wheel drive for precision.
Professional Engineering
Specializing in R&D and production of high-power laser welding equipment, our systems focus on heavy-duty industrial applications. With over 30 core patents and intensive testing, our technology ensures protective lens longevity up to 8x the industry average. Our 4000W-6000W systems set benchmarks in construction, shipbuilding, and machinery manufacturing by providing one-pass penetration on 8mm steel plates.

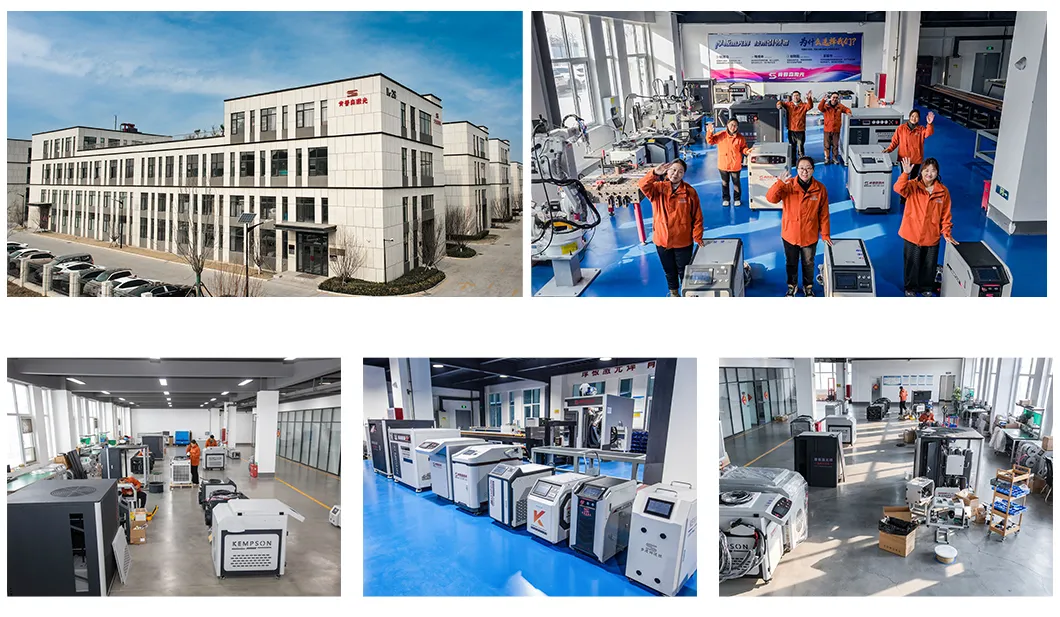

Cert 1
Cert 2
Frequently Asked Questions
Q: How do I select the right laser welding model?
A: Selection depends on your material (Carbon steel, SS, Aluminum), the maximum thickness required, and your daily operating duration to ensure stable configuration.
Q: What is the lead time after payment?
A: For standard configurations, equipment is typically shipped within 5-7 working days after payment confirmation.
Q: Is operational training provided?
A: Yes, we provide a full set of standardized support including electronic user manuals, video guides, and 24/7 online technical assistance.
Q: What is the warranty policy?
A: All equipment comes with a 3-year comprehensive warranty. During this period, original spare parts for non-human failures are provided free of charge.
Q: Which payment methods are accepted?
A: We support various secure methods including Telegraphic Transfer (T/T), L/C, VISA, Western Union, and online bank transfers.
Q: How is the equipment protected during shipping?
A: We use professional fumigation-free solid wood cases with internal shock-absorbing materials to ensure safety during sea or air freight.
