Automatic 6-Axis Laser Welding Robot System for Automotive Parts Sheet Metal and Battery Tray Welding

Customization:	Available
After-sales Service:	Yes
Warranty:	Yes

■Basic Info.

Application

Metal, Stainless Steel, Aluminum

Technical Class

Continuous Wave Laser

Control

Automatic

Power Density

Heat Conduct Welding

Laser Classification

Optical Fiber Laser

Type

Automatic Laser Welding Machine

Laser power

1500W / 2000W / 3000W / 6000W

Welding Depth

0.5-8mm

Welding Speed

>100 mm/S

Cooling System

Water Cooling System

■Product Description

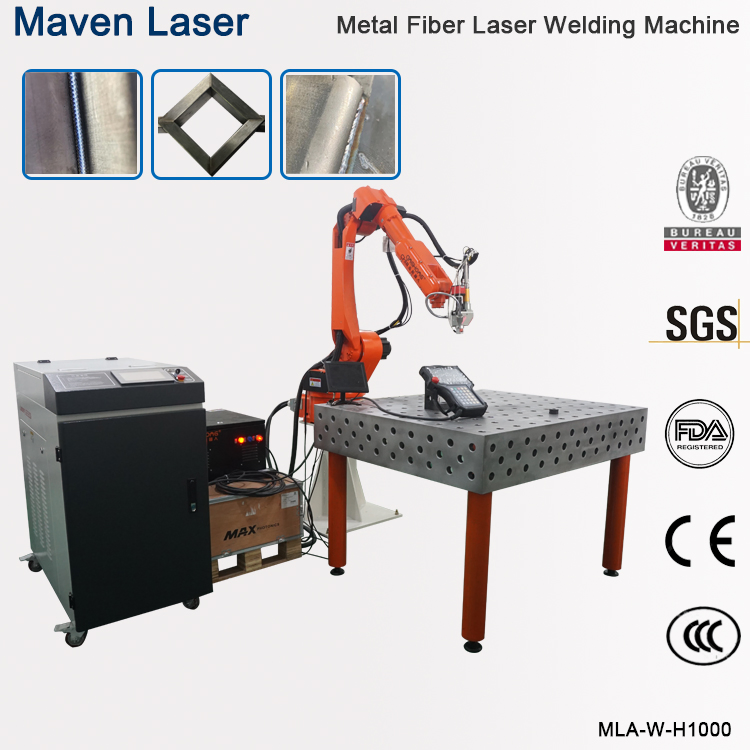

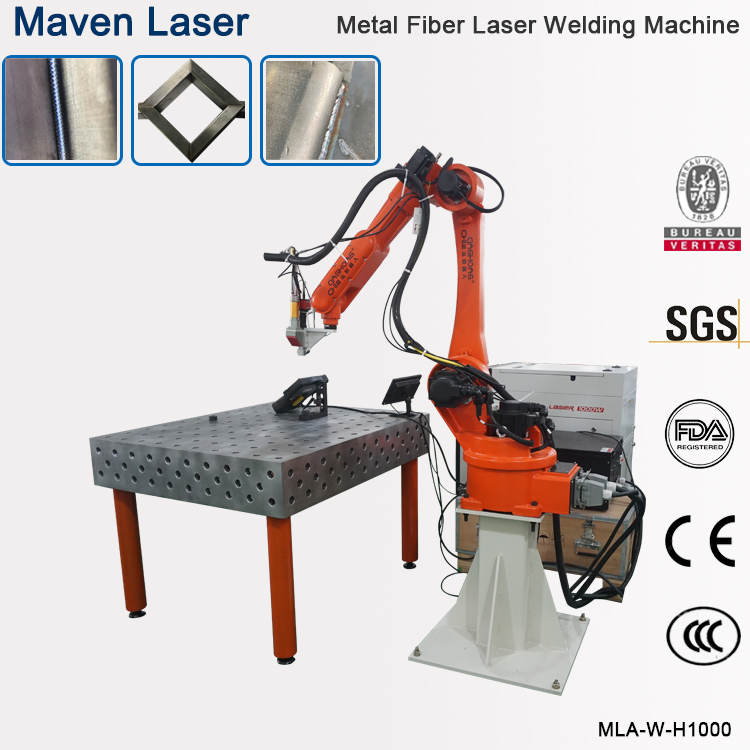

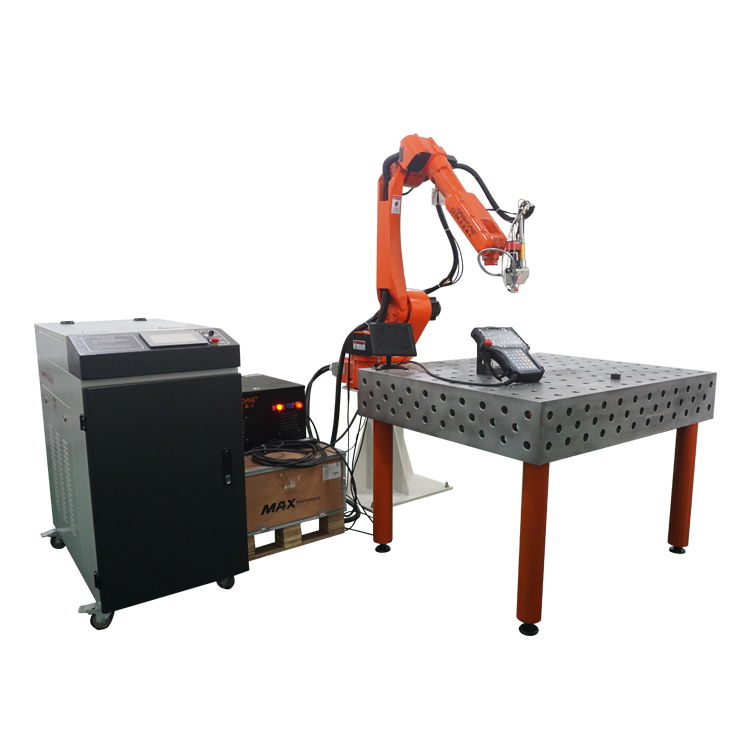

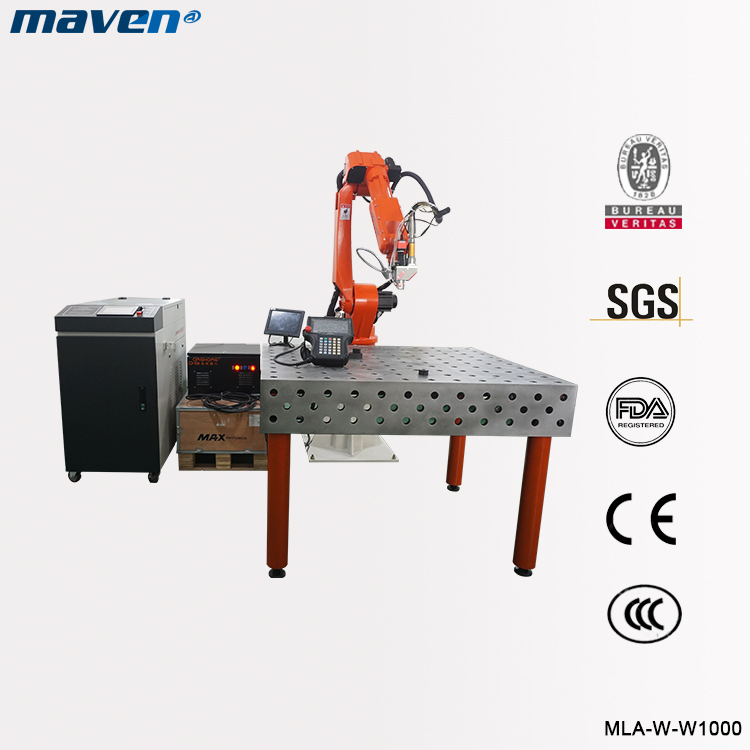

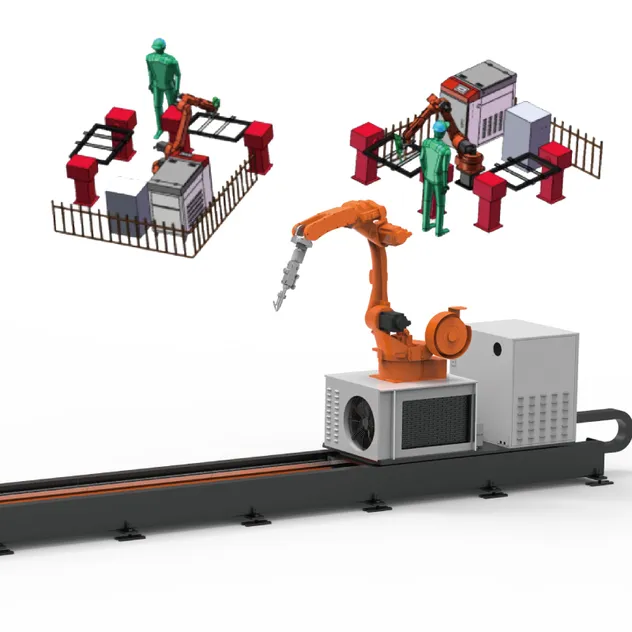

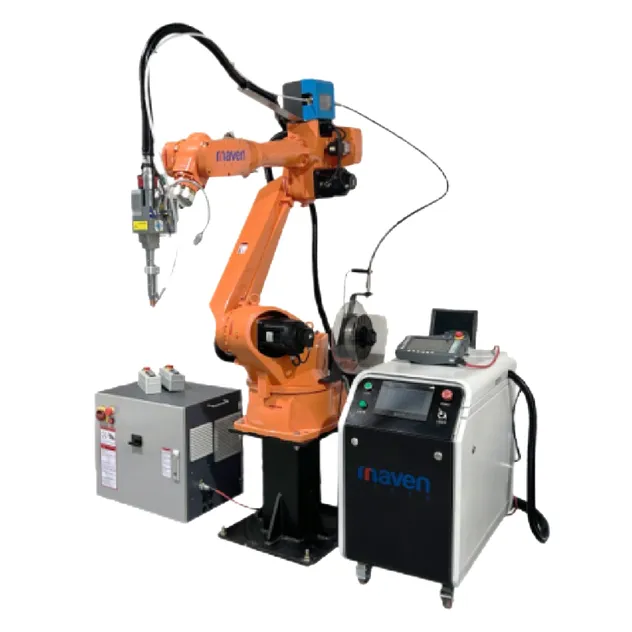

High Precision 6 Axis Robotic Automatic Fiber Laser Welding Machine

This robotic laser welding machine utilizes a fiber laser coupled with a robotic arm as a moving platform for welding. It enables spatial trajectory welding, providing maximum flexibility for parts that are difficult to access with ordinary machines. The laser beam can be split in time and energy, allowing for simultaneous processing and significantly improved productivity.

■Technical Specifications

Product Name	Robot Automatic Laser Welding Machine
Wavelength	1070+/-10 nm
Laser Power	1000W / 1500W / 2000W / 3000W
Weld Thickness	0.5-6 mm
Speed Range	0-120 mm
Welding Gap	< 1 mm
Working Temperature	15-35 ℃
Power Supply	220V/50HZ/30A
Cooling Method	Water Chilled Inbuilt
Machine Size	9905401030 mm

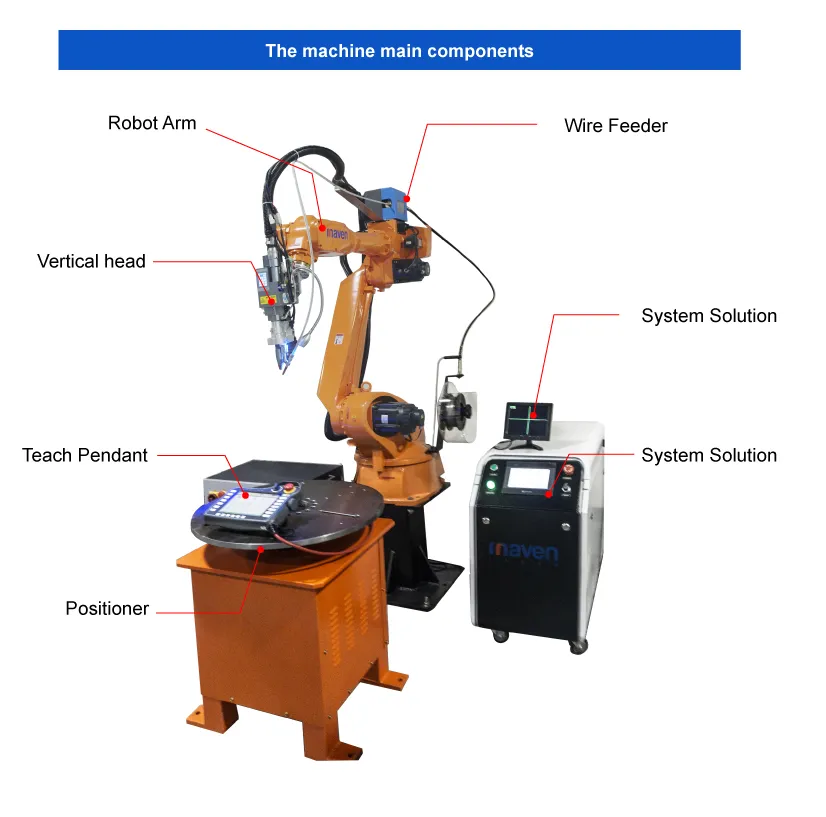

★Equipment Features

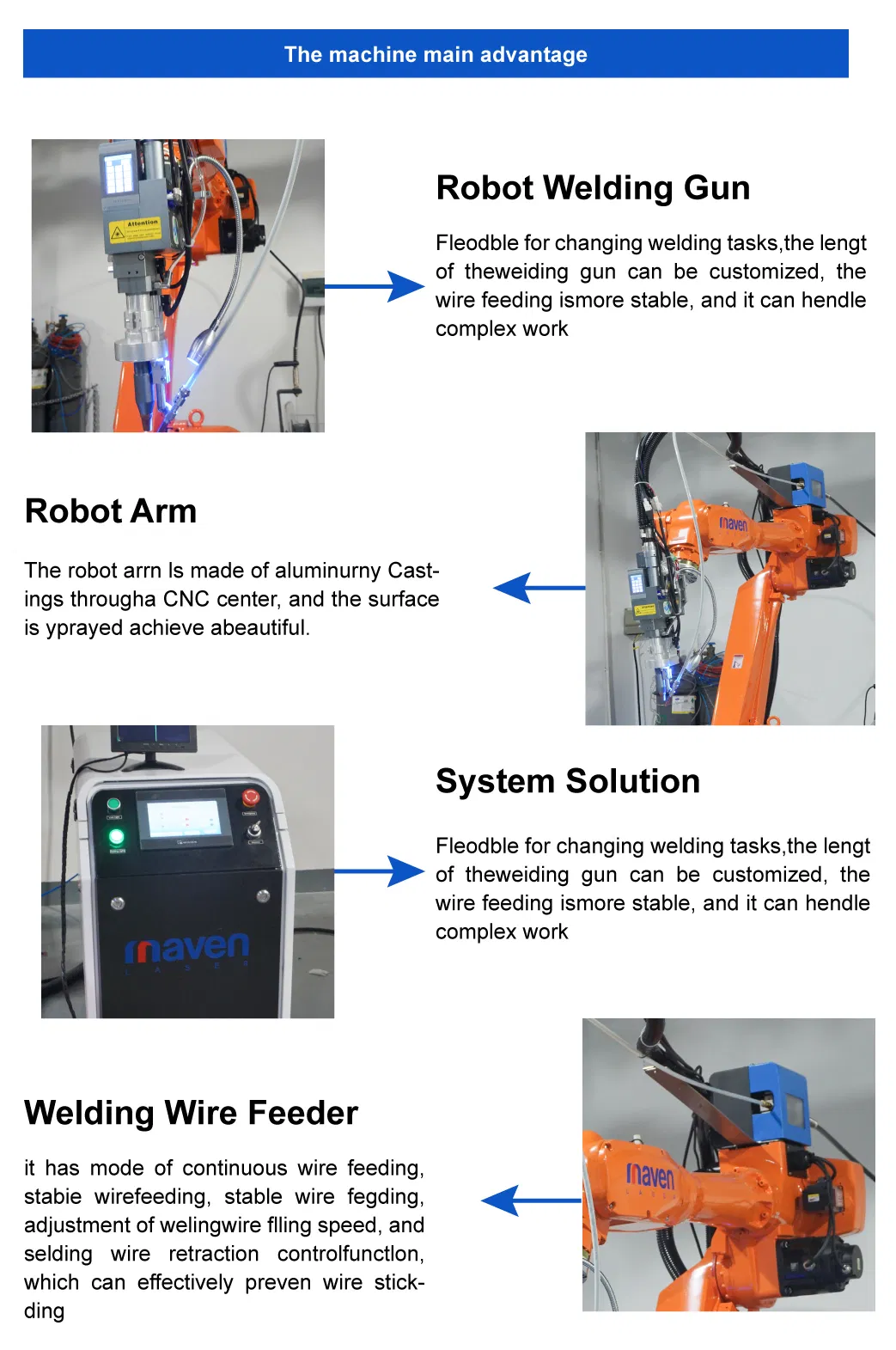

Robotic Movement: Suitable for large-format space welding with six-axis linkage.
Trajectory Realization: Enables automatic welding of any complex trajectory in 3D space.
High Accuracy: High repetition accuracy ensures stable welding quality over multiple runs.
Safety & Efficiency: Replaces manual operation in complex and dangerous welding fields.

⚙Application Areas

Auto body construction, auto steel plates, clutch plates, microelectronic components, precision parts, fiber optic connectors, medical devices, large mold welding, and injection molding industries.

?Frequently Asked Questions

What is the power of the laser spot welder, and can it weld gold and silver?

It features high power options up to 200W/2000W and can efficiently weld gold and silver without requiring painting.

What cooling method does the system adopt?

The system utilizes air cooling with water circulation and is equipped with intelligent temperature control for stable operation.

What vision systems are available for precise alignment?

The system is equipped with dual vision systems, including a high-definition display and a microscope for high-precision alignment.

Can the welding machine work continuously?

Yes, the machine is designed for industrial durability and can work continuously for 24 hours.

What is the maximum laser pulse energy for precision welding?

The maximum laser pulse energy can reach 140J, with a small point pulse that meets rigorous precision welding needs.

What materials and fields are applicable?

It is widely applicable to jewelry, eyewear, dentures, auto parts, and medical devices, working effectively on gold, silver, platinum, and various metals.
