STYRL Laser
1 / 5
| Model NO. | FB-20/30/50W UV-5W CO2-30/60W | Laser Visibility | Invisible |
|---|---|---|---|
| Applicable Material | Metal and Nonmetal | Cooling System | Air / Water Cooling |
| Technical Class | Pulse Laser | Laser Wavelength | 1064nm, 355nm, 10.6μm |
| Type | 3D Laser Marking Machine | Marking Method | Scanning Marking |
| Power Options | 10W, 20W, 50W, 60W, 100W, 120W | Origin | Anhui, China |
| Package Size | 1250.00cm * 1000.00cm * 1250.00cm | Gross Weight | 140.000kg |

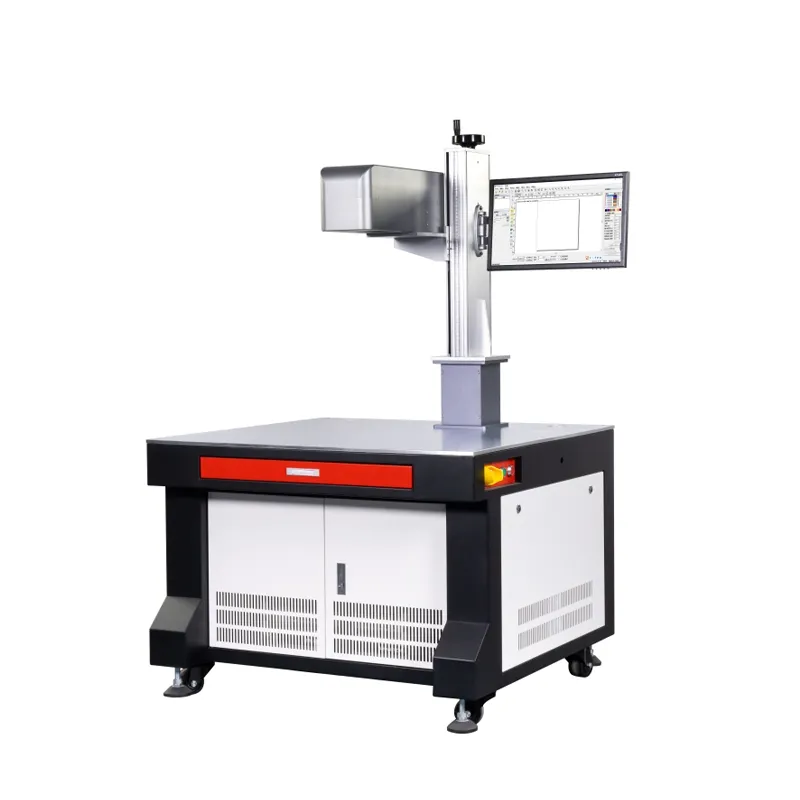

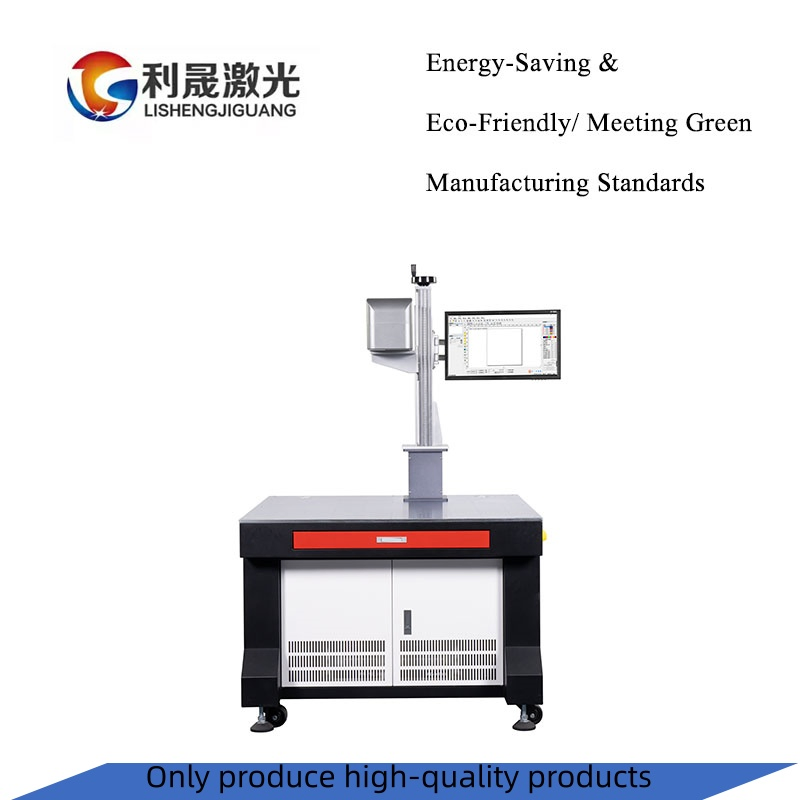

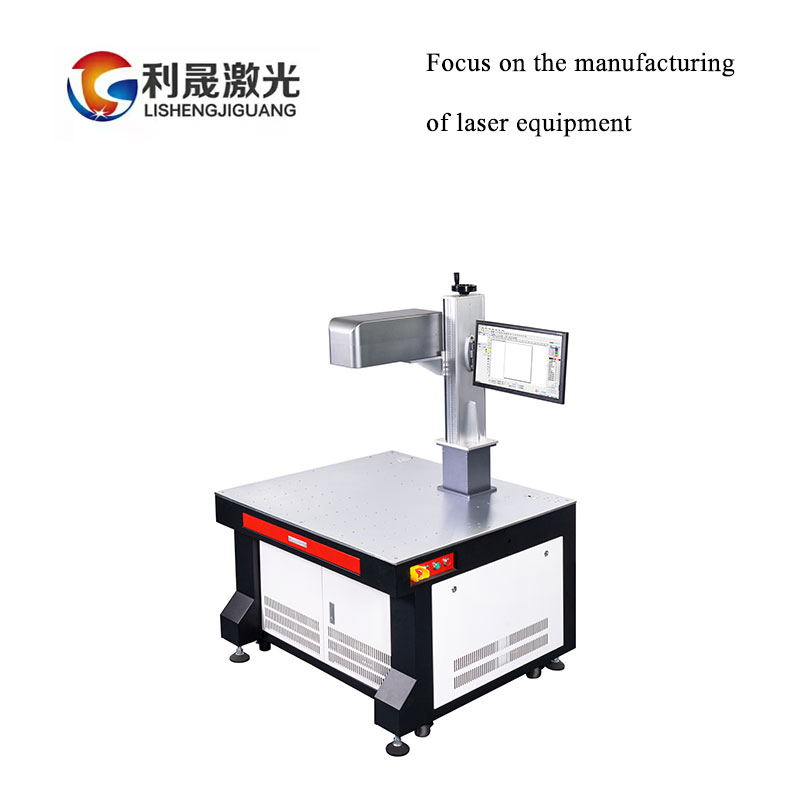

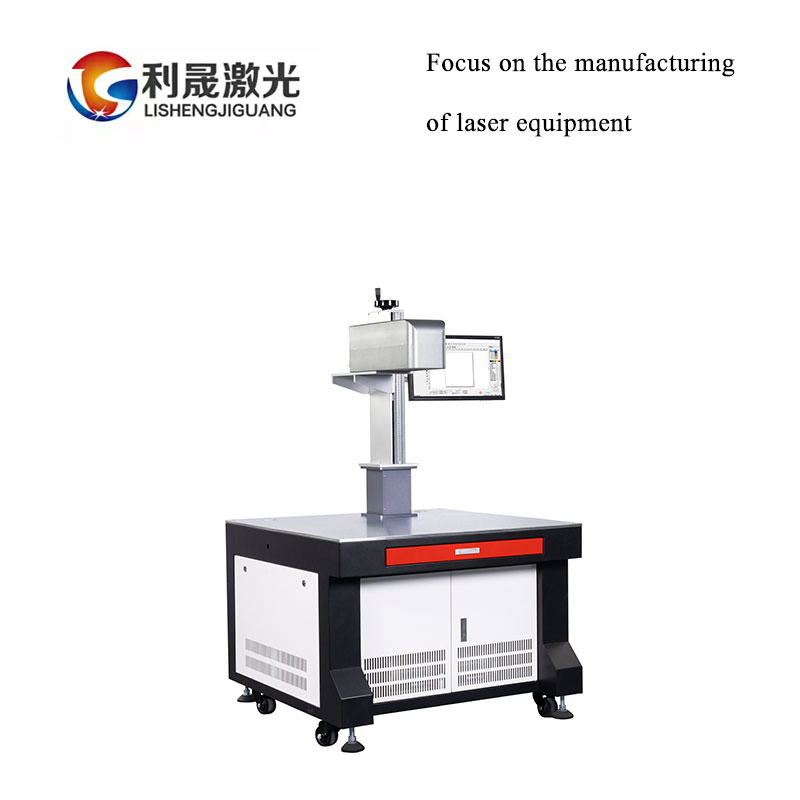

The 3D Laser Marking Machine is a high-precision laser processing equipment developed to meet special marking needs such as long automotive interior parts, 3D curved objects, and multi-plane marking. Unlike traditional 2D marking which is limited to flat surfaces, our 3D system utilizes an advanced pre-focusing method and dynamic focusing mount.
Through sophisticated software control and dynamic lens movement, the system performs variable beam expansion before focusing. This allows the machine to adjust its focal length in real-time, achieving accurate surface processing on objects of varying heights and complex geometries.
| Model Parameter | LS-3DFB (Fiber) | LS-3DUV (UV) | LS-3DCO2 (CO2) |
|---|---|---|---|
| Wavelength | 1064nm | 355nm | 10.6um |
| Aperture Diameter | 10/20/30 mm | 10 mm | 30 mm |
| Deflection Angle | ±11° | ±10° | ±11° |
| Repeat Marking Angle | 8 μrad | 8 μrad | 8 μrad |
| Processing Speed | 350 char/sec | 600 char/sec | 350 char/sec |
| Working Range (mm) | 100x100 to 1000x1000 | 125x125 to 400x400 | 300x300 to 1200x1200 |
Perfectly suited for special-shaped products including curved, inclined, and irregular surfaces. Wide application in 3C manufacturing, automotive parts, medical devices, hardware tools, and precision machinery. Ideal for refined needs like relief engraving and large-format marking.
