CNC Laser Engraver/Medical Tools Engraving 20W Fiber Laser Marking Machine Price

Customization: Available
After-sales Service: 2 Years (Help Service Is for Whole Life)
Warranty: 2 Years (Help Service Is for Whole Life)

Product Description

Basic Information
Model NO.USJ-20w/30w/50w/100wLaser VisibilityVisible
Applicable MaterialMetal and Non-MetalCooling SystemAir Cooling
Technical ClassPulse LaserLaser WavelengthFiber Laser
TypeOptical Fiber Laser Marking MachineMarking MethodMask Pattern Marking
Power BrandRaycus (Optional: Ipg, Max, Jpt)Laser Wave Length1064nm
Laser Life100,000 HoursLaser Power20W (Optional: 30W/50W/100W)
Marking Area110X110mm/200X200mmSoftwareOriginal Ezcad
Control CardOriginal BjjczWindows System7/8/10

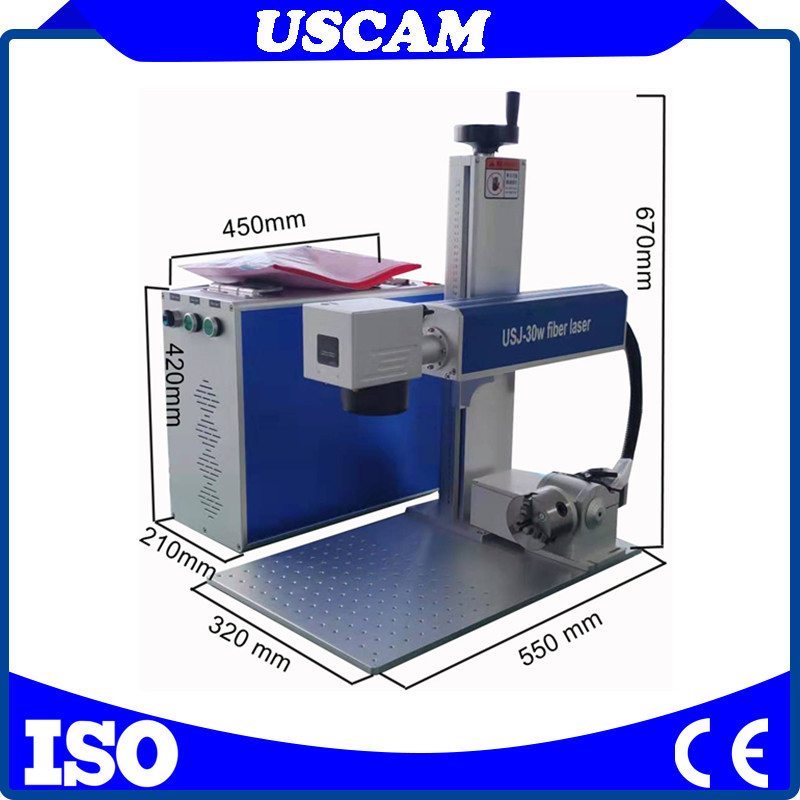

Voltage110V/220V/50Hz/60HzWeight/Size55kg / 770X470X700mm
Product Description

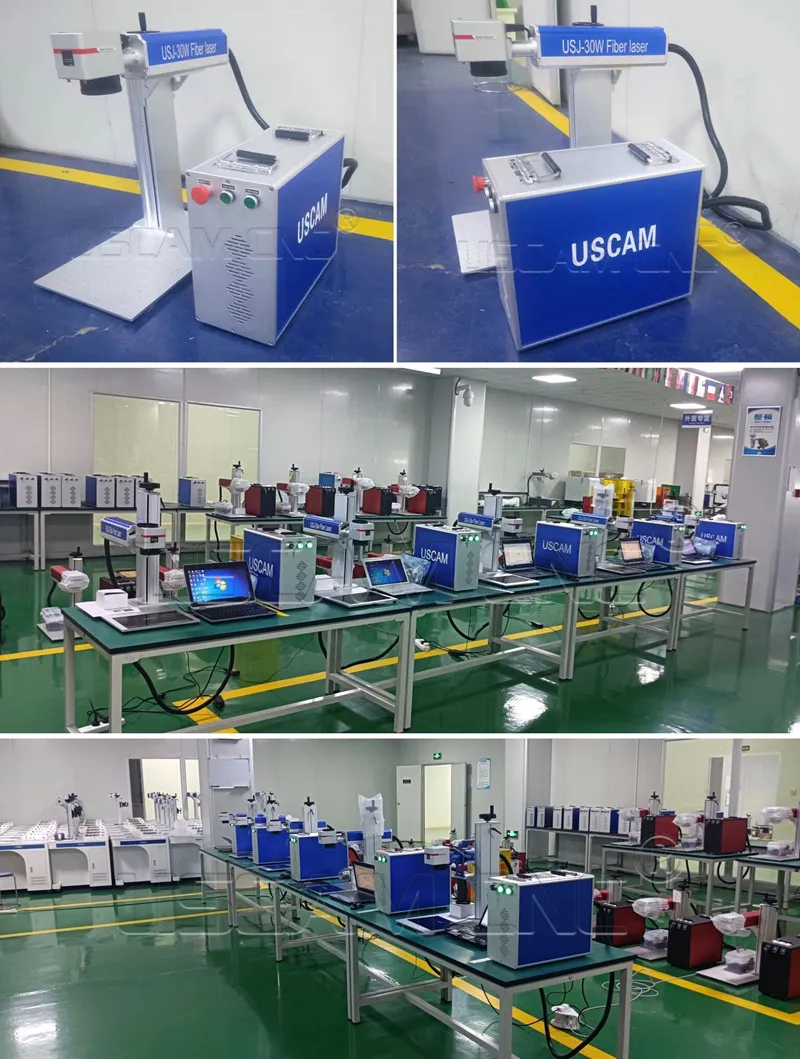

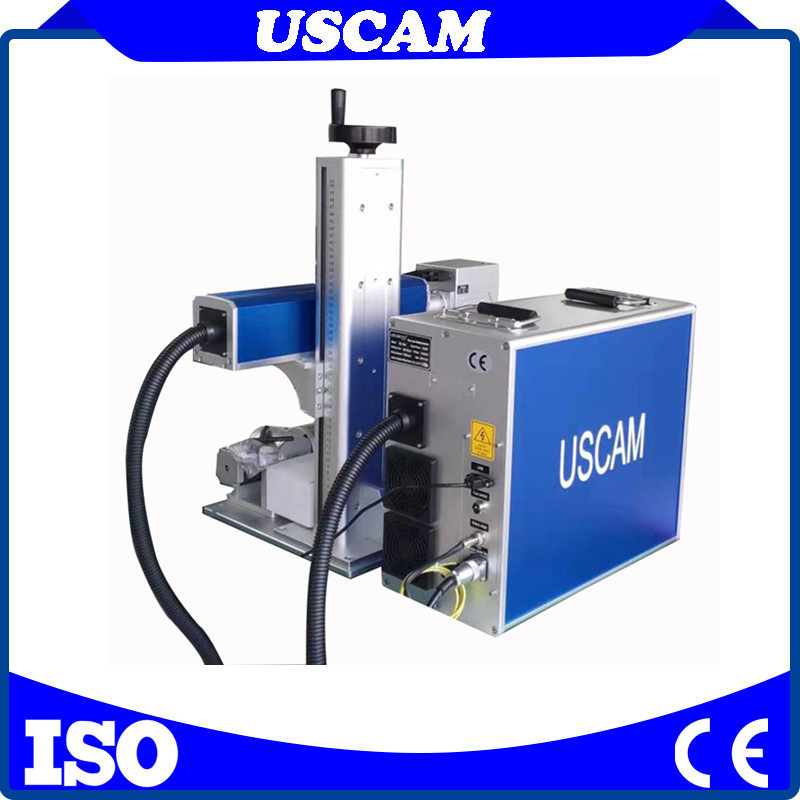

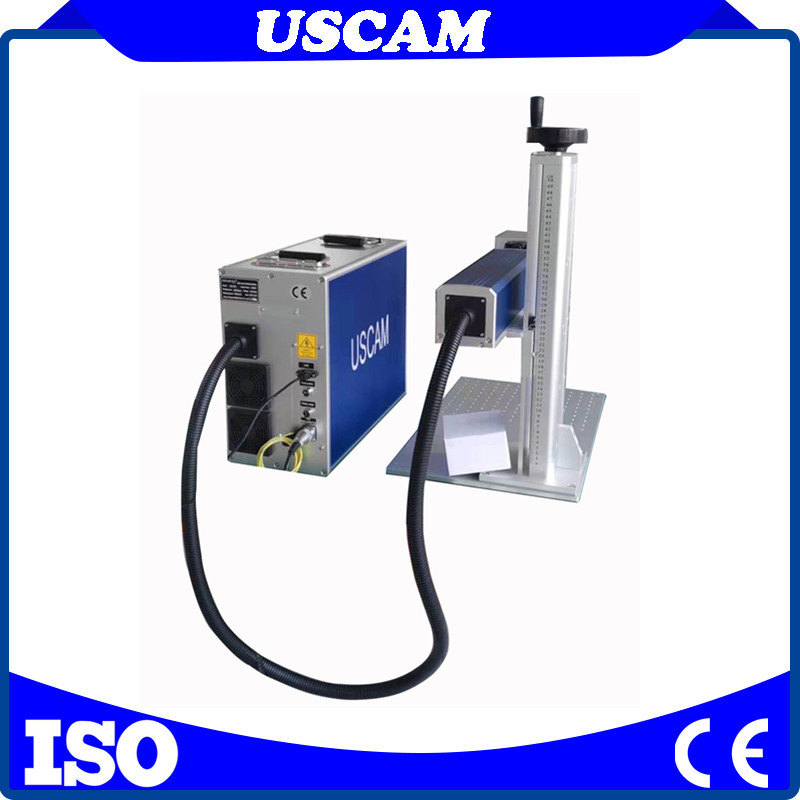

Fiber Laser Marking Machine

Working Principle: Fiber laser marking machines use laser beams to permanently mark the surface of various materials. By evaporating surface material or causing chemical/physical changes through light energy, it engraves exquisite patterns, trademarks, characters, and barcodes. It is ideal for electronic components, integrated circuits (IC), hardware, precision instruments, jewelry, and PVC pipes.

Key Features
  • Compact design with air-cooling, easy to move and maintain.
  • Ultra-long lifespan exceeding 100,000 hours with high reliability.
  • No high-voltage components or large water-cooled systems required.
  • High-speed scanning system without distortion, compatible with USB interfaces.
Technical Parameters
ParameterDetail Specification
Frequency of pulse20-100KHz
Max marking depth≤0.4mm
Marking speed≤7000mm/s
Minimum line width0.01mm
Repetability accuracy±0.002mm
Graphic format supportedBMP, JPG, GIF, TGA, PNG, TIF, AI, DXF, DST, PLT, etc.

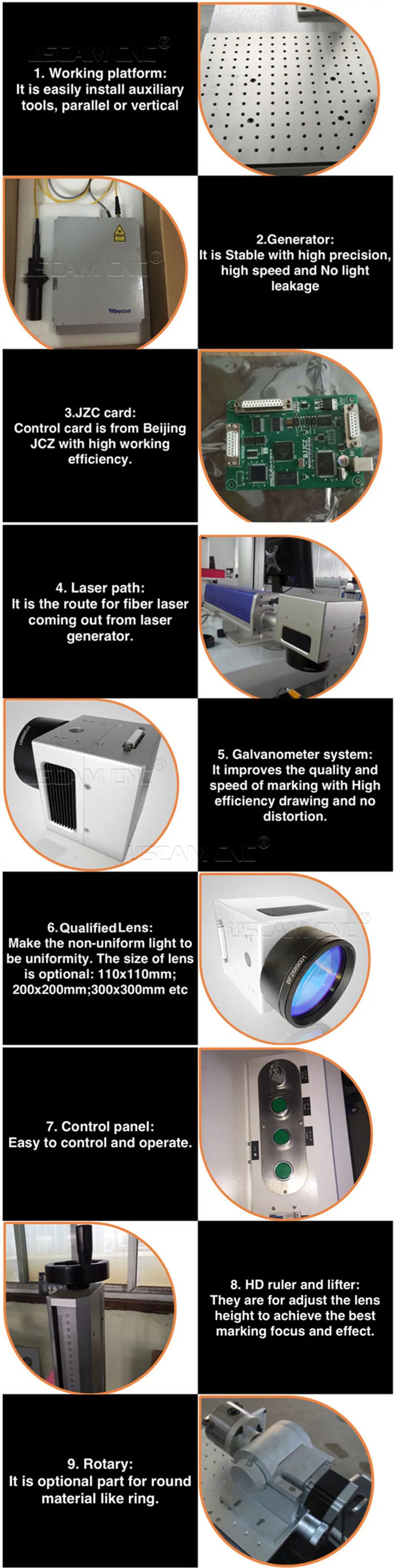

Laser Machine Details
Application Materials
Material TypeCompatibilityMaterial TypeCompatibility
Aluminum / Stainless SteelWood / Acrylic (CO2)
Brass / CopperLeather / Fabric
ABS / PlasticCeramic / Glass
Carbon FiberMild Steel

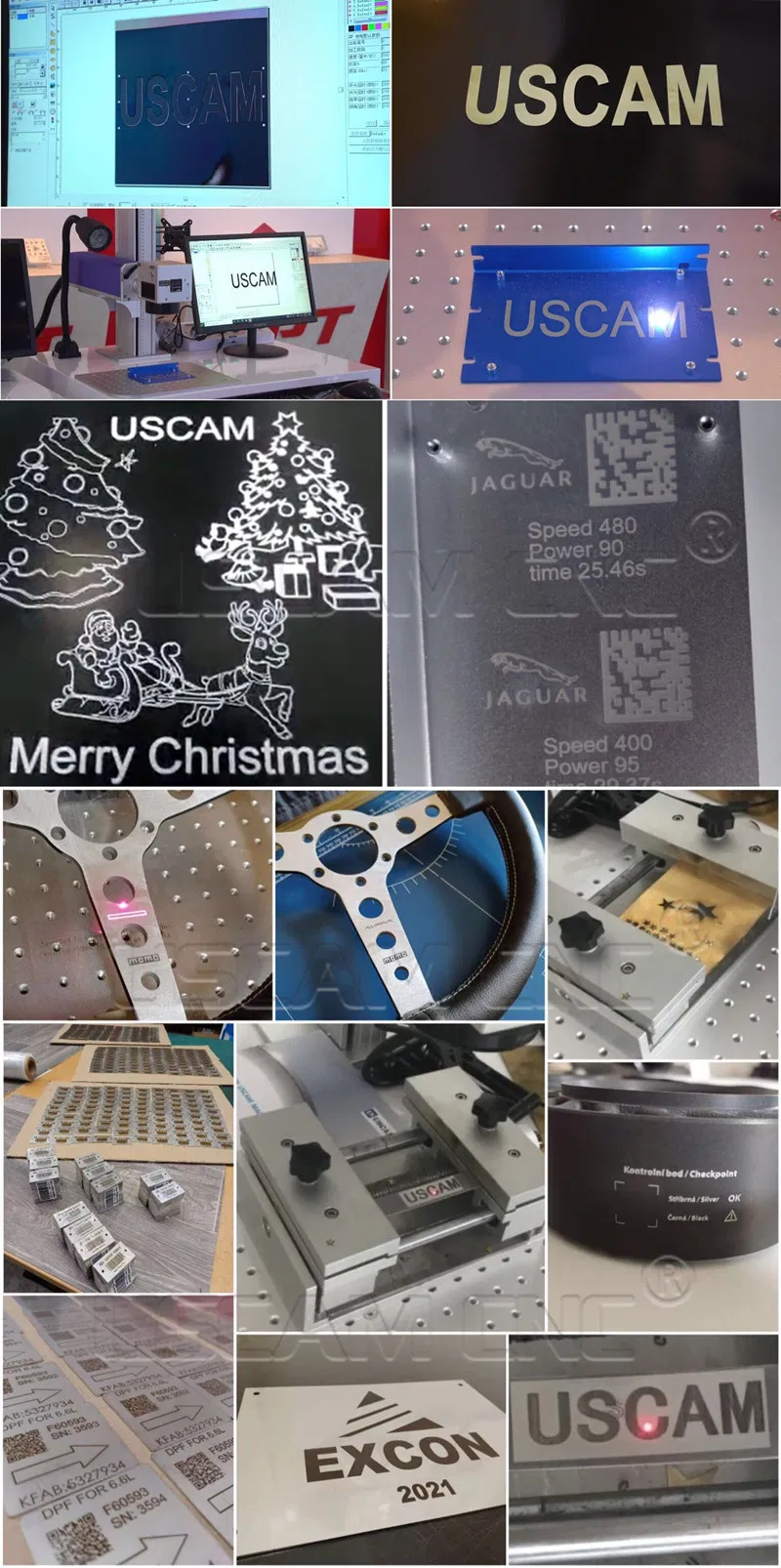

Marking Samples
Customer Feedback & Quality Control

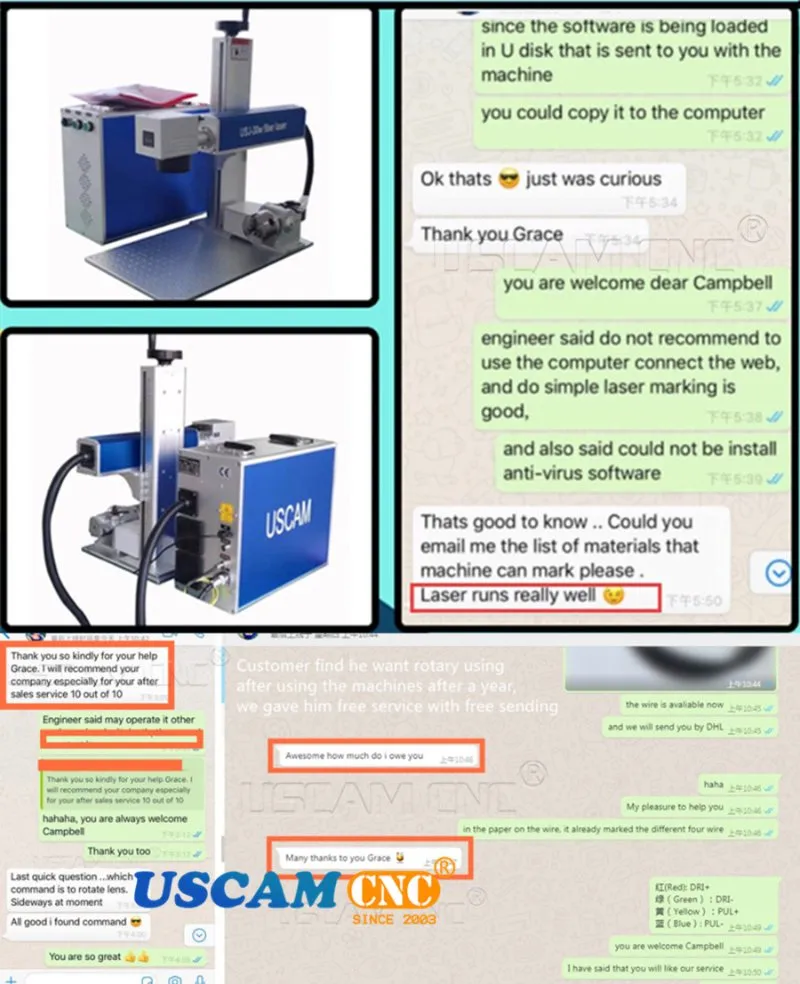

Feedback 1
Feedback 2
Certifications

Our equipment has been exported to the USA, Europe, UAE, India, and Korea, holding CE and FDA certifications for seamless international trade. We offer a 24-month quality guarantee and lifetime technical support.

Frequently Asked Questions
Q1: How do I choose the right marking field lens? It depends on your marking size. Standard lenses include 110*110mm (F160) for 20W/30W and up to 400*400mm (F580) for 50W. For 100W, a Quartz lens is required to prevent heat damage.
Q2: What is the expected lifespan of the fiber laser source? The fiber laser source is designed for high durability with a lifespan of approximately 100,000 hours, making it virtually maintenance-free.
Q3: Does the machine require a special cooling system? No, this machine utilizes an efficient air-cooling system, eliminating the need for bulky water chillers and reducing overall power consumption.
Q4: What computer systems and file formats are supported? The machine supports Windows 7, 8, and 10. It is compatible with major graphic formats including PLT, DXF, AI, BMP, and JPG via the Ezcad software.
Q5: What is the warranty period and after-sales service? We provide a 24-month warranty on main parts. During this period, faulty parts (excluding consumables) are replaced free of charge. We also offer 24-hour online technical support.
Q6: Can I mark on curved or cylindrical objects? Yes, by adding an optional rotary device, the machine can easily mark on rings, tubes, and other cylindrical items.
