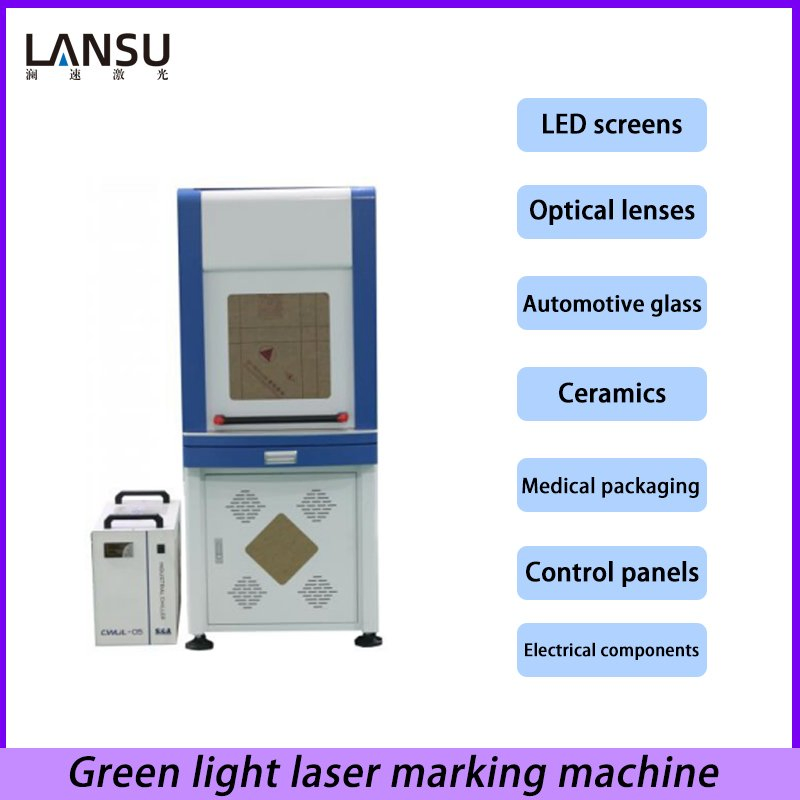

STYRL Laser
1 / 5

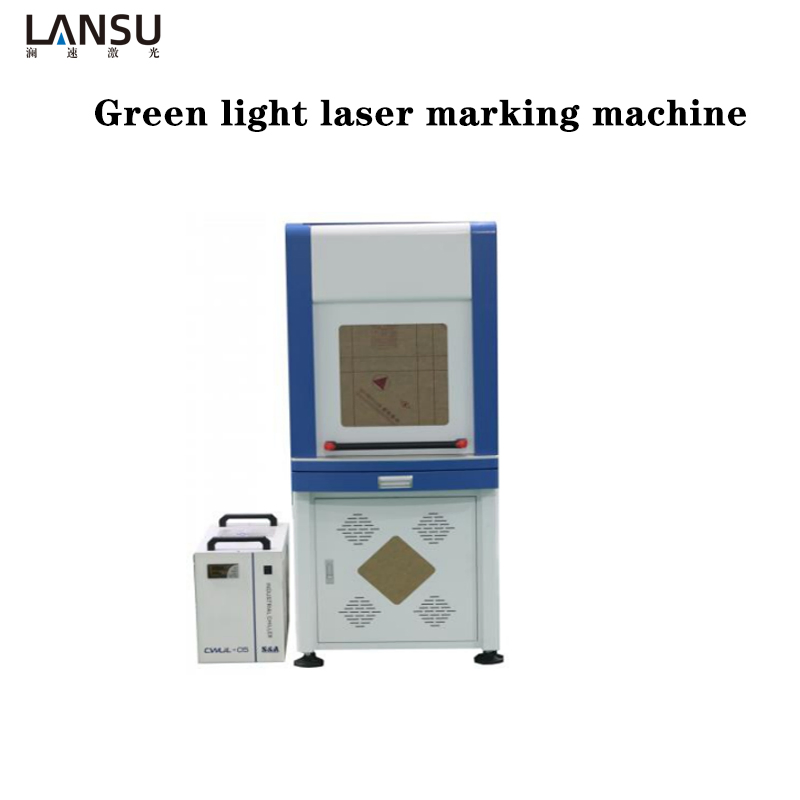

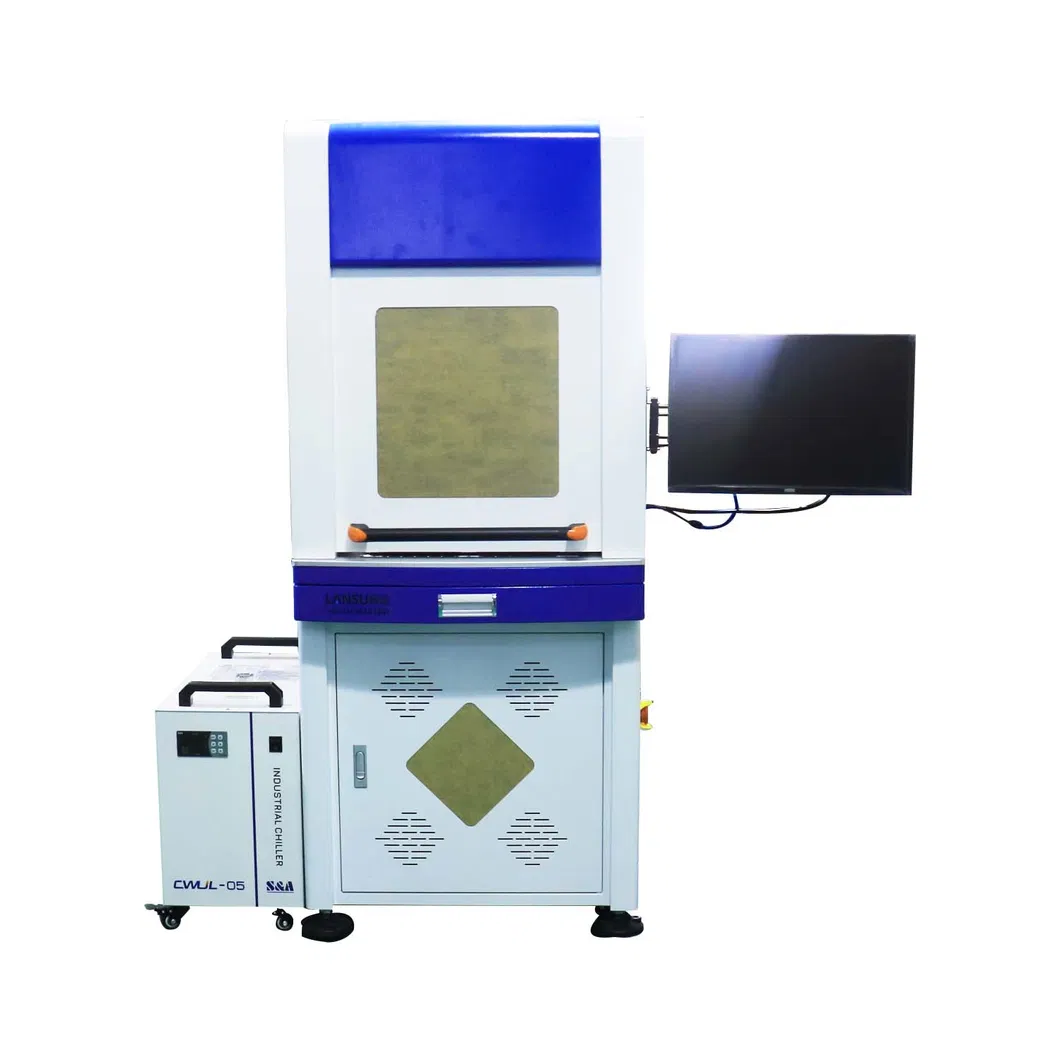

| Model NO. | Green light laser marking machine |
| Laser Visibility | Visible |
| Applicable Material | Nonmetal |
| Cooling System | Water Cooling/Air Cooling |
| Laser Wavelength | Green Laser (532nm) |
| Laser Classification | Solid Laser |
| Marking Method | Scanning Marking |
| Laser Power | 10W/20W/35W |
| Frequency Range | 10-200kHz |
| Marking Speed | ≤7000mm/S |
| Repeatability | ±0.01mm |
| Origin | China |
| Production Capacity | 5000 Pieces/Year |
The output wavelength of the green laser equipment is 532nm, which reduces the thermal impact on the processed parts. It effectively avoids defects caused by thermal deformation and thermal stress, making it ideal for marking heat-sensitive materials such as glass and crystal, maintaining the integrity and accuracy of the material.

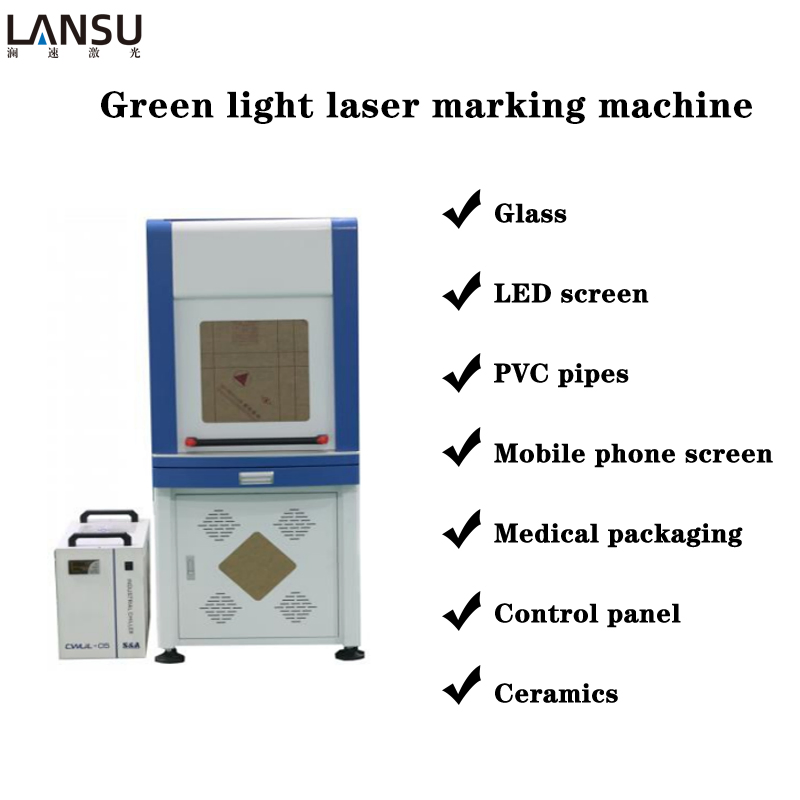

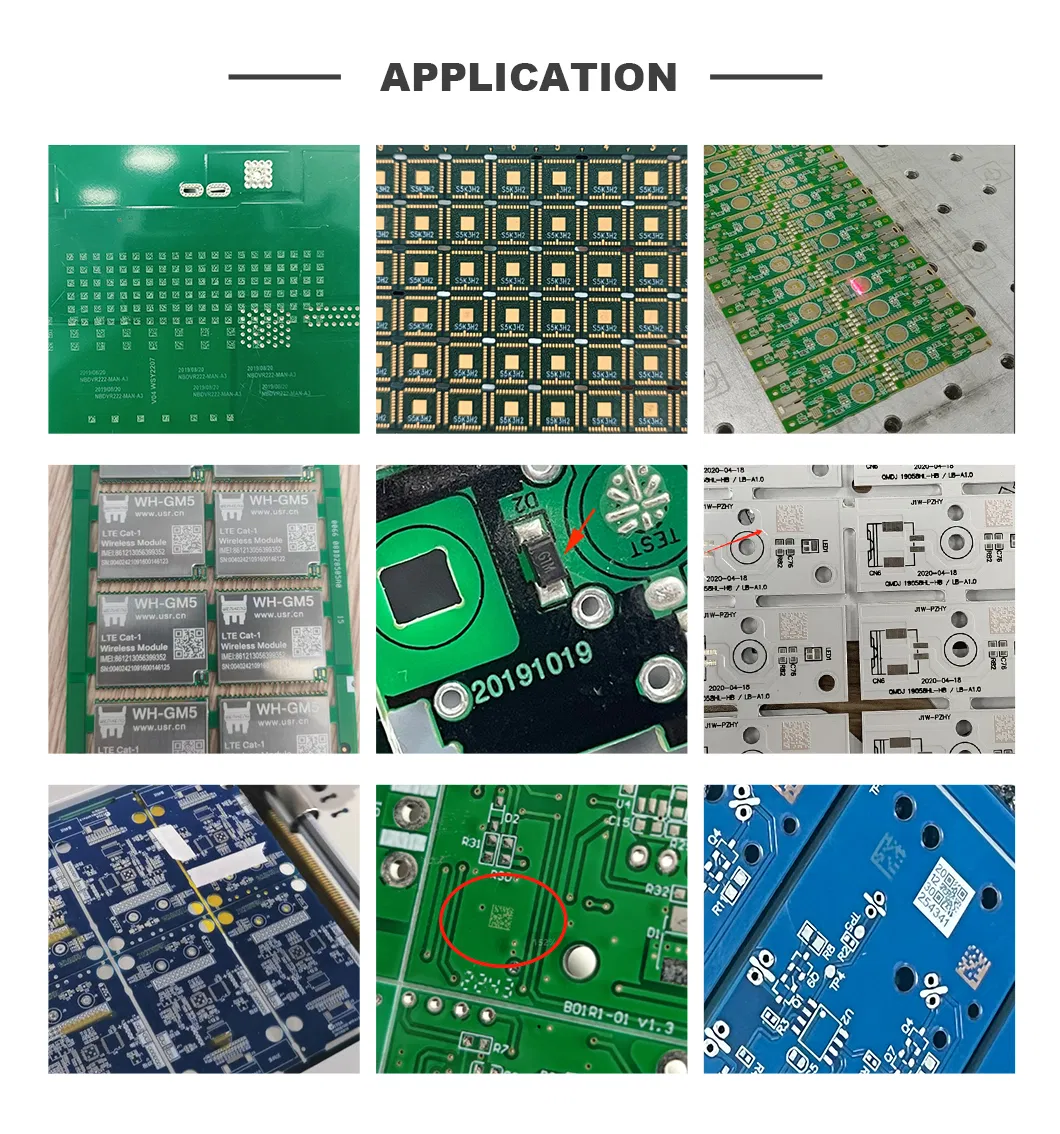

Non-metallic and metal materials: mobile phone screens, LED screens, optical devices (lenses), automotive glass, hardware, ceramics, eye clocks, PCs, electronic devices, instruments, flexible PCB board marking/dicing, PVC pipes, pharmaceutical packaging (HDPE, PO, PP, etc.), control panels, nameplate display boards, and plastics.

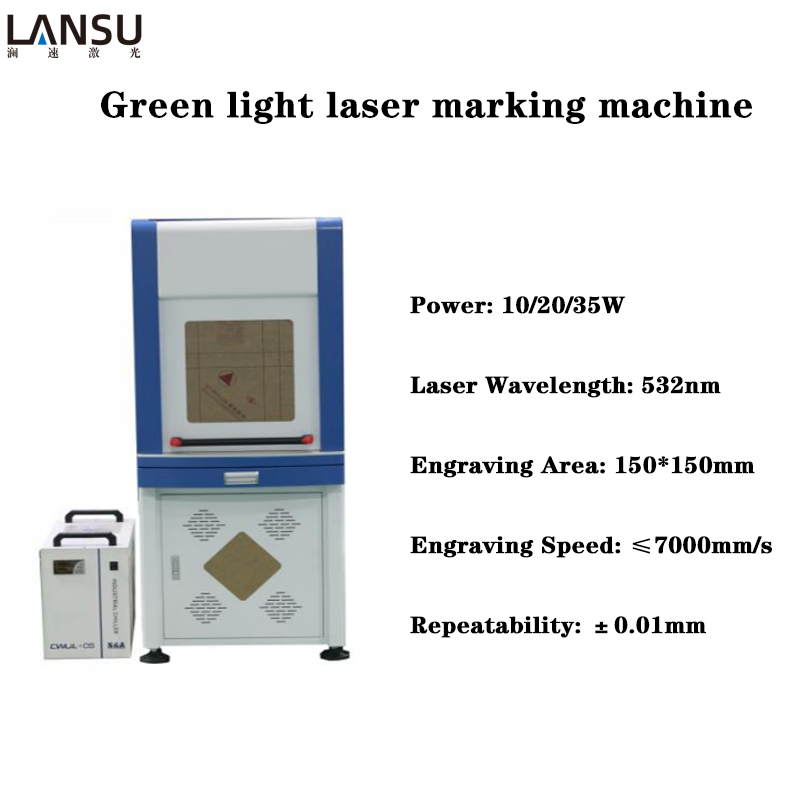

| Model | LS-LG-10W/20W/35W |
| Laser Power | 10W/20W/35W |
| Wavelength | 532nm |
| Pulse Width | <20ns |
| Marking Area | 150mm×150mm (Optional) |
| Minimum Line Width | 0.01mm |
| Minimum Character | 0.2mm |
| Power Supply | AC220V/50Hz |
