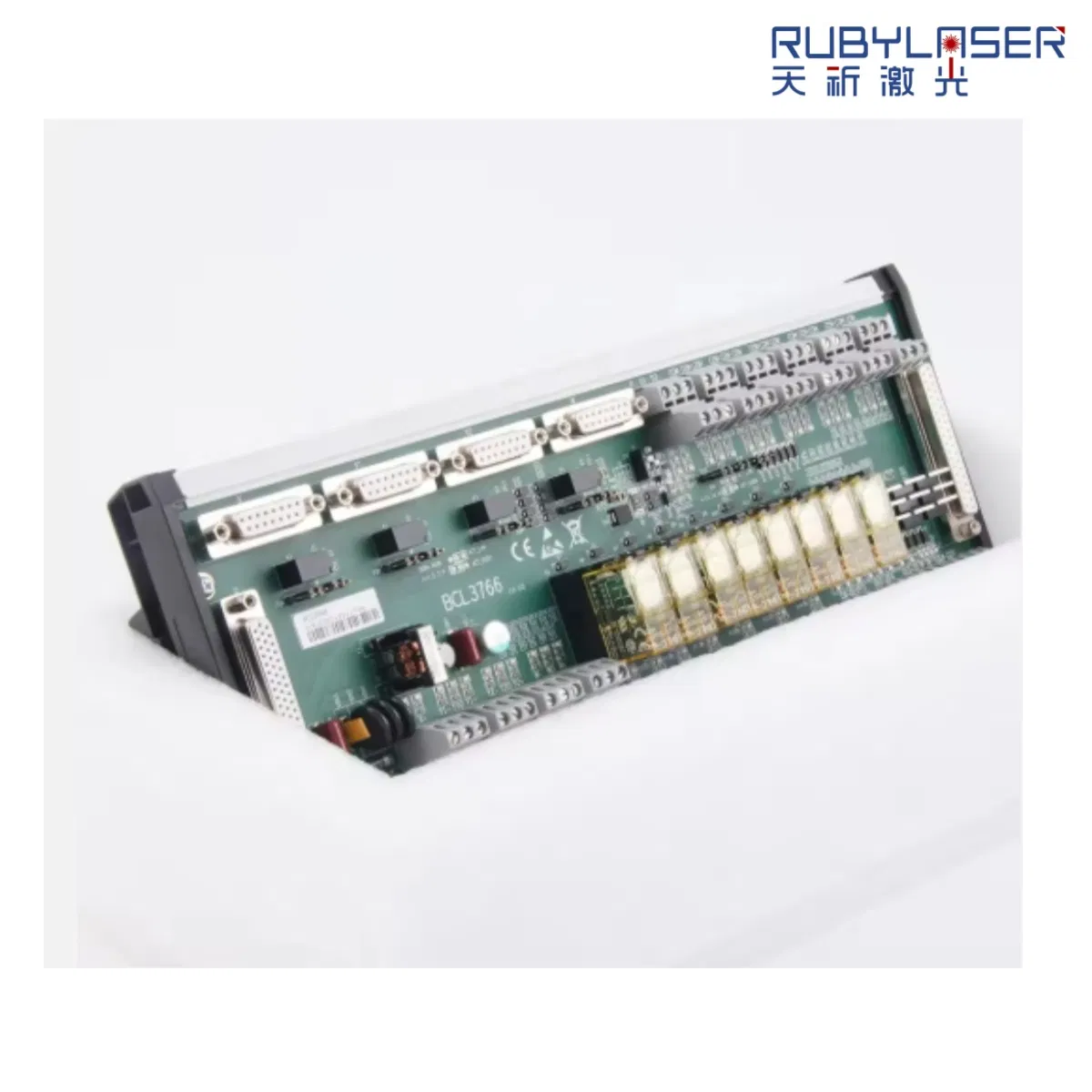

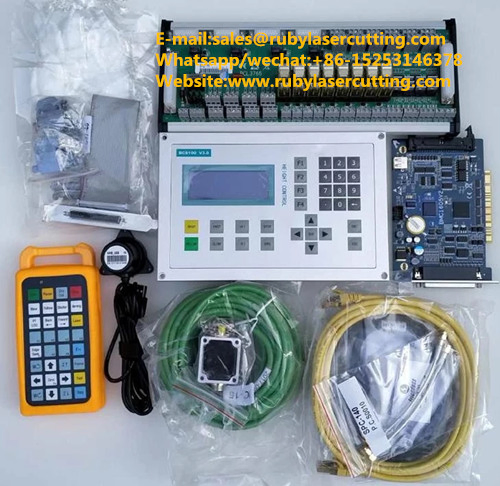

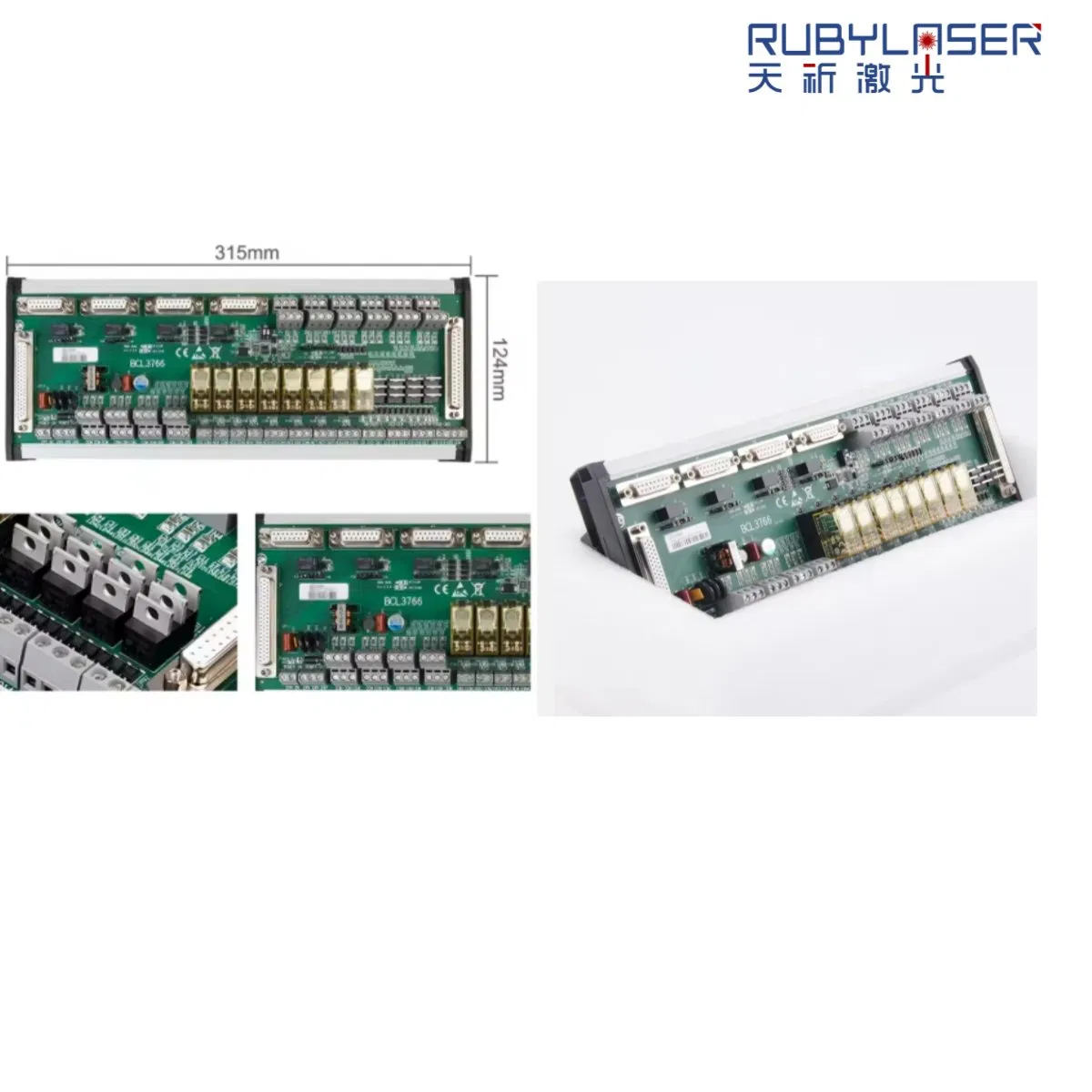

FSCUT8000 Fiber Laser Cutting Controller
High-end intelligent EtherCAT bus controller designed for high power fiber laser above 8kW. Featured by out-of-the-box service, easy installation, and full solution functions supporting custom, automatic, and digitization solutions.
Control Signal
5/24V PWM/Analog/Ethercat Bus
Applied Laser Power
8000W-20kw
Machine Match
3015/1325 Fiber Laser Machine
Certification
ISO 9001, GS, CE
Computer OS
Windows 7 or Above
File Format
Dxf, Plt, Ai, Gerber, Lxd
Active Collision Avoidance
Yes
Matched Generator
Ipg/Raycus/Max/Nlight
Application
Metal Plate/Pipe/Laser Welding
🟦

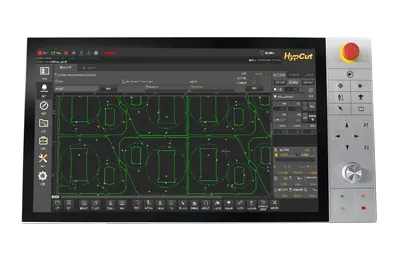

User-Friendly Interface: Ribbon style toolbar design with clear functional partitions for quick start and custom shortcuts.
🟦
Graphic Optimization: Supports DXF, PLT, AI, Gerber, and LXD. Automatically removes duplicate lines and merges connections.
🟦
Path & Nesting: Built-in automatic layout algorithm for common edge nesting, reducing material costs.
🟦

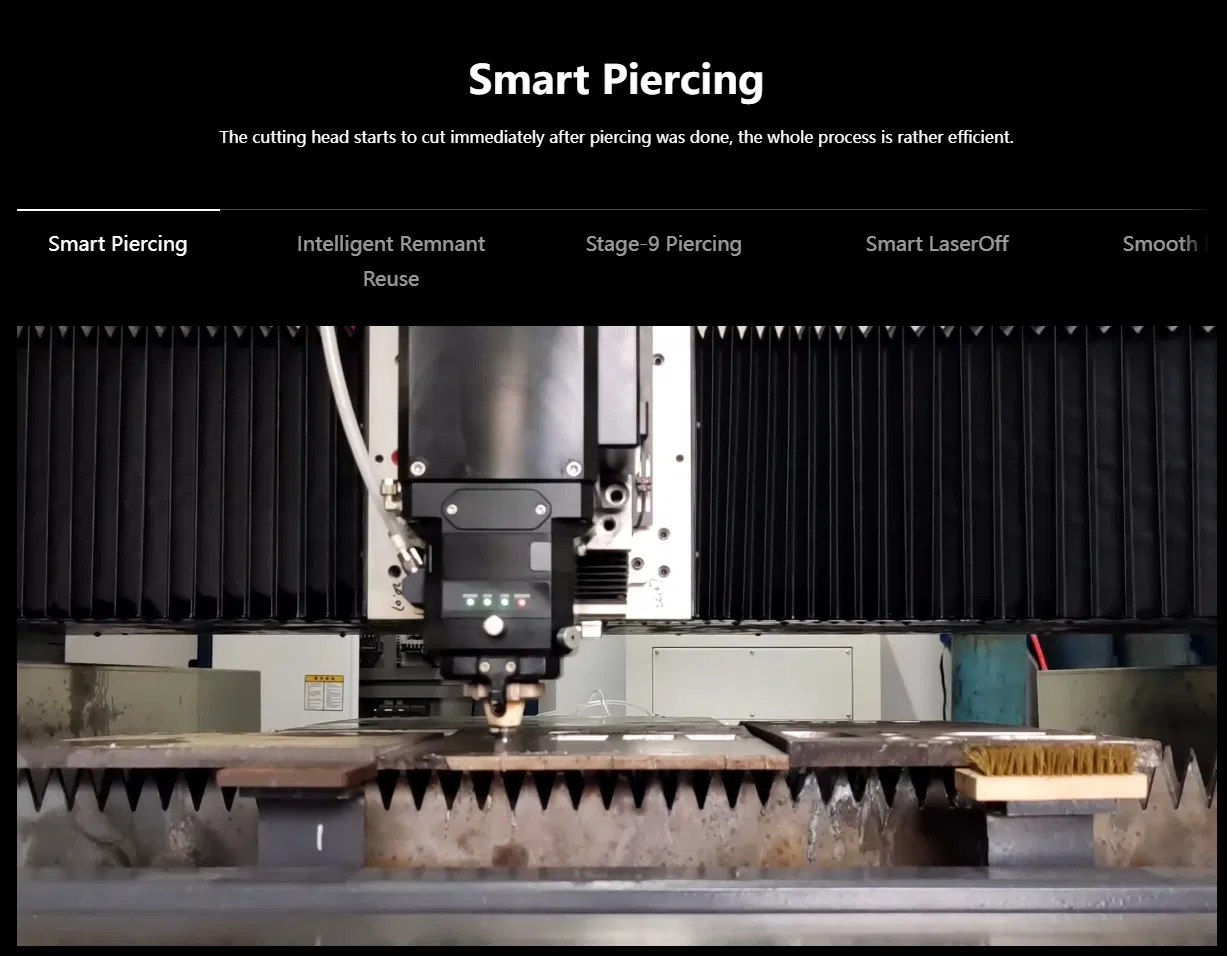

Process Control: Customizable laser power, cutting speed, and multi-level perforation methods (Progressive, Lightning, etc.).
🟦

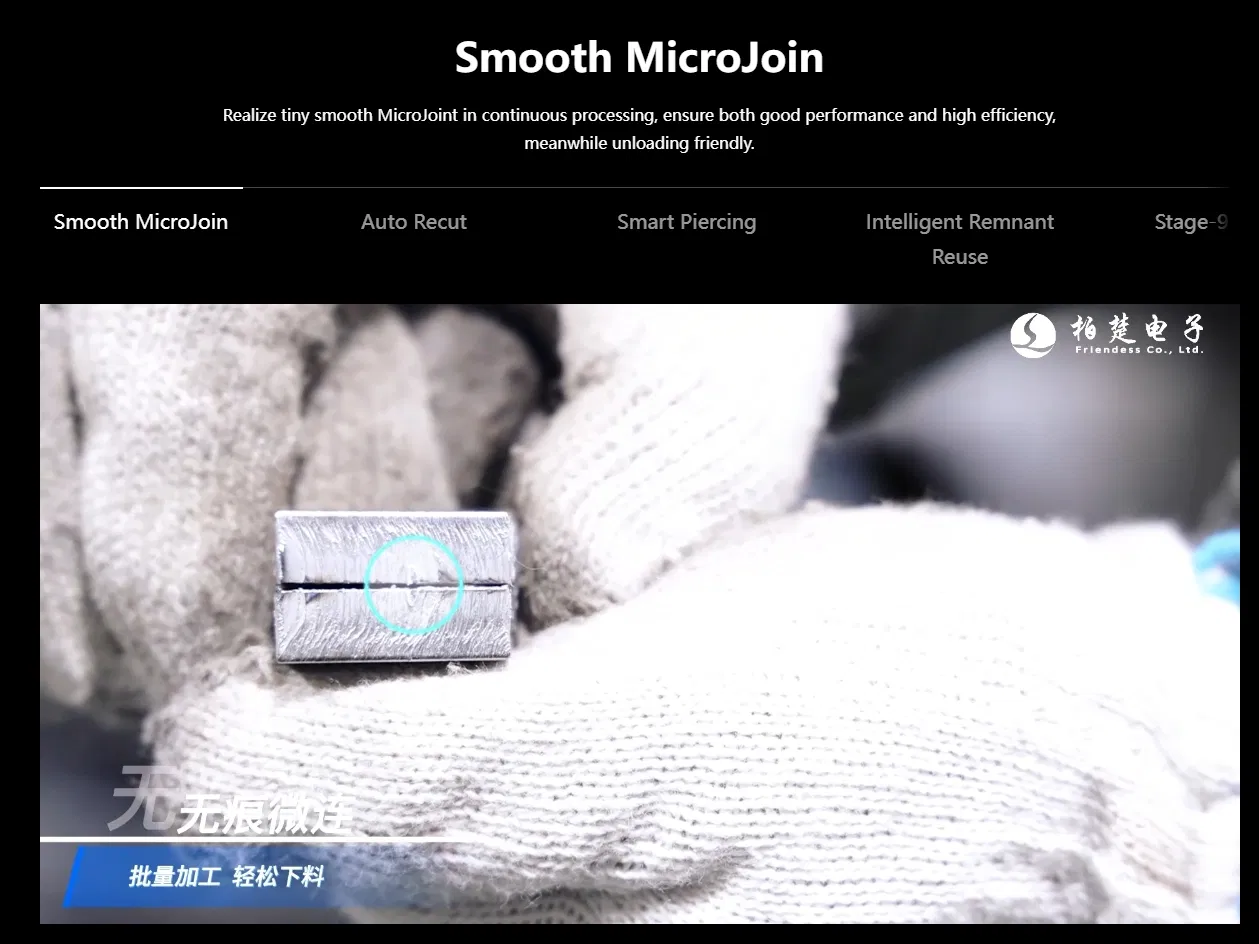

Advanced Processing: Features Flight Cutting mode, Breakpoint Memory, Disk Centering, and Seamless Micro-connection.
🟦

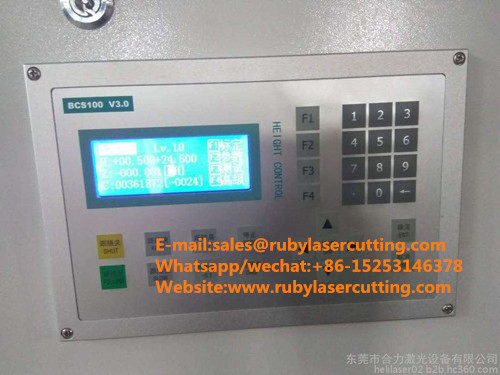

Safety & Monitoring: Real-time status display and collision avoidance when used with BCS capacitor height adjusters.
Frequently Asked Questions
What laser power is the FSCUT8000 system compatible with?
The system is specifically designed for high-power fiber laser cutting, ranging from 8000W to 20kW.
Which file formats can I import into the controller?
It supports multiple mainstream formats including DXF, PLT, AI, Gerber, and LXD.
Does the system provide security against head collisions?
Yes, the system features Active Collision Avoidance and works with capacitor height adjusters to ensure equipment safety.
What is the warranty period for this controller?
The system is guaranteed for 1 year, covering main parts (excluding consumables).
Can the software resume cutting if the power fails?
Yes, it supports Breakpoint Automatic Backup and memory, allowing you to resume processing from any position after an interruption.
What documents are provided for customs clearance?
We provide a full set of documents including CE certification, packing lists, commercial invoices, and sales contracts.
