| Model NO. | RA-JGF-06 | Applicable Material | Metal |
| Cooling System | Air Cooling | Technical Class | Pulse Laser |
| Laser Wavelength | 1060nm | Laser Classification | Solid Laser |
| Type | Optical Fiber Laser Marking Machine | Marking Method | Scanning Marking |
| Output Power | 5W/10W/20W/30W/50W/100W | Weight | 45kg |
| Size | 750*400*480mm | Transport Packaging | Wooden Box |
| Certified | Patent CE ISO | Laser Type | Fiber Laser |

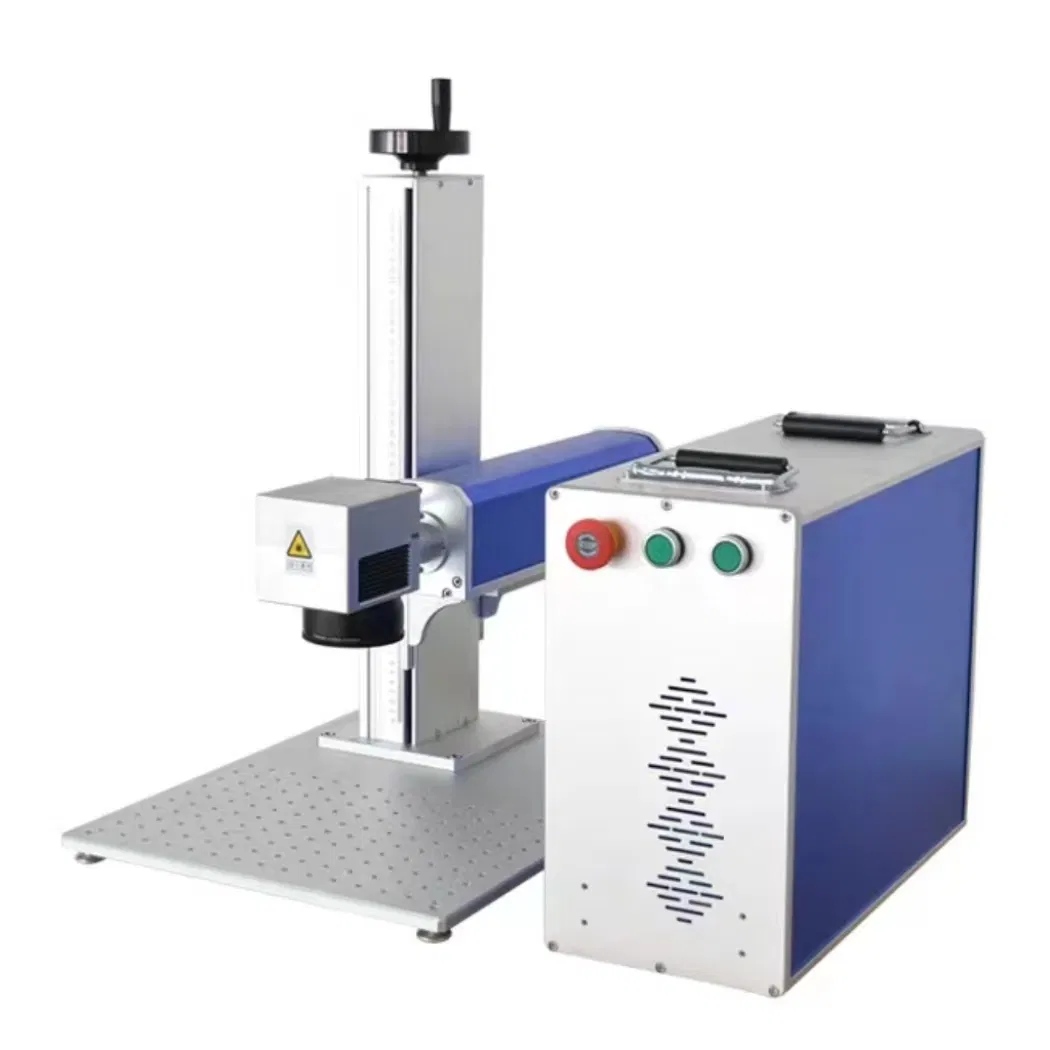

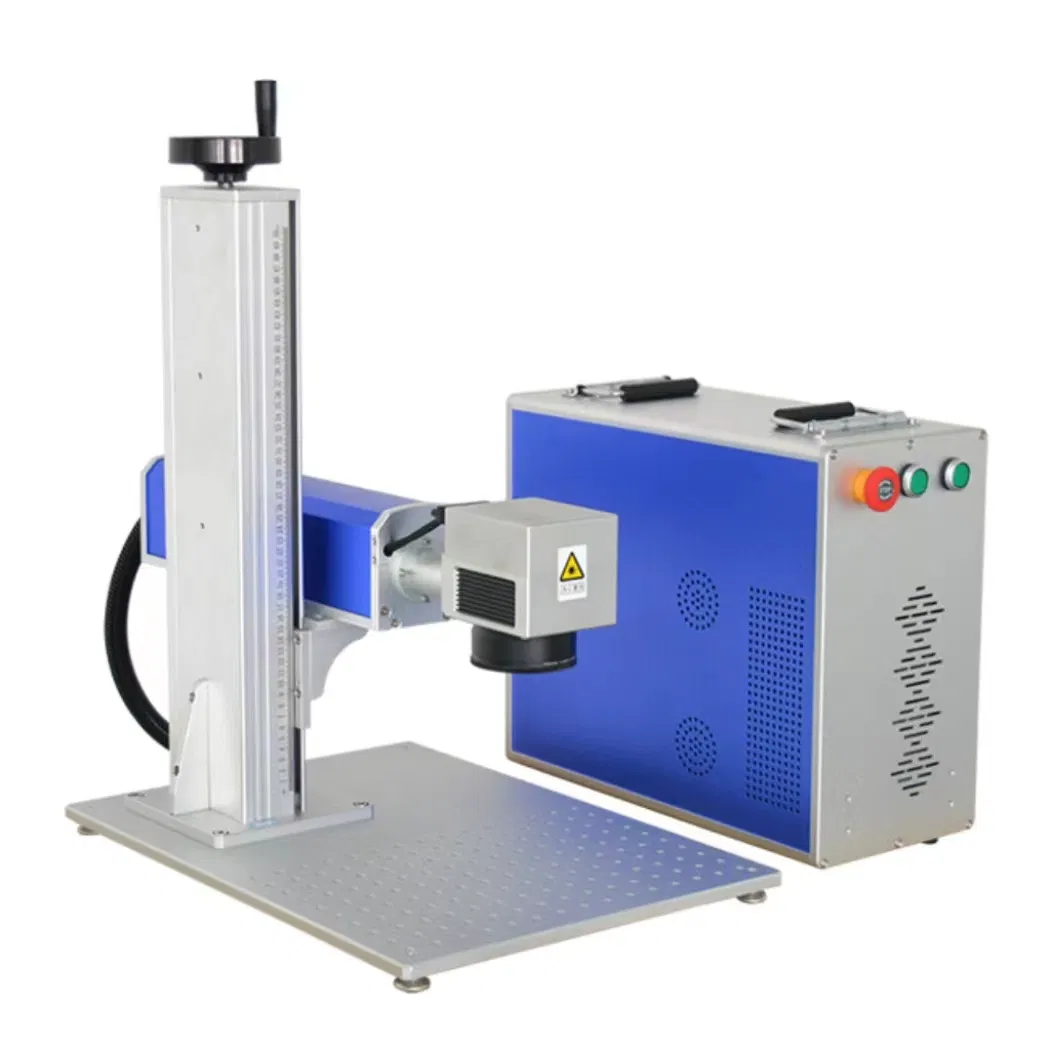

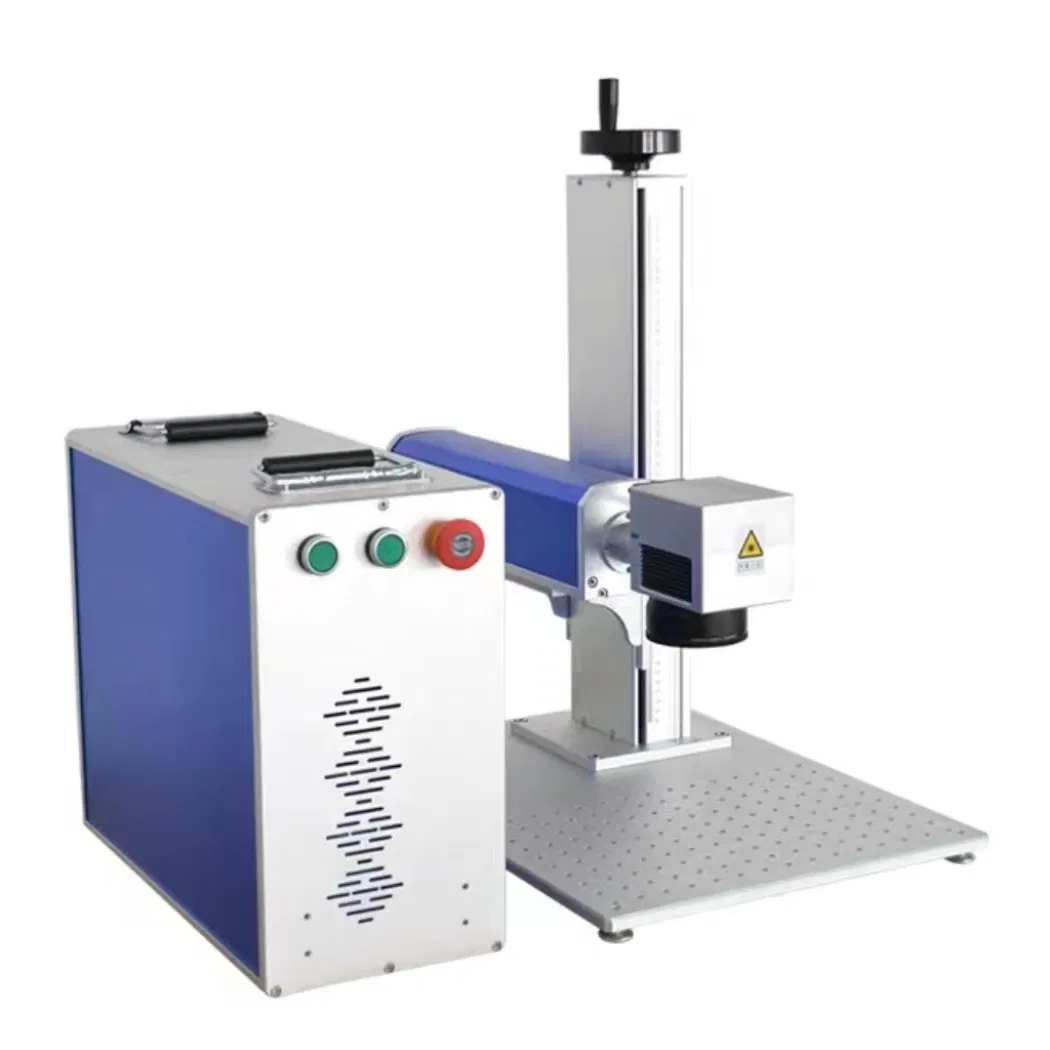

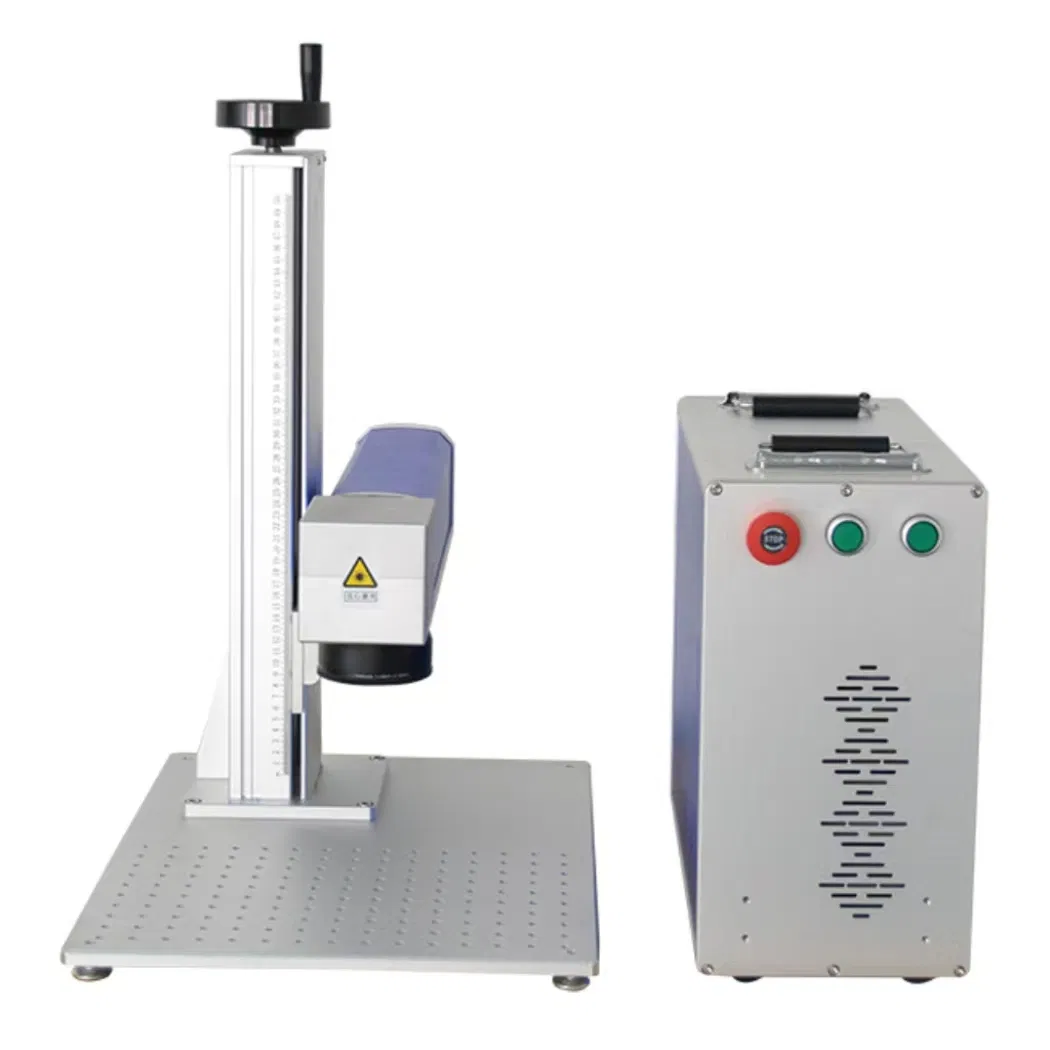

The split laser marking machine uses the highest quality fiber laser in the world. The laser source is suitable for various metal and non-metal materials, marking, engraving, etching, trimming, edge isolation, etc. The fiber laser marking machine is very convenient to use, small in size and light in weight. The whole machine only weighs 45 kg. It can move.
1. The fiber laser has high integration, superior laser beam performance and uniform power density. The output laser power is stable.

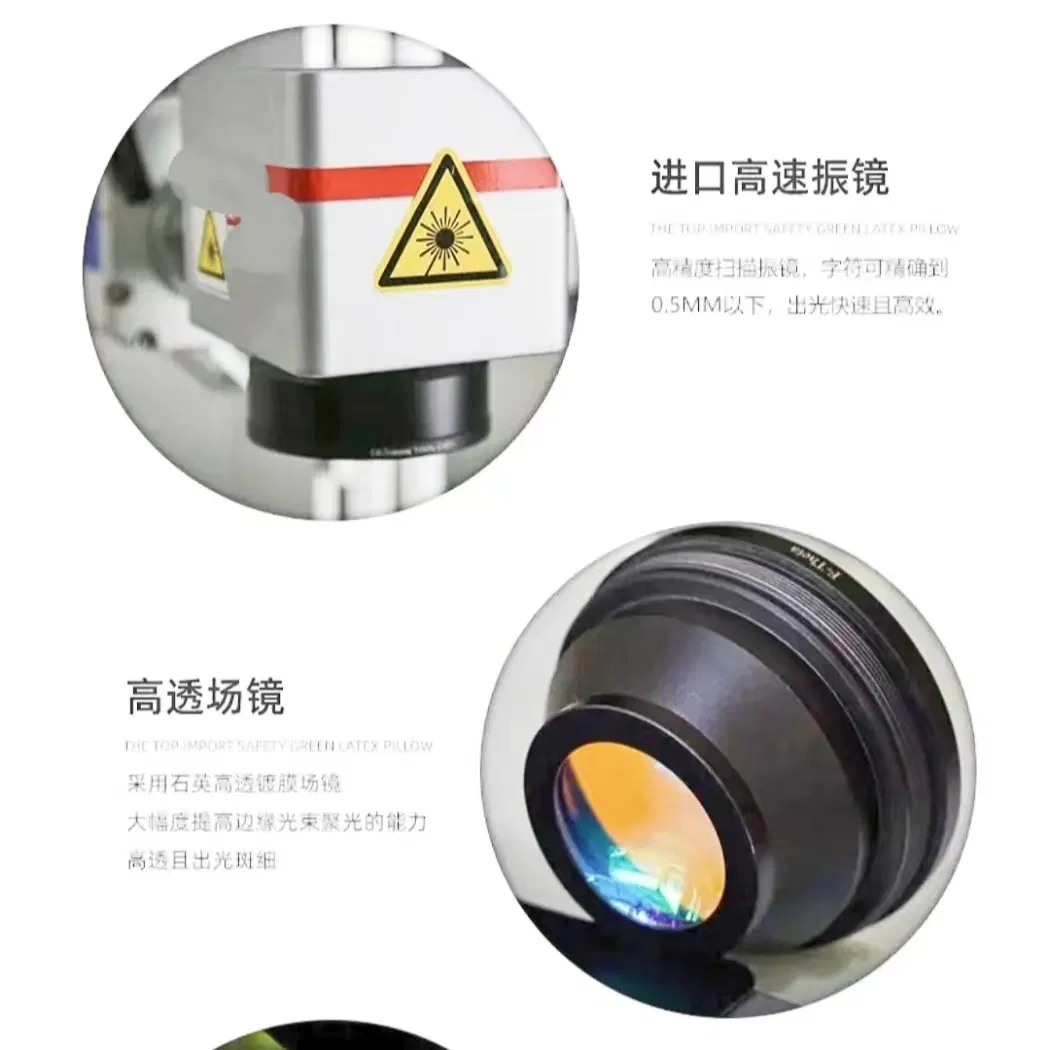

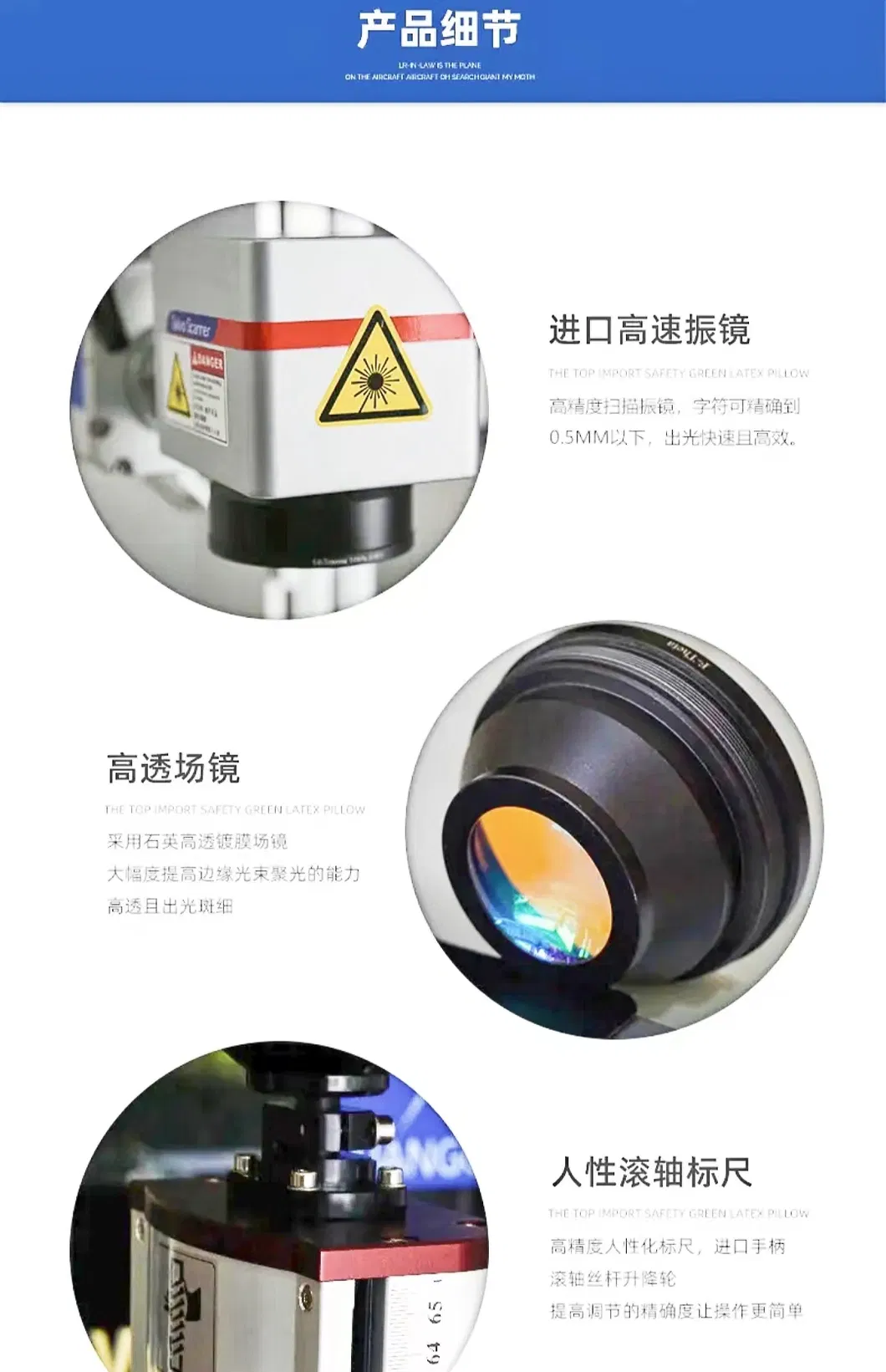

2. It adopts advanced digital high-speed scanning galvanometer, which has high speed, no deviation, small size and good stability.
3. Modular design, independent laser generator and lift, more flexible, can mark on larger areas and complex surfaces.
4. Using an efficient operating system, the performance can meet the needs of most industry application processes in the market.
| Laser | Fiber Laser | Output Power | 5W/10W/20W/30W/50W/100W |
| Power Pack | 90-260V+50Hz-60Hz | Control Interface | Standard USB port |
| Light Beam Quality | ≤2-≤5 | Marking Depth | Depending on material |
| Cooling Method | Inbuilt air cooling | Marking Speed | 0-7000mm/s |
| Repeating Precision | ±0.002 | Minimum Line Width | 0.01mm |
| Operation System | WIN XP/WIN7/WIN10 | Carving Range | 30mm-300mm |

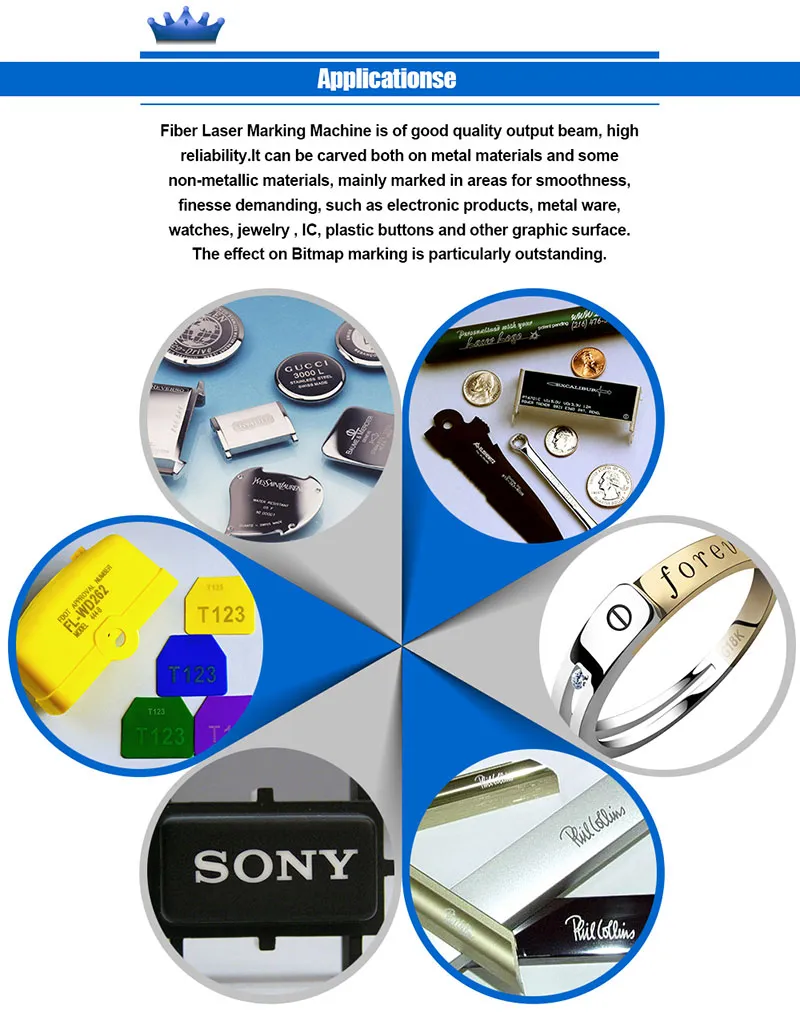

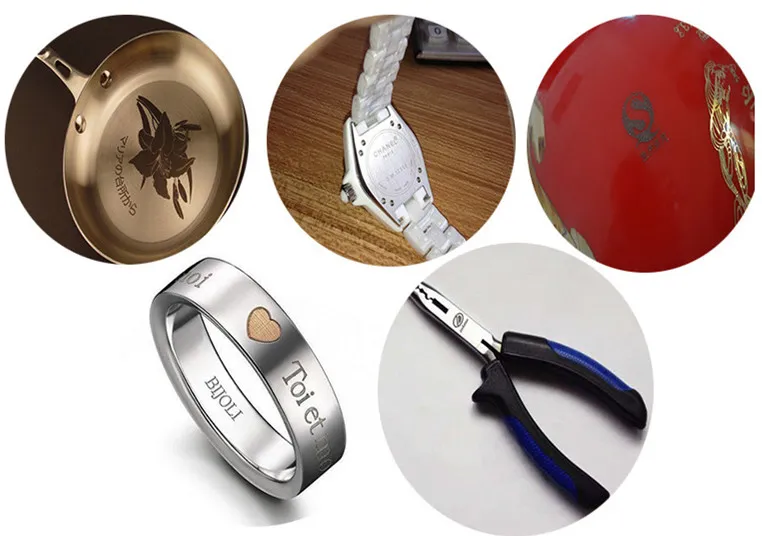

Applicable materials: The model is widely used in the industries of clocks, mould plastic, mobile, porcelain, watches, glasses frames, molds, lamps and lanterns, buttons, buckles, brand labels, stamps, tools, Plexiglas, silver, gold, metal name cards, pattern and text symbols, handicraft products, etc.

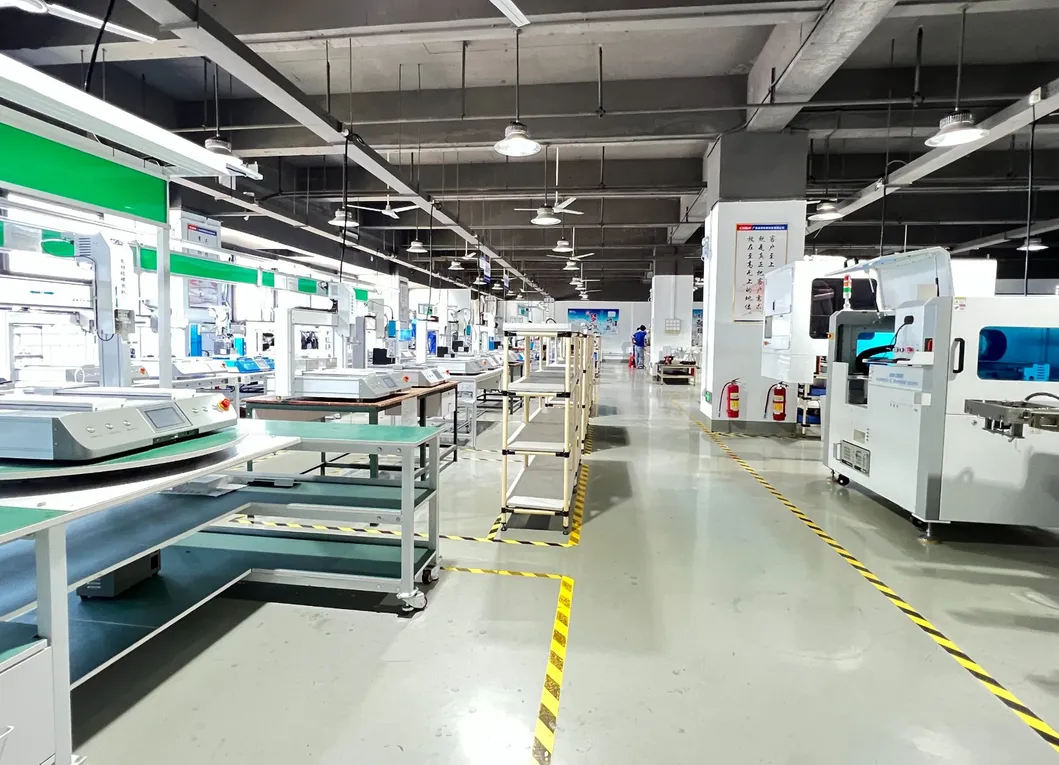

As a manufacturing plant and a global enterprise, we insist on quality, focus on service, continuous core technology innovation and research and development, and are committed to providing the best solutions for global customers.
Serialization and diversification of products to meet more needs of customers. High-quality and durable products, creating maximum value for customers, timely after-sales service, professional and efficient problem-solving solutions, free test samples, and support for large-scale exhibitions.

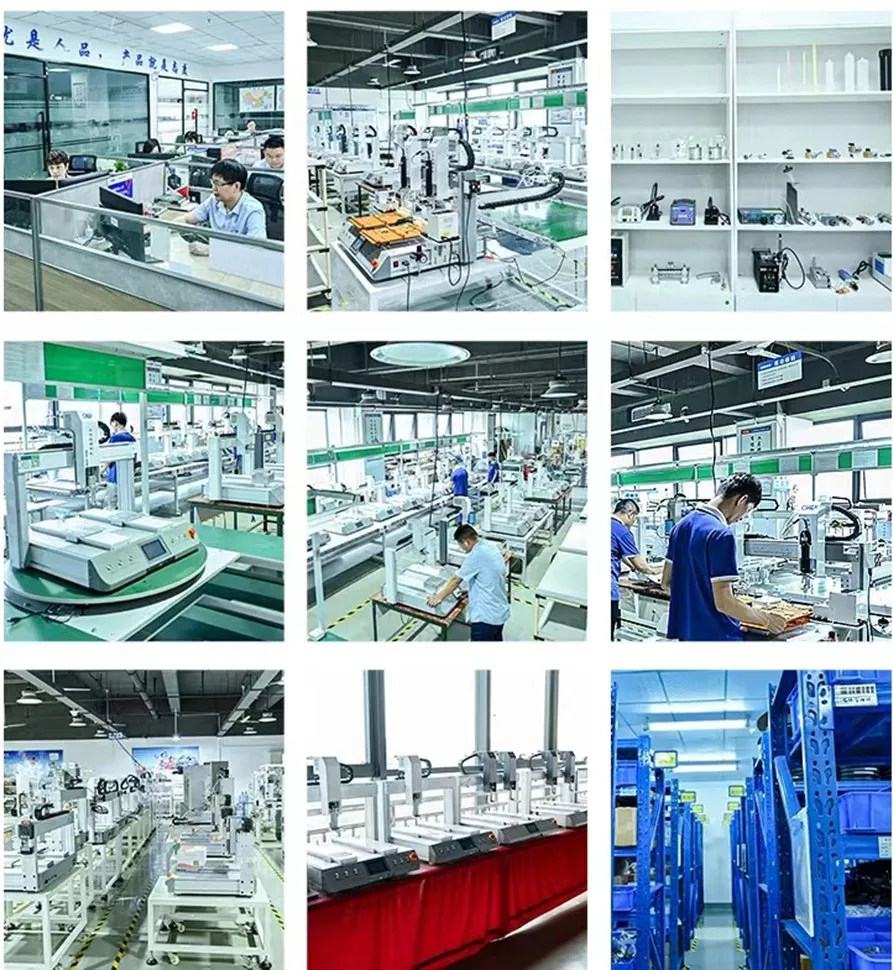

Welcome to our company. We are an outstanding company in high technology and service industry. Since its establishment in 2005, we have been at the forefront of innovation and development. Recognized as part of the "world factory", we are proud to contribute to the international processing industry.

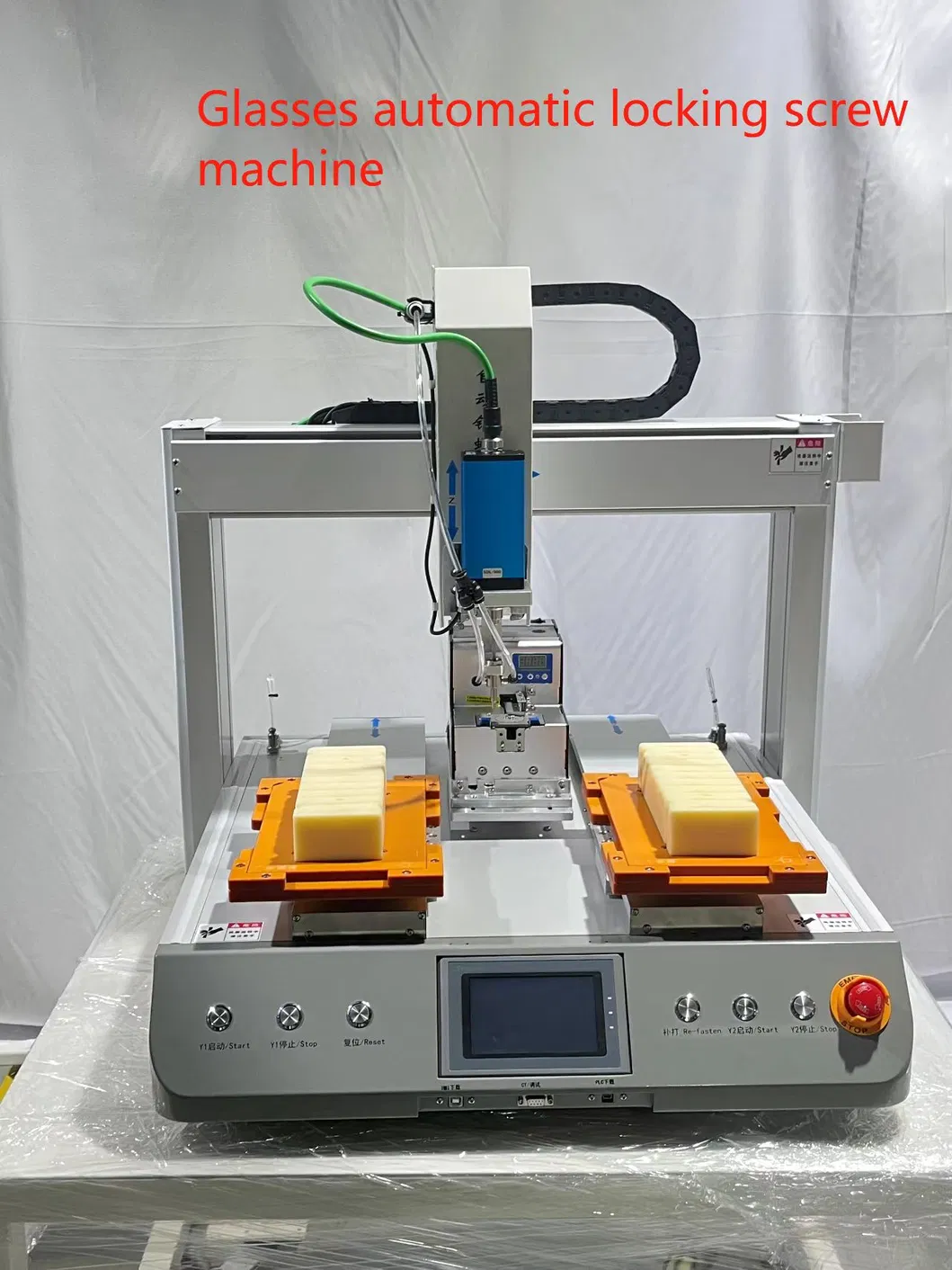

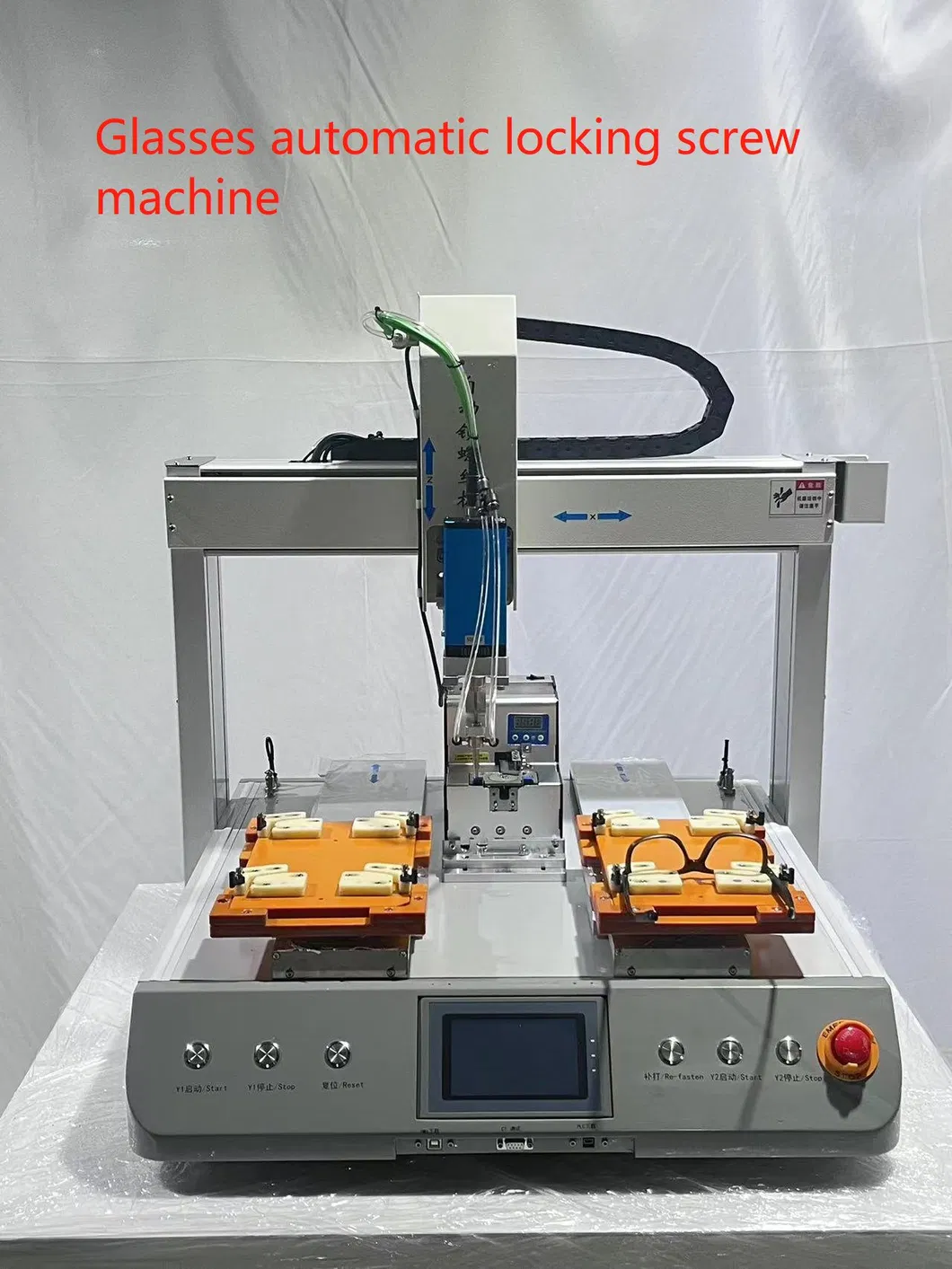

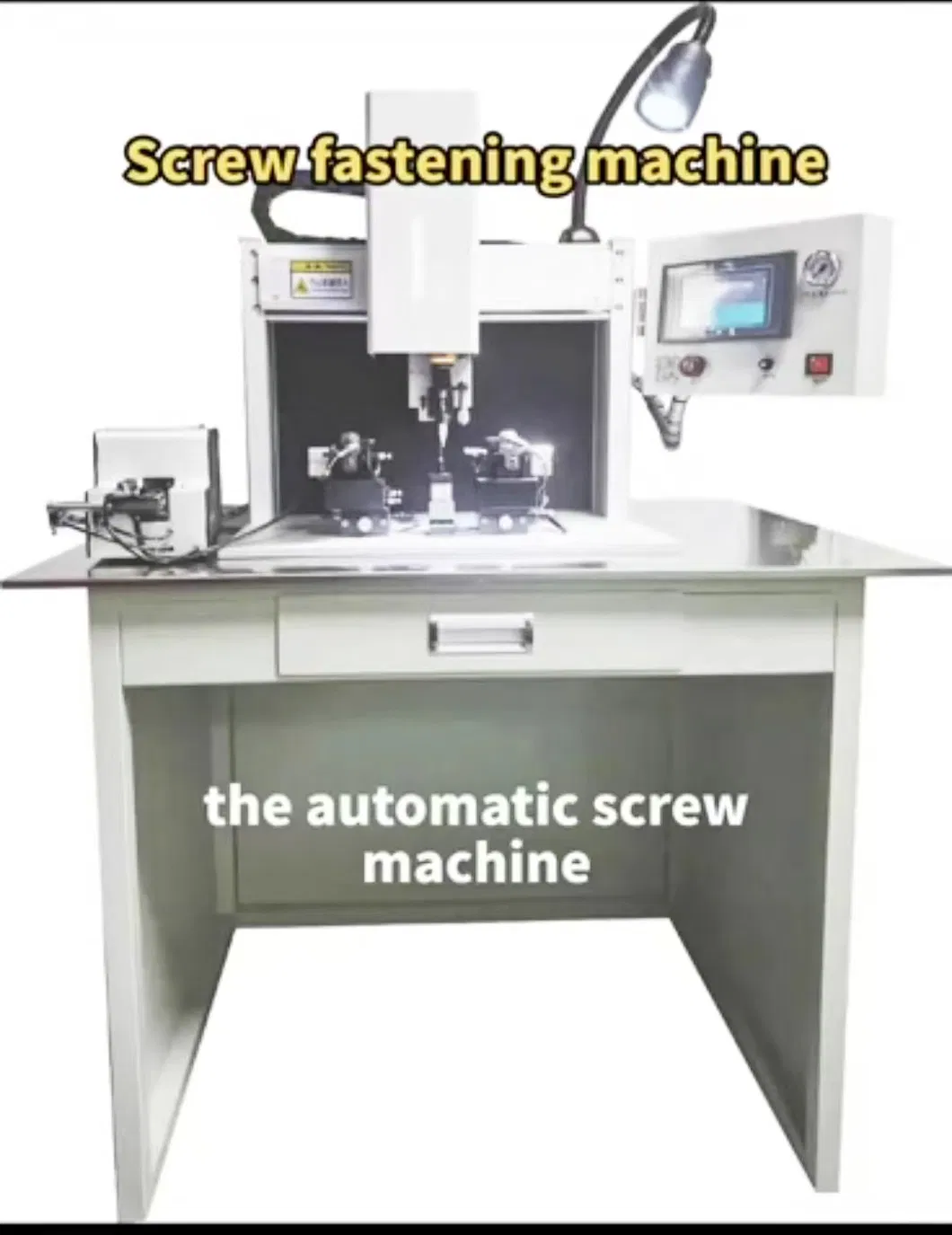

At our core, we specialize in the development, production and sales of intelligent machines. We design and manufacture various automated intelligent machines to meet the needs of the electronics and glasses industry.
