📋 Basic Specifications
Model NO.
Handheld laser welding machine
Application
Sheet Metal Industry
Technical Class
Fiber Laser Welding Handheld Type
Power Density
Deep Fusion Welding
Laser Classification
Optical Fiber Laser
Type
Portable Welding Machine
Laser Source
Fiber Laser Source
Welding Beam Width
10mm Max
📊 Product Overview

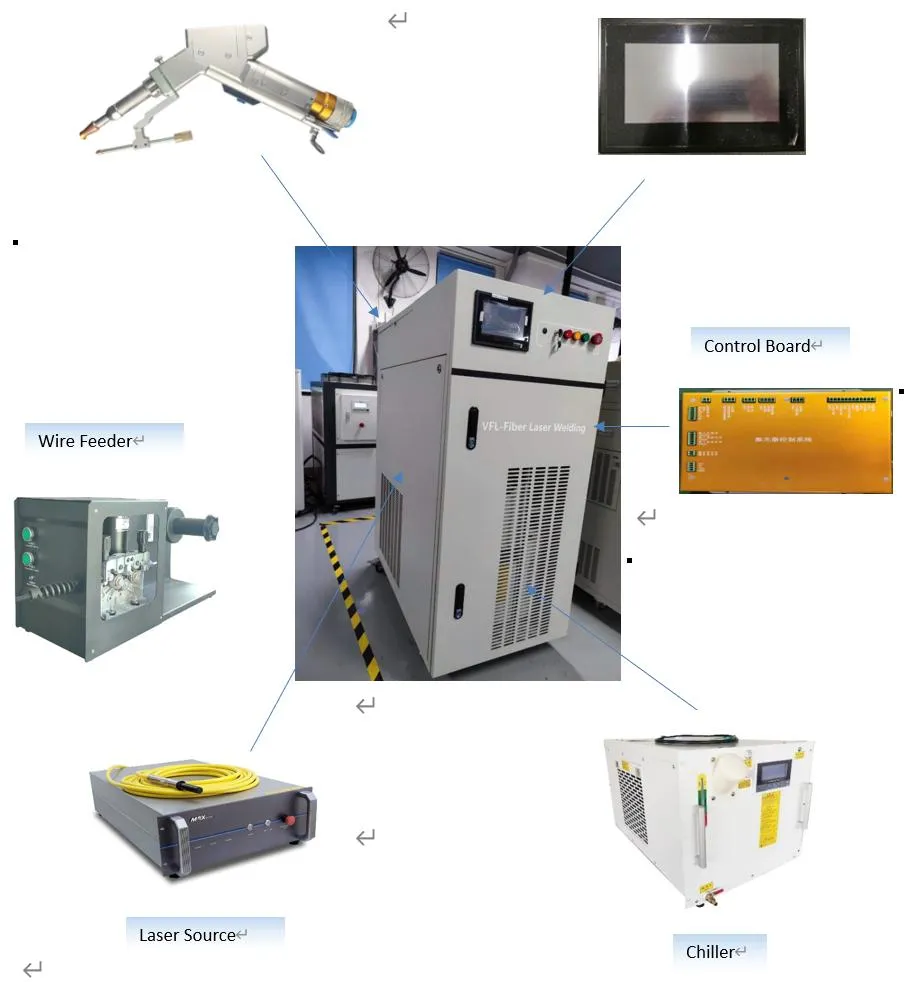

This laser welding solution represents advanced research and development in the hand torch welding sector, integrating the welding head, laser control system, wobble control system, and wire feeding device into a seamless unit. Designed with ergonomic concepts, the machine prioritizes comfort for long-term industrial use, with the hand torch weighing only 0.8 kg. Safety is paramount; the system features a safety lock that only outputs laser power when the nozzle is in contact with the workpiece. Additionally, the drawer-type protection lens allows for quick and easy maintenance by the user.
✅ Key Advantages
➢
Supports storage for multiple welding parameters for efficient operation.
➢
Extremely light weight and compact volume with a streamlined ergonomic design.
➢
Adjustable welding beam size ranging from 0.5mm to 5mm.
➢
Integrated safety lock function to ensure secure production environments.
➢
Simplified internal structure for ease of operation and field service.
➢
Laser beam swing mode: Line type "--" for precision.
➢
Four versatile welding modes: CW (Continuous), Adjust, Argon, and QCW.
➢
Digital parameter setting for the wire feeding device via the main interface.
⚙ Technical Specification
| Model |
HW-3000W |
| Usable Power |
3000W |
| Focal Length |
150 |
| Collimate Focus |
60 |
| Interface Type |
QBH |
| Accessible Wave Range |
1064 nm |
| Net Weight |
300 kg |
| Usable Laser Source |
Compatible with most fiber laser sources |
📷 Product Gallery
❓ Frequently Asked Questions

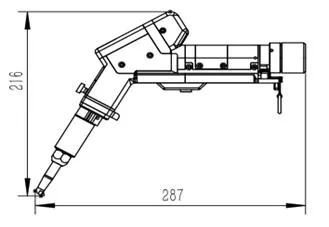

1. What is the weight of the handheld welding torch?
The handheld welding torch is designed for ergonomic comfort and weighs only 0.8 kg, making it suitable for long-term manual use without fatigue.
2. What safety features does the machine include?
The machine is equipped with a safety lock system that ensures the laser is only output when the welding nozzle is in direct contact with the workpiece, preventing accidental injury.
3. Can the welding beam size be adjusted?
Yes, the welding beam size can be adjusted within a range of 0.5mm to 5mm to suit different materials and joint requirements.
4. What are the available welding modes?
The system supports four distinct modes: CW (Continuous Welding), Adjust, Argon, and QCW, providing flexibility for various industrial applications.
5. How deep can this 3000W laser weld?
This 3000W fiber laser welding machine is capable of achieving a welding depth of up to 8mm, depending on the material type.
6. Is the protective lens easy to replace?
Yes, the machine features a drawer-type protection lens setting, allowing users to perform replacements quickly and conveniently by themselves.
