STYRL Laser
1 / 5
| Model NO. | YDW |
| Application | Electronic Industry, Automotive Industry, Powder Metallurgy, Manufacturing Industry, Medical Instruments |
| Technical Class | Continuous Wave Laser |
| Control | Manual |
| Power Density | Deep Fusion Welding |
| Laser Classification | Optical Fiber Laser |

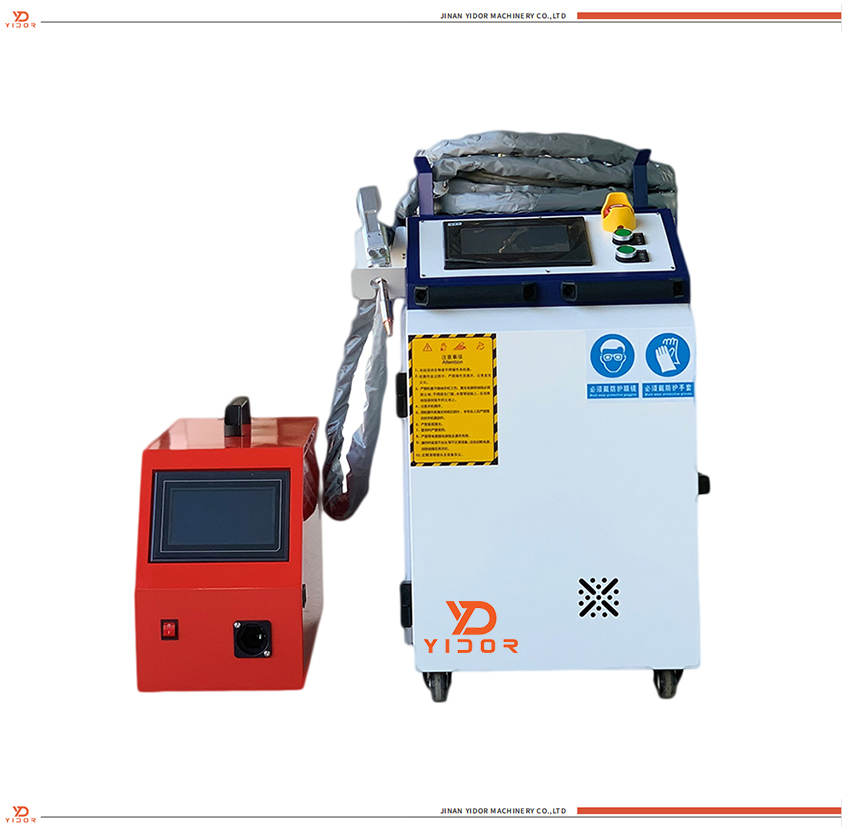

| Type | Portable Welding Machine |
| Laser Power | 1500W/2000W |

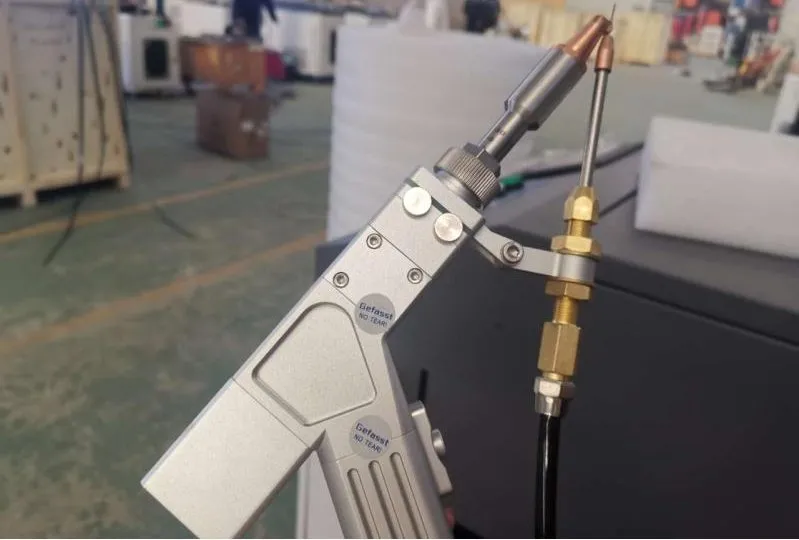

| Laser Head | Chao Qiang Wei Ye Sup 23t Laser Head |
| Water Chiller | Hanli Industrial Water Chiller |

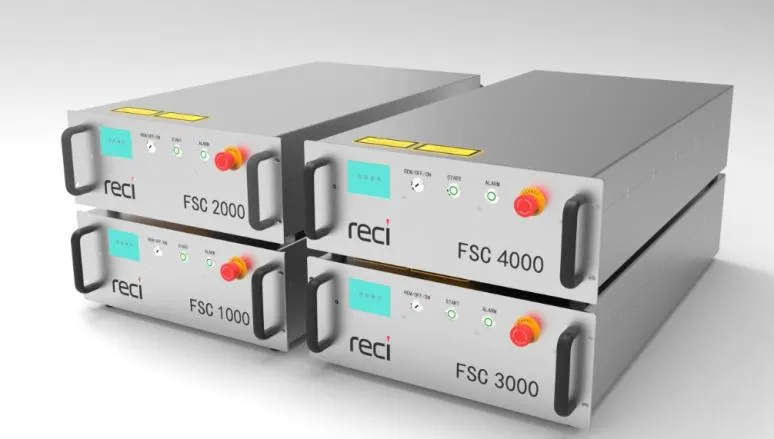

| Laser Source | Max/Raycus/Reci Laser Source |
| Machine Voltage | Single-Phase 220V/380V |
| Package Size | 112.00cm * 53.00cm * 132.00cm |
| Package Gross Weight | 120.000kg |
The laser welding machine employs high-octane laser pulse to heat one particular area of tiny areas on a work material. The powerful energy of laser radiation diffuses into materials' internal parts through heat conduction, and then the melting material will form a specific molten bath to facilitate the laser welding.

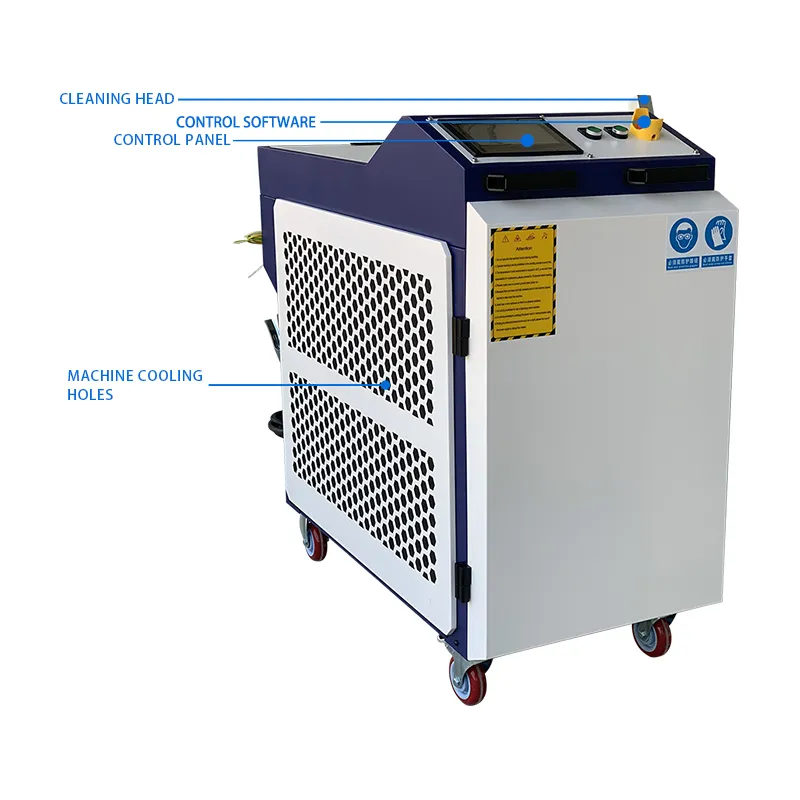

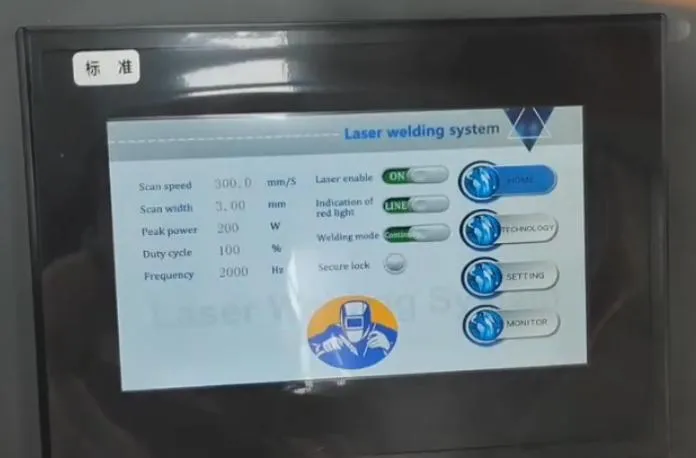

Control Panel: Adjusts laser output power, frequency, and duty cycle parameters.

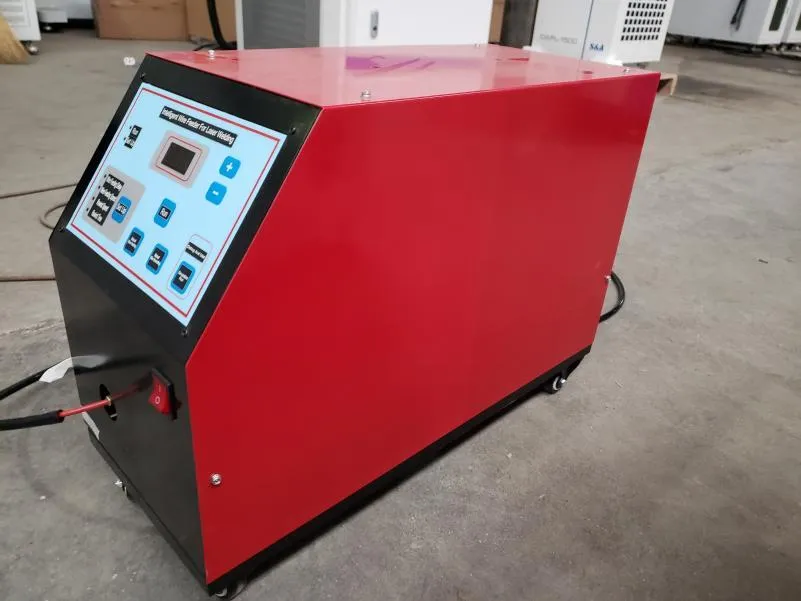

Automatic Wire Feeder: Supports 0.8mm to 2.0mm wire for gaps up to 2mm.

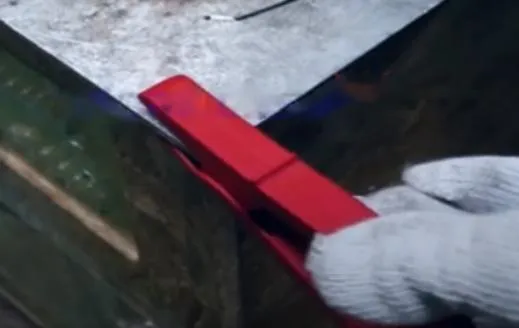

Ground Wire Clamp: Essential safety measure; laser only emits when clamped to material.

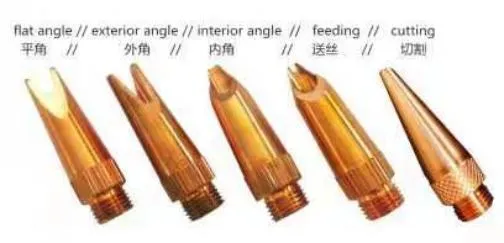

Customized Nozzles: Five types including flat fillet, outside/inside fillet, and cutting nozzles.
| Laser Type | Fiber laser |
| Equipment Model | YDW-1500/YDW-2000 |
| Laser Power | 1500W / 2000W |
| Laser Source | RECI / Max / Raycus |
| Laser Head | CHAO QIANG WEI YE SUP 23T |
| Water Chiller | HANLI Industrial Water Chiller |
| Wire Feeder | Included |
| Fiber Optic Length | 10m |
| Laser Wavelength | 1080±5nm |
| Fiber Diameter | 50μm |
| Spot Size | ф0.2-1.8mm |
| Output Connector | QBH |
| Red Light Display | Yes |
| Machine Voltage | Single-phase 220V / 380V |

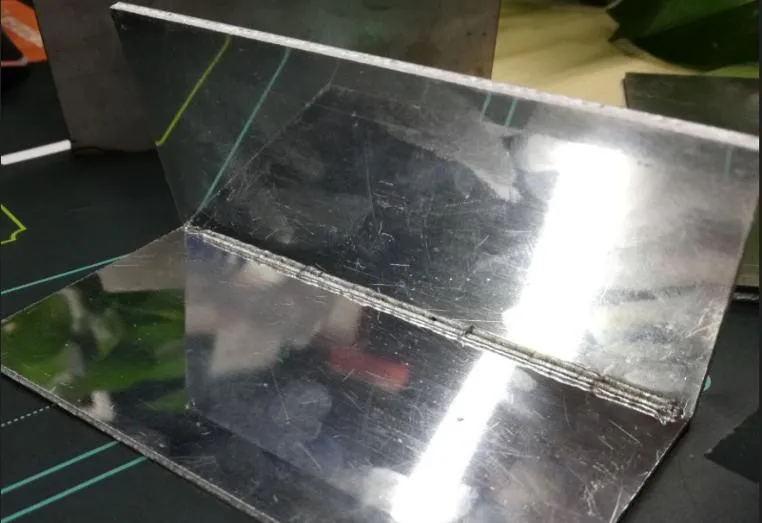

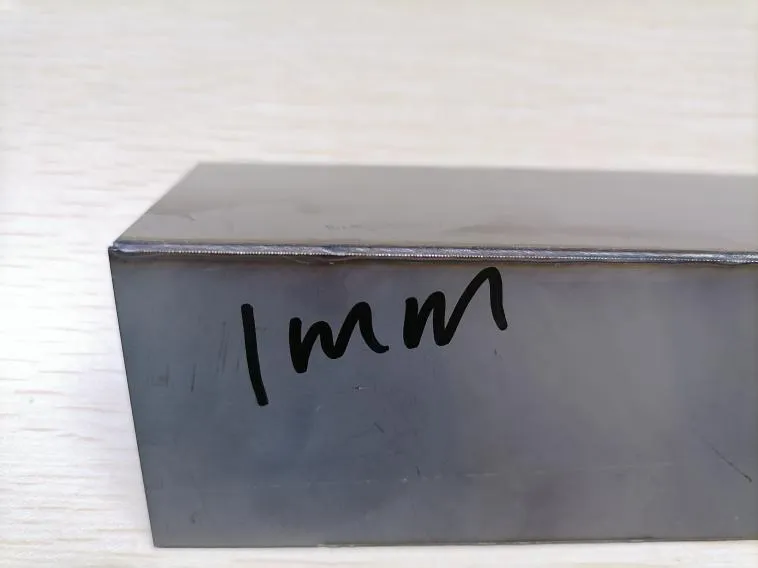

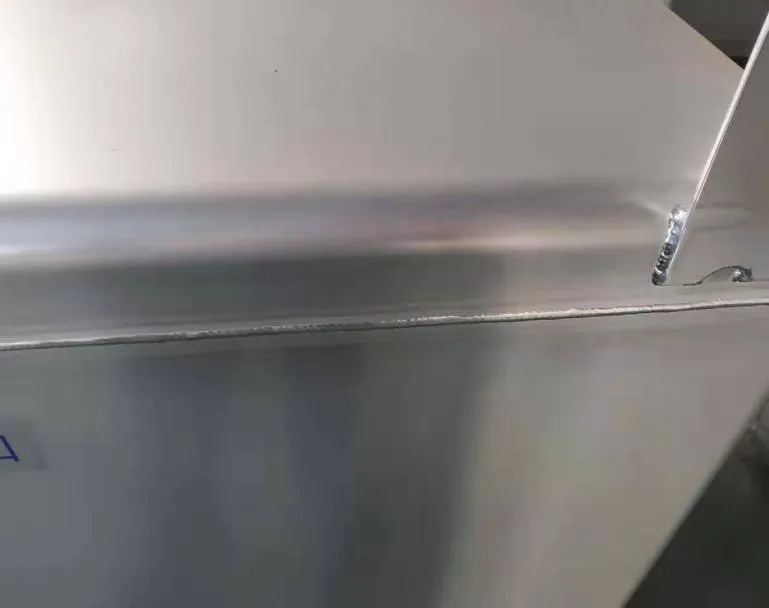

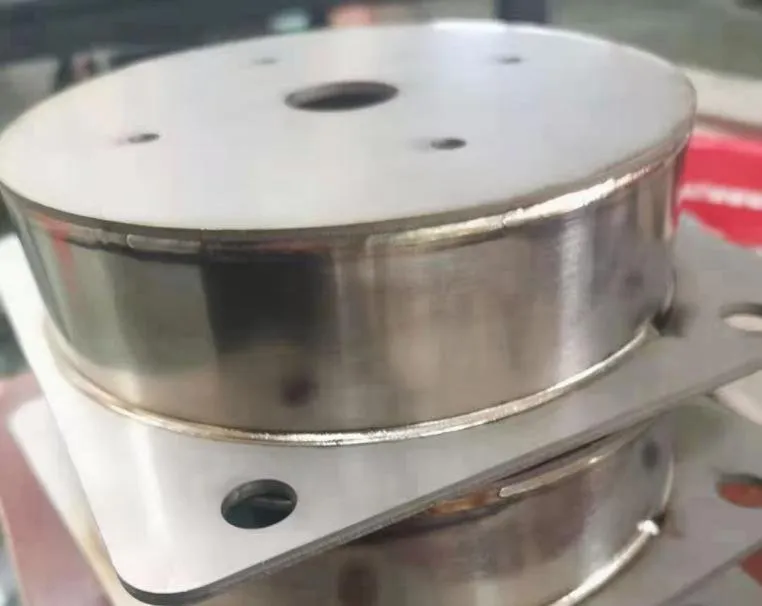

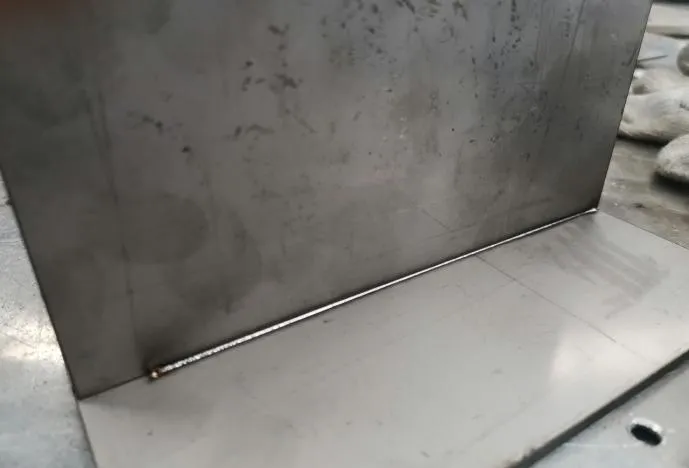

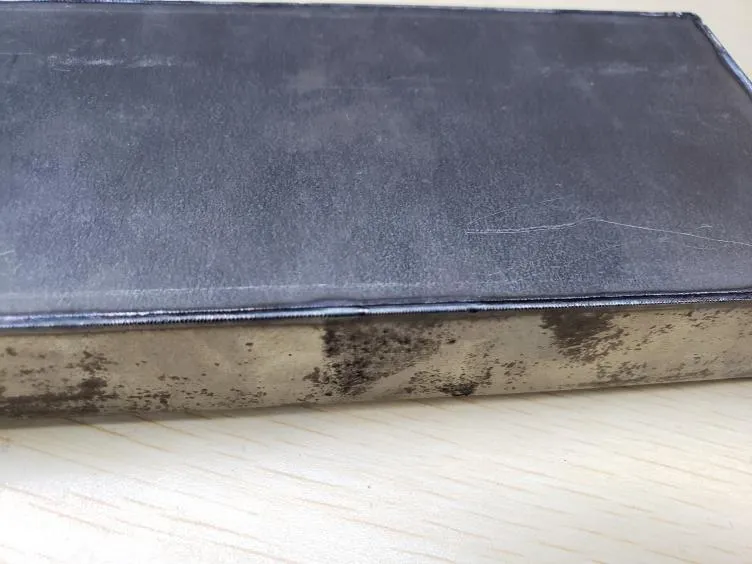

Suitable for stainless steel, iron, aluminum, galvanized sheet, and other high-reflection metals. Used in metal fabrication, construction, automotive, medical instruments, and aerospace.
