Basic Information
Application
Electronic, Automotive, Manufacturing, Shipbuilding
Technical Class
Continuous Wave Laser
Power Density
Deep Fusion Welding
Laser Class
Optical Fiber Laser
Type
Fiber Transmission Laser Welder
Welding Material
Ms / Ss / Al
Welding Speed
2-10 Times Faster Than Traditional
Wire Feeder
Available (0.8-1.6mm)
Specification
1000W / 1500W / 2000W

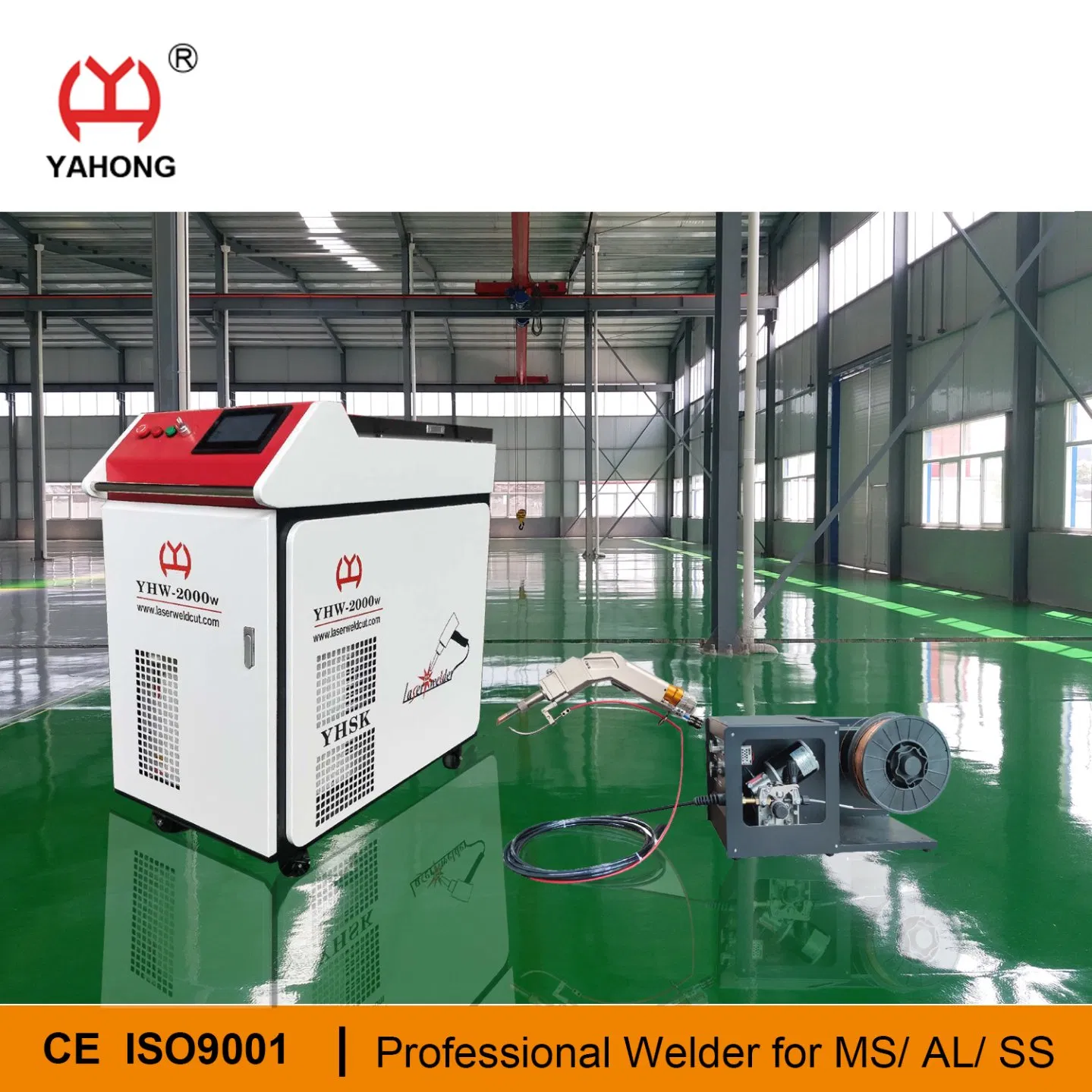

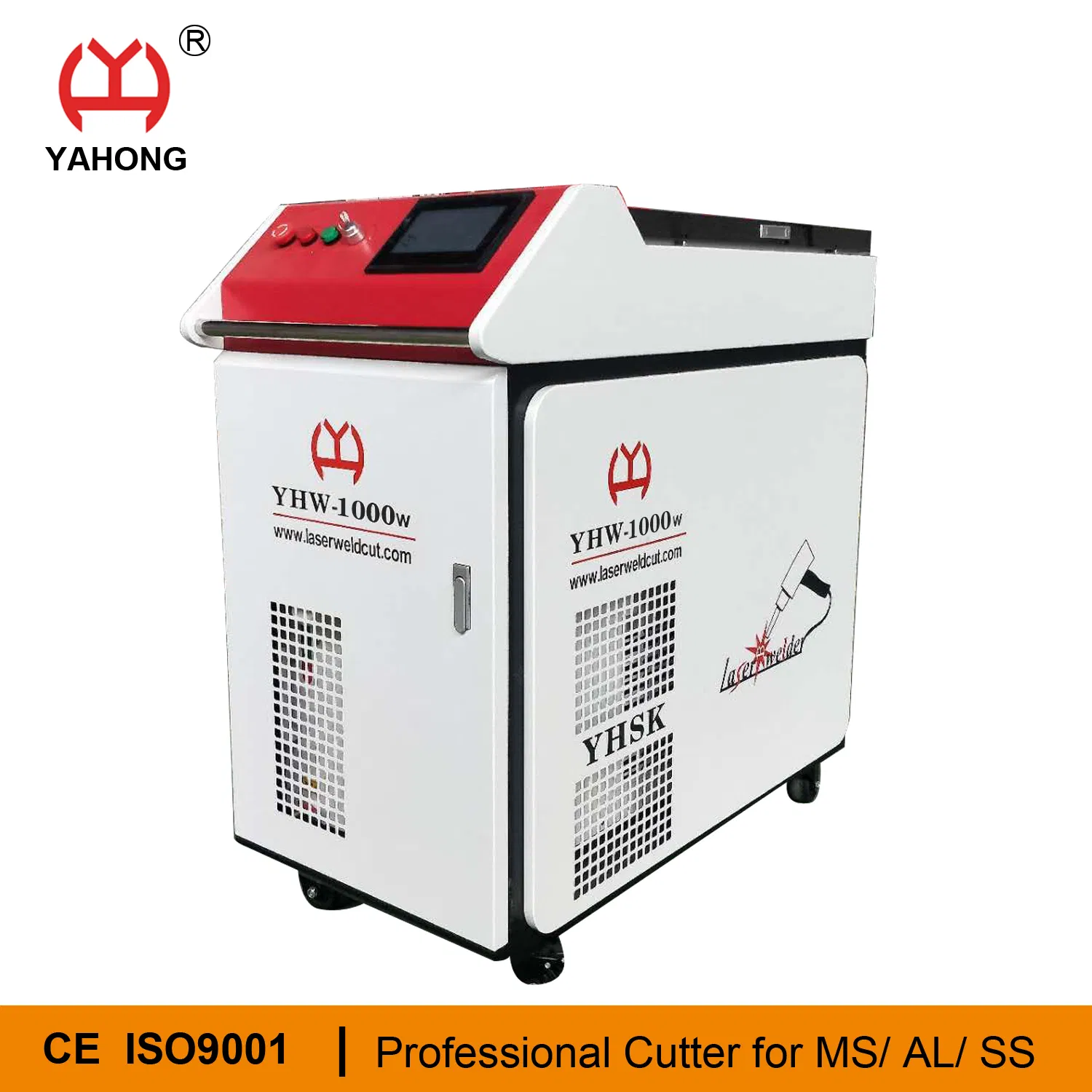

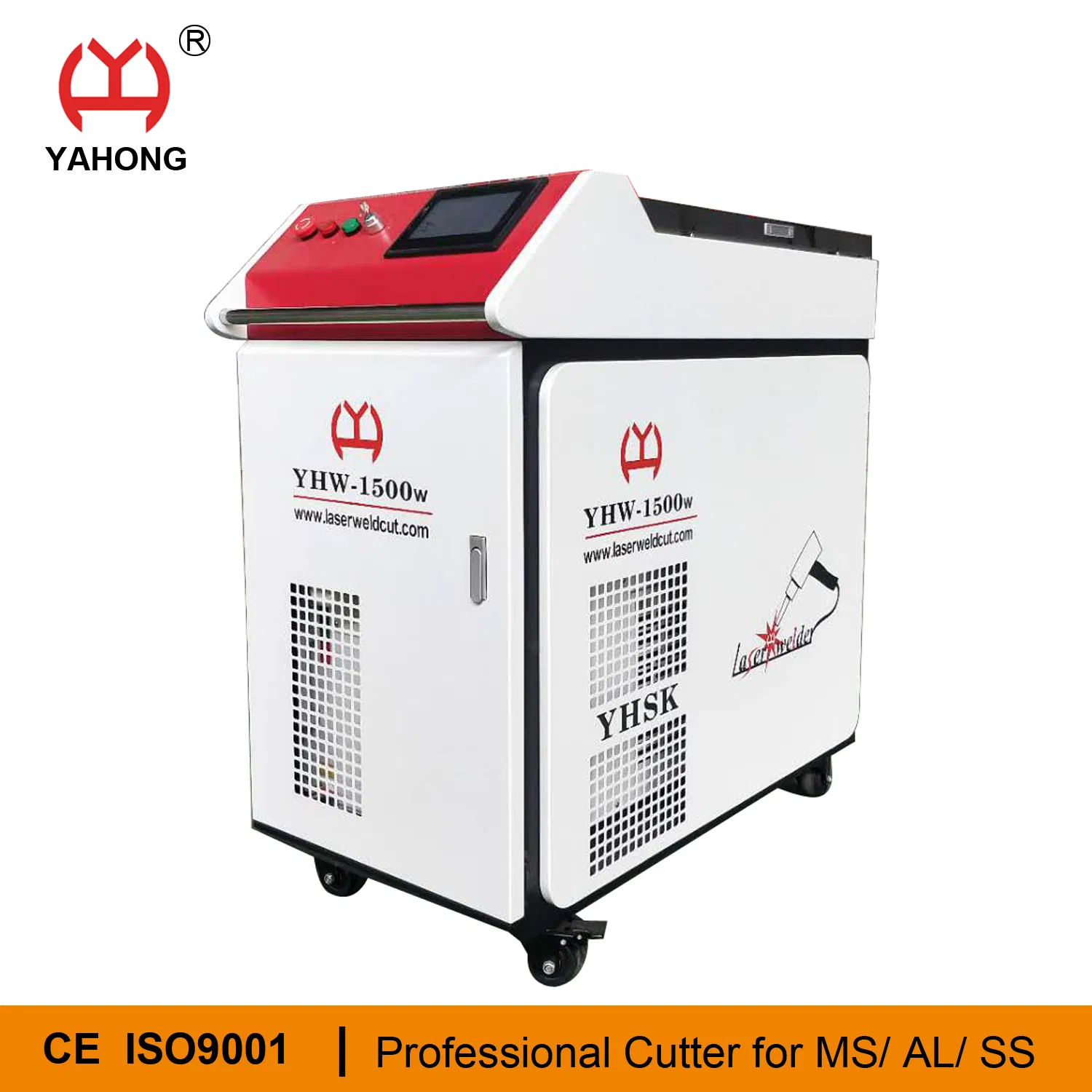

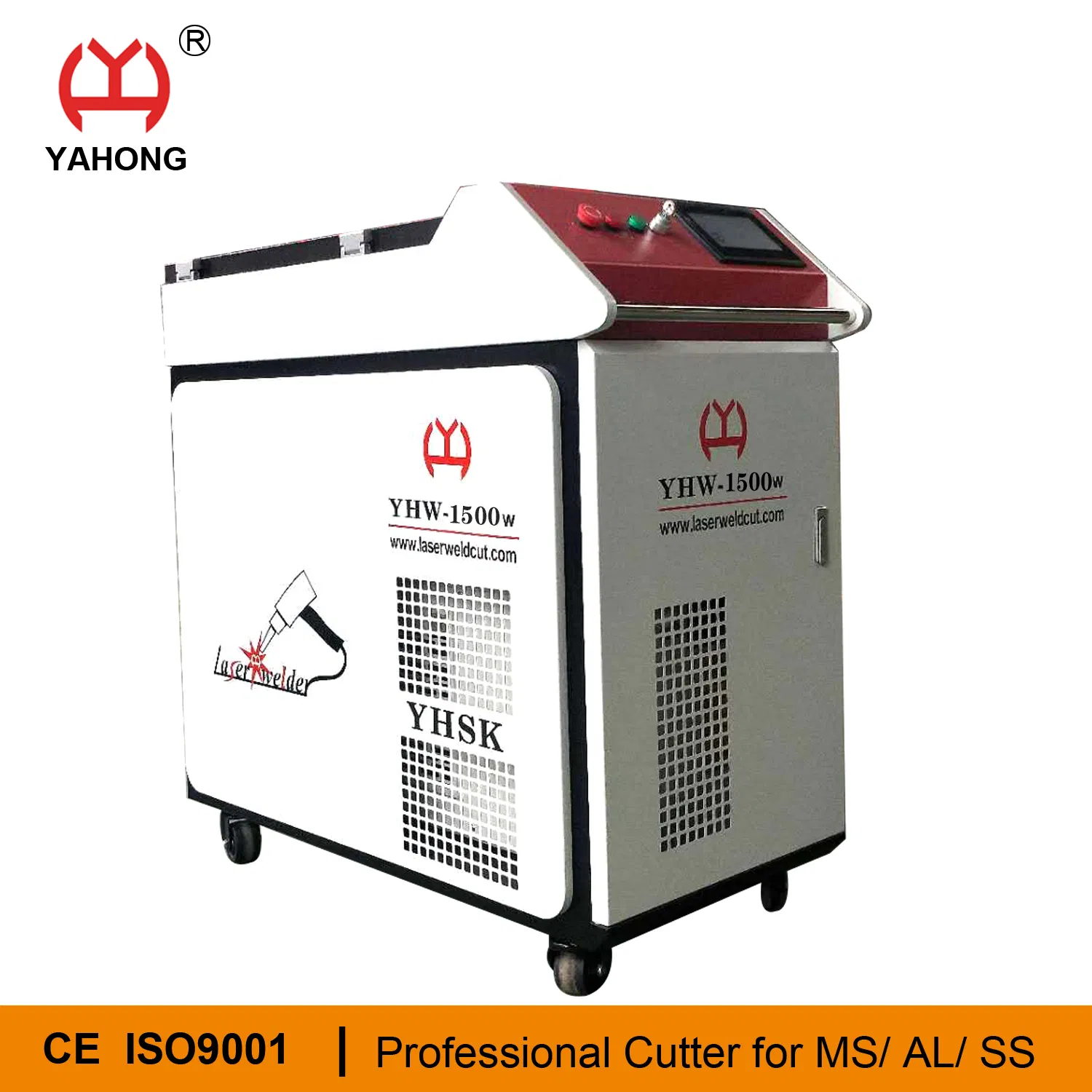

1kw 1.5kw 2kw Handheld Fiber Laser Welding Equipment
Advanced solution with integrated wire feeder for high-precision industrial welding.
Core Advantages
- Beautiful, uniform welding seams with no scars or discoloration; eliminates subsequent polishing.
- High weld strength that reaches or exceeds the base metal itself.
- One-time forming with minimal deformation, ideal for high-quality product requirements.
- Exceptional efficiency: 2-10 times faster than traditional welding methods.
- User-friendly operation: Easy to learn within 5 minutes, no professional foundation required.
- Low operating cost: Power consumption is only 1/10th of argon arc welding.
- Environmentally friendly with less gas, dust, and fewer consumables.
Technical Features
- Three versatile modes: Self-fusion welding, wire feeding, and cutting.

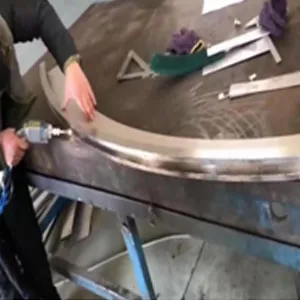

- Supports tailor, fillet, stitch, straight, and arc welding.
- Ergonomic welding head weighing only 0.8KG for long-term comfort.
- Process library storage for rapid debugging and parameter setting.
- 6 light emission modes with adjustable spot size (0-5mm).
- Digital control screen for seamless wire feeder parameter adjustment.
Weld Melt Depth Table
| Model |
Carbon Steel |
Stainless Steel |
Aluminum |
Red Copper |
| 1000W | 2.06mm | 2.68mm | 2mm | - |
| 1500W | 2.77mm | 3.59mm | 3mm | 0.2mm |
| 2000W | 3.59mm | 4.57mm | 4mm | 0.3mm |
Note: Actual welding thickness depends on penetration demand. Double-sided welding can increase effective thickness.

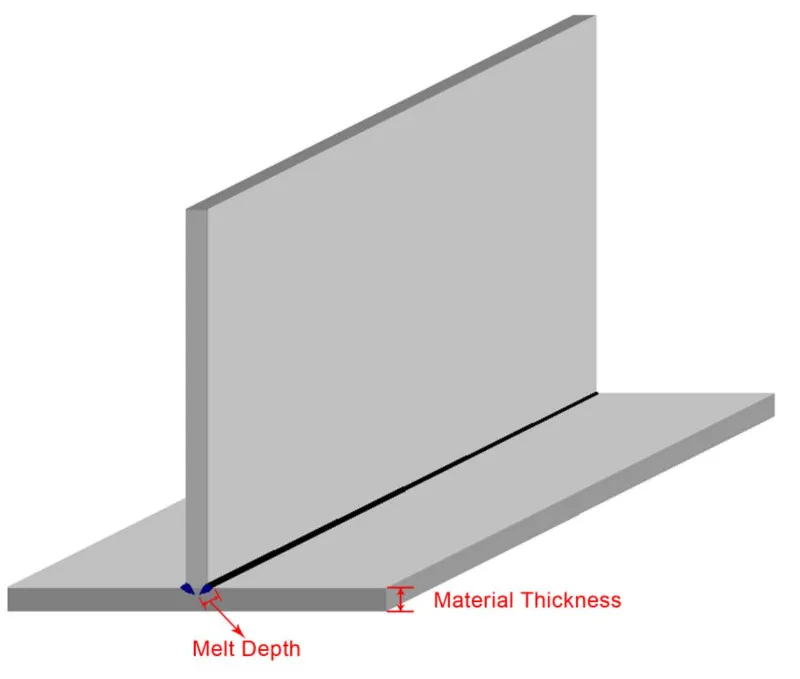

Melt Depth Reference Diagram
Welding Applications

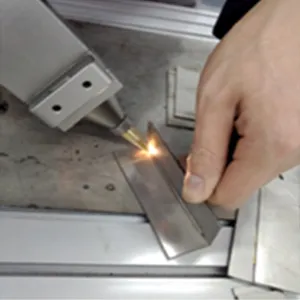

Fillet & Vertical Welding

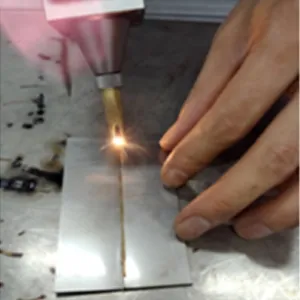

Tailor & Flat Welding

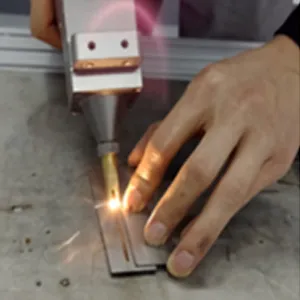

Overlap Welding

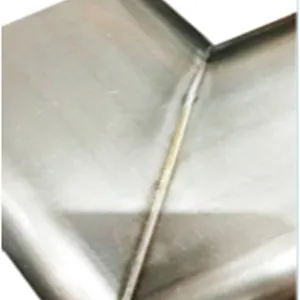

Welds Free Scar

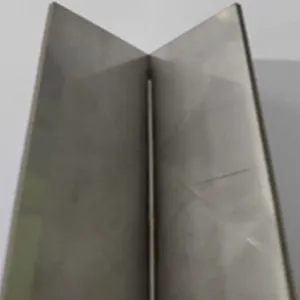

Beautiful Seam

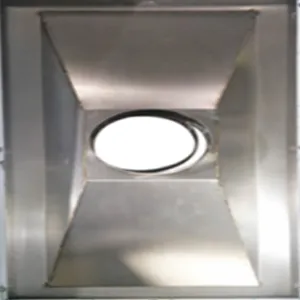

No Workpiece Deformation
Why Choose Our Laser Solutions?
- Over 10 years of professional production experience ensuring top-tier quality.
- Comprehensive after-sales support to resolve technical queries promptly.
- Direct manufacturer with extensive stock of spare parts and consumables.
- Flexible OEM/ODM services tailored to specific industrial needs.
Certifications
Frequently Asked Questions
1. Which materials can the handheld laser welder process?

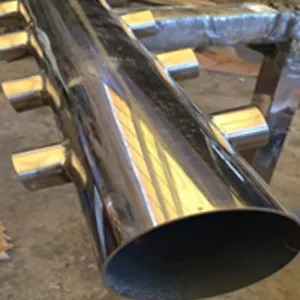

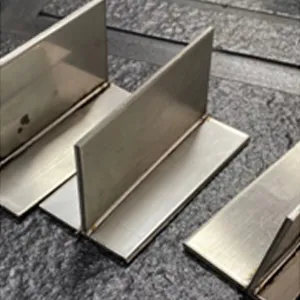

The machine is ideal for welding stainless steel, carbon steel, aluminum, and even red copper (at higher power levels), including various forms like flat plates, circular tubes, and rectangular tubes.
2. How much faster is this compared to traditional argon arc welding?
Our fiber laser welding equipment is 2 to 10 times faster than traditional welding methods, significantly improving production efficiency and reducing labor costs.
3. Is it difficult for a beginner to operate the machine?
Not at all. The operation is designed to be simple and ergonomic. Most users can master the basic welding techniques within just 5 minutes of training.
4. Does the welding process cause deformation of the workpiece?
Because laser welding provides concentrated energy and fast speeds, there is very low heat input, resulting in basically no deformation of the workpiece.
5. What wire diameters are supported by the automatic wire feeder?
The system supports standard welding wires with diameters of 0.8mm, 1.0mm, 1.2mm, and 1.6mm for stainless steel, carbon steel, and aluminum.
6. What are the main maintenance requirements?
Fiber lasers require very few consumables and have a long operational life. Regular checks on the protective lens and ensuring clean protective gas (Nitrogen) are the primary maintenance steps.
