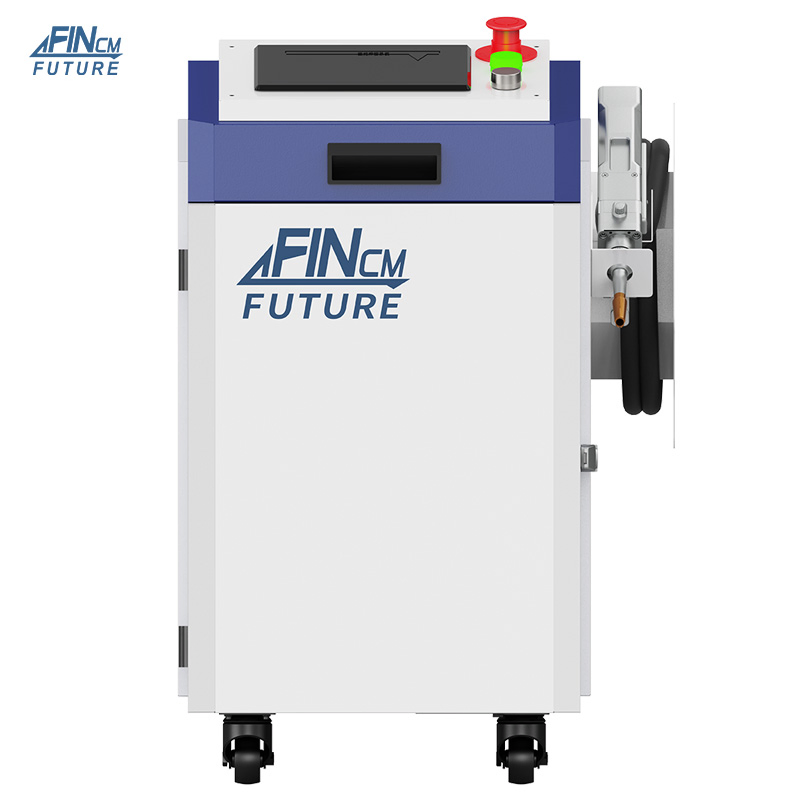

Fincm Water Cooling Handheld Fiber Laser Welding and Cutting Equipment for Metal
Fincm Water Cooling Handheld Fiber Laser Welding and Cutting Equipment for Metal
Fincm Water Cooling Handheld Fiber Laser Welding and Cutting Equipment for Metal
Fincm Water Cooling Handheld Fiber Laser Welding and Cutting Equipment for Metal
Fincm Water Cooling Handheld Fiber Laser Welding and Cutting Equipment for Metal
1 / 5
Fincm Water Cooling Handheld Fiber Laser Welding and Cutting Equipment for Metal
Fincm Water Cooling Handheld Fiber Laser Welding and Cutting Equipment for Metal
Fincm Water Cooling Handheld Fiber Laser Welding and Cutting Equipment for Metal
Fincm Water Cooling Handheld Fiber Laser Welding and Cutting Equipment for Metal
Fincm Water Cooling Handheld Fiber Laser Welding and Cutting Equipment for Metal

Fincm Water Cooling Handheld Fiber Laser Welding and Cutting Equipment for Metal

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
FW-1500/FW-3000/FW-2000
Application
Biomedicine, Electronic, Automotive, Manufacturing
Technical Class
Continuous Wave Laser
Laser Classification
Optical Fiber Laser
Functions
Welding, Cutting, Cleaning
Laser Power
1500W/2000W/3000W
Cooling System
Water Cooling
Voltage
220V
4-IN-1 Handheld Fiber Laser Machine

Welding / Cutting / Cleaning / Pass Cleaning

  • Compatible with optional laser powers: 1500W, 2000W, and 3000W.

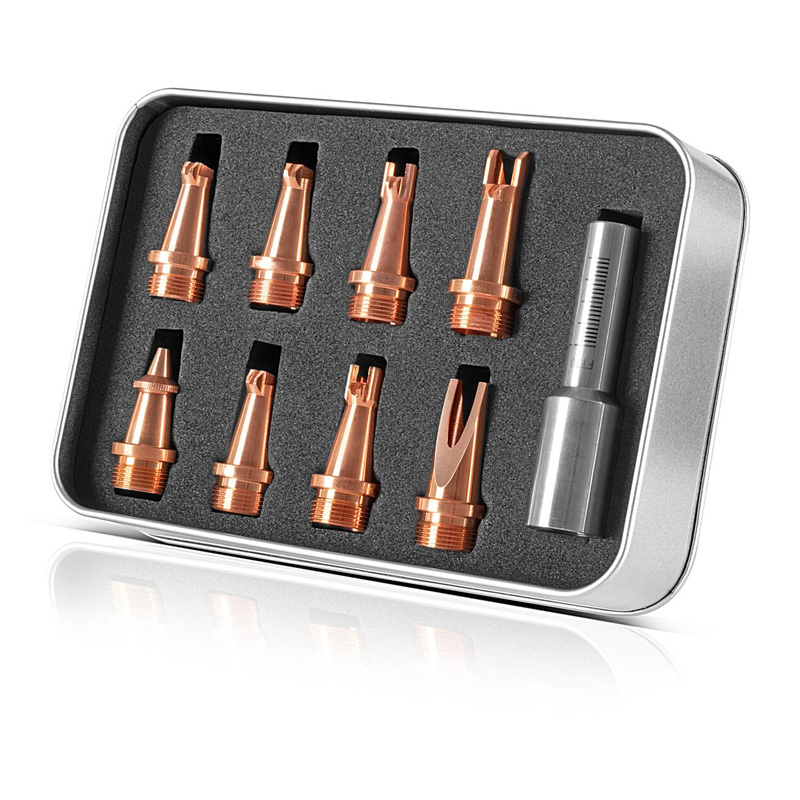

  • Four working modes with simple nozzle switching.
  • Wobble Welding: Adjustable width from 1mm to 5mm.
  • Pre-set parameters stored in the system for ease of use.

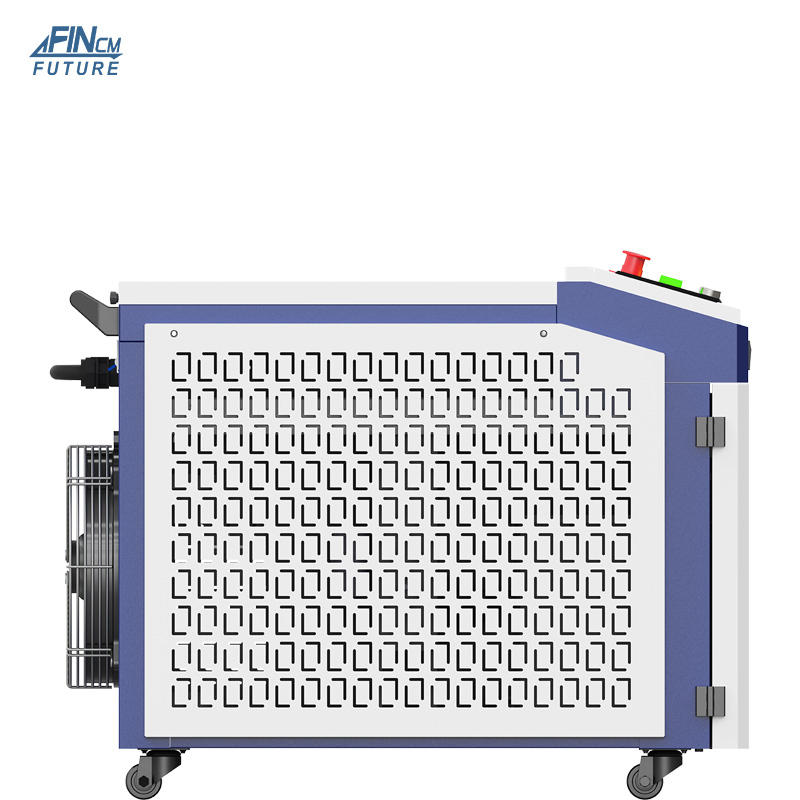

  • Cabinet-style integrated design combining laser chiller and welder.
Fiber Laser Welder

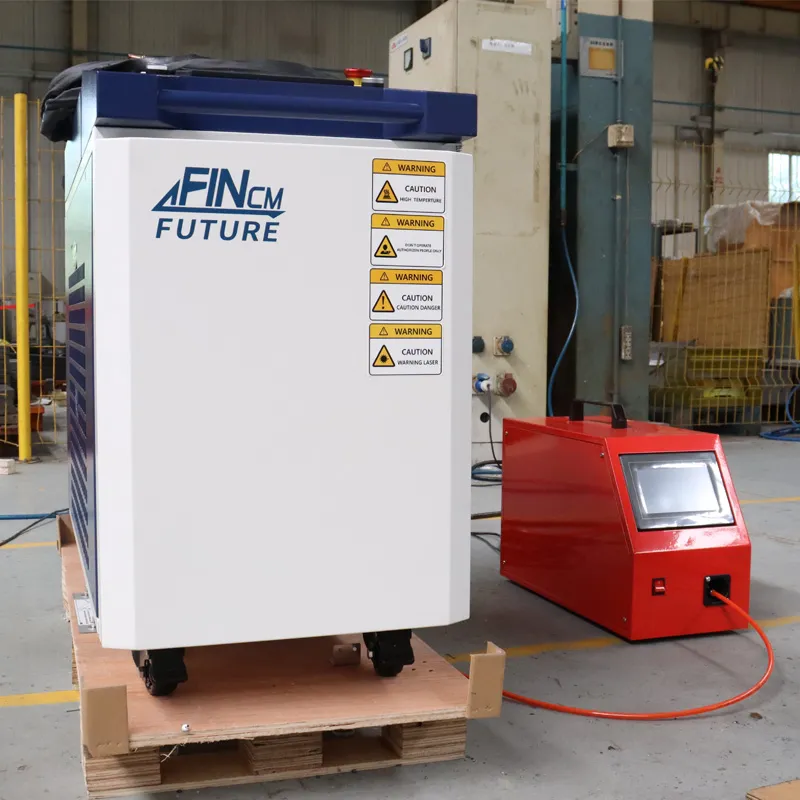

Laser Cutting Equipment

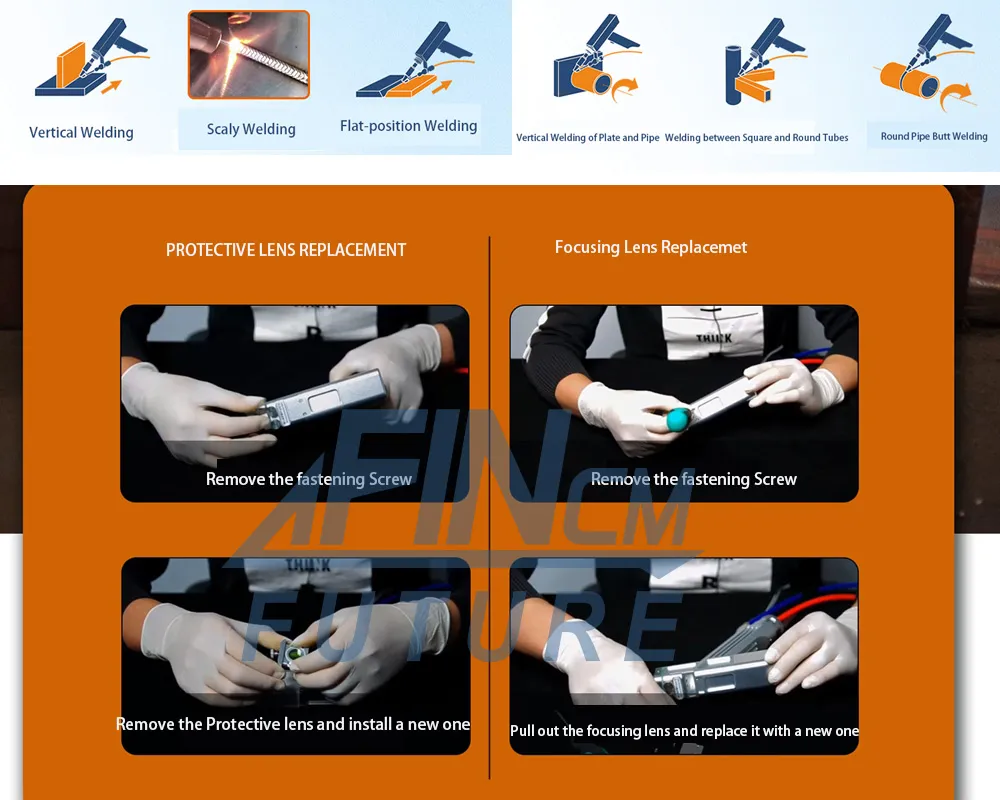

Product Layout
Technical Specifications
Model FW-1500 FW-2000 FW-3000
Power1500W2000W3000W
Stainless Steel Weld0.5-4mm0.6-6mm0.6-8mm
Carbon Steel Weld0.5-4mm0.6-6mm0.6-9mm
Aluminum Alloy Weld0.5-4mm0.6-6mm0.6-10mm
MaterialsStainless steel, carbon steel, aluminum, galvanized sheet, copper
Fiber Cable10m / 15m / 20m
CoolingWater Cooling
Component Details

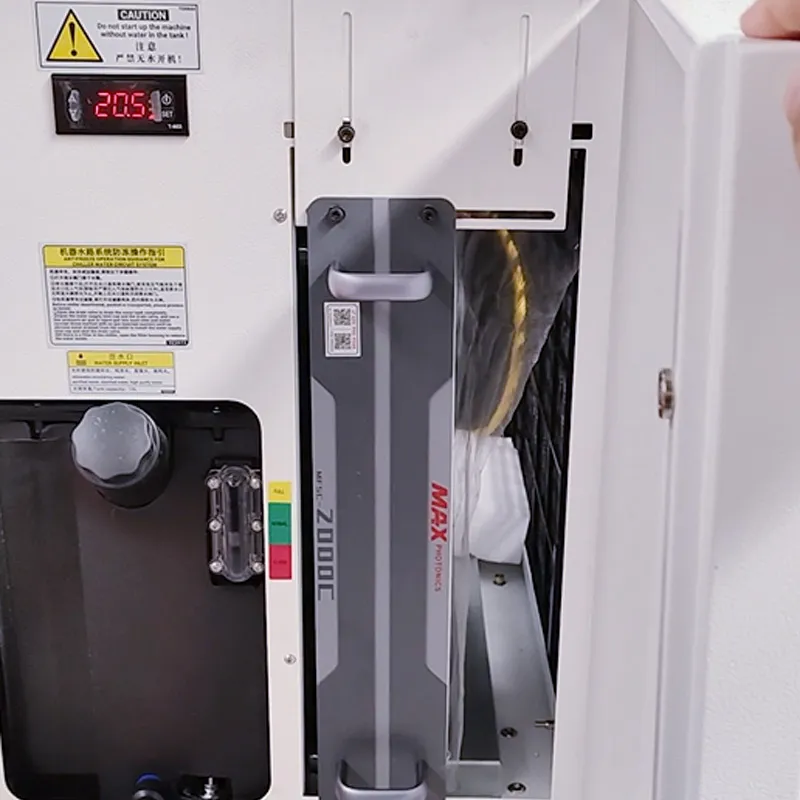

Laser Source

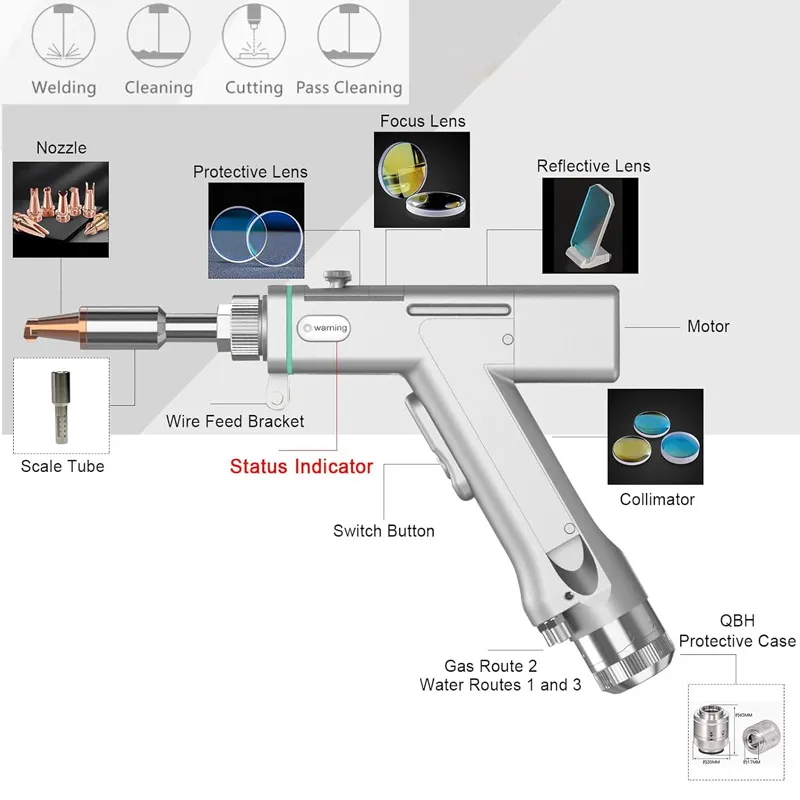

Laser Head

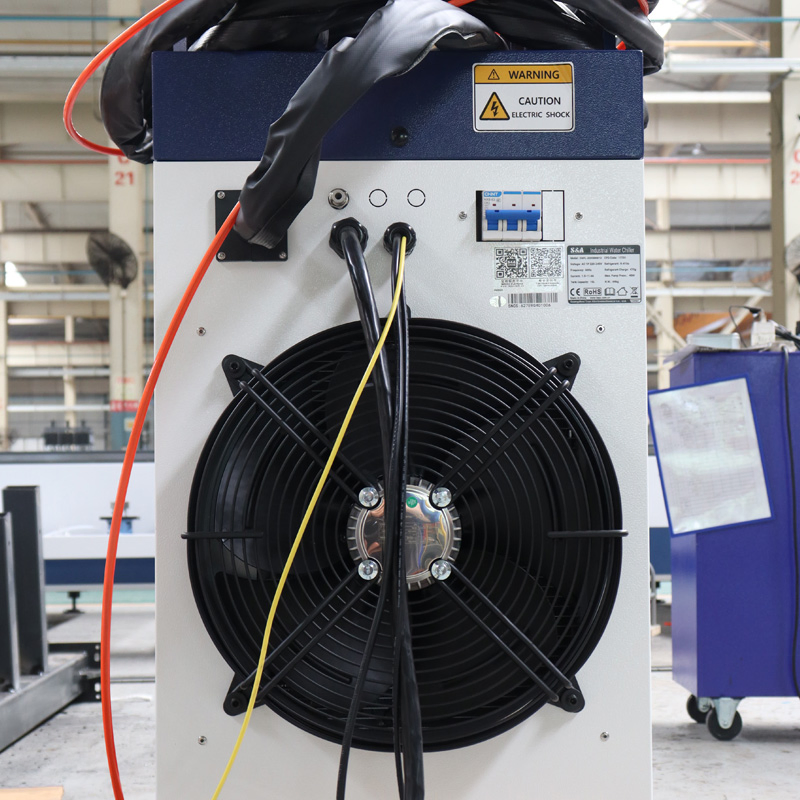

Max Laser Source & S&A Chiller: Integrated cabinet-style design for mobility.
Laser Welding Head: Lightweight at only 0.7kg, supports multiple modes.

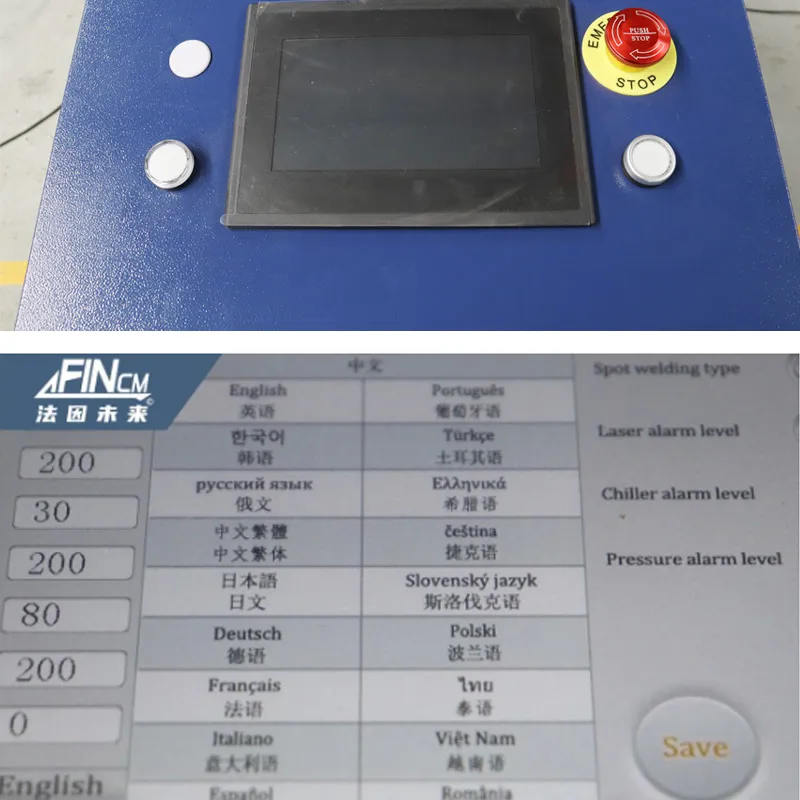

Control Panel

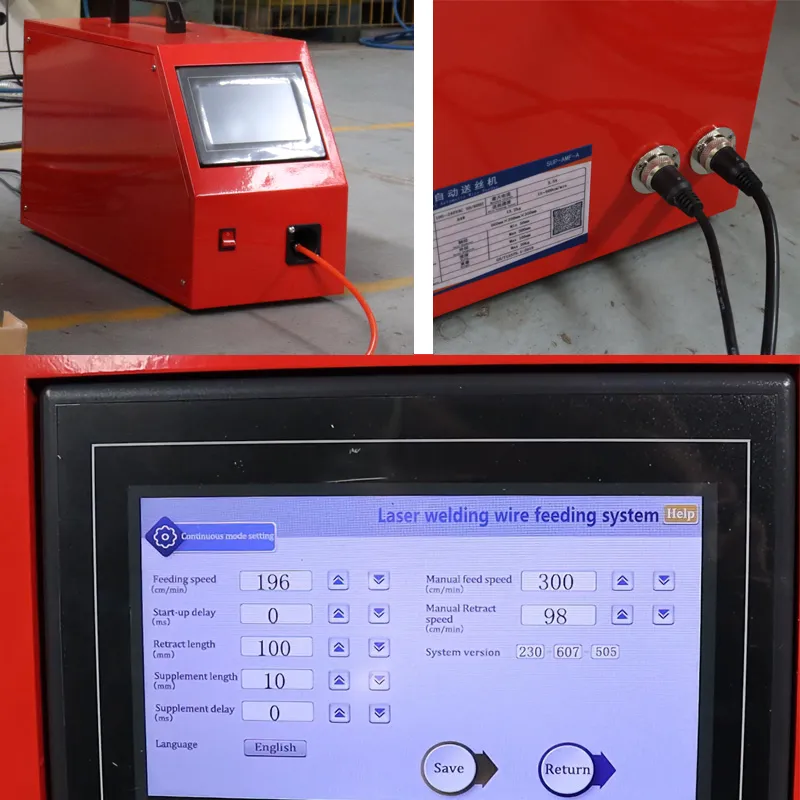

Wire Feeder
Smart Control Panel: Full touch screen, multi-language support (English, Spanish, French, etc.).
Auto Wire Feeder: Stable feeding, supports 0.8mm to 1.6mm wires.
After-Sales Support
After Sales
  • Commissioning: Full debugging to ensure equipment operates perfectly.
  • On-Site Training: Covers maintenance, safety, and basic troubleshooting.
  • Technical Innovation: We provide multidimensional intelligent laser industry chains.
Factory & Exhibition

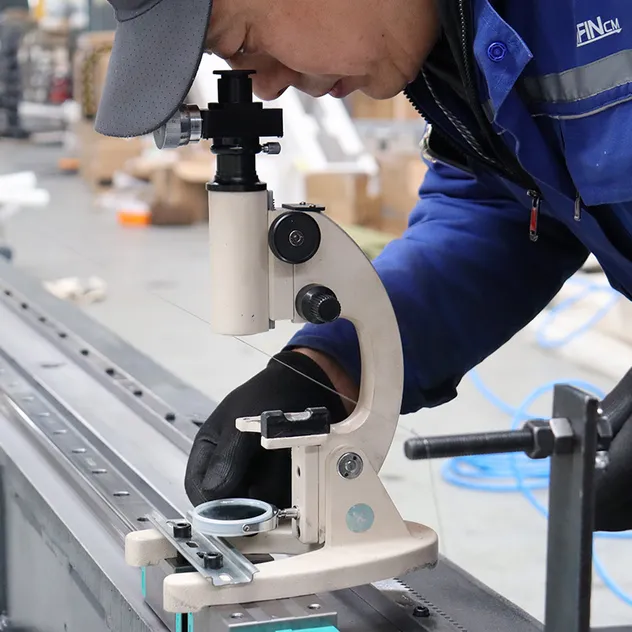

Factory View 1

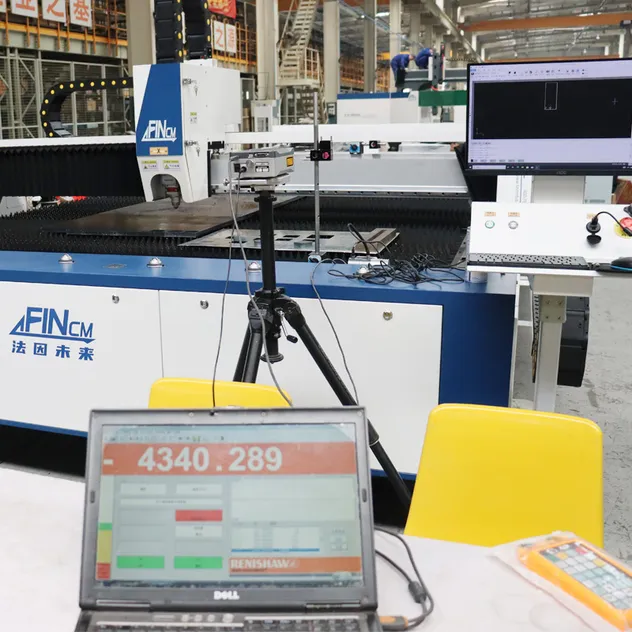

Factory View 2

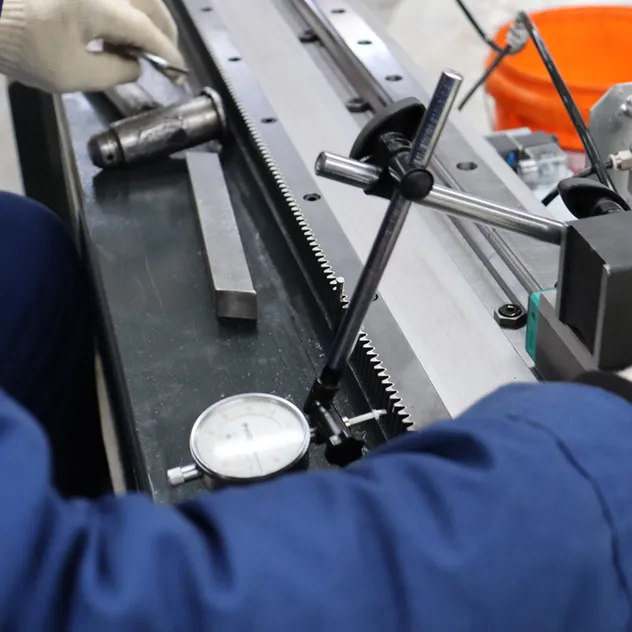

Factory View 3
Exhibition
Certifications
Frequently Asked Questions
What materials can this laser machine process?

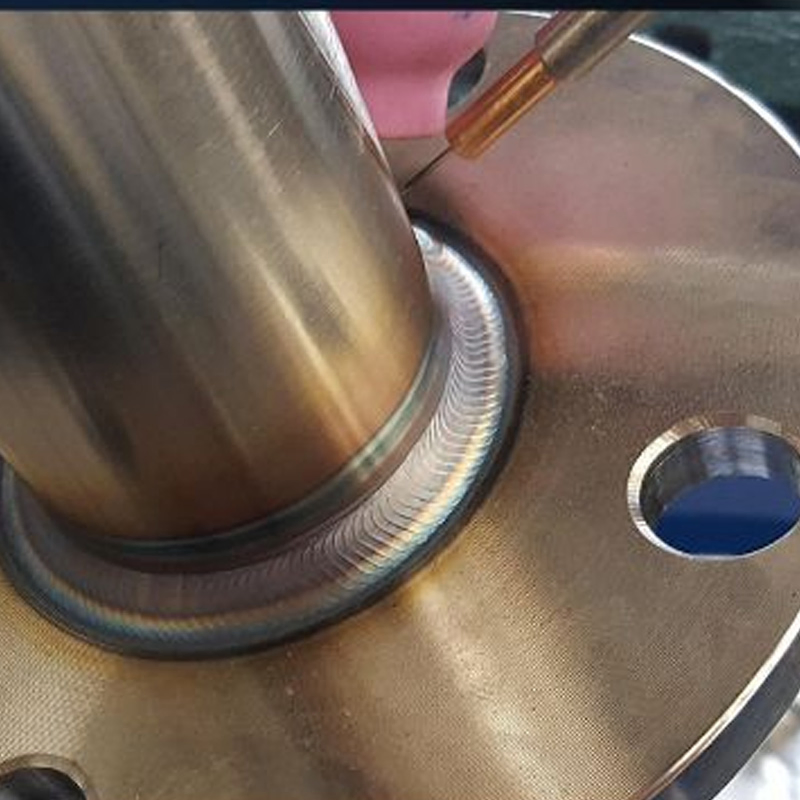

The fiber laser is ideal for welding and cutting carbon steel, stainless steel, aluminum, brass, copper, and other non-ferrous metals with high precision.
How difficult is it to operate the 4-in-1 system?
The system is designed for ease of use. It features a touch-screen interface with pre-set parameters and multi-language support, significantly reducing operator training time.
What are the 4 main functions of this equipment?
It integrates four major functions: Laser Welding, Cutting, Cleaning (rust/paint removal), and Pass Cleaning, achievable by simply switching nozzles and settings.
What cooling method does the machine use?
It uses a high-performance water cooling system (chiller) integrated into the cabinet to ensure stable operation of the laser source even during continuous work.
How do I choose between 1500W, 2000W, and 3000W?
Choice depends on material thickness. 1500W handles up to 4mm, 2000W up to 6mm, and 3000W up to 8-10mm for common metals like stainless steel and aluminum.
What are the maintenance requirements?
Routine maintenance includes cleaning the protective lens, checking the water level in the chiller, and ensuring the wire feeder is clear of debris.
