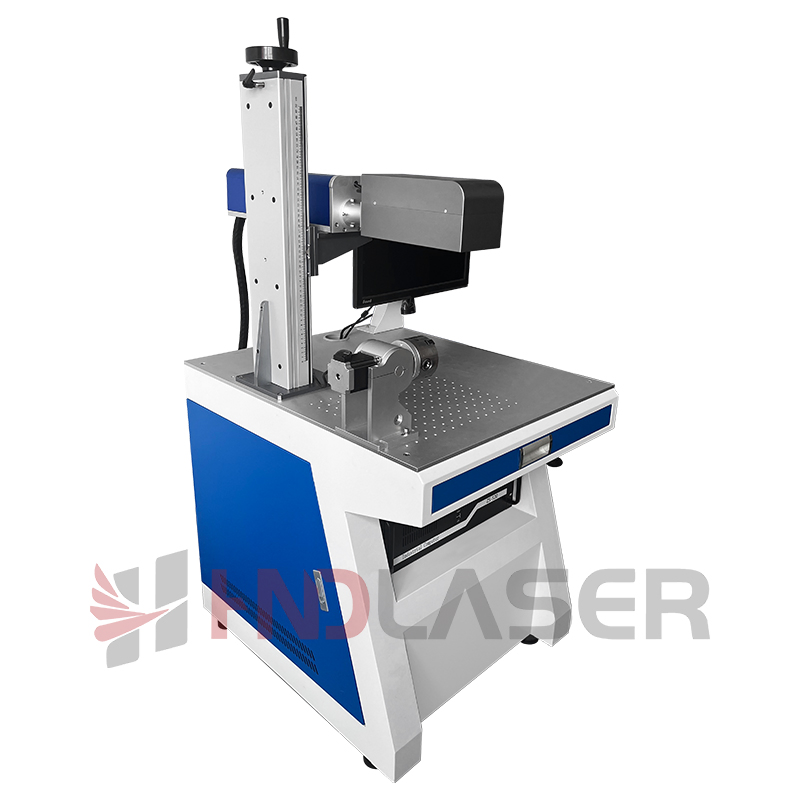

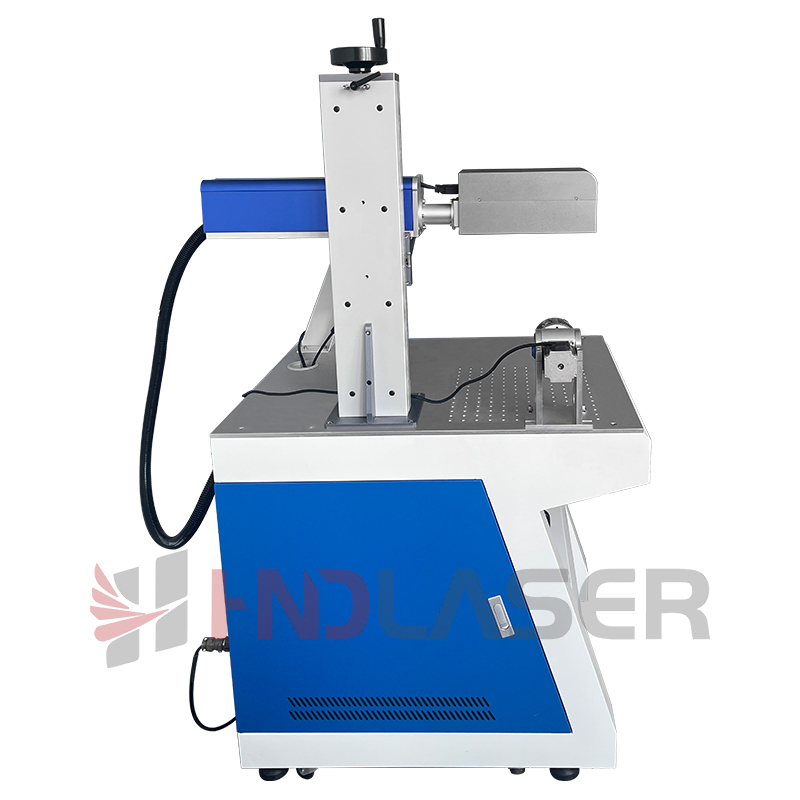

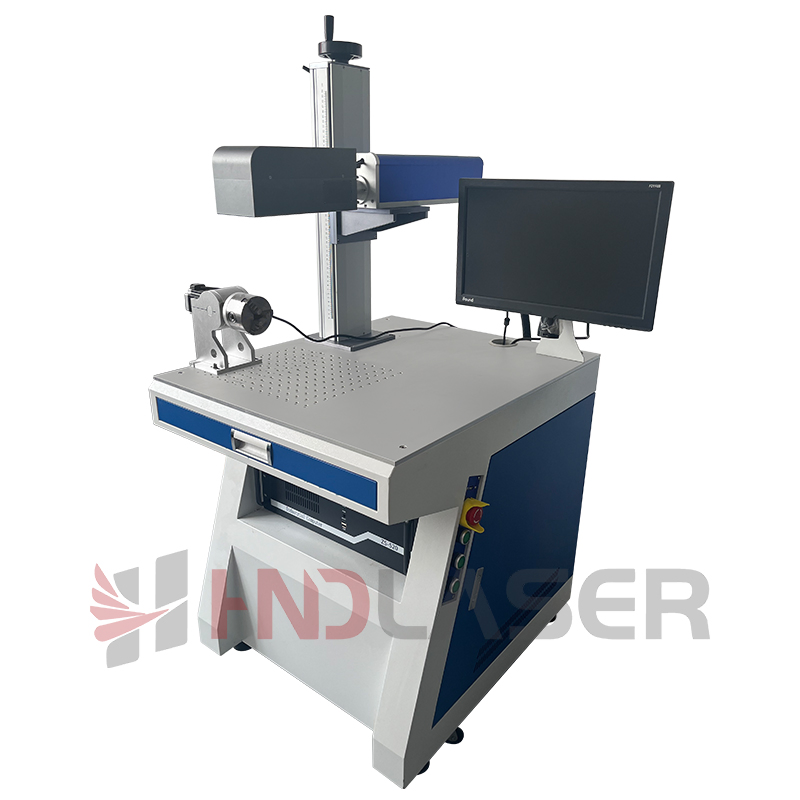

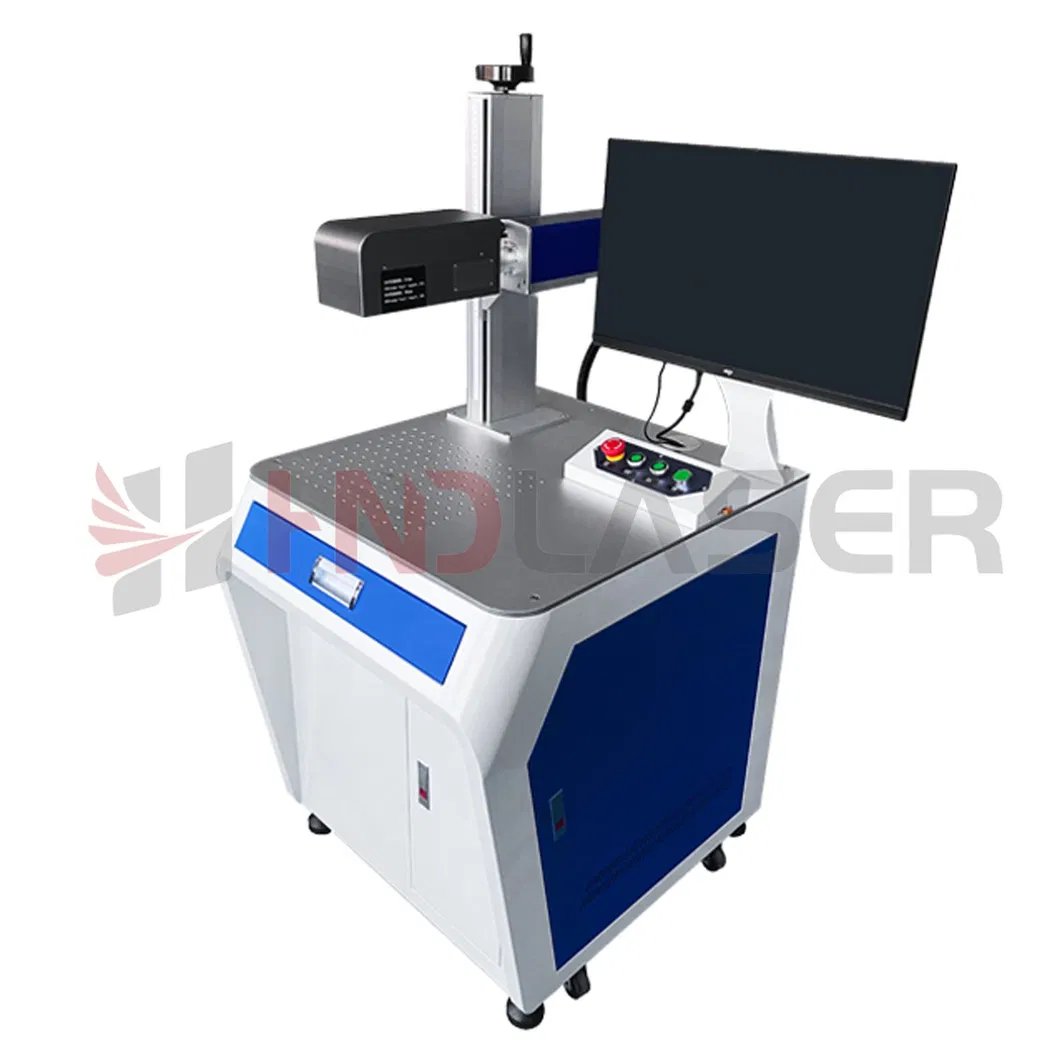

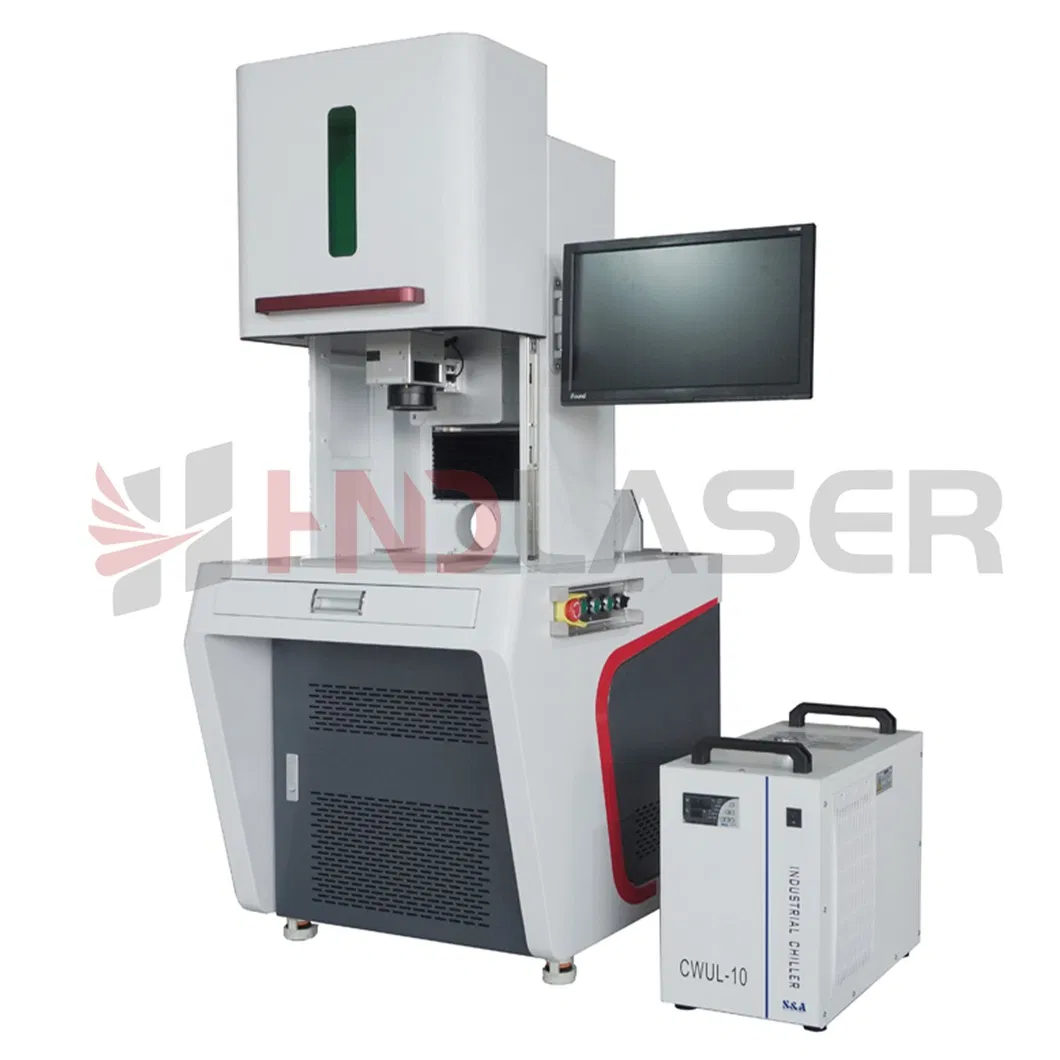

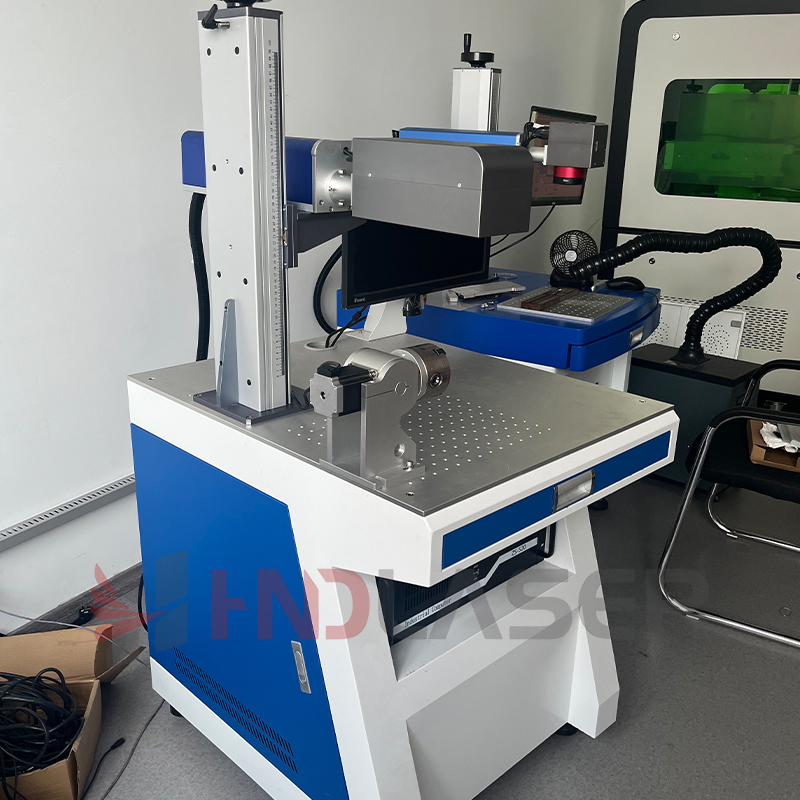

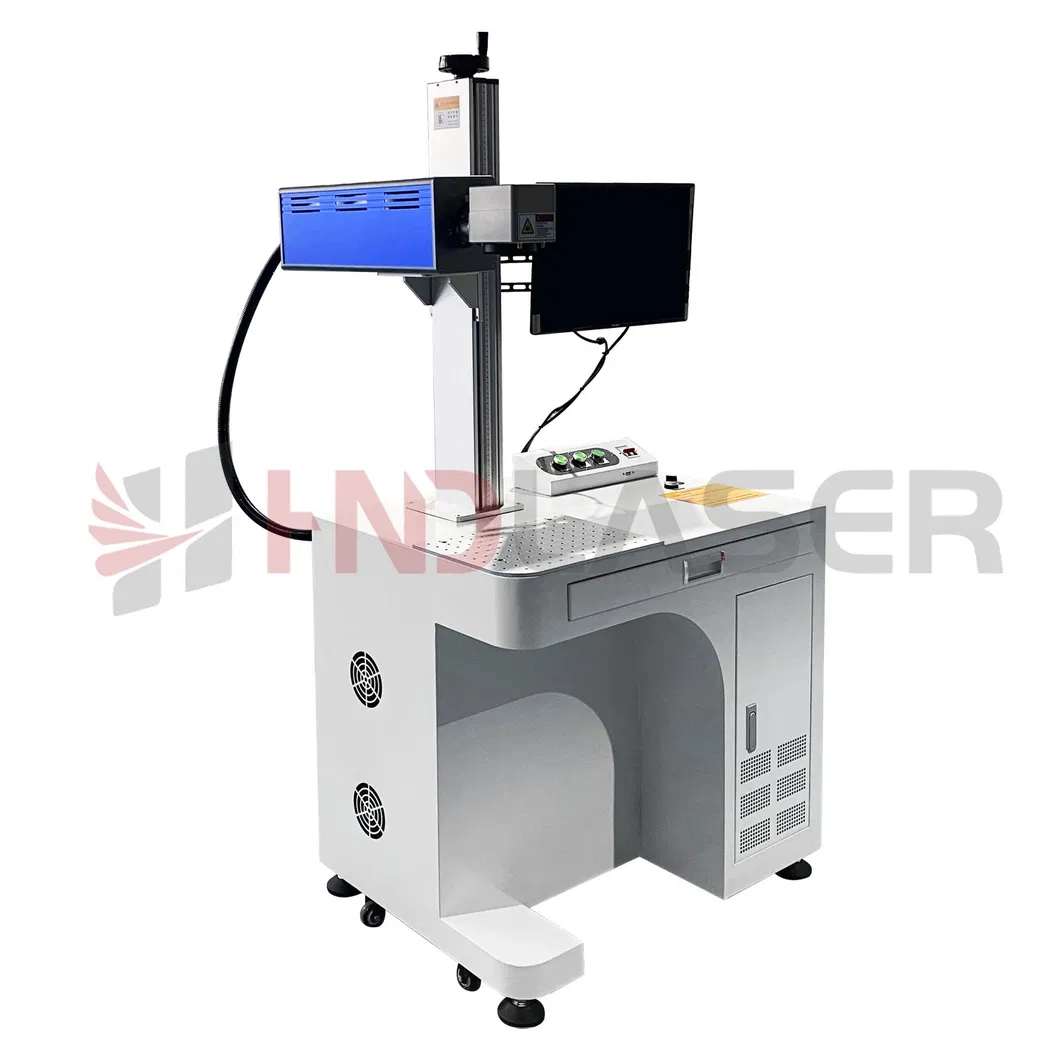

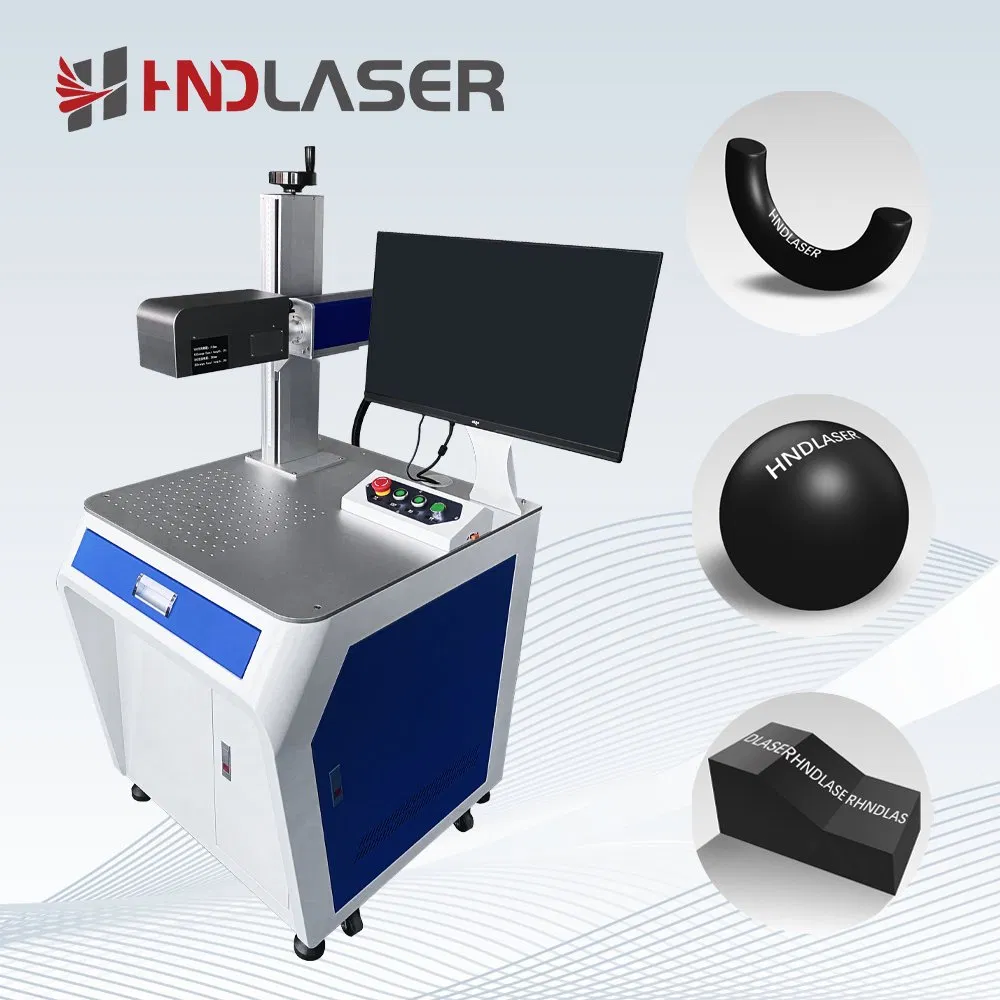

3D Dynamic Fiber Laser Marking Machine High Precision
3D Dynamic Laser Engraving Technology:
Auto Focus: The Z-axis automatically adjusts the focus dynamically in response to changes in surface height, ensuring optimal marking quality on complex objects.
High-speed scanning: Dramatic increase in marking speeds suitable for mass production throughput requirements.
High Accuracy: Precise control of the galvanometer system enables micron-level marking accuracy.

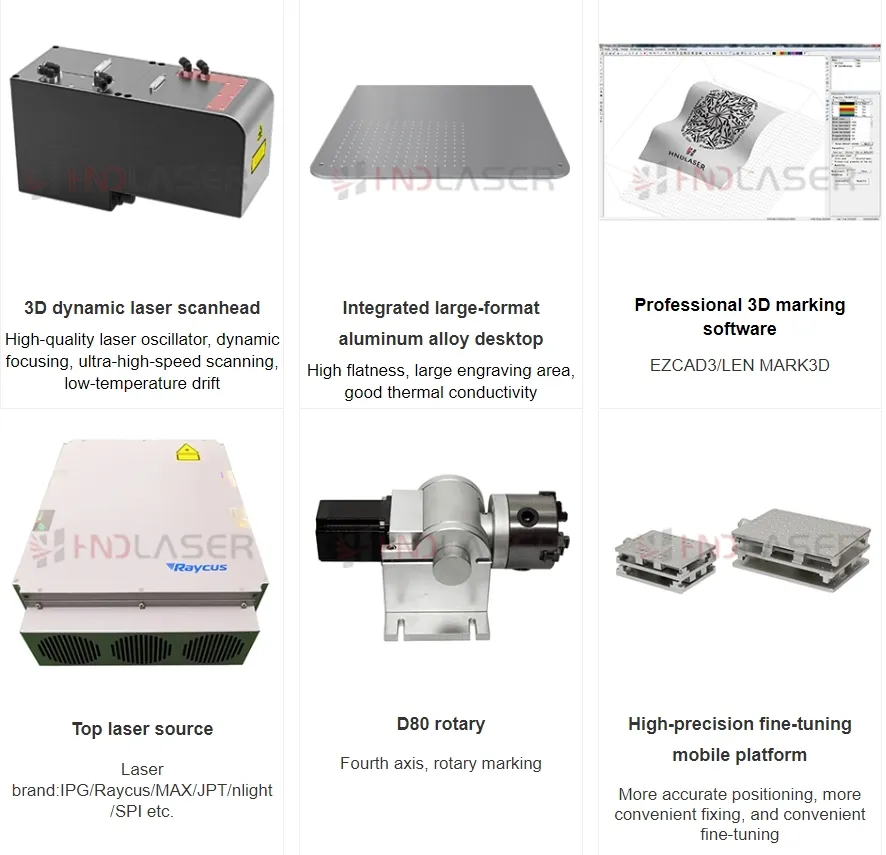

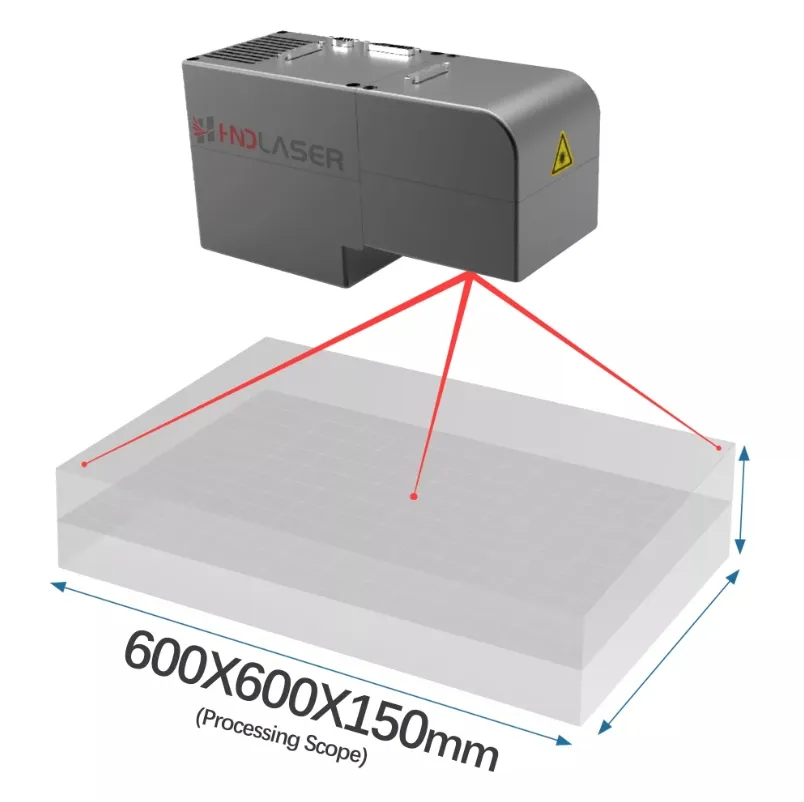

Efficient 3D Marking Software:
Complex Graphics Processing: Supports multi-level and multi-dimensional marking effects for complex 3D graphic data.
Automatic Compensation: Automatically adjusts the laser path according to the three-dimensional shape of the object surface.
| NO. | Project | Parameter |
|---|---|---|
| 1 | Model number | HF10XX-3D |
| 2 | Laser power | 30W/50W/100W/200W (Optional) |
| 3 | Laser level | Class IV (IEC 60825-1) |
| 4 | Laser type | Pulse Fiber Laser |
| 5 | Wavelength | 1064nm |
| 6 | Marking field | 100/150/200/300/400/500/600 (Optional) |
| 7 | Max. Marking depth | 20-200mm |
| 8 | Marking speed | ≤10000mm/s |
| 9 | Repeat accuracy | 0.01mm |
| 10 | Laser source life | >100,000 hours |
| 11 | Electrical requirement | 100 - 240 VAC, 50/60 Hz |

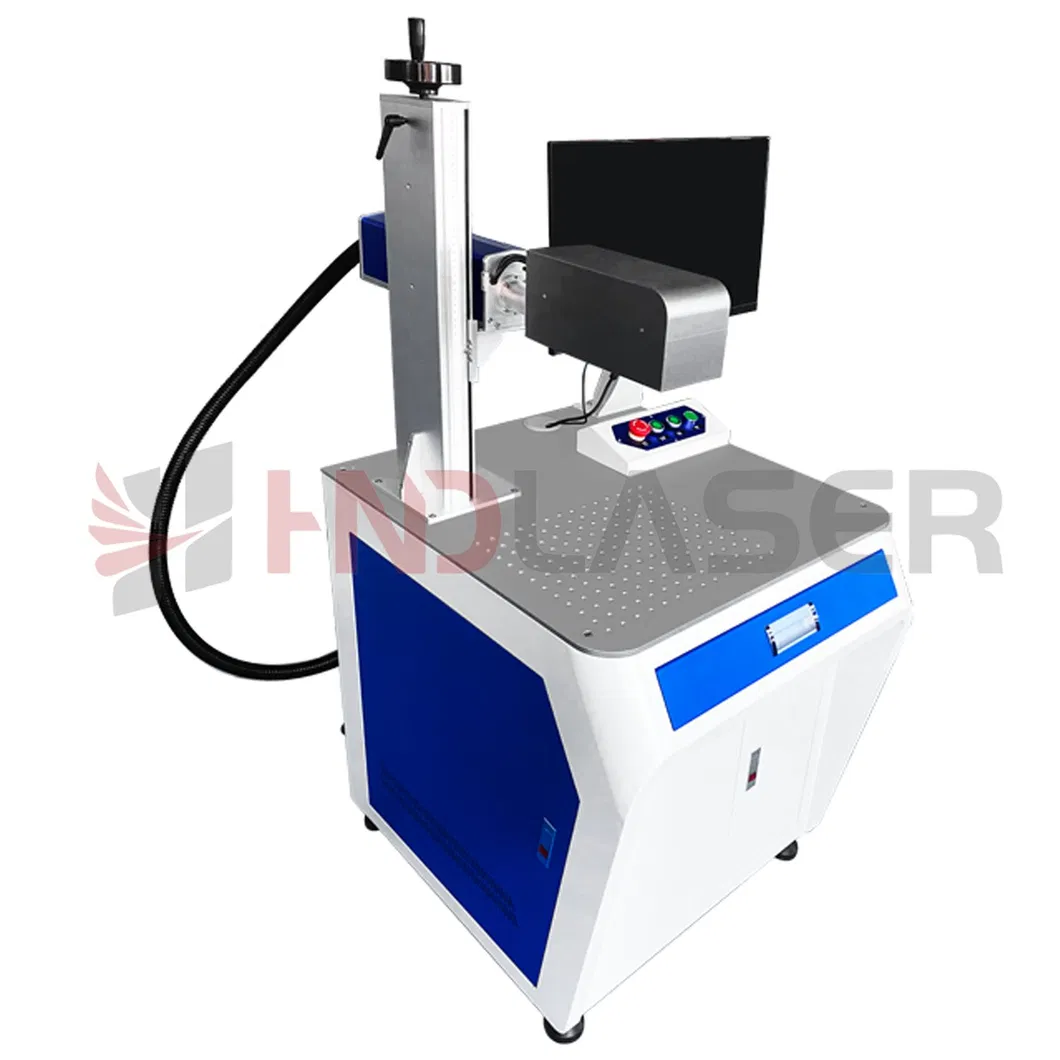

A 3D laser marking machine uses a focused laser beam controlled by advanced software to engrave intricate designs with unmatched precision. The laser adjusts its focus dynamically to account for the 3D features of the object.
| Metal Materials | Reaction | Plastic Materials | Reaction |
|---|---|---|---|
| Stainless steel | √√ | PE / PVC | √√ |
| Aluminum | √√ | PP / PET | - |
| Brass / Copper | √√ | ABS / Nylon | √ |
| Gold / Silver | √ | PC | - |
| Titanium | √√ | Ceramic | √ |
√√ Exceptional Reaction | √ Admirable Reaction | - Unsatisfactory Reaction
Non-consumable
Eradicate replacement expenses. Reliant solely on electrical power. Maintenance-free operation.
Eco-friendly
Ink-free, solvent-free, and odorless operation. Non-toxic and safe for the environment.
Energy-efficient
Zero emissions produced with 100% resource utilization and minimal waste.
Permanent Durability
Resistant to oxidation with no color degradation. Enhances product traceability.
