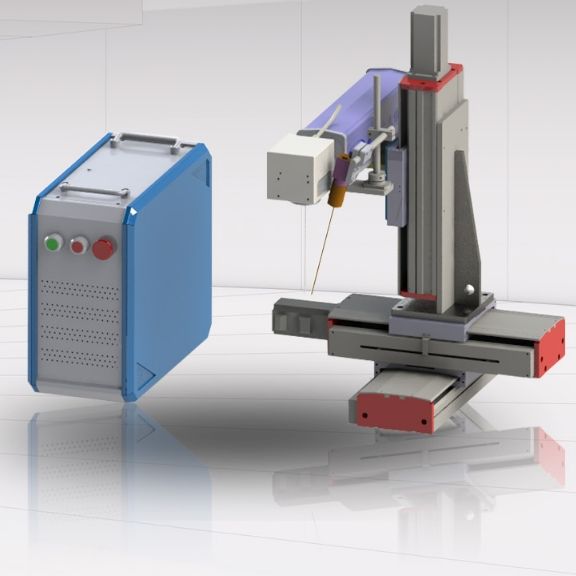

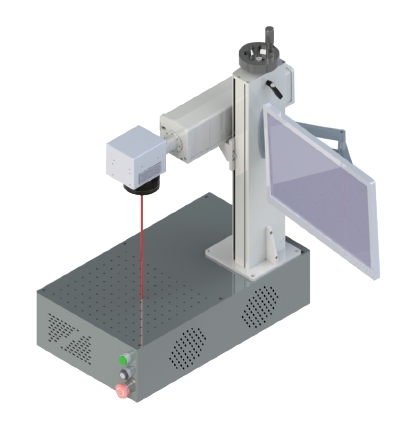

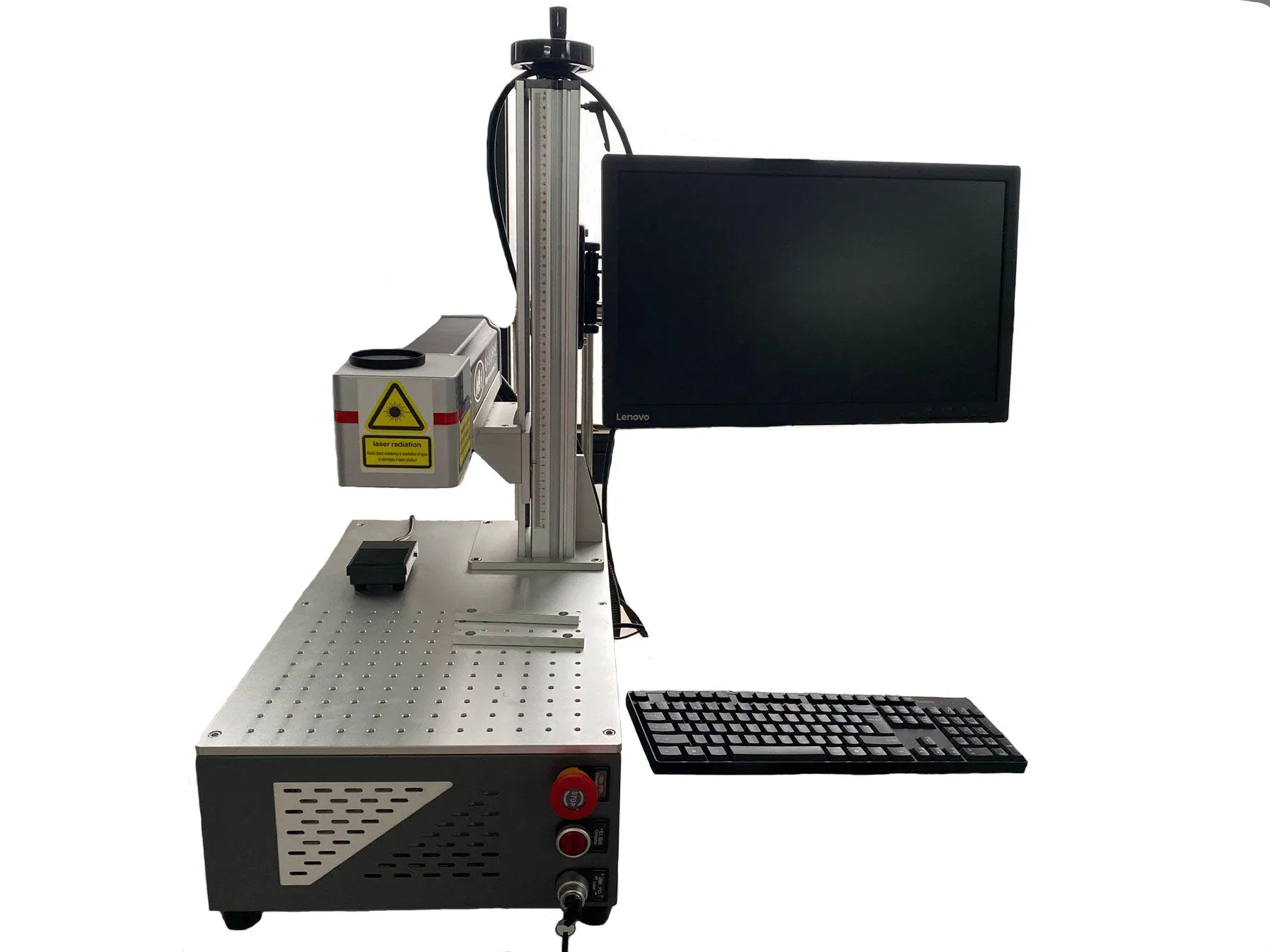

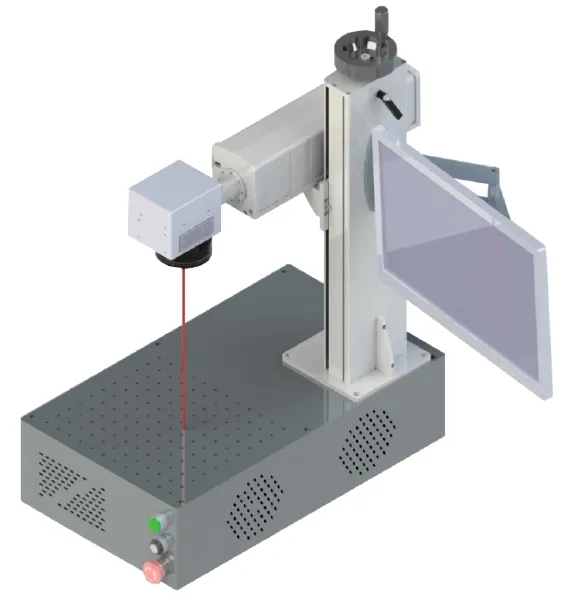

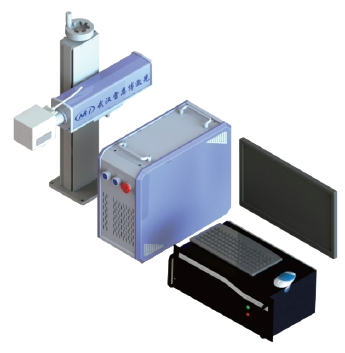

Handheld Laser Marking Machine 20W 30W 50W for Metal Credit Card Stainless Steel Jewelry Plastic
| Laser Type | Fiber laser |
|---|---|
| Laser Power | 20W 30W 50W |
| Laser Wavelength | 1064nm |
| Laser Source | IPG, Raycus, Max |
| Pulse Energy | 1.0mj |
| Repeated Frequency | 20-100KHz |
| Marking Area | 110*110mm, 145*145mm, 175mm*175mm |
| Marking Speed | 7000mm/s |
| Cooling Mode | Air cooling |
| Life span | 100,000 hours |
| Lens Model | Focus Length | Working Distance | Marking Area |
|---|---|---|---|
| f=100 | 100mm | 107mm | 70*70mm |
| f=160 | 160mm | 183mm | 110*110mm |
| f=210 | 210mm | 236mm | 145mm*145mm |
| f=254 | 254mm | 288mm | 175*175mm |
| f=430 | 430mm | 477mm | 300*300mm |
Please specify the material you wish to mark or engrave and the required depth. We will recommend the most suitable model. Sending material pictures or samples for testing is highly recommended for the best results.
Yes, user manuals and operation videos are included with the shipment. We also offer free training at our facility, and our engineers can travel to your location for on-site installation and training if required.
Standard machines usually have a lead time of 10-15 days. For customized solutions, the timeline will be confirmed by our technical team based on your specific requirements.
We provide a 12-month warranty for our fiber laser marking machines. In case of a part failure, we will send a replacement. We recommend ordering an extra set of spare parts to ensure continuous production.
No, fiber laser marking machines do not require consumables. They are designed for long-term use with minimal maintenance and a laser module lifespan of up to 100,000 hours.
The machine supports Windows 7, 8, and 10 and utilizes the professional JCZ EZCAD laser marking software, which is powerful yet easy to learn and operate.
