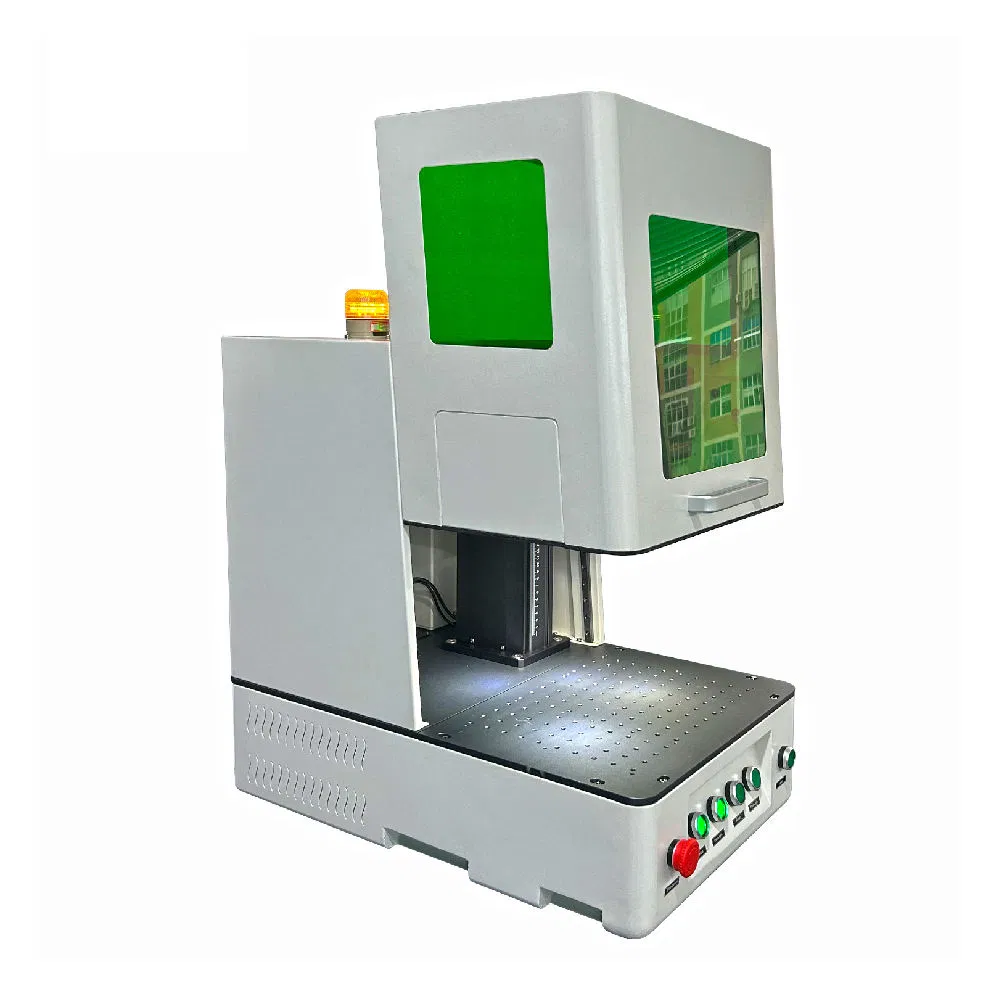

Mavenlaser New Desktop Enclosed 2D 2.5D Fiber Laser Marking Machine Jpt Raycus Max Cutting for Gold Silver Jewelry Metal Dxf
Mavenlaser New Desktop Enclosed 2D 2.5D Fiber Laser Marking Machine Jpt Raycus Max Cutting for Gold Silver Jewelry Metal Dxf
Mavenlaser New Desktop Enclosed 2D 2.5D Fiber Laser Marking Machine Jpt Raycus Max Cutting for Gold Silver Jewelry Metal Dxf
Mavenlaser New Desktop Enclosed 2D 2.5D Fiber Laser Marking Machine Jpt Raycus Max Cutting for Gold Silver Jewelry Metal Dxf
Mavenlaser New Desktop Enclosed 2D 2.5D Fiber Laser Marking Machine Jpt Raycus Max Cutting for Gold Silver Jewelry Metal Dxf
1 / 5
Mavenlaser New Desktop Enclosed 2D 2.5D Fiber Laser Marking Machine Jpt Raycus Max Cutting for Gold Silver Jewelry Metal Dxf
Mavenlaser New Desktop Enclosed 2D 2.5D Fiber Laser Marking Machine Jpt Raycus Max Cutting for Gold Silver Jewelry Metal Dxf
Mavenlaser New Desktop Enclosed 2D 2.5D Fiber Laser Marking Machine Jpt Raycus Max Cutting for Gold Silver Jewelry Metal Dxf
Mavenlaser New Desktop Enclosed 2D 2.5D Fiber Laser Marking Machine Jpt Raycus Max Cutting for Gold Silver Jewelry Metal Dxf
Mavenlaser New Desktop Enclosed 2D 2.5D Fiber Laser Marking Machine Jpt Raycus Max Cutting for Gold Silver Jewelry Metal Dxf

Mavenlaser New Desktop Enclosed 2D 2.5D Fiber Laser Marking Machine Jpt Raycus Max Cutting for Gold Silver Jewelry Metal Dxf

Customization: Available
After-sales Service: Yes
Warranty: 1year
Send Inquiry

Product Description

Basic Information
Model NO.
MLA-M-015
Laser Visibility
Invisible
Applicable Material
Metal
Cooling System
Water Cooling
Laser Wavelength
Fiber Laser
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Marking Speed
12000-15000 mm/S
Control Software
Ezcad
Marking Depth
2-5 mm
Working Accuracy
0.01mm
Laser Power
20W/30W/50W/100W
Product Overview
Fiber Laser Marking Machine

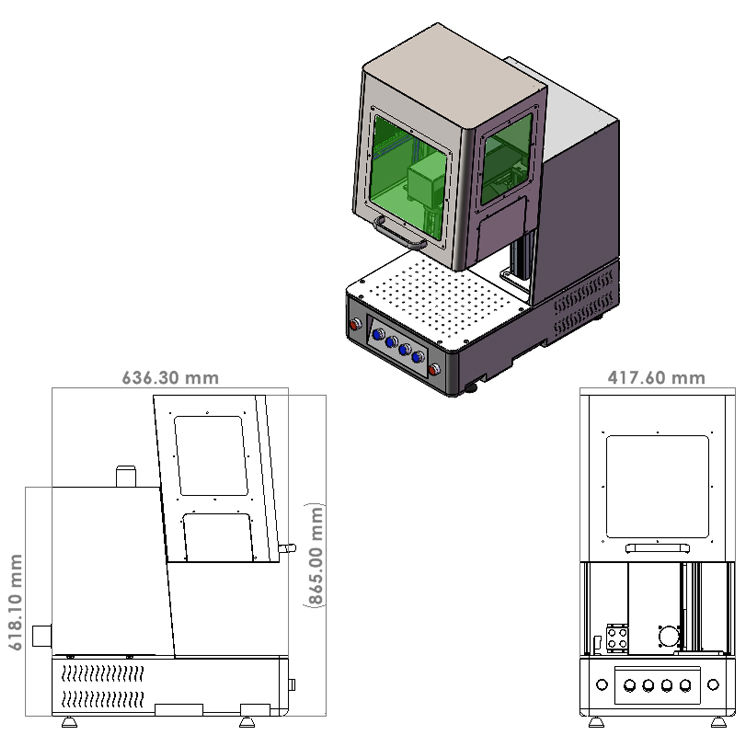

Dimensions
Machine Dimensions
Technical Specification
Product NameLong sheet enclosed fiber laser engraving machine for jewelry
Laser Power20W 30W 50W 60W 80W 100W 120W
Laser Wavelength1064nm
Laser Source BrandRaycus / MAX / IPG / JPT
Marking Area50*50mm to 200*200mm
Marking Depth<1.2mm
Marking Speed2000-15000mm/s
Cooling ModeAir cooling
Power Requirement90V-240V 50/60HZ
Life-span100,000 hrs (Approx. 11.4 years)
Machine Size636*420*620mm
Net Weight75kg
Key Features & Details

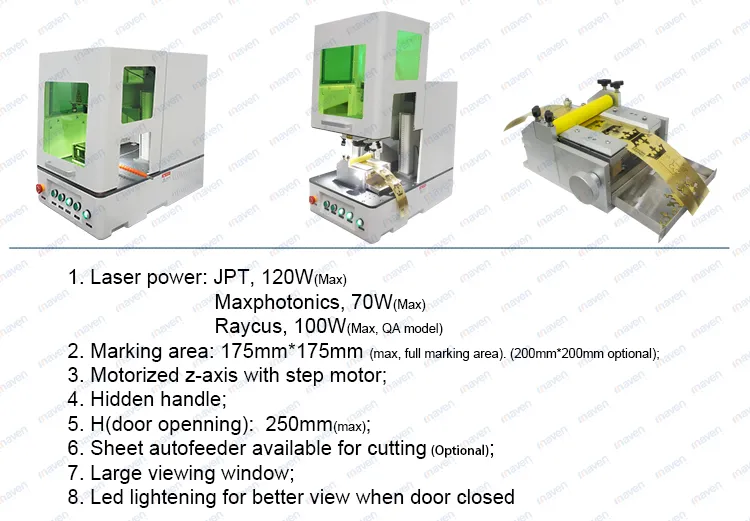

Features

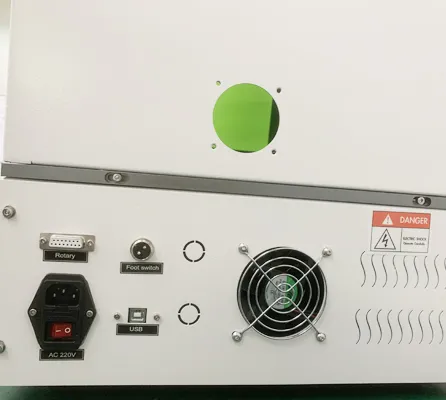

Rear Panel
Rear Panel Configuration

1. Main power input socket with 10A EMI filter.
2. Foot switch connection for signal input.
3. USB connector for PC/Laptop link.
4. Rotary DB-15 pin connector for cylindrical marking.
5. Forced air circulation via 24V industrial fans.

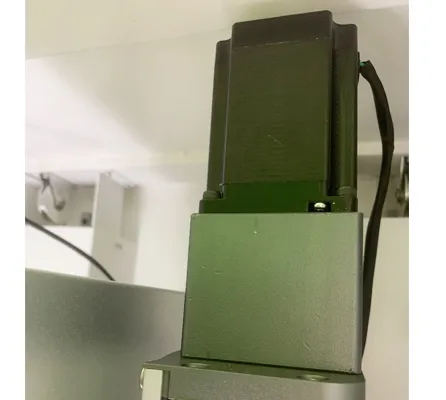

Motorized Lifting System

Equipped with a 42-step motor providing strong torque and high efficiency. Motorized lifting is standard, ensuring steady operation and minimal electromagnetic interference compared to AC motors. Autofocus options are also available.

Step Motor

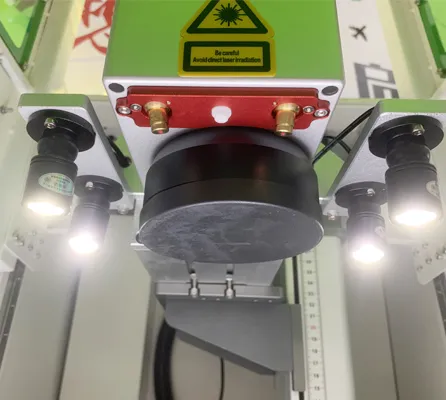

Laser Head
Advanced Scan Head

High-speed brand scanhead with dual red pilot lights for precise positioning. Includes customized LED lighting for checking results in dim conditions and high-quality lenses for precision performance.

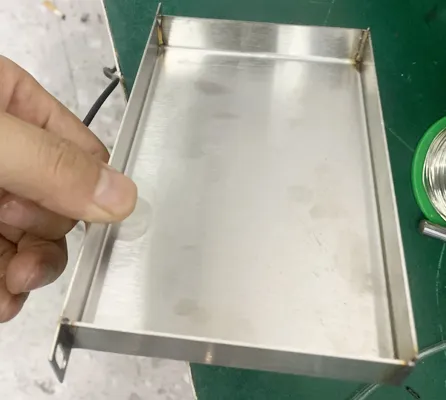

Unloading box

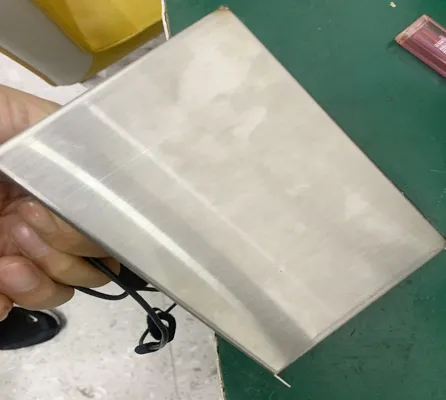

Process details

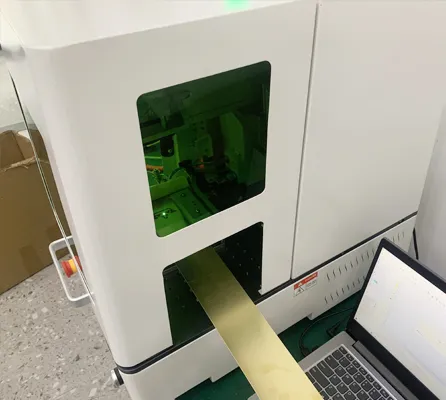

Marking Sample 1

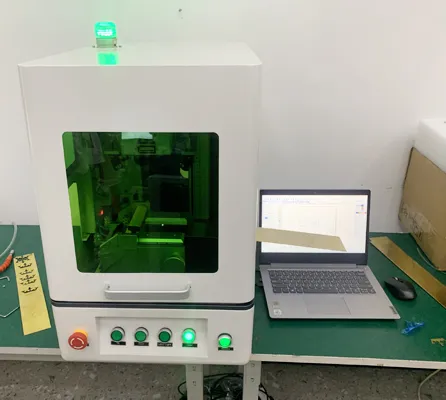

Marking Sample 2

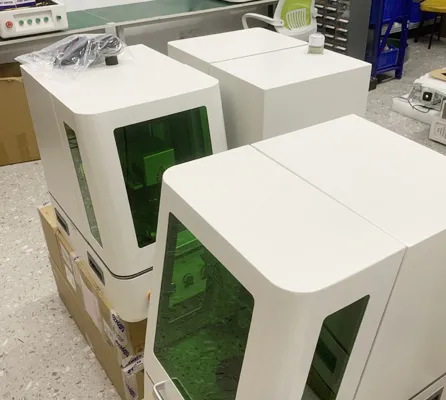

Marking Sample 3
Production & Quality Control
Production
Testing
Factory

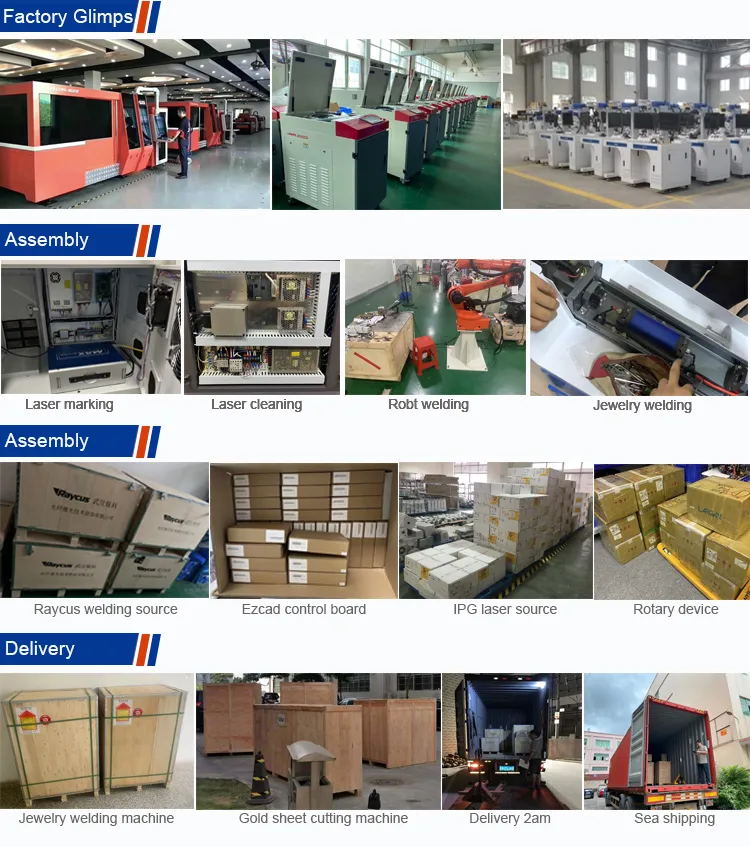

Workshop
Quality Assurance
Frequently Asked Questions
Q1: I know nothing about this machine, what type should I choose?
We will help you choose the suitable machine and share the best solution based on the materials you intend to mark or engrave.
Q2: How do I learn to operate the machine?
We provide operation videos and manuals. Our engineers offer online training, and if necessary, on-site training can be arranged at your facility or ours.
Q3: What is the warranty policy if problems occur?
We provide a full two-year warranty. During this period, components for replacement or repair are provided free of charge. Lifetime technical support is available even after the warranty expires.
Q4: What materials can this fiber laser machine mark?
It is primarily designed for all types of metals (gold, silver, stainless steel, aluminum, etc.) and some hard plastics or coated materials.
Q5: What software does the machine use?
The machine uses professional Ezcad software, which supports various graphic formats like DXF, PLT, AI, JPG, and BMP.
Q6: Does the machine require complex maintenance?
No, fiber laser machines are virtually maintenance-free. They do not require consumables and the laser source has a lifespan of up to 100,000 hours.
