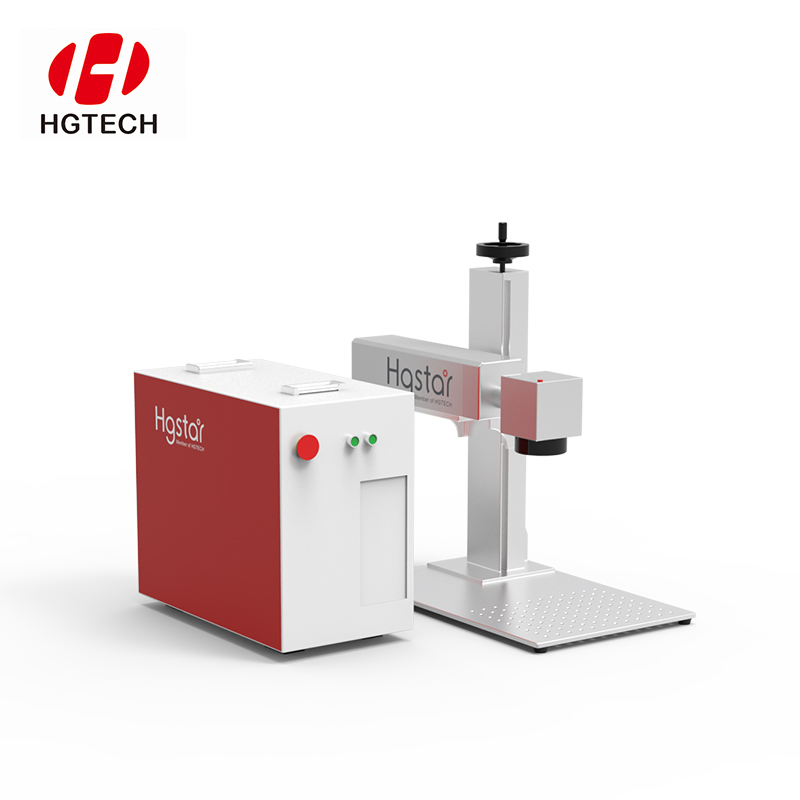

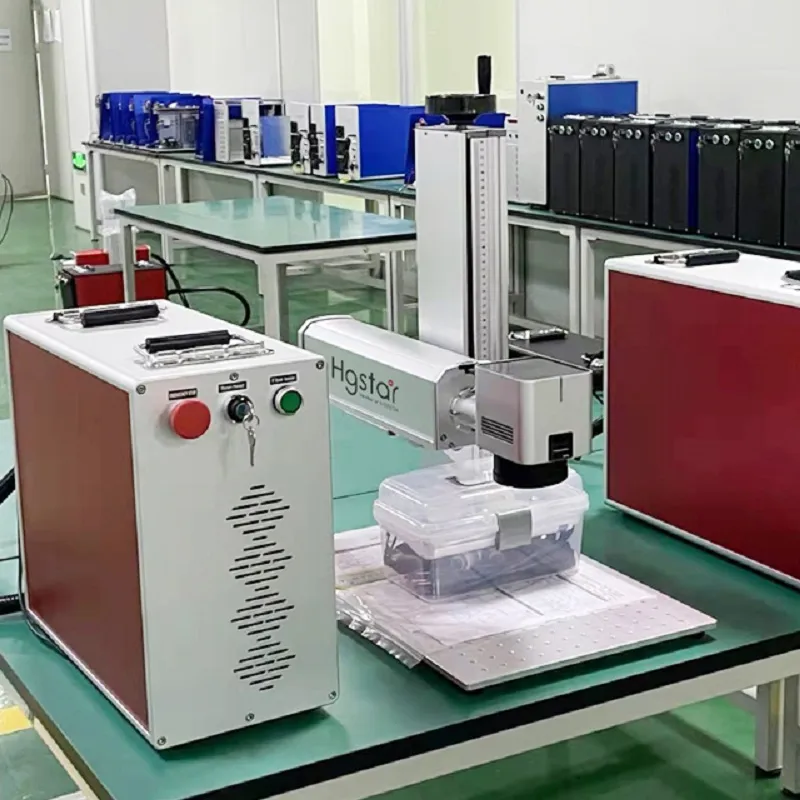

Fiber laser marking machines offer the best marking effects with a fine and thin beam, making them ideal for small character marking such as IC chips. They provide deep marking capabilities up to 1.0mm on stainless steel and aluminum, maintaining high precision of up to 0.001mm.
| Laser Source | 20W / 30W |
| Laser Type | Pulsed, High Energy Ytterbium Fiber Lasers |
| Output power adjustment range | 10%-100% |
| Central emission wavelength | 1060-1070 nm |
| Long-term average power instability | < 5% |
| Pulse width (FWHM) | 100 ns |
| Pulse Repetition Rate | 20-80 kHz |
| Typical beam quality (M2) | < 1.8 |
| Operating voltage | 220V |
| Max. Power consumption | 600W |
Fine and thin beam provides superior results for smallest characters on materials like IC chips.
Capable of reaching depths up to 1.0mm on stainless steel and aluminum.
Fiber laser source lifetime reaches up to 100,000 hours (approx. 8-10 years).
Eco-friendly operation with zero consumables required for 8-10 years.
High efficiency results in low costs, only 0.5kw per hour.
Small and portable volume (0.15 M3) saves significant production space.

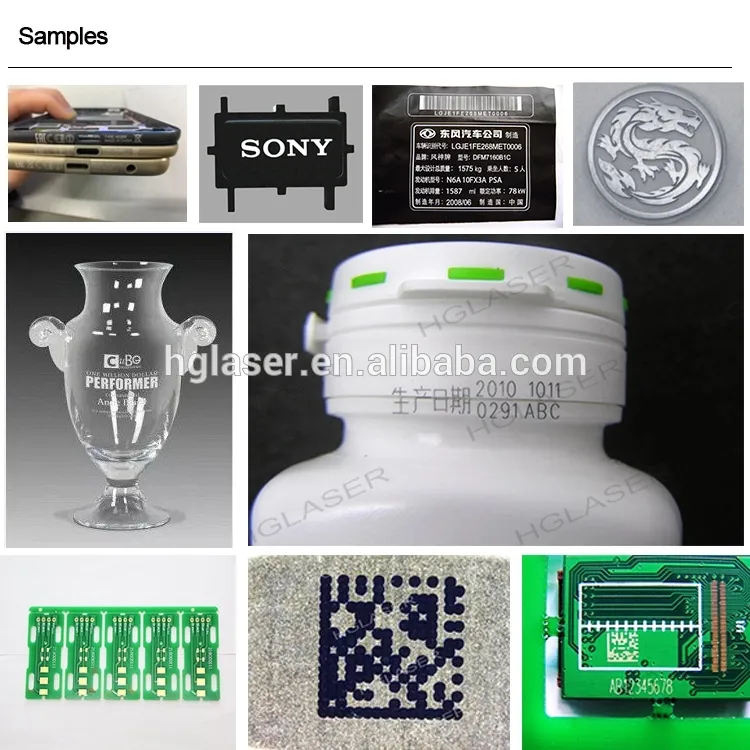

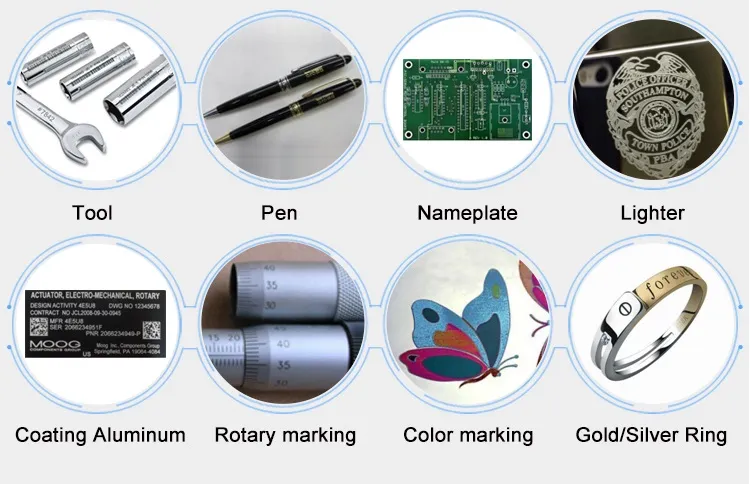

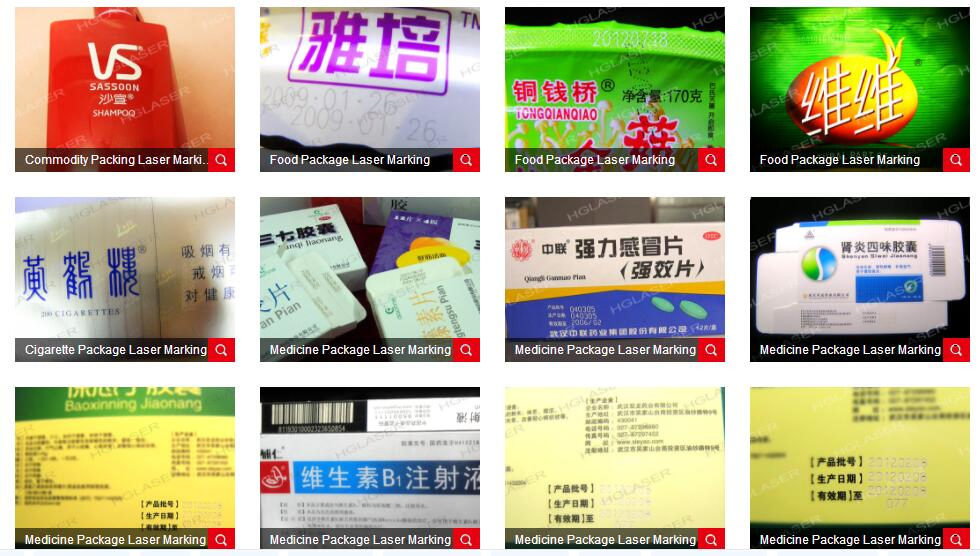

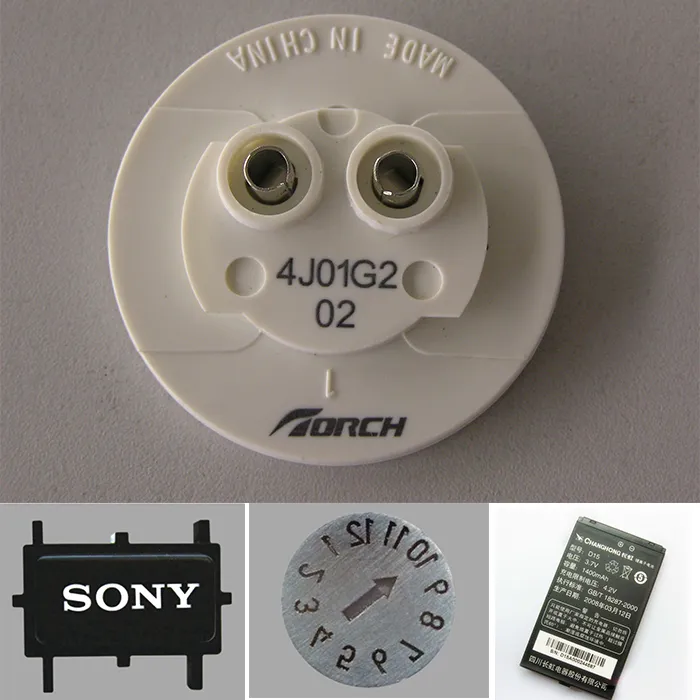

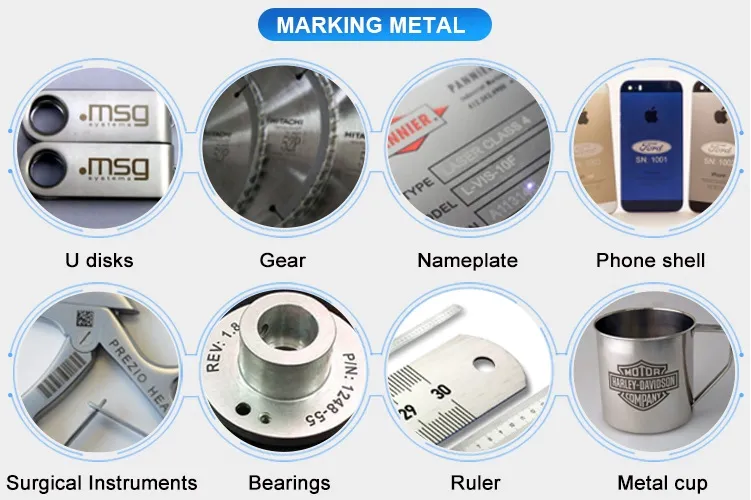

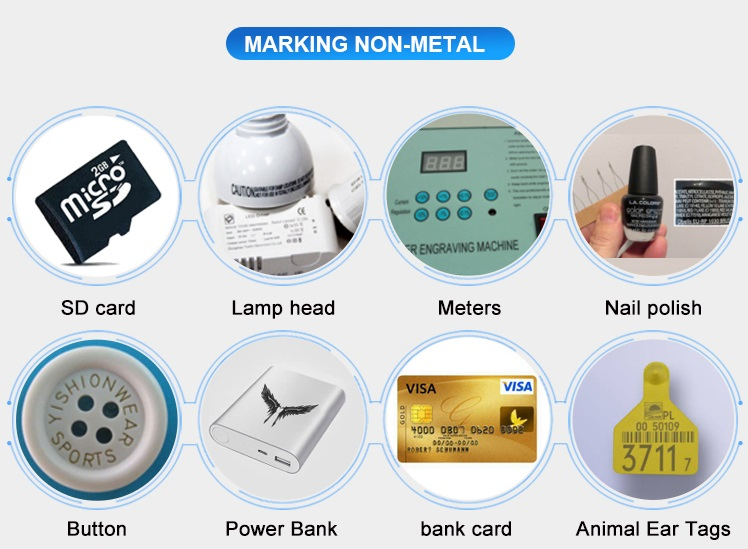

This equipment provides comprehensive laser solutions for industrial fields such as metallurgy, automobiles, aviation, precision instruments, semiconductor manufacturing, and jewelry. It supports various marking, etching, and engraving requirements with high reliability and stability.
