Basic Specifications
Application
Automotive, Manufacturing, Construction Machinery
Technical Class
Continuous Wave Laser
Power Density
Deep Fusion Welding
Type
Optical Fiber Transmission
Weld Material
Carbon Steel/Stainless Steel/Aluminum
Function
Welding/Cleaning/Cutting
Specification
1000w/1500w/2000w/3000w
Product Description

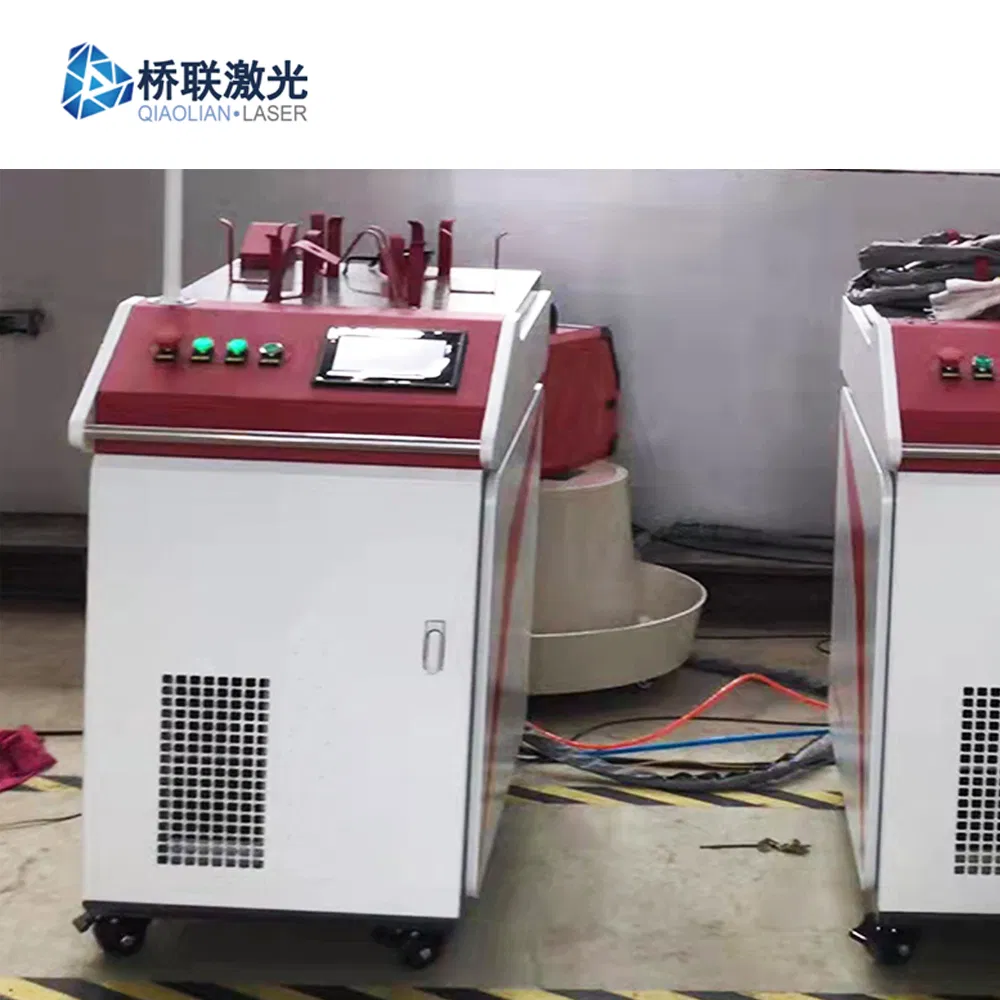

Handheld Fiber Laser Welding Equipment for Multi-Metal Materials
Key Features
✔Integrated design with laser power, water chiller, and software control; compact and ergonomic.
✔Versatile welding for carbon steel, stainless steel, aluminum, and copper plates.
✔Supports tailor welding, overlap welding, fillet welding, and irregular shape welding.
✔Beautiful, uniform welding seams with no discoloration; eliminates post-welding polishing.
✔High-strength welds that match or exceed the base metal.
✔Welding speed is 2-10 times faster than traditional methods, significantly reducing labor costs.
✔Simple operation with a low technical threshold; easy for beginners to master quickly.
✔Energy-efficient: Power consumption is only 1/10 of traditional argon arc welding.
✔Equipped with 10-meter optical fiber cable for flexible and convenient long-distance operation.
✔Includes red light positioning for enhanced precision.
Technical Advantages
★Three modes: Self-fusion welding, wire feeding, and cutting can be selected.
★Lightweight welding head (0.8KG) designed for long-term comfort.
★Support for process library storage to save debugging time.
★6 emission modes with adjustable light spot (0-5mm).
★Digital parameter setting for the wire feeder via the control screen.
Weld Penetration Reference
| Model |
Carbon Steel |
Stainless Steel |
Aluminum |
Red Copper |
| 1000w | 2.06mm | 2.68mm | 2mm | - |
| 1500w | 2.77mm | 3.59mm | 3mm | 0.2mm |
| 2000w | 3.59mm | 4.57mm | 4mm | 0.3mm |
| 3000w | 4.79mm | 6.87mm | 4mm | 1mm |
Welding Application Types

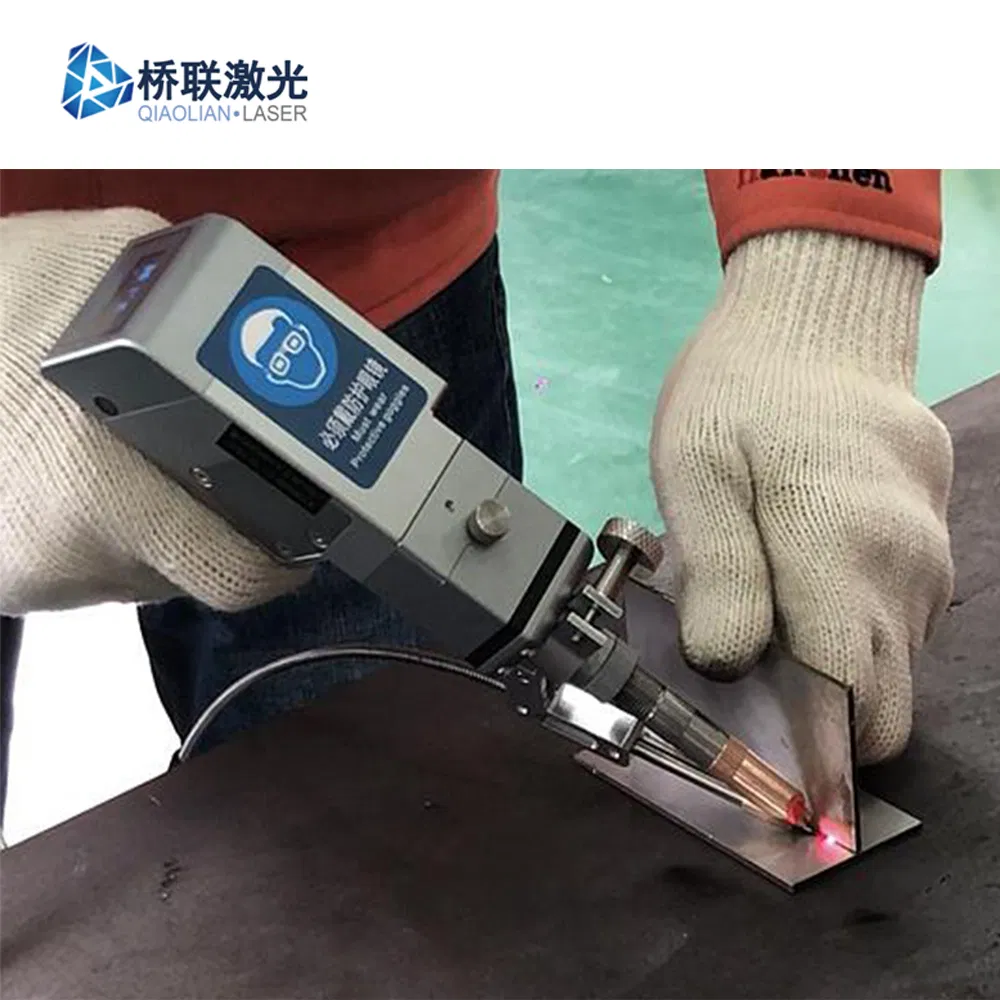

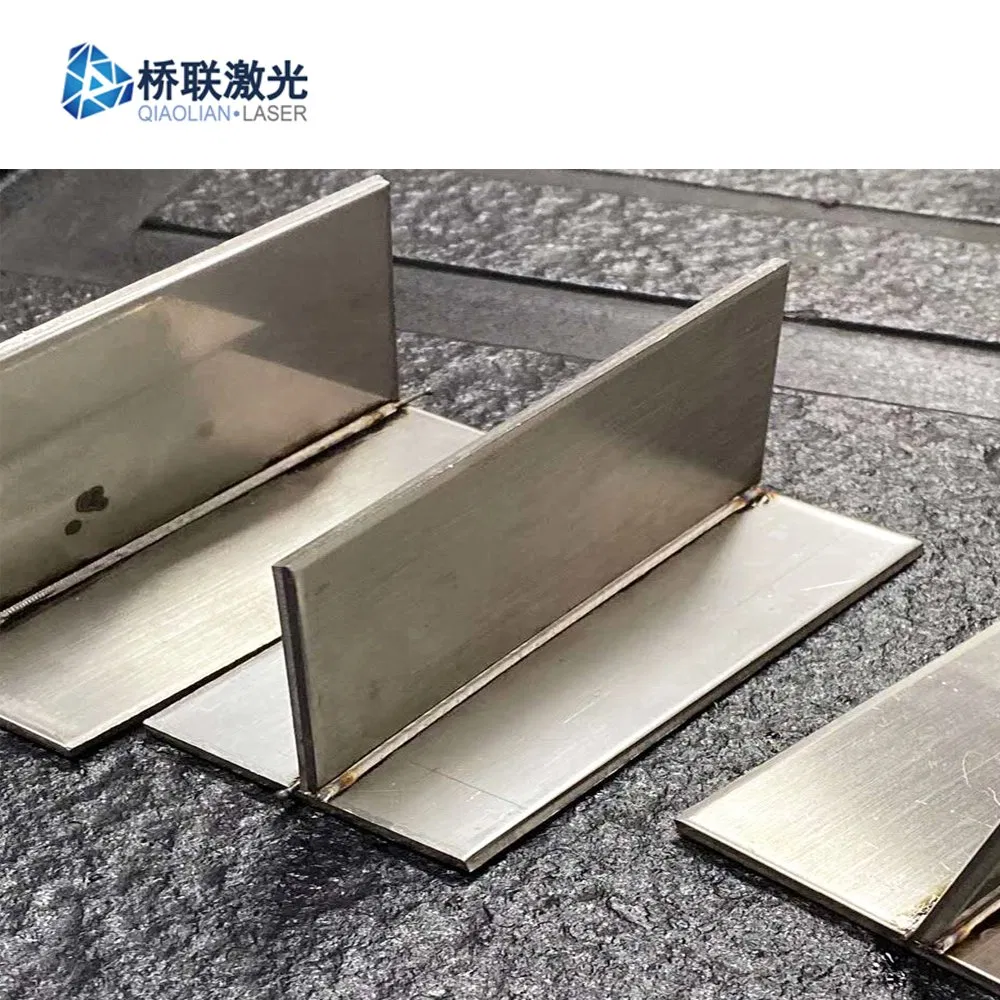

Fillet & Vertical Welding

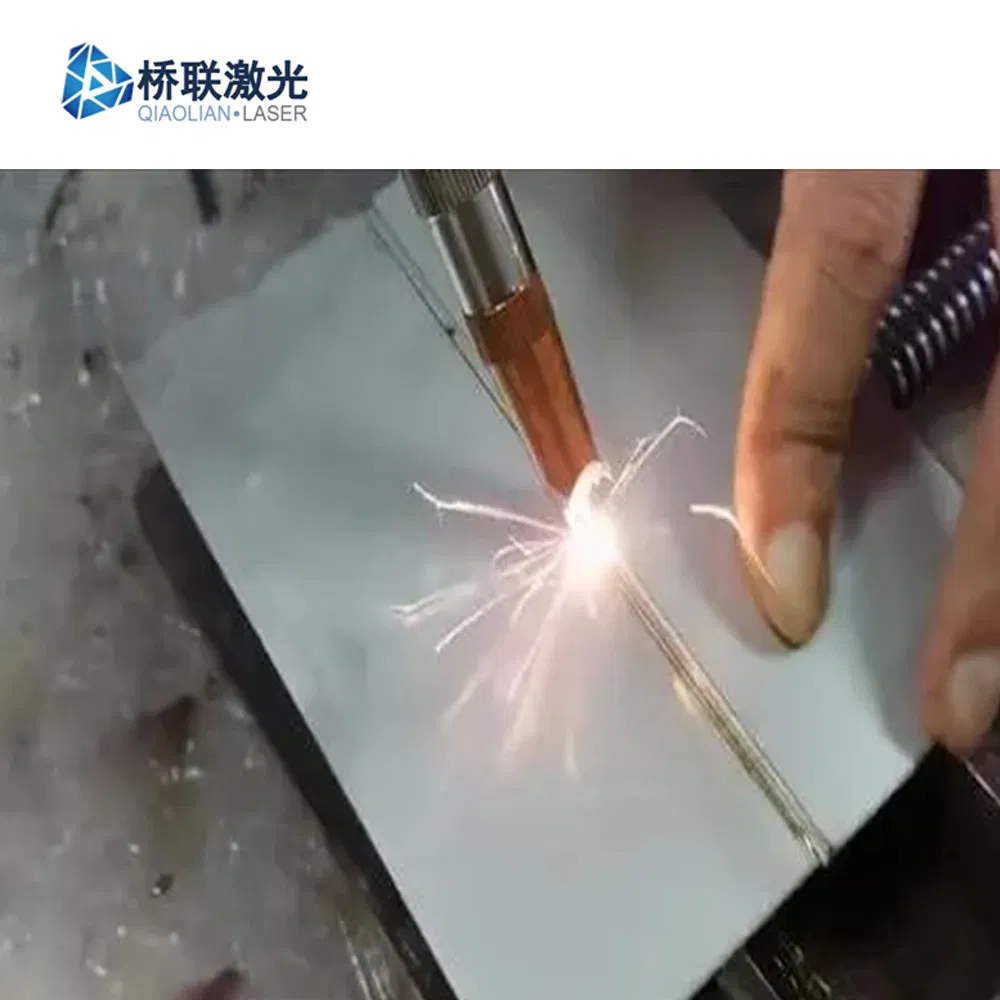

Tailor & Flat Welding
Overlap Welding

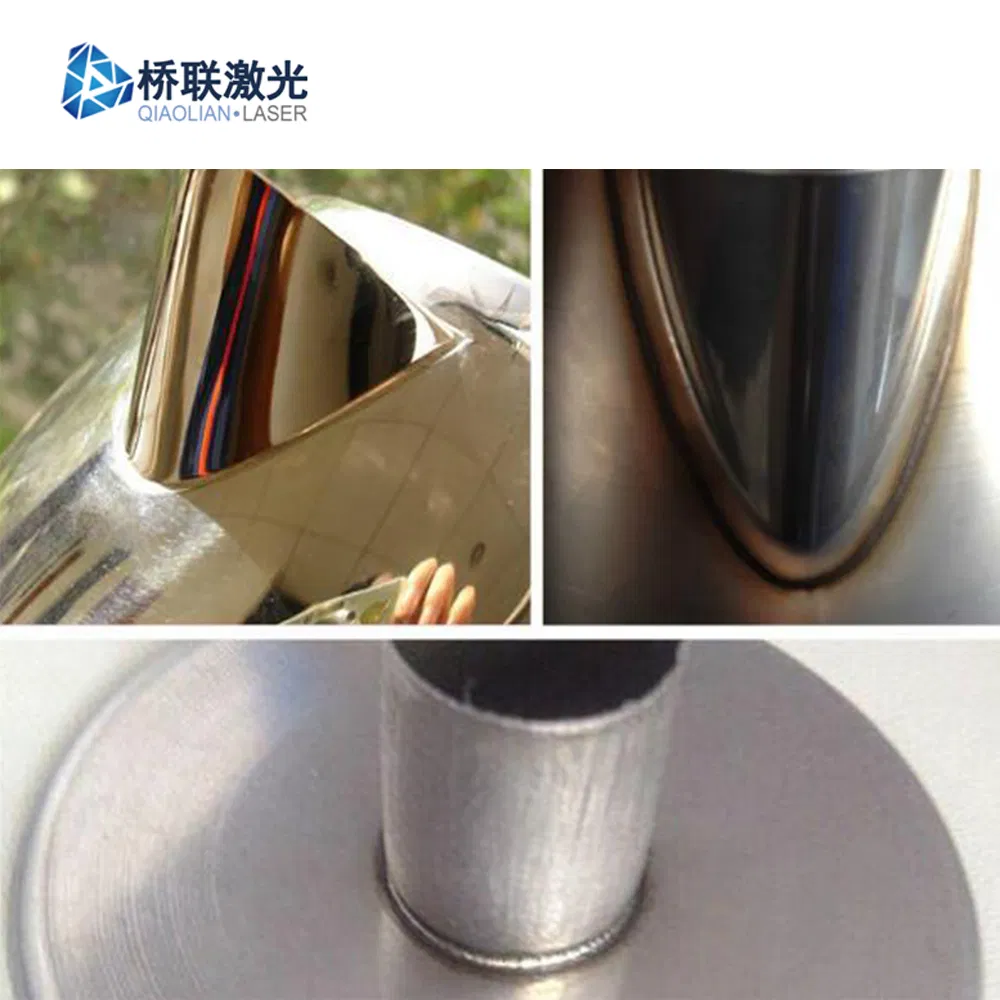

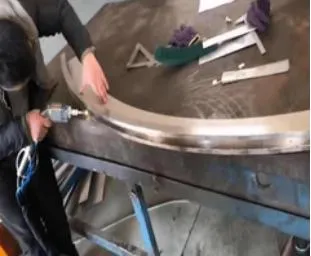

Welding Samples
Frequently Asked Questions
What materials can this handheld laser welder process?
This equipment is highly versatile and can weld various metals including stainless steel, carbon steel, aluminum, brass, and red copper.
How much faster is laser welding compared to TIG or MIG?
Laser welding is significantly more efficient, typically operating 2 to 10 times faster than traditional argon arc or gas-shielded welding methods.
Is special training required to operate this machine?
No extensive training is needed. The interface is intuitive and easy to learn, allowing operators with little experience to start producing high-quality welds quickly.
Does the welding process cause material deformation?
Due to the concentrated heat source and high speed, there is minimal heat input, which means basically no deformation of the workpiece and a very small heat-affected zone.
Can this machine be used for cleaning and cutting as well?
Yes, this is a multi-functional system that supports welding, cleaning, and cutting modes, making it a highly cost-effective tool for metal fabrication.
What is the advantage of the handheld head design?
The welding head is ergonomically designed and weighs only 0.8KG, reducing operator fatigue during long-term use and allowing for flexible access to complex angles.
