Handheld High Precision Metal Laser Welding Equipment for Professional Use

Customization:	Available
After-sales Service:	7X24 Hours
Warranty:	1

Send Inquiry

Product Description

Basic Specifications

Model NO.

1500W-3000W

Technical Class

Fiber Laser

Control

Handheld

Power Density

Deep Fusion Welding

Laser Type

Fiber Laser

Transport Package

Standard Export Wooden Case

Origin

China

Application

Biomedicine, Electronic, Automotive, Manufacturing

Product Overview

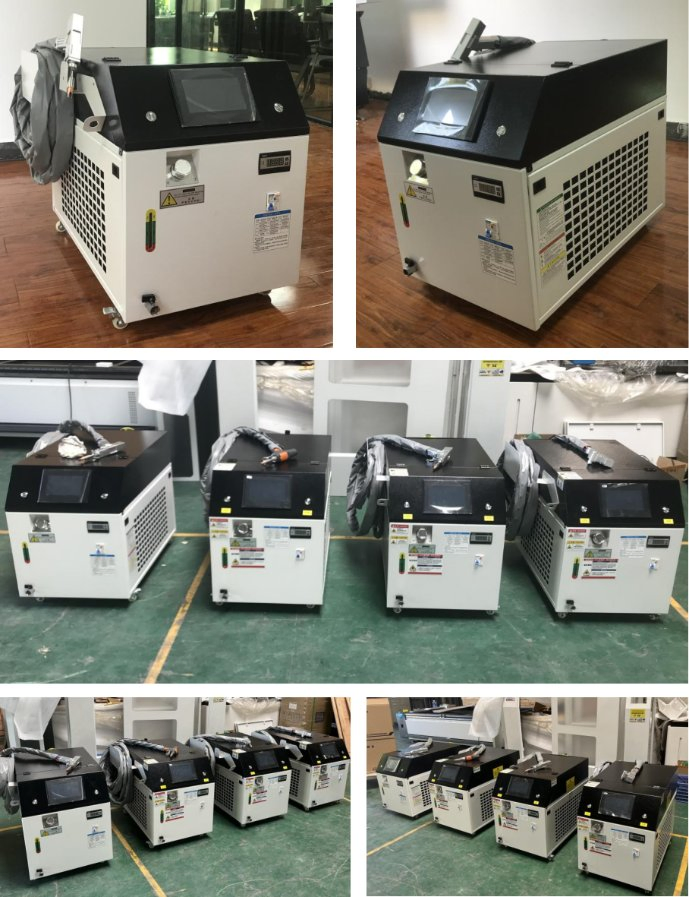

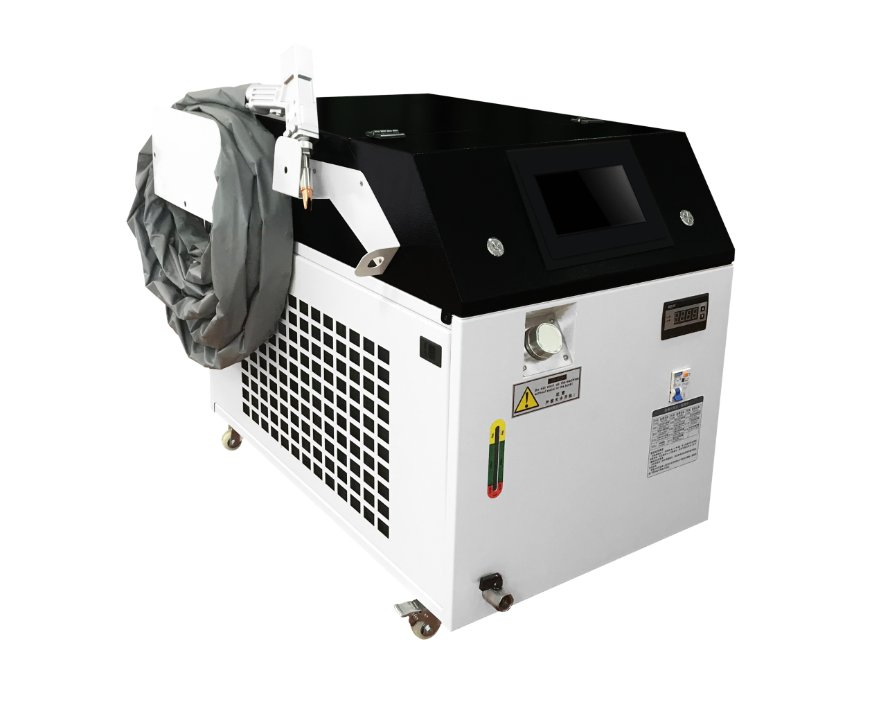

Handheld fibre laser welding machine is a new type of laser welding equipment, which is mainly for some long-distance large workpieces, to overcome the limitations of the table travel space. Handheld operation replaces the traditional fixed optical path, making welding flexible and allowing for outdoor mobile welding.

Applications: Widely used in kitchen and bathroom, home appliance, advertising, mould, stainless steel products, doors and windows, handicrafts, furniture, and auto parts industries.

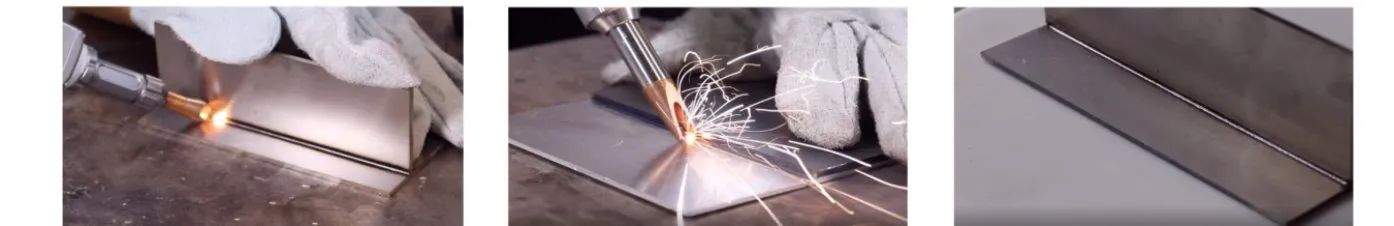

Working Principle

The machine irradiates a high-energy laser beam directly onto the material surface. Through the interaction between the laser and the material, the interior melts, followed by cooling and crystallization to form a precise weld. This method offers beautiful welds, fast speeds, and no consumables, perfectly replacing traditional argon arc welding for thin sheet metals.

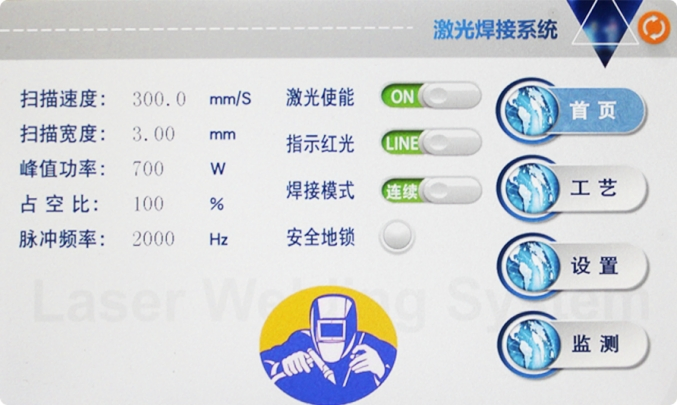

Operating Systems Features

Self-developed Control: Integrated safety alarms, compact size, and flexible operation.
Stable Monitoring: Real-time machine status monitoring and easy troubleshooting.
High Quality: Low distortion, high depth of fusion, and perfect welding quality.
Reproducible: Stable laser power and defined parameters ensure consistent results, reducing operator skill requirements.

Welding Machine Model	GY-HW1000W / 1500W / 2000W / 3000W
Laser Type	Continuous Fibre Laser
Laser Power	1000W - 3000W
Fibre Diameter	50μm - 100μm
Laser Wavelength	1060nm - 1070nm
Adjustable Width	0.2 - 5mm
Cooling Method	Water Cooling
Supply Voltage	AC220V / 380V 50Hz/60Hz

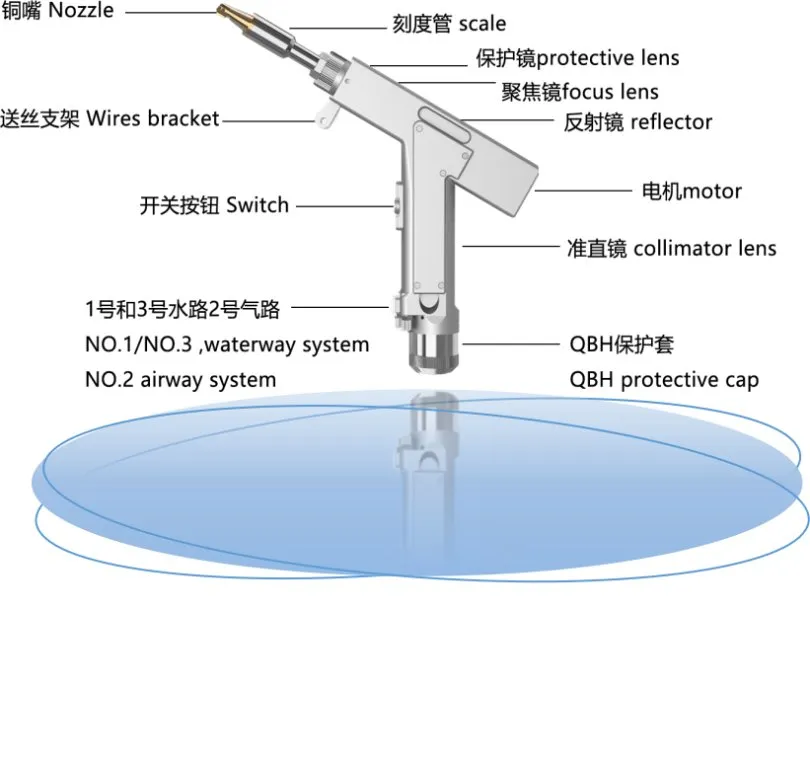

Advanced Welding Heads

Includes a handheld welding gun and self-developed control system with multiple safety alarms. Optimized optics and water cooling allow stable operation at 2000W for extended periods.

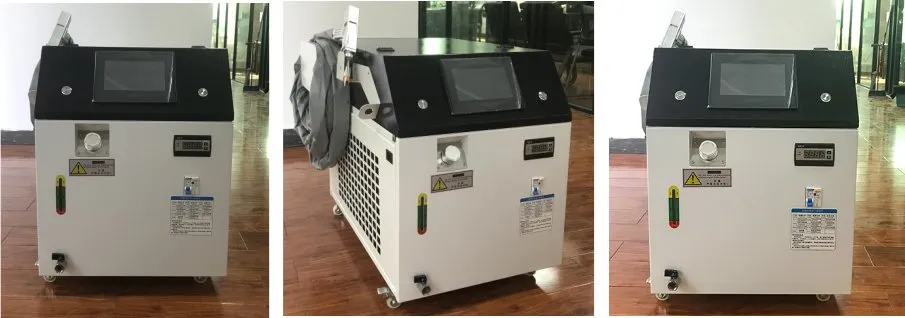

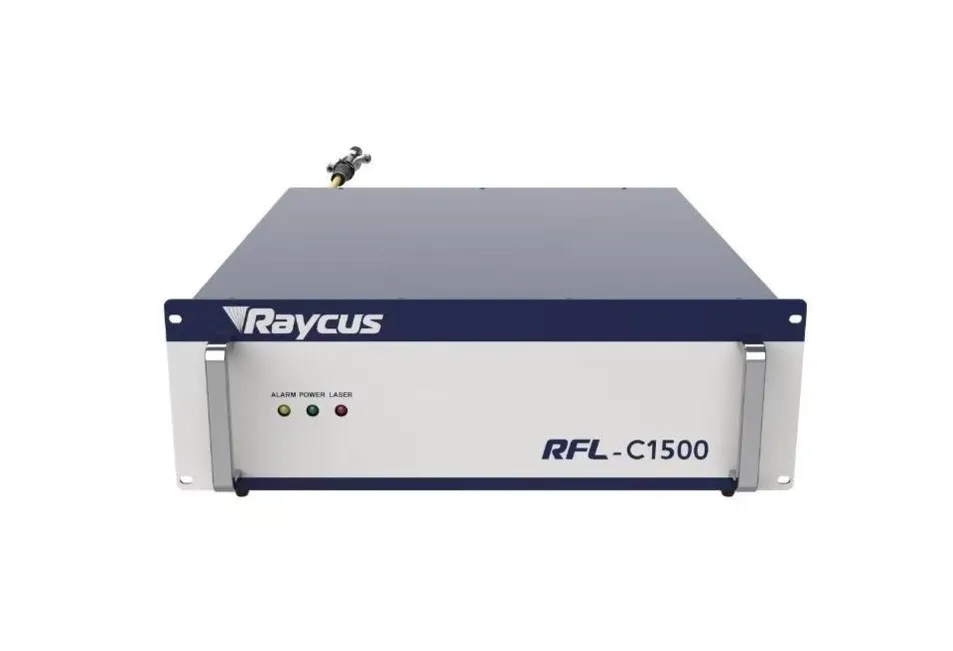

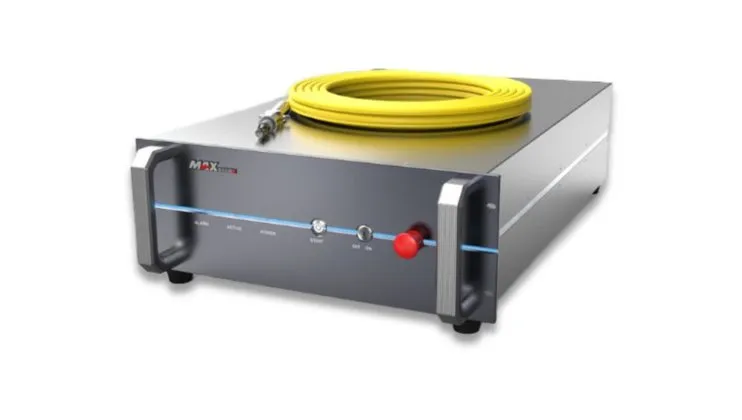

High Performance Laser

Adopting premium lasers with electro-optical conversion efficiency higher than 35%. Features maintenance-free operation and international standard QBH output.

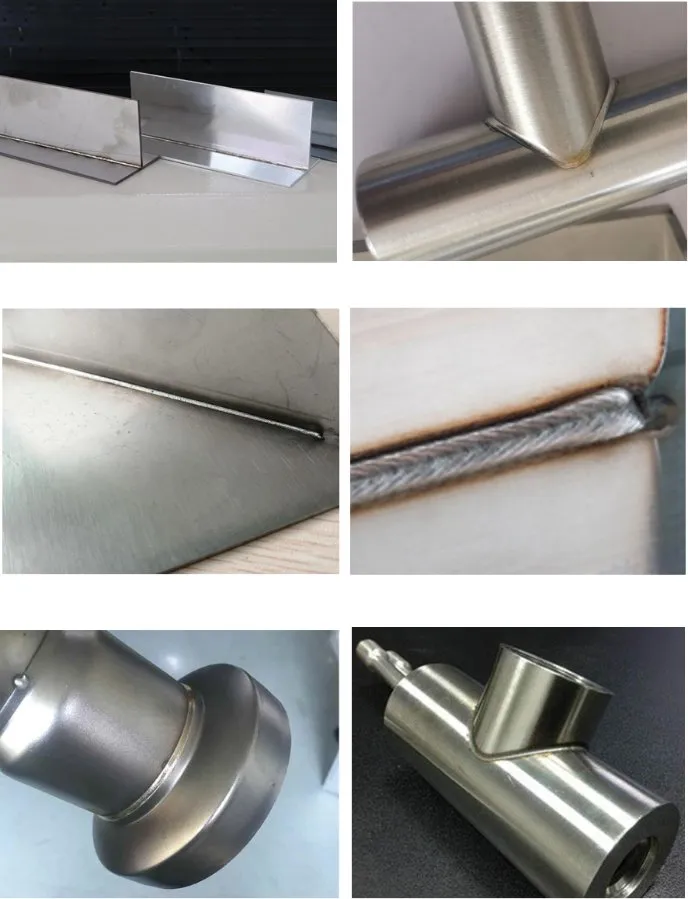

Welding Samples

Professional Capability

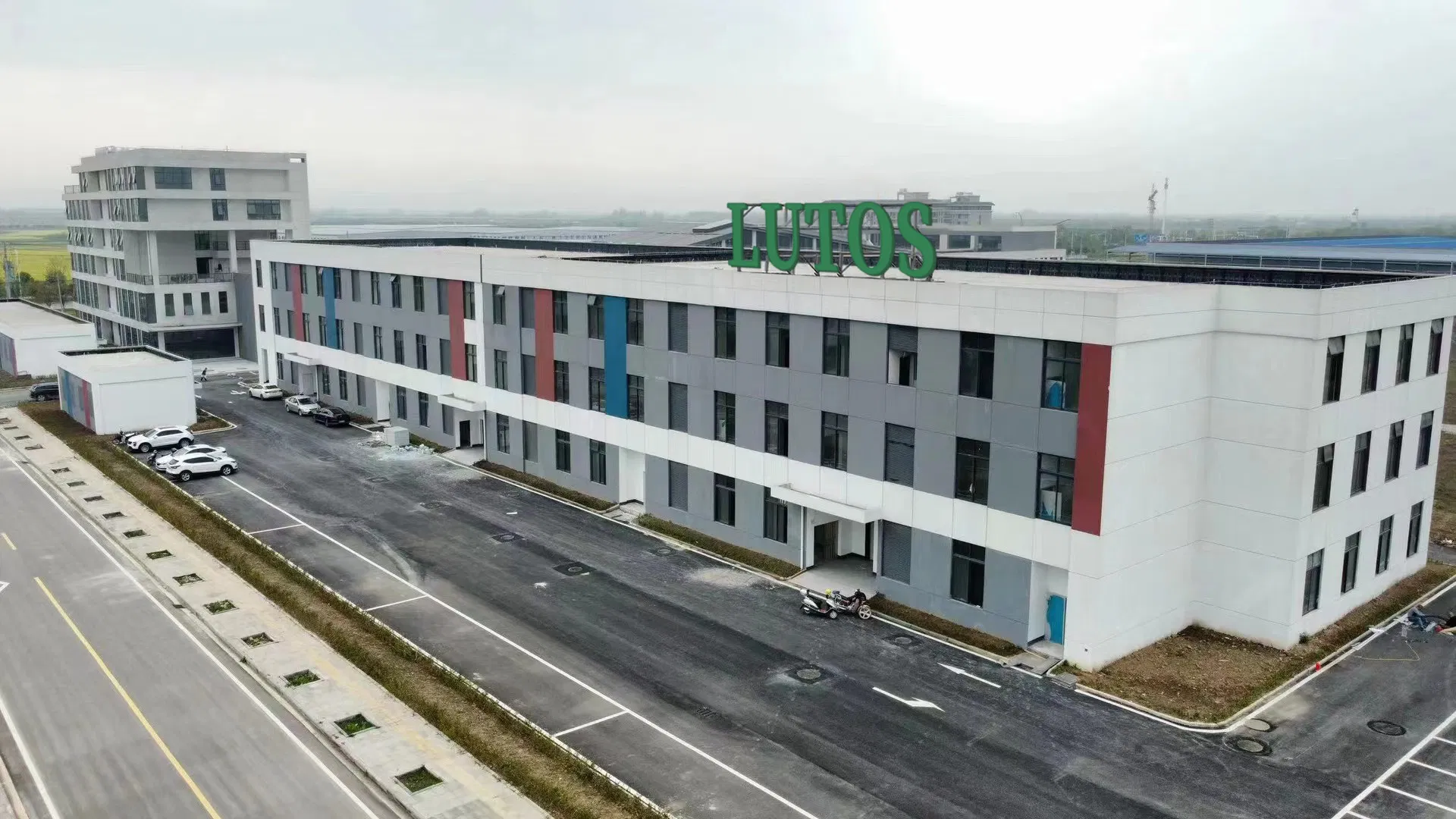

We are a distinguished enterprise expertly merging the production of laser cutting, welding, and cleaning machines. As a key industrial machinery specialist, we are passionately committed to delivering unparalleled quality in our state-of-the-art equipment and exceptional customer service, ensuring unwavering dedication to client satisfaction.

Frequently Asked Questions

What materials can be welded with this handheld laser?

It is ideal for stainless steel, carbon steel, aluminum, copper, and various alloy materials, especially for thin sheet metal applications.

Is the handheld laser welder easy to operate for beginners?

Yes, the self-developed control system is highly intuitive. Most operators can master the basic welding techniques within a few hours of training.

What is the advantage over traditional Argon Arc welding?

Laser welding is up to 4-10 times faster, produces a much smaller heat-affected zone (less deformation), and results in a smoother, more aesthetic weld that requires less post-processing.

Does the machine require frequent maintenance?

The fiber laser source is virtually maintenance-free with a lifespan of up to 100,000 hours. Only the protective lens and nozzles in the welding gun need periodic checking.

What power options are available for different thicknesses?

We offer 1000W, 1500W, 2000W, and 3000W versions. Higher power allows for deeper fusion and faster welding on thicker materials.

How is the safety of the operator ensured?

The system includes multiple safety interlocks. The laser only triggers when the nozzle is in contact with metal, preventing accidental firing into the air.
