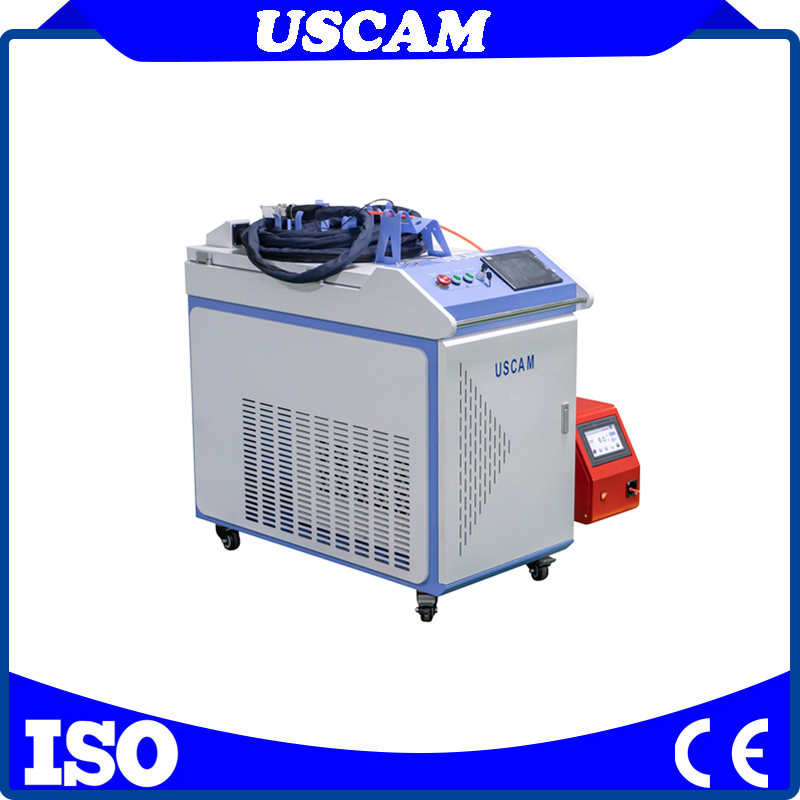

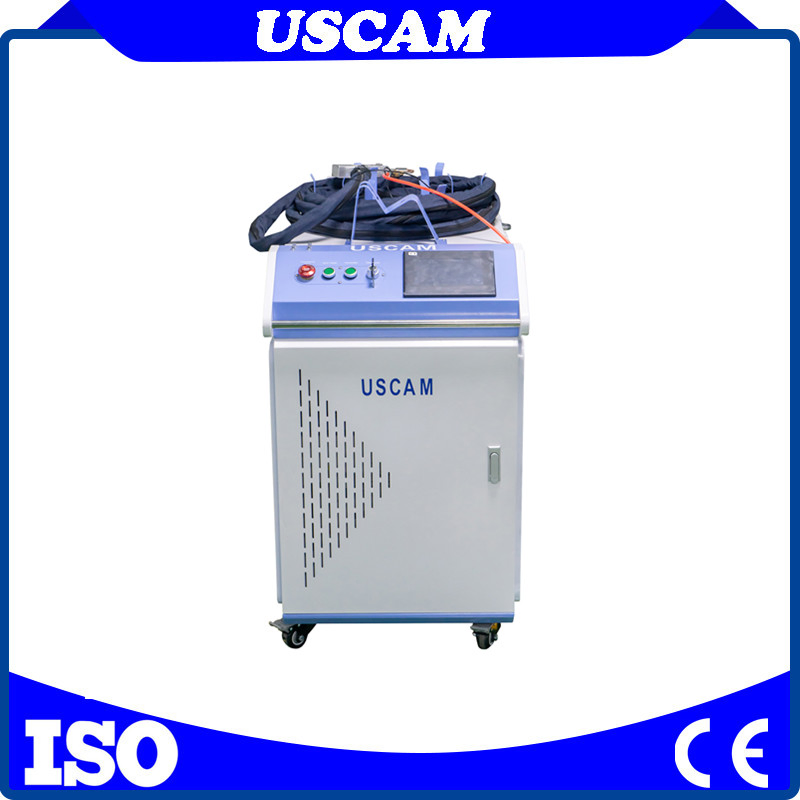

1500W 2000W 3000W Mini Portable Fiber Handheld Laser Welding Auxiliary Welding Equipment Price

Customization: Available
After-sales Service: 2 Years (Help Service Is for Whole Life)
Warranty: 2 Years (Help Service Is for Whole Life)

Product Description

📋

Basic Information

Application:
Manufacturing Industry
Technical Class:
Continuous Wave Laser
Control:
Automatic
Laser Type:
Optical Fiber Laser
Type:
Portable Welding Machine
Laser Power:
1000W/1500W/2000W/3000W
Laser Wavelength:
1064nm
Cooling Type:
Water Cooling
⚙️

Product Description

The 3 in 1 laser welding, cleaning, and cutting machine is a versatile solution with three switchable modes. It is designed for flexible manufacturing of various metal thicknesses, offering convenience and high performance in one compact unit.

Note: 1000W/1500W/2000W systems operate on 220V 50/60HZ, while the 3000W model requires 380V 50/60HZ. Models above 2000W support double wire feeders for wider welding lines.

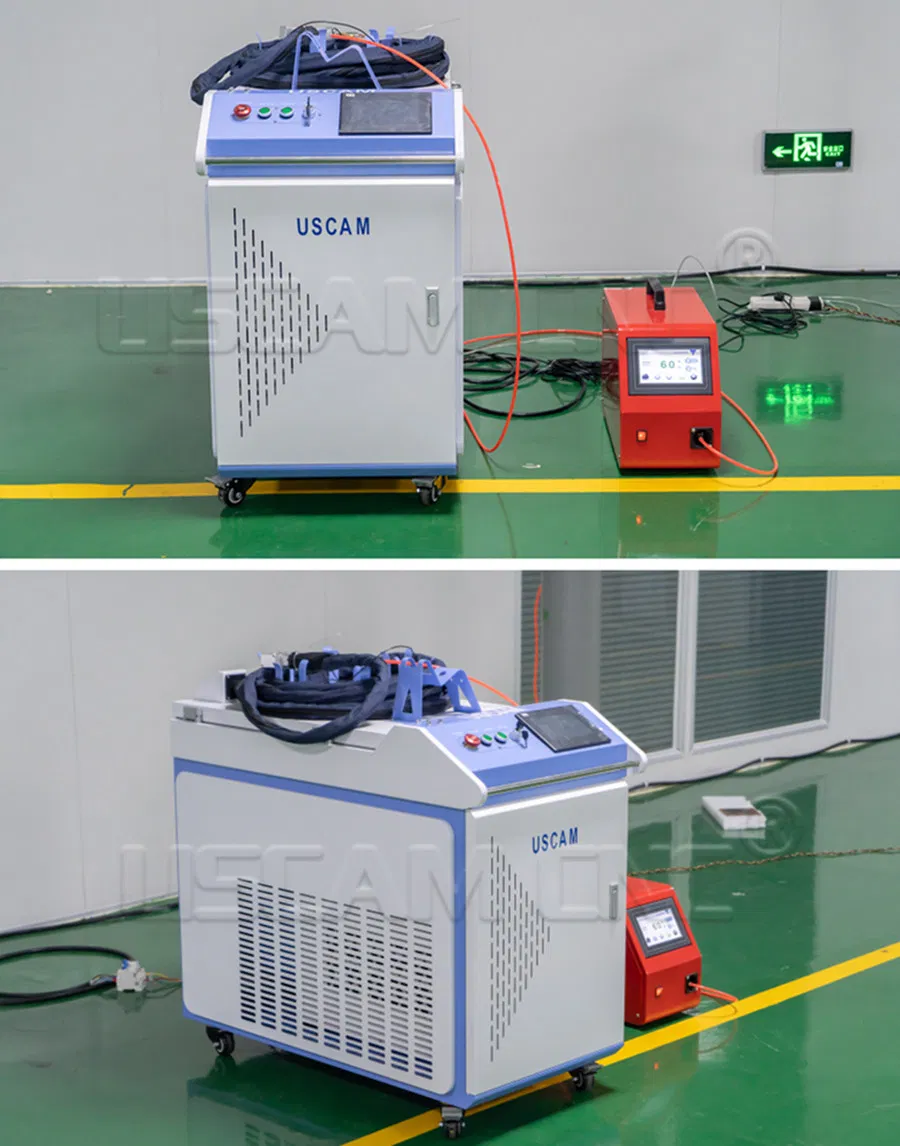

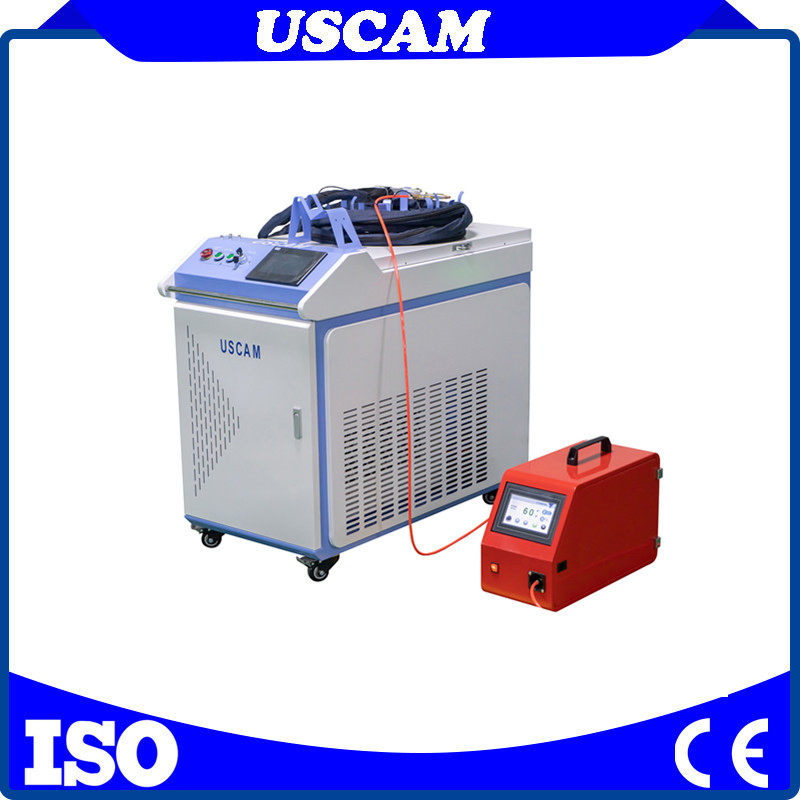

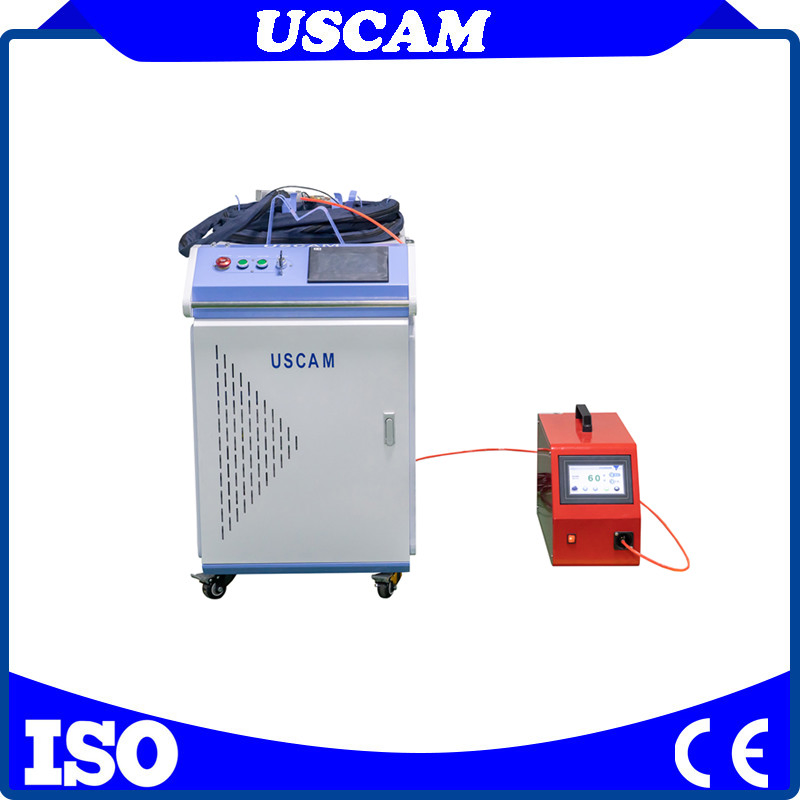

Laser Machine

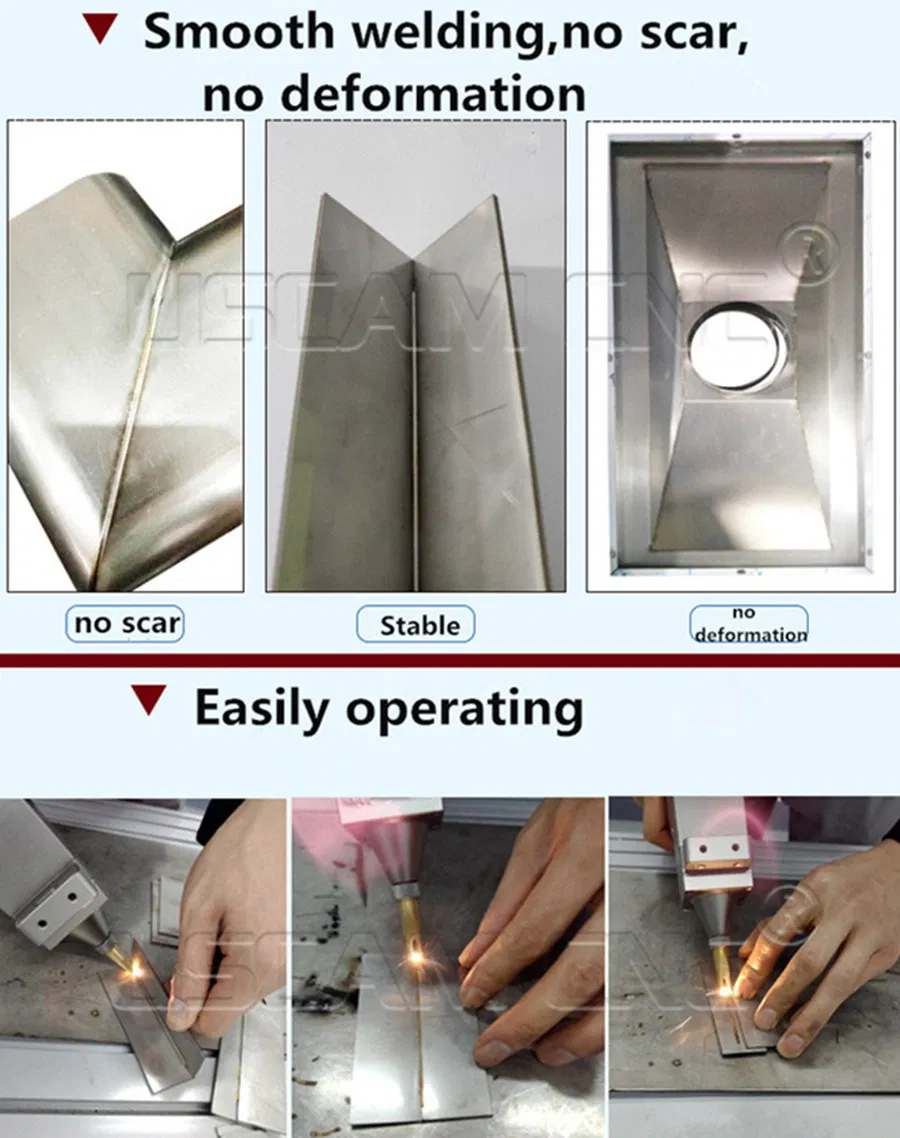

Laser Machine View

Product Advantages

  • Supports saving welding parameters for efficiency.
  • Four welding types: CW, Adjust, Argon type, and QCW (Pulse welding).
  • Digital parameter settings for wire feeder via monitor.
  • Multi-language support: English, Chinese, Korean, Japanese, Russian.
  • Real-time monitoring of laser source, water chiller, and control board.
  • Perfect substitute for argon and electric welding on thin metals (Stainless, Carbon Steel, Aluminum).
  • Ergonomic, lightweight design with safety lock touch for laser output.
  • Easy operation with low requirements for operators.
📊

Technical Parameters

Parameter Specification
Laser Power1000W / 1500W / 2000W / 3000W
Scanning Width300mm
Interface TypeQBH
Accessible Wave Range1064nm
Fiber Cable Length8m / 10m
Electricity DemandAC 220V/380V ±10% / 50Hz
Control SystemChaoqiang / Hanwei
🚀

Application & Materials

Welding Function: Suitable for Stainless steel, copper, aluminum, gold, chromium, silver, titanium, nickel, and various alloys. Supports Butt, T-welding, Lap, and Edge welding.

Cleaning Function: Removes oxide layers, surface paint, oil, and stains from carbon steel, aluminum, and molds.

Cutting Function: Efficient cutting for thin metal plates like iron and stainless steel.

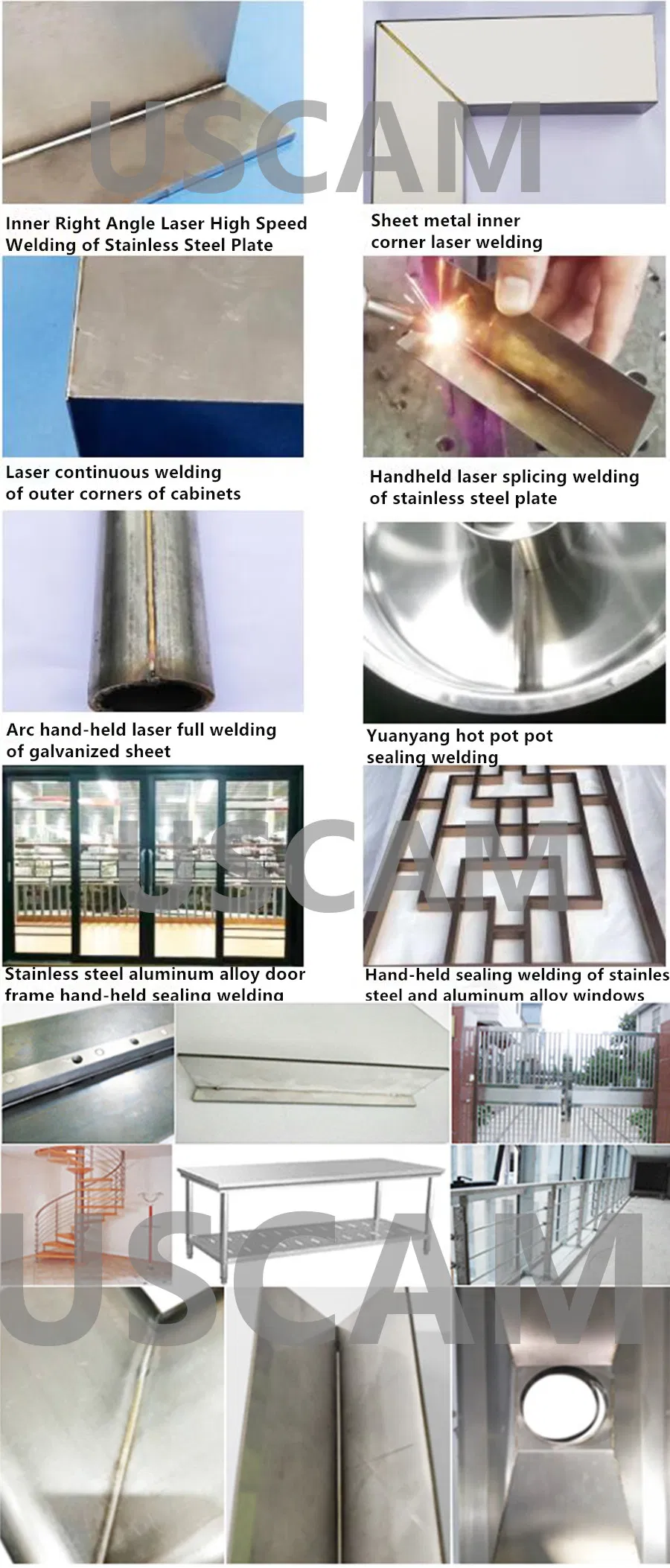

Welding Application

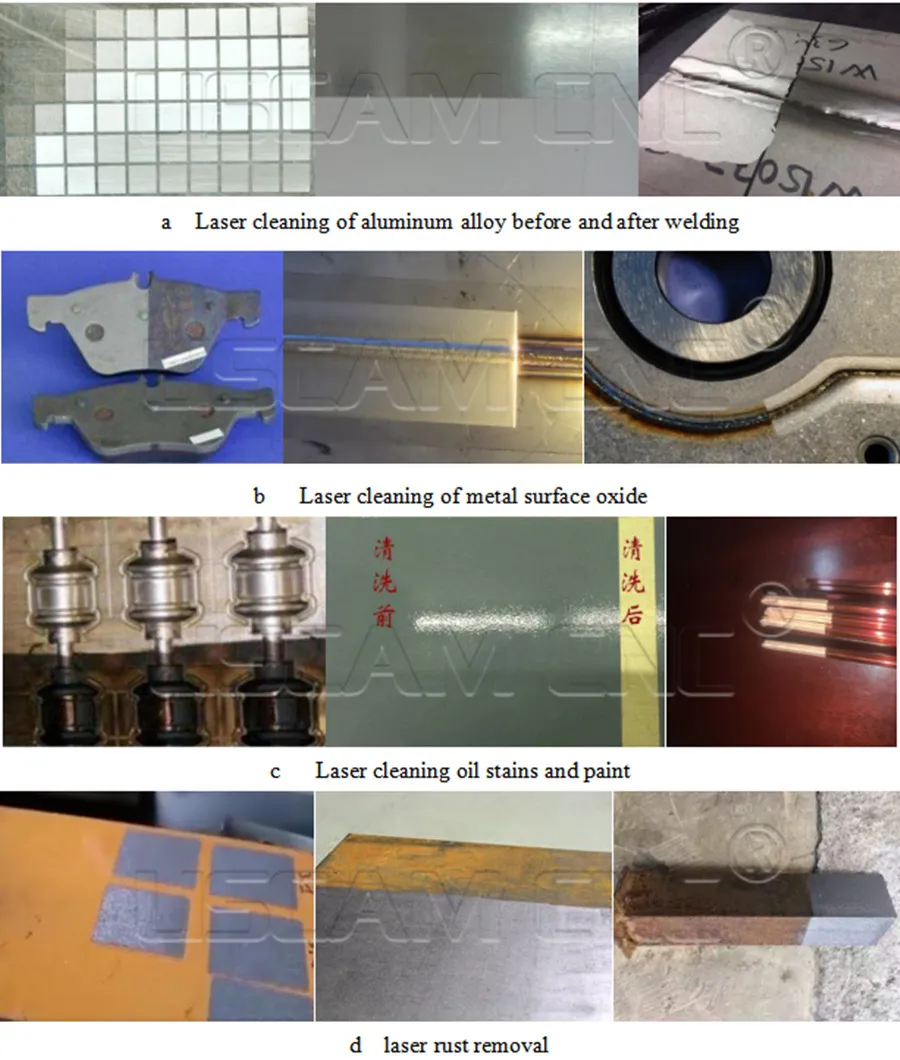

Cleaning Application

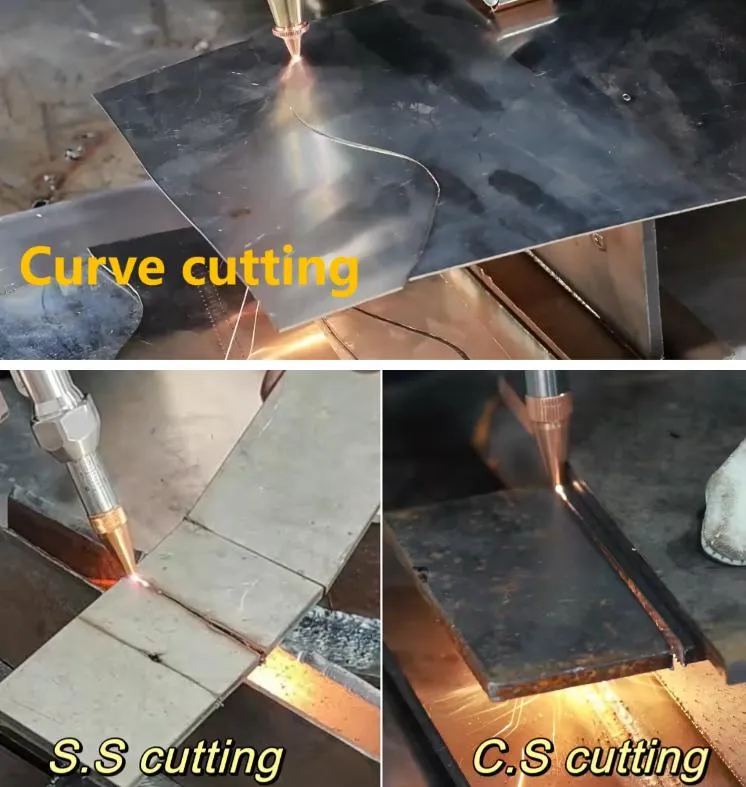

Cutting Application
🛠️

Service & Maintenance

After-Sales Support: 18-month quality guarantee for main parts. We provide 24-hour online service via email and remote control. Professional technical support is available even after the warranty period.

Maintenance Tip: Regular cleaning of the protection lens (weekly) is recommended to prevent damage from dust and debris. Always use dust-free cotton buds and isopropyl alcohol for cleaning.

Certification
📦

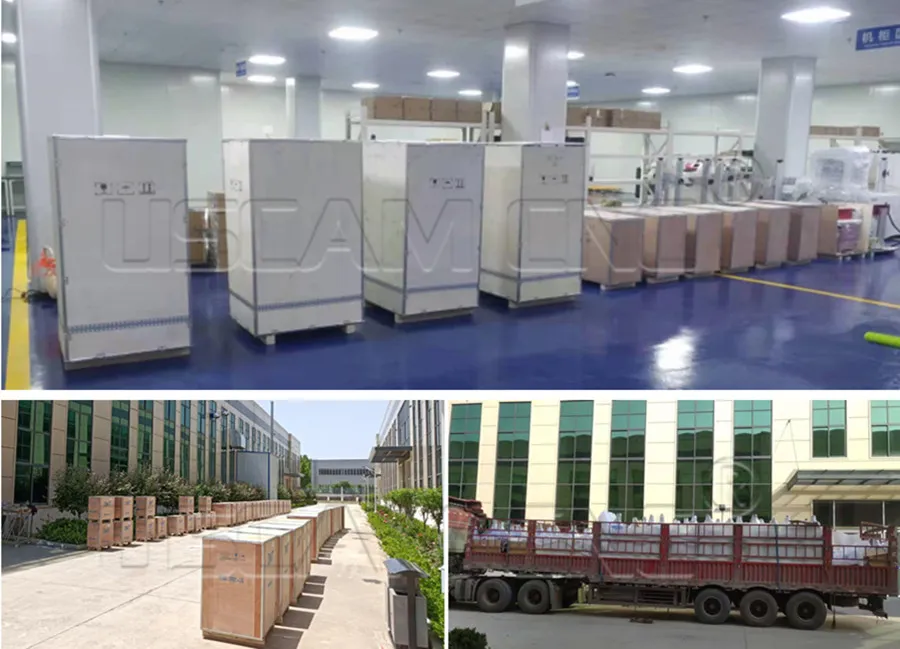

Packaging & Shipping

Our machines are protected by a 3-layer packaging system: Waterproof plastic inner layer, shock-absorbing foam middle layer, and a robust export-standard plywood case for the exterior.

Packaging
Shipping Case

Frequently Asked Questions

Q1: What thickness can the different power levels weld?
1000W can weld up to 3mm; 1500W up to 4mm; 2000W up to 5-6mm; and 3000W can handle 6-7mm thickness.
Q2: Is the machine easy to use for beginners?
Yes, we provide an English manual and guide videos. We also offer online remote assistance and training to ensure you can operate the machine effectively.
Q3: How long is the delivery time?
Standard machines typically take 3-5 days. For customized requirements, the delivery time will be slightly longer.
Q4: How do you control the quality?
The entire production procedure undergoes regular inspection and strict quality control. Every machine is tested before leaving the factory to ensure it works perfectly.
Q5: How do I switch between cleaning and cutting functions?
Cutting and welding use the same focus lens—you just need to change the nozzle. For cleaning, you will need to switch the focus lens.
Q6: What are the payment terms?
Our standard terms are 30% T/T in advance and the remaining 70% before delivery.
