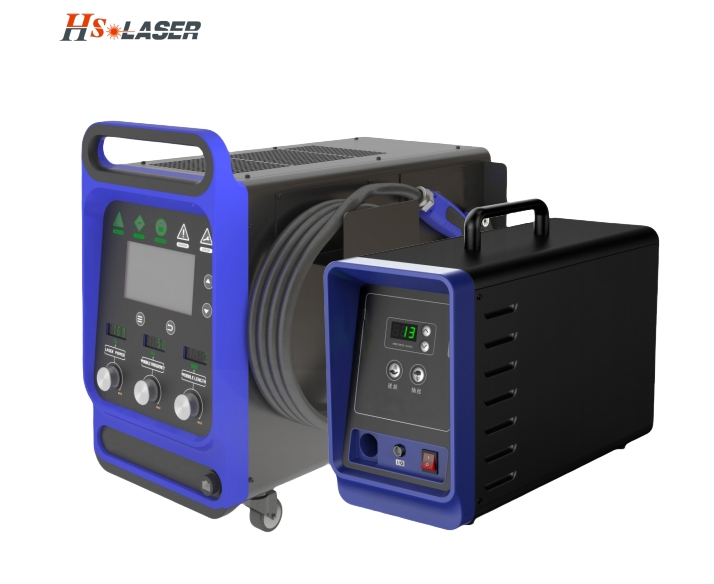

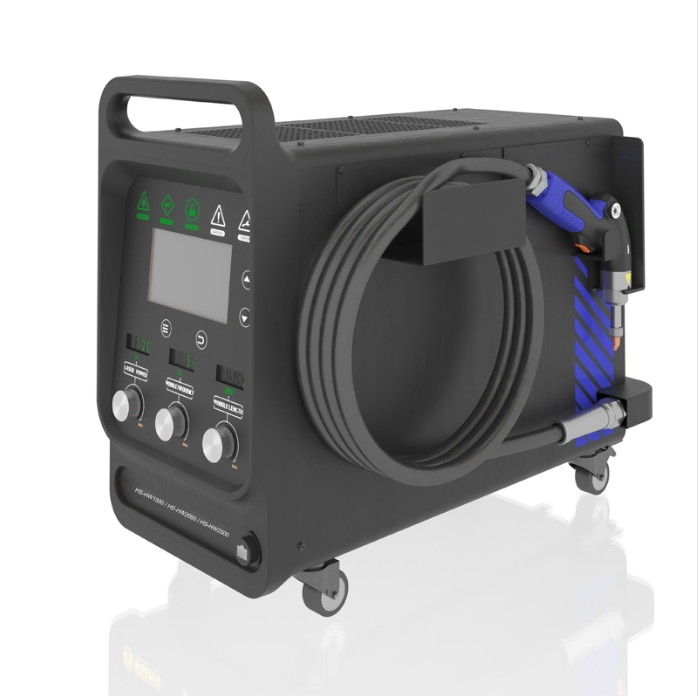

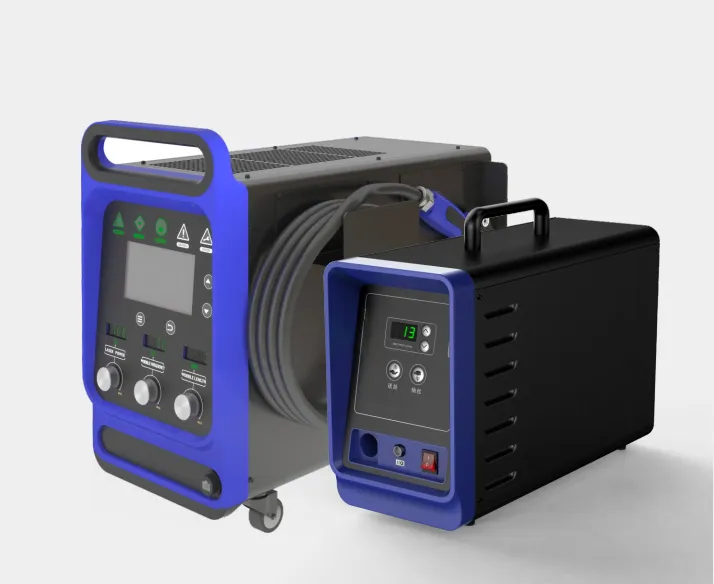

1500W 2000W 2500W 4000W portable laser welding machine with wire feeder

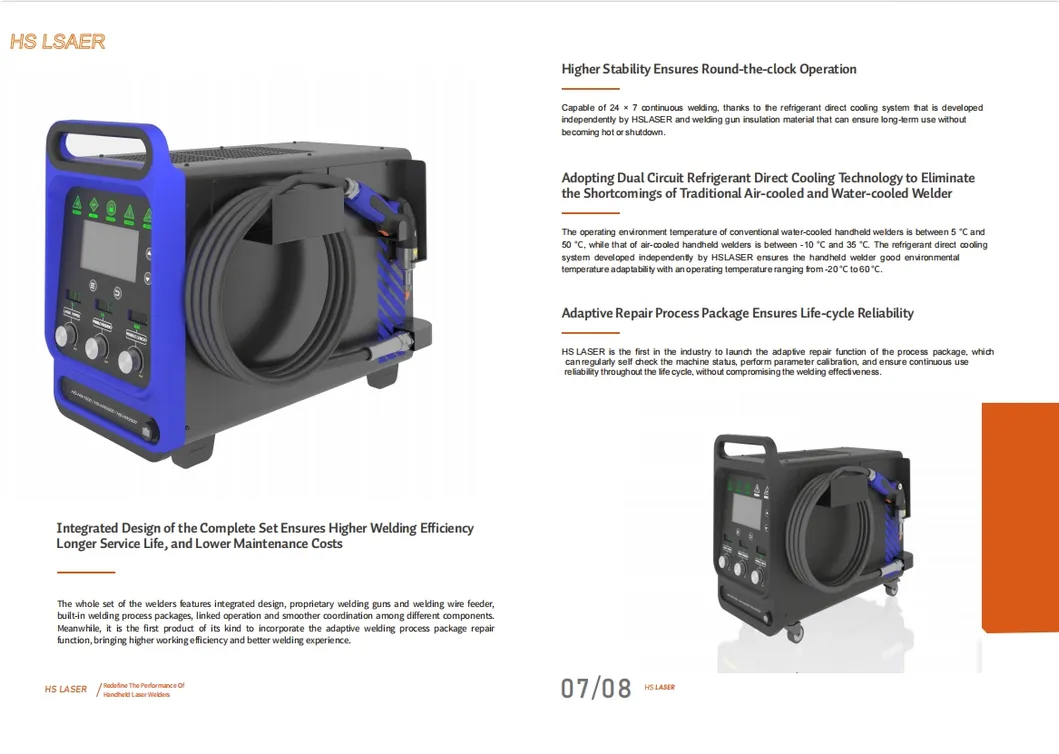

Based on the self-developed "small core diameter" laser technology, the HW Series handheld laser welders adopt a new dual circuit refrigerant direct cooling system and integrated structural design. These welders provide high effectiveness, large penetration, high energy-efficiency, and superior convenience. Capable of welding various metal materials including aluminum, stainless steel, carbon steel, galvanized sheet, and brass, they are widely used in building materials, home appliances, kitchen hardware, sheet metal, and pipeline processing.
Key Advantages:

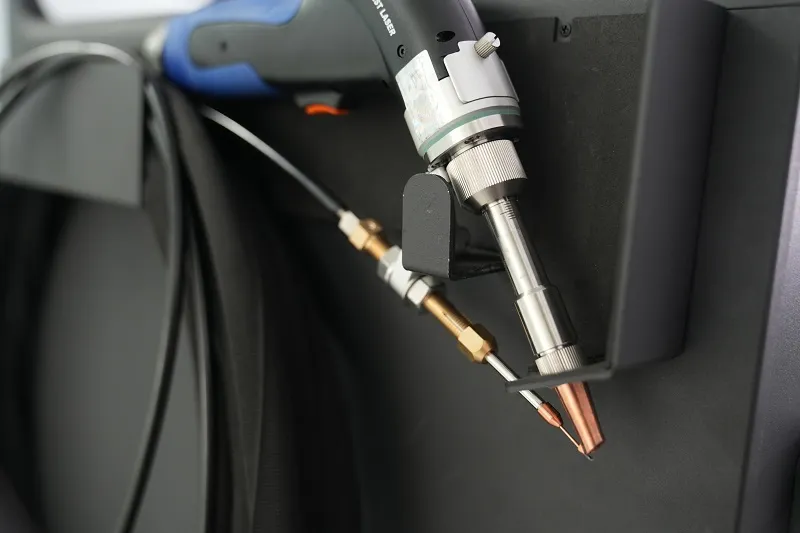

- Integrated laser gun and source for easy operation.
- No prior welding experience required; no need for professional welding staff.
- High power options: 1500W to 4000W for industrial performance.
| Items | Unit | 1500W / HS-HW1500 | 2000W / HS-HW2000 | 2500W / HS-HW2500 | 4000W / HS-HW4000 |
|---|---|---|---|---|---|
| Rated input power supply | - | Single phase 220V | 3 phase 380V | ||
| Input power frequency | Hz | 50/60 | |||
| Laser Power | W | 1500 | 2000 | 2500 | 4000 |
| Power consumption | W | 3800 | 4200 | 5400 | 10500 |
| Welding speed | cm/min | 20-200 | 20-250 | ||
| Cooling mode | - | Dual-circuit refrigerant direct cooling | |||
| Product weight | kg | 45 | 55 | 65 | 80 |
| Applicable wire diameter | mm | 0.8/1.0/1.2/1.6/2.0 | |||
| Welding mode | - | Spot/Continuous spot/Pulse/Continuous welding | |||

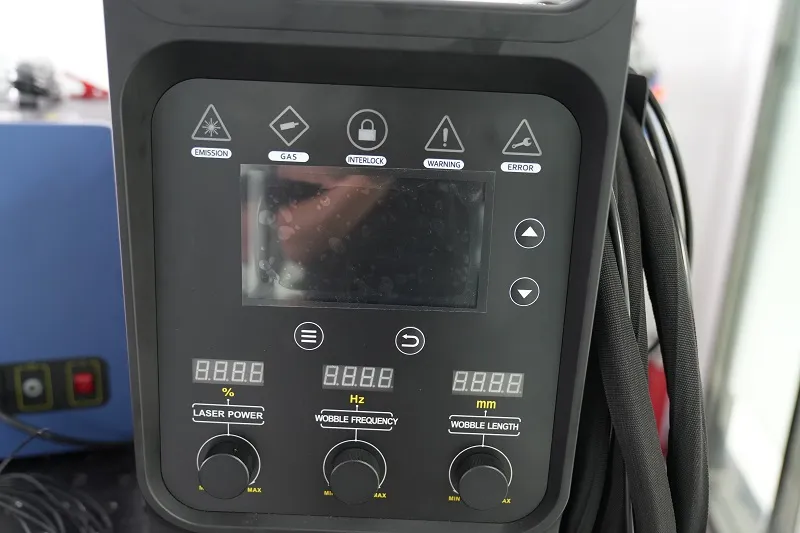

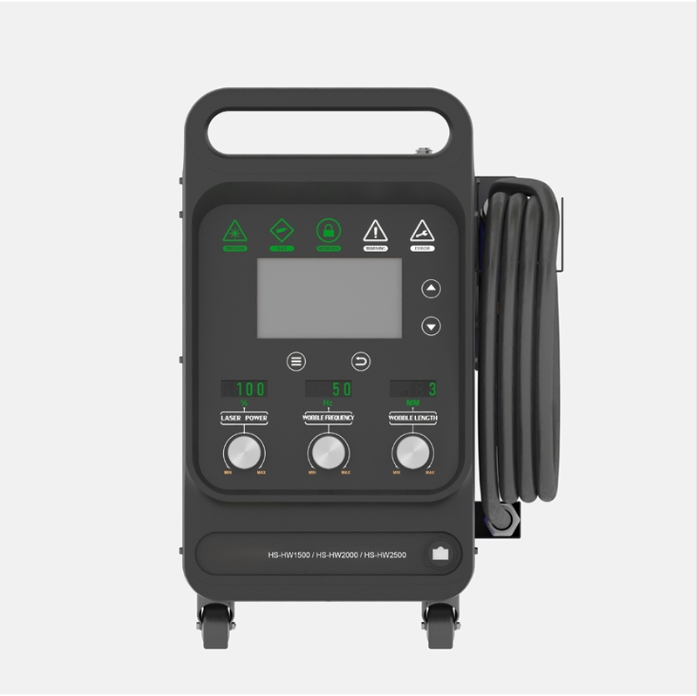

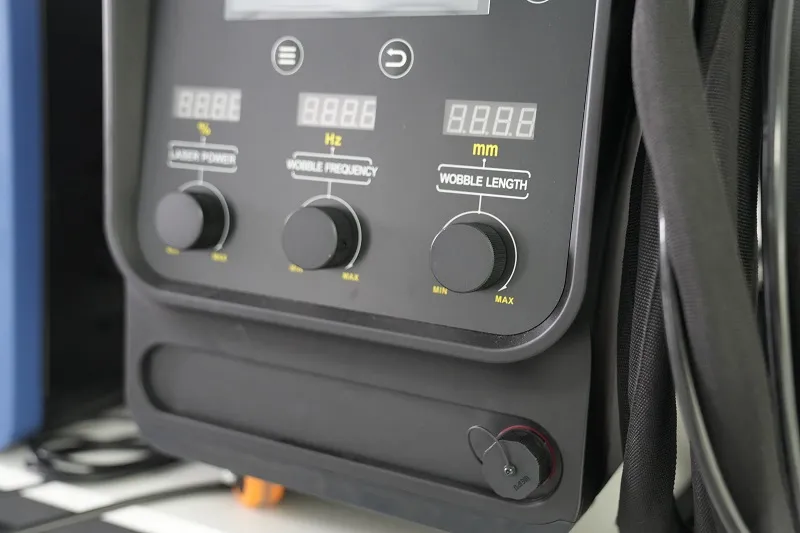

Intelligent Control Panel:
1. Laser Power: Adjust intensity through the dedicated knob.
2. Wobble Frequency: Adjust oscillation speed during operation.
3. Wobble Length: Control the amplitude of the laser motion.
Includes safety interlocks, gas control, and emergency stop indicators.

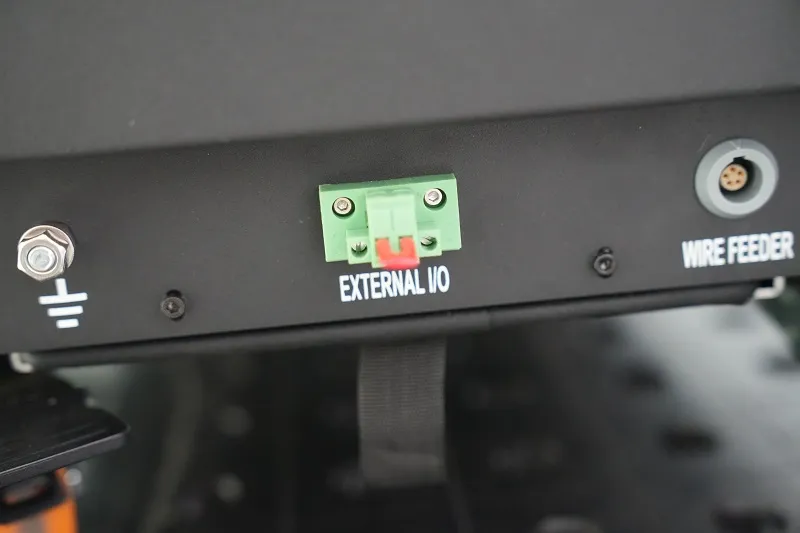

The machine features an External I/O Connector for system integration, a dedicated Wire Feeder Port for continuous filler supply, and standardized Grounding Points for electrical safety.

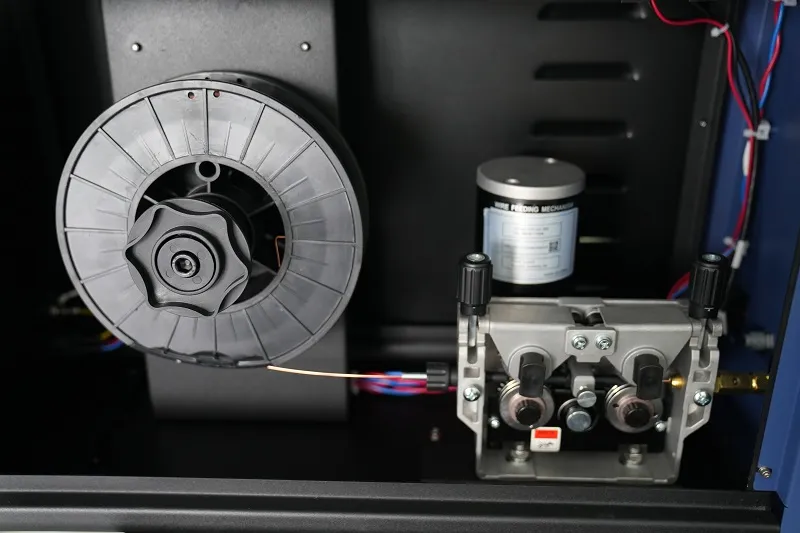

The image above displays the internal structure of the wire feeder system.
