Energy Efficient Refrigerant Laser Welding System for Industrial Use

Customization:	Available
After-sales Service:	Online Services
Warranty:	24 Months

Basic Info

Model NO.

HW1500 / HW2000 / HW2500 / HW4000

Application

Electronic Industry, Automotive Industry, Manufacturing Industry

Technical Class

Continuous Wave Laser

Control

Manual

Laser Classification

Optical Fiber Laser

Type

Portable Welding Machine

Laser Power

1500W / 2000W / 2500W / 4000W

Laser Wavelength

1080nm

Weld Speed

0-120mm/S

Weld Method

Flat / Horizontal / Vertical / Overhead

Fiber Cable Length

5.6m

Machine Color

Blue / Black

Product Description

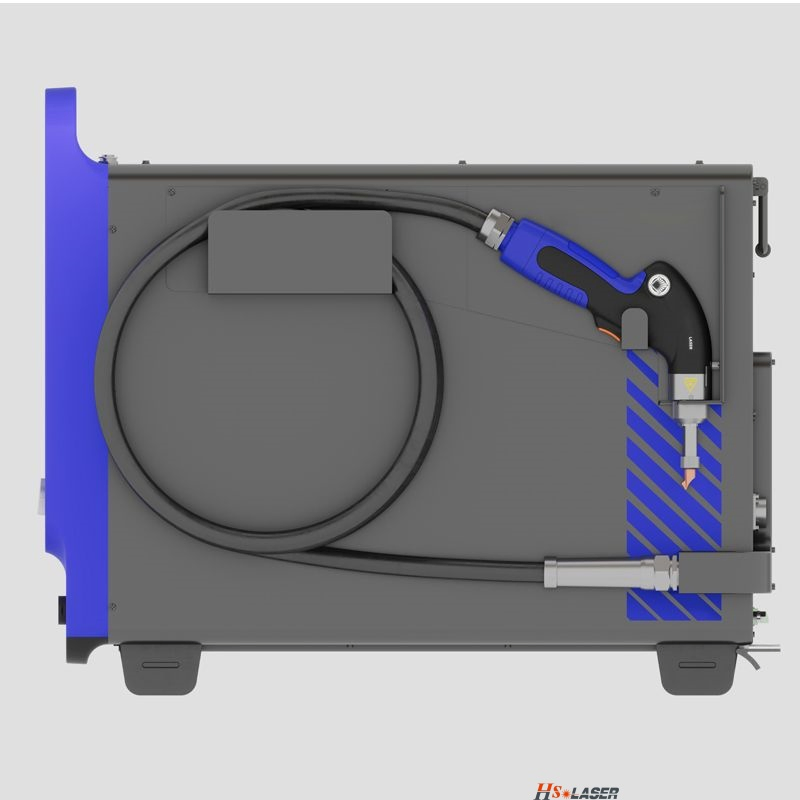

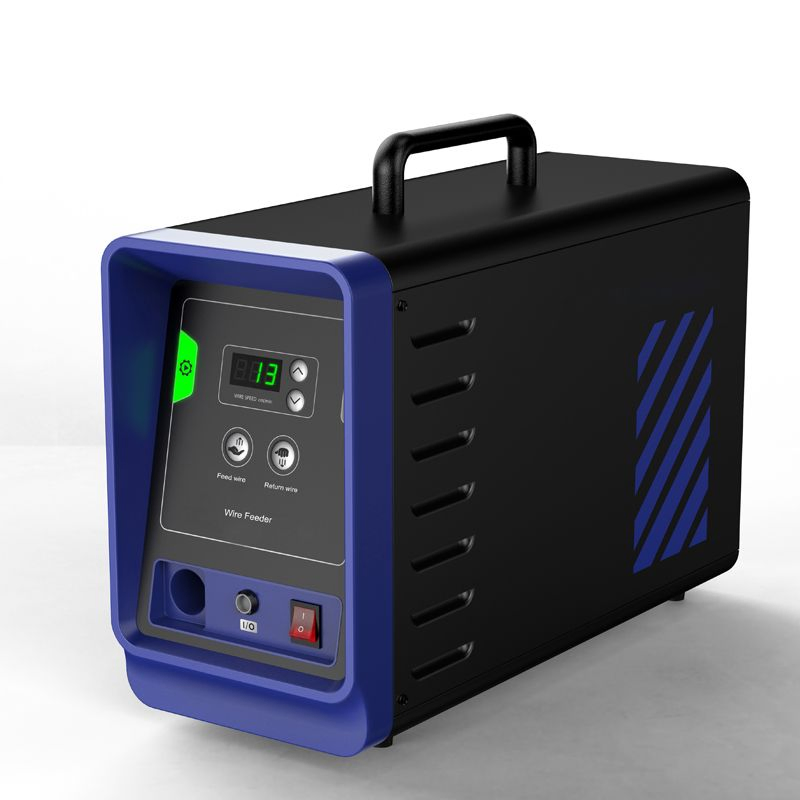

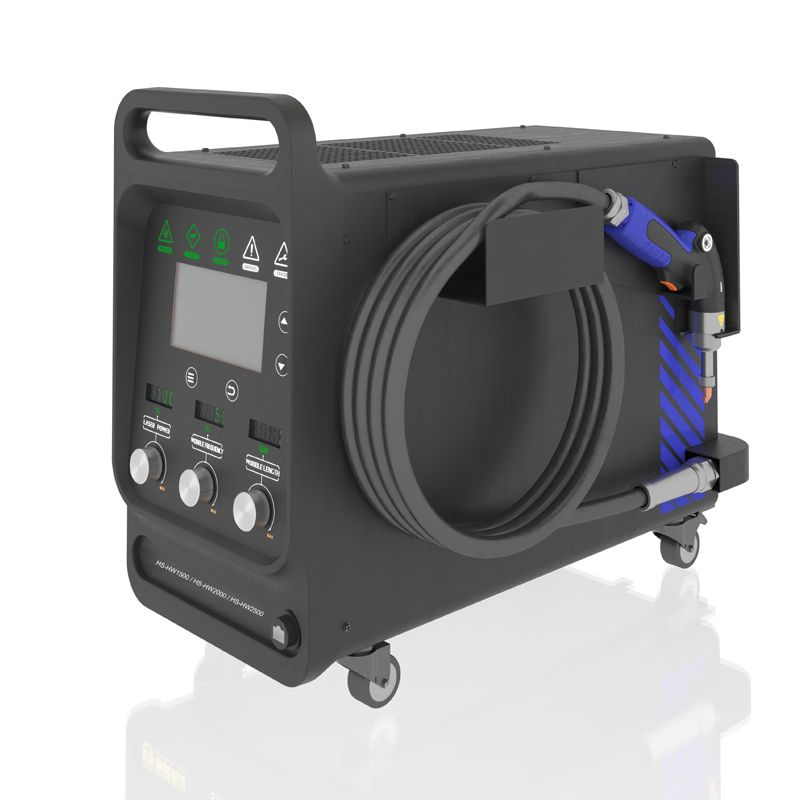

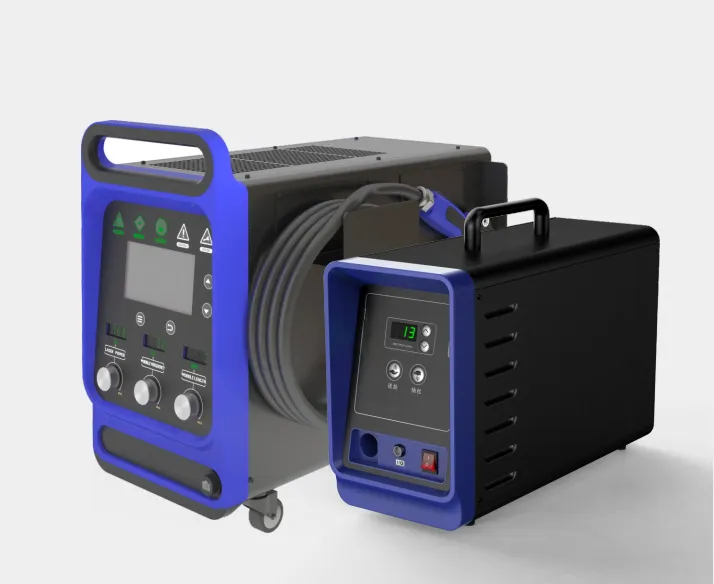

Portable Laser Welding Machine with Wire Feeder

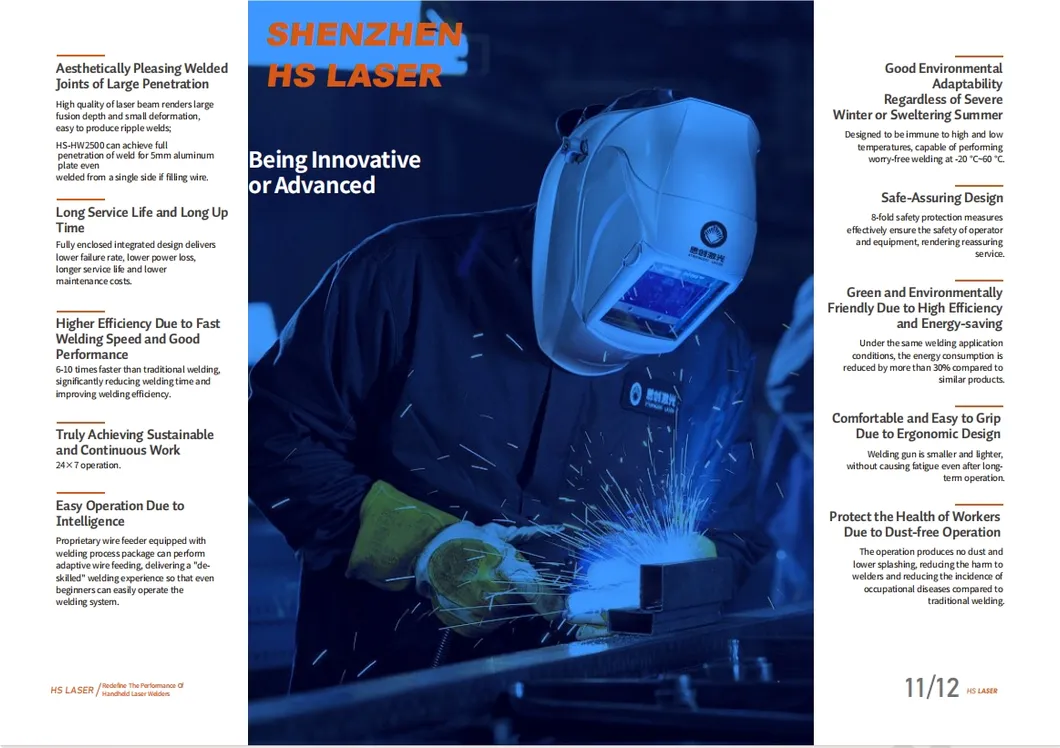

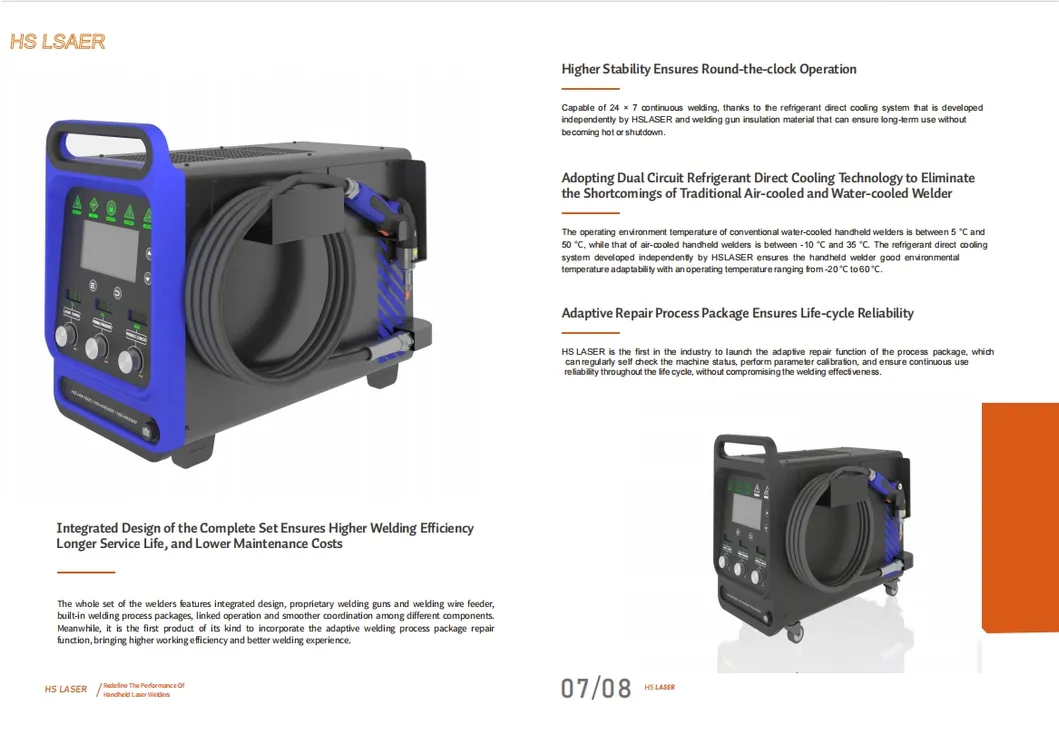

Based on the self-developed "small core diameter" laser technology, these handheld laser welders adopt a new dual circuit refrigerant direct cooling system and integrated structural design. These welders provide high effectiveness, large penetration, high energy-efficiency, and extreme convenience. They are capable of welding various metal materials including aluminum, stainless steel, carbon steel, galvanized sheet, brass, etc.

Broad applications include building materials, home electrical appliances, kitchen hardware, bathroom hardware, sheet metal processing, and pipeline processing. No prior welding experience is required, making it accessible for operators without professional welding certification.

Product Parameters

Items	Unit	1500W	2000W	2500W	4000W
Rated Input Power Supply	-	Single phase 220V			3 phase 380V
Input Power Frequency	Hz	50/60
Laser Power	W	1500	2000	2500	4000
Power Consumption	W	3800	4200	5400	10500
Welding Speed	cm/min	20-200			20-250
Product Dimensions	mm	675×310×580	673×310×605	673×310×605	863×410×724
Product Weight	kg	45	55	65	80

Detailed Photos

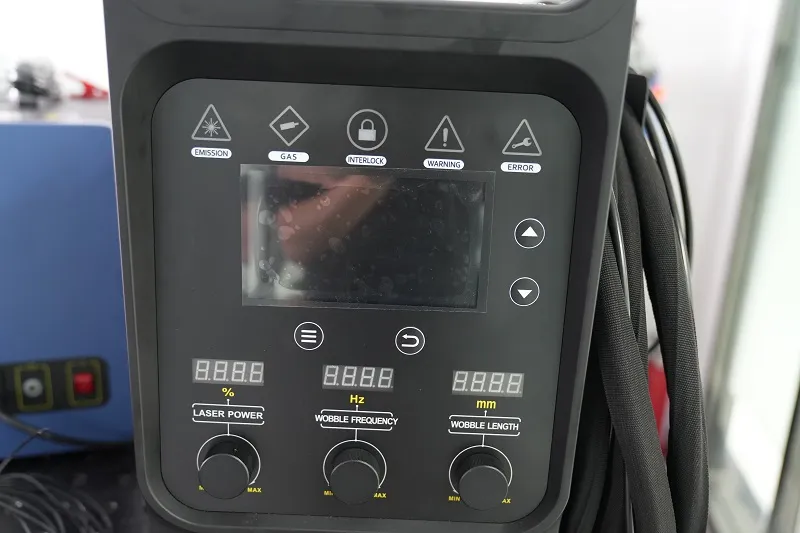

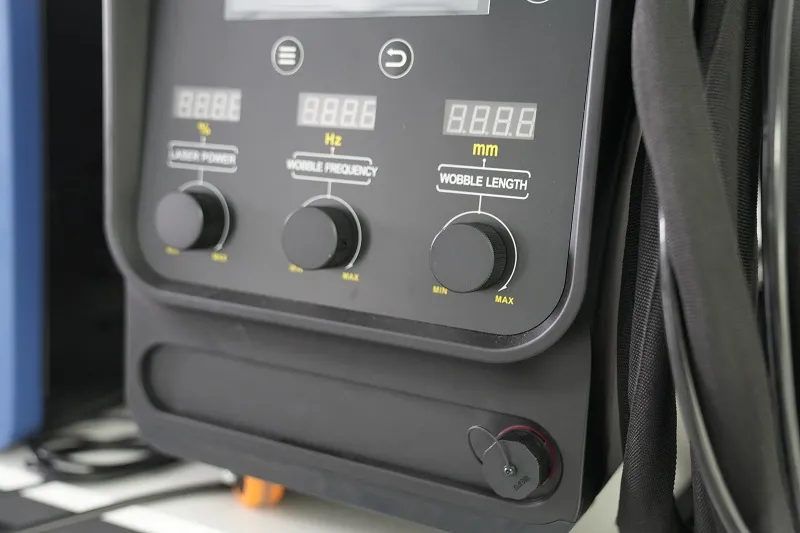

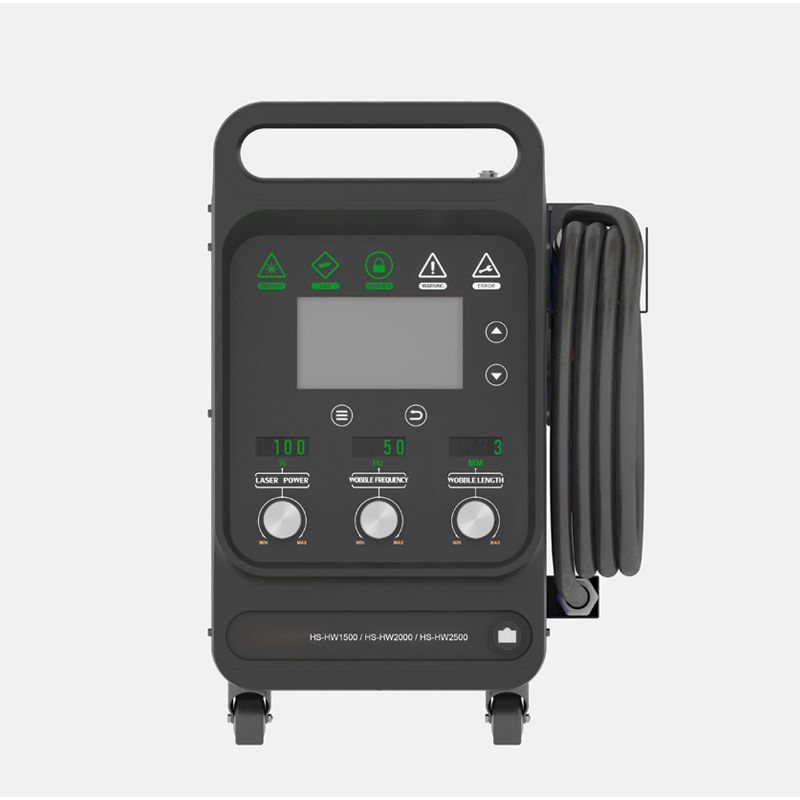

🎛️ Control Interface Parameters

Laser Power: Adjusts the intensity of the laser beam.
Wobble Frequency: Adjusts how quickly the laser oscillates during operation.
Wobble Length: Controls the amplitude of the laser's wobble motion.

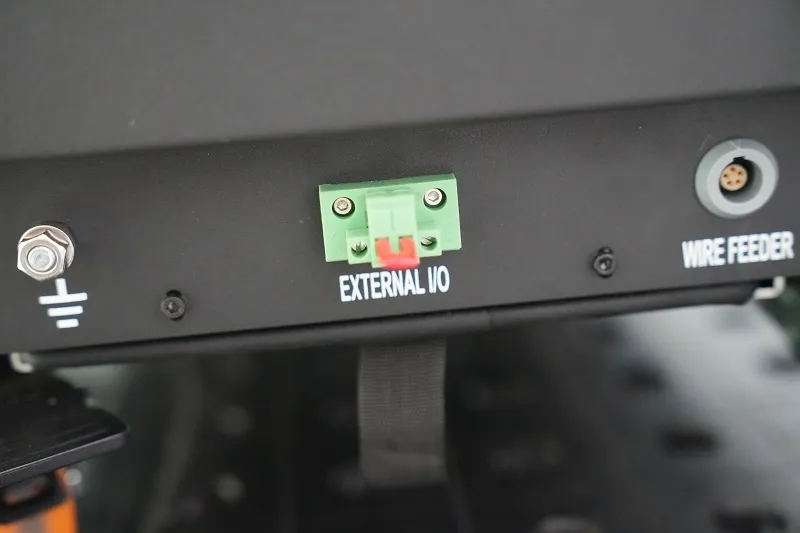

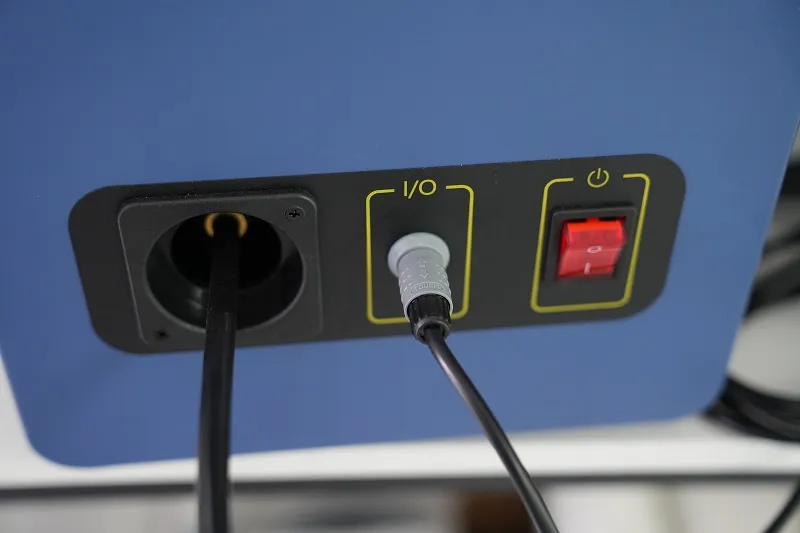

🔌 Connection Ports

External I/O Connector: For integration with external systems or sensors.

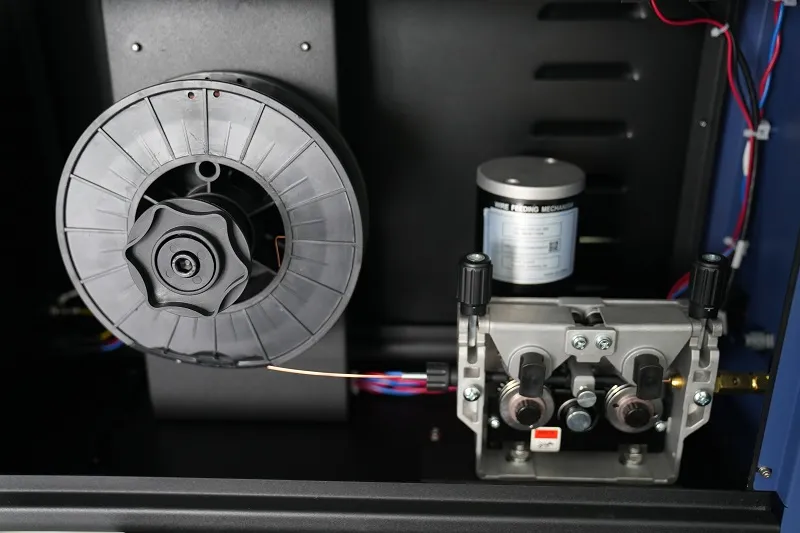

Wire Feeder Port: Circular port for connecting the filler wire unit.

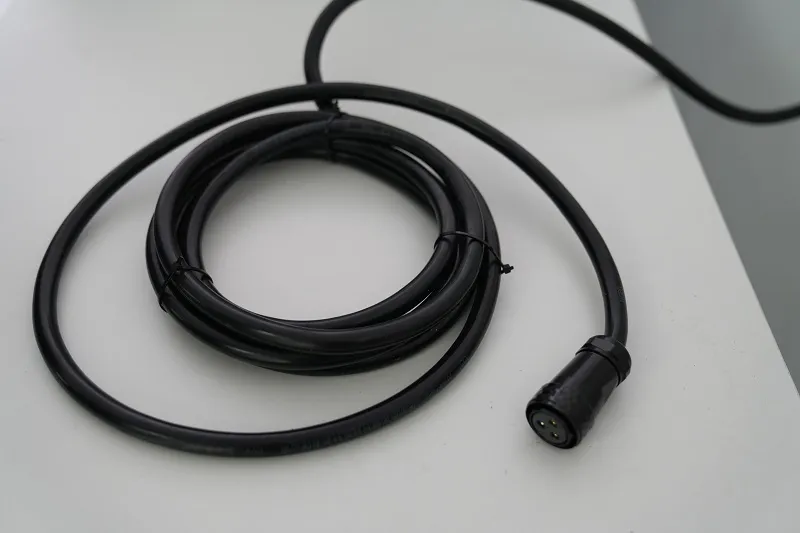

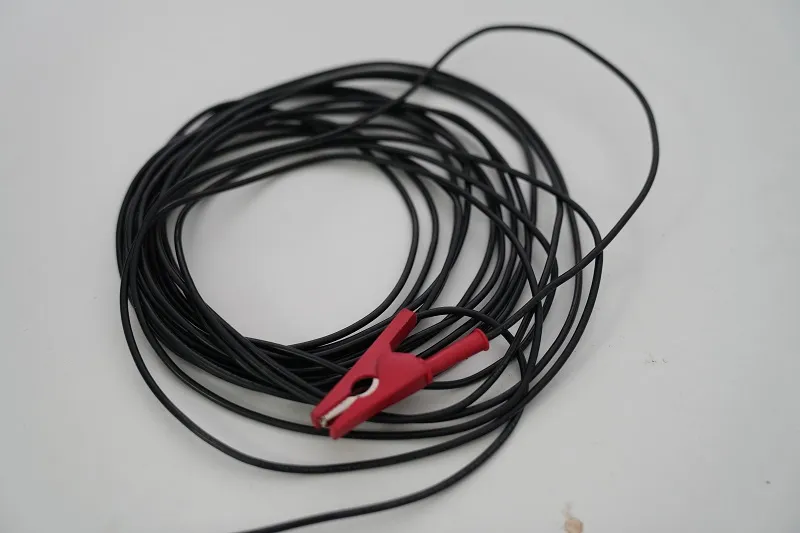

Safety Features: Includes interlocks and safety clamps to prevent accidental beam emission.

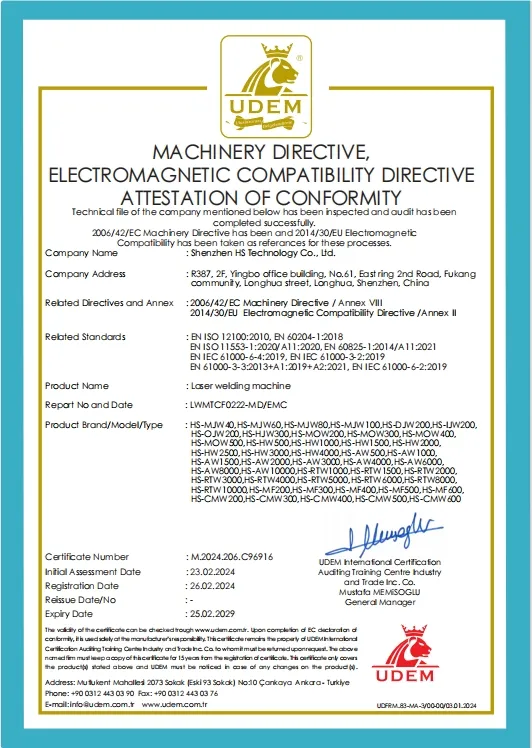

Certifications

Packaging & Shipping

The equipment is packed in high-quality wooden boxes to ensure safety during international transport.

Frequently Asked Questions

What materials can this laser welding machine weld?

It can weld a wide variety of metals including aluminum, stainless steel, carbon steel, galvanized sheet, and brass.

Is professional welding experience required to operate the machine?

No, the integrated design and easy-to-use interface allow anyone to learn the operation in a very short time without professional welding background.

What are the available laser power options?

We offer power variants of 1500W, 2000W, 2500W, and 4000W to meet different penetration and speed requirements.

How does the cooling system work?

The machine utilizes a dual circuit refrigerant direct cooling system, ensuring stable operation even during long continuous welding sessions.

What is the standard length of the fiber cable?

The standard length is 5.6 meters, but armored cable lengths of 5m, 10m, 15m, and 20m can be customized according to your needs.

Does the machine include safety features?

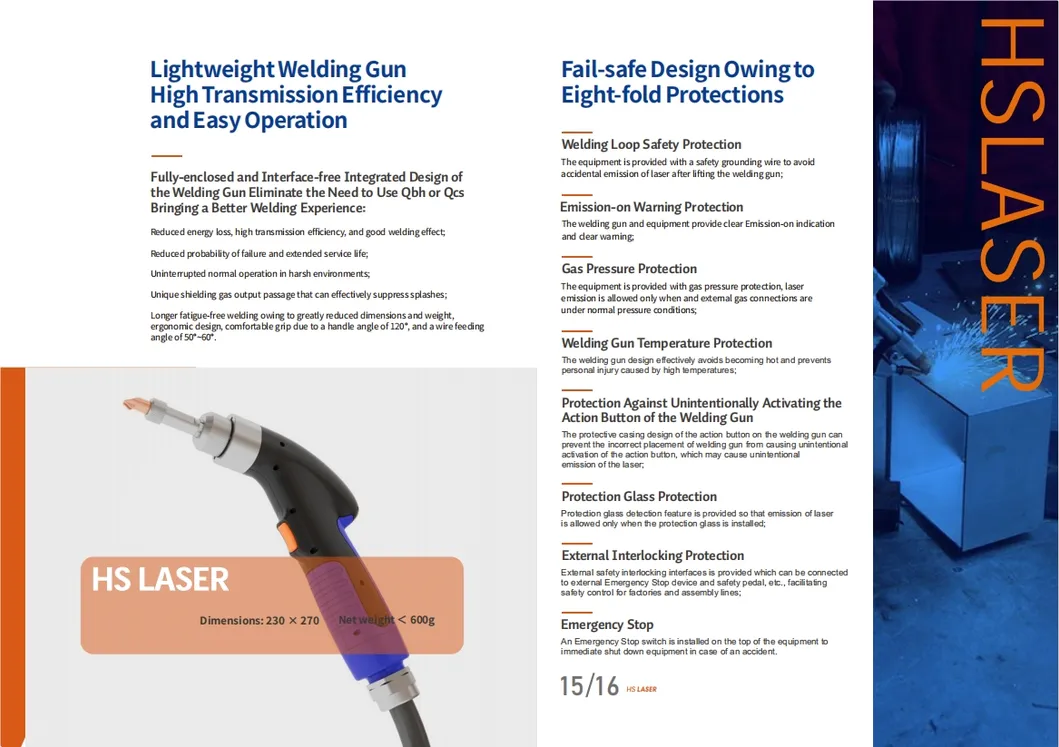

Yes, it includes multiple safety features such as interlocks, emergency stop, warning indicators, and a safety clamp that prevents the laser beam from emitting unless it touches the metal surface.
