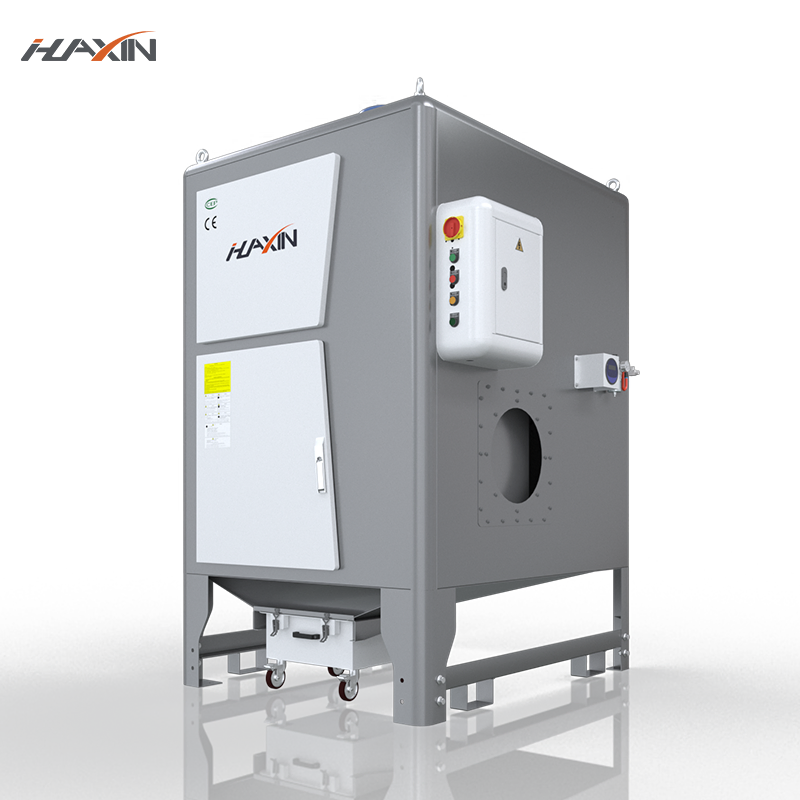

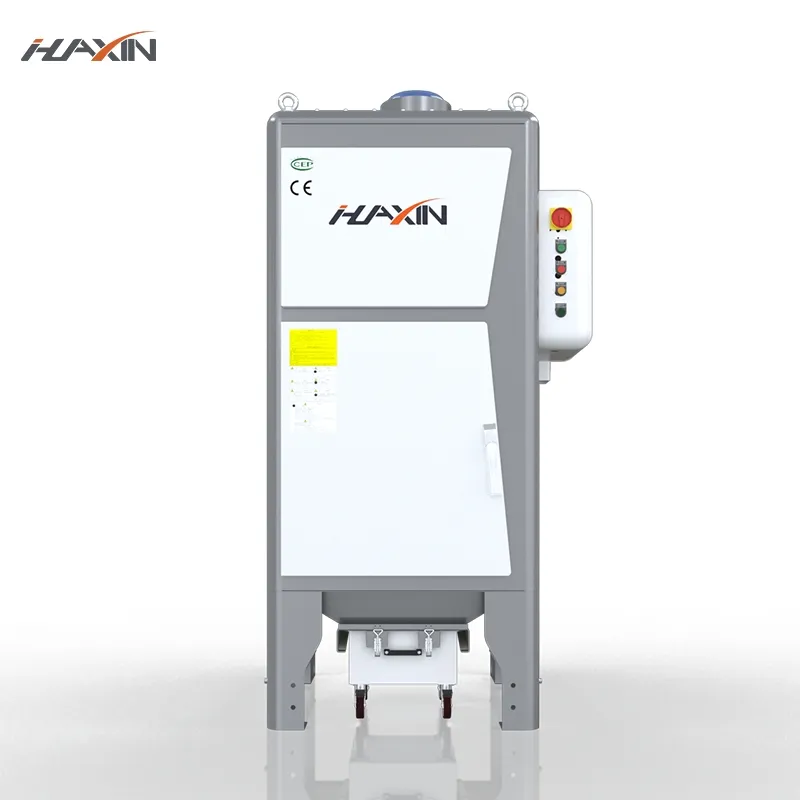

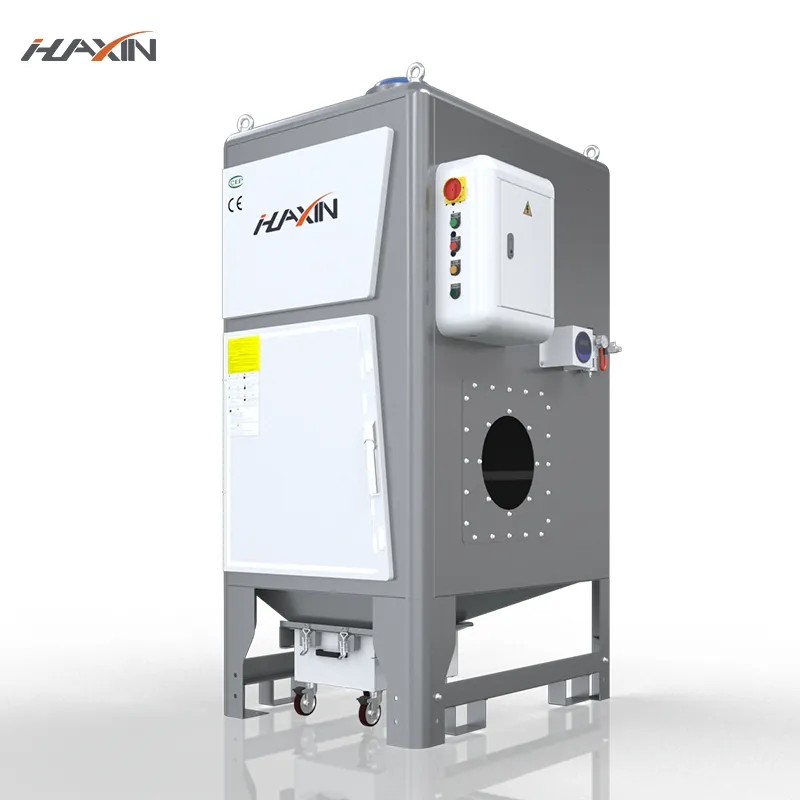

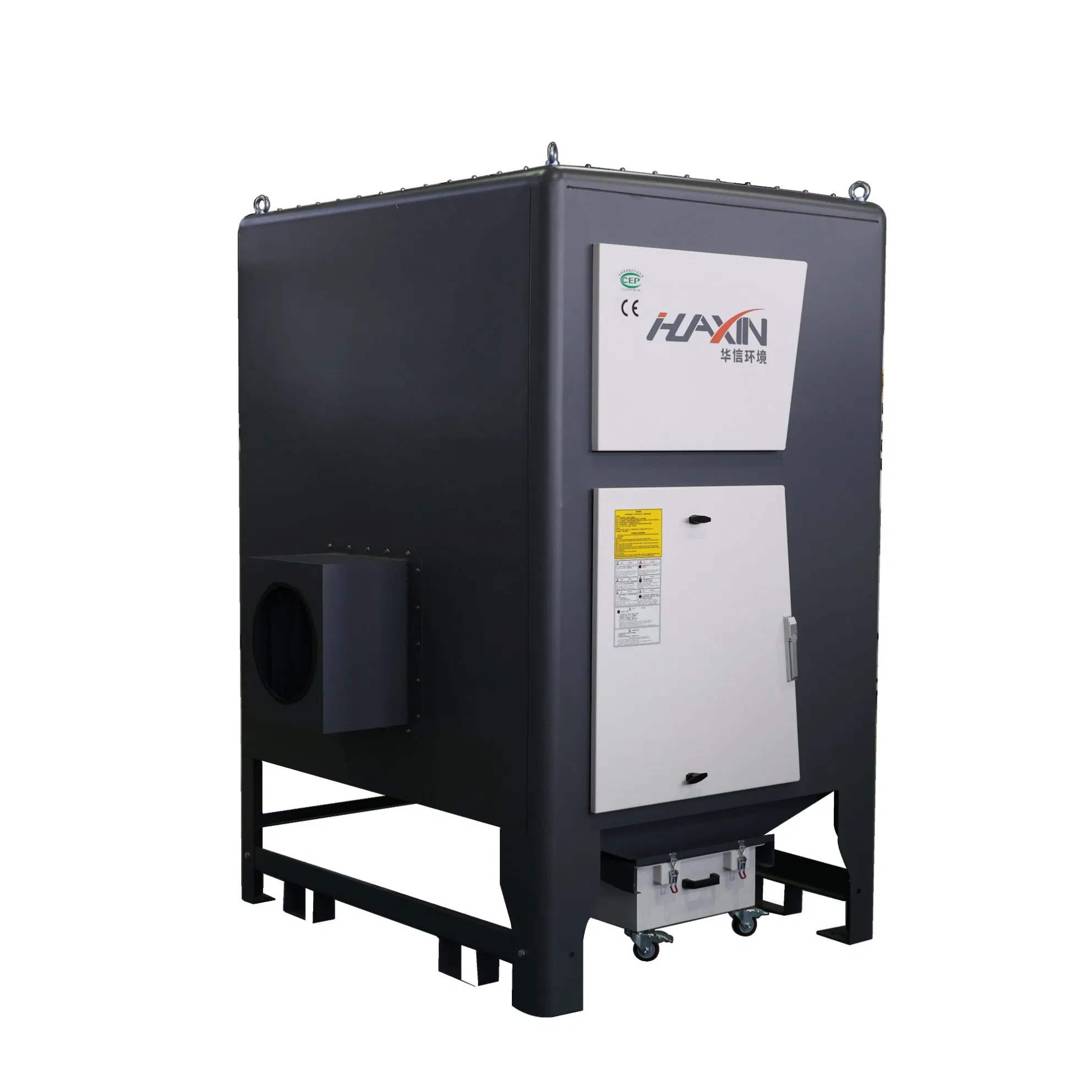

Advanced Industrial Dust Collection System for Welding and Laser Applications

Basic Information

Model NO.

XF06

Operation Type

Automatic

Medium Material

Chemical Synthetic Fiber

Dust Collecting

Dry Method

Type

Filter Cartridge Dust Collector

Power

7.5kw

Voltage

380V/415V/220V

Filtration Accuracy

99.99%

Mini Particle Size

0.3um

Filtration Area

78m2

Product Description

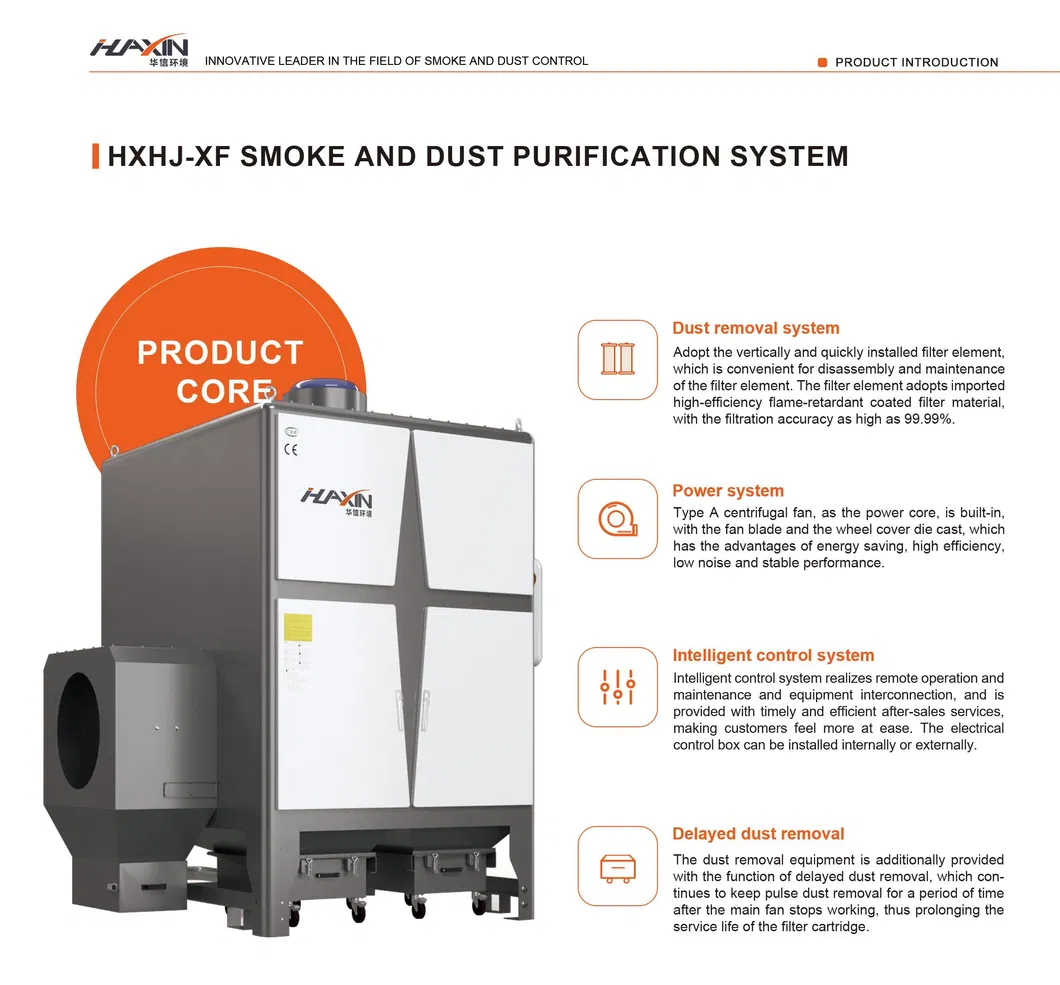

Unparalleled High-Efficiency Filtration

Reliable XF Dust Collectors feature an advanced filtration system that captures an expansive range of particulate matter. Perfect for welding and laser environments, it ensures an immaculate atmosphere with efficiency reaching up to 99.99%, guaranteeing safety and air quality.

Versatile Adaptability

Expertly manages a diversity of dust types from metal fines and fumes to plastic composite materials. These robust systems seamlessly adapt to unique material properties for thorough dust management.

Formidable Suction Power

Engineered for rapid extraction, the remarkable suction power ensures immediate capture of dust upon creation, preventing dispersion and safeguarding equipment from potential damage.

Low Noise & Safety

Operates at levels typically below 80 decibels. Equipped with over-temperature and over-current protection to ensure equipment integrity and operator well-being.

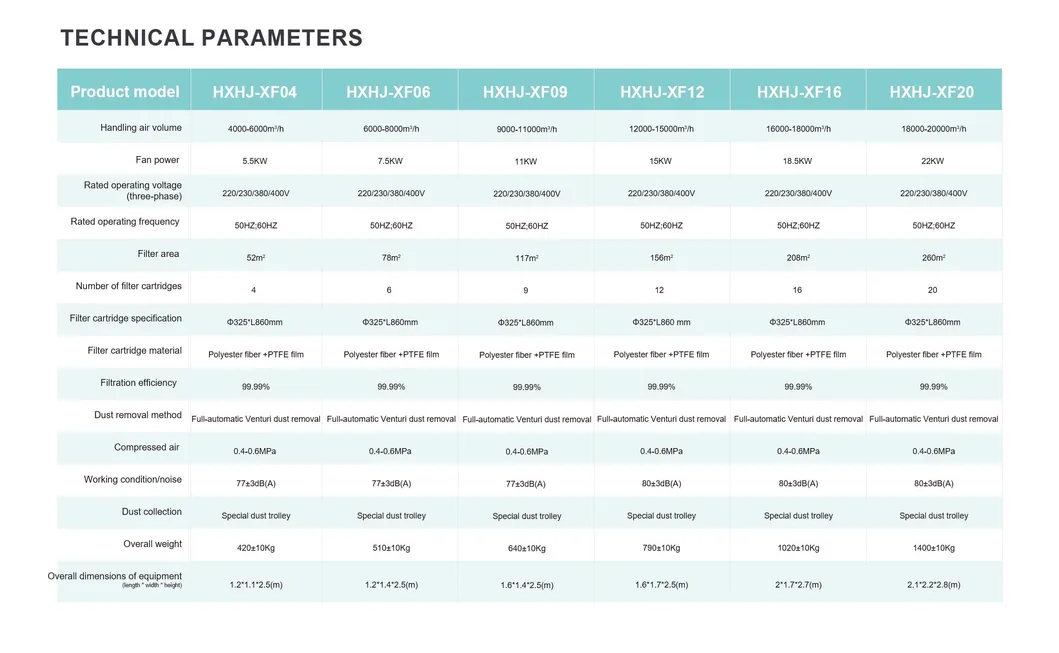

Product Parameters

Model	Airflow (m³/h)	Power (kW)	Voltage (V)	Filter Area (m²)	Filter Precision	Noise dB(A)	Size (mm)

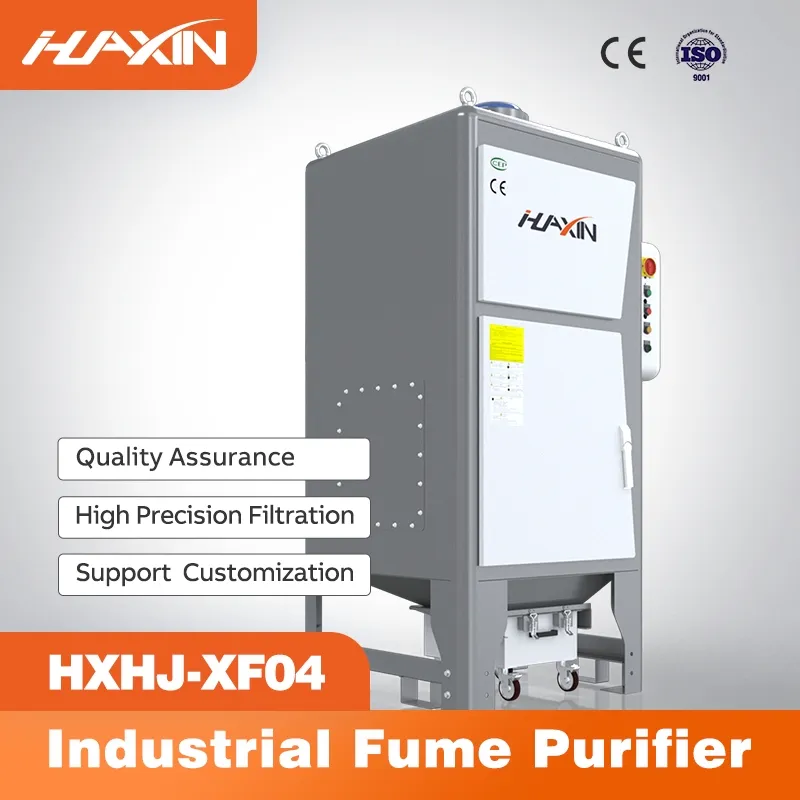

HXHJ-XF04	4000	5.5	380V/415V	52	99.99%	77±3	120011002500

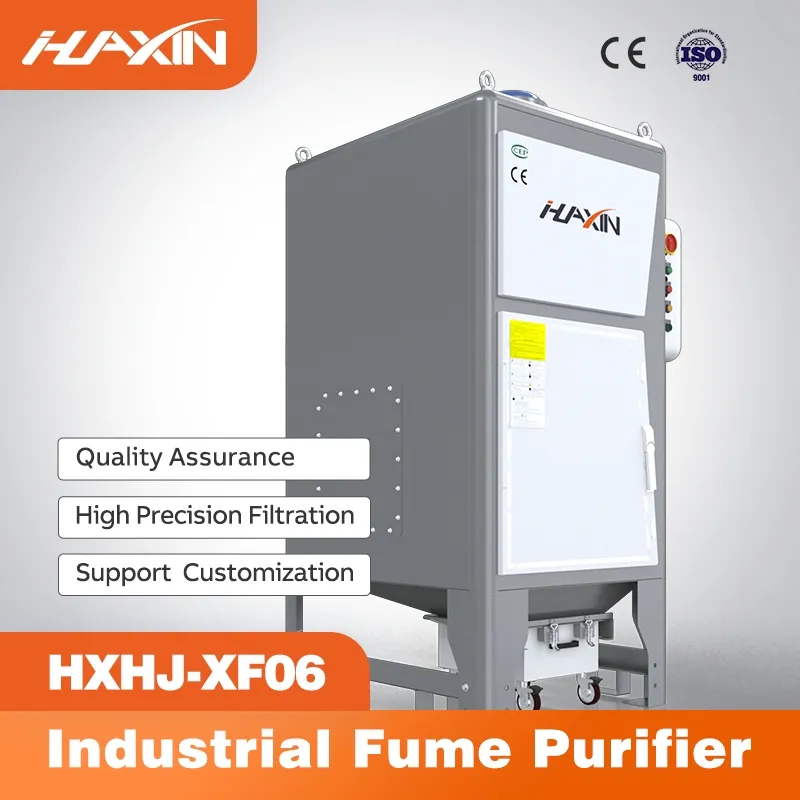

HXHJ-XF06	6000	7.5	380V/415V	78	99.99%	77±3	120014002500

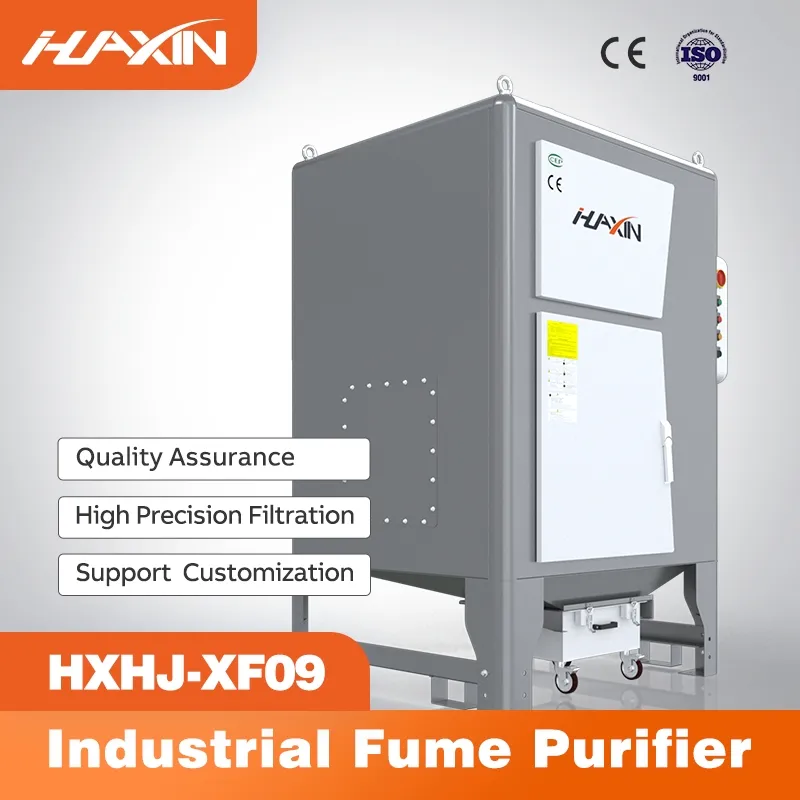

HXHJ-XF09	9000	11	380V/415V	117	99.99%	77±3	160014002500
HXHJ-XF12	12000	15	380V/415V	156	99.99%	77±3	160017002500
HXHJ-XF16	16000	18.5	380V/415V	208	99.99%	77±3	200017002700
HXHJ-XF20	20000	22	380V/415V	260	99.99%	77±3	210022002800

Our Advantages & Details

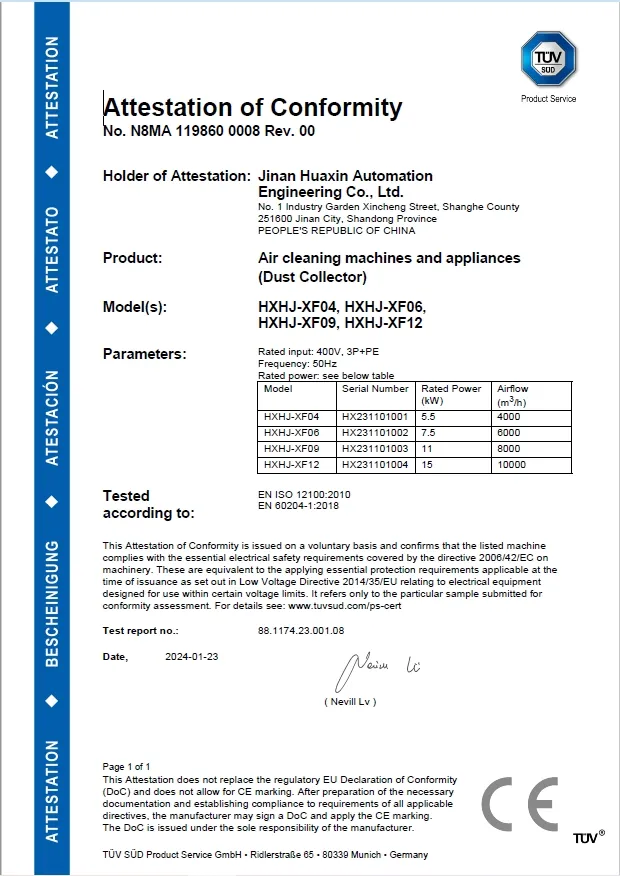

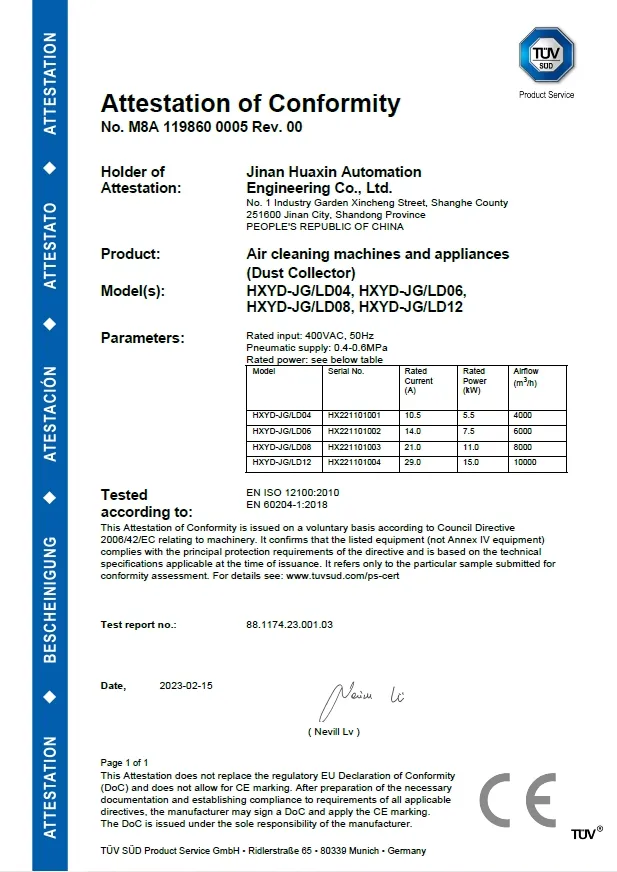

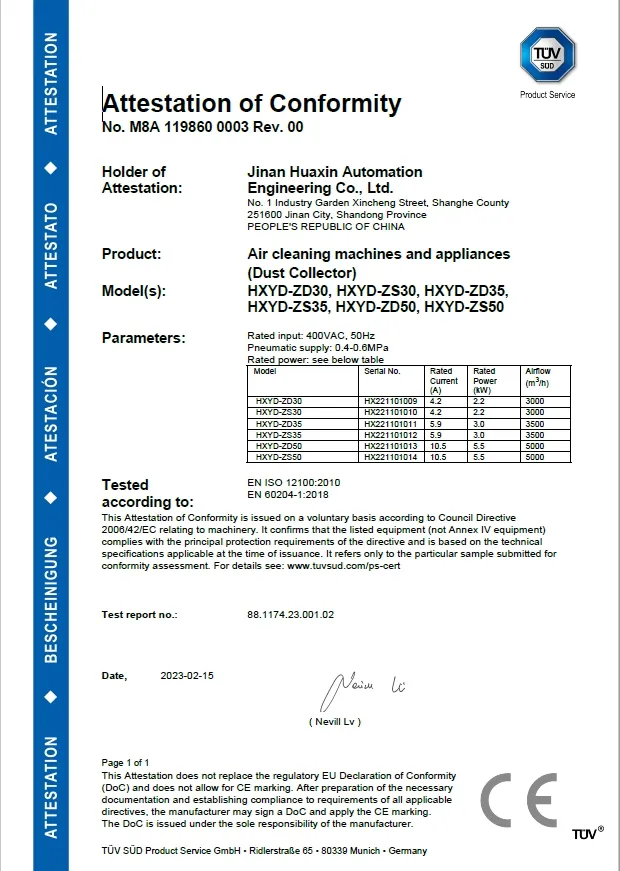

Certifications

Frequently Asked Questions

Is there any noise during operation?

The fans are equipped with sound insulation cotton and are engineered to operate at low noise levels without producing excessive noise.

How is the surface treatment handled?

We recommend the plastic spraying process. This ensures the paint is durable and resistant to falling off, providing long-term protection.

How do I determine the required air volume?

Simply measure the diameter of the exhaust pipe on your laser cutting machine's platform and provide it to us; we can calculate the exact volume required.

How do you prevent fire accidents from sparks?

We install spark catchers (labyrinth structure) which force sparks to hit cold plates multiple times until they are extinguished.

Does the system require a chimney for venting?

No chimney is needed. High-precision filter material filters 99% of 0.3um dust, allowing air to be safely discharged directly indoors.

Is the installation process difficult?

No, the industrial dust collection system is designed for easy installation and seamless integration into your workspace.
