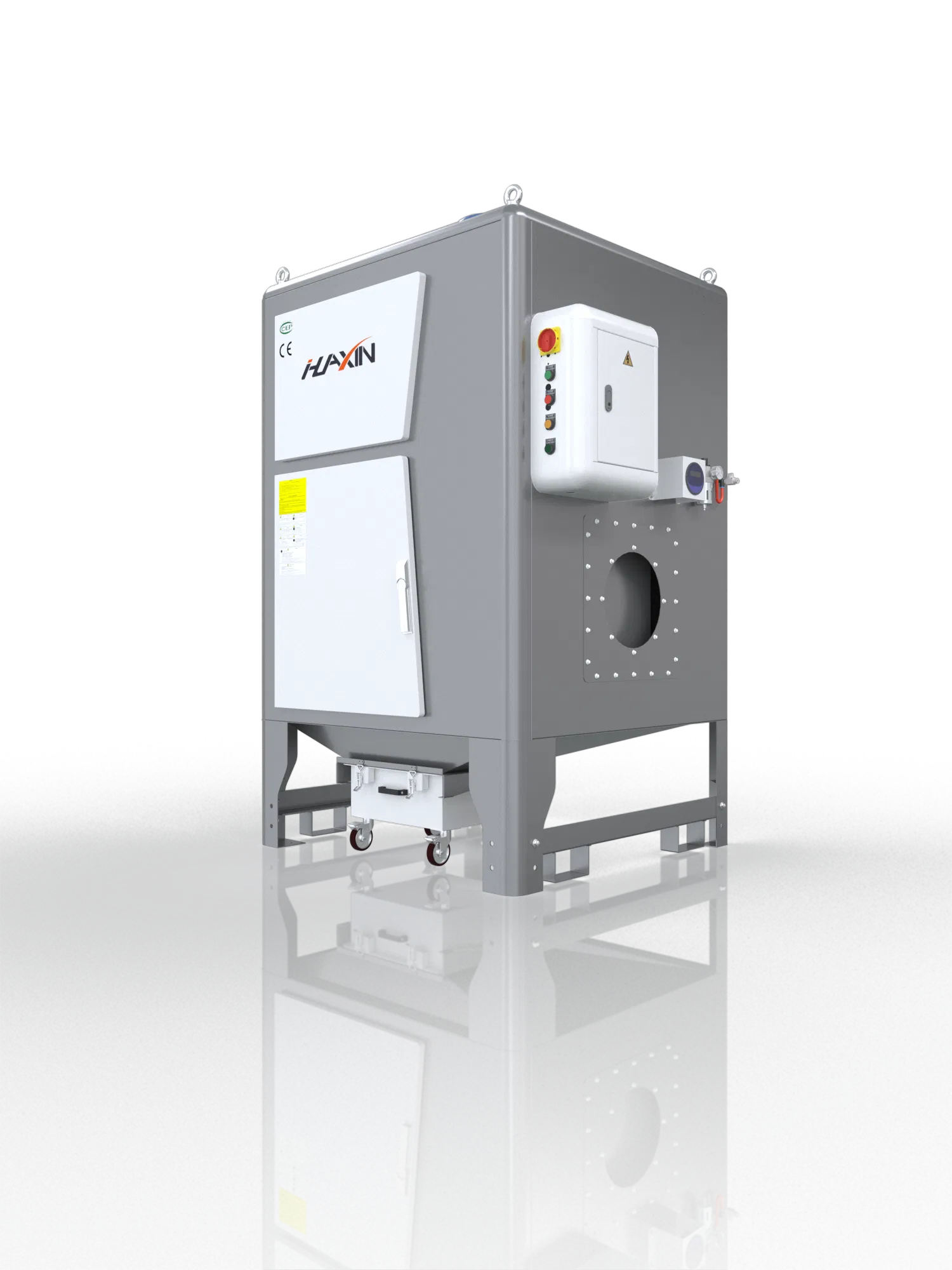

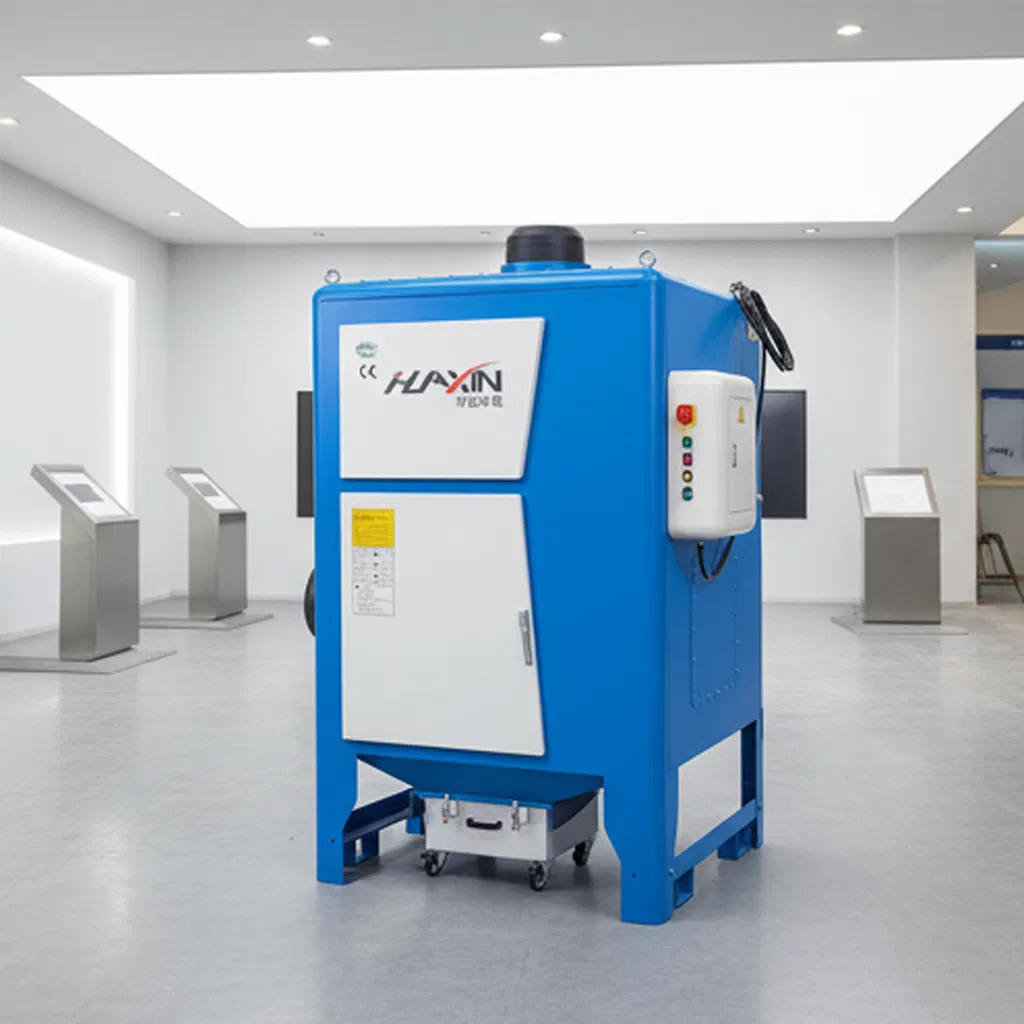

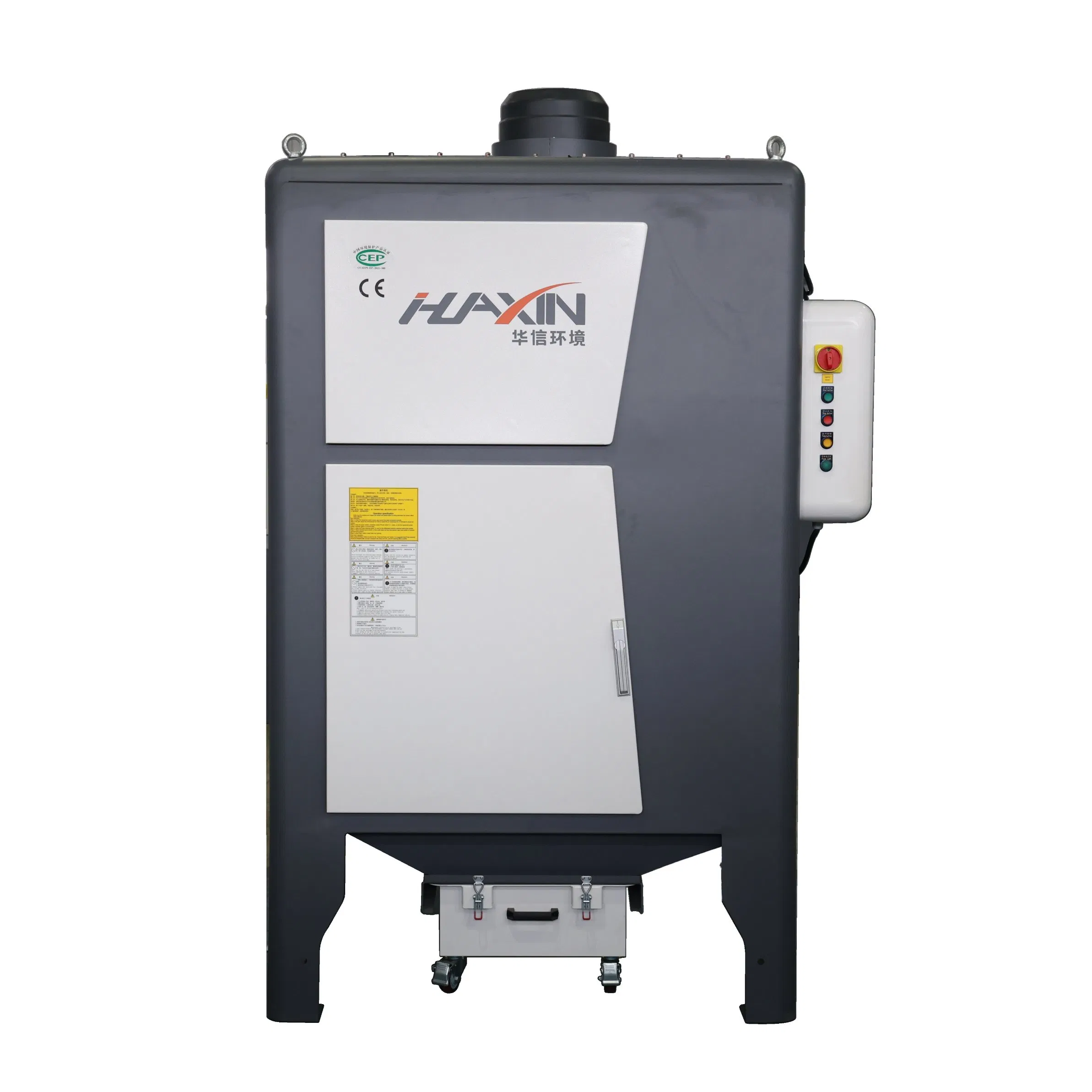

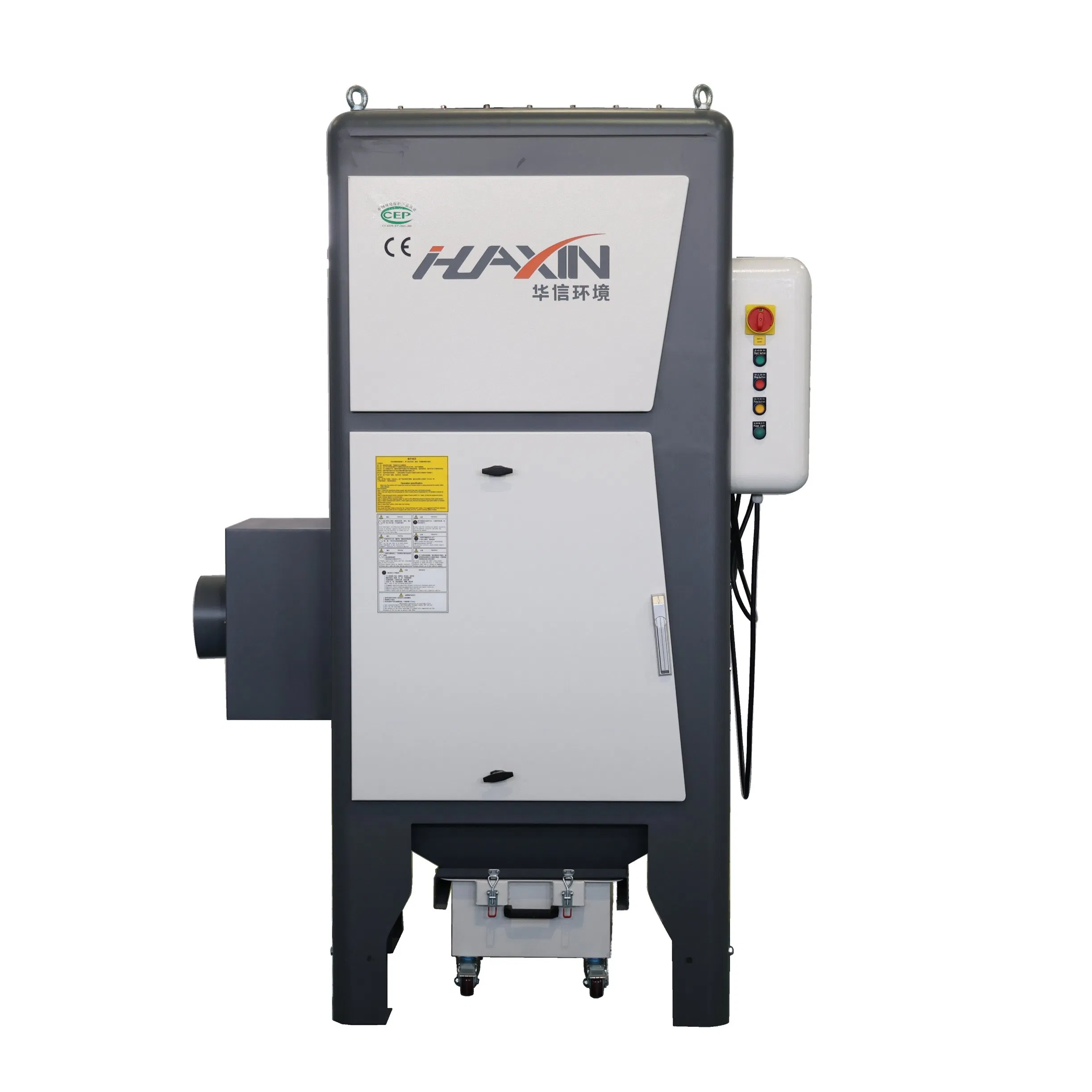

Advanced Industrial Dust Extraction System for Welding and Laser Applications

Still deciding? Get samples of $ !
Order Sample

Product Description

📘

Basic Information

Model NO.:XF06
Operation Type:Automatic
Medium Material:Chemical Synthetic Fiber
Dust Collecting:Dry Method
Type:Filter Cartridge Dust Collector
Power:7.5kw
Voltage:380V/415V/220V
Application:Welding/Soldering/Lasering Position
Filtration Area:78m2
Filtration Accuracy:99.99%
Mini Particle Size:0.3um
Weight:520kgs

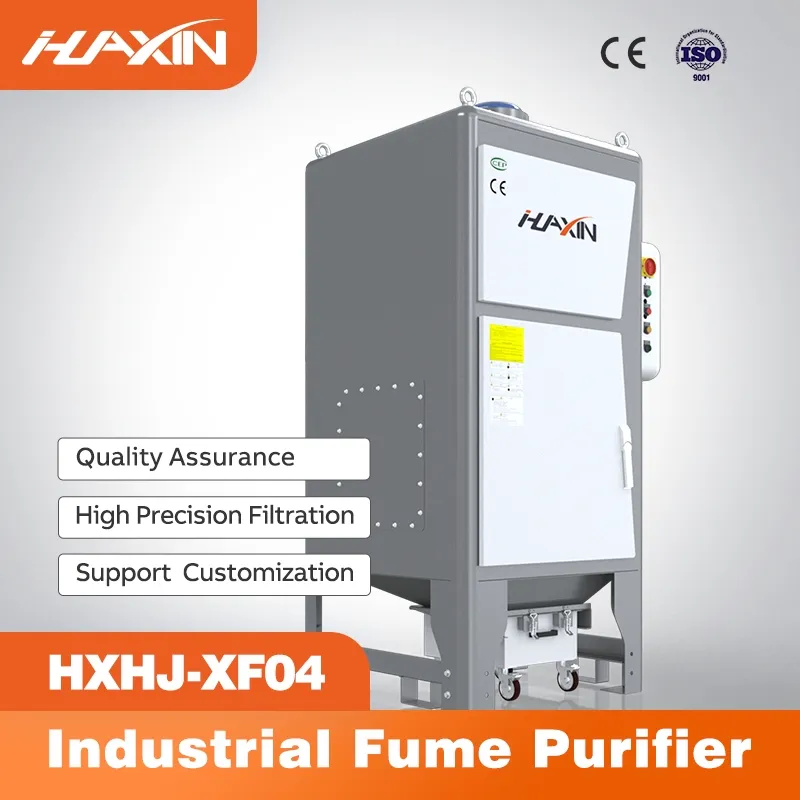

Industrial Dust Extraction

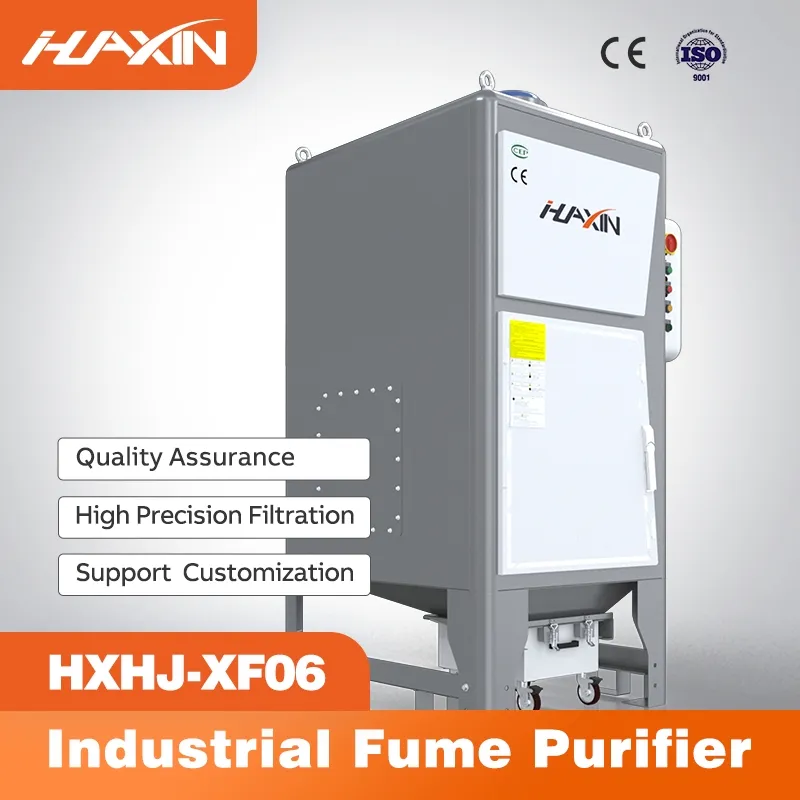

Dust Collector System

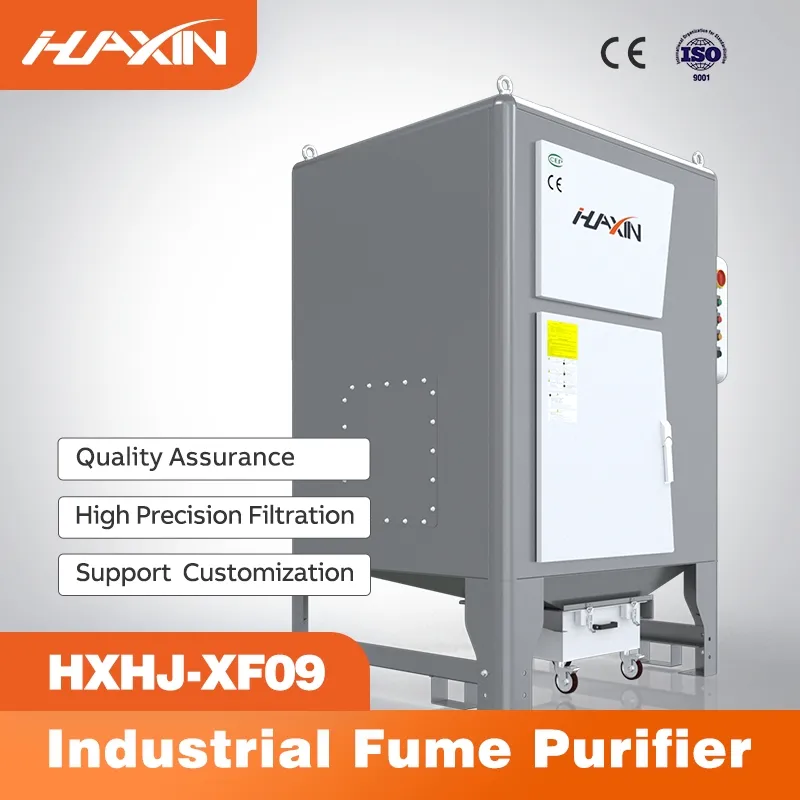

Welding Fume Extraction
⚙️

Product Description

🔹High-Efficiency Filtration

Meticulously crafted with precision, these exceptional dust collectors feature an advanced high-efficiency filtration system. With filtration efficiencies soaring to 99.99% or potentially even higher, the system ensures every breath is purified, free from harmful contaminants produced during the laser-cutting process.

🔹Adaptability to Different Dust Types

Our innovative dust collectors are designed to be resilient and versatile. These systems expertly manage diverse dust characteristics, handling metal fines, fumes, plastics, or composite materials effortlessly.

🔹Powerful Suction Capacity

Engineered with remarkable precision, these collectors offer powerful suction capacity for swift and efficient dust removal, preventing dispersion across your workshop and protecting equipment integrity.

🔹Compact and Space-Saving Design

Ingeniously designed to be compact, these dust collectors fit effortlessly near the laser-cutting machine, conserving valuable floor space while offering seamless integration.

🔹Low Noise Operation

Operates at impressively low noise levels, typically under 80 decibels, allowing workers to focus on their tasks without the disruption of intrusive noise.

Advanced System
📊

Product Parameters

Model Airflow (m³/h) Power (kW) Voltage (V) Filter Area (m²) Precision (%) Noise dB(A) Size (mm)
XF0440005.5kW380V/50Hz5299.99%77±31200*1100*2500
XF0660007.5kW380V/50Hz7899.99%77±31200*1400*2500
XF09900011kW380V/50Hz11799.99%77±31600*1400*2500
XF121200015kW380V/50Hz15699.99%77±31600*1700*2500
XF161600018.5kW380V/50Hz20899.99%77±32000*1700*2700
XF202000022kW380V/50Hz26099.99%77±32100*2200*2800

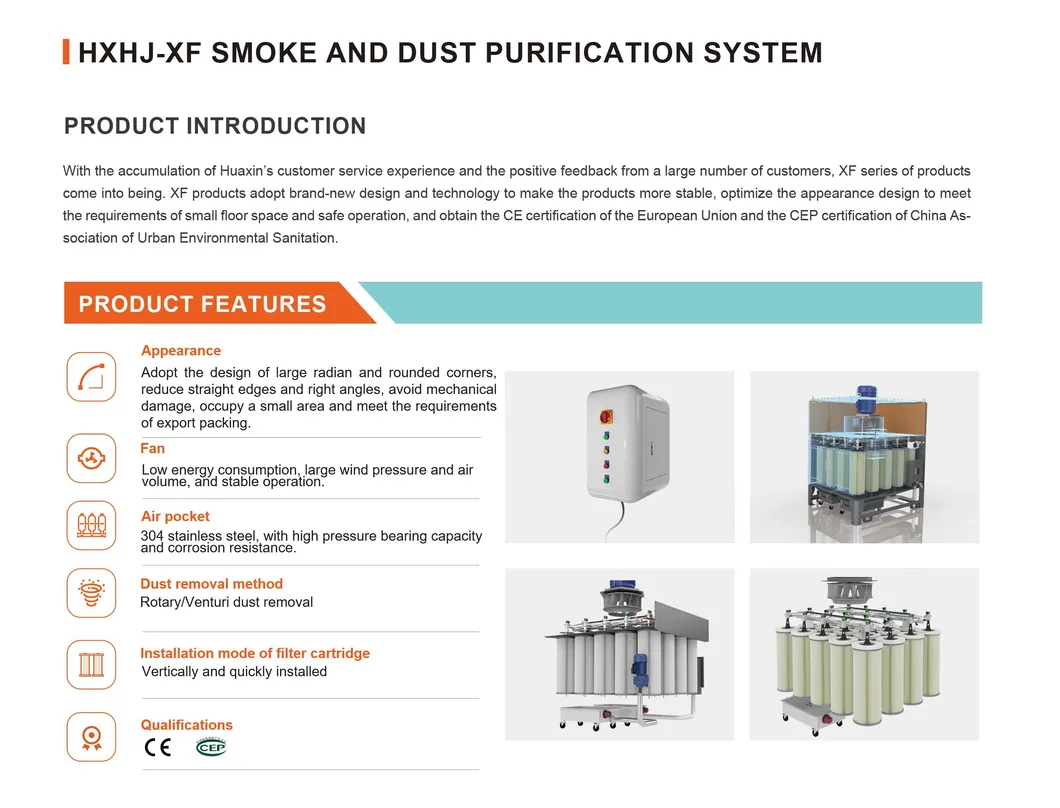

Our Advantages & Details

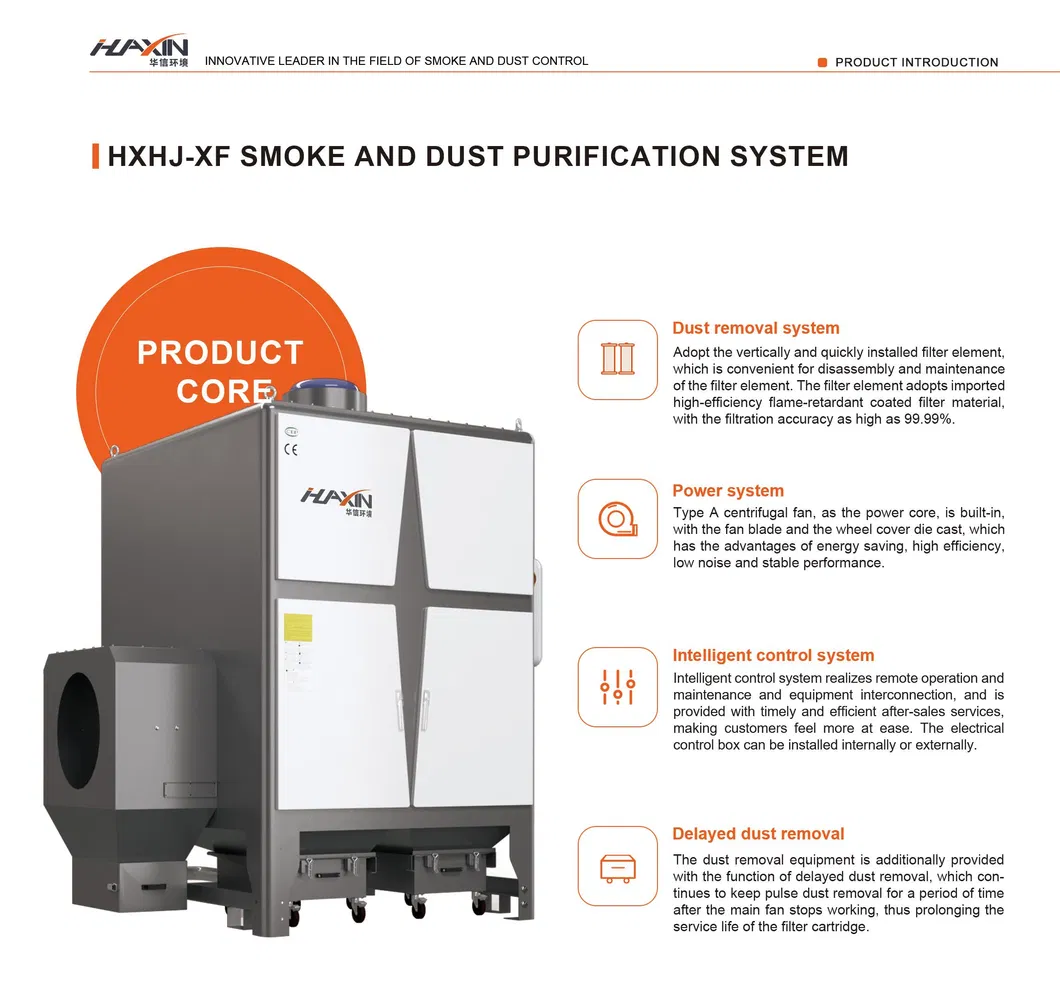

Advantage 1
Advantage 2

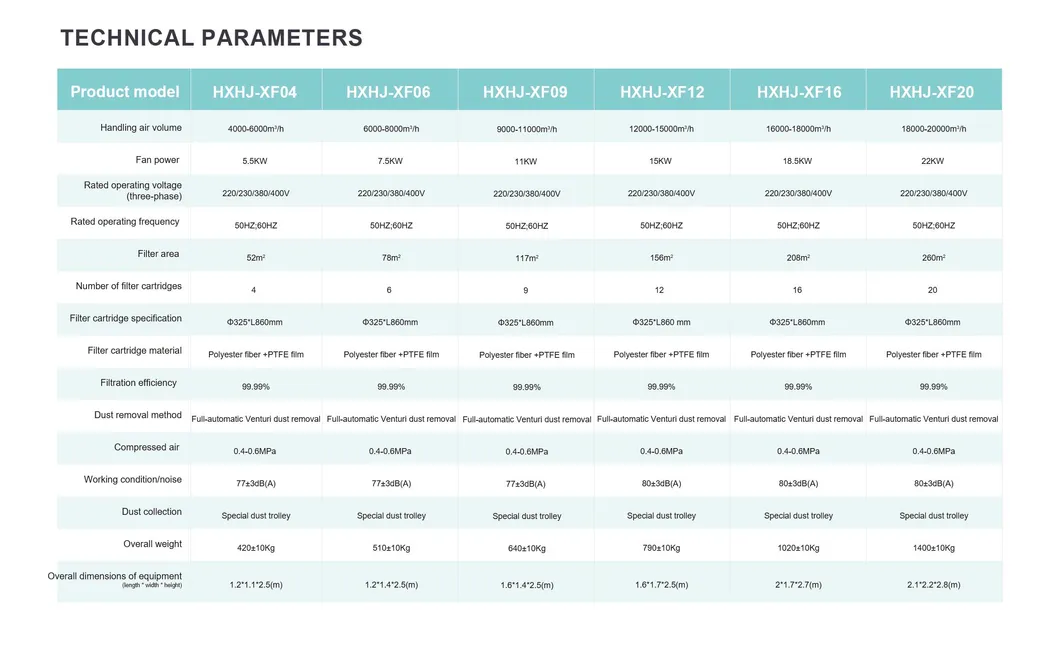

Advantage 3

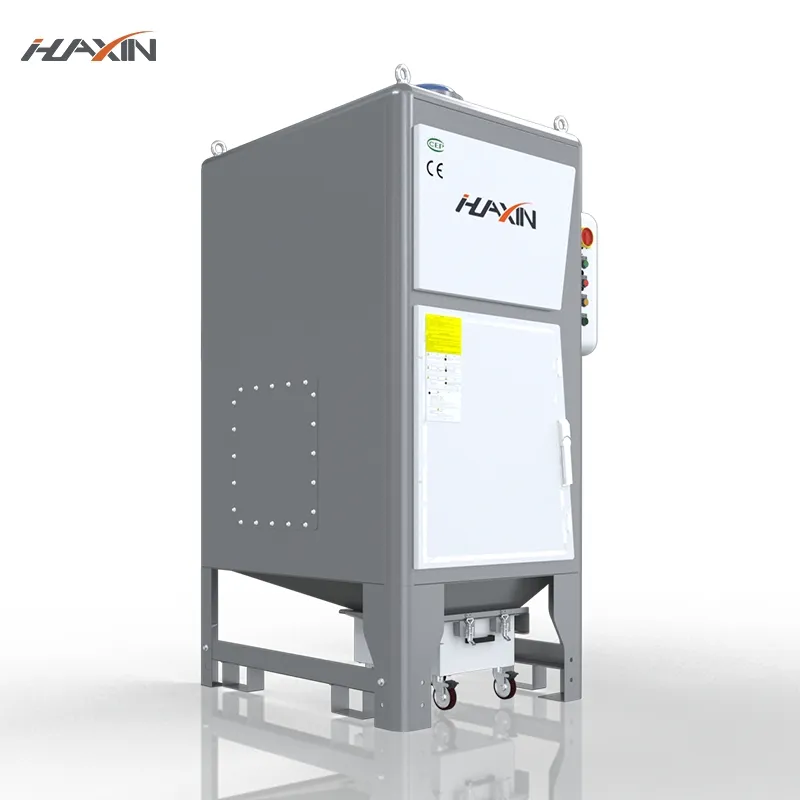

Detail 1

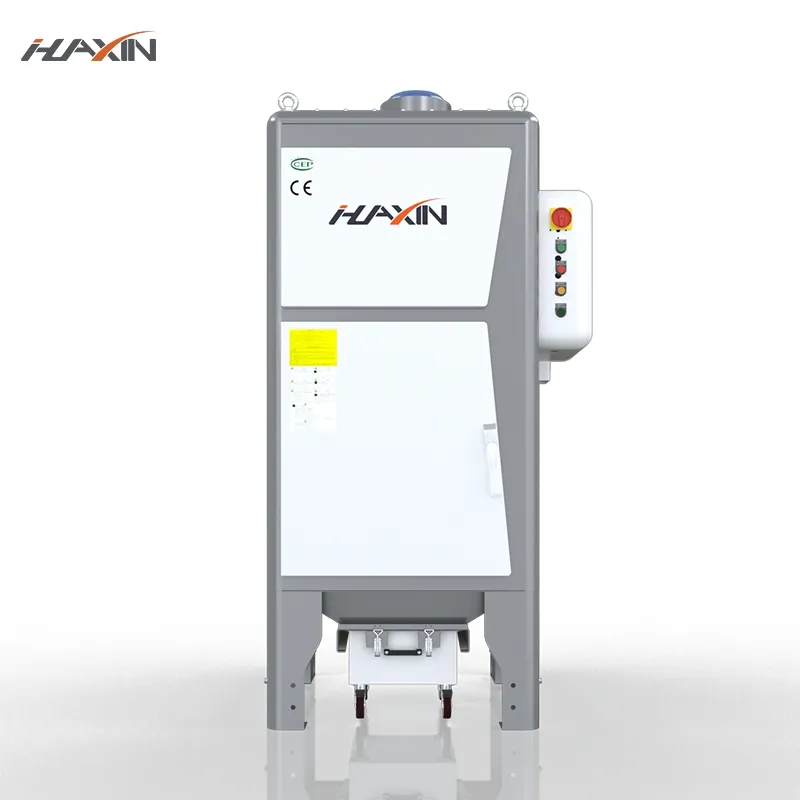

Detail 2

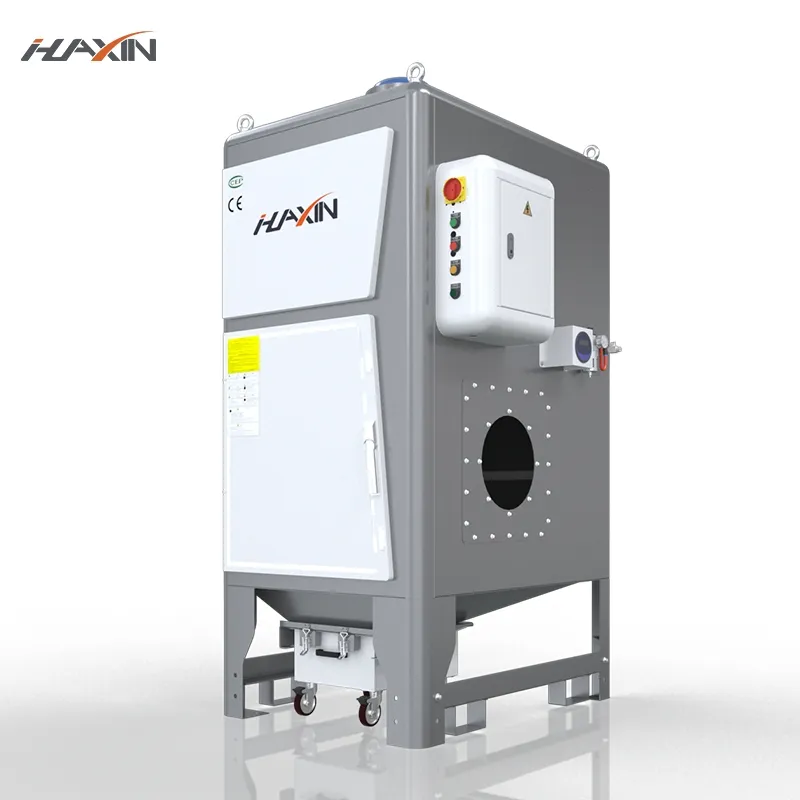

Detail 3
📜

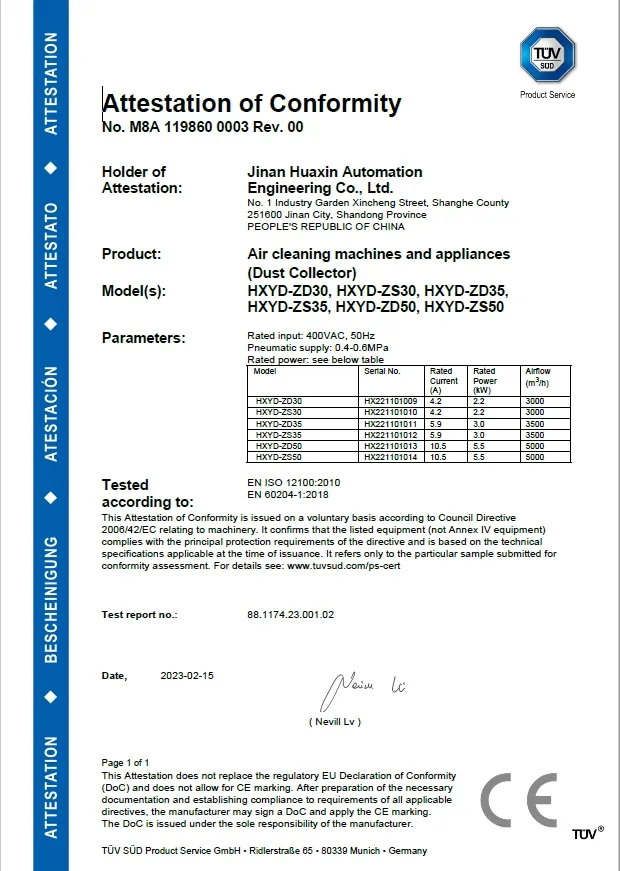

Certifications

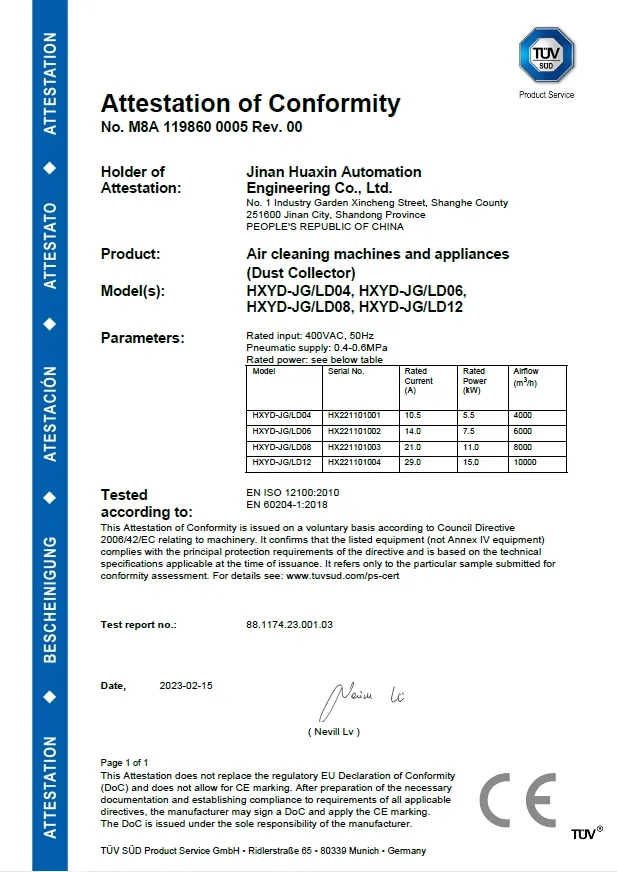

Cert 1

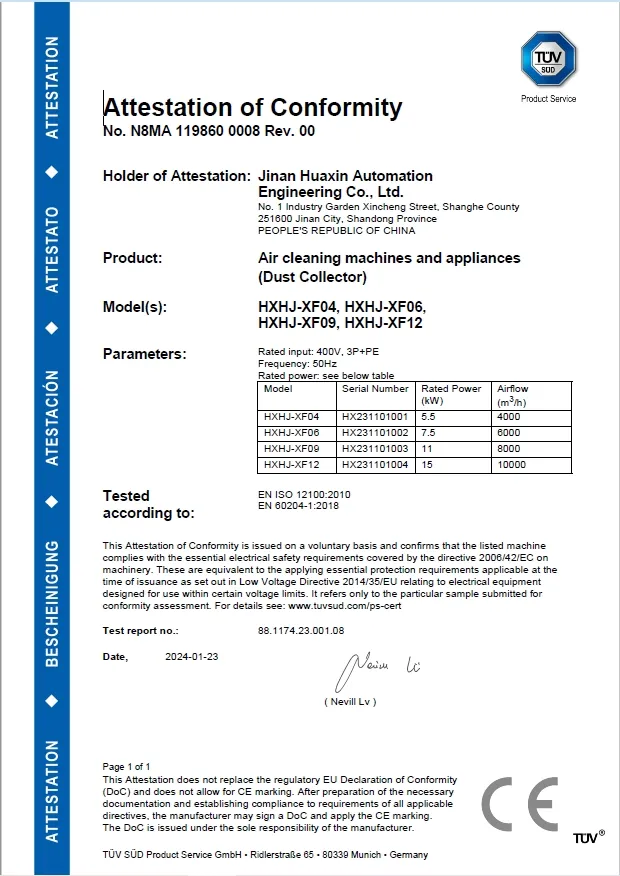

Cert 2
Cert 3
📦

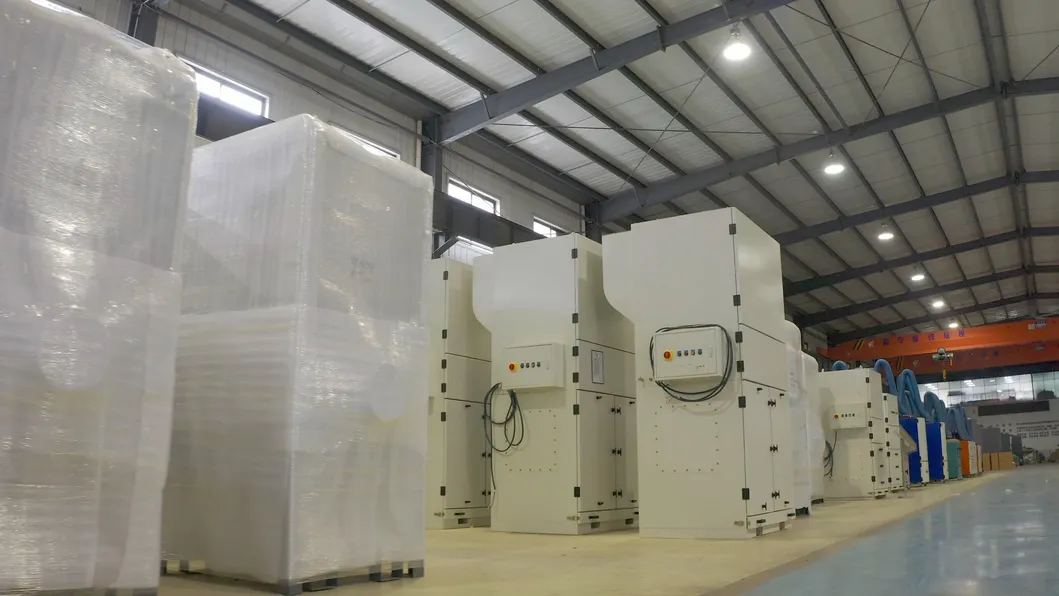

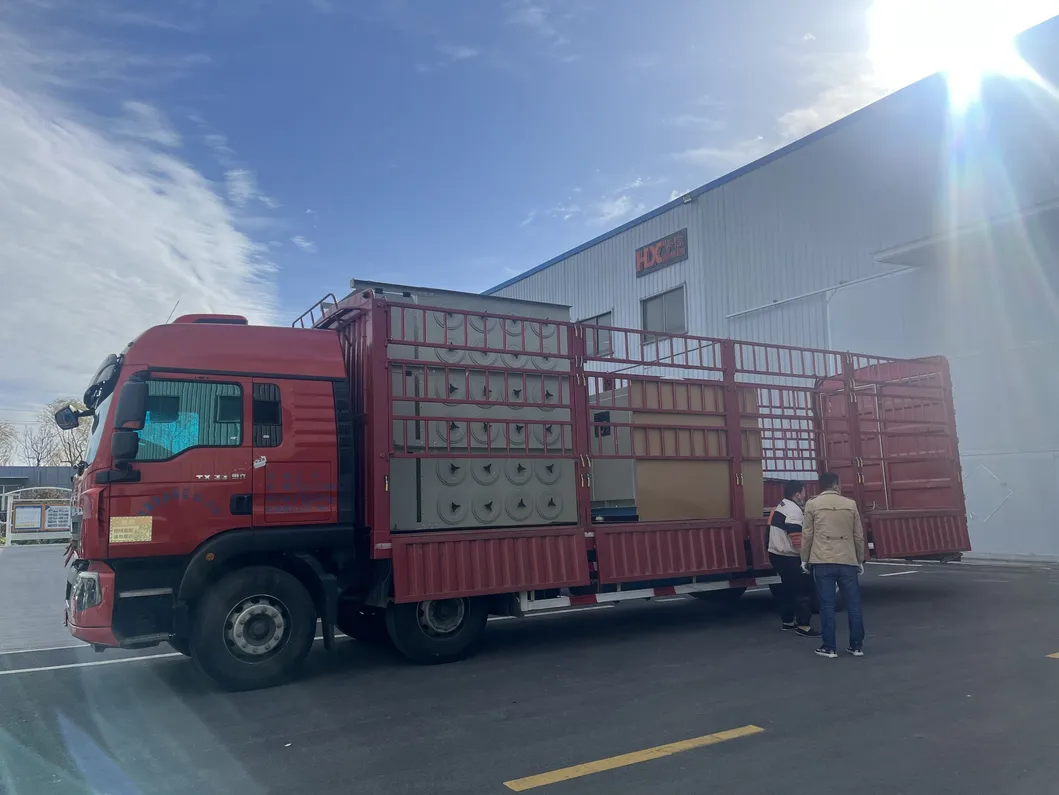

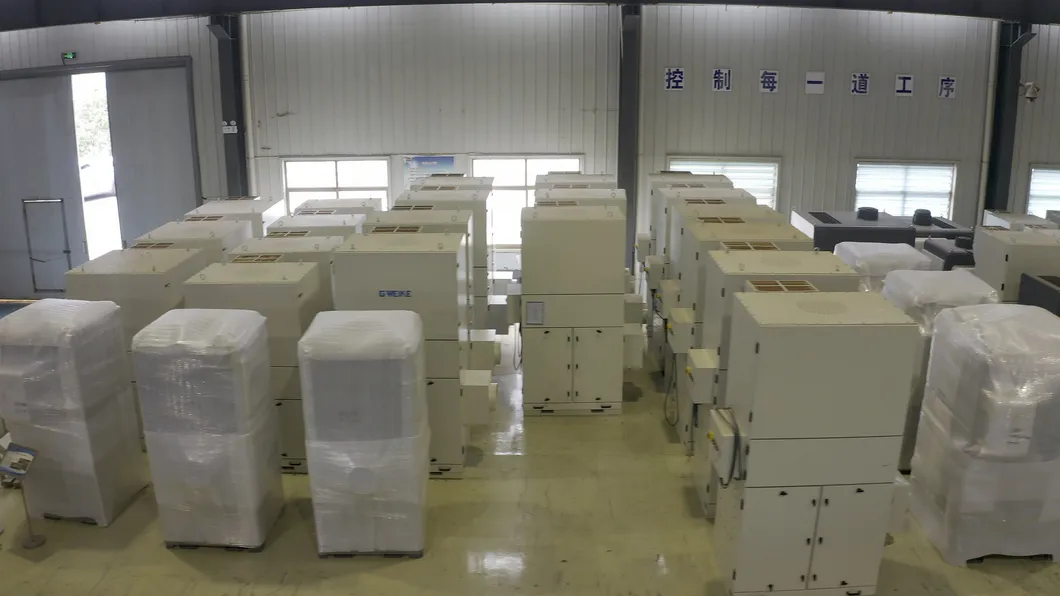

Packaging & Shipping

Shipping 1
Shipping 2
Shipping 3

FAQ

Q1: Is there any noise during operation?
A1: The fans are equipped with sound insulation cotton and will not produce excessive noise, keeping it within a comfortable range.
Q2: Why is plastic spraying recommended for surface treatment?
A2: The plastic spraying process ensures the paint is not easy to fall off, making the equipment more durable and resistant to wear.
Q3: How do I configure the required air volume?
A3: Measure the diameter of your exhaust pipe at the bottom of the cutting platform. Provide us with this data, and we can calculate the exact air volume needed.
Q4: How can I avoid fire accidents from sparks during cutting?
A4: We can install spark catchers (baffle or swirl types). They use a labyrinth structure to extinguish sparks before they reach the filter material.
Q5: Do I need to vent the air through a chimney?
A5: No, high-precision filter material captures 99% of 0.3um dust, allowing the purified air to be discharged directly indoors.
Q6: Is it easy to install and maintain?
A6: Yes, it is designed for easy installation. We also provide a one-year warranty with free maintenance during the warranty period.
