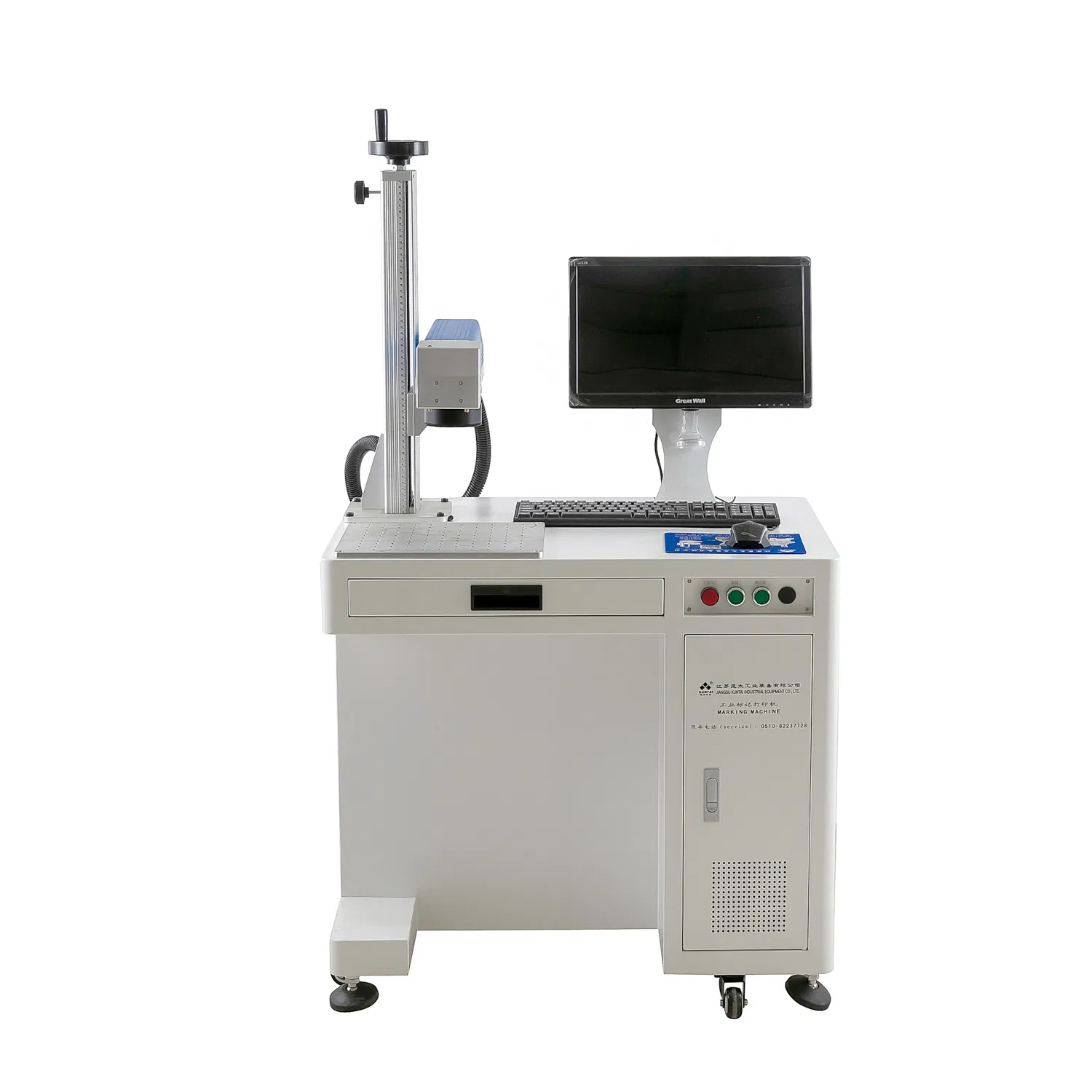

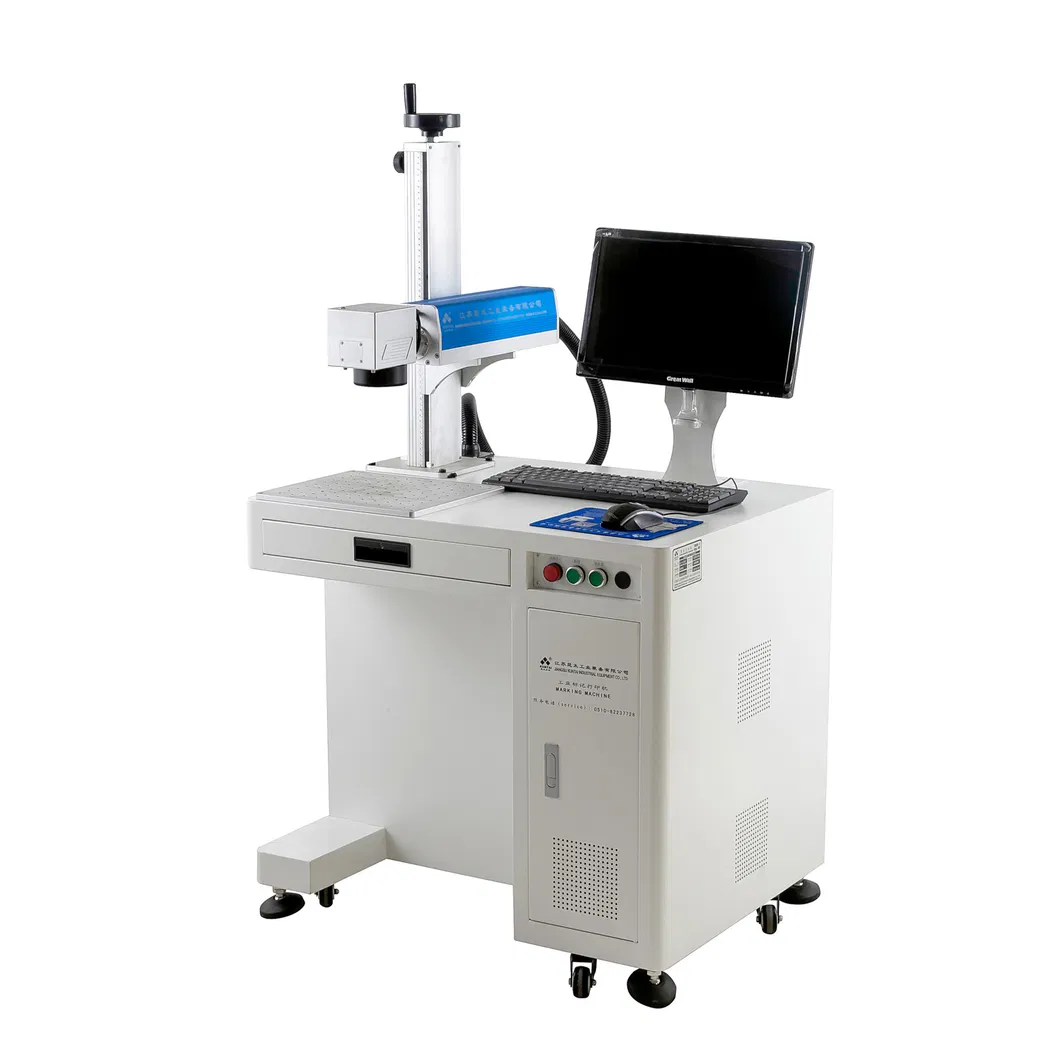

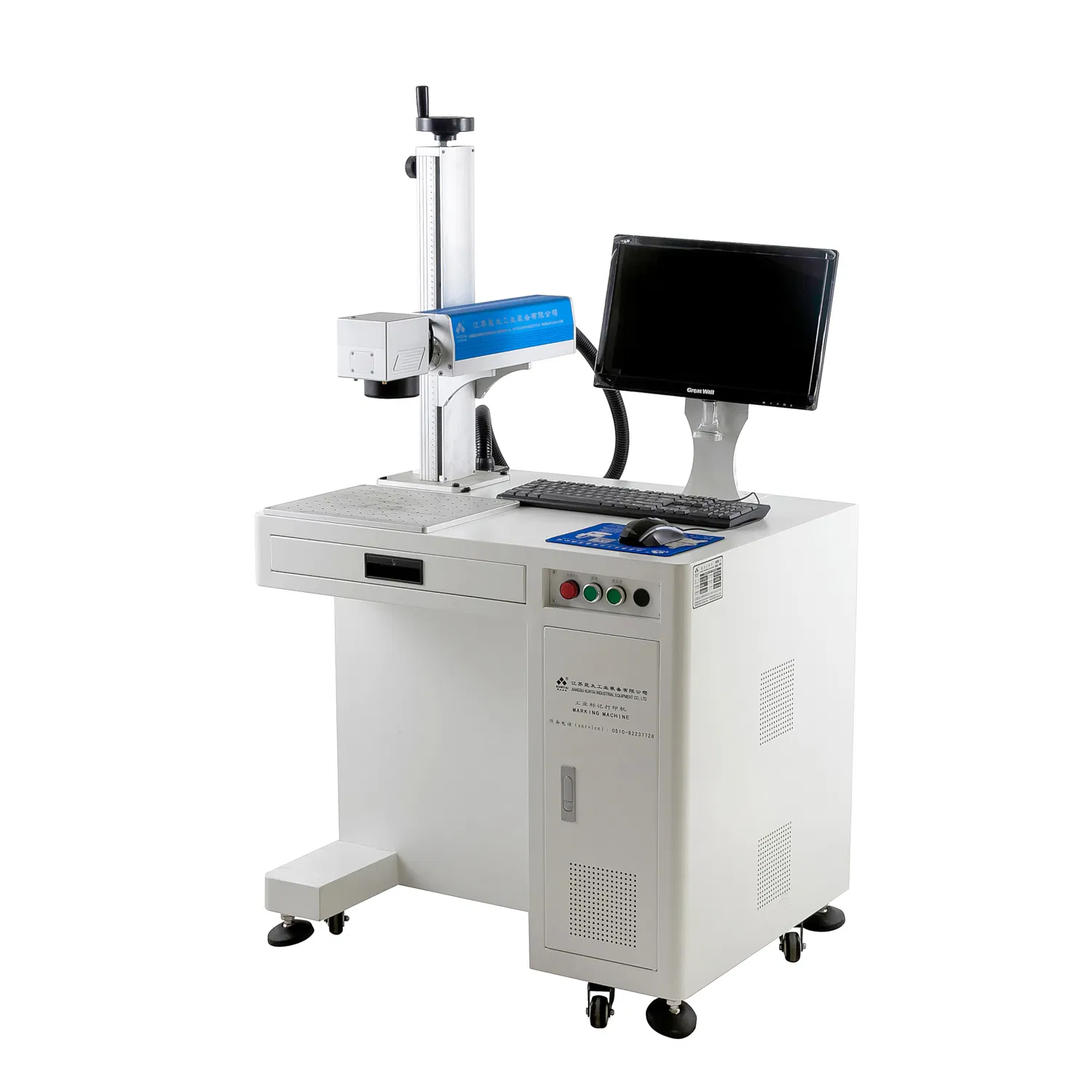

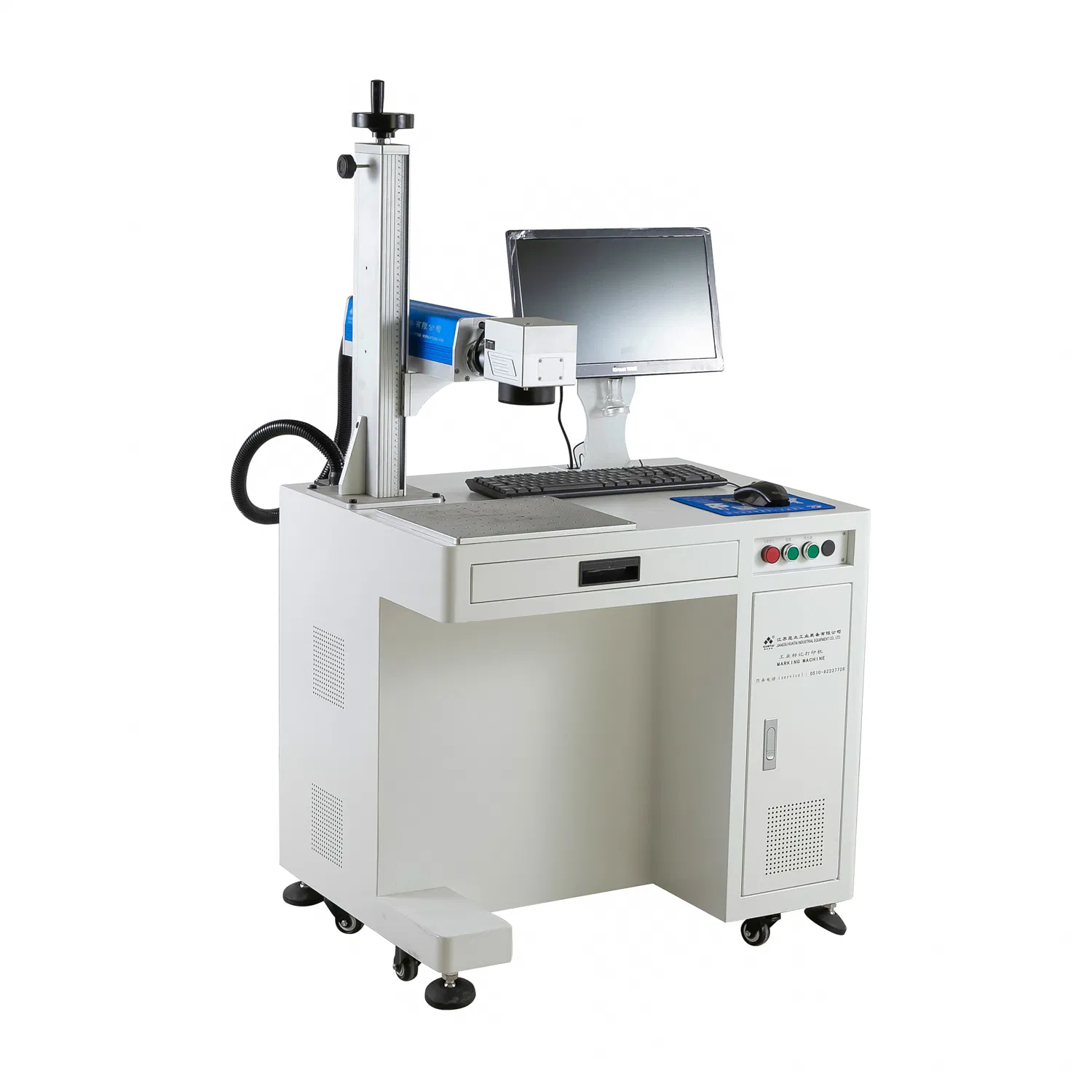

20W Fiber Laser Marking Equipment with Computer

1 / 5

20W Fiber Laser Marking Equipment with Computer

Customization:	Available
After-sales Service:	7X24 Hours Online Service
Warranty:	2 Years for Laser Source,1 Year for Other Parts

Send Inquiry

Product Description

Basic Information

Model NO.

KT-LF

Laser Visibility

Visible

Applicable Material

Metal

Cooling System

Air Cooling

Technical Class

Pulse Laser

Laser Type

Fiber Laser

Laser Classification

Solid Laser

Marking Method

Scanning Marking

Power

Small Power (20W-300W Option)

Control

CNC

Certification

CE, ISO

Condition

New

Marking Area

100X100mm (Optional sizes available)

HS Code

8456110090

Product Description

Fiber laser marking engraving equipment for metals: 20W 30W 50W 60W 100W 200W 300W.

The KT-series high quality laser marking machine is a new generation system utilizing the latest laser technique. It features a fiber laser source and a high-speed vibration-mirror scan system. With high electric-light conversion efficiency, it is ideal for applications requiring depth, smoothness, and precision, such as horologe and communication product marking.

Technical Specifications

Item no	KT-LF
Laser output	20W (Option: 30W-300W)
Max marking speed	800 characters/s (character height 1mm)
Laser wavelength	1064nm
Laptop provided	Yes
Standard marking area	100mm × 100mm
Optional marking area	70mm×70mm / 150mm×150mm / 300x300mm
Marking depth	0.01-0.2mm (material dependent)
Repeatability precision	±0.001mm
Power supply	AC 90-250V/50Hz 10A
Cooling system	Air cooling

Key Advantages

✓USB interface connection: compatible with laptops.

✓Small and compact: very convenient for transport.

✓High Precision: delivers fantastic and professional marking effects.

✓Superior Laser Beam: 1 micron definition (10x traditional systems).

✓No Consumables: Lifespan of more than 10 years without extra parts.

✓Fast Speed: 800 standard characters per second.

✓Simplified Path: Direct fiber beam output, no optical adjustment needed.

✓User Friendly: Motorized Up/Down focus with precise scale plate.

Packaging and Service

Logistics: Plywood case packing (90x70x116cm), Gross Weight 120kg. Shipping via sea, air, or international express door-to-door.

Service Commitment:

Software assistance included with the marking machine.
Free fixture design and technical support.
Production according to custom requests.
One year free warranty for the whole machine and parts.

Frequently Asked Questions

Q1: What materials can this fiber laser marking machine work on?

A: It is primarily used for all types of metals and some non-metal materials requiring high precision and depth.

Q2: Does the machine require expensive maintenance or consumables?

A: No, the fiber laser source is maintenance-free and requires no consumables. It can work for over 10 years under normal conditions.

Q3: How fast is the marking process?

A: The machine can reach speeds of up to 800 standard characters per second, which is 3 to 5 times faster than traditional marking systems.

Q4: What is included in the package?

A: The standard package includes the KT-LF fiber laser marking machine, a provided laptop, control software, and necessary accessories packed in a plywood case.

Q5: Is it difficult to operate for beginners?

A: The machine is user-friendly with a USB interface and motorized focus. We also provide software support and technical guidance to ensure ease of use.

Q6: What kind of precision can I expect?

A: The machine offers high precision with a definition of 1 micron and a repeatability precision of ±0.001mm.
