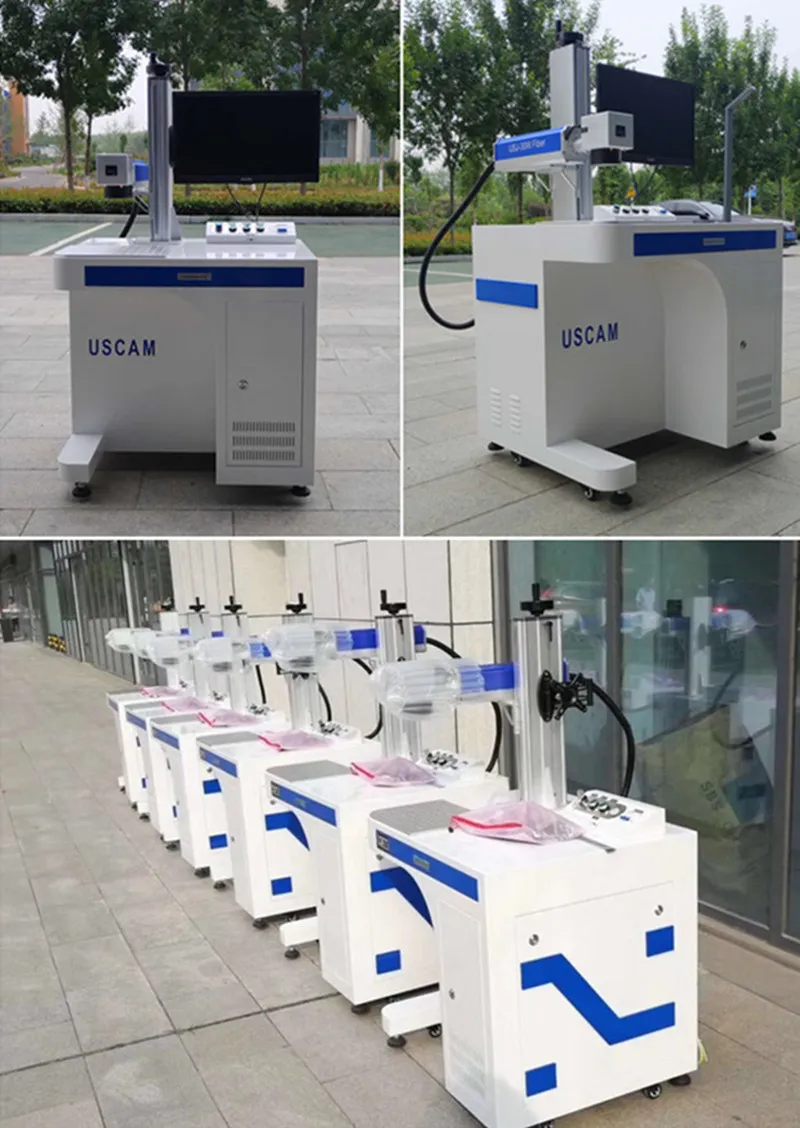

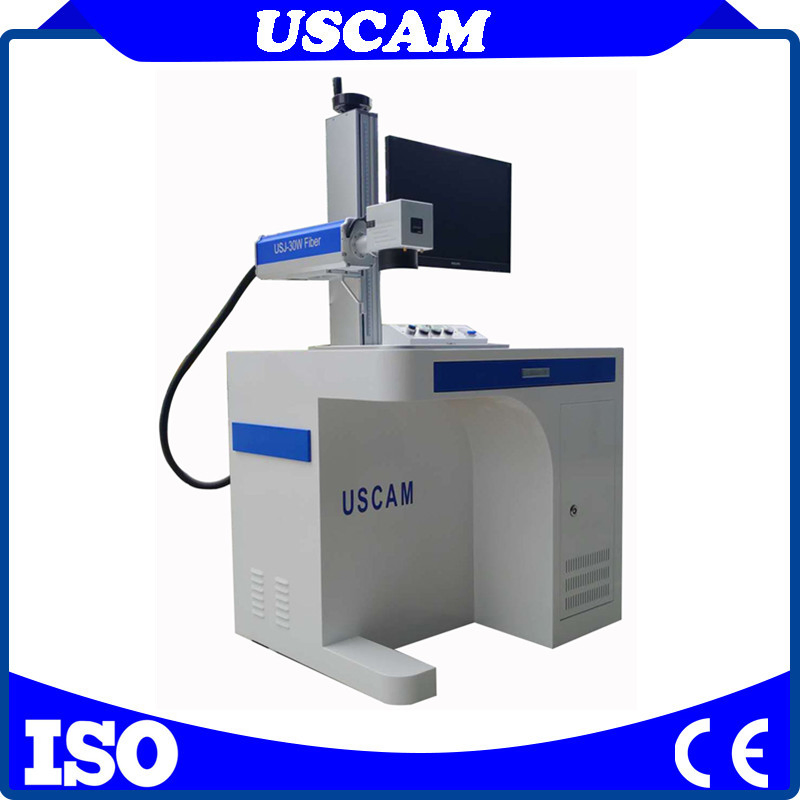

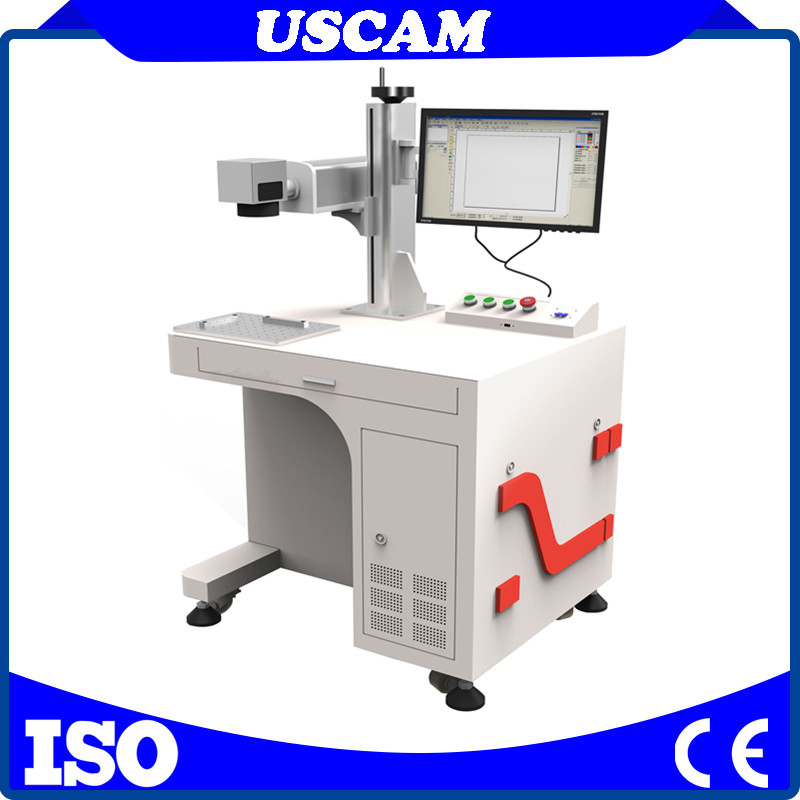

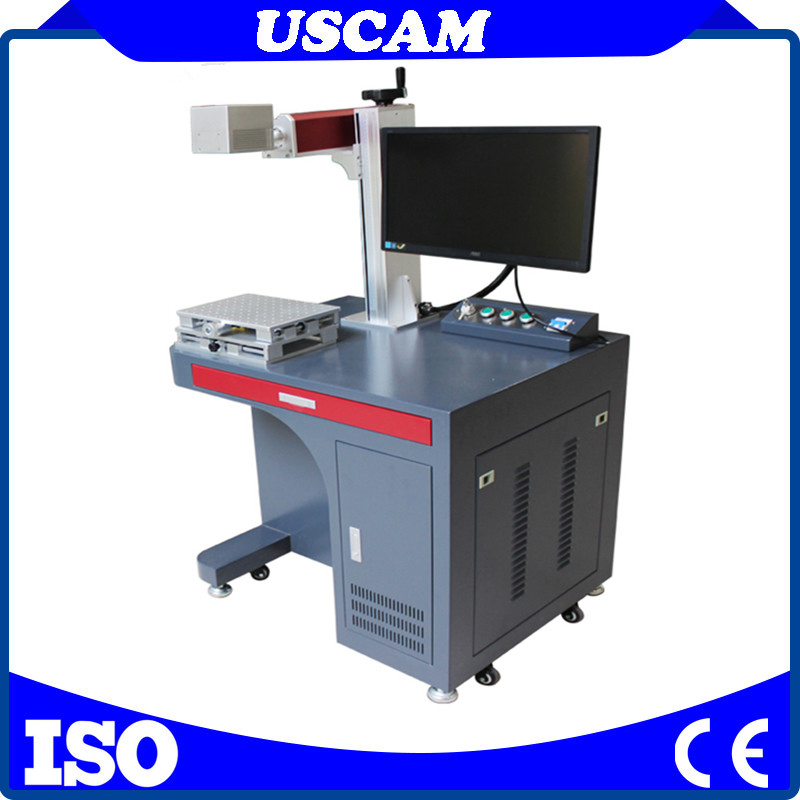

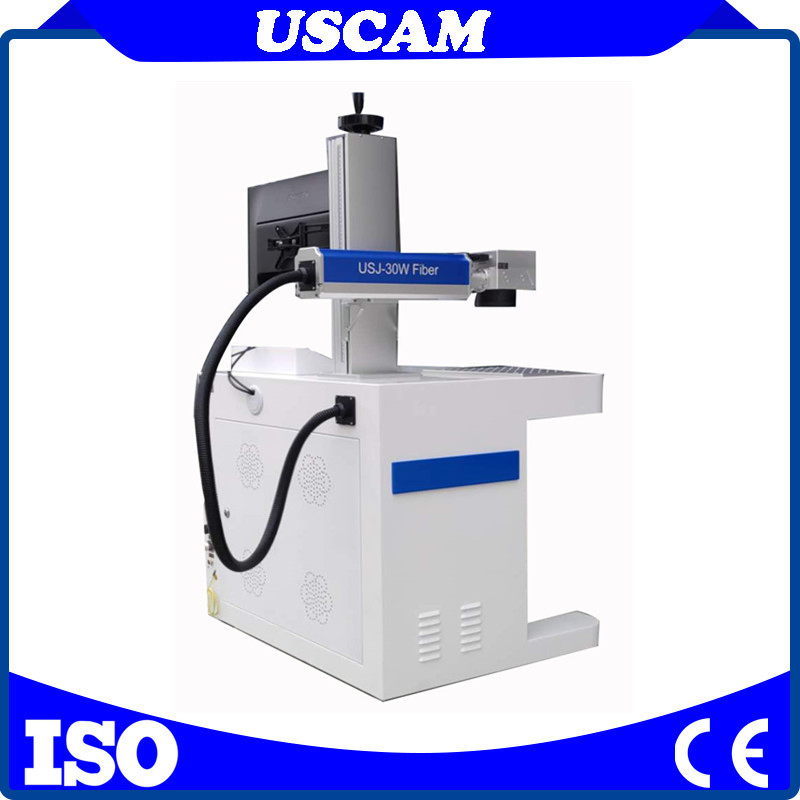

Mini Copper Metal Fiber Laser Marking Equipment

Customization:	Available
Laser Visibility:	Visible
Applicable Material:	Metal and Non-Metal

⚙️ Basic Information

Cooling System

Air Cooling

Technical Class

Pulse Laser

Laser Wavelength

Fiber Laser (1064nm)

Type

Optical Fiber Laser Marking Machine

Marking Method

Mask Pattern Marking

Laser Power

20W (Optional: 10W/30W/50W/100W)

Marking Area

110X110mm / 200X200mm

Laser Life

100,000 Hours

Production Capacity

3000 Units/Year

HS Code

8456110090

Mini Copper Metal Fiber Laser Marking Equipment

Fiber laser marking machines provide non-contact permanent marking on a wide variety of materials. It is ideal for both metal (stainless steel, aluminum, brass, copper, silver, gold) and non-metal surfaces (ABS, acrylic, Nylon, PVC, marble, ceramic, etc.). It supports text, numbers, logos, barcodes, QR codes, and images with high efficiency and exquisite precision.

📊 Technical Parameters

No.	Feature	Specification
1	Laser Power	10W/20W/30W/50W/60W/100W
2	Working Area	100100 to 400400mm (Optional)
3	Cooling System	Air Cooling
4	Control Software	EZCAD Professional Software
5	Operation System	Windows 7/8/10
6	Graphic Formats	BMP, JPG, AI, DXF, PLT, etc.
7	Response Time	0.5ms
8	Frequency of Pulse	20-100KHz
9	Marking Speed	≤7000mm/s
10	Repeatability Accuracy	±0.002mm

🛠️ Material Compatibility

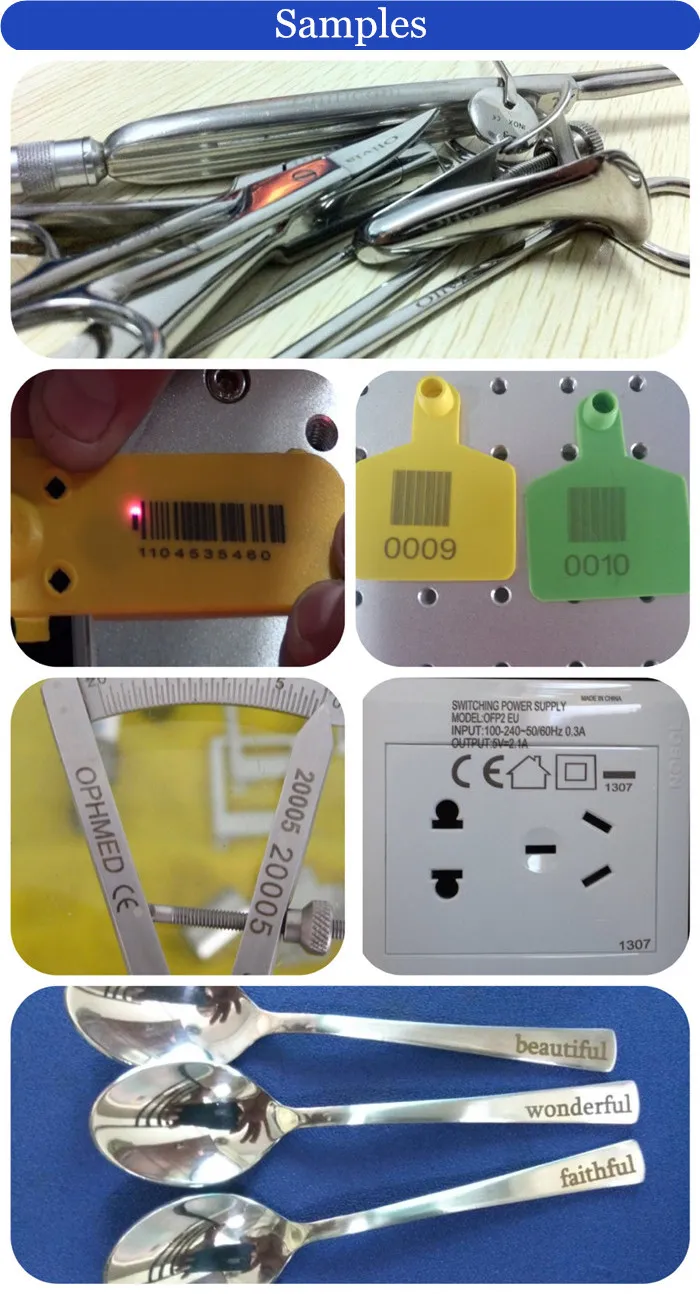

This equipment is widely utilized in integrated circuits, computer accessories, industrial bearings, jewelry, hardware tools, and food packaging. Below is a comparison of compatible materials:

Material	Fiber Laser	Material	Fiber Laser
Aluminum	√	Stainless Steel	√
ABS / Plastic	√	Brass / Copper	√
Carbon Fiber	√	Nylon	√
Mild Steel	√	Titanium	√
Coated Metals	√	Ceramic	√

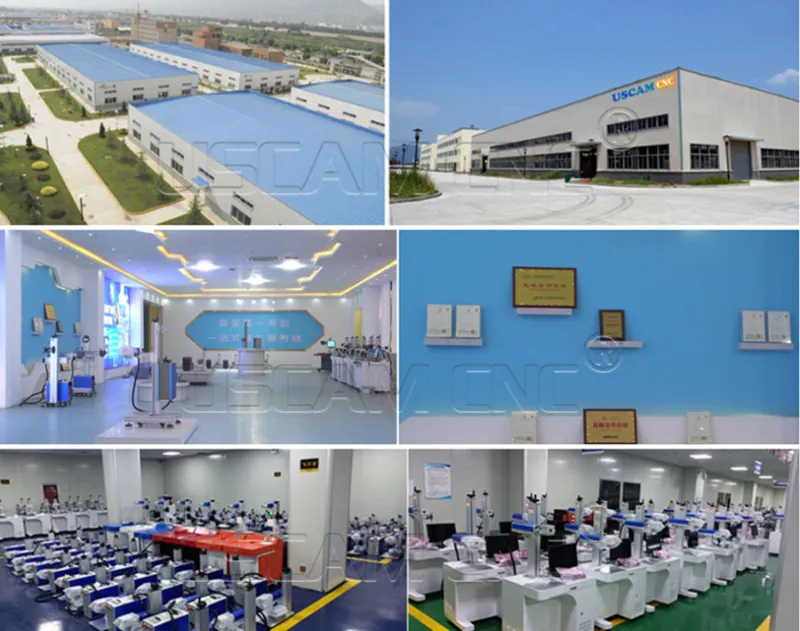

🏢 Professional Manufacturing

Specializing in fiber laser cutting, marking, cleaning, and welding machines since 2003, our facilities utilize top-tier components imported from Italy, Japan, Germany, and the United States. All equipment adheres to strict international standards including CE and FDA certification. With strong high-tech research and development capabilities, our products are highly recognized for quality and performance in both domestic and international markets.

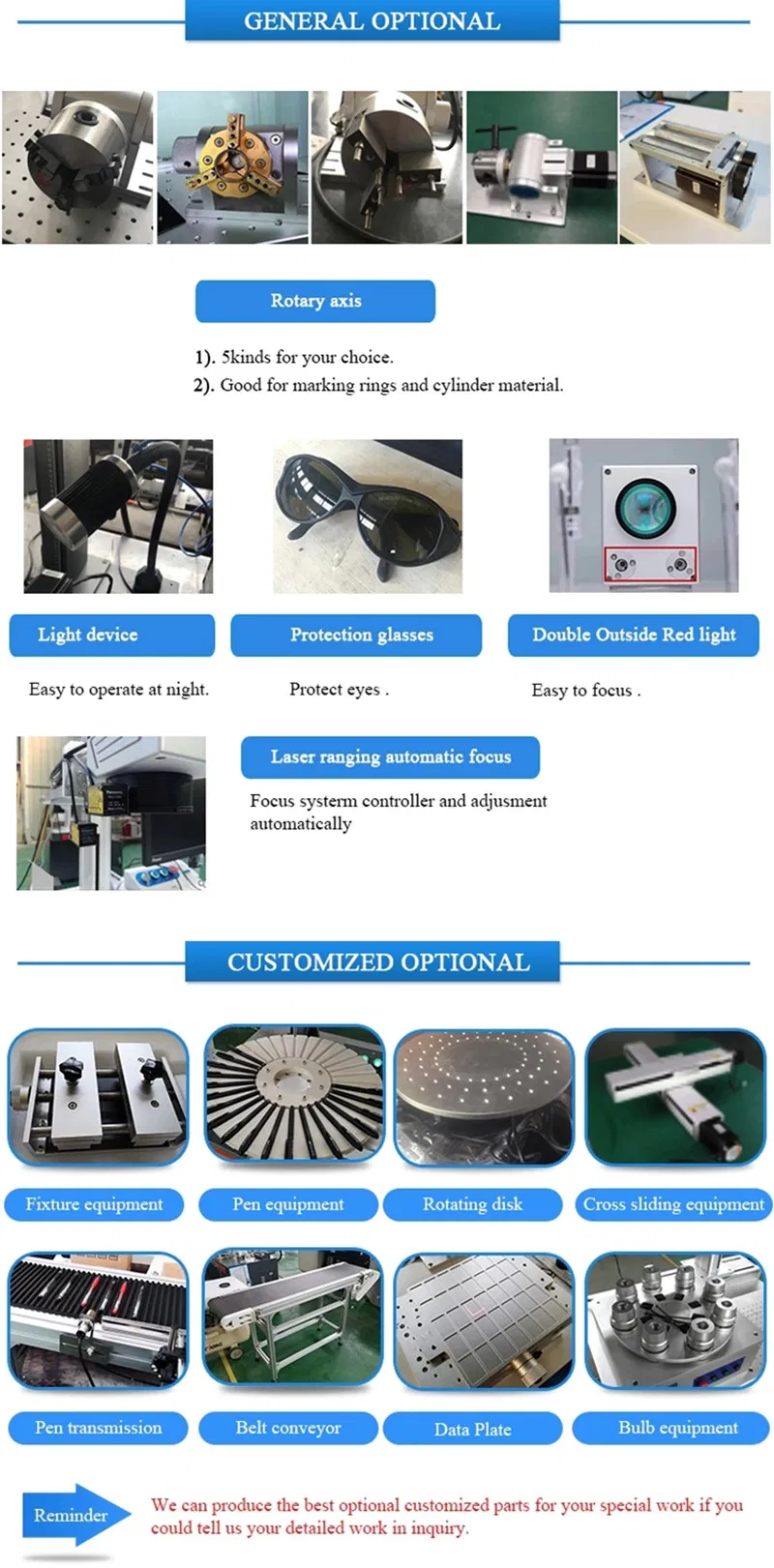

💡 Optional Accessories

❓ Frequently Asked Questions

Q1: How do I choose the right marking size?

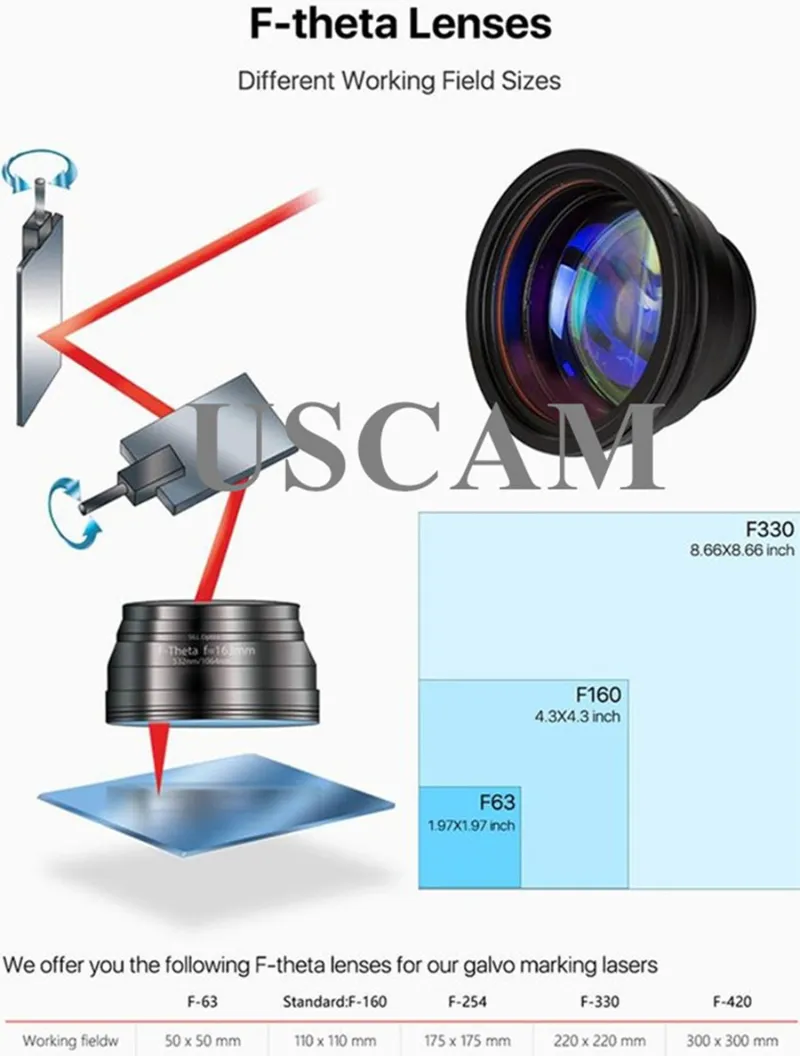

The marking size depends on the field lens. Common options include 110x110mm, 150x150mm, 200x200mm, and up to 400x400mm. Larger areas may require higher laser power for consistent results.

Q2: What is the expected lifespan of the fiber laser source?

The fiber laser source is highly durable and generally has a service life of up to 100,000 hours, making it a very cost-effective solution for long-term production.

Q3: Can this machine mark on plastic materials?

Yes, it can mark various non-metal materials like ABS, PVC, and Nylon. It produces high-contrast markings that are permanent and resistant to wear.

Q4: Does the machine require complex maintenance?

No, the fiber laser marking machine is virtually maintenance-free. It uses air cooling, so there are no water filters to change, and the solid-state laser requires no alignment or gas refills.

Q5: What graphic formats does the control software support?

The EZCAD software supports a wide range of formats including BMP, JPG, GIF, PNG, AI, DXF, PLT, and more, allowing you to import designs from most graphic software.

Q6: Is it possible to mark cylindrical or round objects?

Yes, by adding an optional rotary axis, the machine can easily mark logos or text around the circumference of rings, tubes, and other cylindrical parts.
