50W Low Power Consumption Desktop Fiber Laser Marking Equipment for Alloy Steel

1 / 5

50W Low Power Consumption Desktop Fiber Laser Marking Equipment for Alloy Steel

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

OM-F50A

Applicable Material

Metal & Partial Nonmetal

Cooling System

Air Cooling

Laser Source

Fiber Laser (Raycus/Max/JPT)

Power Output

50W

Marking Range

110*110mm (Optional up to 300mm)

Software

JCZ Ezcad Software

Graphics Support

AI, PLT, DXF, BMP, PNG

Product Overview

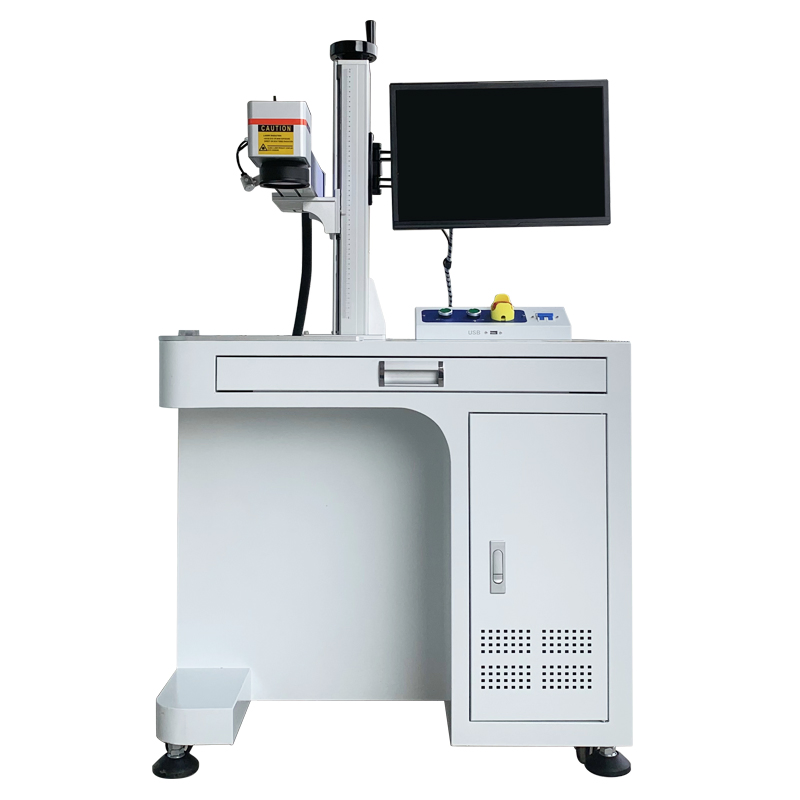

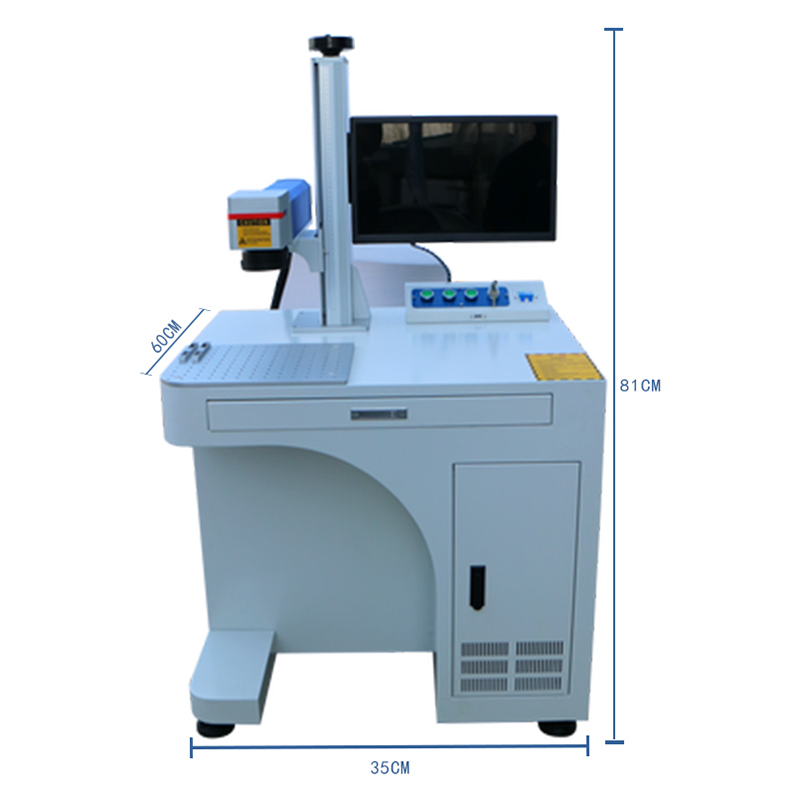

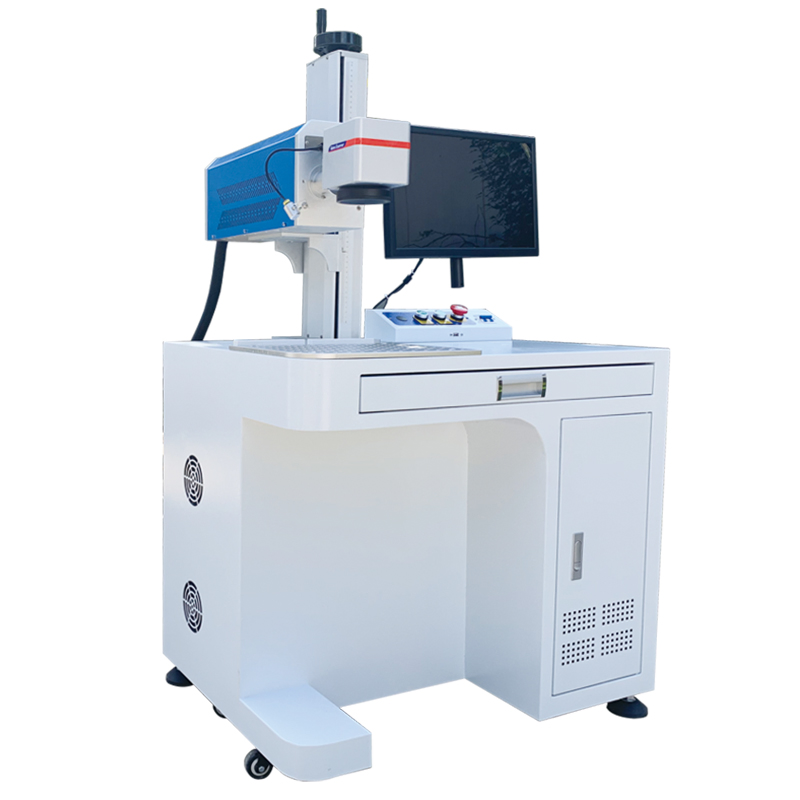

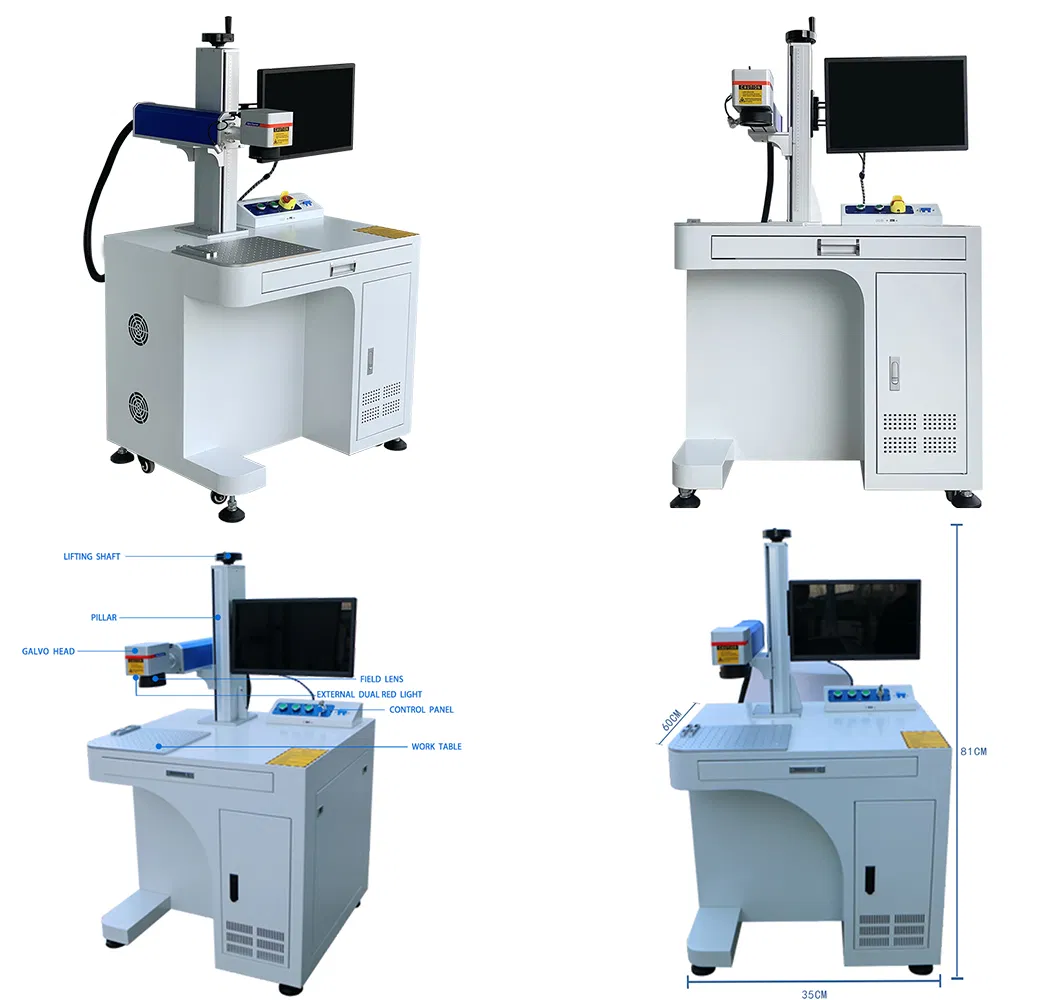

50W Low Power Consumption Desktop Fiber Laser Marking Equipment

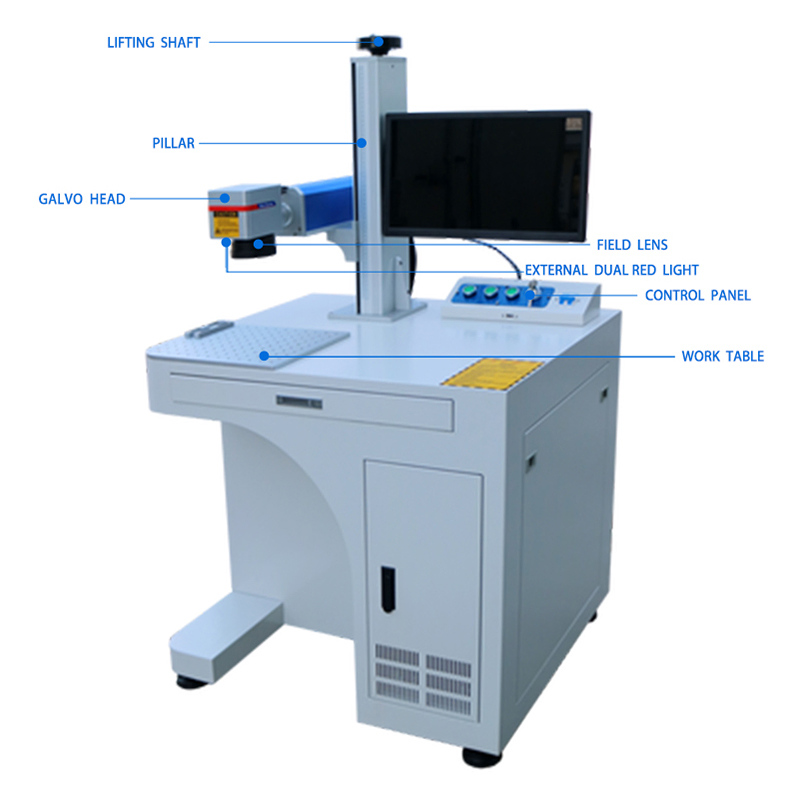

Technical Highlights

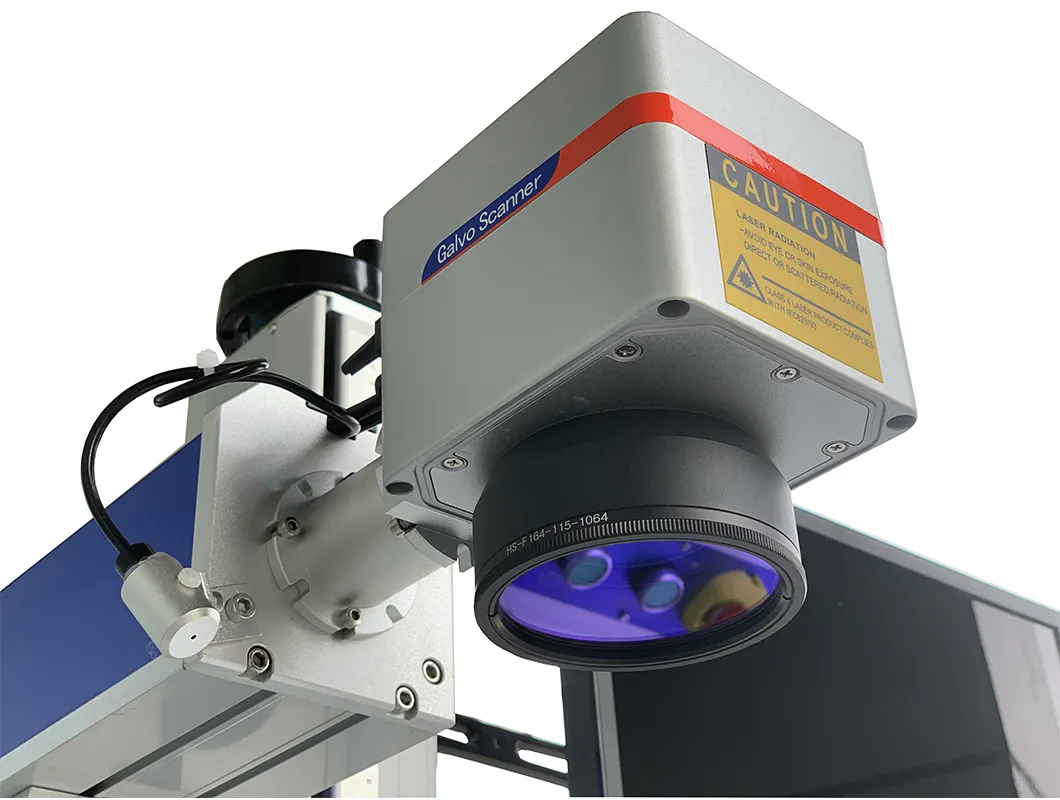

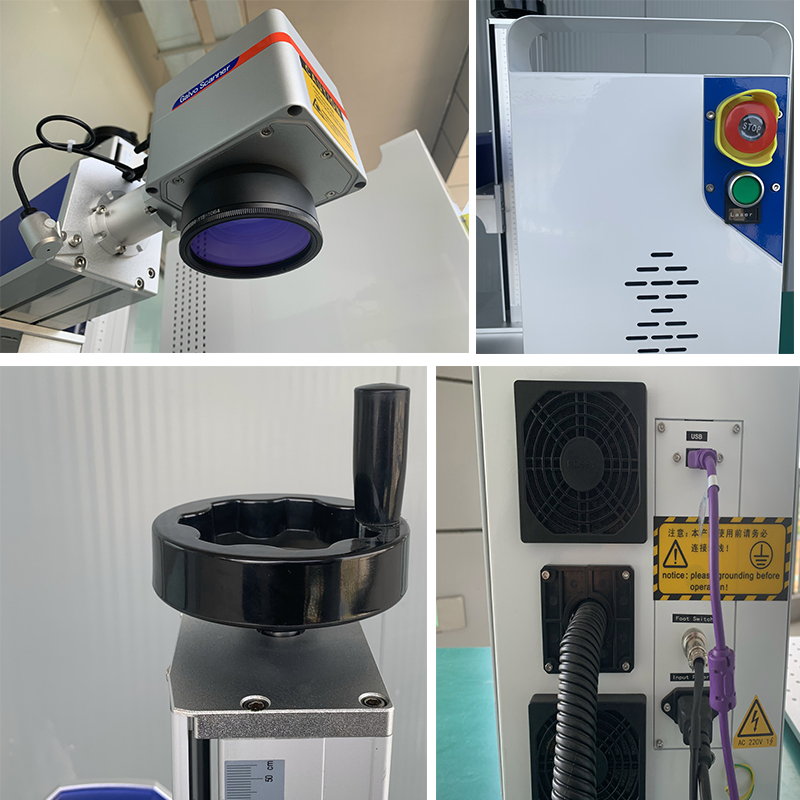

High Precision Galvo Head
Digital signal, high speed and accuracy.

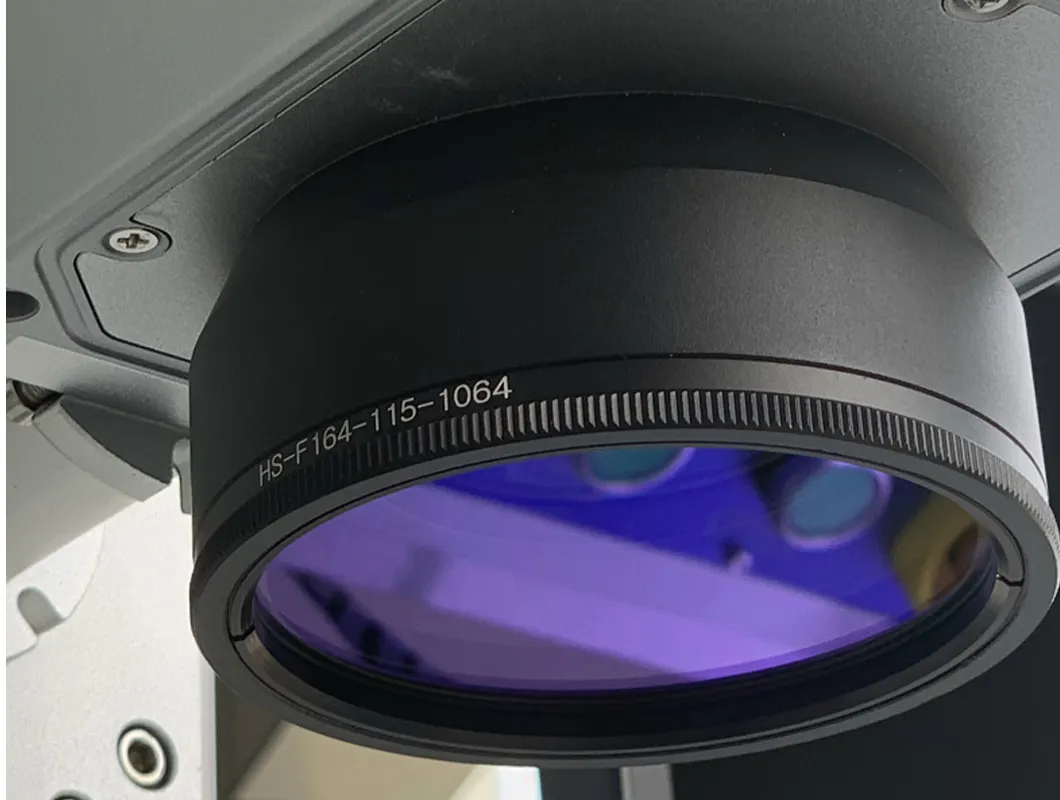

Superior F-theta Lens
High light transmission, multiple marking fields available.

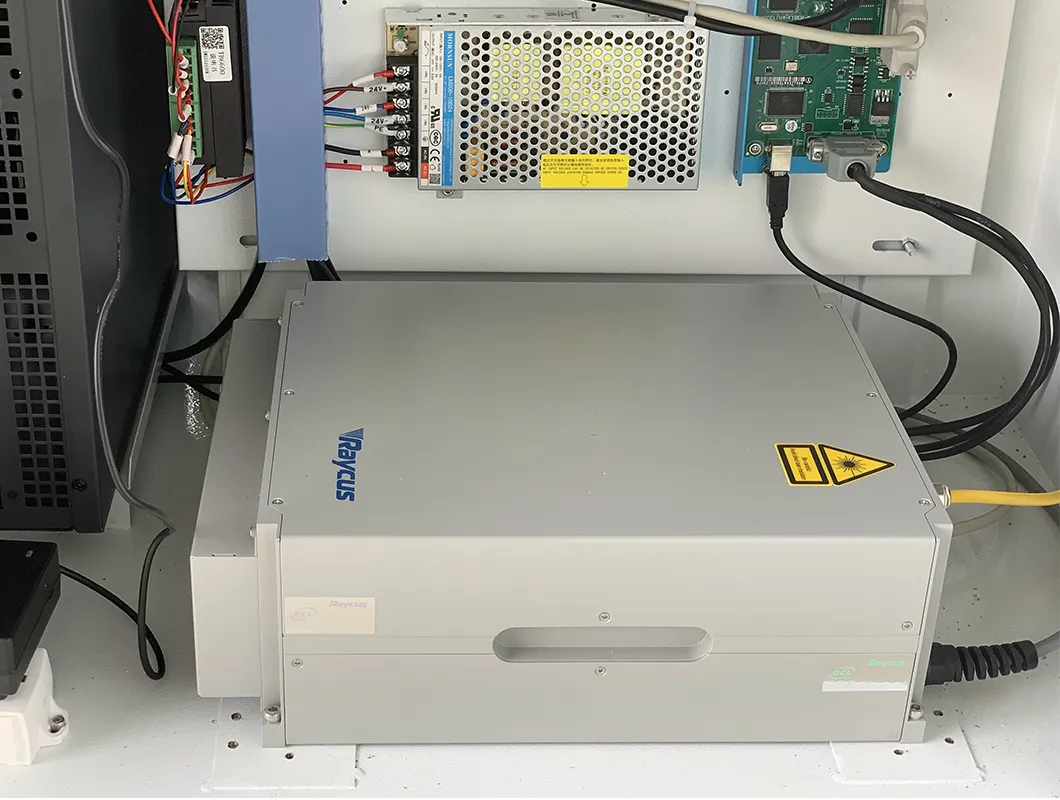

Reliable Laser Source
100,000 hours service life (Raycus/MAX/JPT).

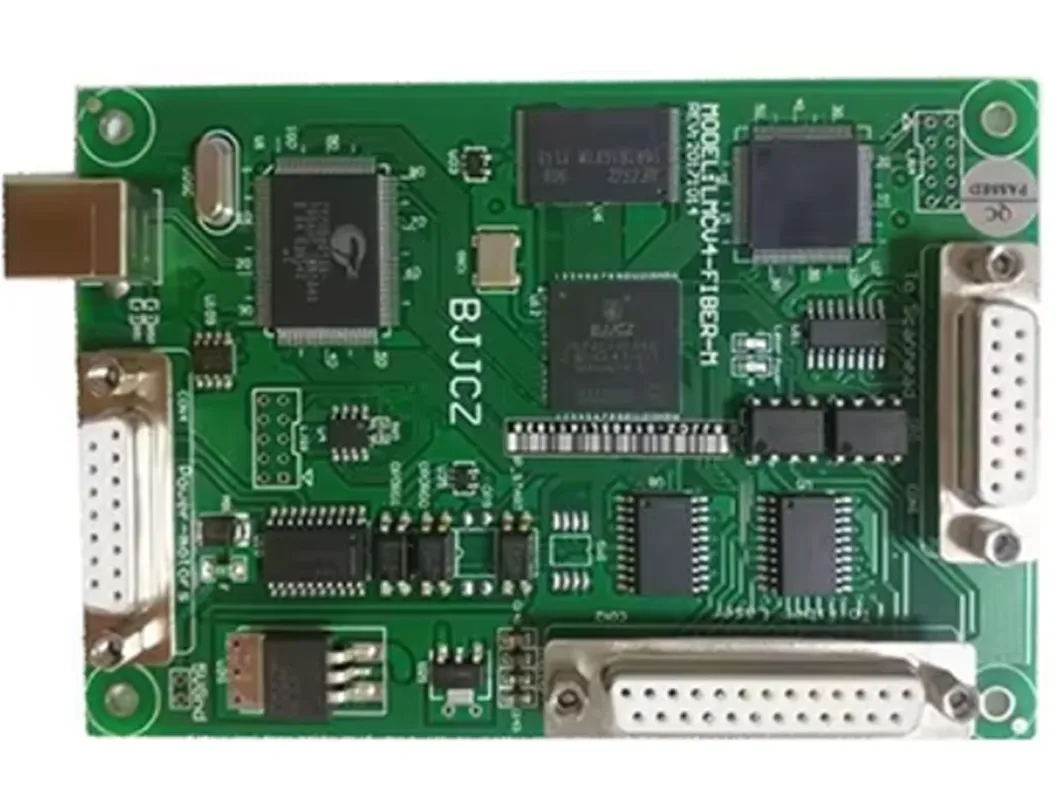

Genuine JCZ Board
High stability and user-friendly interface.

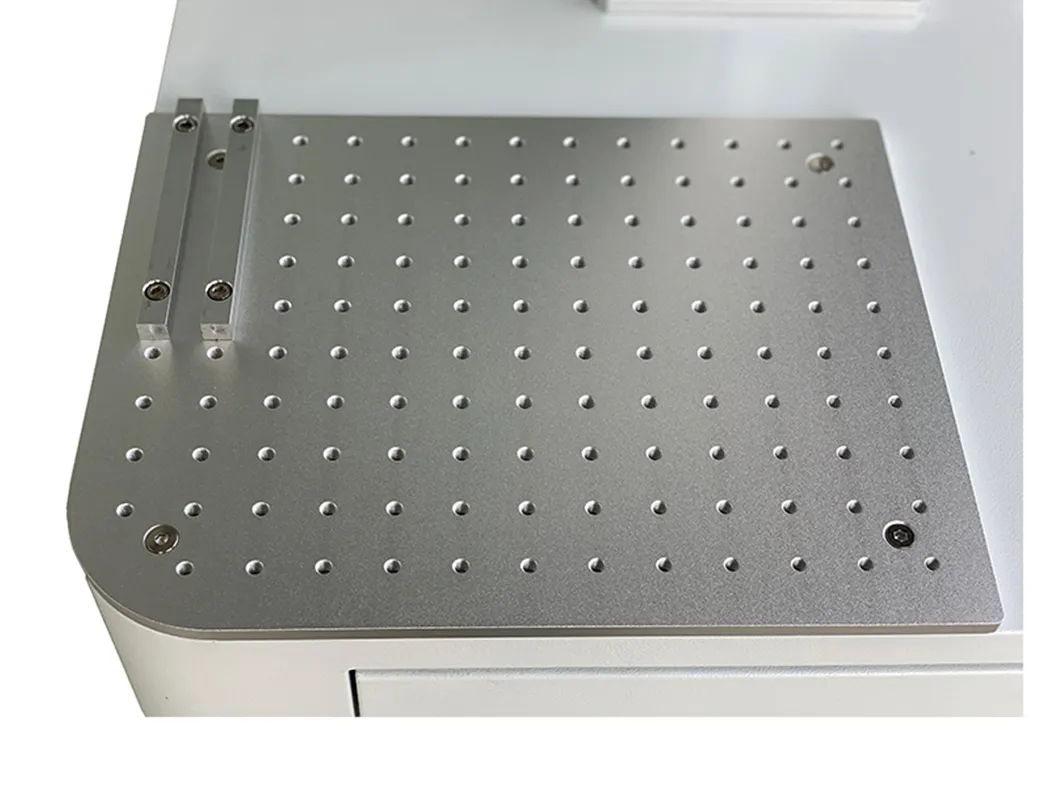

Aluminum Platform
Flexible installation with multiple screw holes.

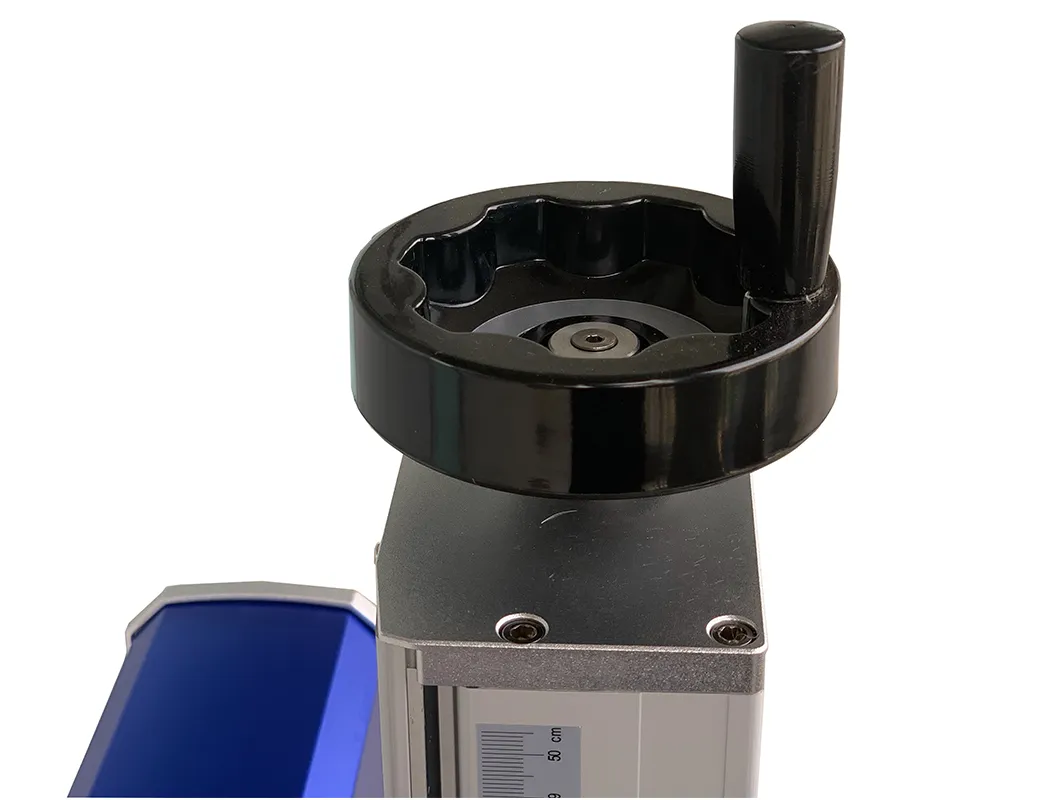

Marking Ruler
Fast and precise engraving positioning.

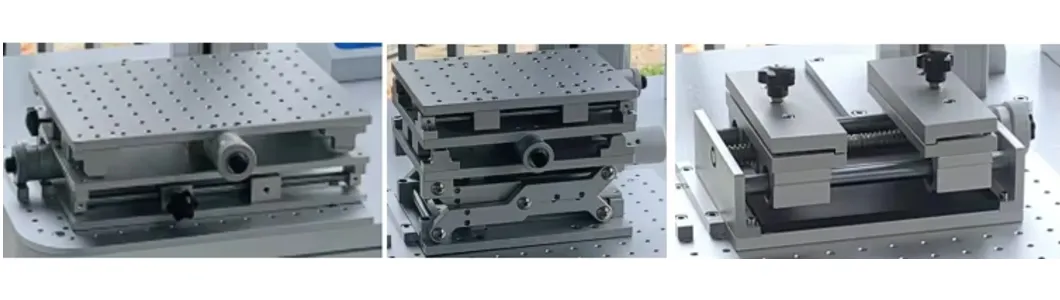

Optional 2D/3D tables and extended platforms.

Optional 50mm/80mm rotary axes.

Product Parameters

Machine Model	OM-F20A	OM-F30A	OM-F50A	OM-F100A
Wave length	1064nm
Frequency	20kHz~100kHz
Laser Power	20W	30W	50W	100W
Marking Scope	110110 / 175175 / 200200 / 300300mm
Marking Speed	7000mm/s
Repeated Accuracy	0.0025mm
Cooling	Air Cooling
Power Supply	110V/220V, 50/60Hz

Wide Applications

⚙️

Metal Materials: Gold, silver, stainless steel, brass, aluminum, steel, and iron.

Non-Metal Materials: ABS, nylon, PES, PVC, Makrolon, and more.

Service & Packaging

🛠️

3 years warranty for the whole machine, 2 years for the fiber source.
Lifelong technical support available online or via email.
24-hour online service for operational guidance.
Overseas training and installation services available if required.
Certified with CE and FDA standards.

Certifications

Production Excellence

Frequently Asked Questions

What materials can this fiber laser marking machine process?

It is designed for all types of metals (stainless steel, aluminum, gold, silver, etc.) and certain non-metals like ABS, PVC, and Nylon.

How long is the lifespan of the laser source?

The fiber laser source (Raycus/Max/JPT) has a typical working life of approximately 100,000 hours.

Is the machine easy to operate for beginners?

Yes, the JCZ Ezcad software is user-friendly. We also provide lifelong technical support and training to ensure you can operate the machine effectively.

What is the warranty period for this equipment?

We offer a 3-year warranty for the entire machine and a 2-year warranty specifically for the fiber laser source.

Does the machine require water cooling?

No, this machine uses a high-efficiency air cooling system, making it more compact and easier to maintain than water-cooled systems.

Which file formats does the software support?

The Ezcad software supports common formats including AI, PLT, DXF, BMP, JPG, and TIF.
