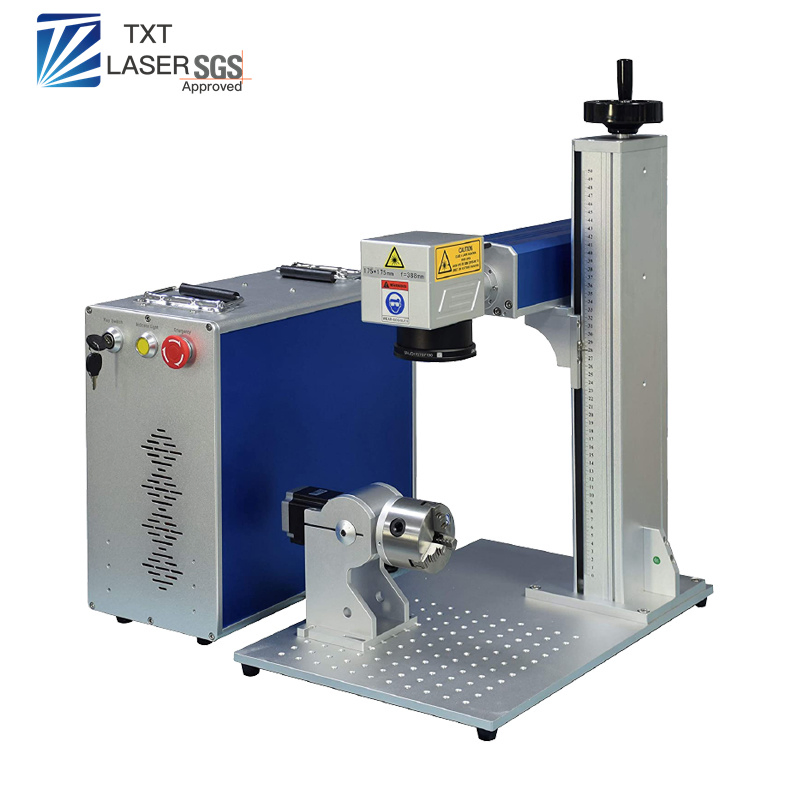

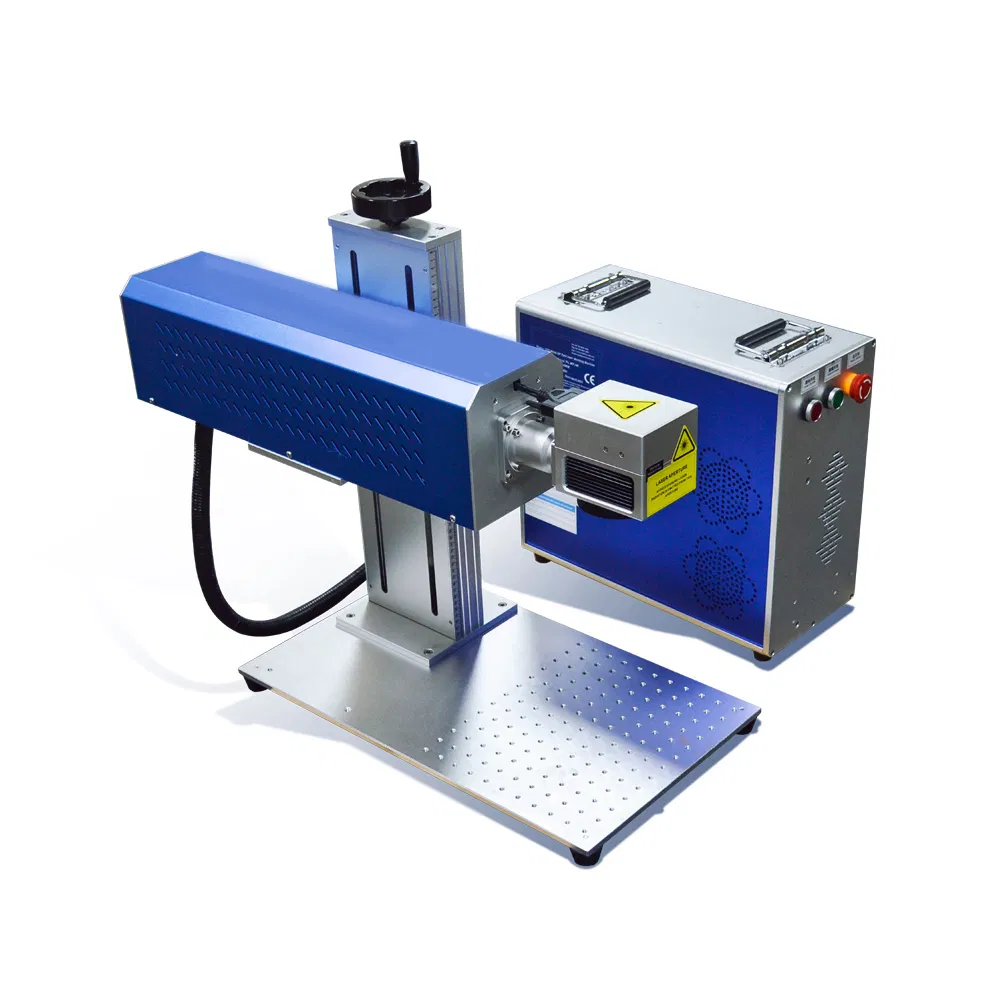

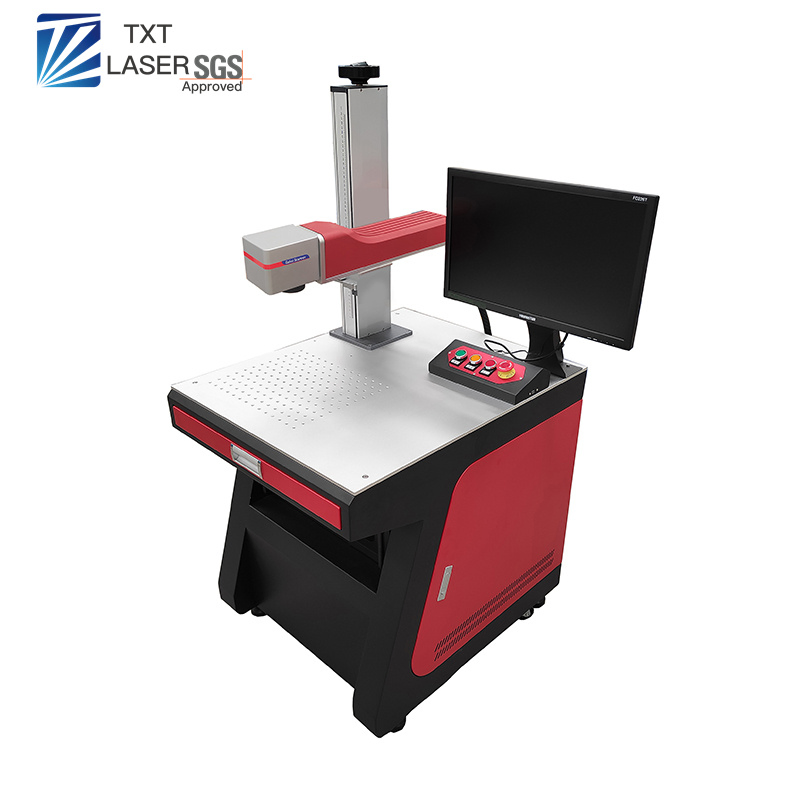

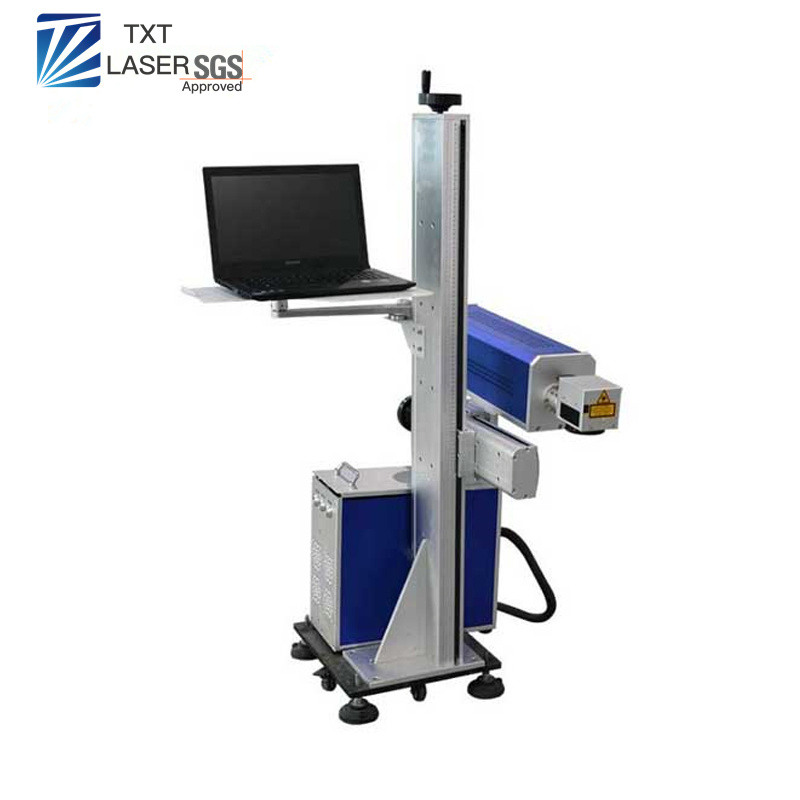

20W 100W Fiber Laser Engraving Marking Metal Machine Equipment
20W 100W Fiber Laser Engraving Marking Metal Machine Equipment
20W 100W Fiber Laser Engraving Marking Metal Machine Equipment
20W 100W Fiber Laser Engraving Marking Metal Machine Equipment
20W 100W Fiber Laser Engraving Marking Metal Machine Equipment
1 / 5
20W 100W Fiber Laser Engraving Marking Metal Machine Equipment
20W 100W Fiber Laser Engraving Marking Metal Machine Equipment
20W 100W Fiber Laser Engraving Marking Metal Machine Equipment
20W 100W Fiber Laser Engraving Marking Metal Machine Equipment
20W 100W Fiber Laser Engraving Marking Metal Machine Equipment

20W 100W Fiber Laser Engraving Marking Metal Machine Equipment

Customization: Available
After-sales Service: Installation & Operation
Warranty: 24 Months
Send Inquiry

Product Description

ℹ️ Basic Information
Model NO.
TXT-DB-F
Laser Visibility
Invisible
Applicable Material
Metal
Cooling System
Air Cooling
Technical Class
Continuous Wave Laser
Laser Wavelength
Fiber Laser (1064nm)
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Focusing
Manual Focus / Auto Focus
Laser Source
Ipg / Jpt / Raycus
Work Area
110X110mm / Others Available
Laser Power
10W to 120W
Marking Speed
up to 7000mm/S
Origin
China
📝 Product Description
Fiber Laser Engraving Marking Metal Machine
TECHNICAL SPECIFICATIONS
Fiber Power Options20W, 30W, 50W, 60W or 100W
Fiber Laser OptionsRaycus, JPT, IPG
Speed5,000mm / sec or 7,000mm /sec
Laser Wavelength1064nm
Repeated Accuracy0.002"
Cooling MethodForced Air
Beam QualityDiffraction of m2 < 1.5 to 2.0
Power SupplyAC 110V/220V 50Hz/60Hz 2kVA
Control SoftwareEZCAD 2.0, EZCAD 3.0
Image FormatsSupports PLT, BMP, DXF, JPG, TIF, AI, PNG, etc.

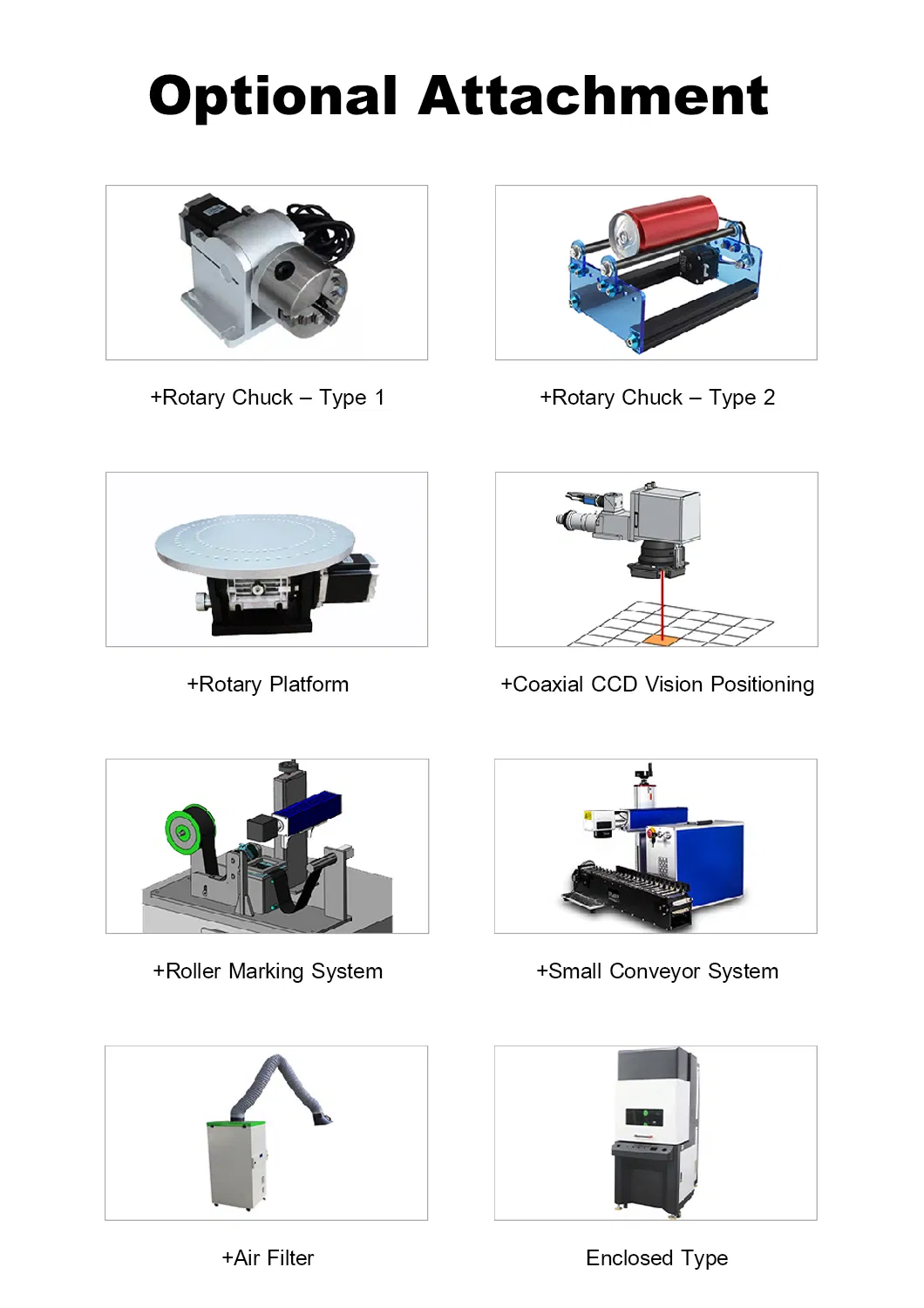

Attachment OptionsRotary Chuck, Roller Marking System, CCD Visual-Auto-Positioning

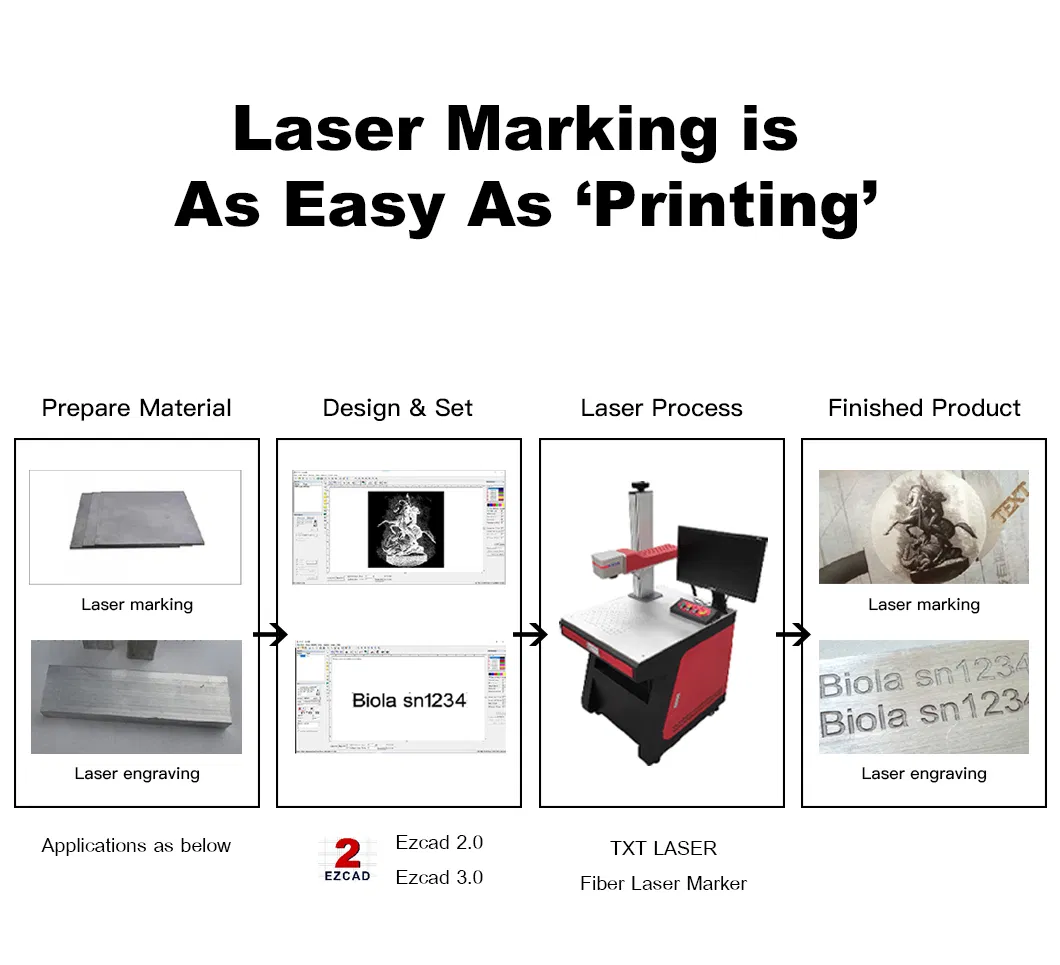

Laser Machine View 1

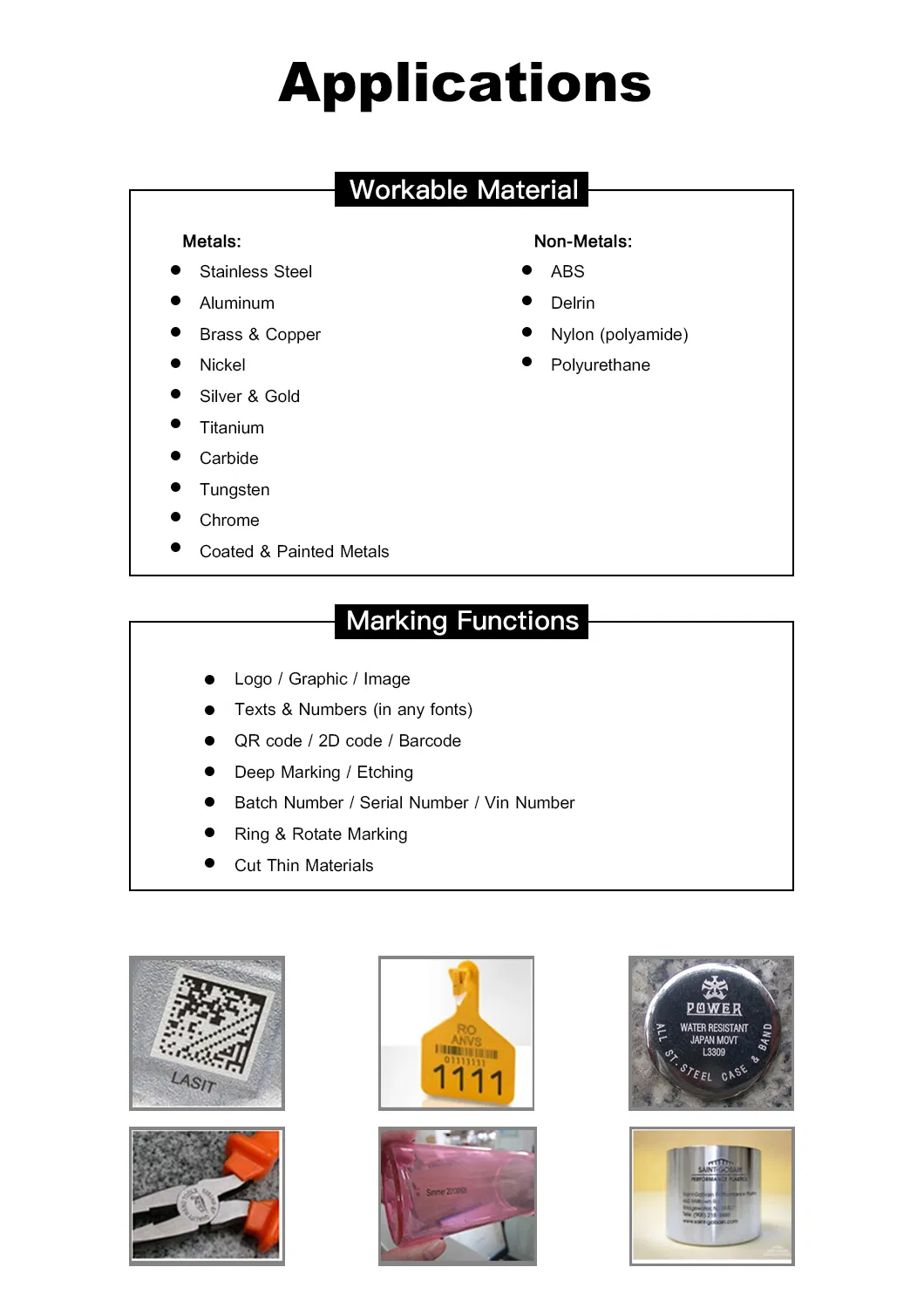

Laser Machine View 2

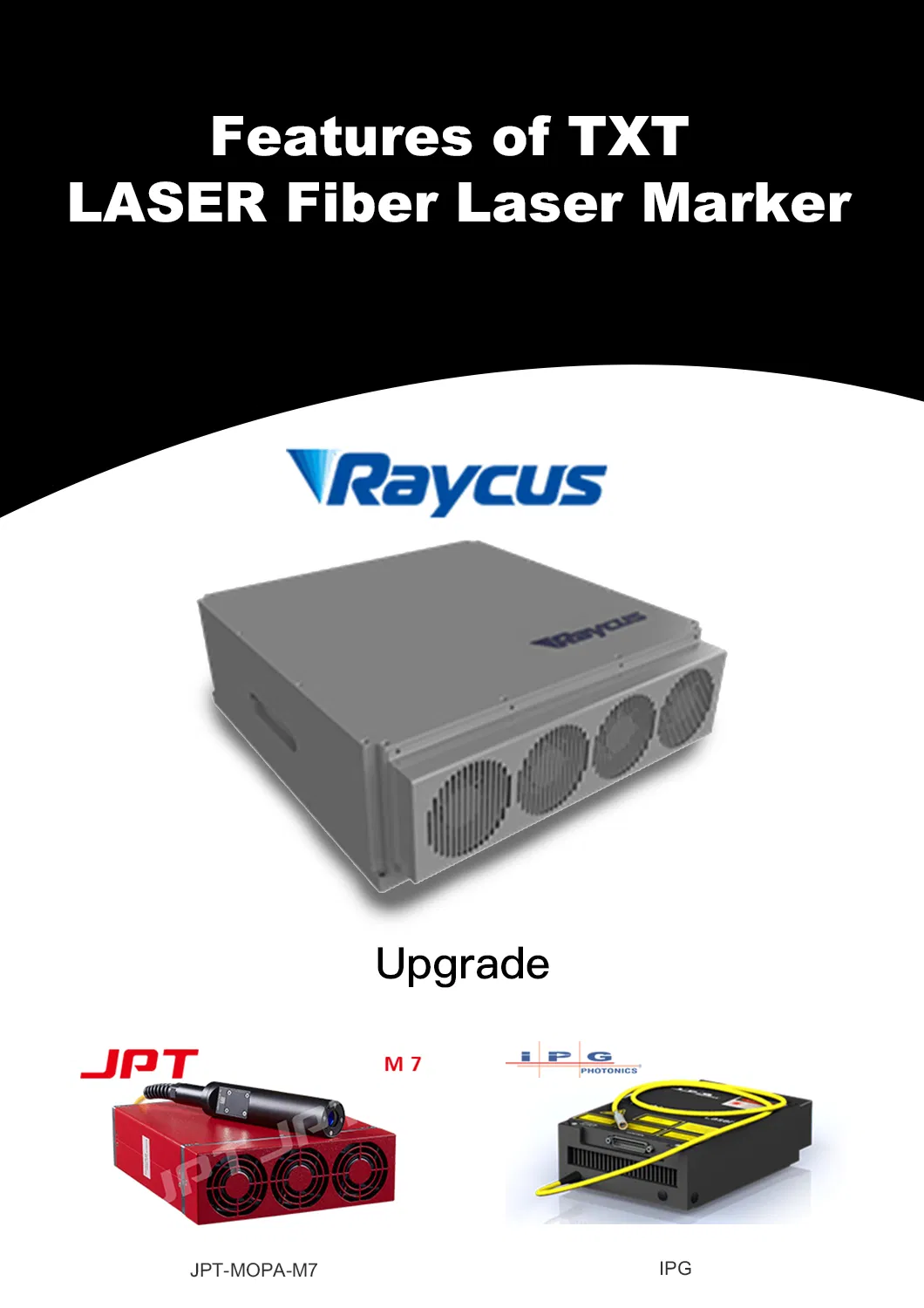

Laser Machine View 3

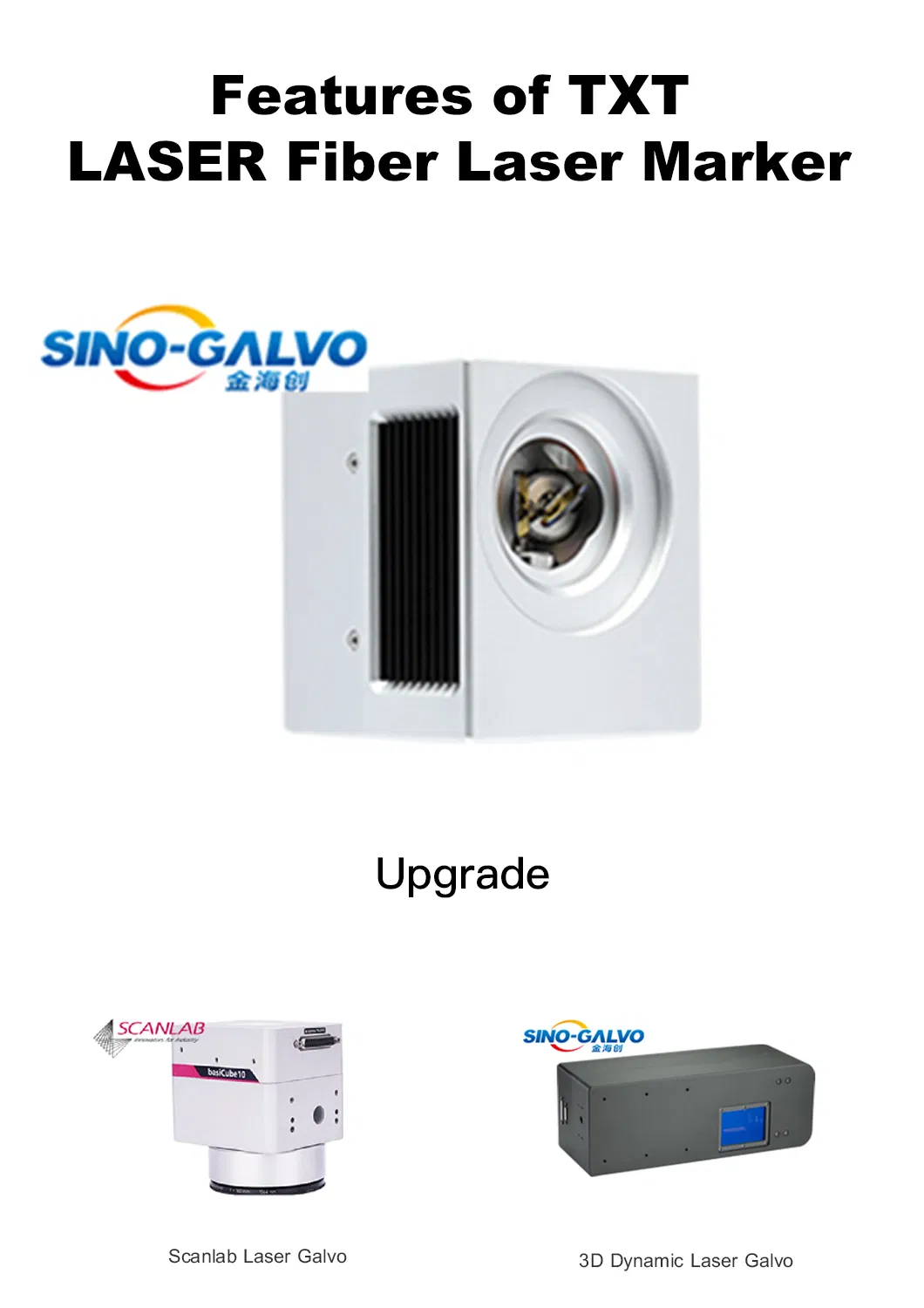

Laser Machine View 4

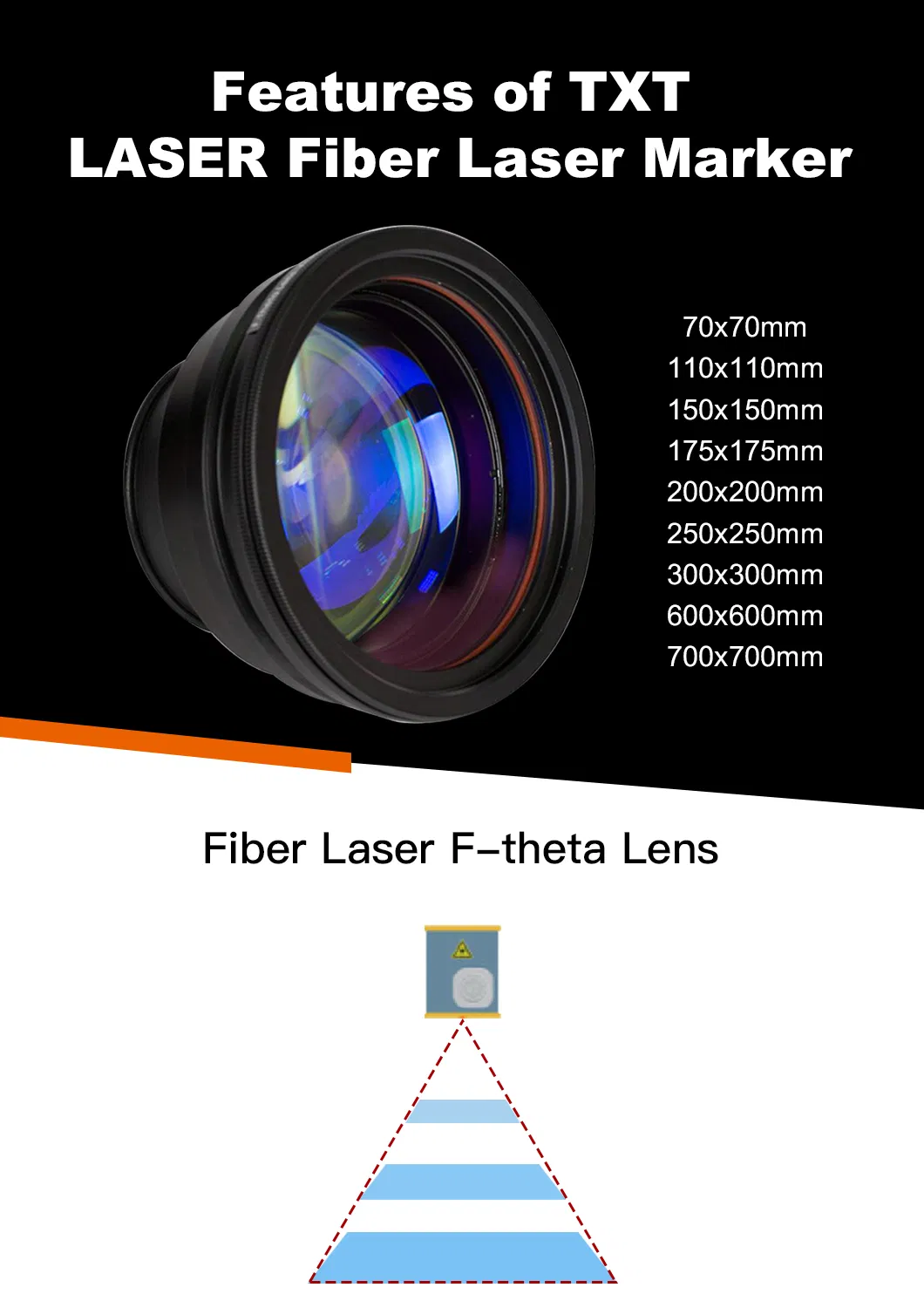

Laser Machine View 5
Laser Machine View 6

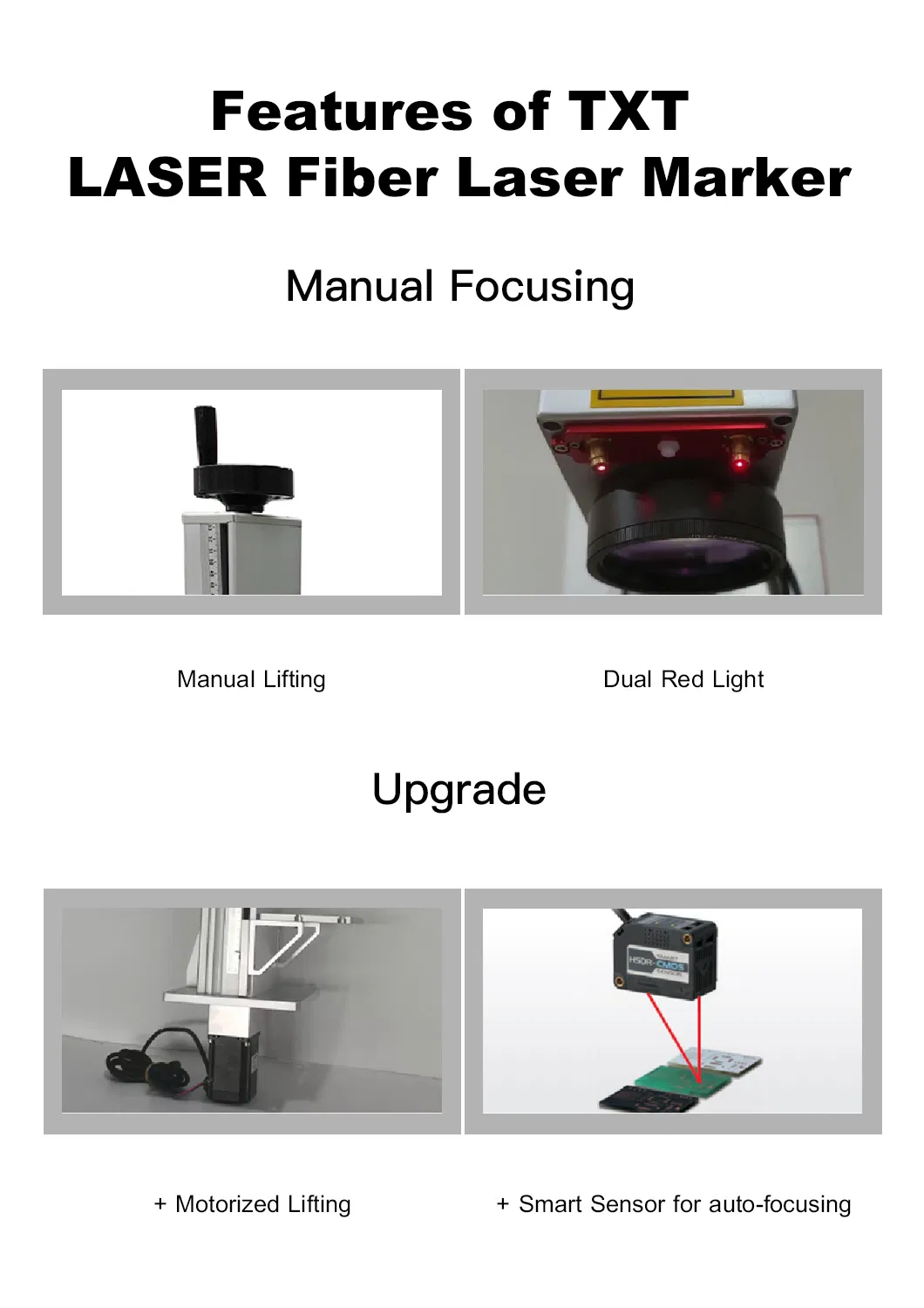

Laser Machine View 7
Laser Machine View 8

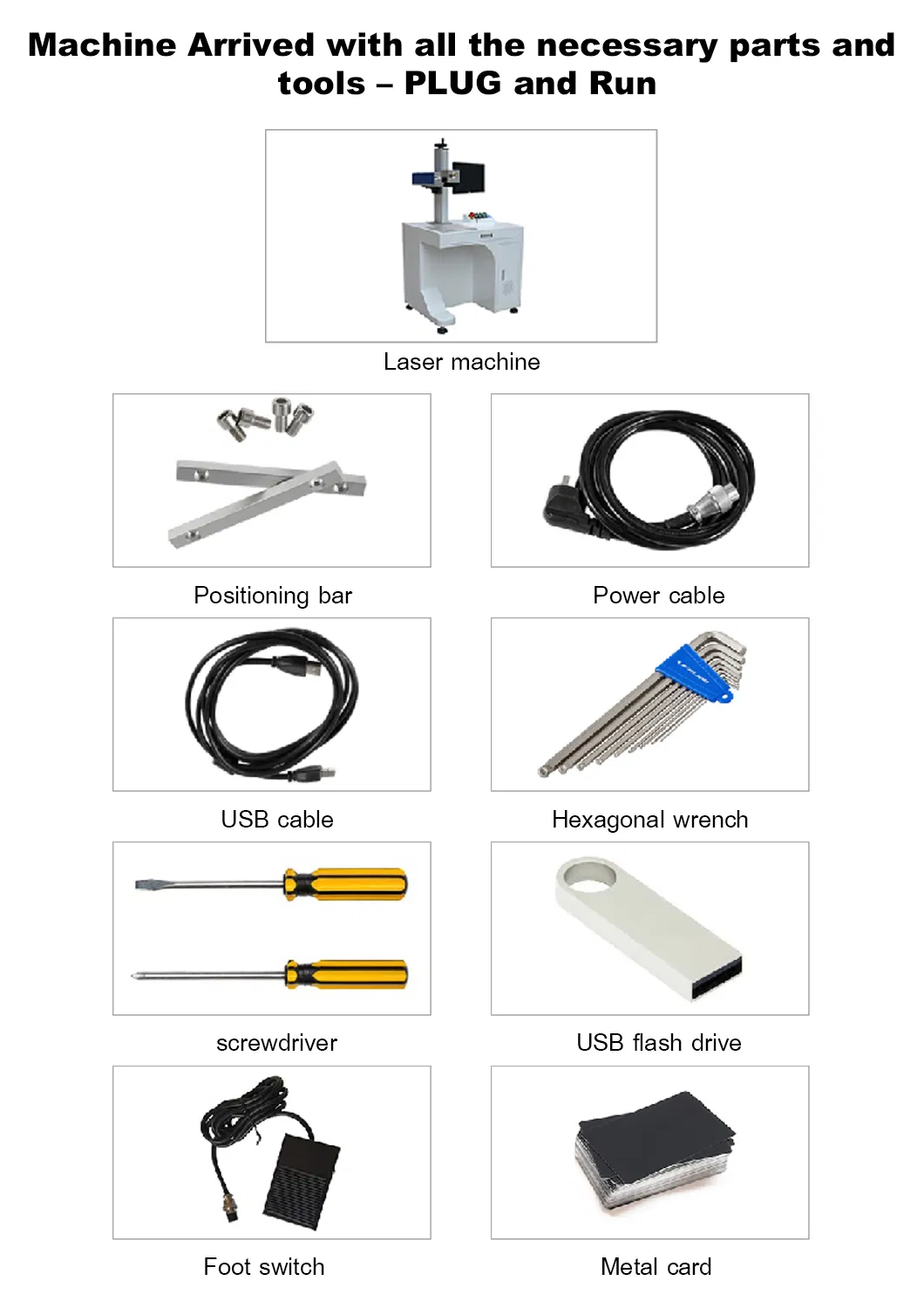

Laser Machine View 9
Laser Marking Samples
Laser Marking Feature
❓ Frequently Asked Questions
1. What materials can this fiber laser machine mark?
This machine is primarily designed for metal materials, including stainless steel, aluminum, gold, silver, titanium, and some hard plastics.
2. Which laser source brands are available?
We offer high-quality laser sources from Raycus, JPT, and IPG, depending on your specific requirements and budget.
3. Does the machine require a cooling system?
Yes, it uses an efficient air cooling system, which makes the machine more compact and easier to maintain compared to water-cooled systems.
4. What is the maximum marking speed?
The machine can achieve marking speeds up to 7,000mm/s, allowing for high-efficiency production.
5. Is the software compatible with common design formats?
Yes, the included EZCAD software supports various formats such as PLT, BMP, DXF, JPG, TIF, AI, and PNG.
6. Can I mark cylindrical objects with this machine?
Yes, the machine supports an optional rotary chuck attachment, which allows for precise marking on curved and cylindrical surfaces.
