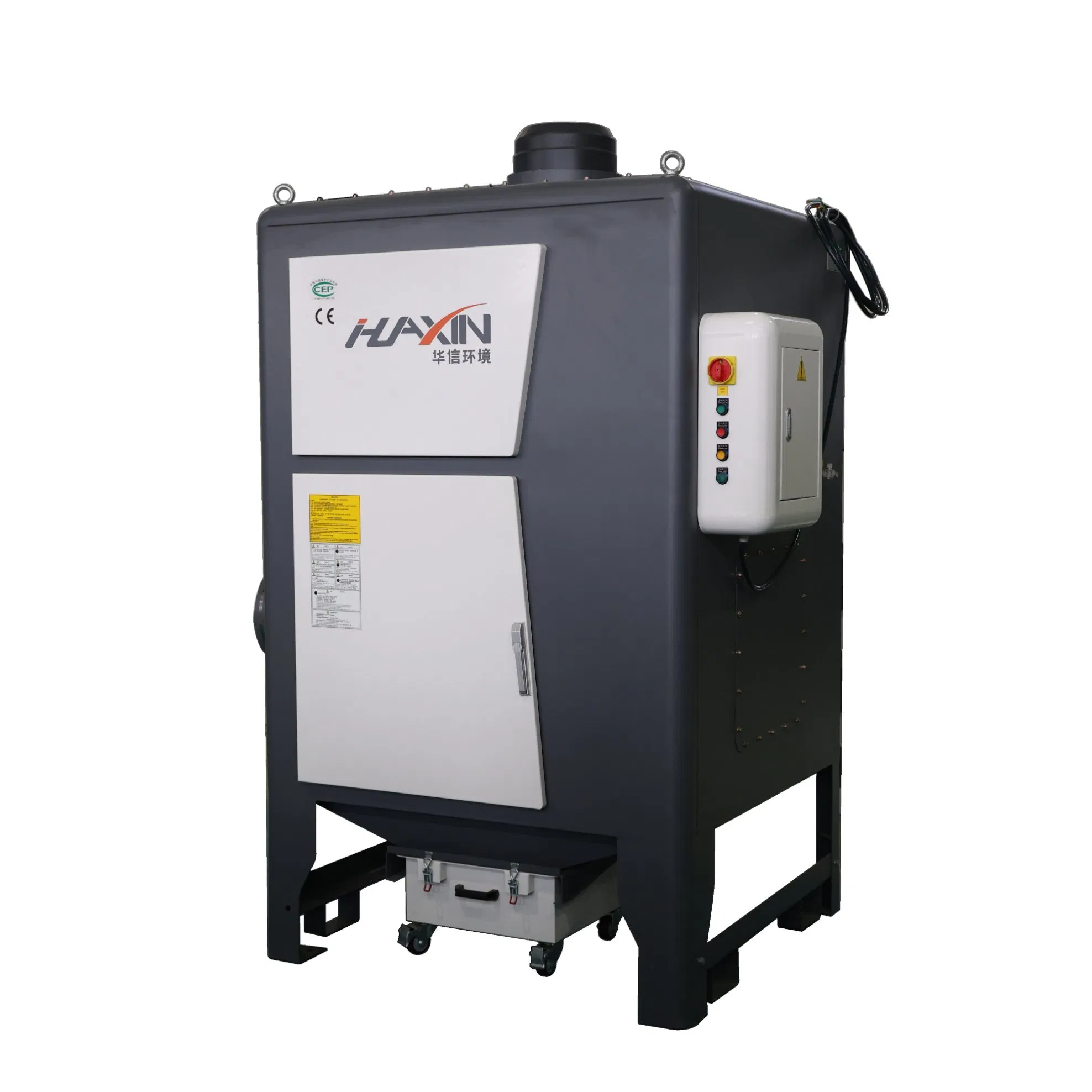

Advanced Industrial Dust Collection System for Welding & Laser Cutting

Still deciding? Get samples of $ !
Order Sample

Product Description

ℹ️
Basic Information
Model NO.XF06
Operation TypeAutomatic
Medium MaterialChemical Synthetic Fiber
Collecting MethodDry
TypeFilter Cartridge Dust Collector
Power7.5kw
Voltage380V/415V/220V
Filtration Efficiency99.99%
Filtration Area78m2
Weight520kgs
📝
Product Description

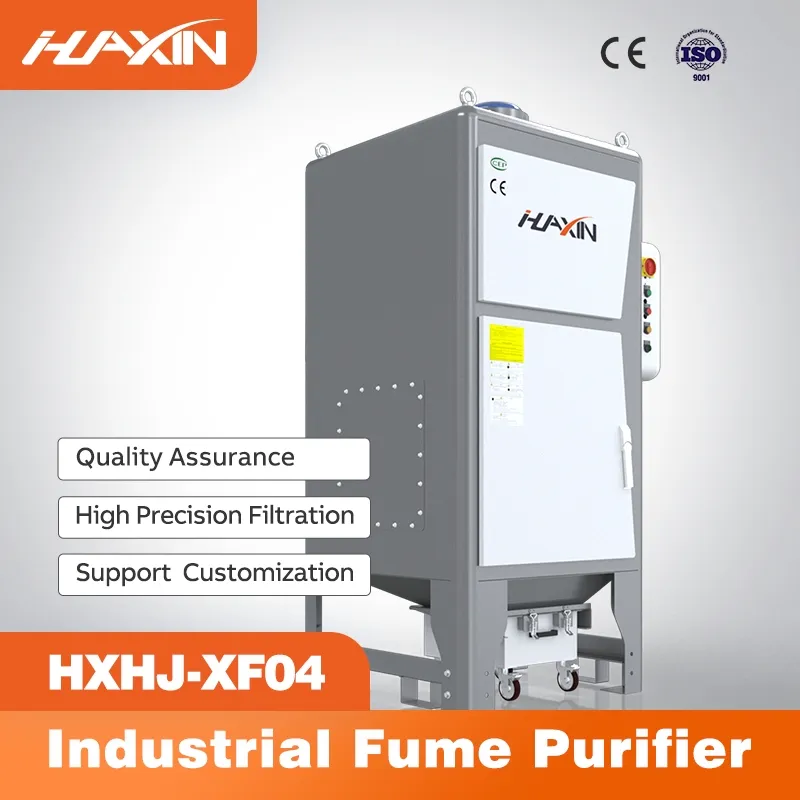

Industrial Dust Collector View 1

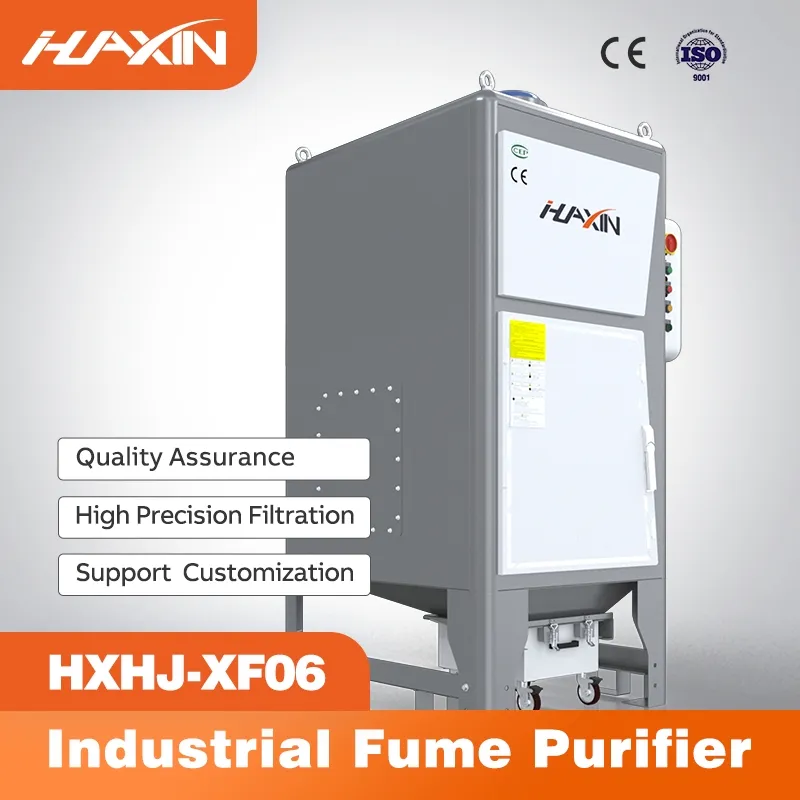

Industrial Dust Collector View 2

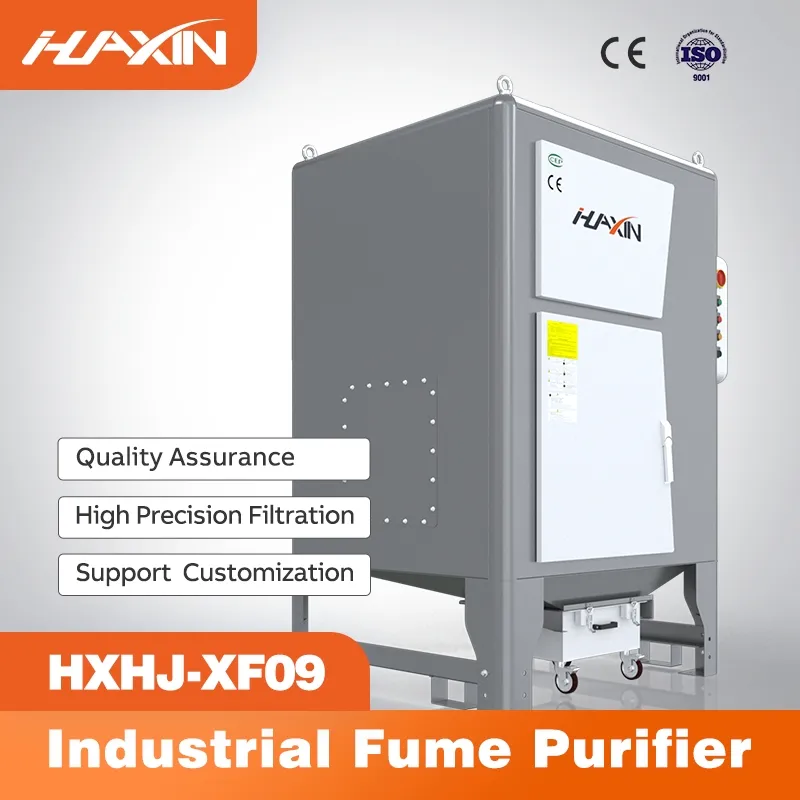

Industrial Dust Collector View 3
High-Efficiency Filtration Beautifully engineered with precision, our High-Efficiency Dust Collector 7.5kW expertly captures a wide range of particulate matter with its advanced filtration system. With an impressive filtration efficiency reaching up to 99.99% or even higher, this system purifies each breath, ensuring it's free of harmful contaminants. Adaptability to Different Dust Types Laser cutting operations produce a spectrum of dust types. These systems proficiently manage diverse dust characteristics, from metal fines and fumes to unique properties of plastics or composite materials. Powerful Suction Capacity Purposefully engineered for rapid and effective dust extraction, these collectors deliver exceptional suction power, safeguarding the equipment from dust-related damage and extending machine lifespan. Low Noise & Safe Operation Designed to operate under 80 decibels, fostering a calm work environment. Equipped with over-temperature and over-current protection to ensure reliability and operator safety.
Dust Collection Efficiency
📊

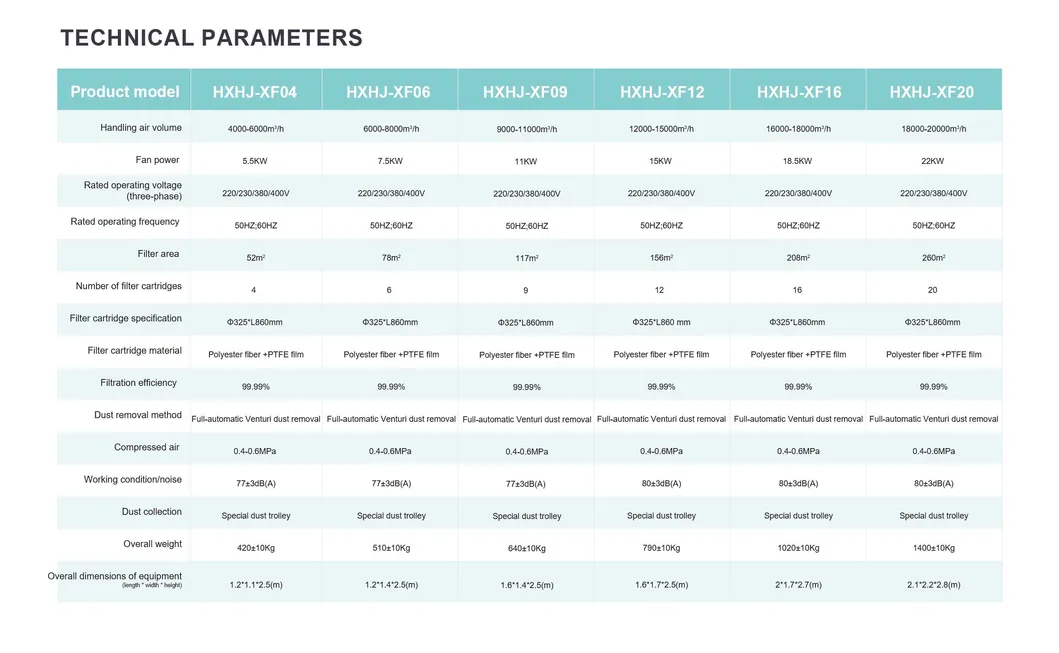

Technical Parameters
Model Airflow (m³/h) Power (kW) Voltage Filter Area (m²) Precision Noise dB(A) Size (mm)
HXHJ-XF0440005.5380V/415V5299.99%77±31200*1100*2500
HXHJ-XF0660007.5380V/415V7899.99%77±31200*1400*2500
HXHJ-XF09900011380V/415V11799.99%77±31600*1400*2500
HXHJ-XF121200015380V/415V15699.99%77±31600*1700*2500
HXHJ-XF161600018.5380V/415V20899.99%77±32000*1700*2700
HXHJ-XF202000022380V/415V26099.99%77±32100*2200*2800
Our Advantages & Details

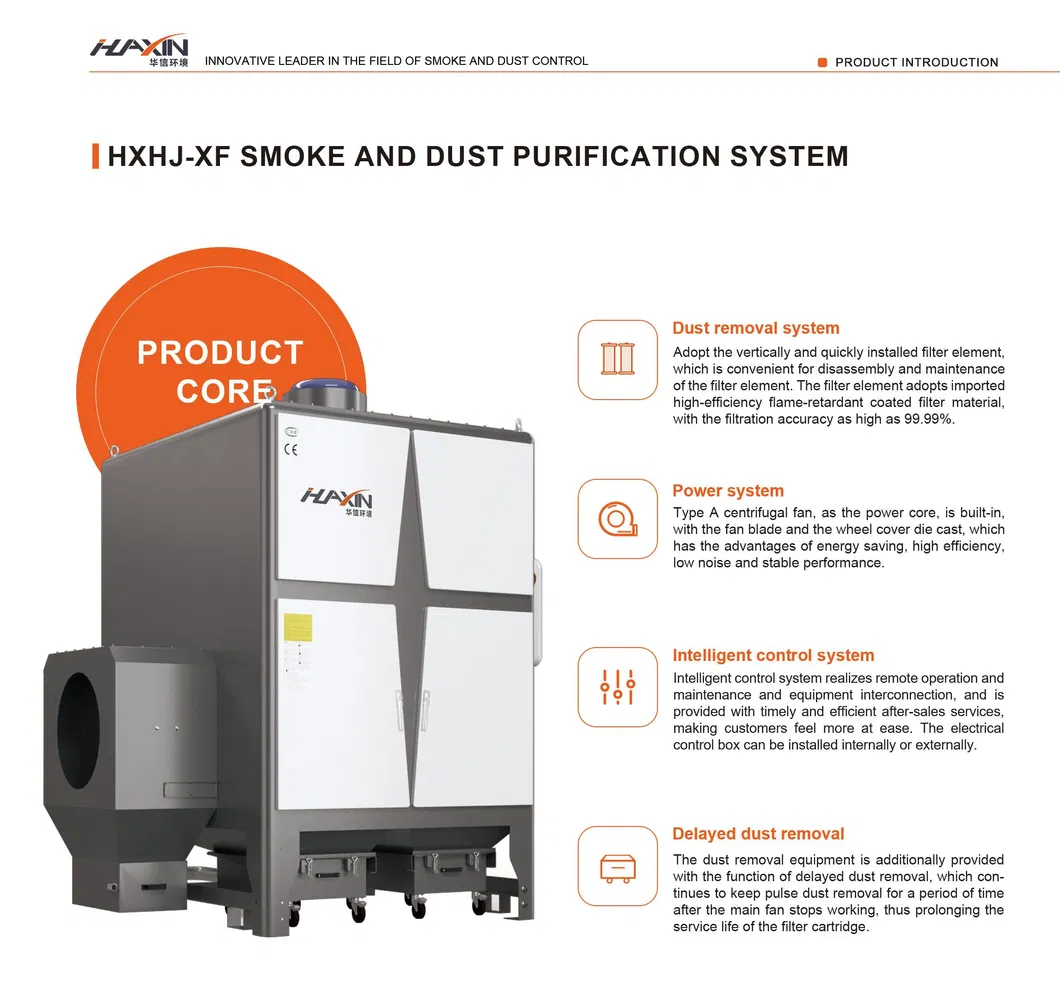

Advantage 1

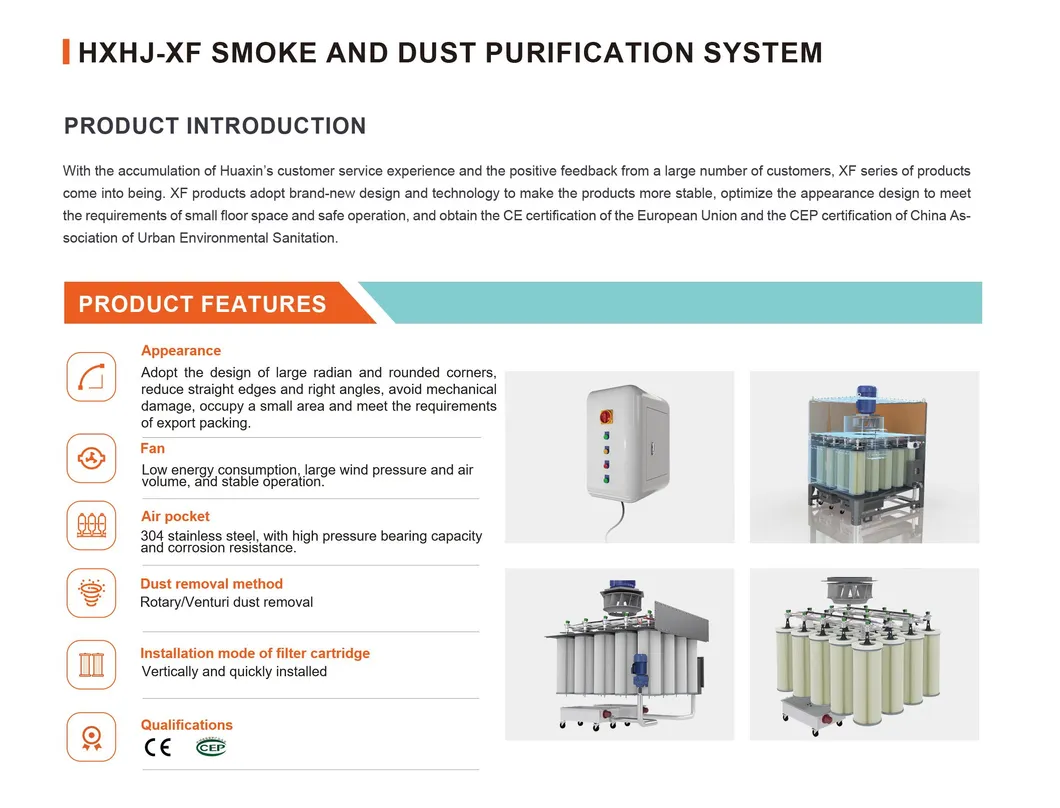

Advantage 2
Advantage 3

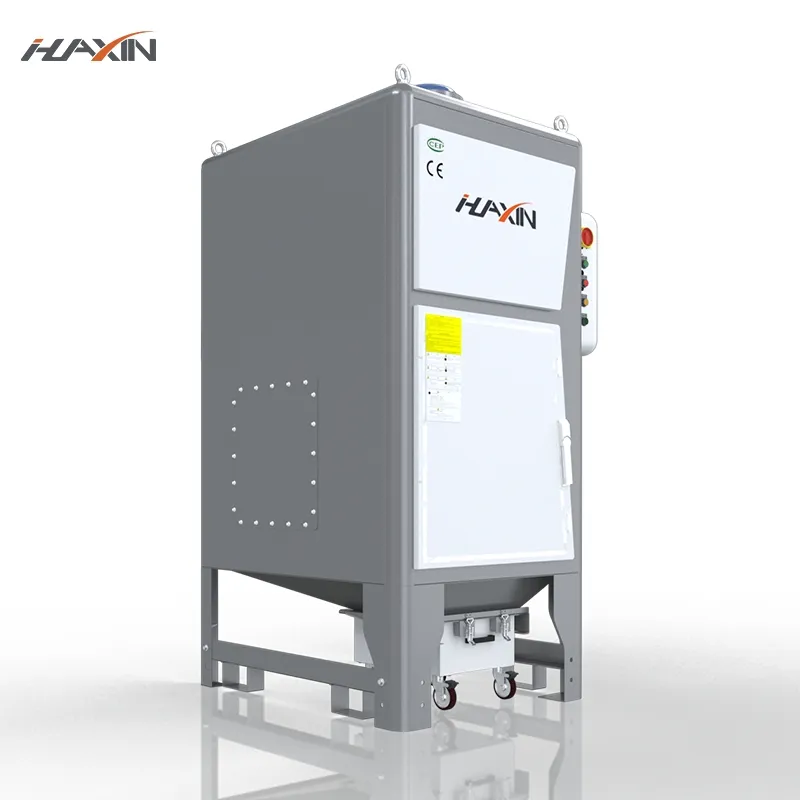

Detail 1

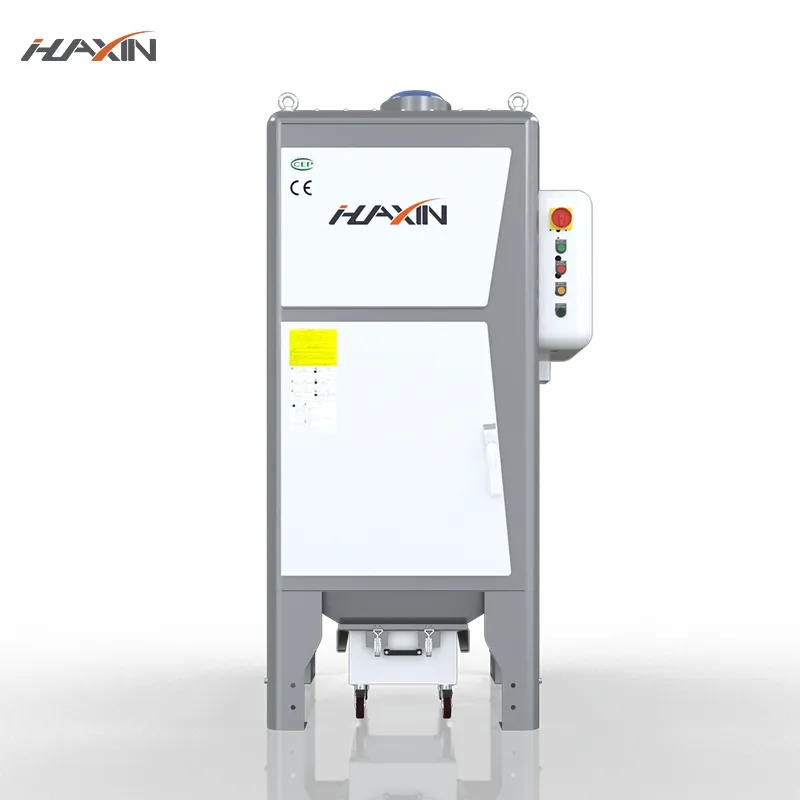

Detail 2

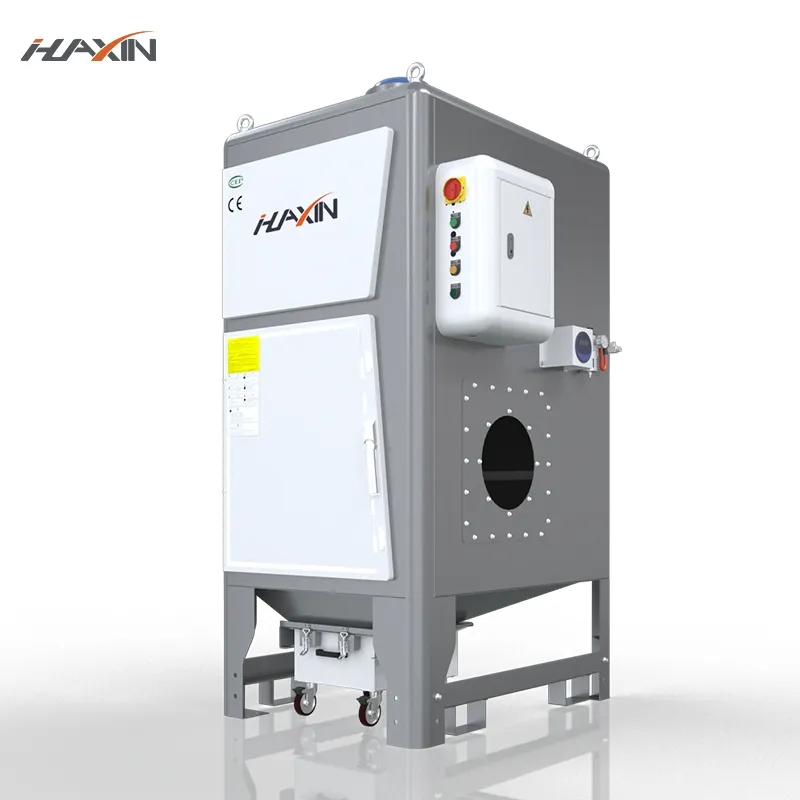

Detail 3
📜
Certifications

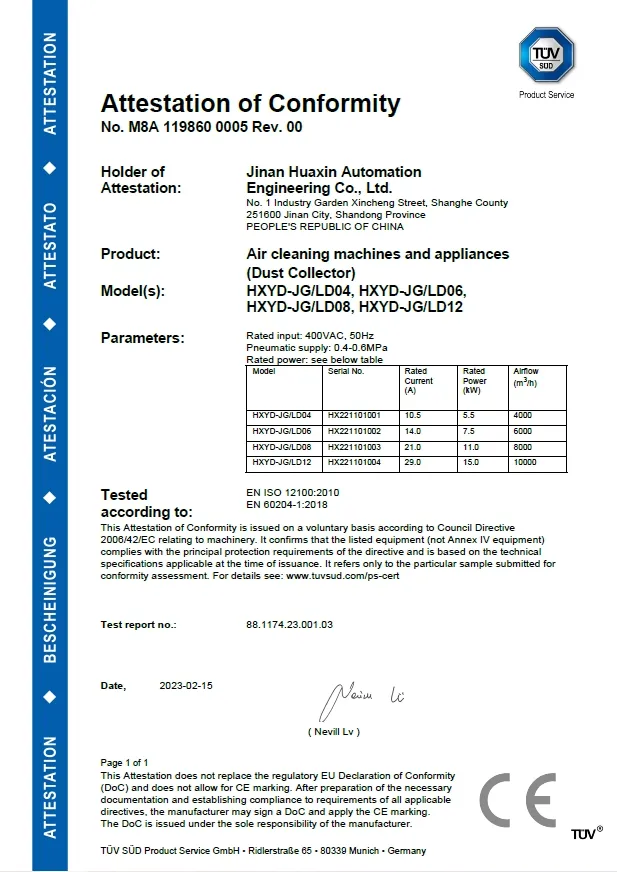

Cert 1

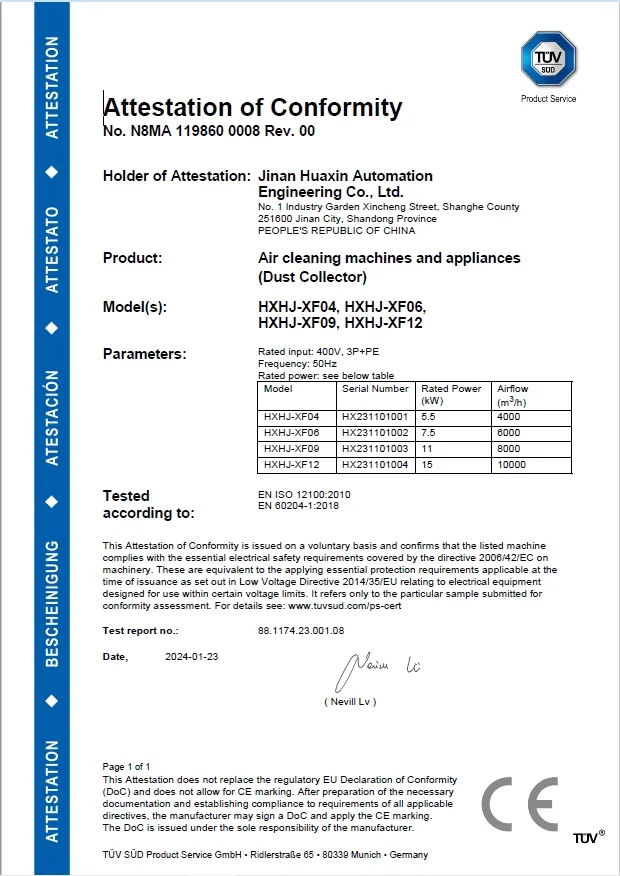

Cert 2

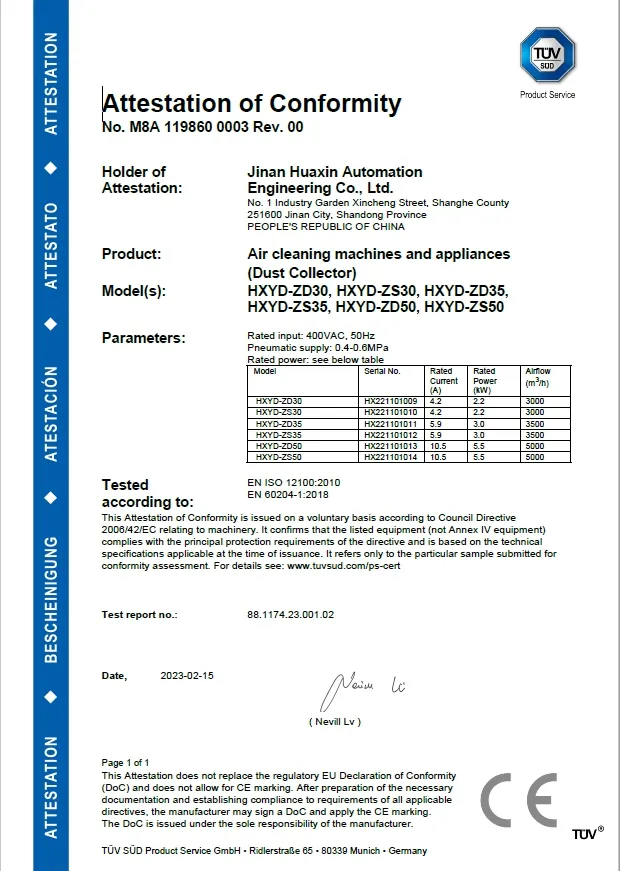

Cert 3
Frequently Asked Questions
Is there any noise during operation?
The fans are equipped with sound insulation cotton and will not produce excessive noise, maintaining a level typically under 80 decibels.
How is the air volume of the dust collector configured?
By measuring the diameter of the pipe at the exhaust port of your cutting platform, we can calculate the exact air volume required for your specific setup.
How do you prevent fire accidents from sparks during cutting?
We install spark catchers with a labyrinth structure (embedded baffle or pipe swirl type). This forces sparks to hit cold plates multiple times to extinguish them before reaching the filters.
Does the system require an external chimney for venting?
No chimney is needed. We use high-precision flame-retardant filter material that captures 0.3um dust with over 99.9% efficiency, allowing air to be discharged directly indoors.
What is the warranty policy for the equipment?
The warranty period is one year. Maintenance is free during this period. After the warranty, only the cost of replacement parts is charged.
Do you support customization via OEM or ODM?
Yes, we provide both OEM and ODM services. We can produce products under your brand name and adjust sizes according to your specific requirements.
