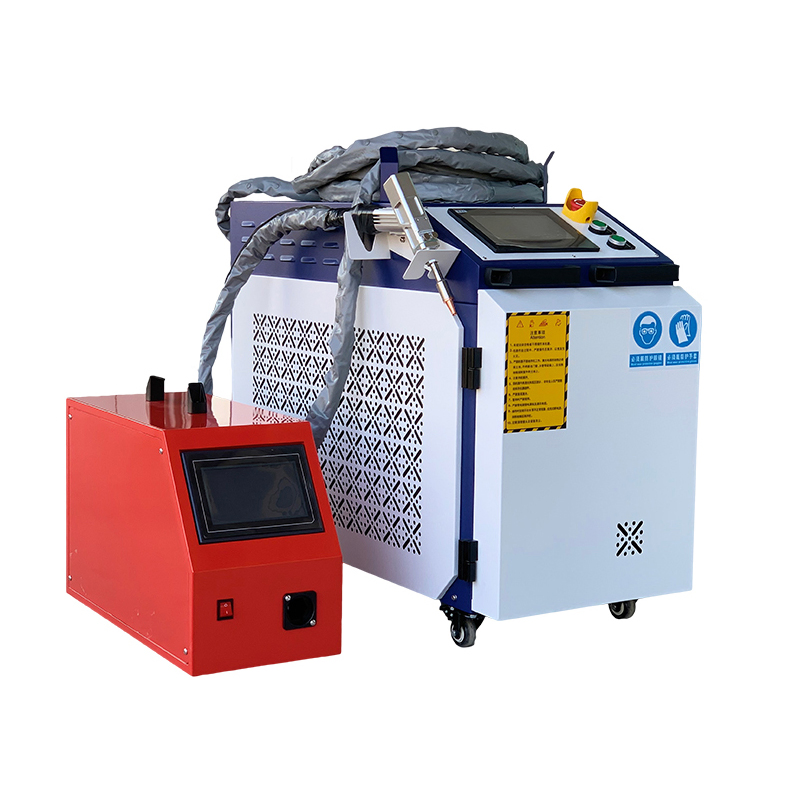

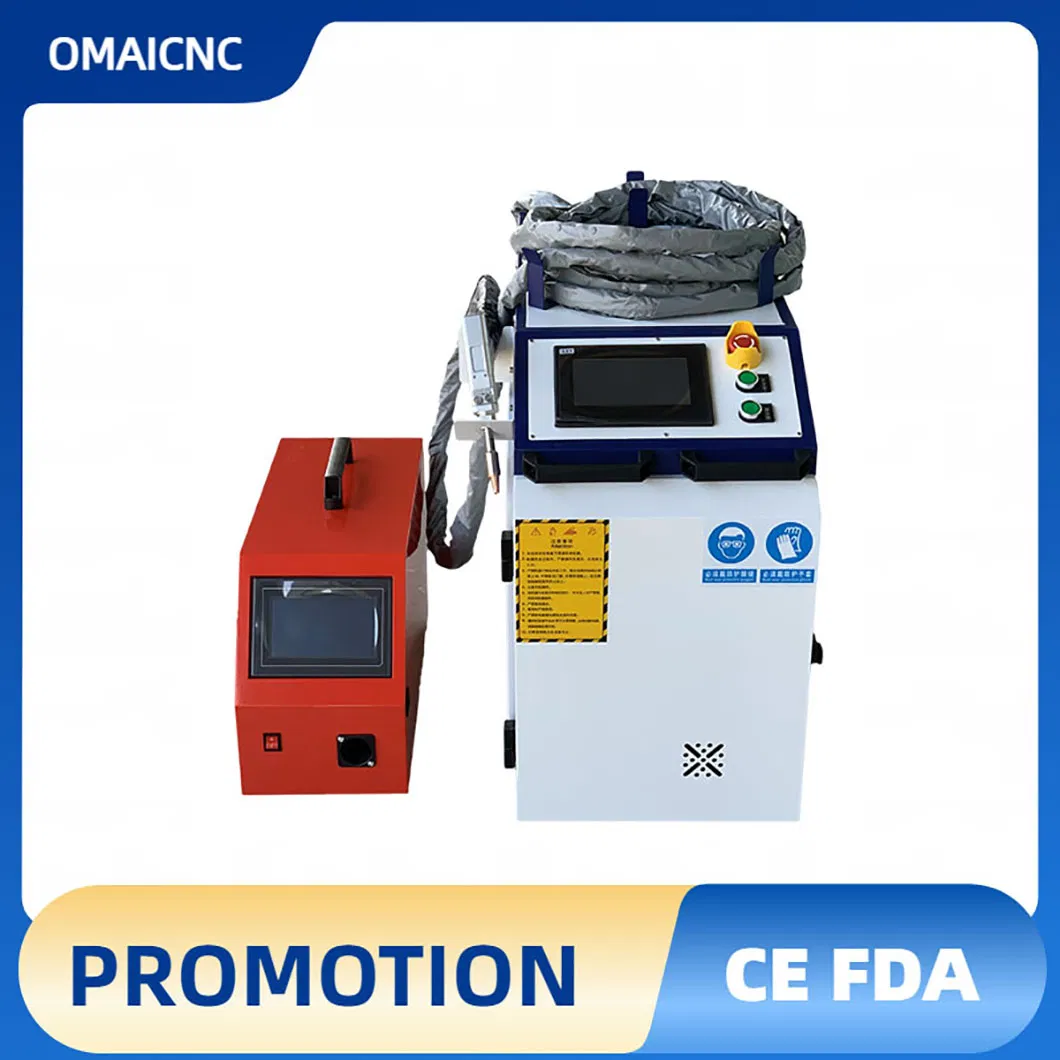

Advanced Multi-Function Laser System for Welding, Cleaning, Cutting

1 / 5

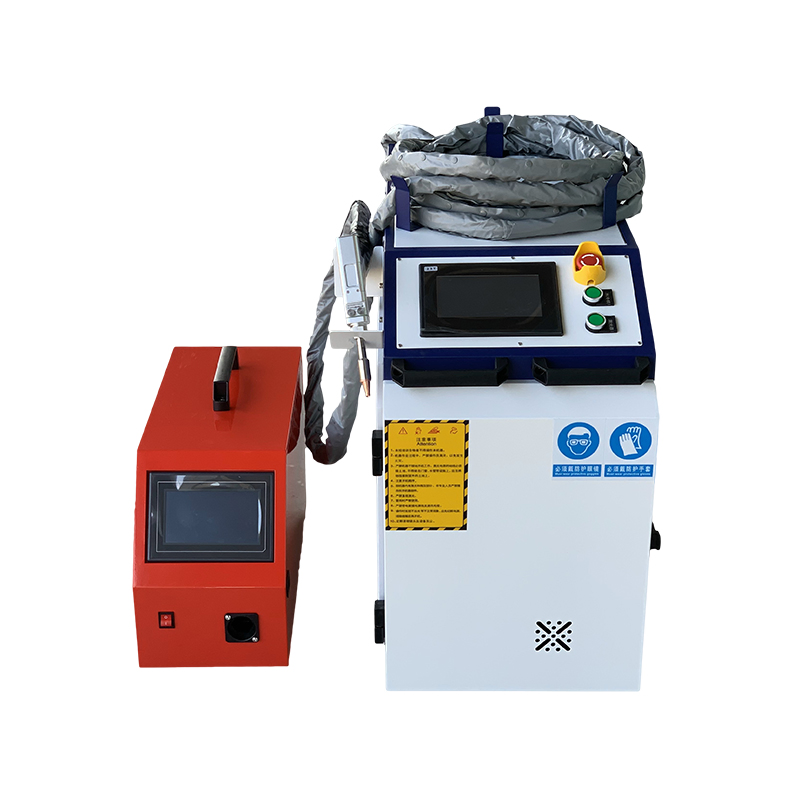

Advanced Multi-Function Laser System for Welding, Cleaning, Cutting

Customization:	Available
After-sales Service:	Online Service
Warranty:	2 Years

Send Inquiry

Product Description

Basic Information

Model NO.	OM-W2000P
Application	Manufacturing Industry
Technical Class	Continuous Wave Laser
Control	Manual
Laser Classification	Fiber
Type	Portable Welding Machine
Laser Power	2000W (1kw -3kw Optional)
Laser Source Brand	Reci (Other Optional)
Wavelength	1080nm
Focal Spot Diameter	0.2 ~ 2.0 mm
Fiber Line Length	5m (From Machine to Laser Head)
Function	4 in 1 (Welding, Cutting, Cleaning)
Water Chiller	Including
Dimensions	11205301320mm
Transport Package	Plywood
Specification	Weight 130kg

Product Description

High Quality 3 In 1 Laser Welding, Cleaning & Cutting Machine

Product Parameters & Specifications

Model	2 kw laser welding machine for standard metal welding
Laser source	2 kw (1kw, 1.5kw, 3kw optional)
Wire feeder	Including (Standard for stainless steel, iron, carbon steel)
Length of fiber-optical	8m (Standard)
Module life	100,000 hours
Cooling method	Water Cooling
Power supply	220V single phase

Recommended Power Capability:

Power	Material Capacity
1000W	Stainless/Carbon steel 0-2mm, Aluminum 0-1.5mm
1500W	Stainless/Carbon steel 0-3mm, Aluminum 0-2mm
2000W	Stainless/Carbon steel 0-4mm, Aluminum 0-3mm
3000W	Stainless/Carbon steel 0-6mm, Aluminum 0-4mm

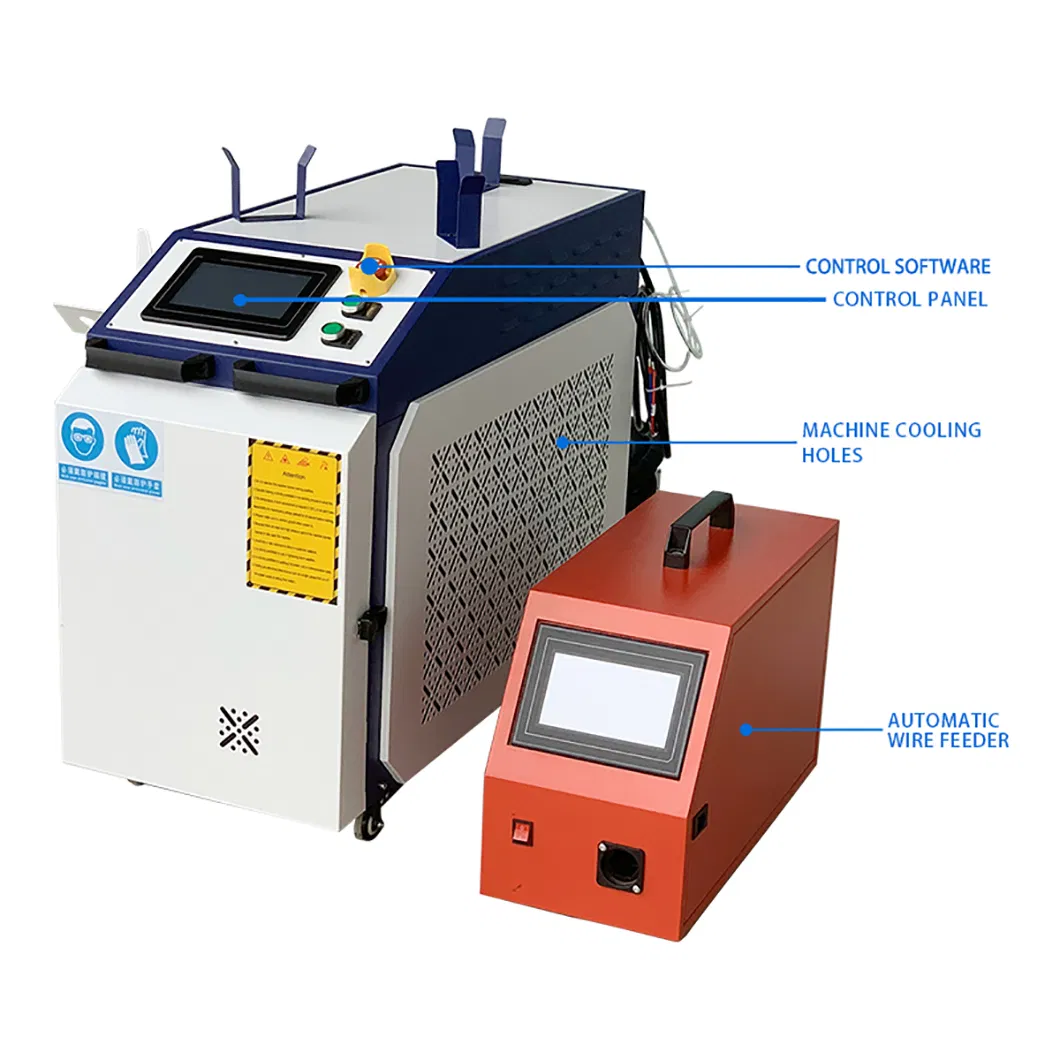

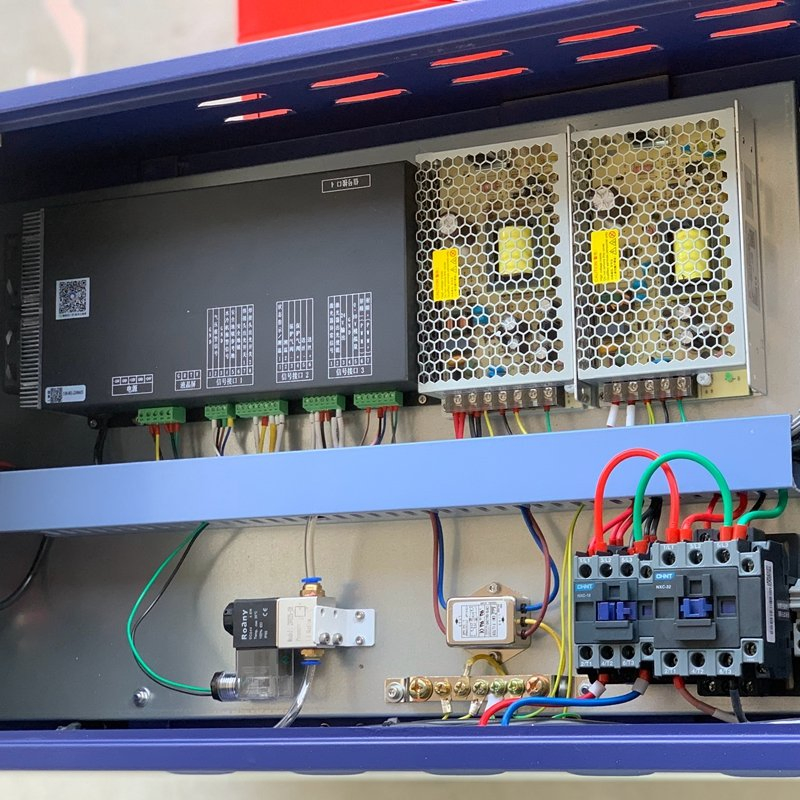

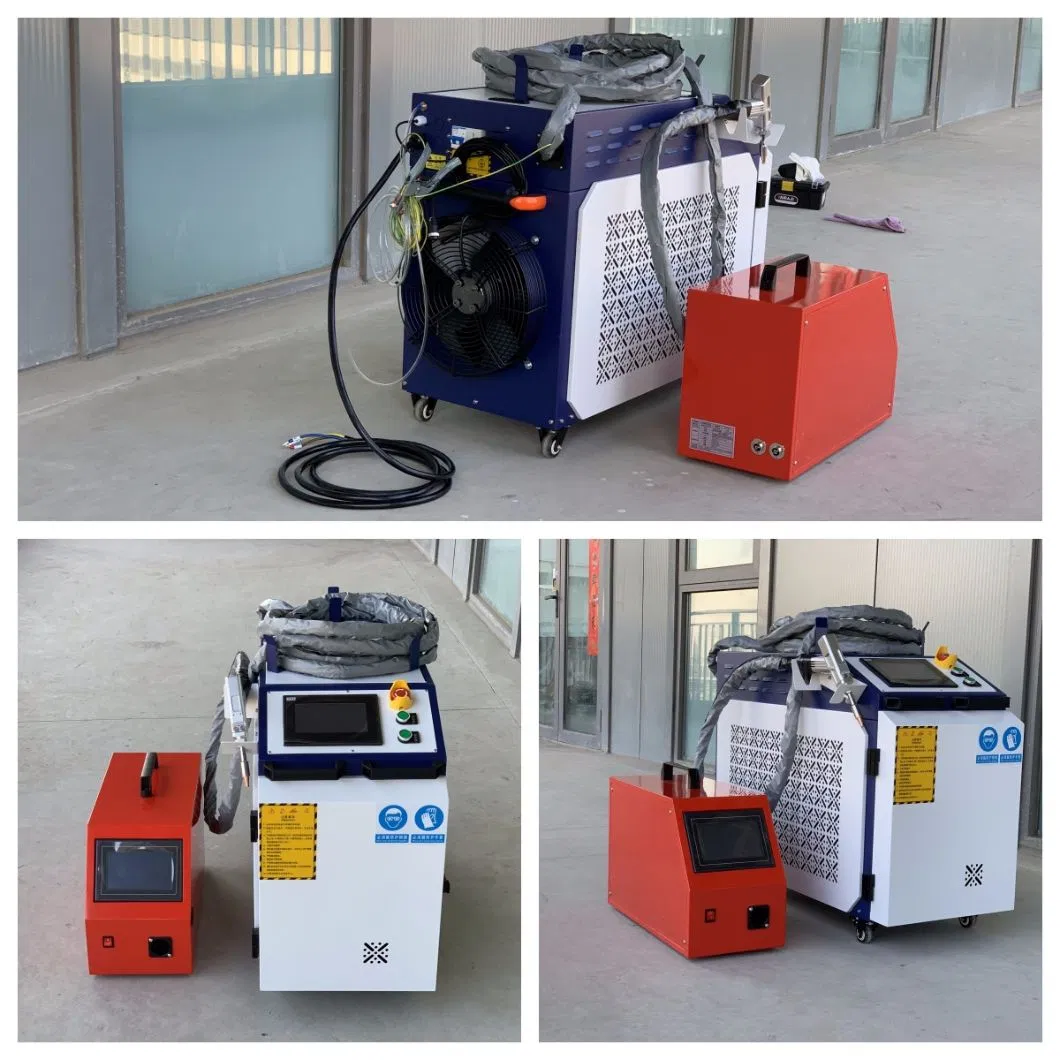

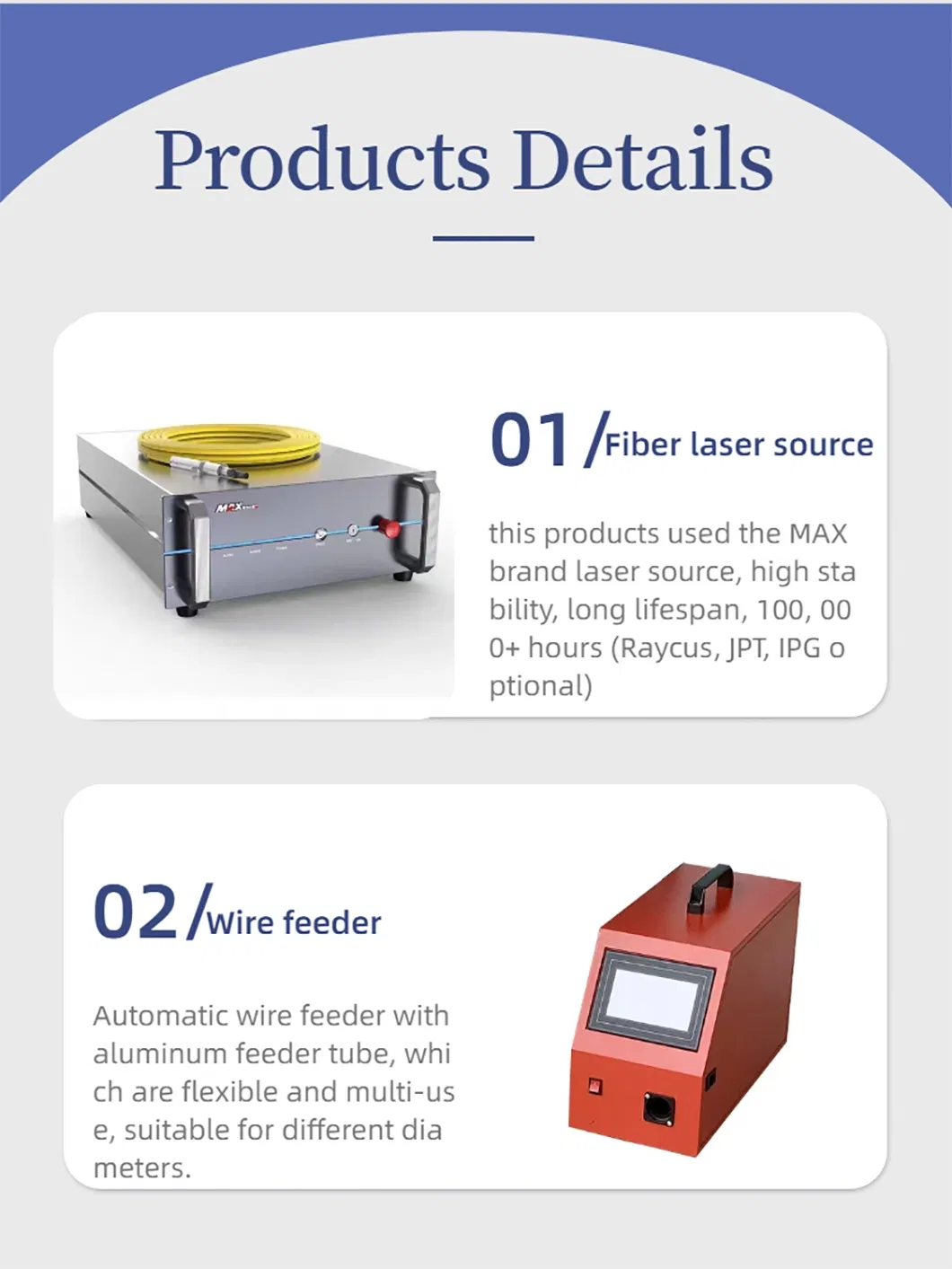

Machine Main Parts

4-in-1 Multifunction: Welding, Cutting, Cleaning, and Weld Seam Cleaning with stable results across all applications.

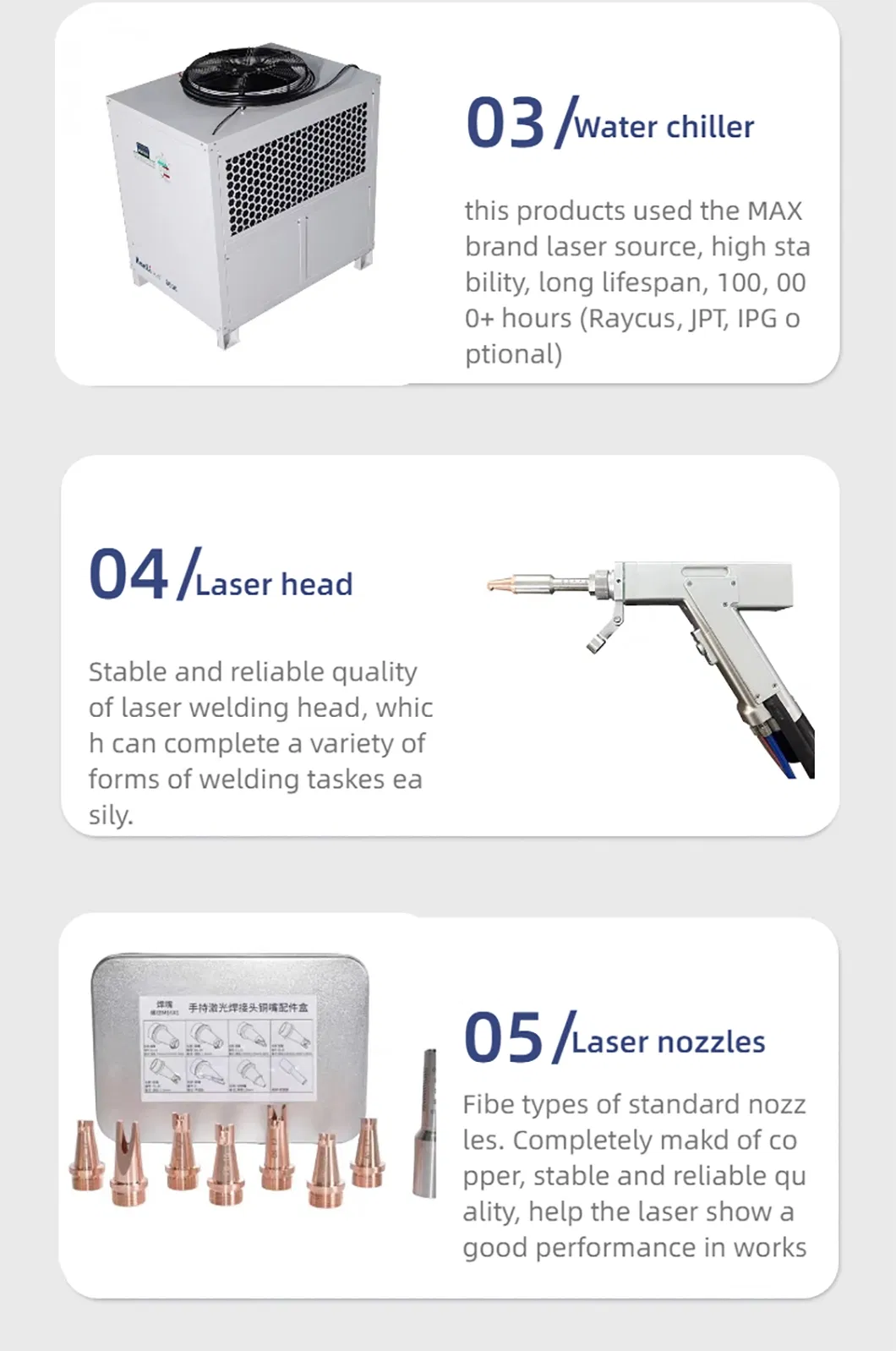

Fiber Laser Source: High stability MAX brand (Raycus, JPT, IPG optional) with 100,000+ hours lifespan.

Automatic Wire Feeder: Flexible aluminum feeder tube designed for various wire diameters.

Industrial Water Chiller: High-efficiency Hanli chiller for optimal temperature control and low noise.

HD Smart Screen: Touch-enabled interface supporting 16+ languages for global accessibility.

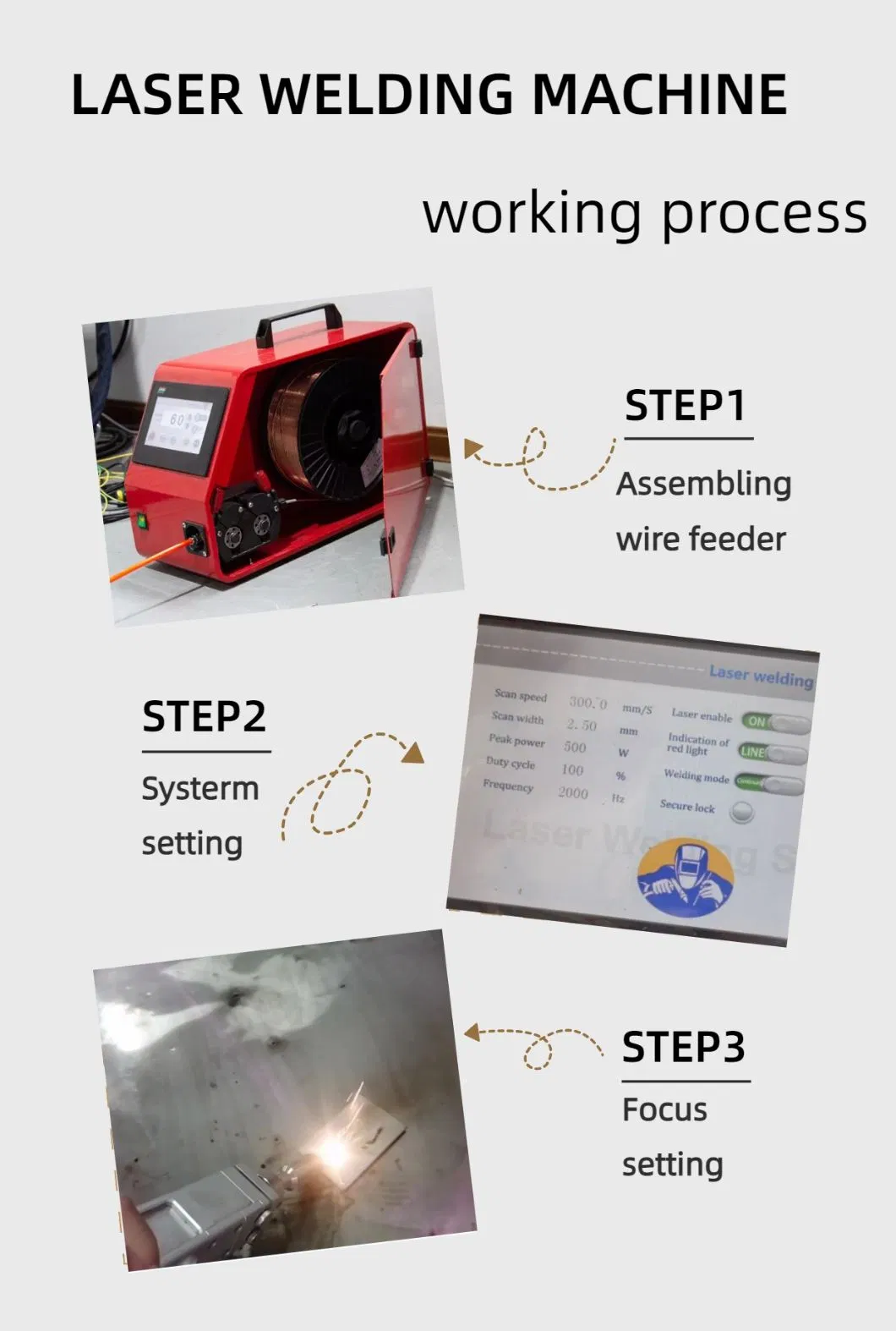

Working Process & Instructions

1. Safety Precautions

Wear appropriate PPE (goggles, gloves, lab coats).
Ensure well-ventilated work area.

2. Machine Setup

Place on a stable, flat surface.
Connect to compatible power supply and setup cooling system.

3. Operating the Machine

Adjust parameters (power, speed, frequency) based on material.
Perform test welds on scrap material first.

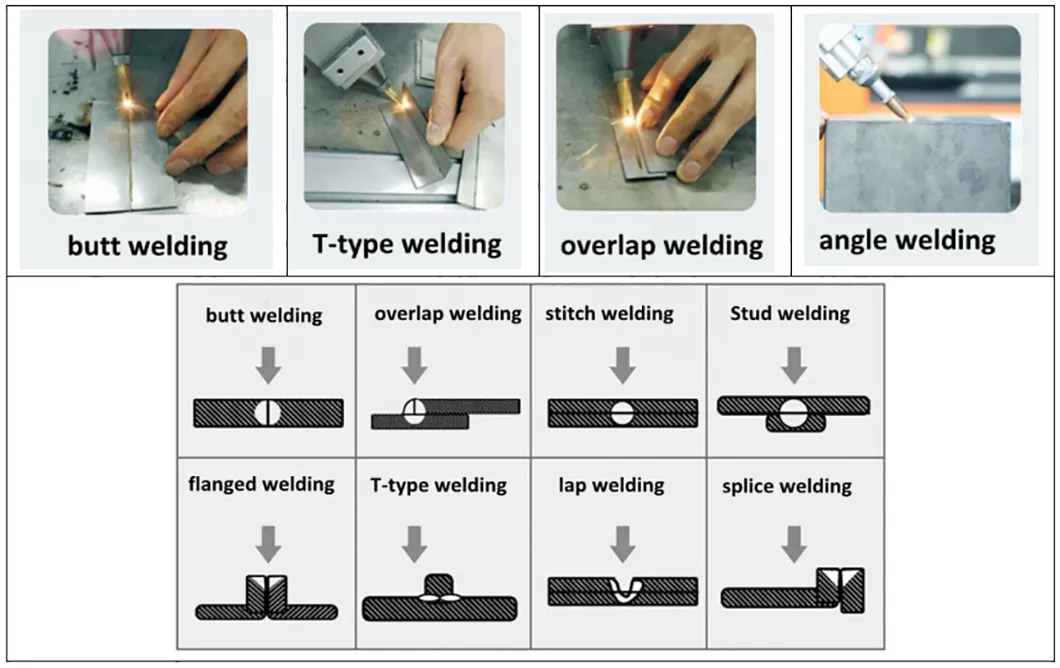

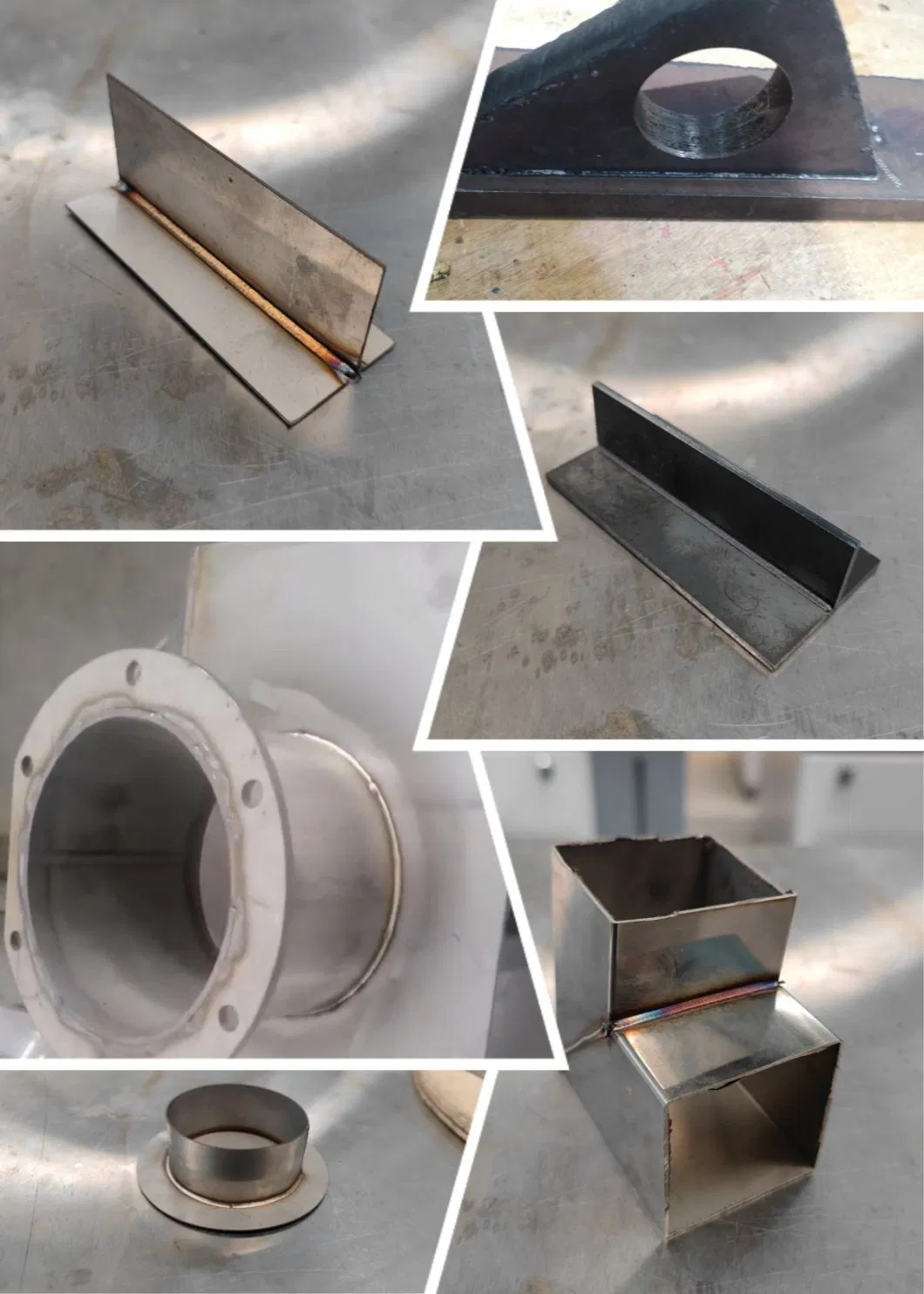

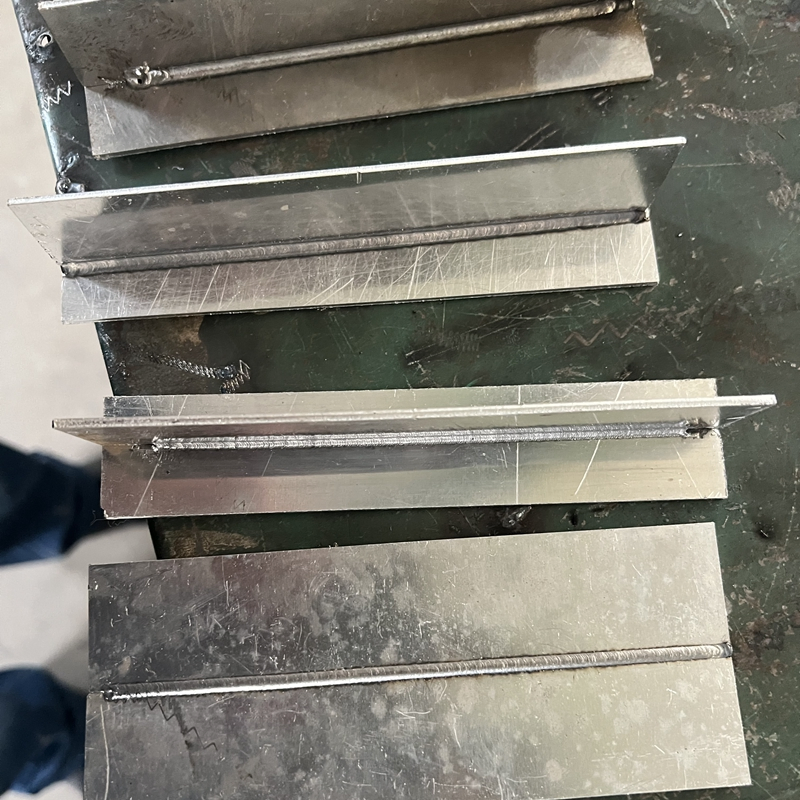

Welding Samples

Capable of: Butt welding, overlap welding, stitch welding, stud welding, flanged welding, T-type welding, lap welding, and splice welding.

Packaging, Shipping & Warranty

We utilize experienced staff and secure packaging materials to ensure equipment safety during transit.

2-Year Warranty: Comprehensive coverage for the whole machine and laser source.
Lifetime Technical Support: Expert assistance via email or online messaging.
24/7 Assistance: Uninterrupted support to maximize efficiency.
On-Site Service: Overseas training and installation assistance available.

Certifications & Feedback

Frequently Asked Questions

1) What should I do if something goes wrong with the laser? We provide a two-year warranty with free parts replacement for non-human damage and lifetime after-sales support to resolve any issues promptly.

2) How long does it take to learn to operate the laser? With our English manuals, instructional videos, and technician assistance, you can grasp the basics in a few hours and reach proficiency within a few days.

3) Can the machine be customized to my requirements? Yes, our technical team specializes in tailoring solutions, including logo customization and machine appearance, to meet your specific branding and functional needs.

4) What are the available shipping options? We arrange shipments via sea, air, or express. We support various trading terms including FOB, CIF, EXW, and DDU for your convenience.

5) What functions does the 4-in-1 system include? The system integrates four key functionalities: high-precision welding, efficient cutting, surface cleaning, and weld seam cleaning.

6) What is the lifespan of the fiber laser source? The high-quality fiber laser source used in our machines is designed for high stability with a long lifespan exceeding 100,000 hours.
