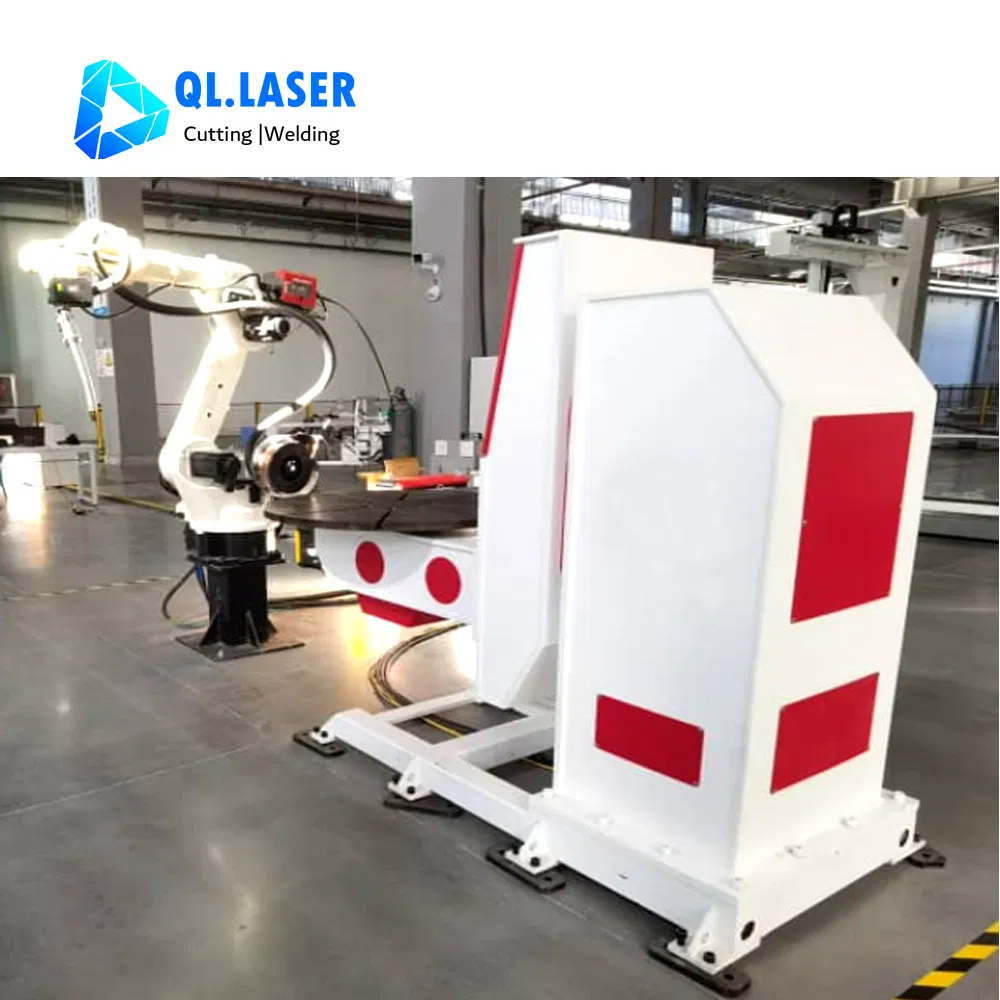

Advanced Technique Robotic Weld Cell for Steel Structure Industry with 3D Scanning Function

Model NO.: BW
Type: Arc Welding Robot
Drive Mode: Electric
Control Mode: Continuous Path Control

Welding Speed: 0.5 m/min
Welding Machine: Aotai or Megmeet
Controller: Bochu Fsweld
Software: Cypweld

Advantage: No Teaching and Programming
Visual System: Laser Suture Finder Bcw600p
Drawing: Import 3D Drawings Directly
Origin: China

Product Description

Suitable for various small components, such as cow legs, cross grid structures, purlin pallets, etc.
Customize workbenches or single/double axis positioners according to the type of workpiece and welding needs.
The software can be operated in a foolproof manner after 1-2 days of training.
No need for manual intervention throughout the entire process after loading.

Product Parameters

Content	Parameter Range	Unit	Remarks
Degrees of Freedom (Axes)	6+2	/	/
Required Ambient Temperature	-10~45	ºC	/
Maximum End Load	6	Kg	/
Recommended Floor Space	W1200L1200H600	mm	/
Peak Total Power	40	kW	/
Rated Input Voltage/Frequency	380+/-10%	V	Three-phase
Floor Space	2400*4000	mm	/

Our Key Advantages

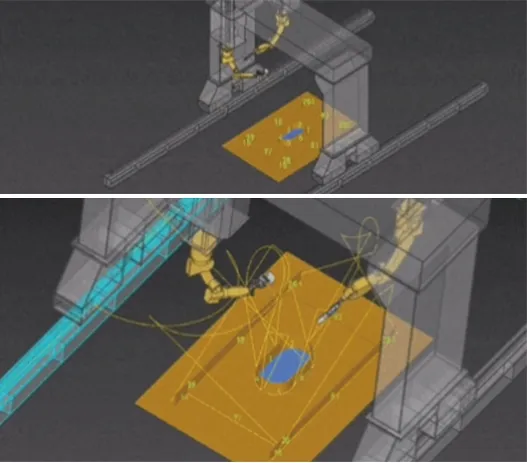

🚀 Robot Integrated Drive and Control System

Built-in drive system, revolutionizing traditional teaching programming.
Automatically plans motion trajectory and adjusts welding posture.
Intelligent obstacle avoidance through software planning.
Equipped with collision detection and monitoring.

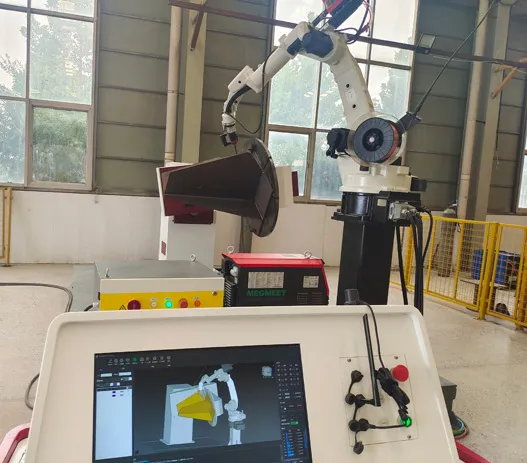

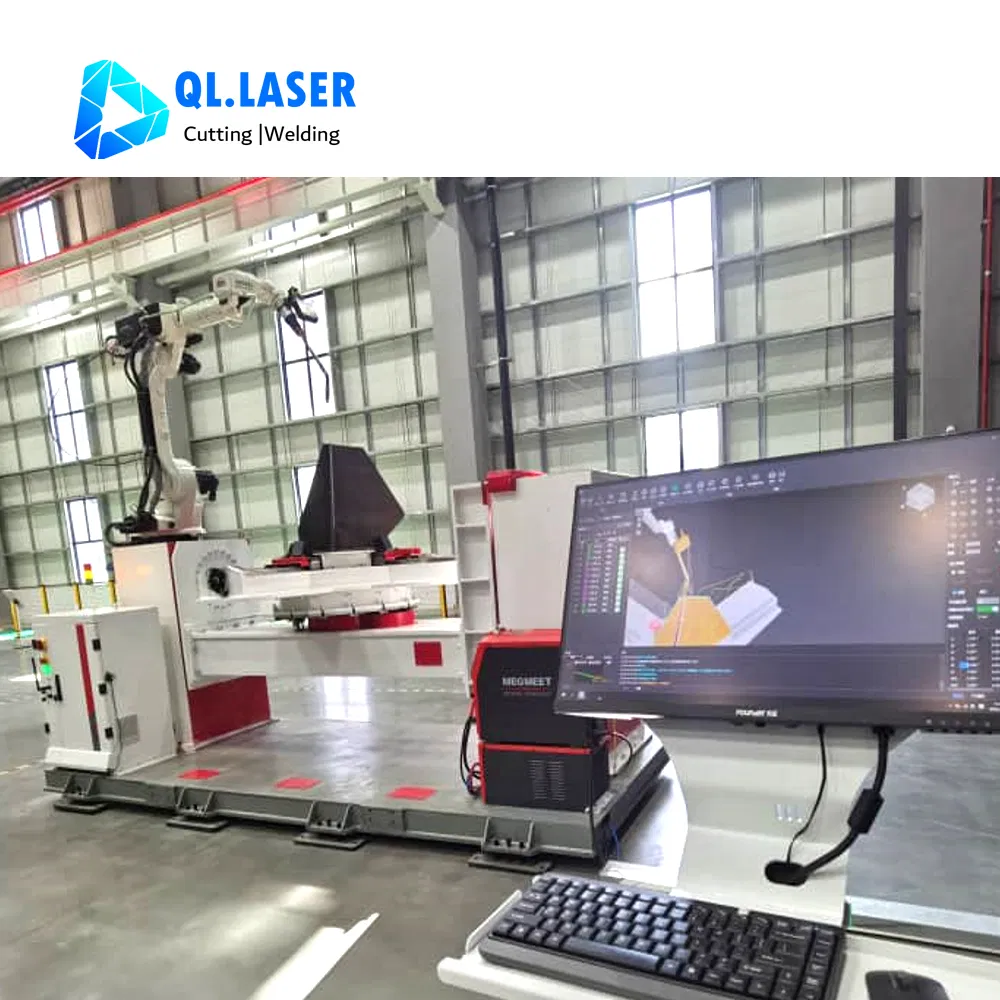

🖥️ Digital Twin System

1:1 replication of the physical object - what you see is what you get.
Operation through computer interface with real-time movement sync.
One-click command execution for scene-generated trajectories.

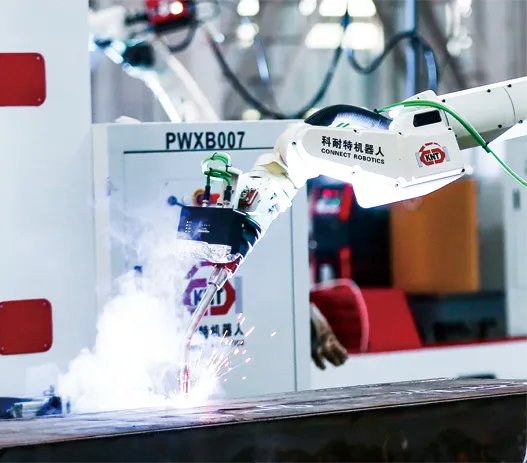

🤖 No-Teaching, No-Programming

Automatic Programming: Smart extraction of welding seam info from 3D models.
Rapid Deployment: One-click selection for corner, intermittent, and multi-layer welds.
Vision Guidance: Line laser scanning for rapid positioning.

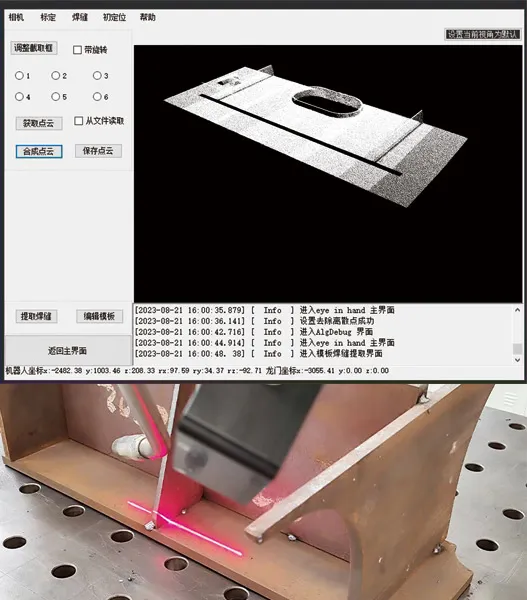

📊 Visual Positioning and Tracking

3D Camera: Captures 2m x 2m areas with ±0.5mm accuracy.
Laser Guidance: Real-time analysis and correction of the welding trajectory.
Eye-in-Hand: Prevents collisions and handles complex imaging conditions.

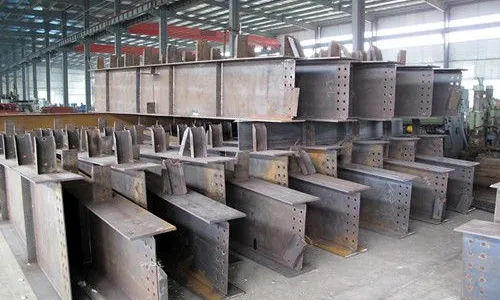

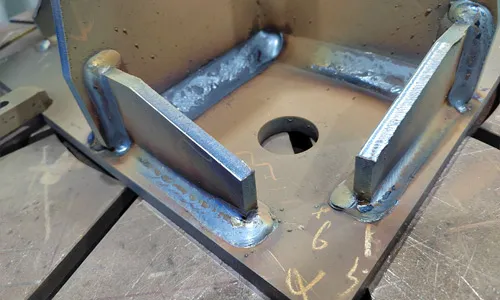

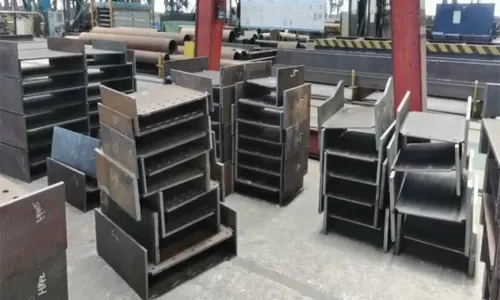

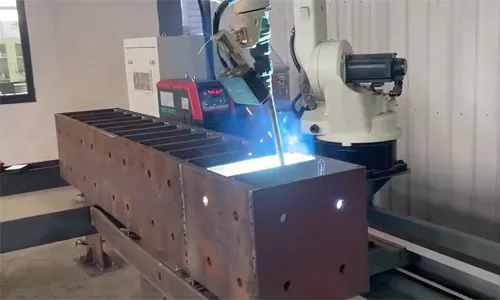

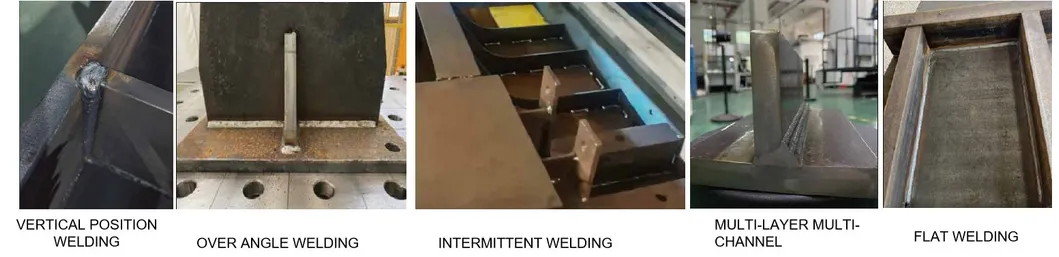

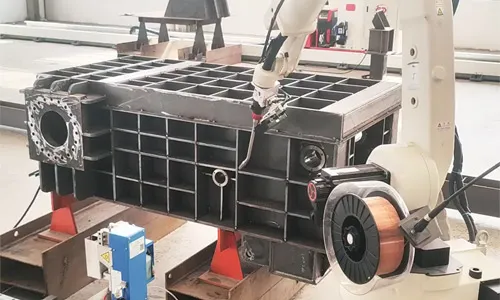

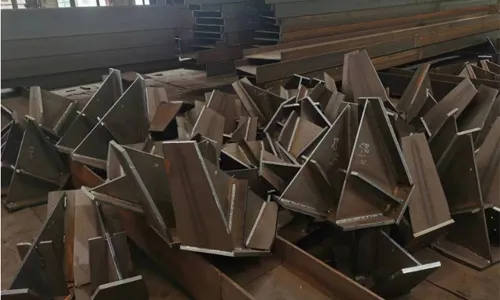

Welding Samples & Types

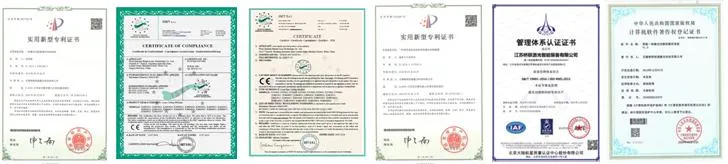

Certifications & Related Products

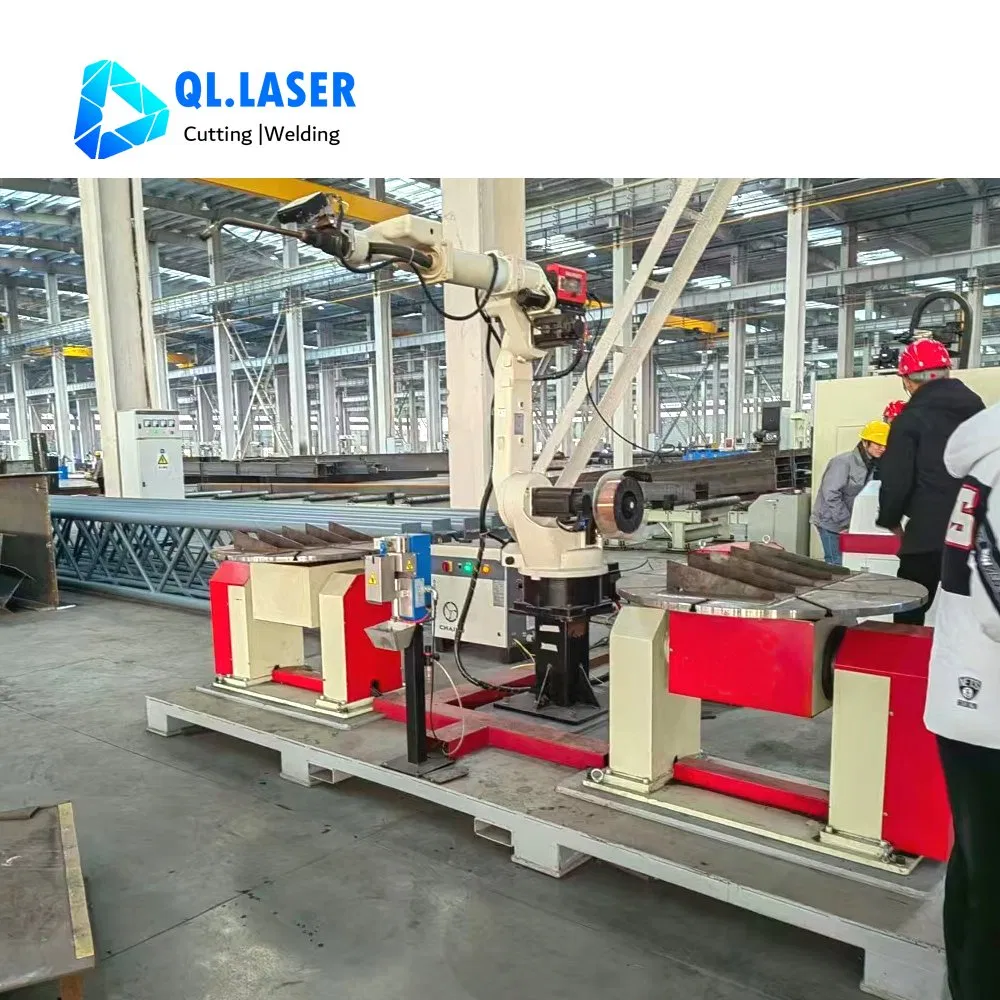

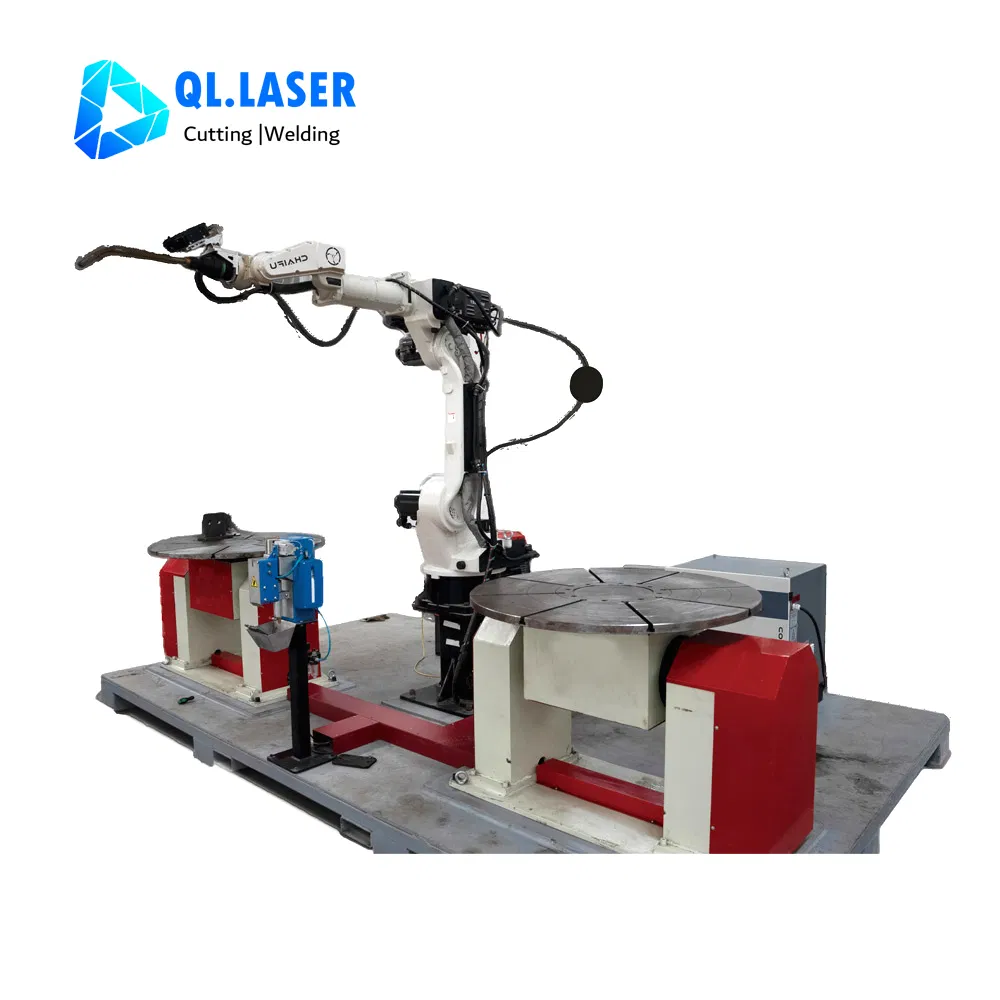

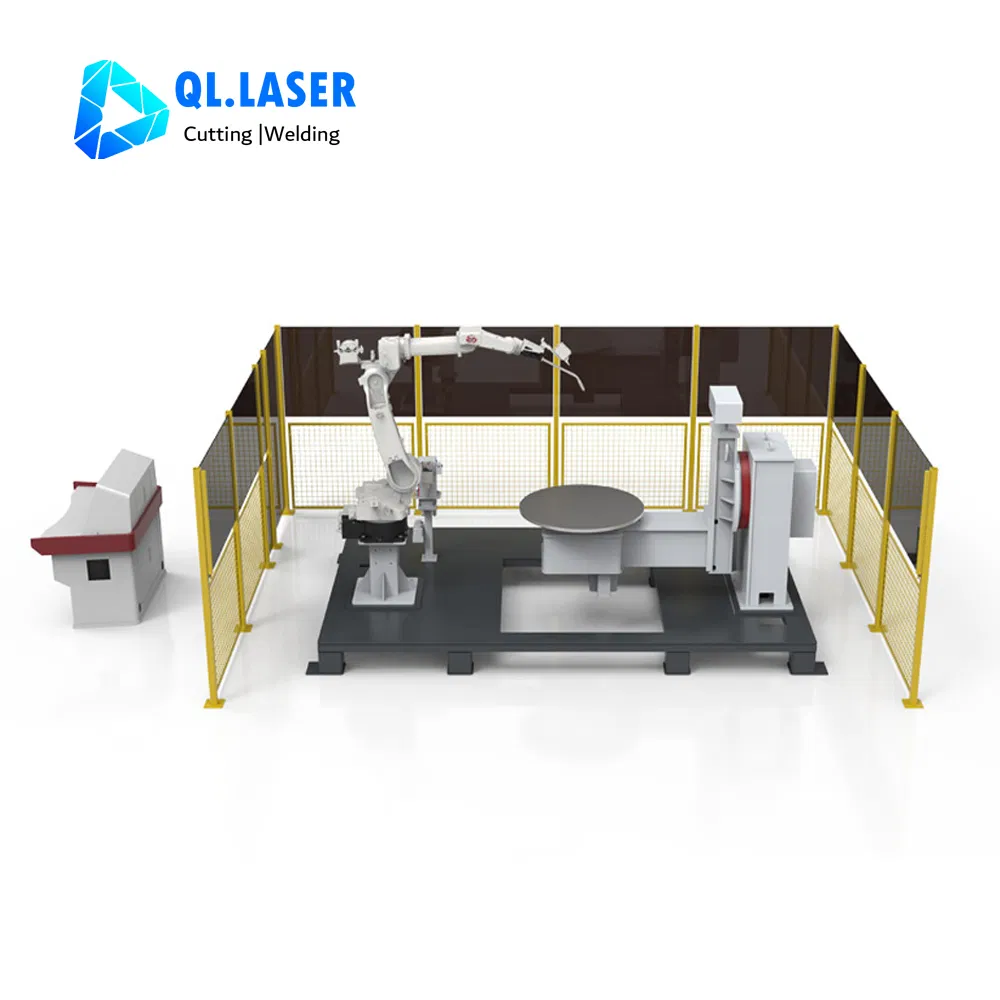

BW series Welding Robot with L Positioner

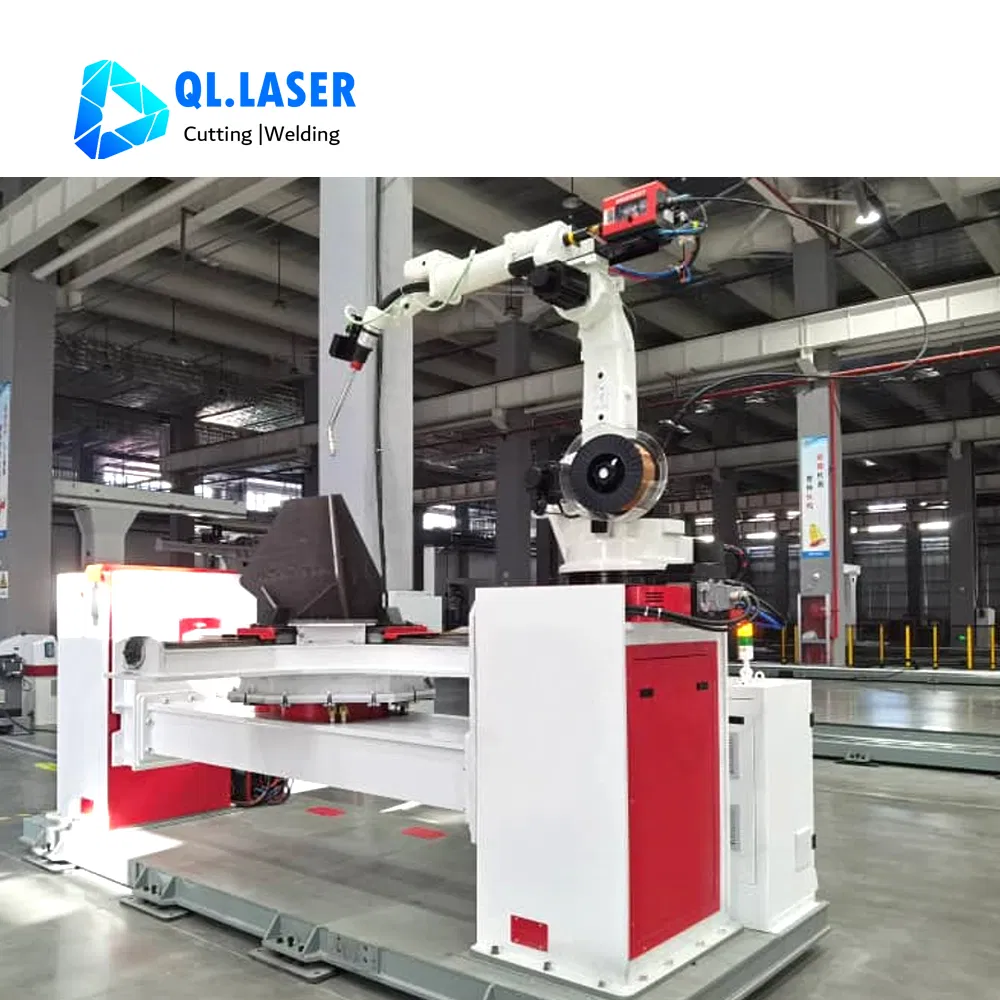

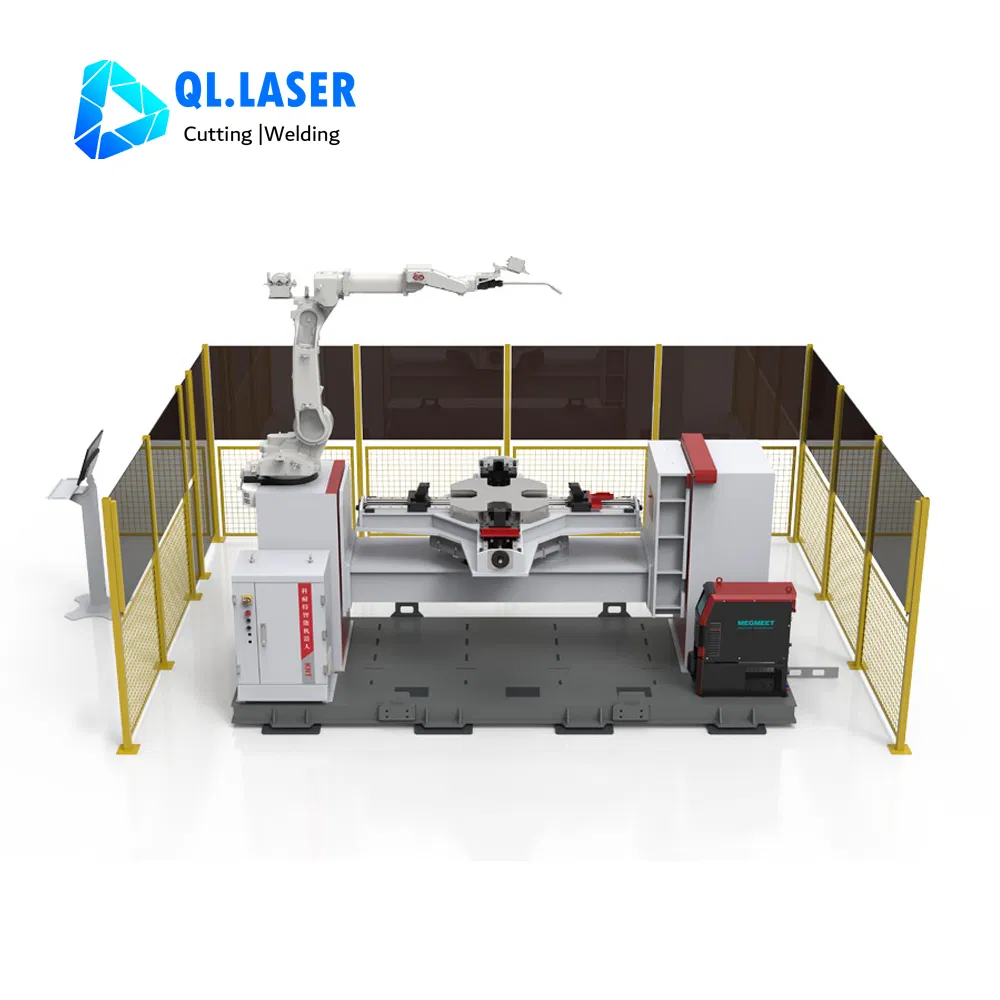

BW series Welding Robot with H Positioner

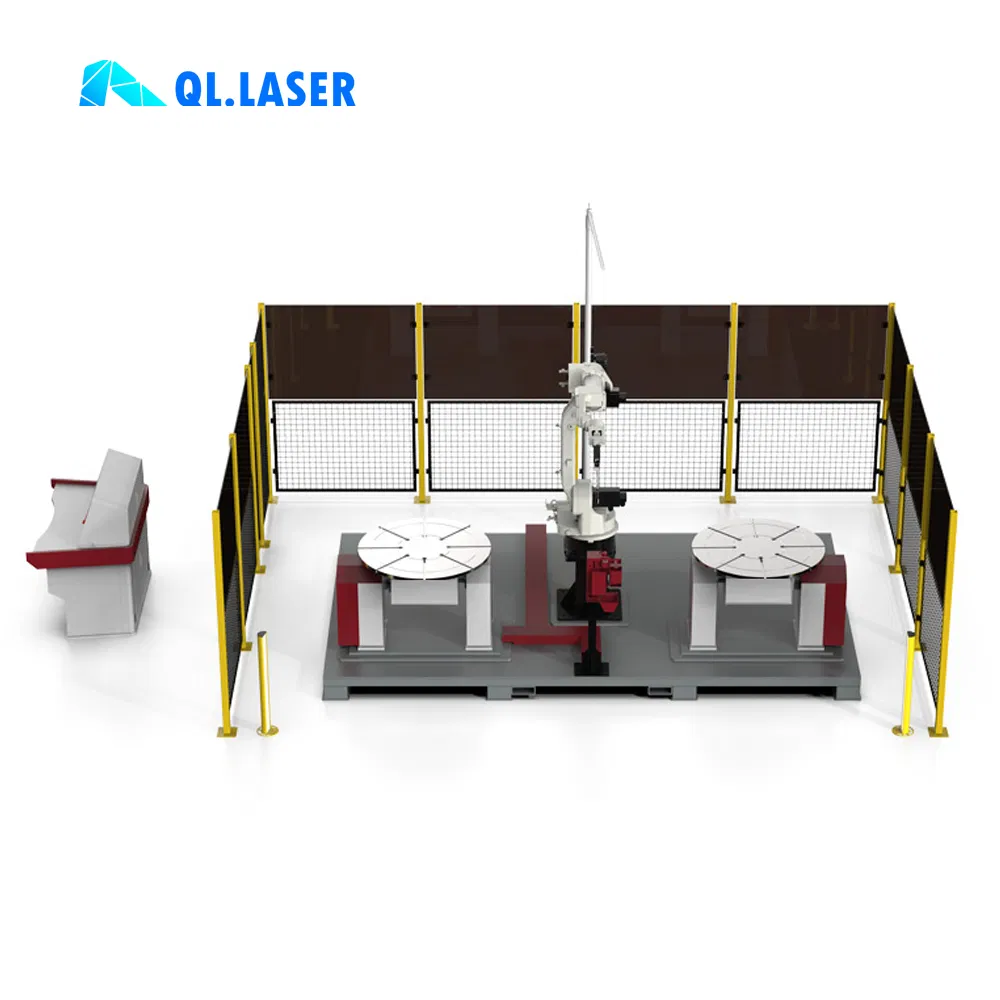

BW series Welding Robot with Dual Positioner

Frequently Asked Questions (FAQ)

Q1: How long does it take to train an operator for this welding robot? A: Thanks to the foolproof software design and no-teaching programming system, operators can typically be fully trained and ready to use the system within 1 to 2 days.

Q2: What kind of components are best suited for this robotic weld cell? A: The system is ideal for small to medium steel structure components, including cow legs, cross grid structures, purlin pallets, and various types of support plates.

Q3: How does the "No-Teaching" system work? A: The system allows you to import 3D blueprints directly. The software automatically recognizes the welding seams and plans the robot's trajectory, eliminating the need for manual point-by-point teaching.

Q4: What is the accuracy of the 3D scanning and positioning system? A: The 3D camera provides high-precision imaging with an error margin of only ±0.5mm, which fully meets and exceeds standard industrial welding requirements.

Q5: Can the system avoid obstacles during welding? A: Yes, the software features intelligent path planning and collision detection, allowing the robot to automatically avoid obstacles and protect the hardware.

Q6: What welding methods and materials are supported? A: The BW series primarily uses the MAG welding method and is designed for steel structures, supporting wire diameters ranging from 0.8mm to 1.6mm for various welding positions.
