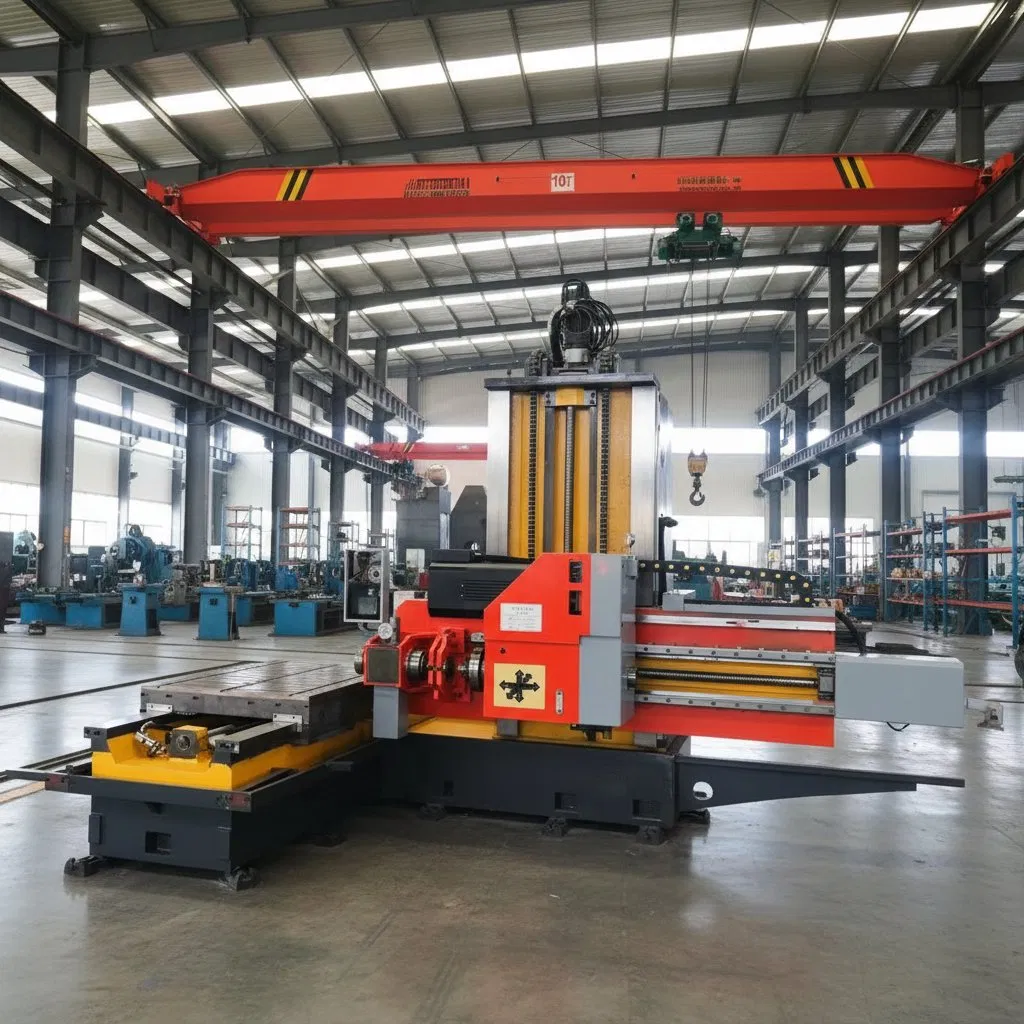

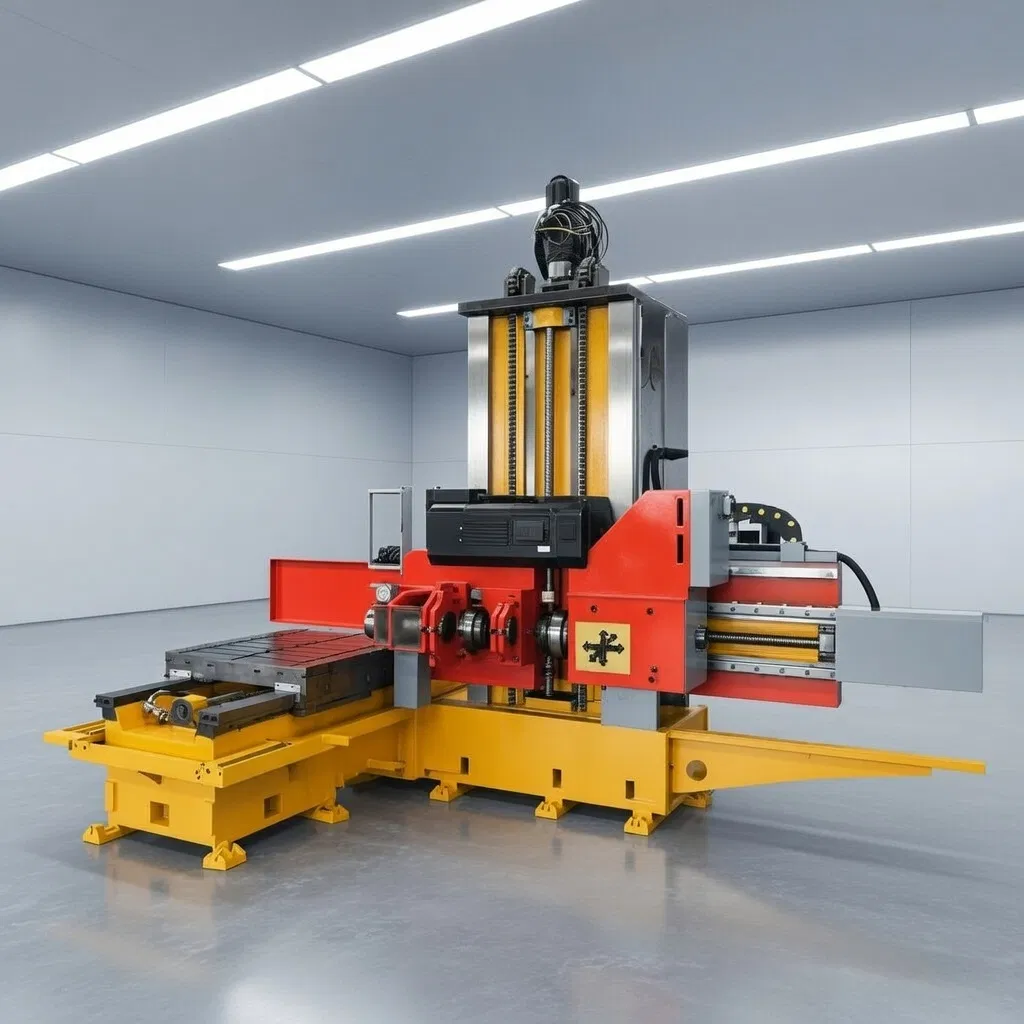

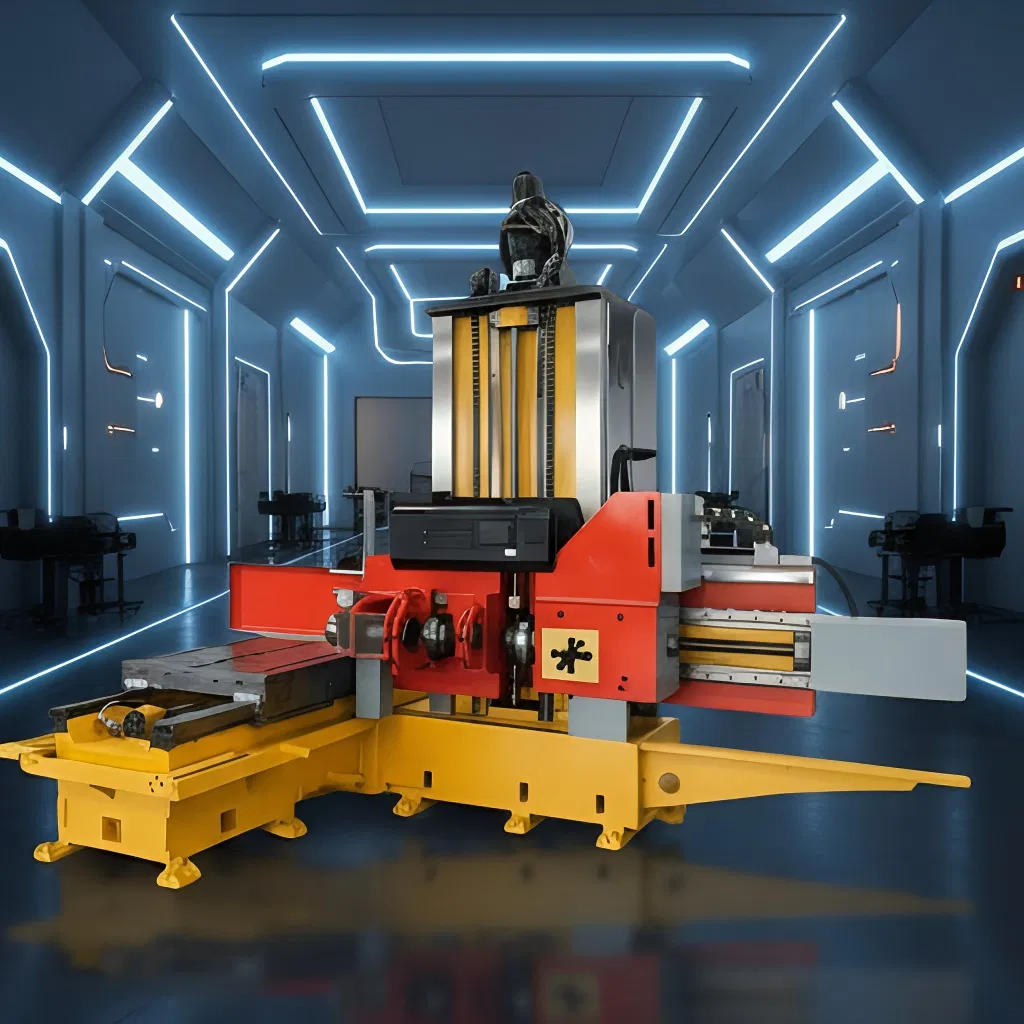

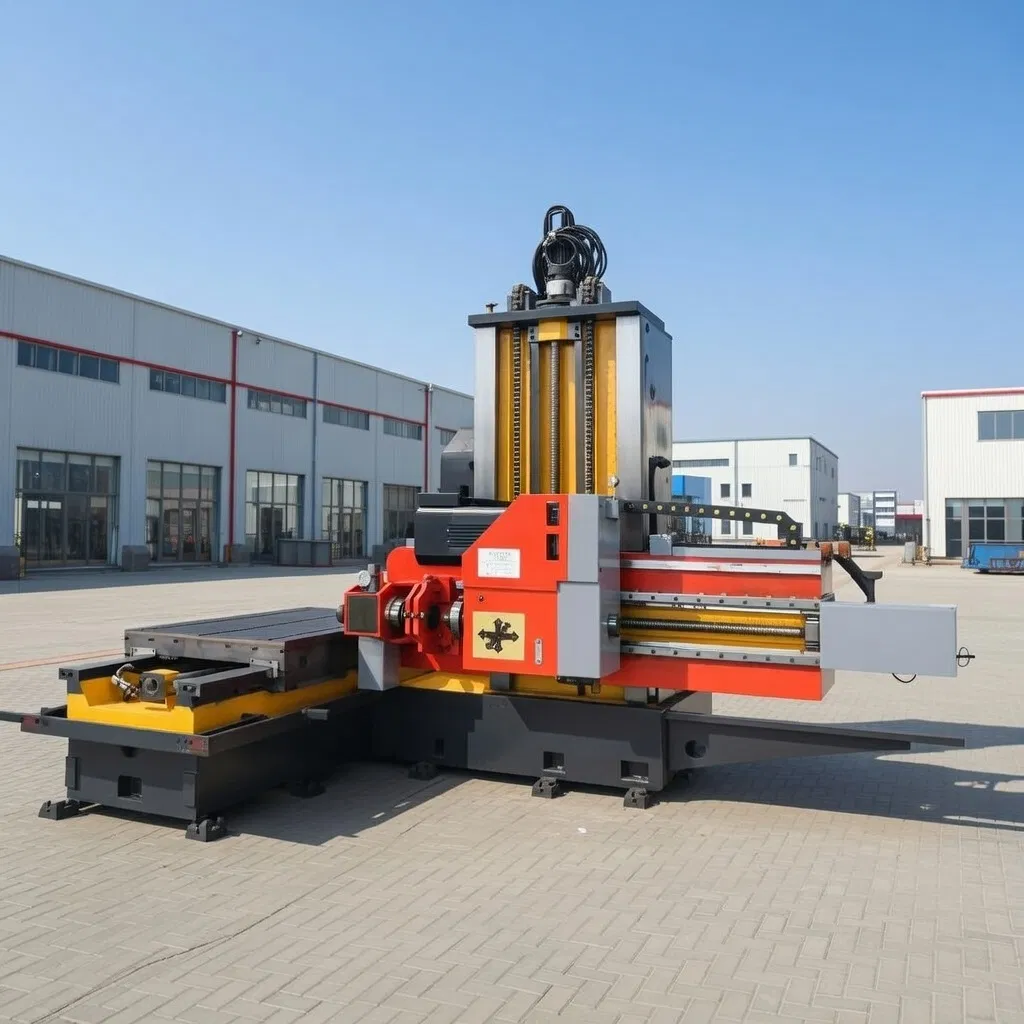

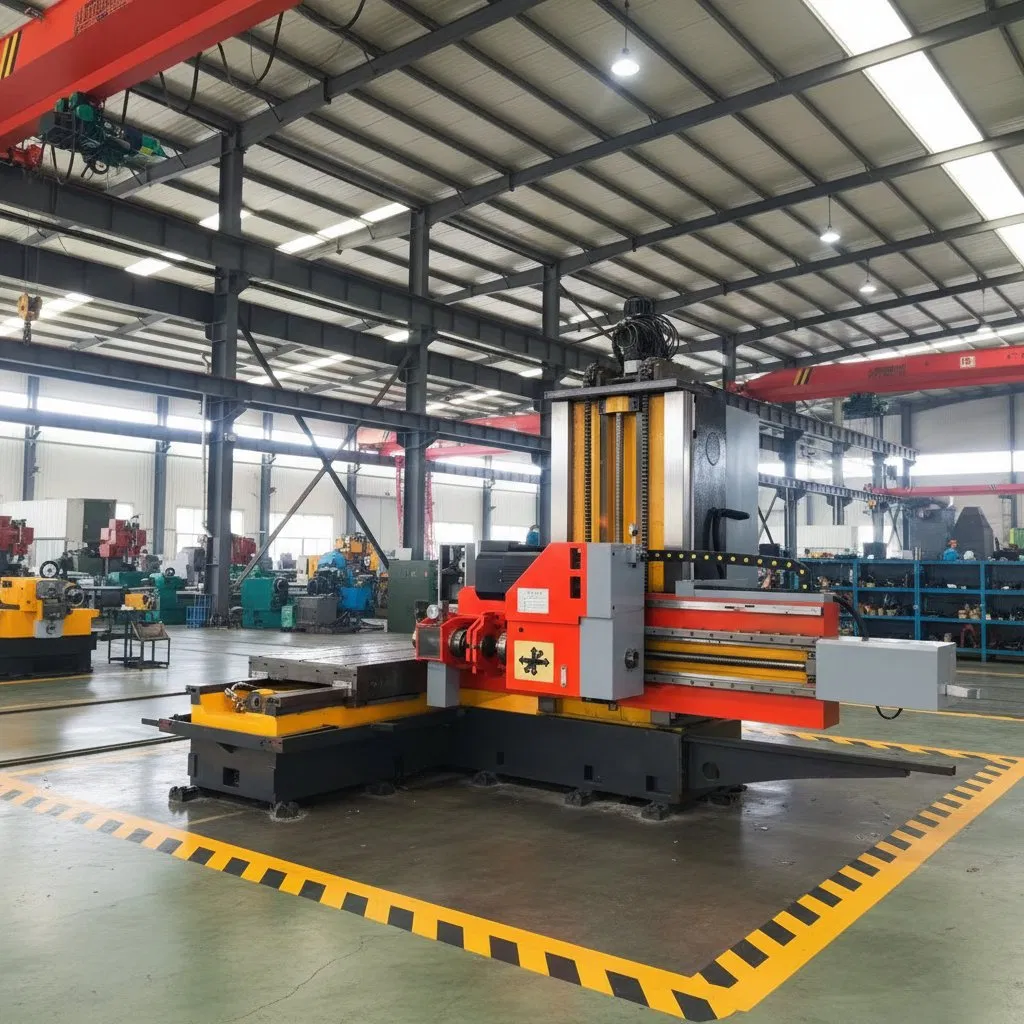

CNC Deep Hole Gdrilling Machine with BTA System High-Speed Laser Engraving Machine
CNC Deep Hole Gdrilling Machine with BTA System High-Speed Laser Engraving Machine
CNC Deep Hole Gdrilling Machine with BTA System High-Speed Laser Engraving Machine
CNC Deep Hole Gdrilling Machine with BTA System High-Speed Laser Engraving Machine
CNC Deep Hole Gdrilling Machine with BTA System High-Speed Laser Engraving Machine
1 / 5
CNC Deep Hole Gdrilling Machine with BTA System High-Speed Laser Engraving Machine
CNC Deep Hole Gdrilling Machine with BTA System High-Speed Laser Engraving Machine
CNC Deep Hole Gdrilling Machine with BTA System High-Speed Laser Engraving Machine
CNC Deep Hole Gdrilling Machine with BTA System High-Speed Laser Engraving Machine
CNC Deep Hole Gdrilling Machine with BTA System High-Speed Laser Engraving Machine

CNC Deep Hole Gdrilling Machine with BTA System High-Speed Laser Engraving Machine

Customization: Available
After-sales Service: Lifetime Service
Warranty: 5 Years
Send Inquiry

Product Description

Basic Specifications
Model NO.ZK2103/ZK2108StructureHorizontal Drilling Machine
Controlling ModeCNCNumber of Shaft3
Hole Diameter<50mmAutomatic GradeAutomatic
PrecisionHigh PrecisionCertificationISO 9001
ConditionNewCore ComponentsPLC
Drilling Diameter Range3-30 mmMax Machining Depth600/1000/1500/2000/2500 mm
Spindle Speed50-3000 r/minSpindle Motor Power5.5/7.5 Kw (Servo)
Detailed Technical Parameters
Technical Specifications ZK2103 (Gun Drill) ZK2108 (Combined Machine)
Drilling Diameter Range3-30 mm3-30 (Gun Drill), 30-80 (BTA)
Max Machining DepthUp to 2500 mmUp to 2500 mm
Spindle Motor Power5.5/7.5 Kw22 Kw (Servo Spindle)
Z-axis Feed Speed10-500 mm/min10-500 mm/min
Rapid Traverse Speed (Z)5 m/min2 m/min
CNC SystemKNDKND
Cooling System Pressure10 MPa10 (Gun Drill) / 0.5 (BTA) MPa
Product Overview & Performance

This CNC 3-axis/4-axis deep hole drilling machine is a highly efficient, high-precision automated solution adopting both the external chip removal (gun drilling) and BTA drilling methods.

✓
High Precision: Achieves accuracy standards of IT7–IT10 with surface roughness of Ra 3.2–0.04 μm.
✓
Superior Rigidity: Fabricated from high-strength cast iron with optimized internal reinforcing plates for maximum stability.
✓
Advanced Control: Features the high-end KND control system for simple operation and powerful functionality.
Visual Demonstration
Deep Hole Drilling Machine

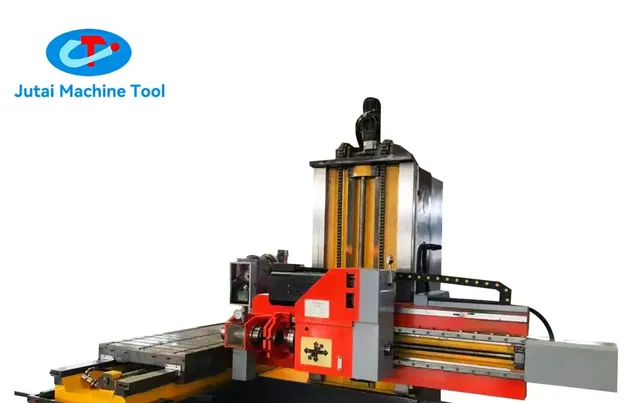

Machine Detail 1

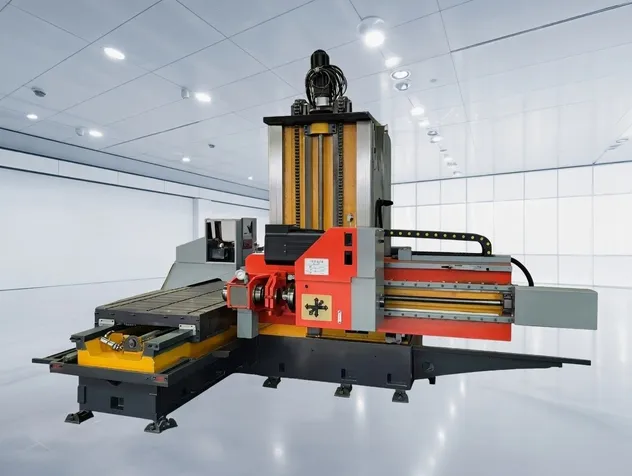

Machine Detail 2

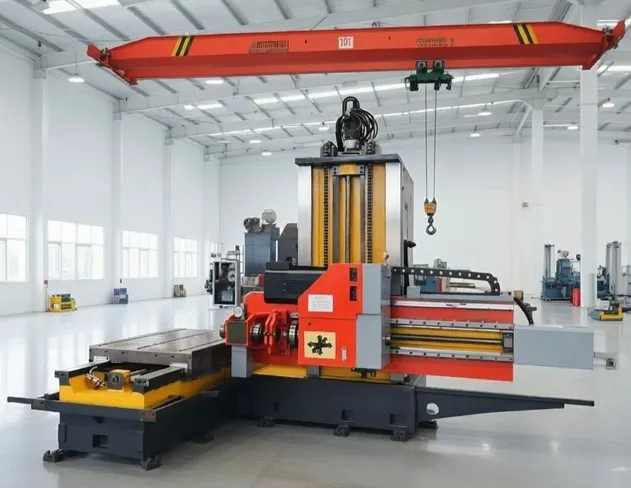

Machine Detail 3
Industrial Applications
  • 1Hydraulic Industry: Precision boring for cylinders, valves, and pump bodies.
  • 2Automotive: Engine blocks, fuel systems, and steering shafts.
  • 3Oil & Gas: Finishing drill pipes, well casings, and high-pressure valve bodies.
  • 4Aerospace: Landing gear components and thrusters.
  • 5Mold & Die: Ejector pin holes and electric heating holes.

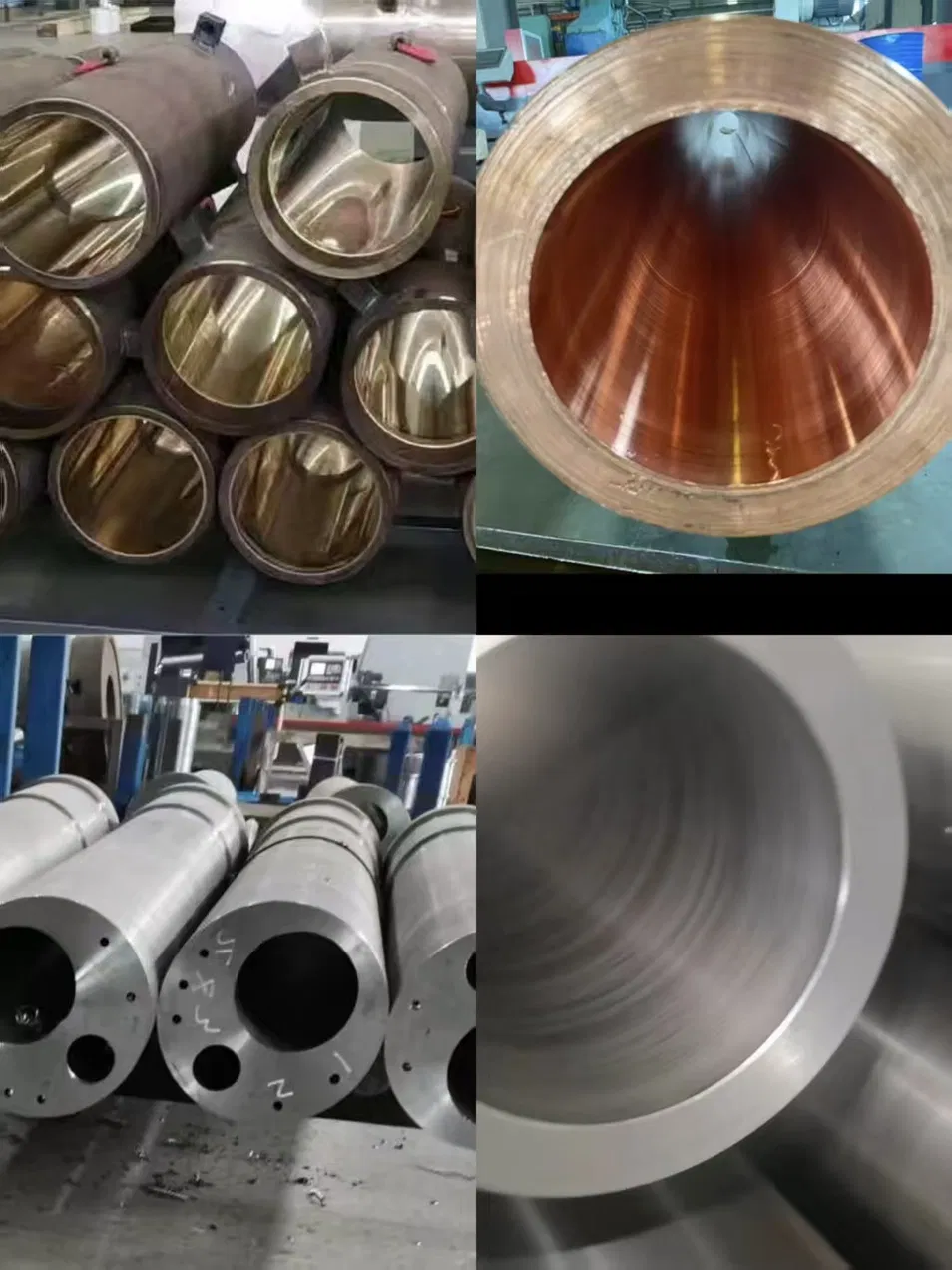

Applications
Production & Workshop
Machine Bed
Workshop 1
Workshop 2

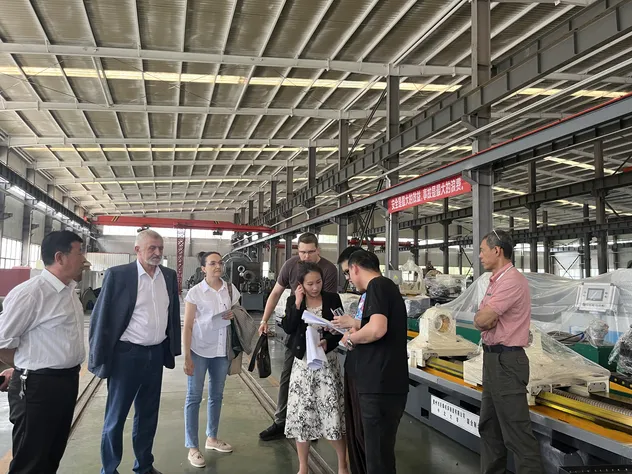

Workshop 3
Certifications & Shipping
Certifications
Packing 1
Packing 2
Packing 3
Frequently Asked Questions
Q1: What kind of after-sales service do you provide?
We offer comprehensive support including technical training and, if necessary, engineers are available for overseas machinery service.
Q2: What is the warranty period for the machine?
The complete machine comes with a one-year warranty and lifetime maintenance support.
Q3: How do you ensure the quality of the machinery?
Every machine undergoes rigorous testing before packing. We use internationally recognized brand spare parts and test equipment at every production stage.
Q4: What is the typical lead time for orders?
Lead time depends on quantity. Generally, small orders are shipped within 7-15 days, while larger equipment or quantities take about 30 days.
Q5: Can the machine specifications be customized?
Yes, we undertake the design and manufacturing of non-standard tools and machine specifications (like X/Y travel and worktable size) according to customer requirements.
Q6: Why should I choose your deep hole drilling machines?
Our equipment combines high-end CNC technology (KND system) with superior structural rigidity and 24/7 online after-sales support to ensure high efficiency and ease of use.
