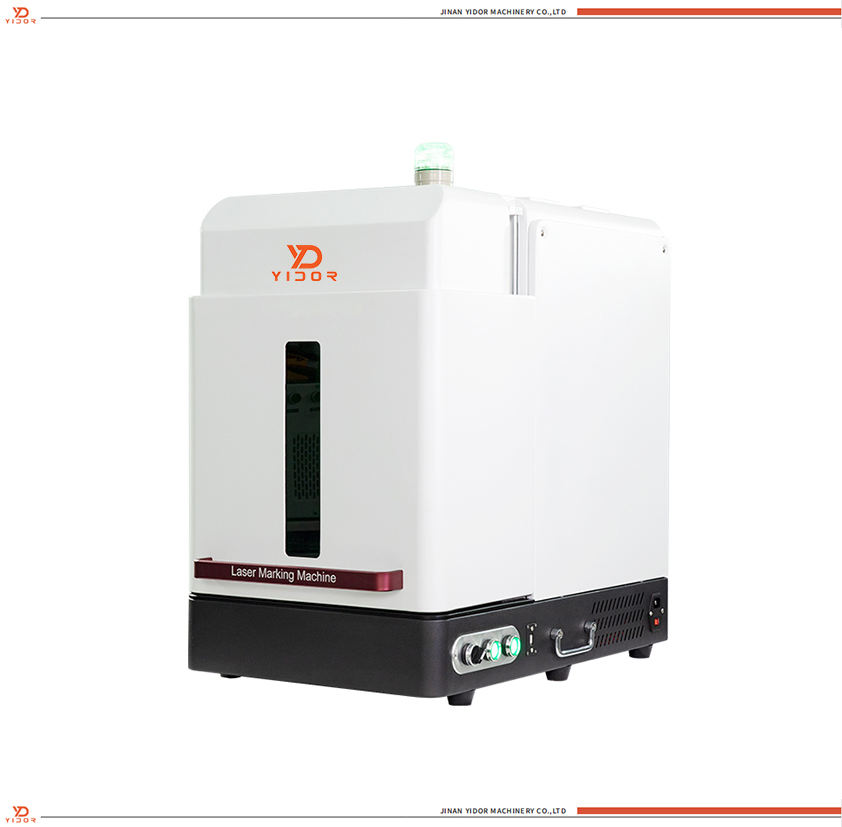

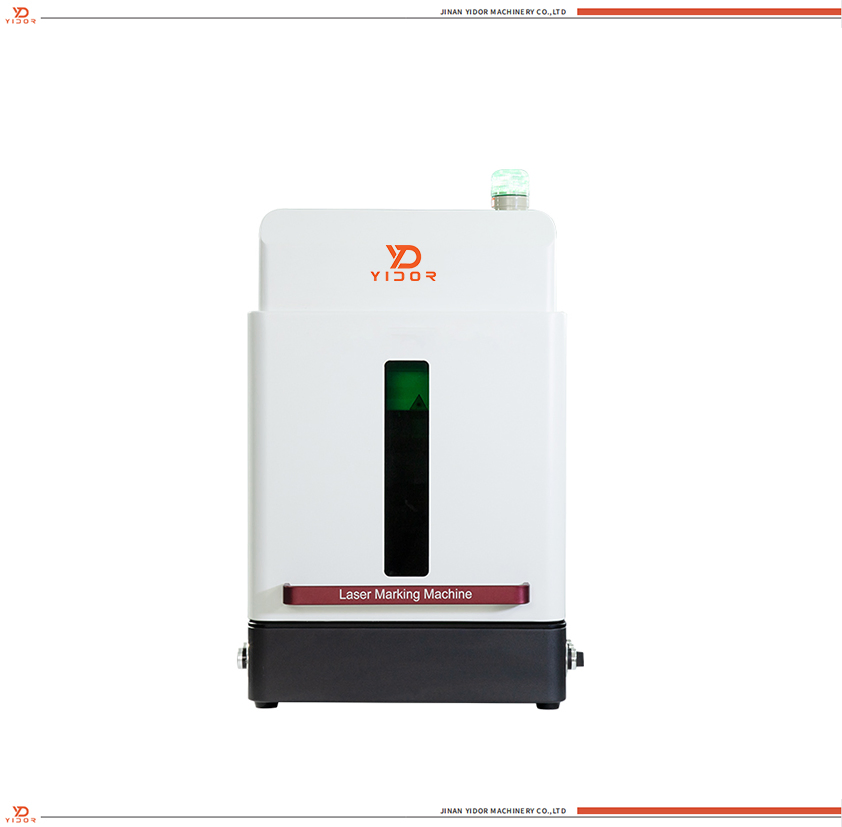

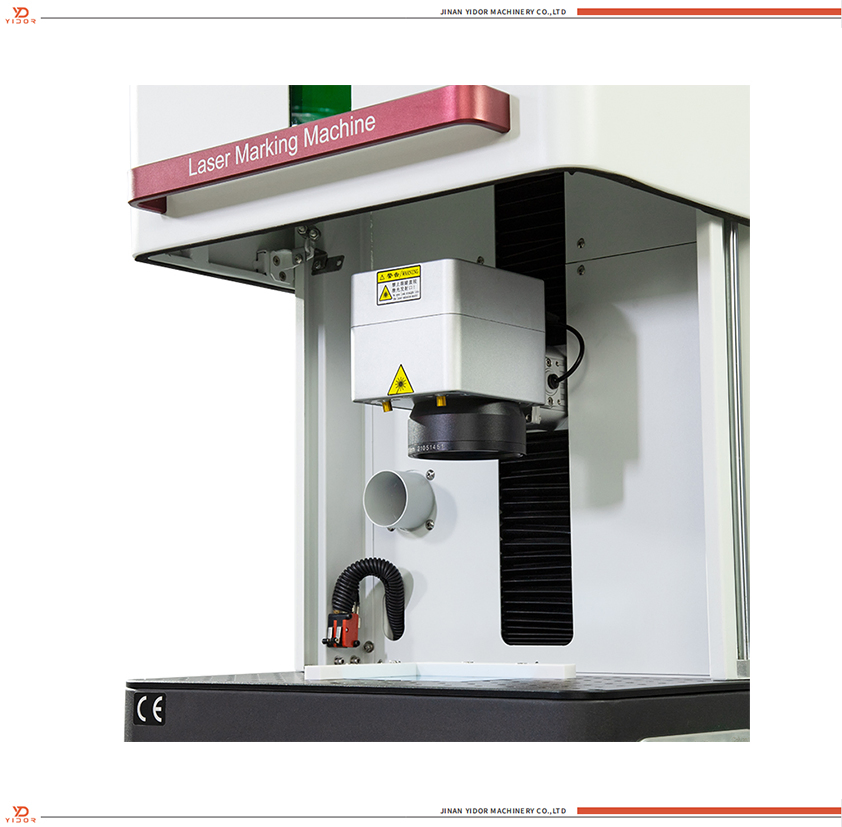

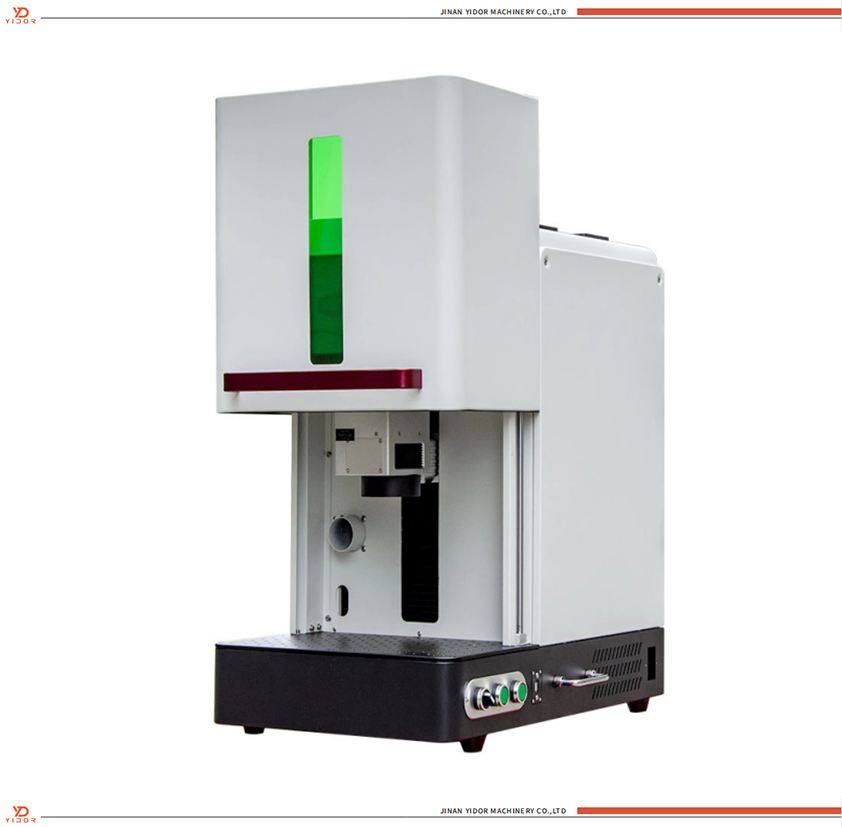

Deep Engraving Metal Fiber Laser Marking Machine 3D Laser Engraving Machine
The laser marking machine adopts the most advanced laser technology, which has the advantage of high beam quality and high reliability. It is suitable for processing fields that need high marking depth, smoothness, and accuracy. The fiber laser marking machine is environmentally friendly, low consumption, fully automatic, and a leading laser system.

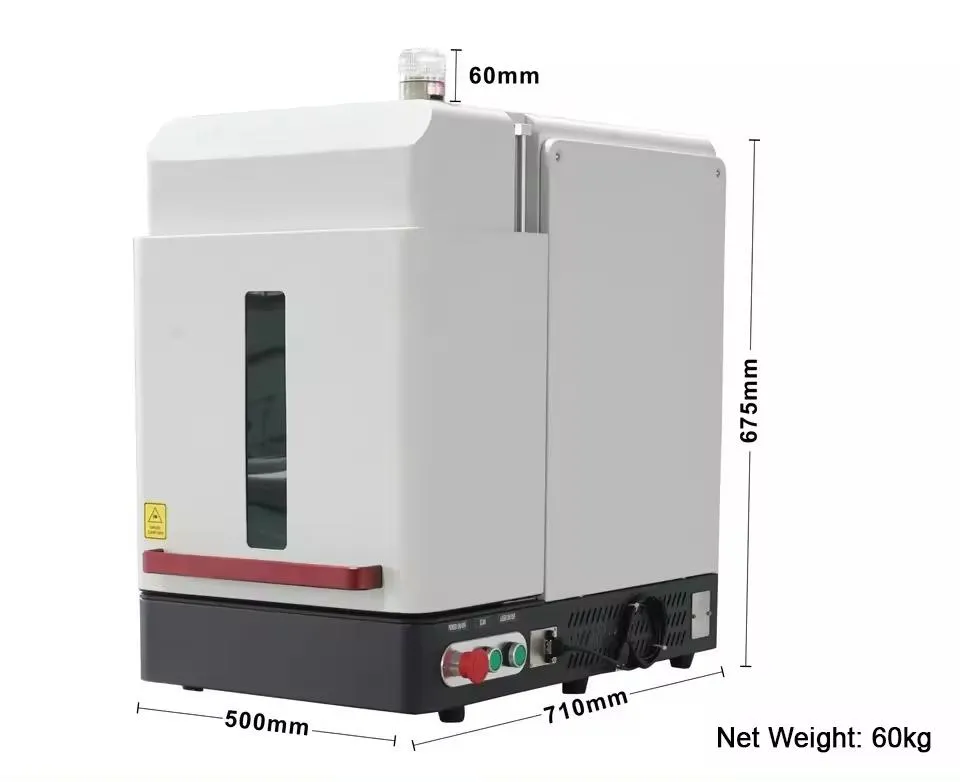

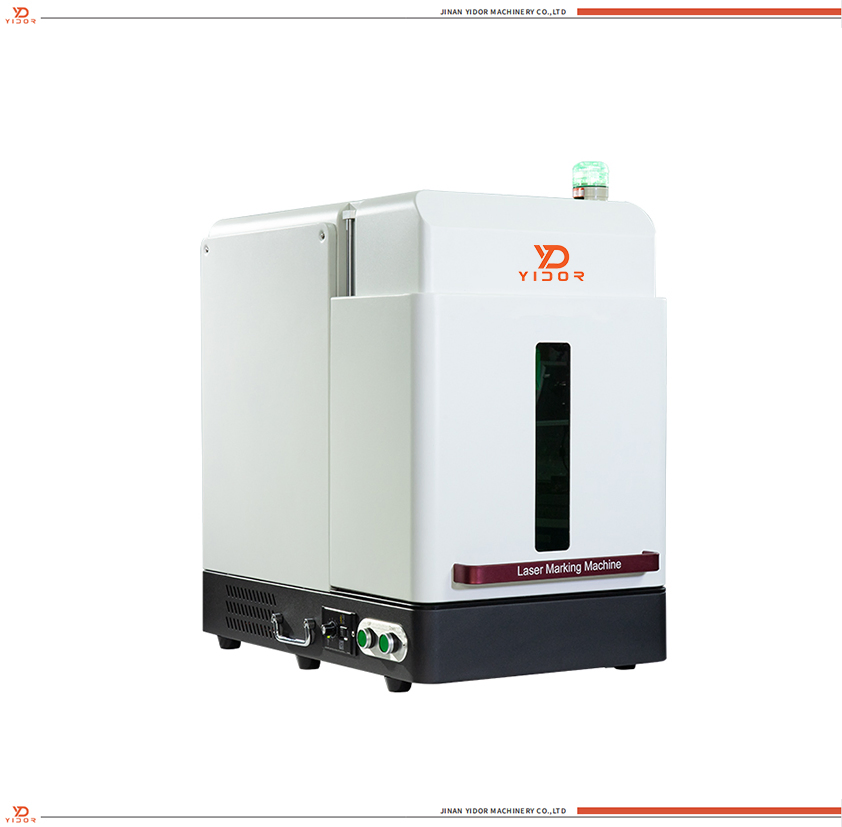

The software has already been installed and parameters settled before delivery. Once received, the laser etcher could work directly without data adjustment. It is widely used in metal materials and some non-metallic materials. For marking on Alumina materials with black logos or letters, the MOPA laser marking machine meets these requirements perfectly. This fully enclosed desktop design is compact, portable, and ensures effective safety protection.
| No. | Parameter Item | Technical Specifications |
|---|---|---|
| 1 | Laser Power | 60w / 80w / 100w JPT laser source |
| 2 | Marking Area | 100*100mm / 150*150mm / 175*175mm |
| 3 | Laser Wavelength | 1064nm |
| 4 | Frequency of Pulse | 20-80KHZ |
| 5 | Beam Quality | M² < 1.5 |
| 6 | Marking Speed | 7000-12000mm/s |
| 7 | Marking Depth | 0.01-1mm |
| 8 | Repetition Precision | 0.01mm |
| 9 | Minimum Line Width | 0.017mm |
| 10 | Cooling Mode | Air Cooling |
| 11 | Laser Lifetime | More than 100,000 hours |
| 12 | Control Software | JCZ EZCAD 2.12 Professional |
| 13 | Operating Voltage | AC 220V±10% 50Hz / AC 110V±10% 60Hz |
| 14 | Support Format | PLT, DXF, AI, BMP, JPG, PNG, etc. |
| 15 | Warranty | 2 Years |
Mobile phone keypads, electronic components, integrated circuits (IC), sanitary ware, tools, jewelry, auto parts, stainless steel products, and more.
Applicable Materials:Metals (rare metals), engineering plastics, electroplating materials, coating materials, rubber, epoxy resin, ceramic, ABS, PVC, steel, titanium, and copper.

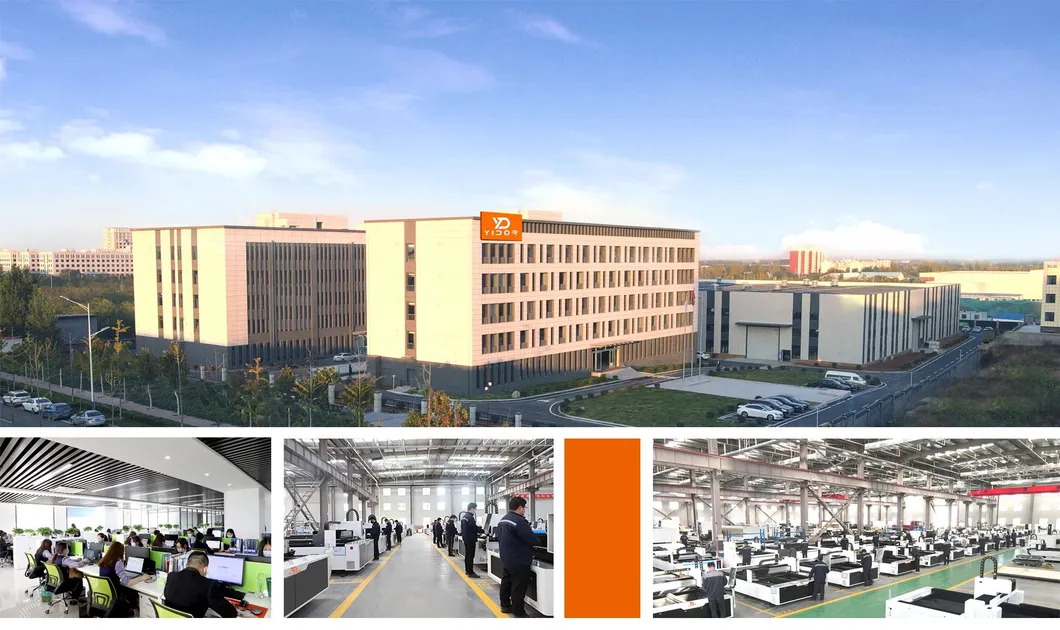

We utilize professional packaging materials and experienced staff to guarantee product safety during long-term transportation. As an international manufacturer, we specialize in R&D, production, and marketing of Fiber & CO2 laser equipment, serving more than 100 countries globally.
Pre-Sales: Inquiry support, free sample making, and factory tours.
After-Sales: 24-hour technical support via email/online video, user-friendly English manuals, and engineer availability for overseas machine service.
Quality Assurance: We use strong export wooden cases to ensure the machine arrives in perfect condition.
