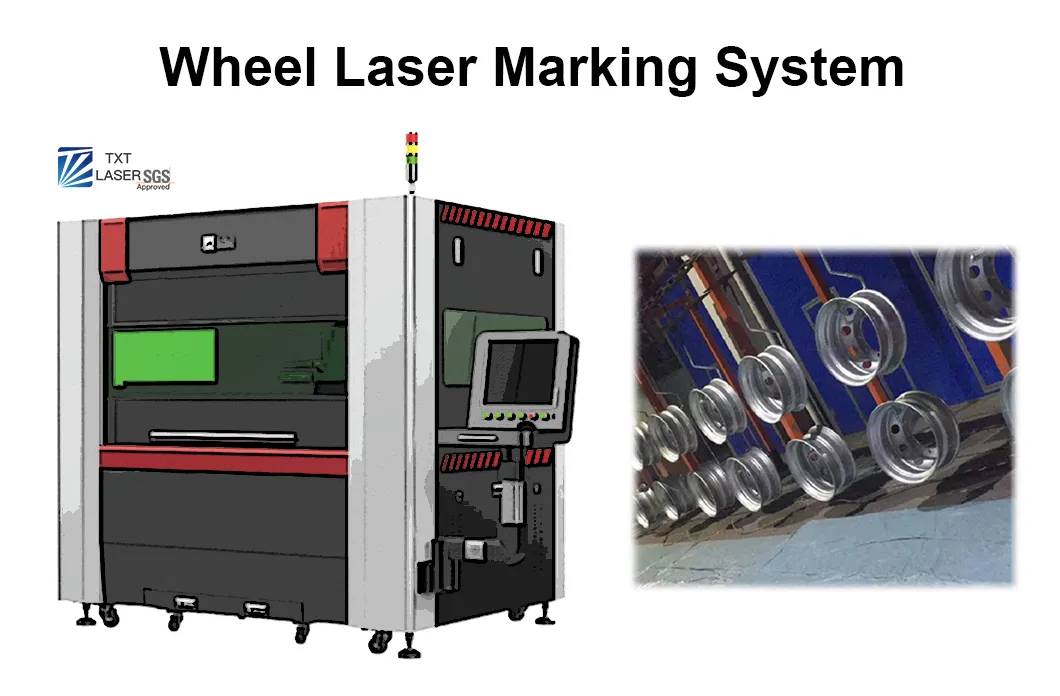

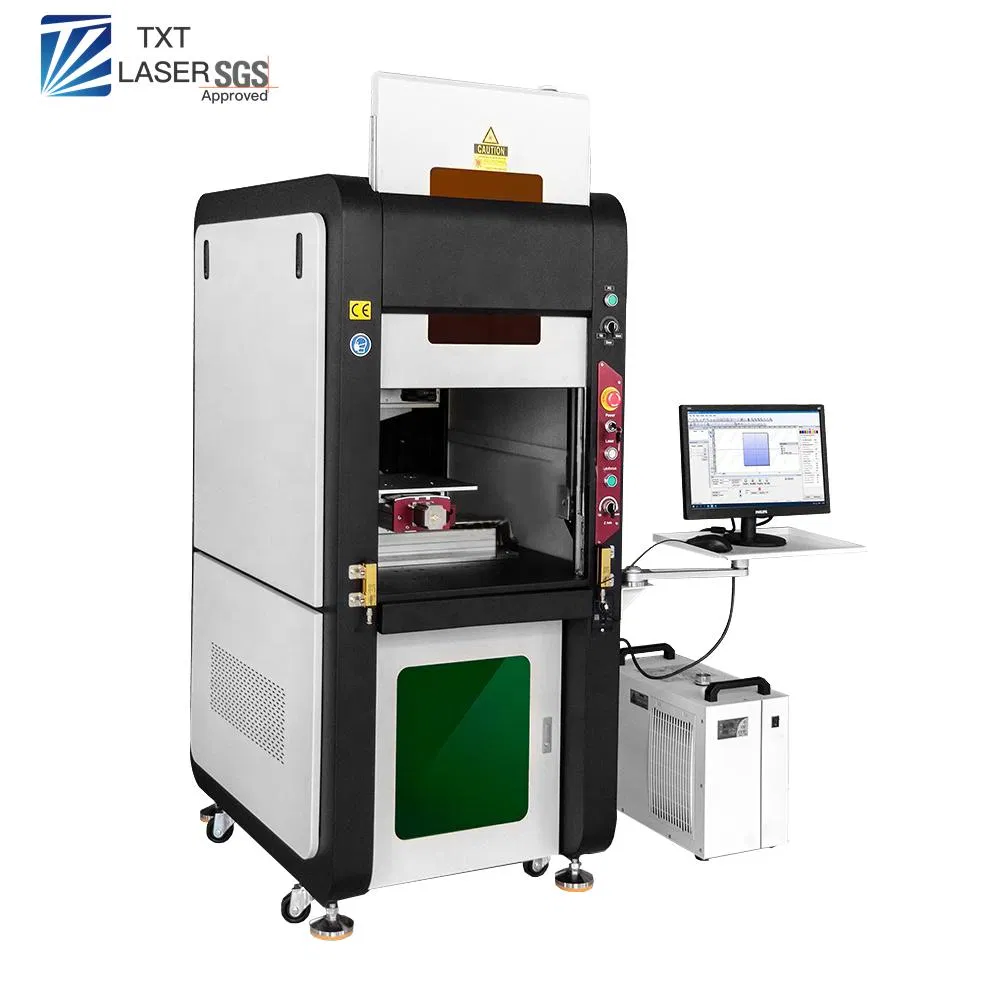

Highly Customizeable Cast Steel Al Aluminum Alloy Wheel Laser Marking Solution

1 / 5

Highly Customizeable Cast Steel Al Aluminum Alloy Wheel Laser Marking Solution

Customization:	Available
After-sales Service:	Installation & Operation Guide
Warranty:	24months

Send Inquiry

Product Description

Basic Information

Model NO.

TXT-DB

Laser Visibility

Invisible

Applicable Material

All

Cooling System

Water/Air Cooling

Technical Class

Pulse Laser

Laser Wavelength

355nm 1064nm 10.6um

Laser Classification

Fiber CO2 UV

Type

Customize

Control Card

Beijing Jcz

Engraving Software

Ezcad

Applications

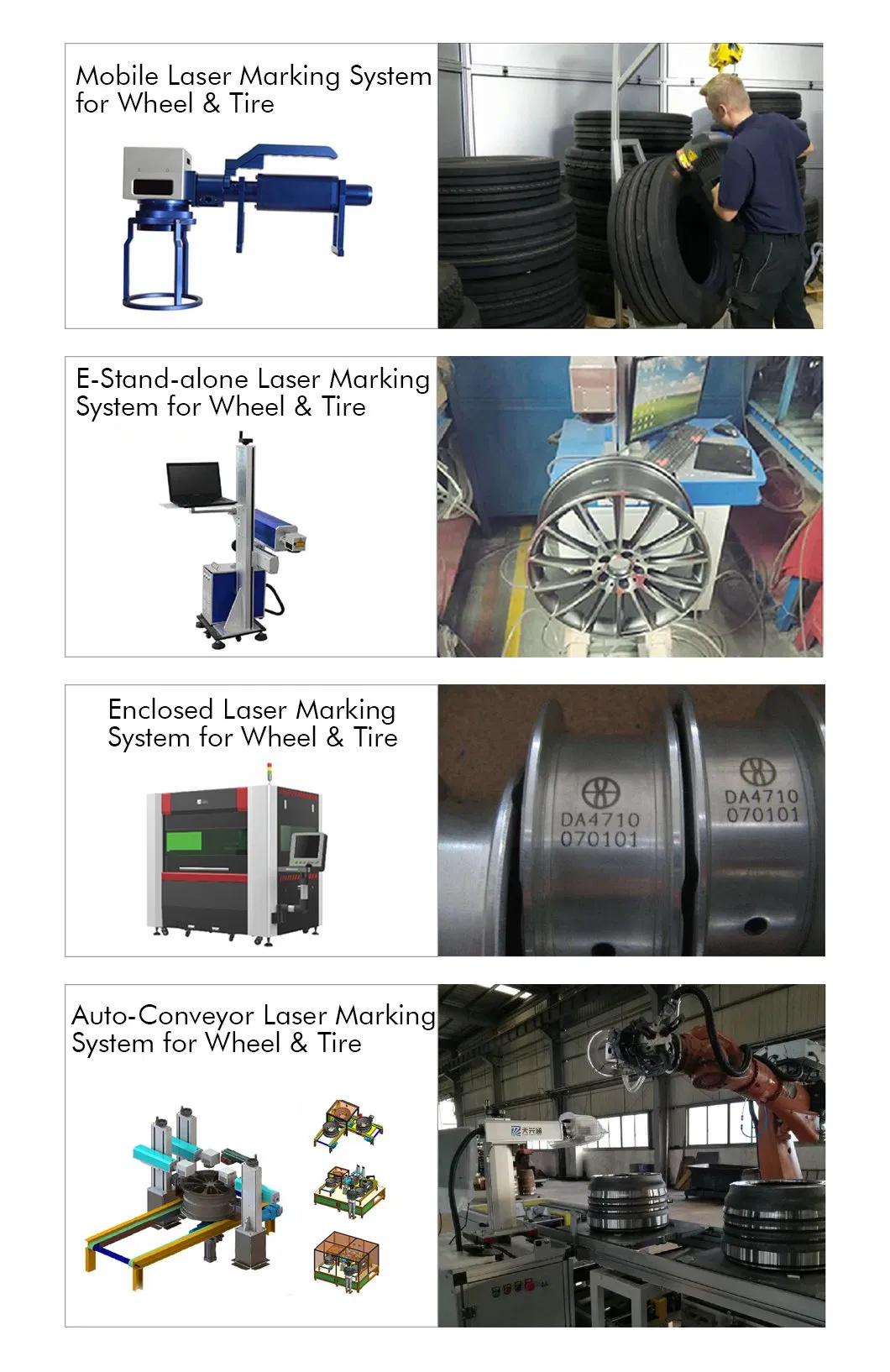

Tire and Wheel Laser Marking

Working Temp.

0~40 Celsius Degree

Laser Head

High Speed Galvo Head

Repeated Accuracy

0.002"

Speed

5,000mm/sec - 7,000mm/sec

HS Code

8456100090

Product Description

Model	TXT-DB-F	TXT-DB-C	TXT-DB-U
Laser	Fiber Laser	CO2 Laser	UV Laser
Wavelength	1064nm	10.6μm / 10.2μm / 9.3μm	355nm
Laser Source	IPG / JPT / Raycus	Coherent / Synrad	JPT
Laser Power	10W - 120W	10W - 100W	3W - 15W
Speed	5,000mm/sec or 7,000mm/sec
Accuracy	0.002"
Cooling Method	Air Cooling	Air / Water Cooling	Water Cooling
Software	EzCad 2.0 or Ezcad 3.0

Frequently Asked Questions

1. What types of lasers are available for the TXT-DB series?

The TXT-DB series offers Fiber Laser (1064nm), CO2 Laser (10.6μm), and UV Laser (355nm) options to meet different material marking requirements.

2. What are the primary applications for this machine?

This highly customizable solution is specifically designed for laser marking on tires and wheels, including cast steel and aluminum alloy wheels.

3. How fast can the machine perform marking?

Equipped with a high-speed Galvo head, the machine supports marking speeds of 5,000mm/sec or up to 7,000mm/sec depending on the configuration.

4. Is the marking software easy to use?

Yes, the machine uses industry-standard Ezcad (2.0 or 3.0) software and Beijing JCZ control cards, supporting various image formats like PLT, BMP, DXF, and JPG.

5. What cooling methods do these machines use?

Cooling depends on the laser type: Fiber lasers use air cooling, while CO2 and UV lasers may use air or water cooling systems for optimal performance.

6. Can I get a customized machine for my specific needs?

Absolutely. Customized services are available with a minimum order quantity (MOQ) of just 1 set, allowing for tailored configurations.
