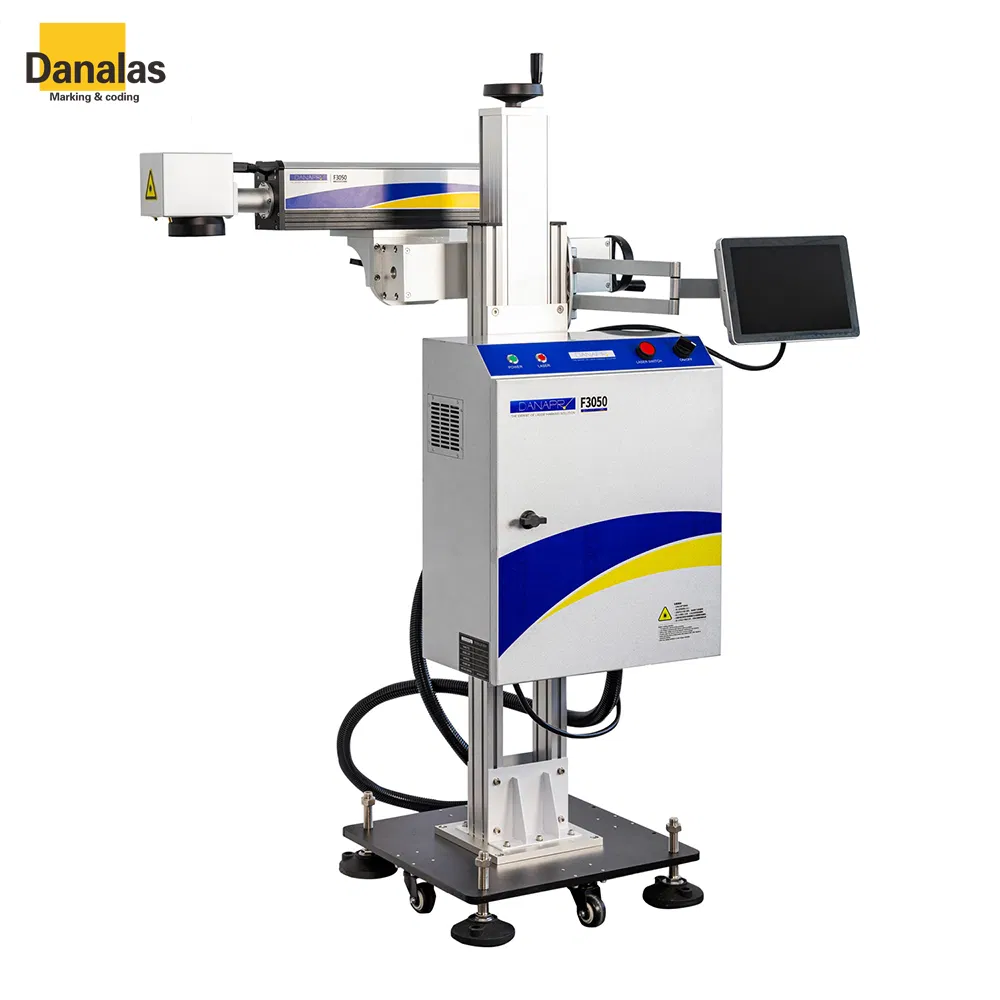

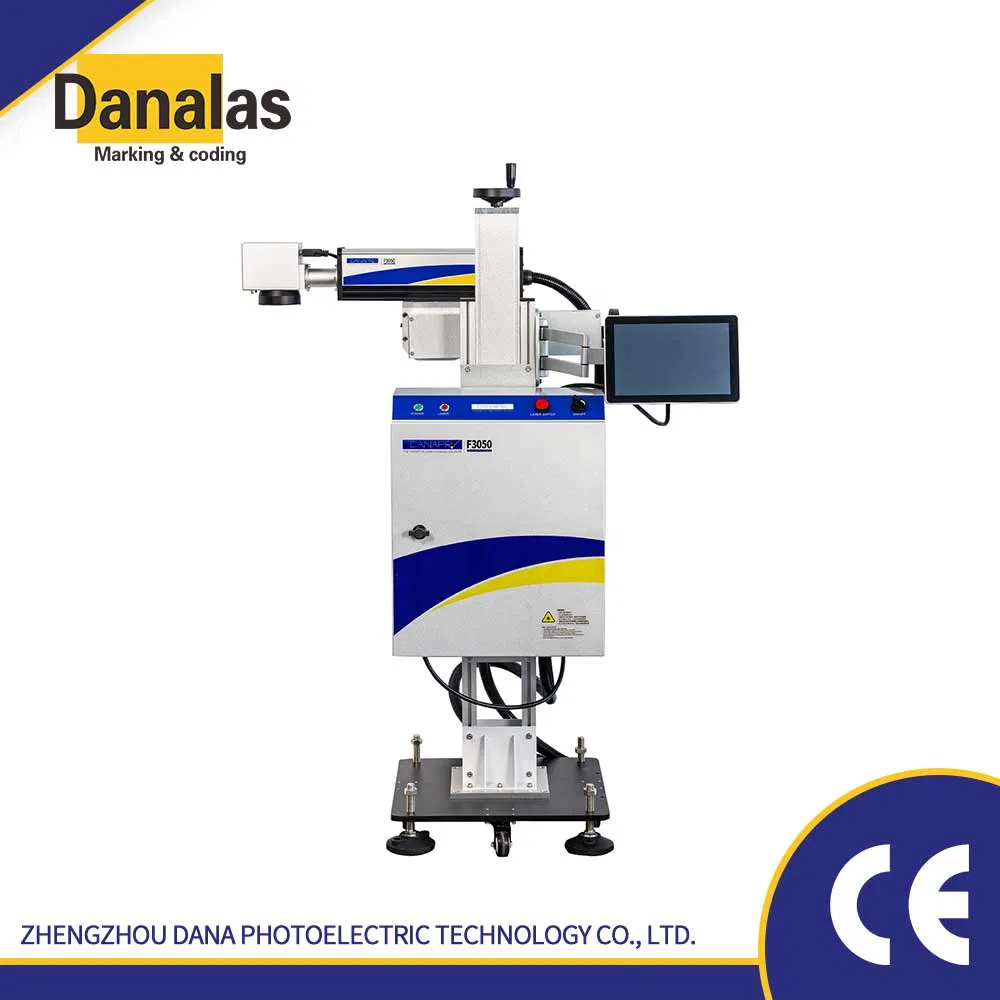

Factory Dana F30 Fiber Laser Marking Equipment: Self-Developed Control System

Customization:	Available
After-sales Service:	Provided
Warranty:	1year

Product Overview

Basic Information
Model NO.	F30100
Laser Visibility	Visible
Applicable Material	Metal & Nonmetal
Cooling System	Air Cooling
Laser Wavelength	1064nm Fiber Laser
Marking Speed	10000mm/S
Marking Range	110mm × 110mm (Max: 500mm × 500mm)
Power Supply	220V, 0.6kVA

Product Description

The fiber laser marking machine utilizes a high-speed scanning galvanometer system to achieve permanent engraving of codes or labels. With a 1064nm wavelength, it is highly effective for aluminum, copper, iron, wood, paper boxes, and various plastics like PET, PVC, and PP.

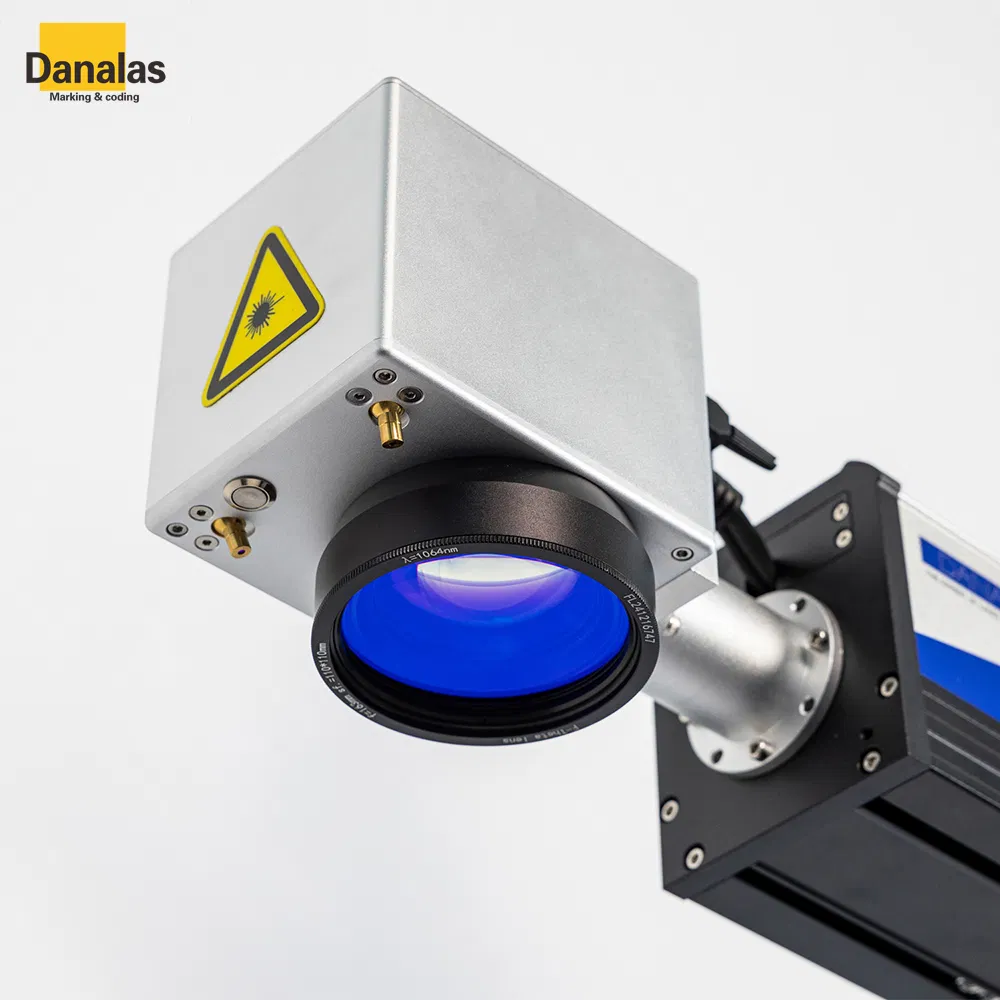

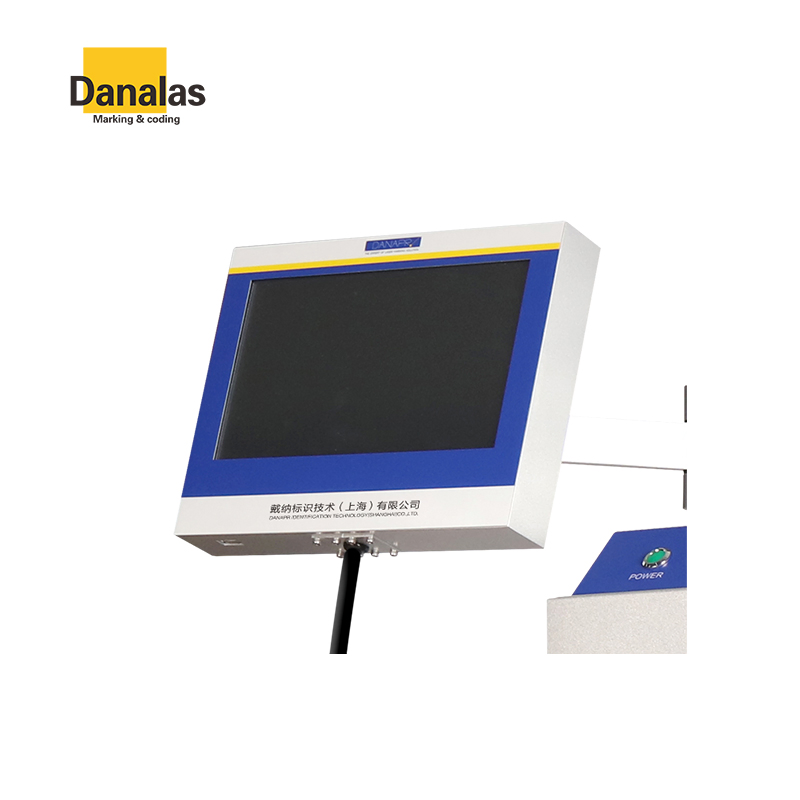

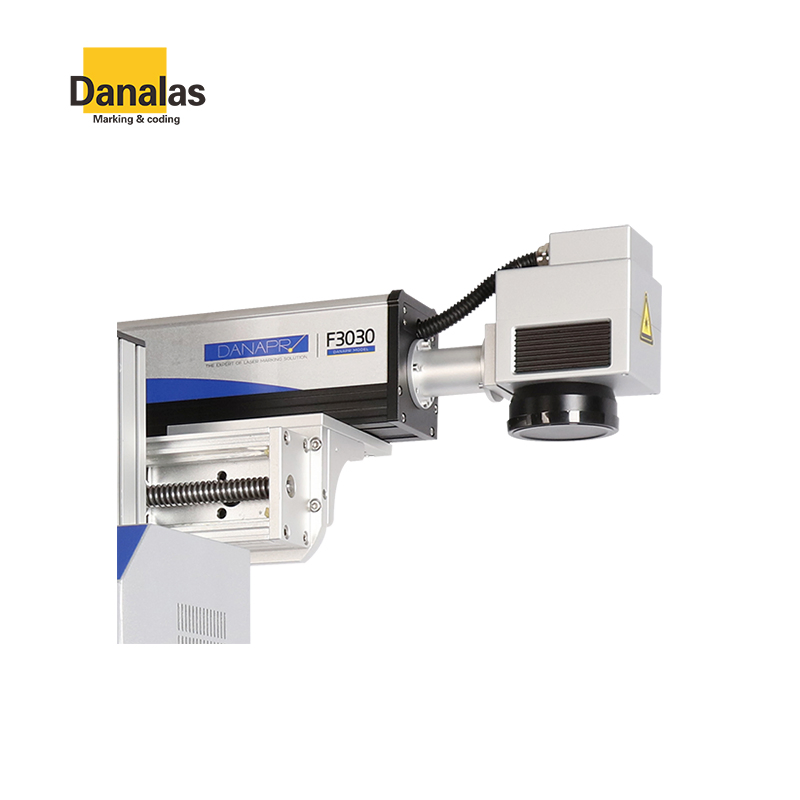

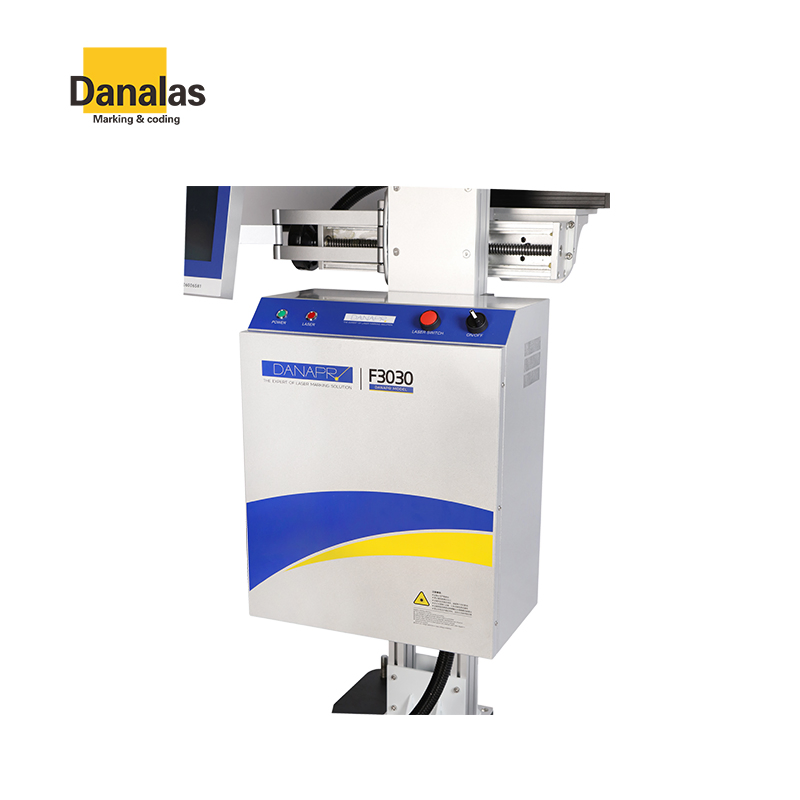

The system is mainly composed of a custom laser, galvanometer, field lens, host, and touch computer. It offers stable performance with a continuous marking life of up to 100,000 hours.

Our self-developed control system supports PLT, PCX, DXF, BMP, and other formats compatible with AutoCAD, CorelDRAW, and Photoshop. It includes an embedded auto-coding program for serial numbers, batch numbers, and dates.

Key Advantages

Rapid Marking: Max line speed up to 10000mm/S, significantly enhancing productivity.
Fine Precision: Achieves high-definition engravings with finer lines than CO2 systems.
Energy Efficient: Electro-optical conversion efficiency exceeds 30%.
Low Maintenance: No consumables required and highly stable operation.

Technical Parameters

Parameter	Specification
Laser Power	100W
Focal Length	177mm Standard
Min Line Width	0.02mm
Character Height	0.2-70mm
Operating Language	Chinese, English and others
Protection Degree	≥IP54
Operating Temp	-5 to 45 degrees Celsius
Humidity	80% RH, Non-Condensing

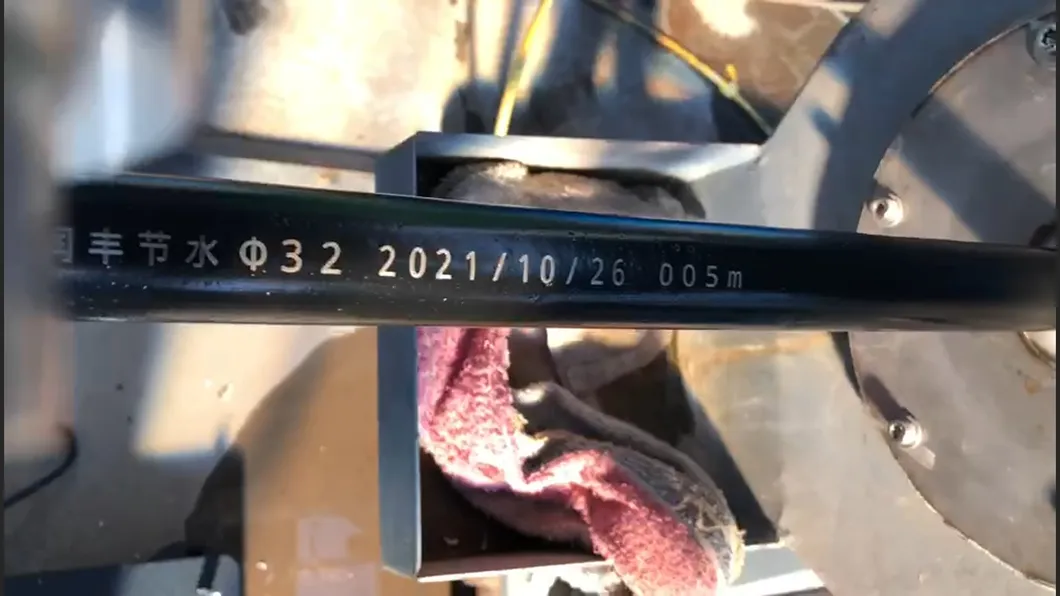

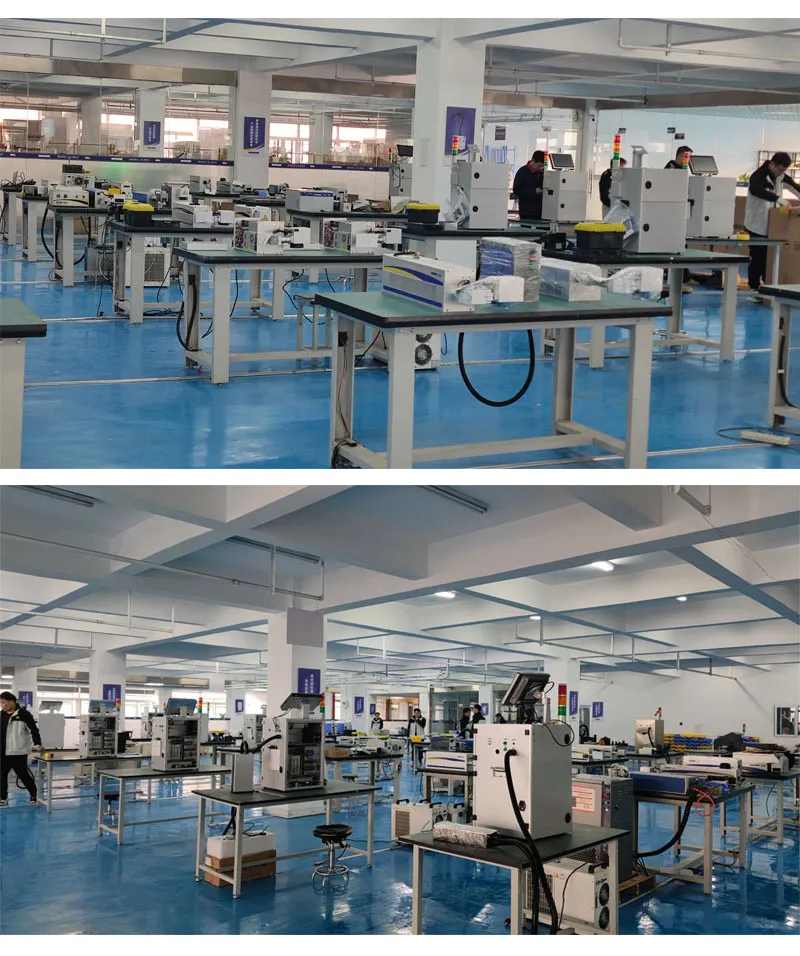

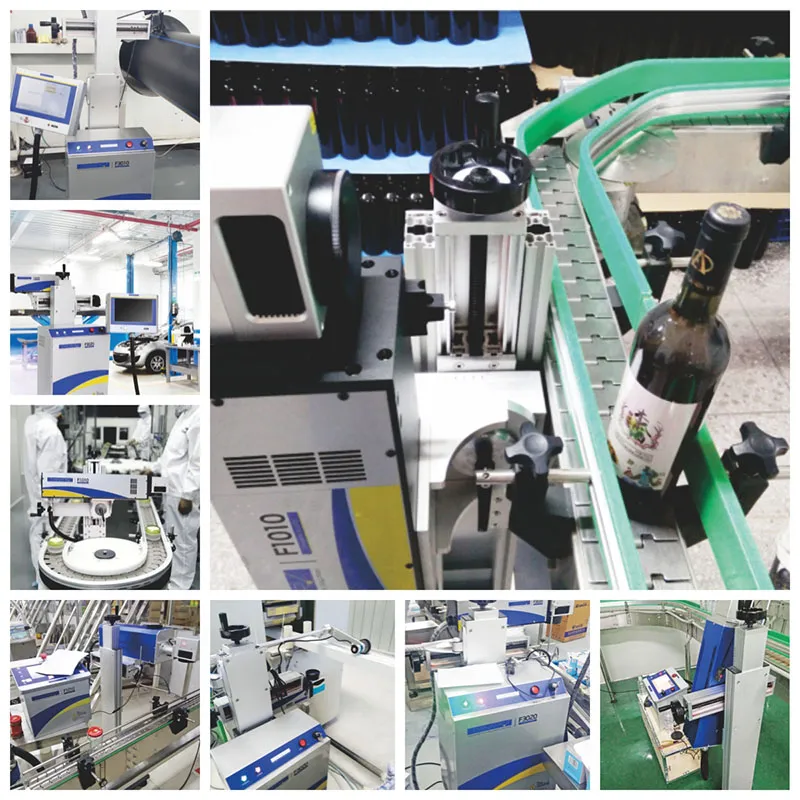

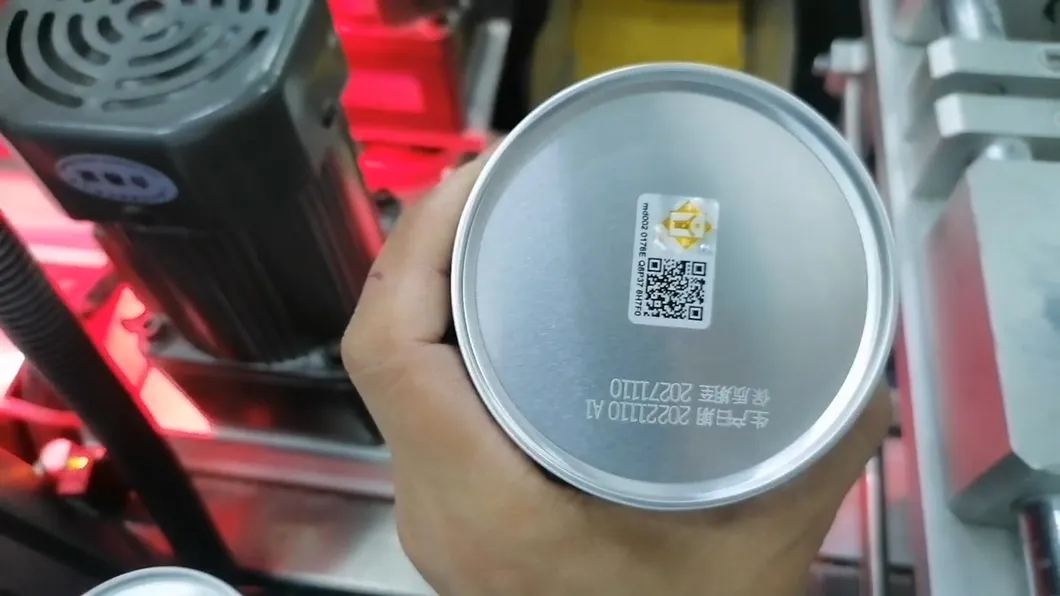

Applications & Workshop

Professional Capabilities

As a leading manufacturer specializing in product marking and traceability solutions with over 13 years of experience, we provide customized coding solutions tailored to complex production environments. Our services span various sectors including profiling & pipeline cable manufacturing, food & beverage, pharmaceuticals, electronics, and automotive parts.

Frequently Asked Questions

How long is the warranty period for the equipment?

The whole machine warranty period is 1 year, while the laser source itself is covered for 2 years. We provide rapid support for any issues during this period.

What is the standard delivery time?

Standard orders typically require 5-7 working days for processing and preparation.

How long is the laser source cable?

The cable length depends on the specific laser source selected. For example, standard options for Raycus or Max sources are typically around 9 meters.

What type of packaging is used for shipping?

All machines are securely packed in professional wooden boxes to ensure safety during international transport.

Does the software support multiple languages?

Yes, the operation interface supports language customization. You can also translate and insert your own language files into the software.

Which materials can this fiber laser mark?

It can mark a wide range of materials including metals (aluminum, copper, iron) and non-metals such as wood, paper boxes, and plastics (PET, PVC, PP, PS, PA, etc.).
