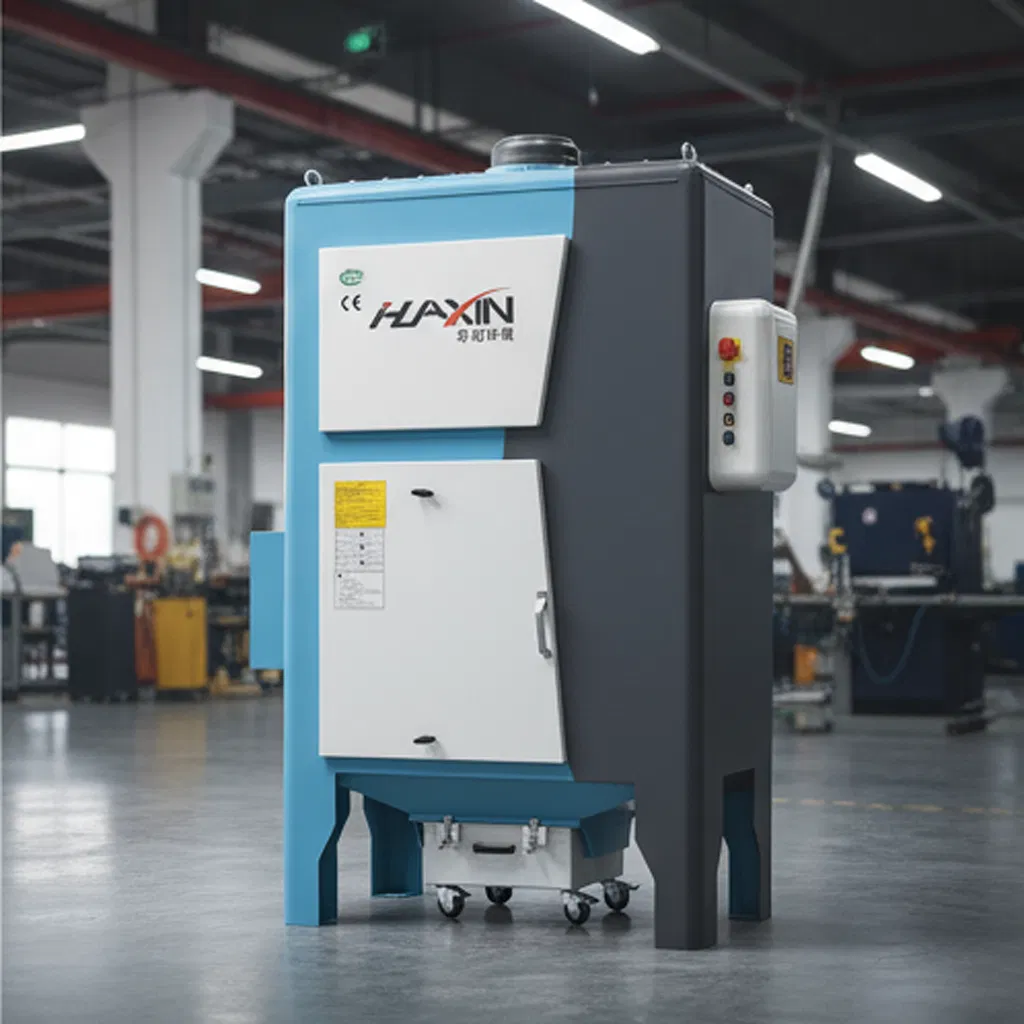

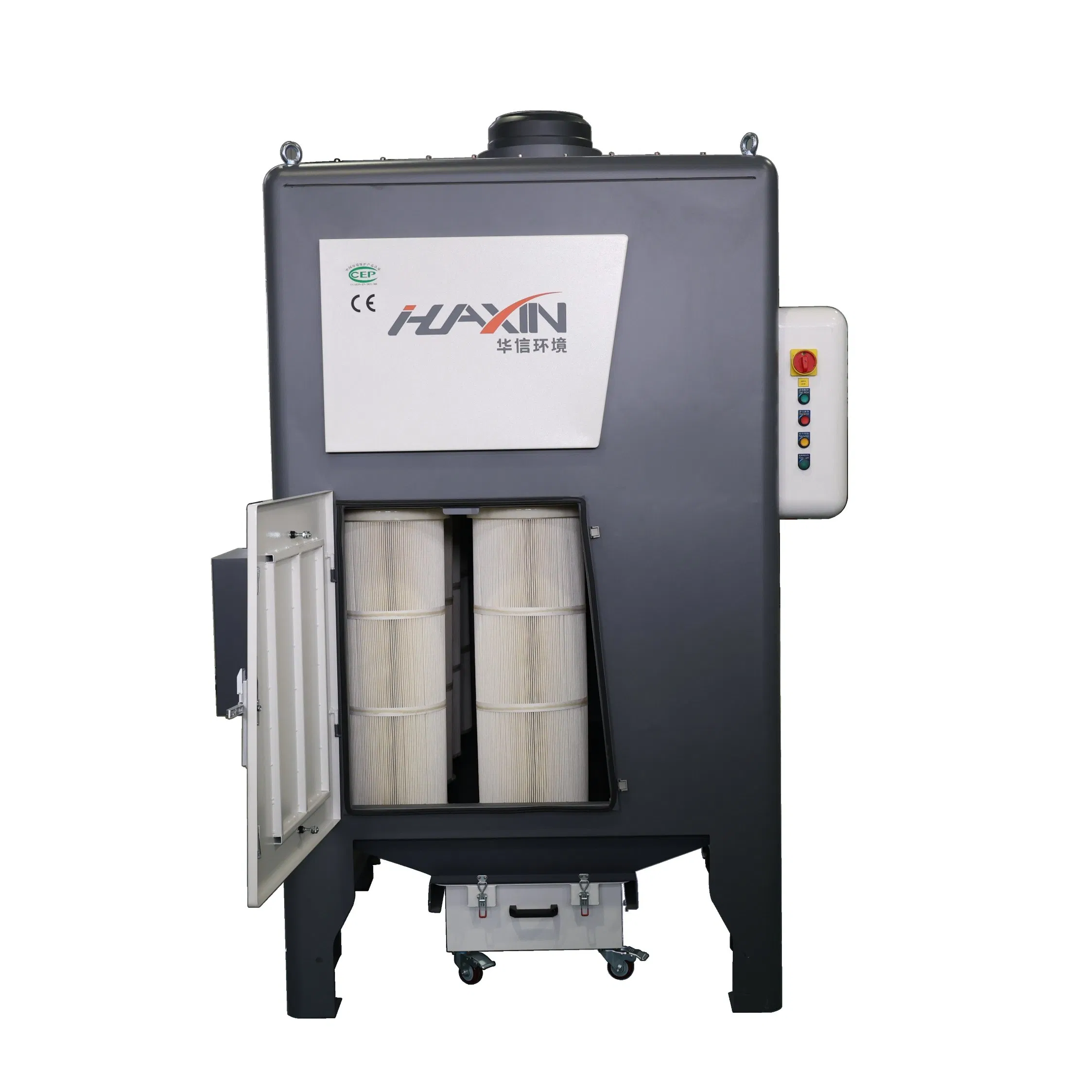

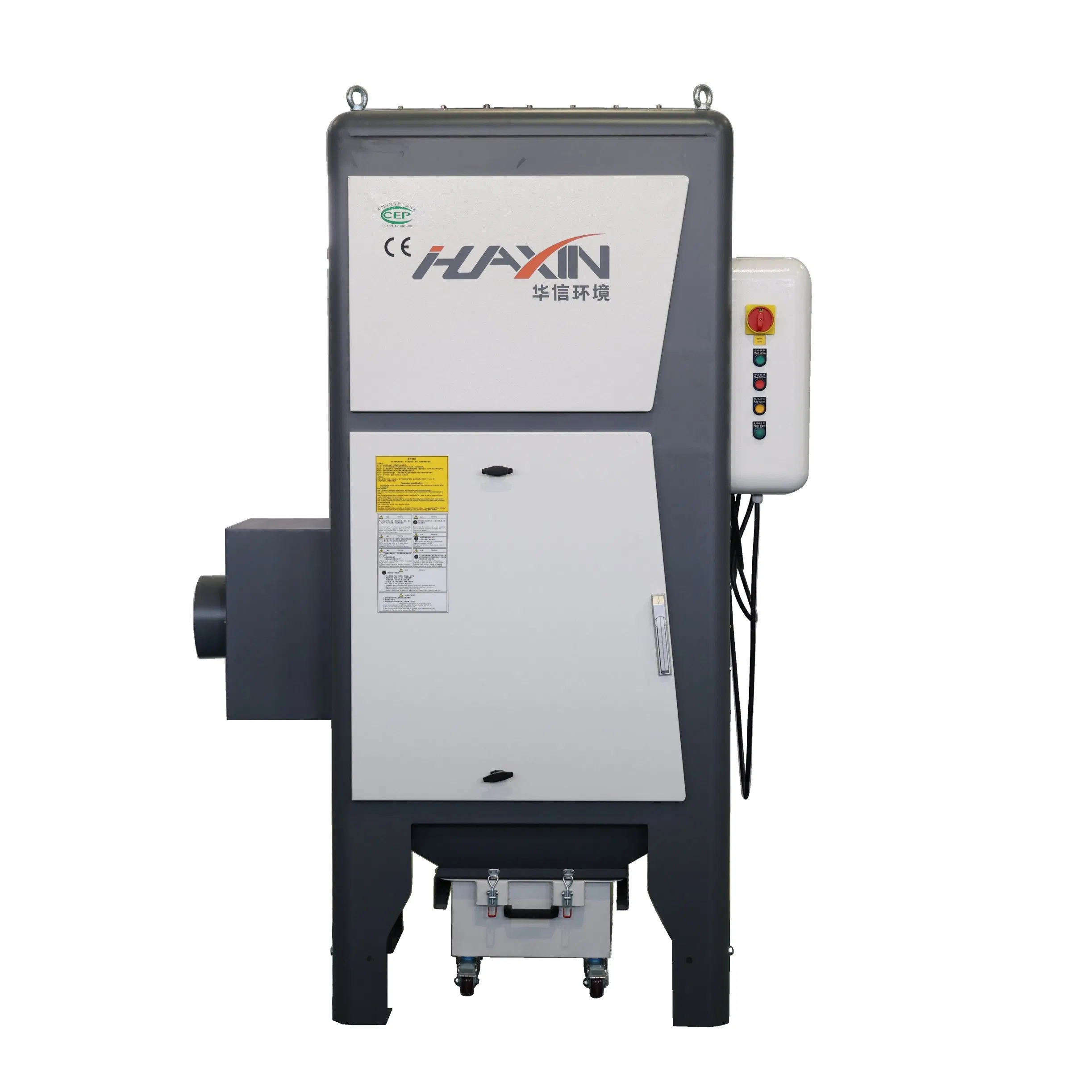

High-Efficiency Industrial Dust Extraction System for Laser Welding

Still deciding? Get samples of $ !
Order Sample

Product Description

ℹ️ Basic Information
Model NO.
XF06
Operation Type
Automatic
Medium Material
Chemical Synthetic Fiber
Cleaning Way
Full-Automatically Cleaning
Power
7.5kw
Voltage
380V/415V/220V
Filtration Area
78m2
Filtration Accuracy
99.99%
Particle Size
0.3um
Weight
520kgs
Specification
1200*1400*2500mm
Capacity
50000 Pieces/Year

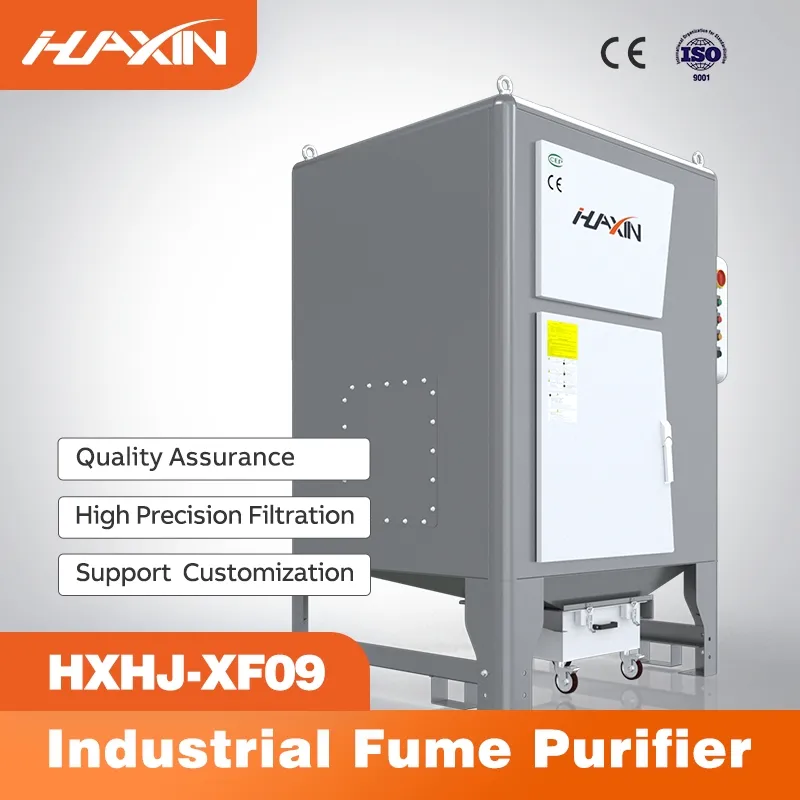

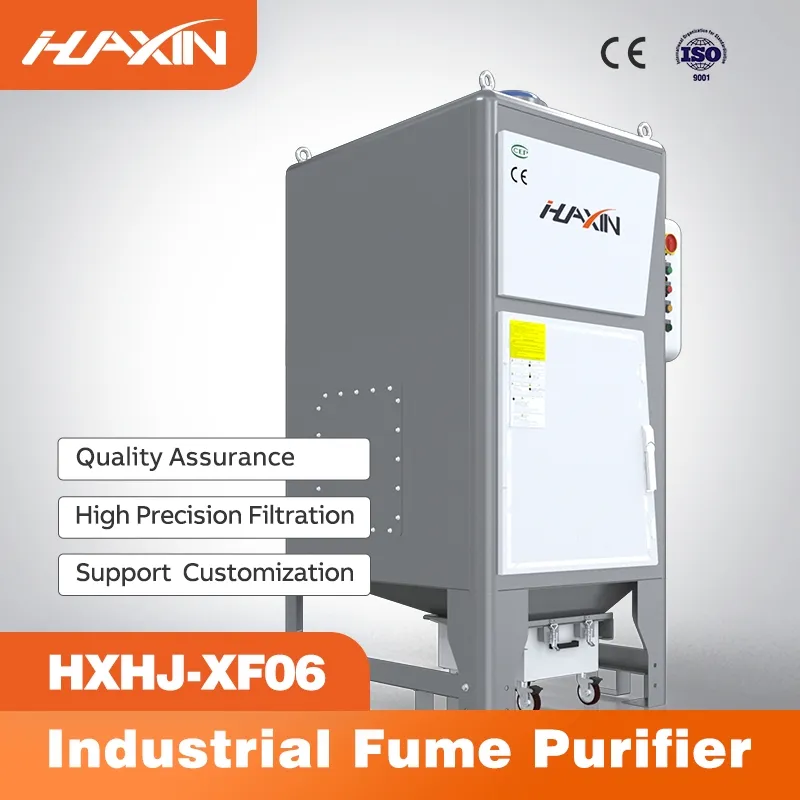

Dust Extraction System

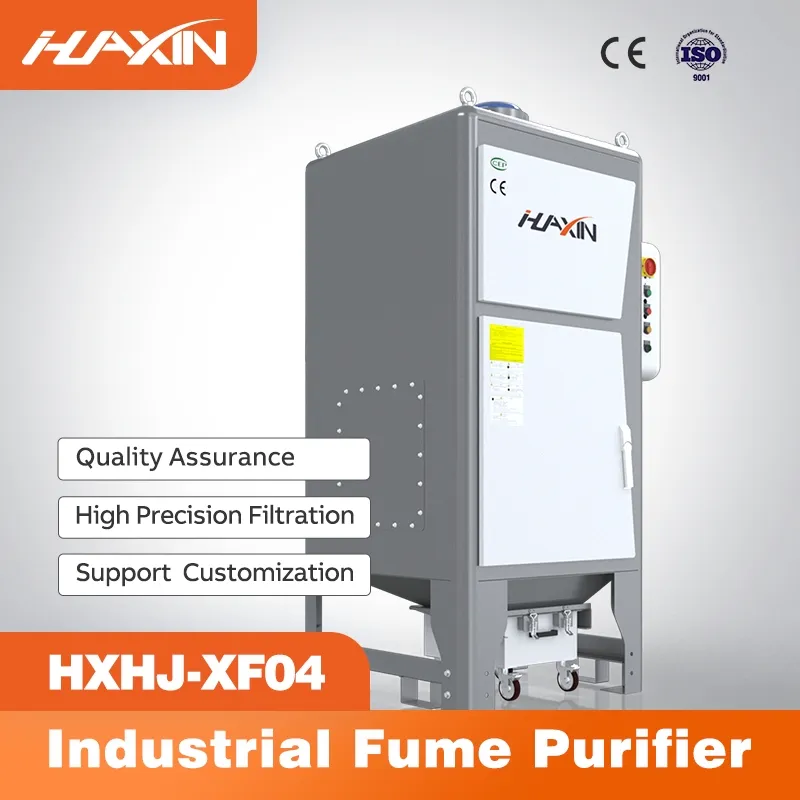

Dust Extraction System
Dust Extraction System
📝 Product Description

High-Efficiency Filtration: Designed with exquisite precision, our dust collectors feature an advanced high-efficiency filtration system that expertly captures a wide array of particulate matter. Achieving near-perfect filtration efficiencies of up to 99.99% and potentially beyond.

Adaptability to Different Dust Types: These systems skillfully manage diverse dust characteristics, including metal fines and fumes from laser-cutting, as well as plastics or composite materials.

Powerful Suction Capacity: Engineered for rapid dust elimination, the immense suction power captures dust immediately as it forms, preventing spread and protecting machinery from damage.

Compact Design: Ingeniously designed to save valuable floor space while providing efficient collection and seamless workshop integration.

Low Noise Operation: Meticulously crafted to operate below 80 decibels, fostering a serene and productive working environment.

Safe and Reliable: Equipped with over-temperature and over-current protection safety protocols to safeguard both equipment and operators.

Industrial Dust Collector

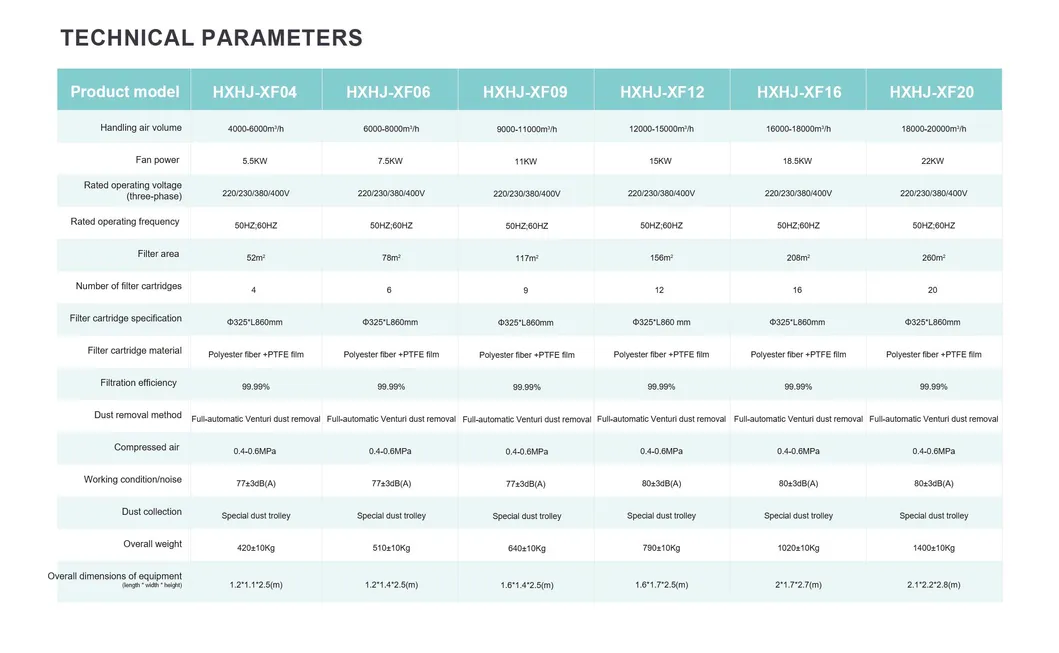

📊 Technical Parameters
Model Airflow (m³/h) Power (kW) Voltage Filter Area (m²) Precision Noise dB(A) Size (mm)
XF0440005.5380V-220V5299.99%77±31200*1100*2500
XF0660007.5380V-220V7899.99%77±31200*1400*2500
XF09900011380V-220V11799.99%77±31600*1400*2500
XF121200015380V-220V15699.99%77±31600*1700*2500
XF161600018.5380V-220V20899.99%77±32000*1700*2700
XF202000022380V-220V26099.99%77±32100*2200*2800
Our Advantages

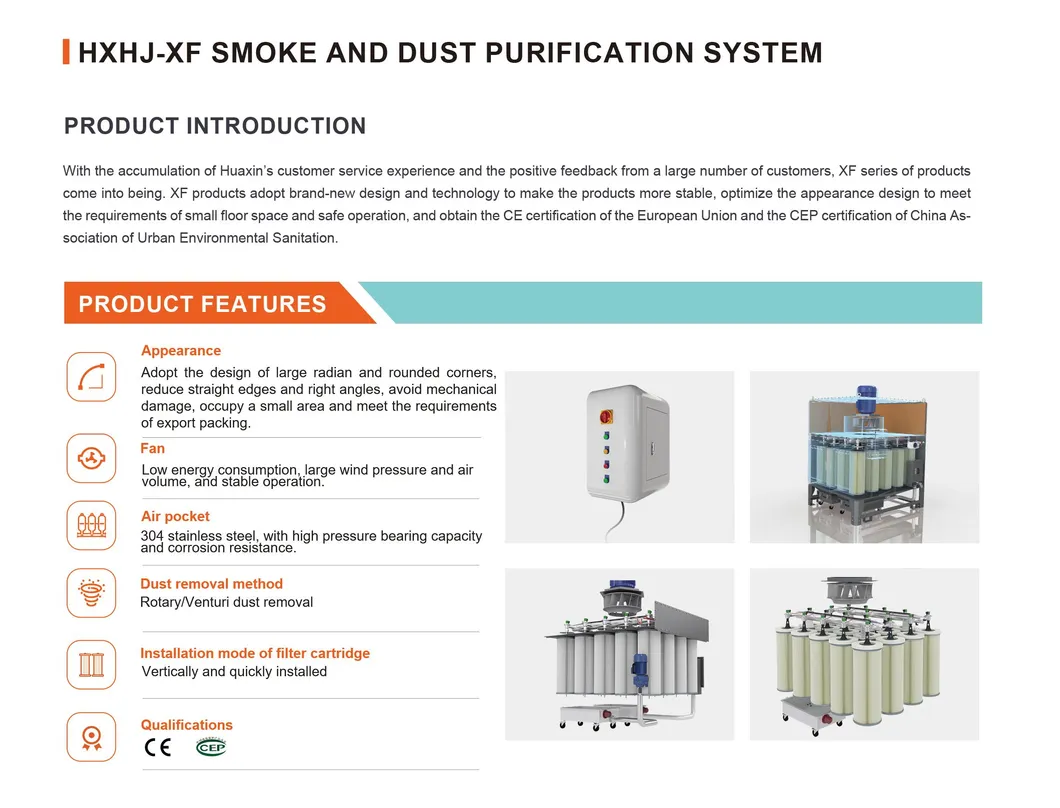

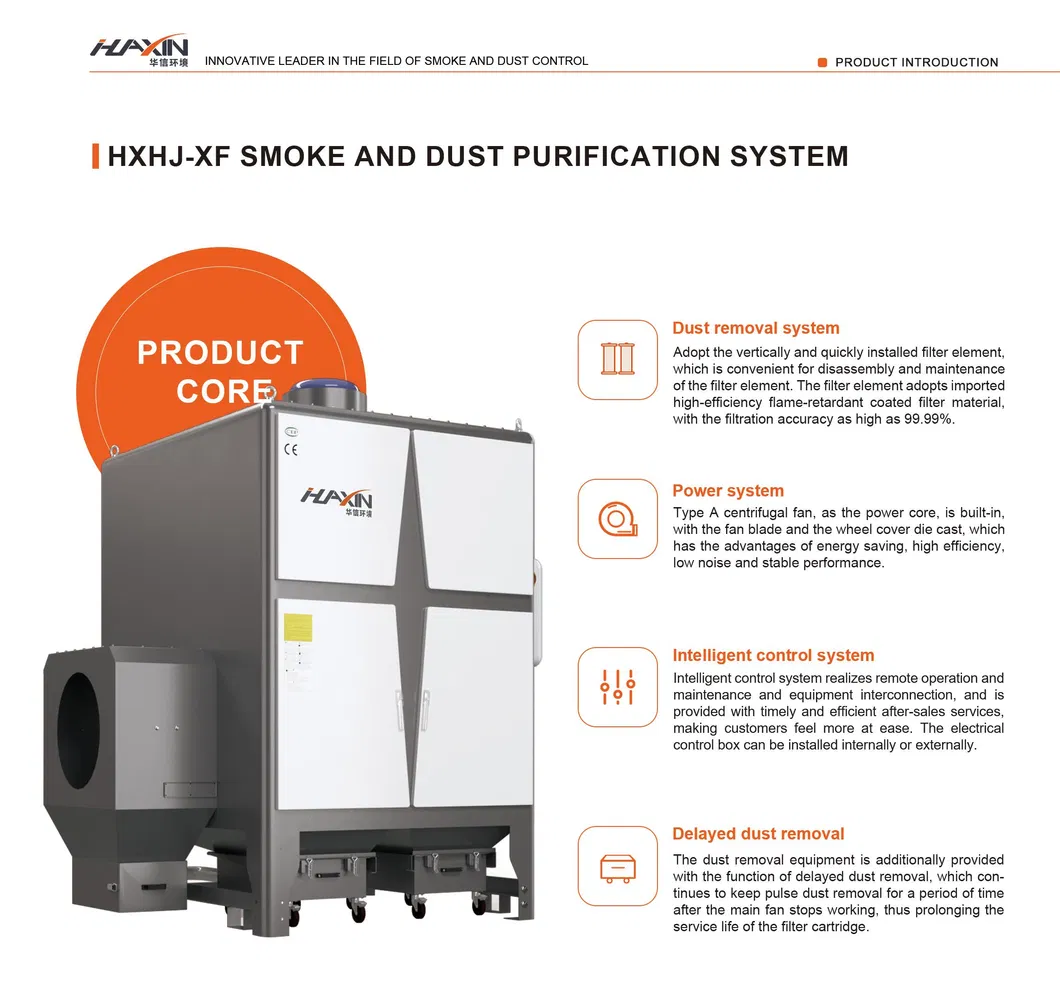

Advantage 1 Advantage 2 Advantage 3
📷 Detailed Photos

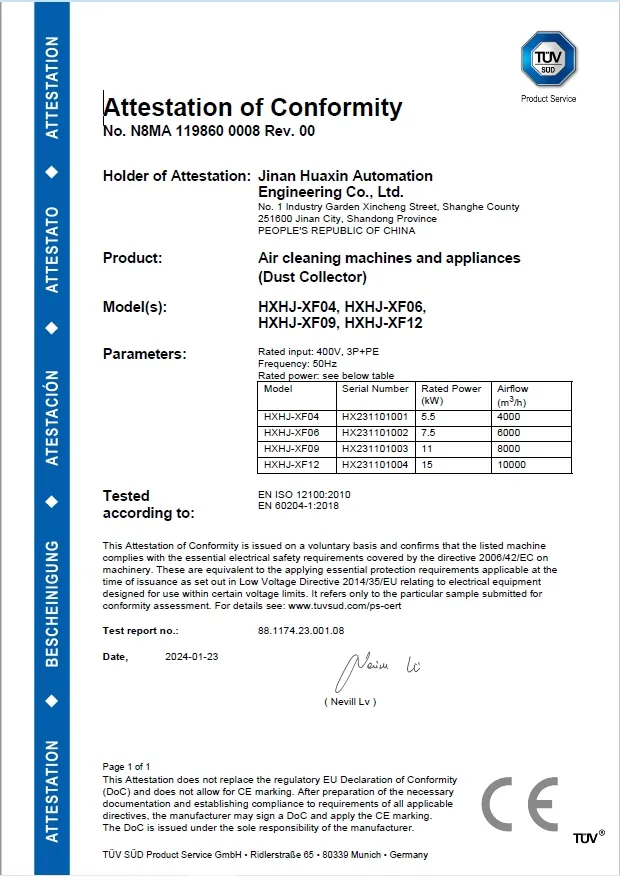

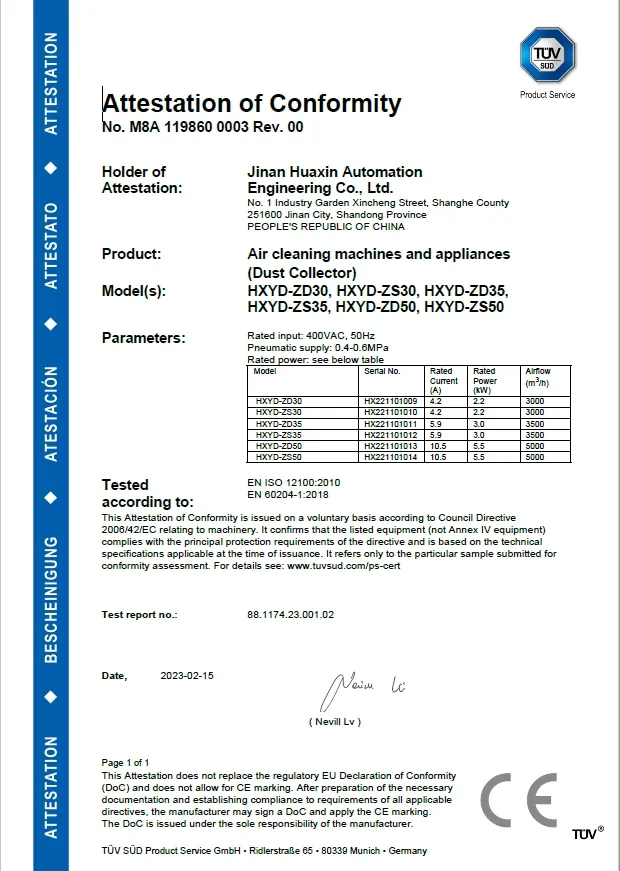

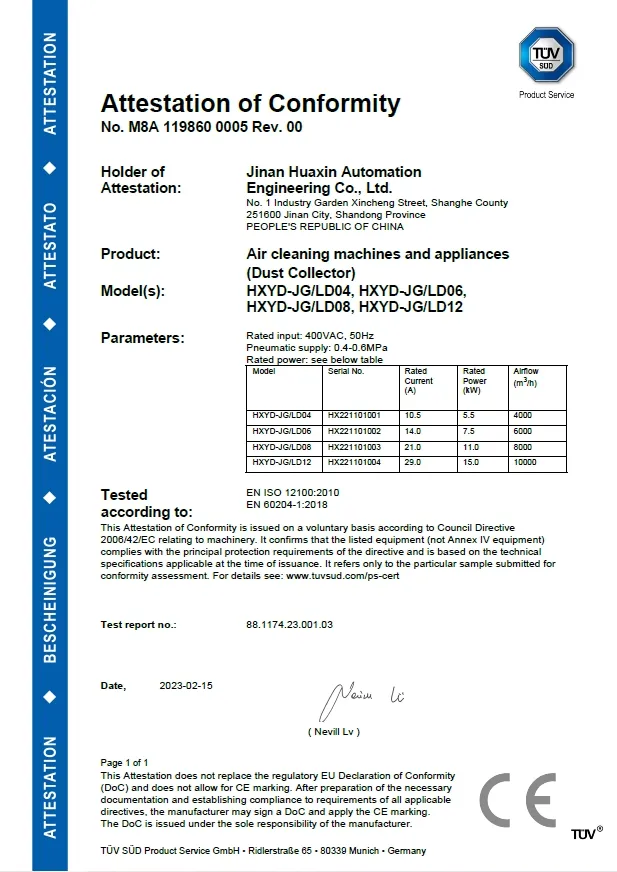

📜 Certifications

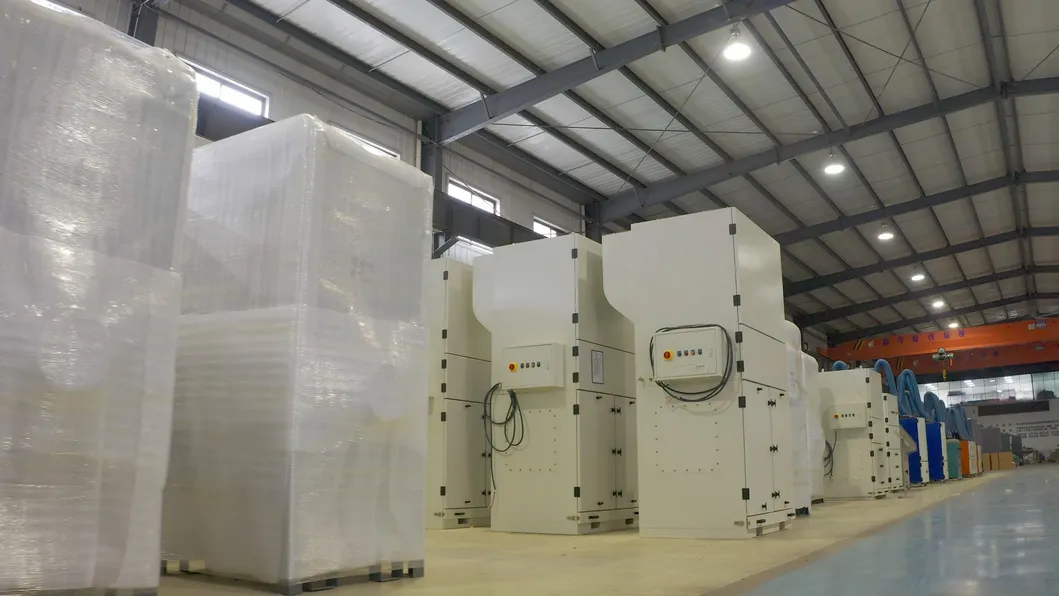

📦 Packaging & Shipping
Frequently Asked Questions
Is there any noise during operation?
The fans are equipped with sound insulation cotton and are designed not to produce excessive noise, typically staying below 80 decibels.
How is the air volume of the dust collector configured?
By measuring the diameter of the exhaust pipe at the bottom of your cutting platform, we can calculate the exact air volume required for your specific equipment.
How do you prevent fire accidents from sparks during cutting?
We install labyrinth-structure spark catchers (baffle or swirl type) that force sparks into cold plates to extinguish them before they reach the filter material.
Does the system require an external chimney for venting?
No chimney is required. The high-precision filter material captures 99% of dust down to 0.3um, allowing for direct indoor discharge that meets environmental standards.
What is the after-sales warranty policy?
The warranty period is one year with free maintenance. Outside of the warranty period, we only charge for the cost of replacement parts.
Are OEM or ODM services available?
Yes, we provide both OEM and ODM services. We can produce products under your brand name and customize sizes according to your requirements.
