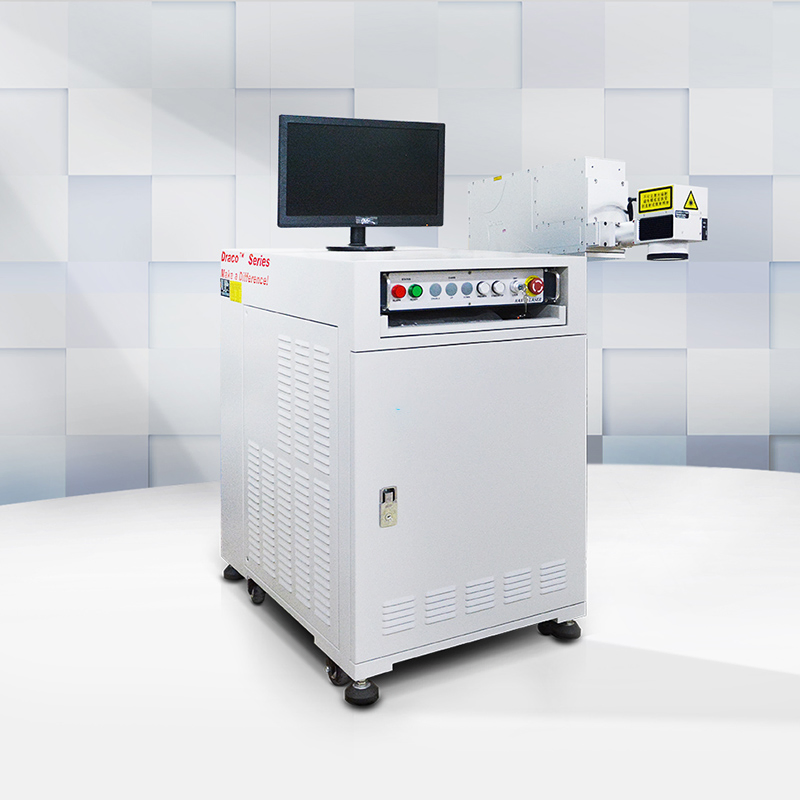

High-Precision UV Laser Marking System for Medical Labels

Customization:	Available
After-sales Service:	Provided
Warranty:	Provided

Basic Information

Model NO.

EP-15-THG-S

Laser Visibility

Visible

Applicable Material

Metal

Laser Wavelength

Fiber Laser

Laser Classification

Semiconductor Laser

Product Name

UV Laser Marking

Feature 1

Guaranteed Quality

Feature 2

Customized According to Needs

After-Sale Service

Provided

Origin

China

Product Description

Brief Description

1. Marking of electronic products' LOGO, model, place of origin and so on.

2. Marking of food, PVC pipe, medicine packaging material (HDPE, PO, PP and so on); micro-hole drilling, diameter d≤10μm.

3. PCB marking and cutting.

Key Features

✓

Cold laser processing with a small heat-affected zone for high-quality results.

✓

Wide material compatibility, compensating for infrared laser limitations.

✓

Superfine marking achieved through excellent beam quality and small focusing spots.

✓

High efficiency, precision, and marking speeds.

✓

Low maintenance and zero consumables for cost-effective operation.

Technical Specifications

Machine model	EP-15/25/30-THG-S
Laser wavelength	355nm
Laser power	4W / 7W / 10W /15W / 25W
Min. marking line width	10µm-15µm
Marking speed	250 characters/sec
Marking scope	100*100mm
Standard lens	F160
Pulse repetition frequency	10-200kHz
Cooling mode	Water cooling
Total power consumption	≤1.5kW

Exhibition & Customers

Specializing in the international trade and integration of semiconductor industry equipment. Our equipment is exported to over 30 countries, serving over 200 customers and suppliers globally. We focus on providing cost-effective products including Die Bonder, Wire Bonding, Laser Marking (ID IC Wafer), Laser Grooving, Laser Cutting, and Automatic Silicone Dispensing Equipment.

Packaging & Shipping

Frequently Asked Questions

Q1: How to choose a suitable machine?

A1: You can tell us the working piece material, size, and the requested machine function. We can recommend the most suitable machine based on our extensive industry experience.

Q2: What is the warranty period for the equipment?

A2: We provide a one-year warranty and 24-hour online professional technical support to ensure your operations run smoothly.

Q3: Which materials are most suitable for UV laser marking?

A3: UV lasers are ideal for materials like electronic components, food and medicine packaging (HDPE, PO, PP), PVC pipes, and PCB marking or cutting due to their minimal thermal impact.

Q4: Does the UV laser marking machine require consumables?

A4: No, our UV laser marking systems do not require consumables, which leads to lower operating costs and reduced maintenance fees.

Q5: How is the cooling handled for this high-precision system?

A5: The system utilizes a professional water-cooling mode to maintain stable performance and support long-term, high-intensity operations.

Q6: What is the typical marking speed and precision?

A6: The machine offers a marking speed of up to 250 characters per second with a minimum marking line width of 10µm-15µm, ensuring superfine results.
