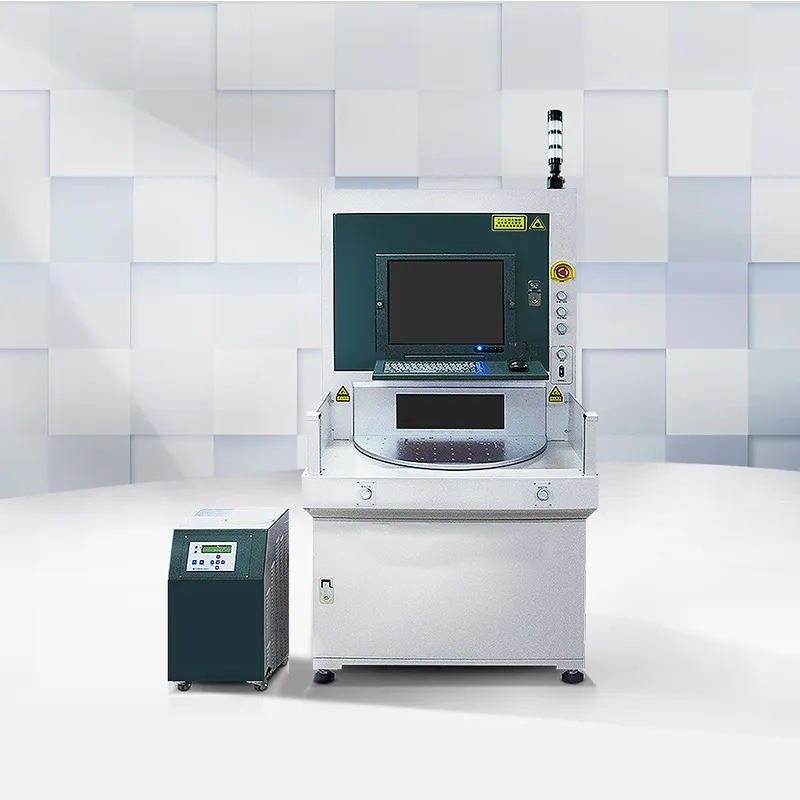

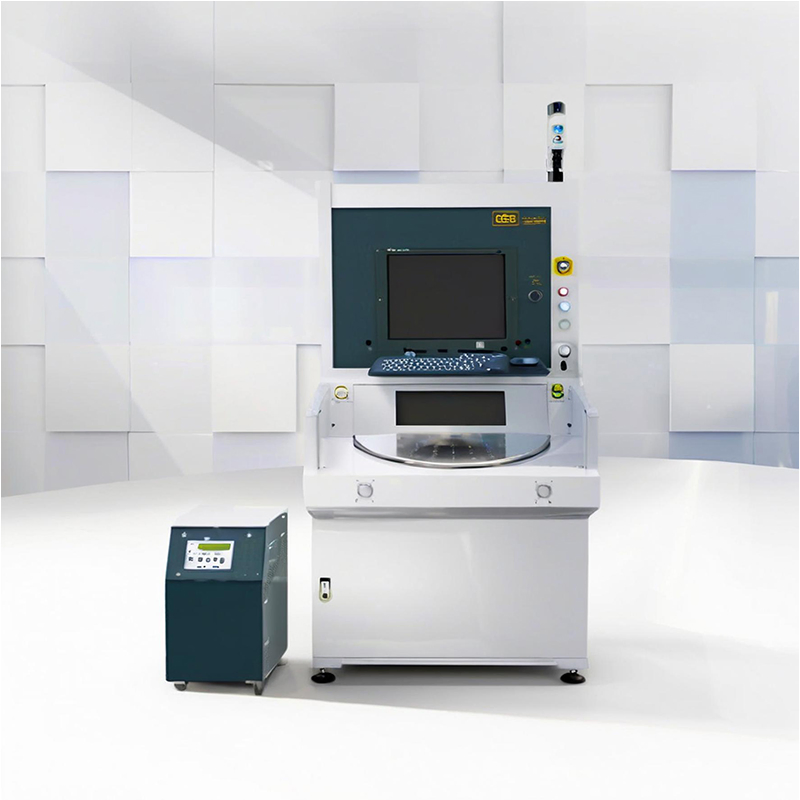

High-Precision UV Laser Marking System for Long-Lasting Air Switches

1 / 5

High-Precision UV Laser Marking System for Long-Lasting Air Switches

Customization:	Available
After-sales Service:	Provided
Warranty:	Provided

Send Inquiry

Product Description

Basic Specifications

Model NO.:EP-15/25/30-THG-D

Visibility:Visible Laser

Applicable:Metal & Various Materials

Cooling:Air/Water Cooling

Technical:Continuous Wave Laser

Wavelength:355nm UV Laser

Method:Scanning Marking

Capacity:100 Units

Product Description

Marking of electronic products' LOGO, model, and origin.
Marking of food, PVC pipe, and medicine packaging (HDPE, PO, PP).
Micro-hole drilling with diameter d≤10μm.
Professional PCB marking and precision cutting.

Core Features

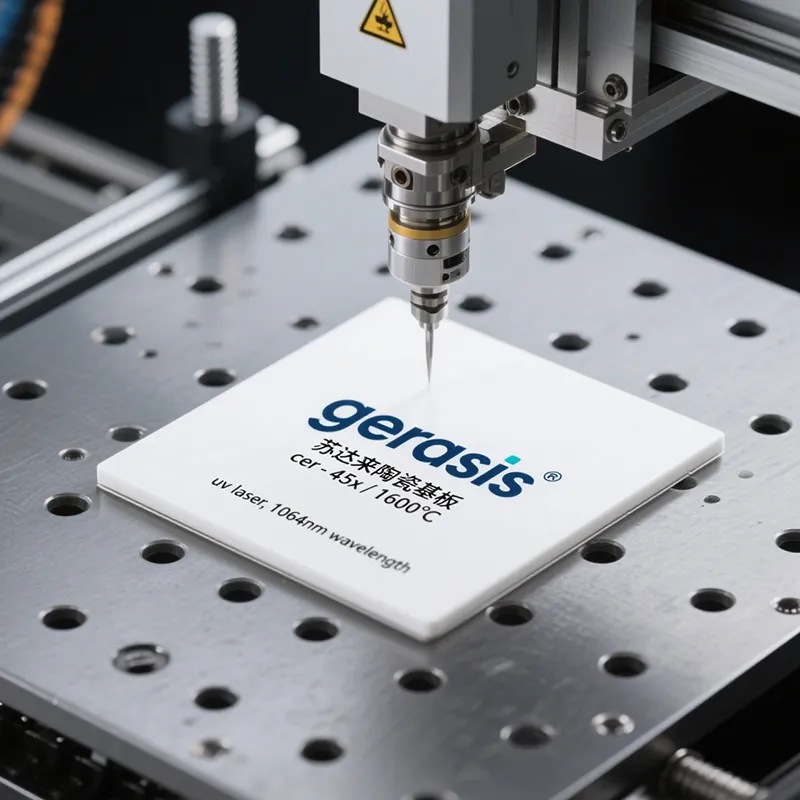

Dual-station Rotary Worktable: One station for loading/unloading and another for marking, significantly improving throughput.

Safety Light Curtain: Ensures safe operation and high-efficiency production environments.

Versatile Compatibility: Can be integrated with UV, green light, infrared, and other laser sources.

Technical Parameters

Machine Model	EP-15/25/30-THG-D
Laser Wavelength	355nm
Laser Power	4W / 7W / 10W / 15W / 25W
Min. Marking Line Width	10µm - 15µm
Marking Speed	250 characters/sec
Marking Scope	100*100mm
Pulse Repetition Frequency	10-200kHz
Overall Dimension	800mm * 1025mm * 1500mm

Capabilities & Industry Application

Our equipment is exported to over 30 countries with a focus on providing high-performance semiconductor and laser processing solutions. Main products include Die Bonders, Wire Bonding systems, Laser Marking for IC Wafers, Laser Grooving, and Precision Dicing Saw Machines.

Packaging & Shipping

Frequently Asked Questions

How to choose a suitable machine?

You can share your workpiece material, dimensions, and specific functional requirements with us. Based on our experience, we will recommend the most cost-effective and suitable model.

What is the warranty period for the equipment?

We provide a one-year warranty and offer 24-hour online professional technical support to ensure your production remains uninterrupted.

What materials can the UV laser mark?

The 355nm UV laser is ideal for marking electronic products, PVC pipes, medicine packaging (HDPE, PO, PP), PCB cutting, and even micro-hole drilling in various polymers and metals.

What are the advantages of the dual-station worktable?

The dual-station rotary design allows for simultaneous loading/unloading on one side while marking on the other, which significantly increases operational efficiency compared to single-station machines.

Is the marking permanent?

Yes, UV laser marking is a non-contact, permanent process that creates high-contrast marks without damaging the material's surface integrity, making it ideal for air switches and electronic components.

How is the machine protected during shipping?

All equipment is packed in customized professional wooden boxes to prevent any damage during international transport.
