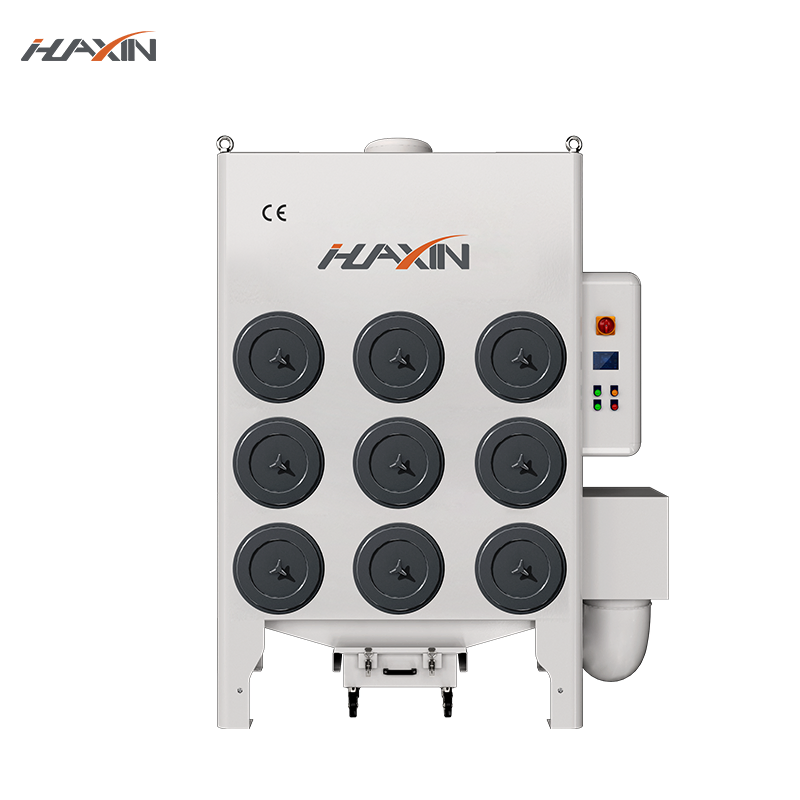

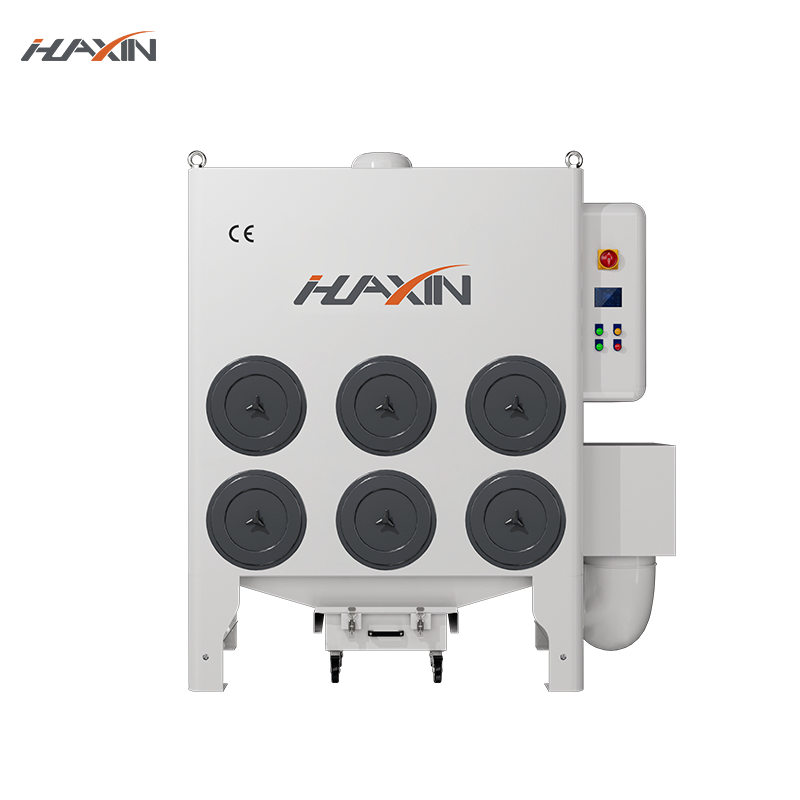

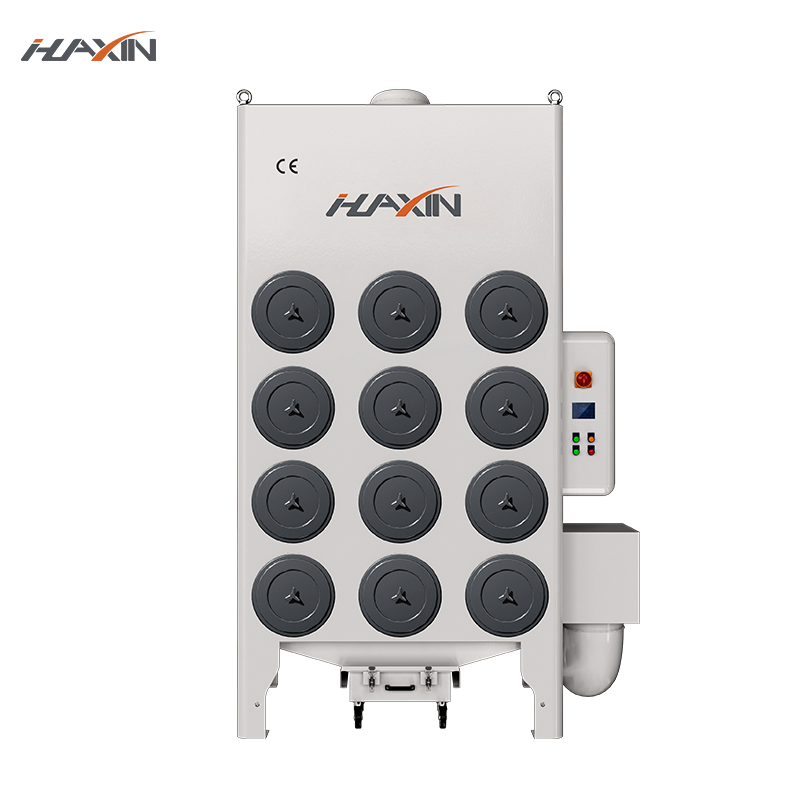

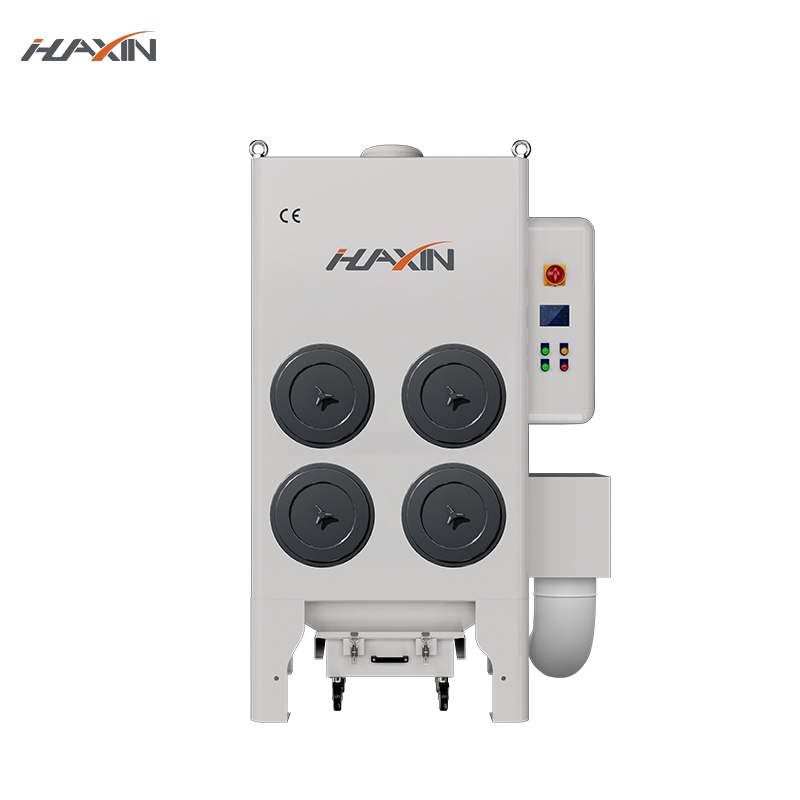

Industrial Dust Collection System for Laser and Welding Tasks

Basic Specifications

Model NO.:JG06

Operation Type:Automatic

Medium Material:Chemical Synthetic Fiber

Method:Dry Dust Collecting

Type:Filter Cartridge Collector

Power:7.5kw

Voltage:380V/400V/415V/220V

Application:Welding/Soldering/Laser

Cleaning Way:Full-Automatically

Filtration Area:78m2

Accuracy:99.99%

Filter Size:0.3um

Weight:585kgs

Specification:1800*1050*2200mm

Product Description

✓ Capturing: Welding Fumes, Grinding Dusts, Dry Dusts, Soldering Dusts, Powders, Cutting & Polishing debris.

1. Expertly crafted for high airflow requirements, ensuring seamless integration with extraction systems.
2. Features an innovative split type design for optimal adaptability.
3. Equipped with a unique fan isolation sound box for quieter workspace operation.
4. Integrated with multi-stage resistance fire devices for maximum operational security.
5. Suitable for large-scale welding workshops, robot welding lines, and plasma/laser cutting operations.

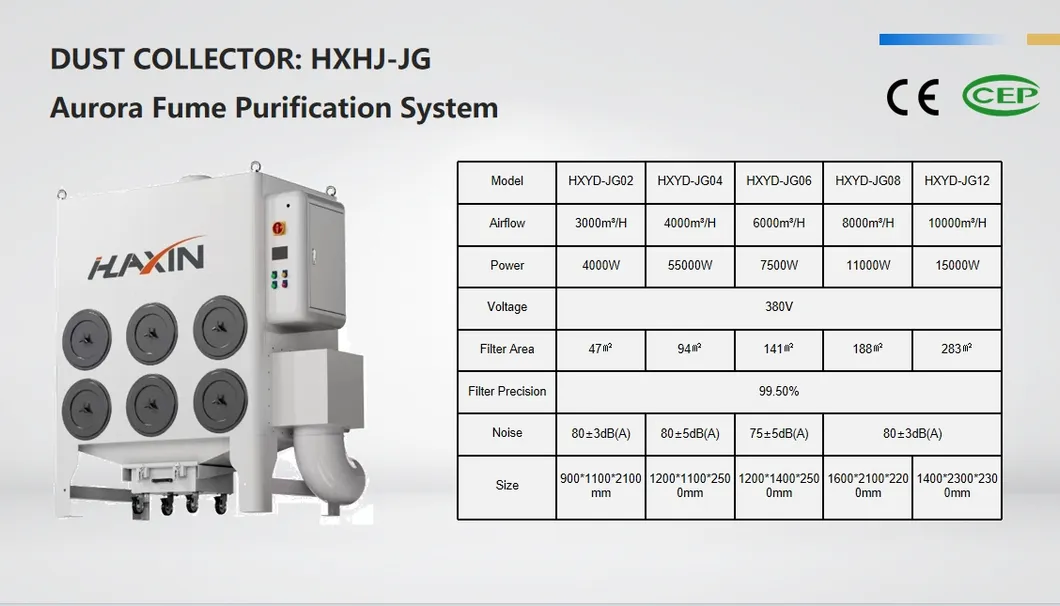

Product Parameters

Model Range	Airflow (m³/h)	Power (kW)	Filter Area (m²)	Precision (%)	Size (mm)

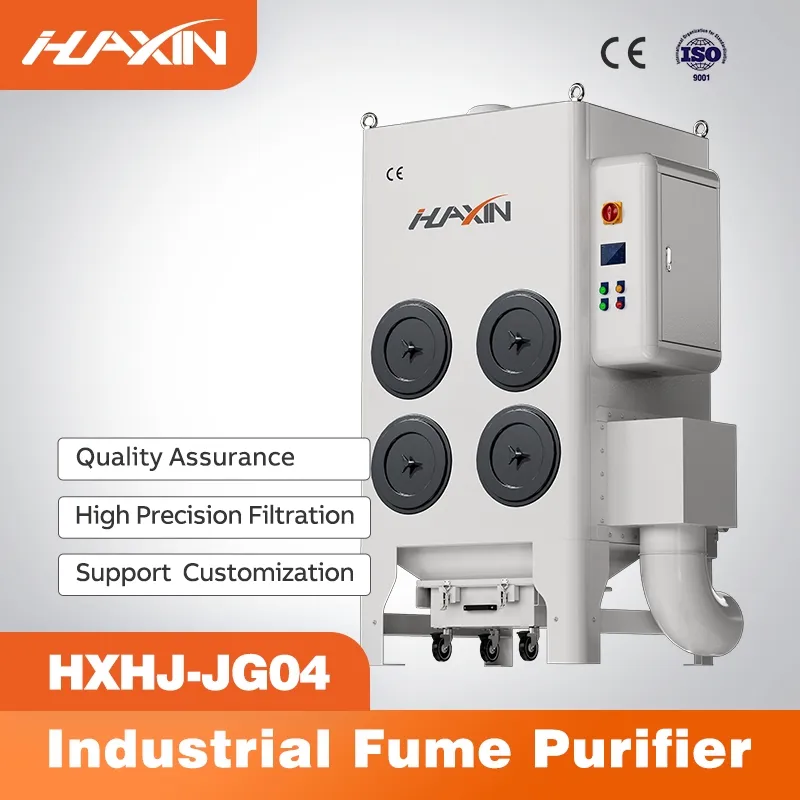

JG04	4000	5.5	94	99.50%	13009402200

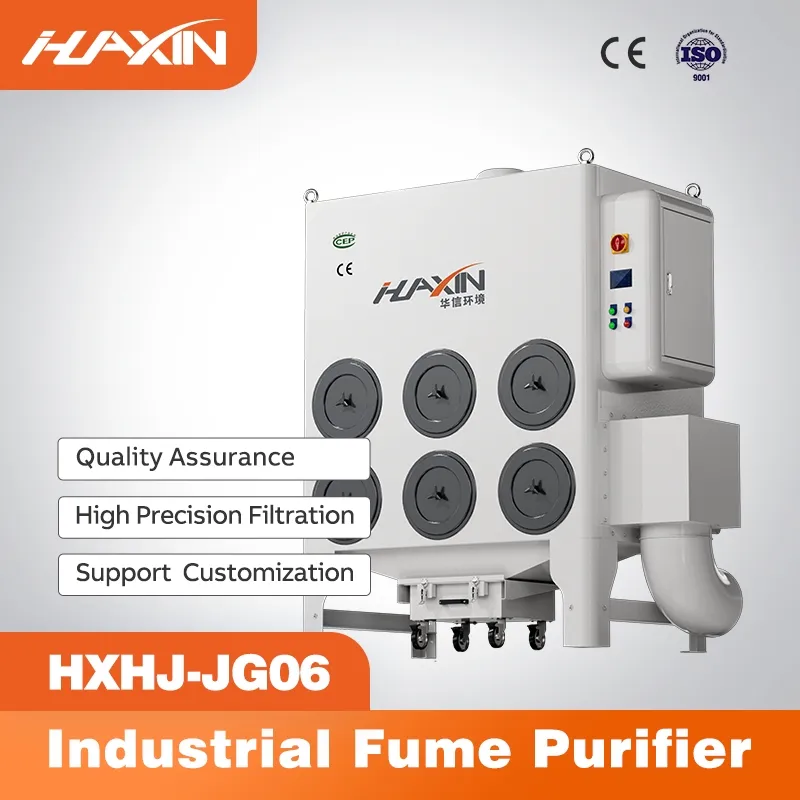

JG06	6000	7.5	140	99.50%	180010502200

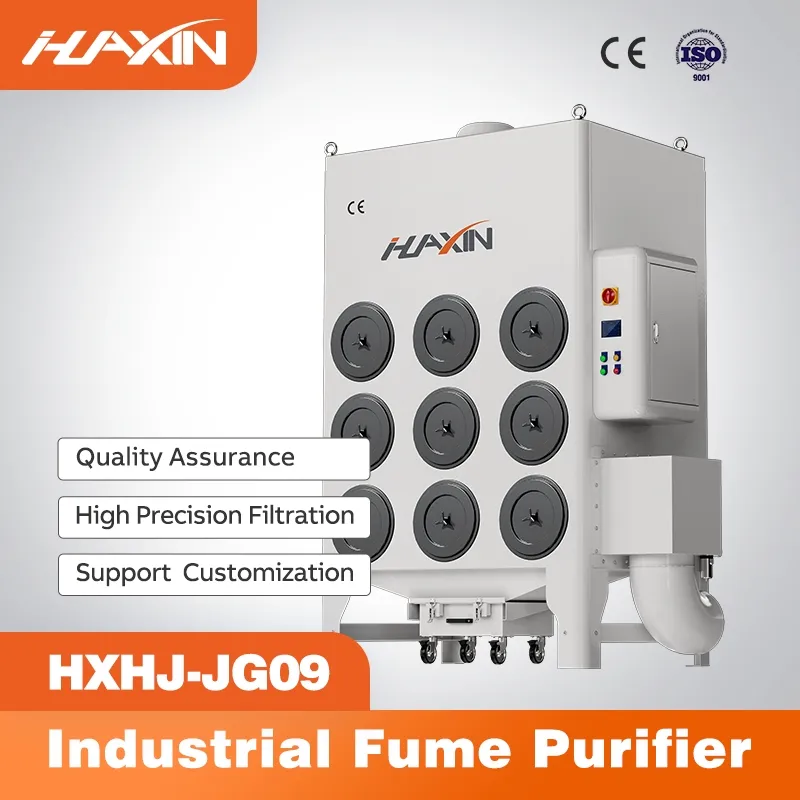

JG09	9000	11	188	99.50%	180011002820
JG12	10000	15	284	99.50%	180012003300

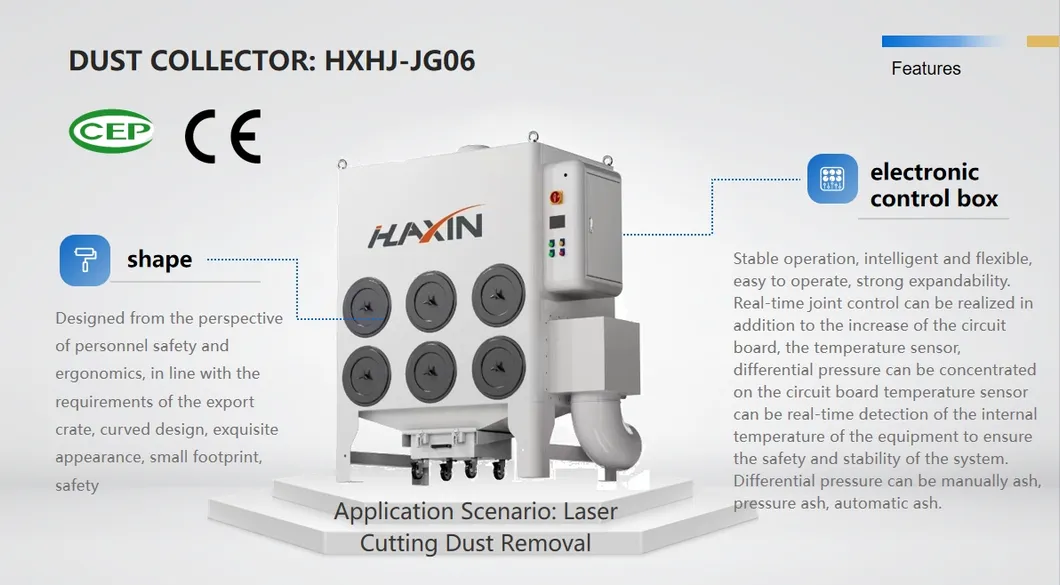

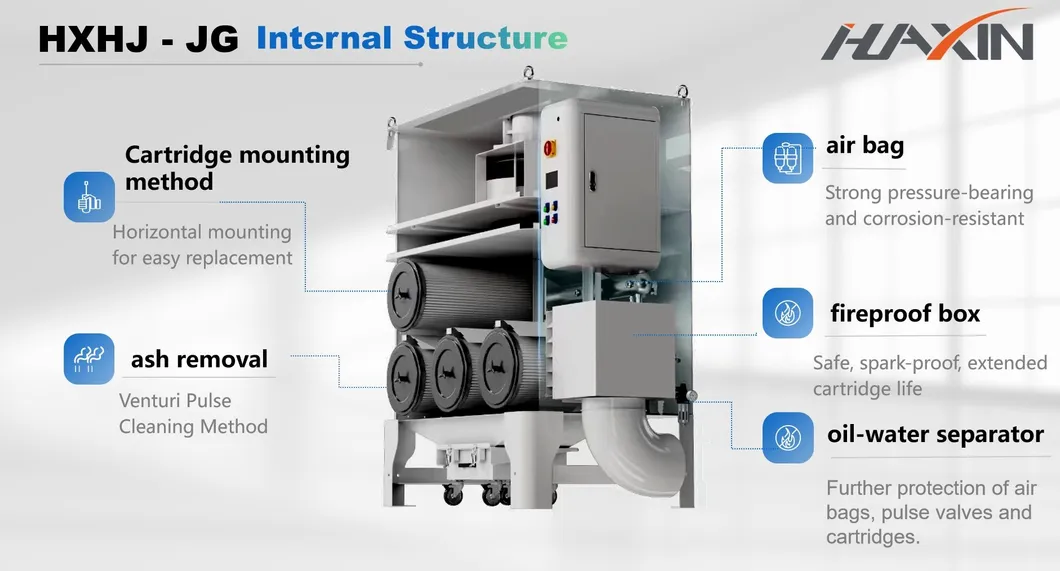

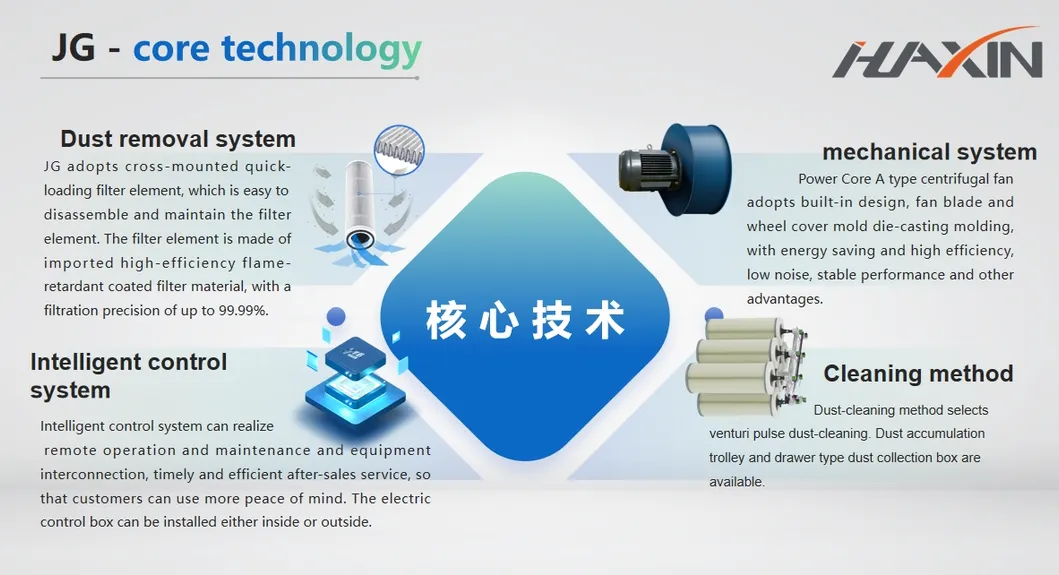

Our Advantages

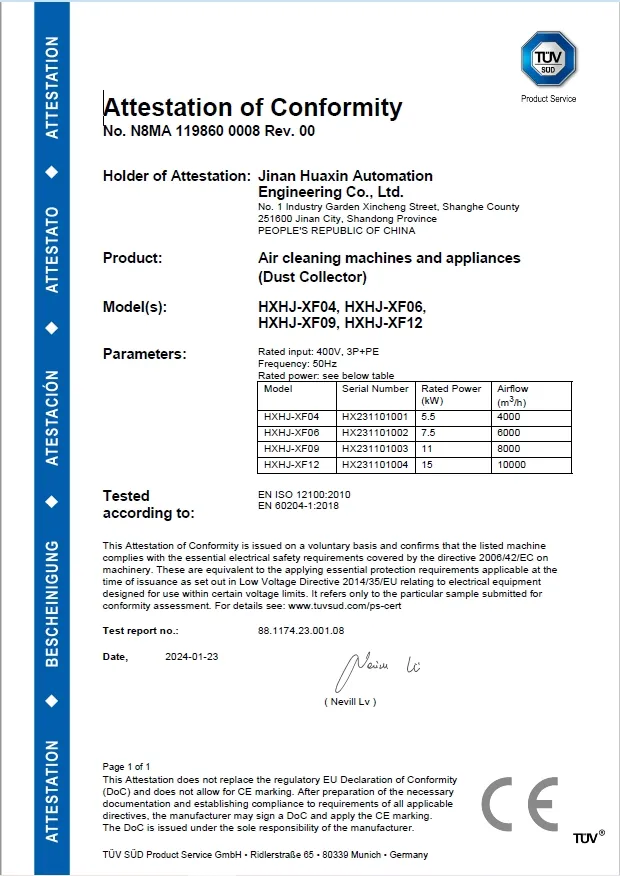

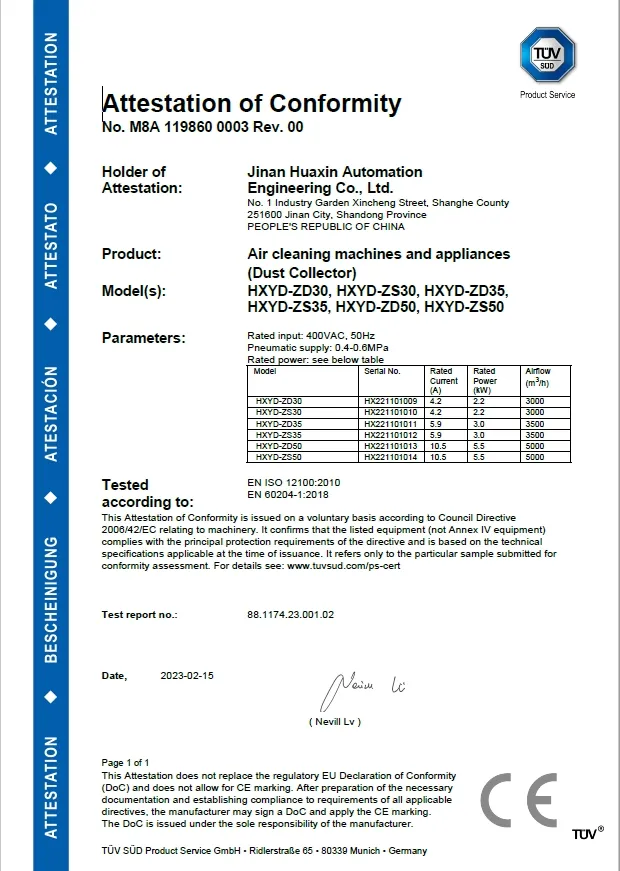

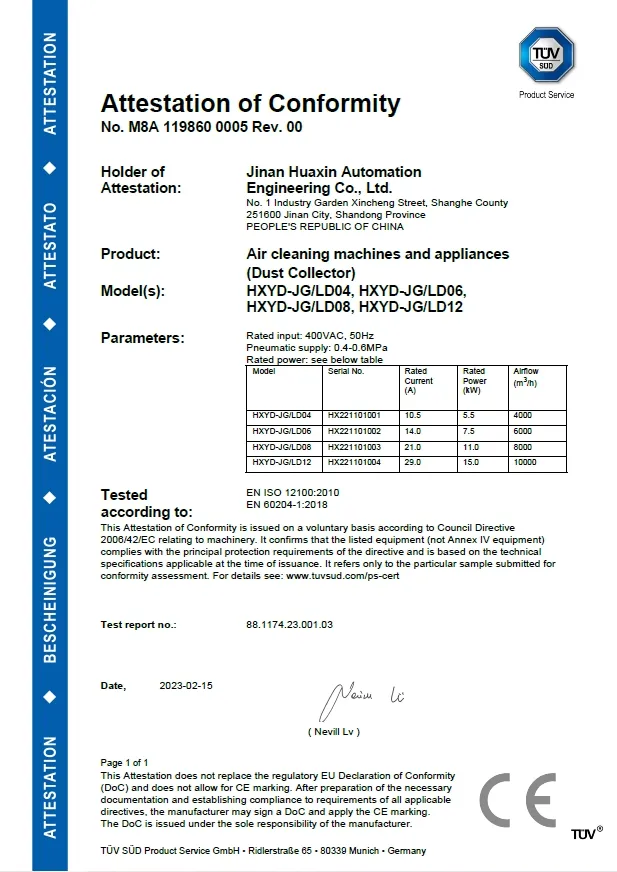

Certifications

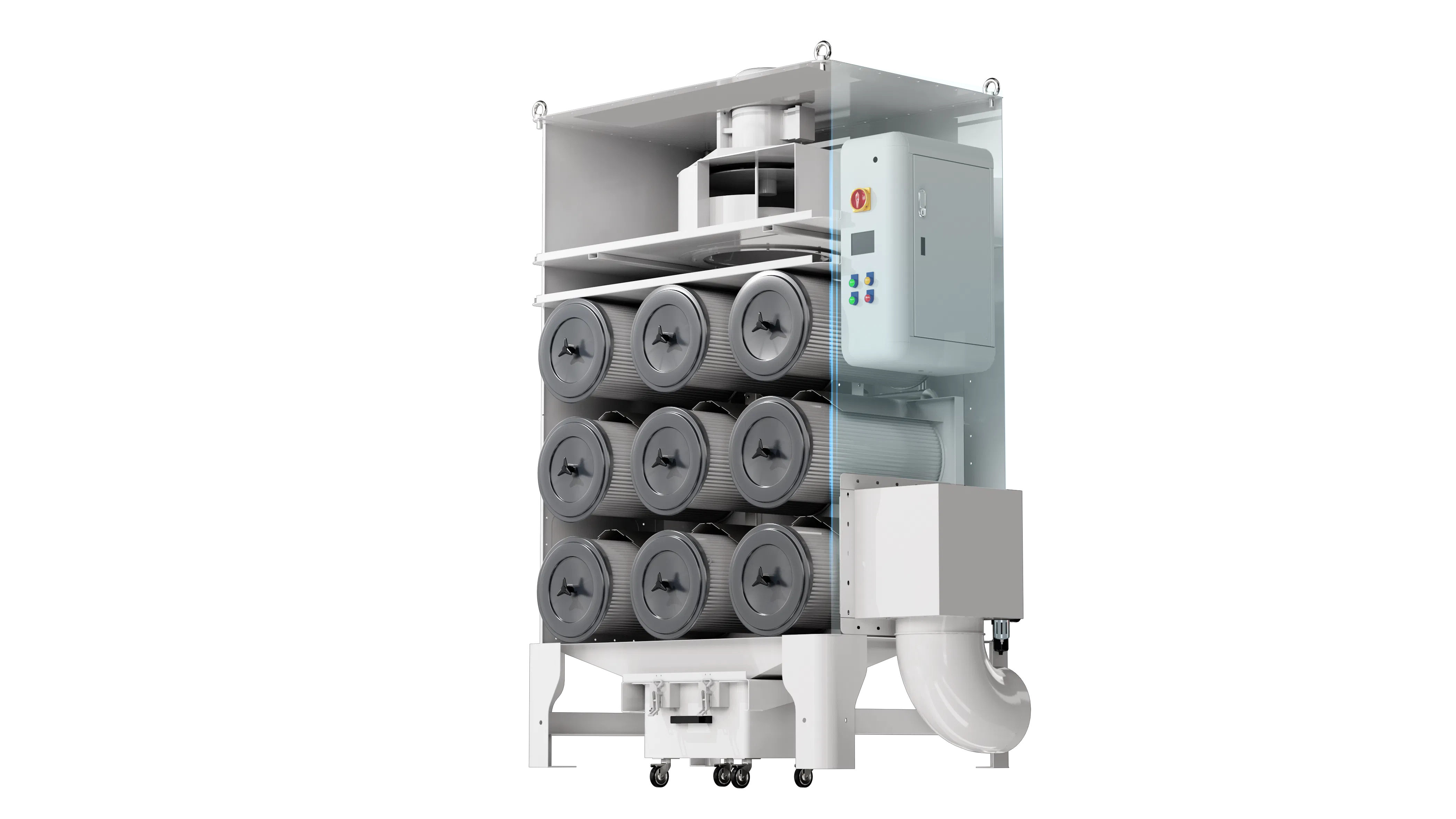

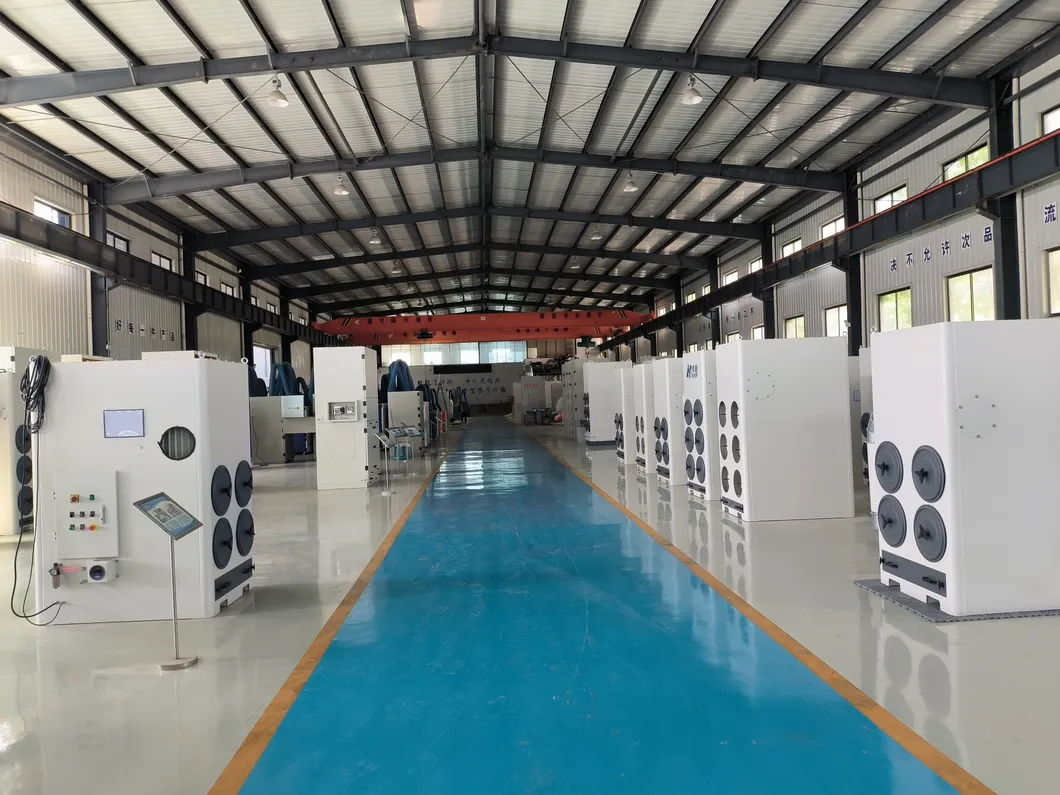

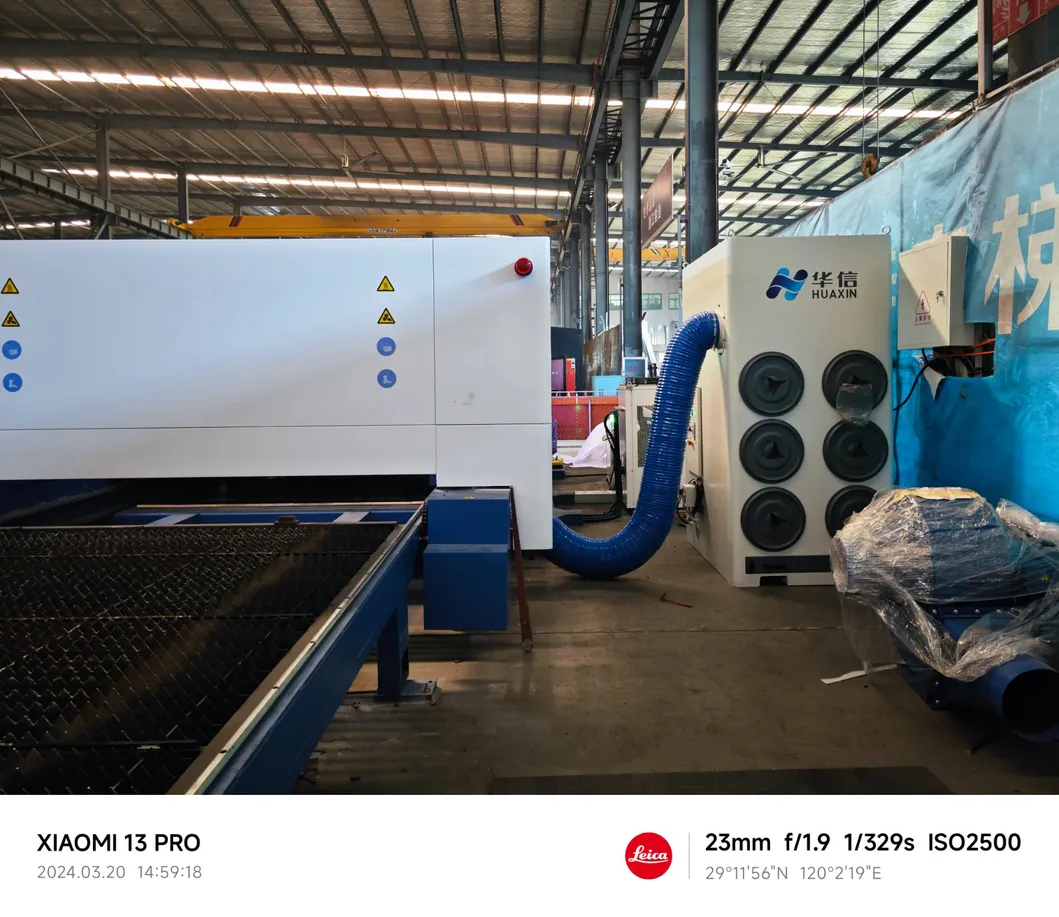

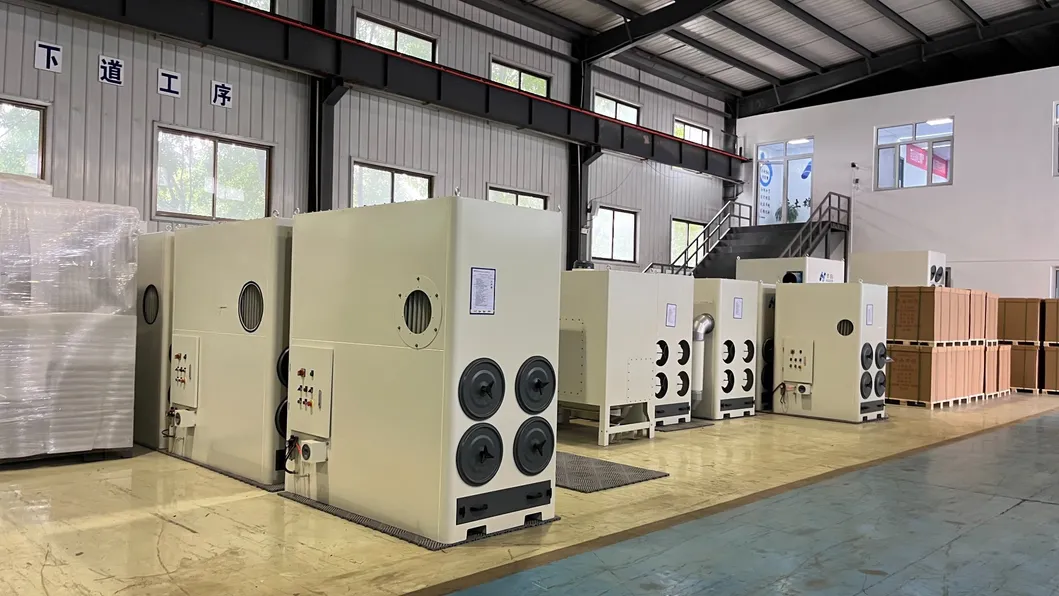

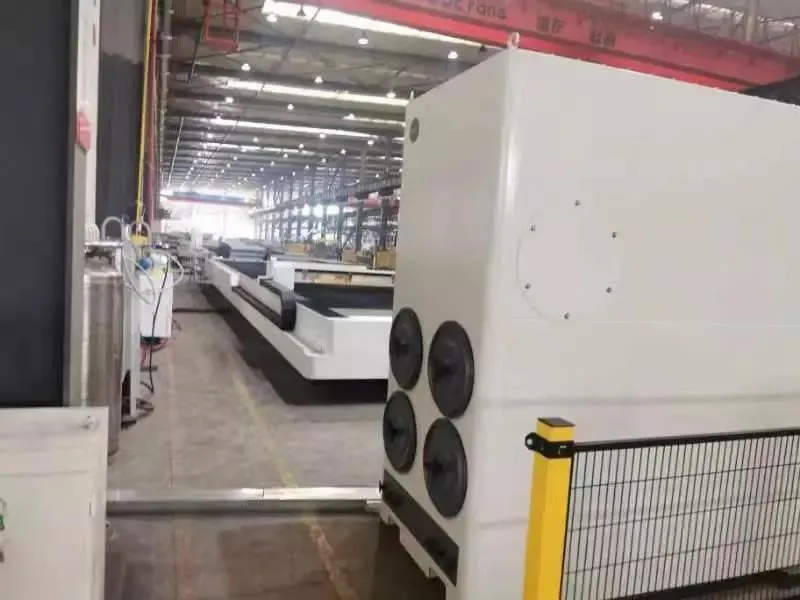

Detailed Photos

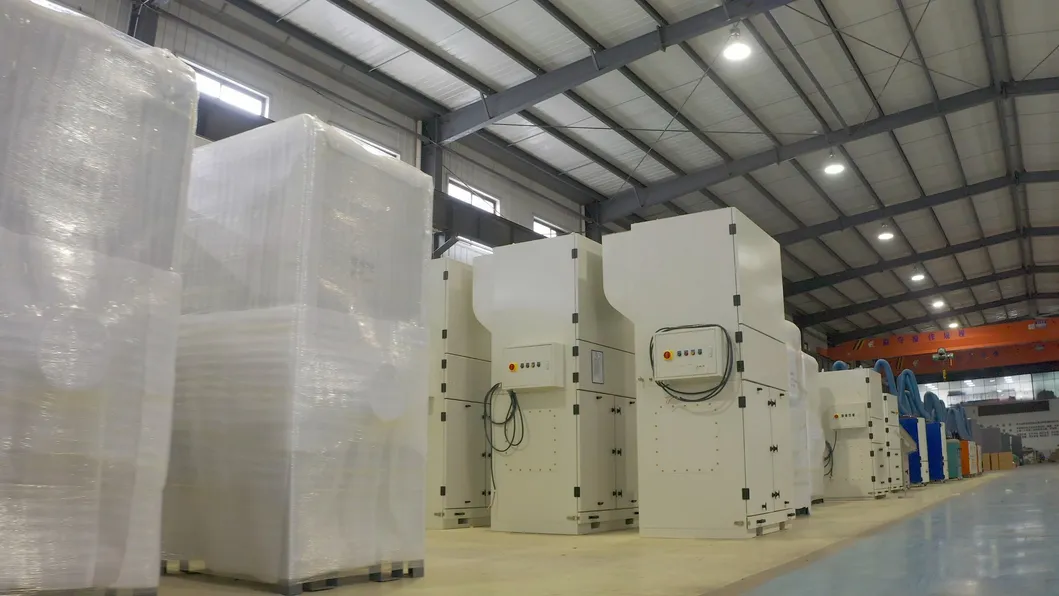

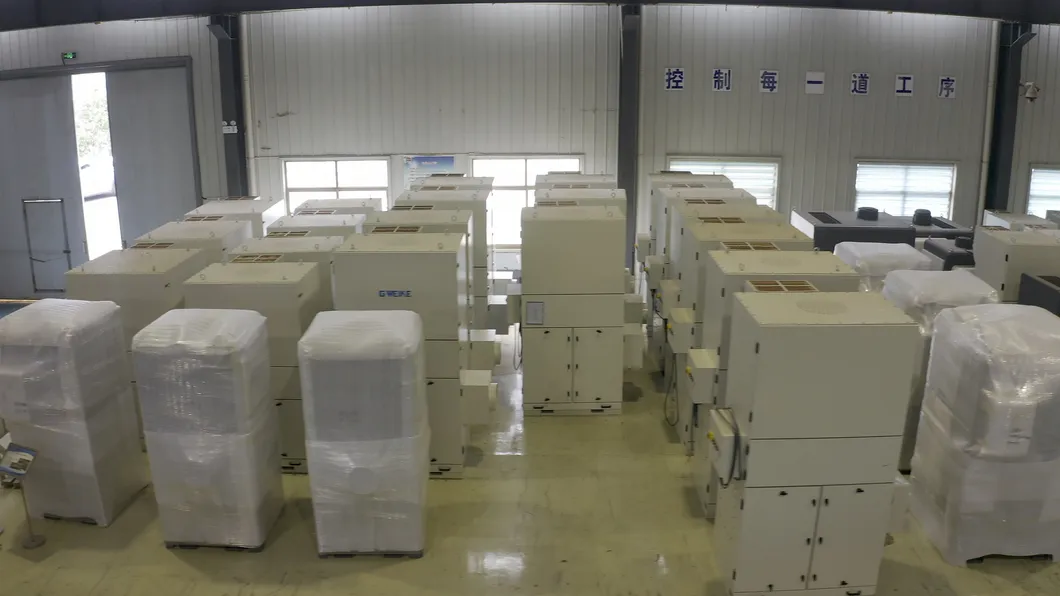

Packaging & Shipping

Frequently Asked Questions

Is there any noise during operation?

The fans are equipped with sound insulation cotton and are designed not to produce excessive noise, ensuring a comfortable working environment.

How do you handle sparks during laser cutting?

We install specialized spark catchers (baffle or swirl types). These use a labyrinth structure to cool and extinguish sparks before they reach the filter material, preventing fire accidents.

Does the system require an external chimney?

No, an external chimney is not required. Our high-precision filter material captures 99% of dust down to 0.3um, allowing for safe indoor air discharge.

How is the air volume for the dust collector calculated?

By measuring the diameter of the exhaust pipe on your cutting platform, we can calculate the exact air volume requirements tailored to your specific machine.

What is the recommended surface treatment?

We recommend the plastic spraying process. It is highly durable, resistant to peeling, and provides long-lasting protection for the equipment surface.

Is the installation process complicated?

Not at all. The system is designed for easy installation and seamless integration into existing production lines.
