Advanced Industrial Dust Extraction System for Laser Cutting and Welding

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

🔹 Basic Information

Model NO.	XF06	Operation Type	Automatic
Medium Material	Chemical Synthetic Fiber	Dust Collecting Method	Dry
Type	Filter Cartridge Dust Collector	Power	7.5kw
Voltage	380V/415V/220V	Application	Welding/Soldering/Lasering Position
Cleaning Way	Full-Automatically Cleaning	Filtration Area	78m²
Filtration Accuracy	99.99%	Mini Particle Size	0.3um
Weight	520kgs	Specification	120014002500mm

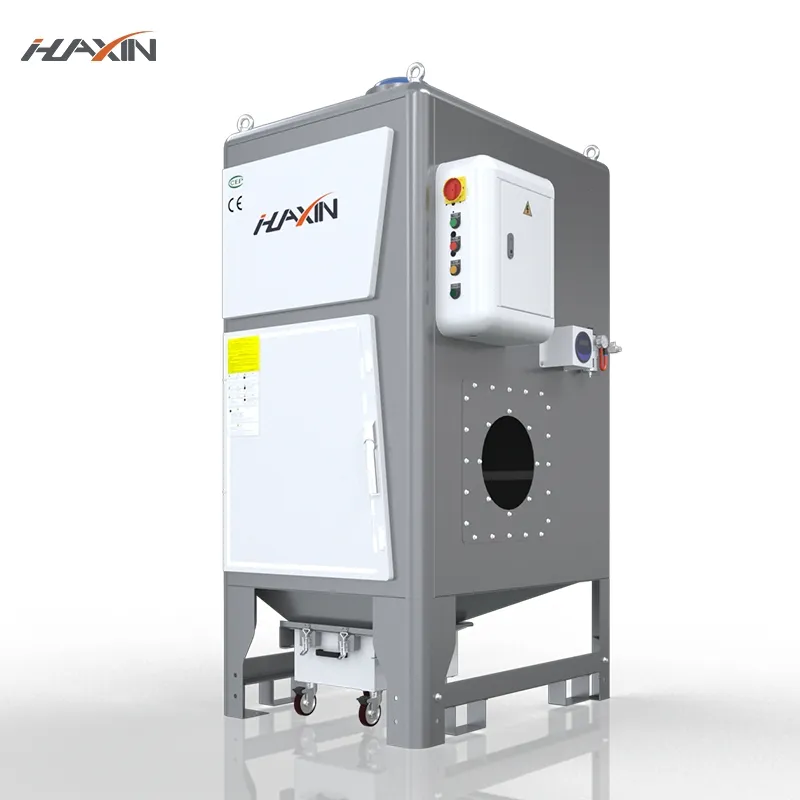

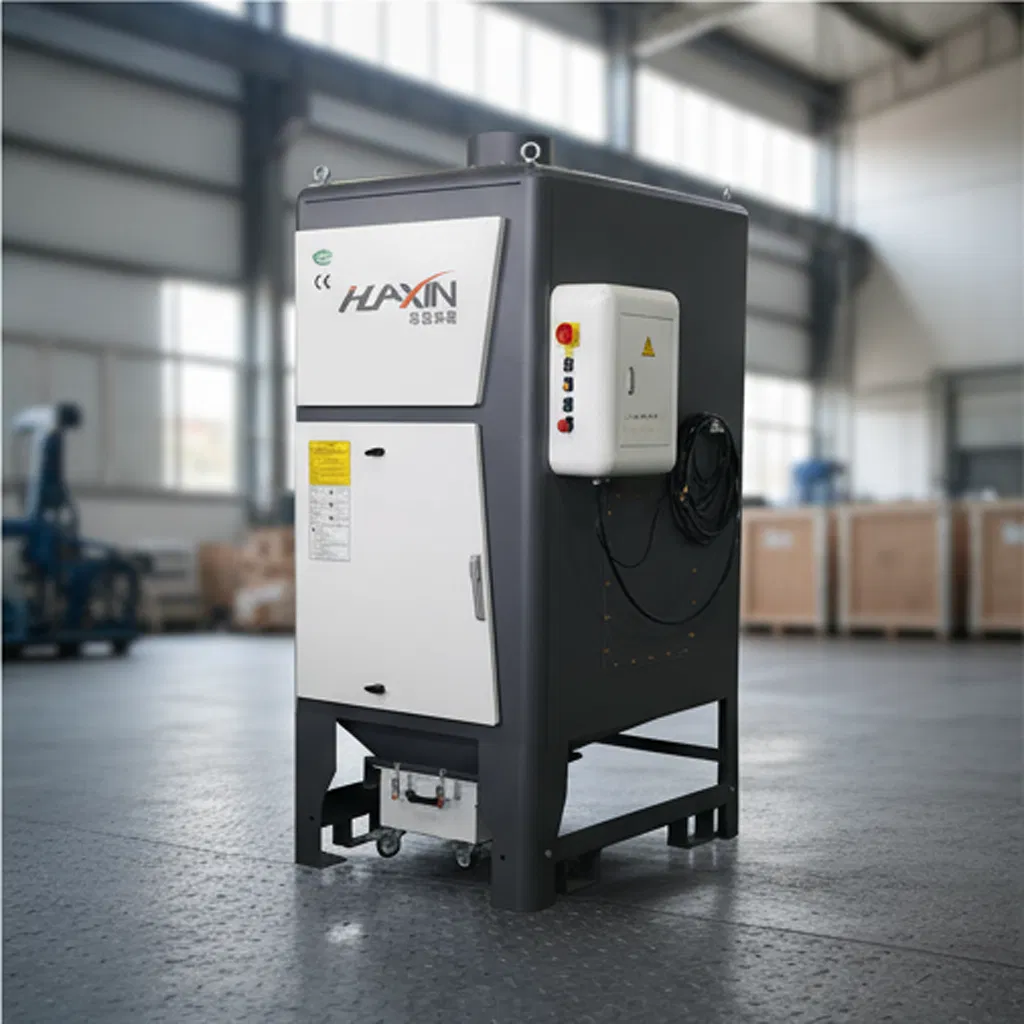

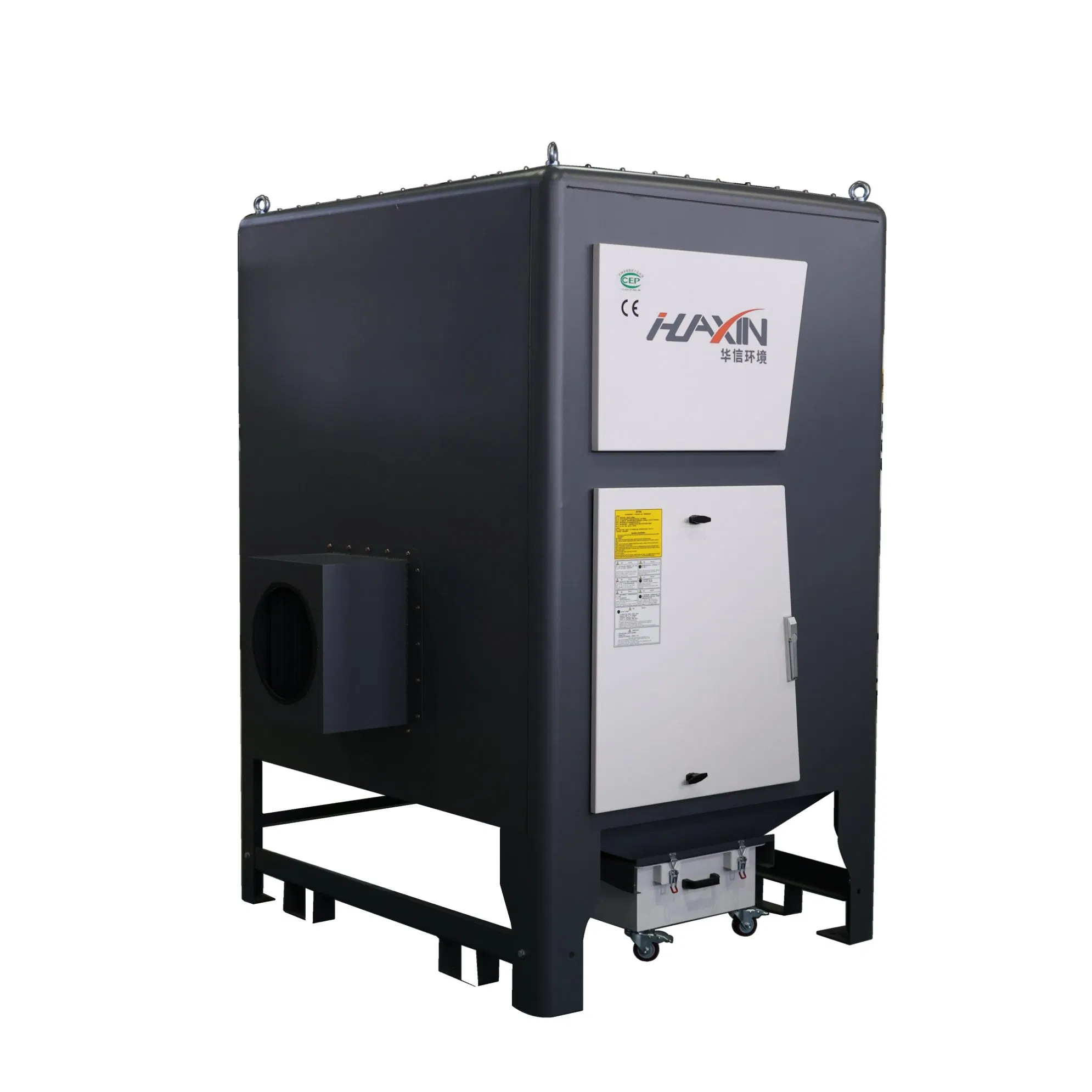

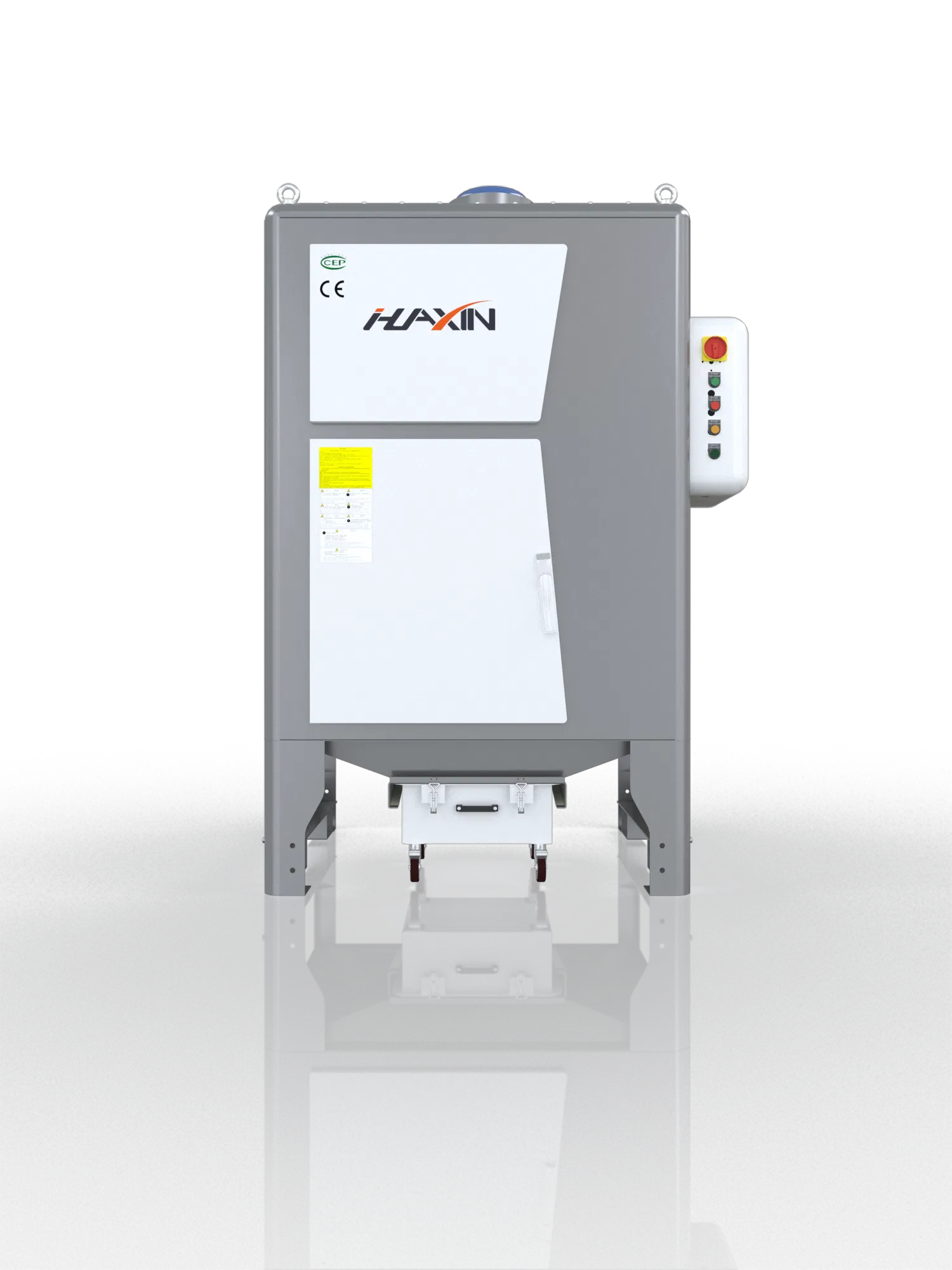

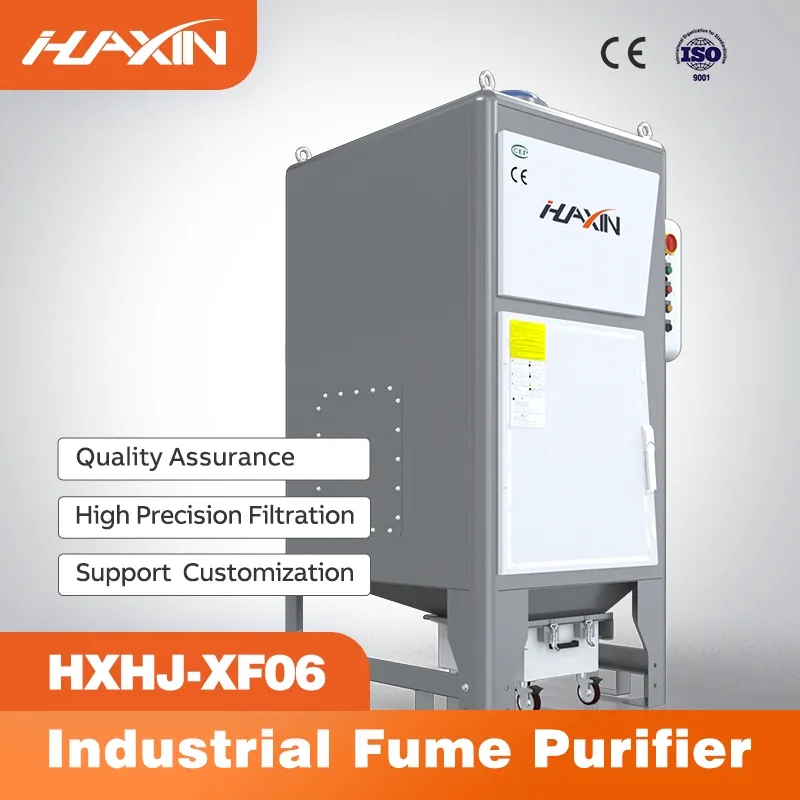

📷 Product Overview

📝 Product Description

✅ High-Efficiency Filtration

Crafted with precision and innovation, these state-of-the-art dust collectors are equipped with an advanced high-efficiency filtration system. Designed to capture an extensive range of particulate matter, from the finest dust to delicate fumes, achieving efficiencies reaching 99.99%. This ensures the air expelled is purified and safe for your workspace.

✅ Adaptability to Different Dust Types

Our dust collectors are engineered to handle various dust characteristics across materials like metals (managing fines and fume) as well as plastics or composite materials, ensuring comprehensive dust management regardless of the cutting operation.

✅ Powerful Suction Capacity

Designed for rapid removal, the high suction instantly captures dust at the source, preventing dispersion and safeguarding your laser machinery from potential dust-related damage.

✅ Compact & Low Noise Operation

A space-saving design integrates seamlessly near machines. Operation remains under 80 decibels, maintaining a tranquil and productive environment for workers.

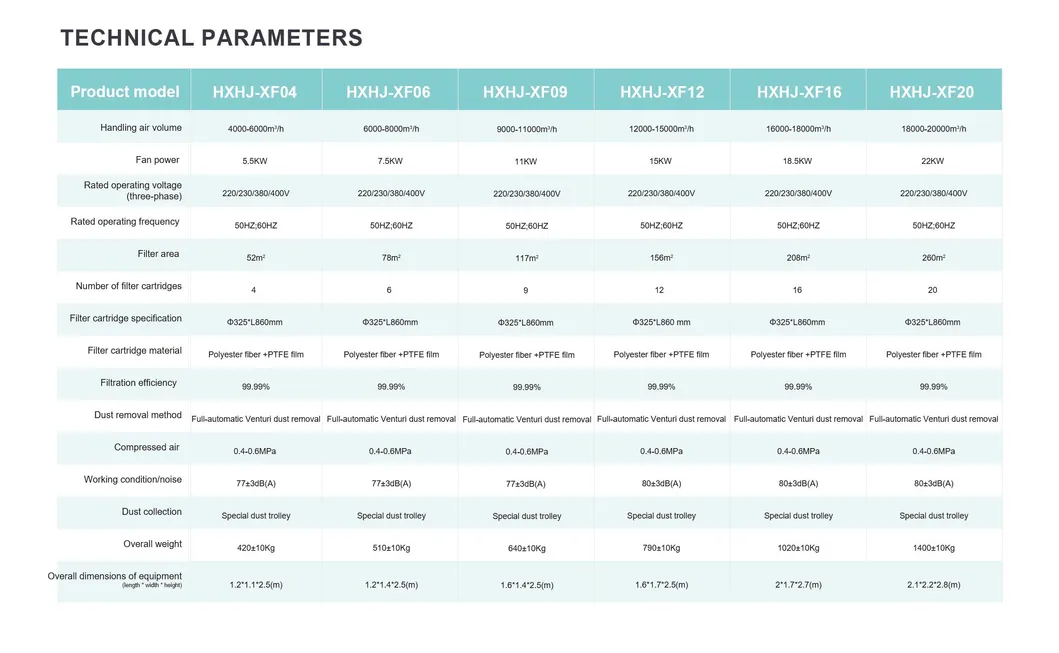

📊 Technical Parameters

Model	Airflow (m³/h)	Power (kW)	Filter Area (m²)	Precision	Noise dB(A)	Size (mm)
XF04	4000	5.5	52	99.99%	77±3	120011002500
XF06	6000	7.5	78	99.99%	77±3	120014002500

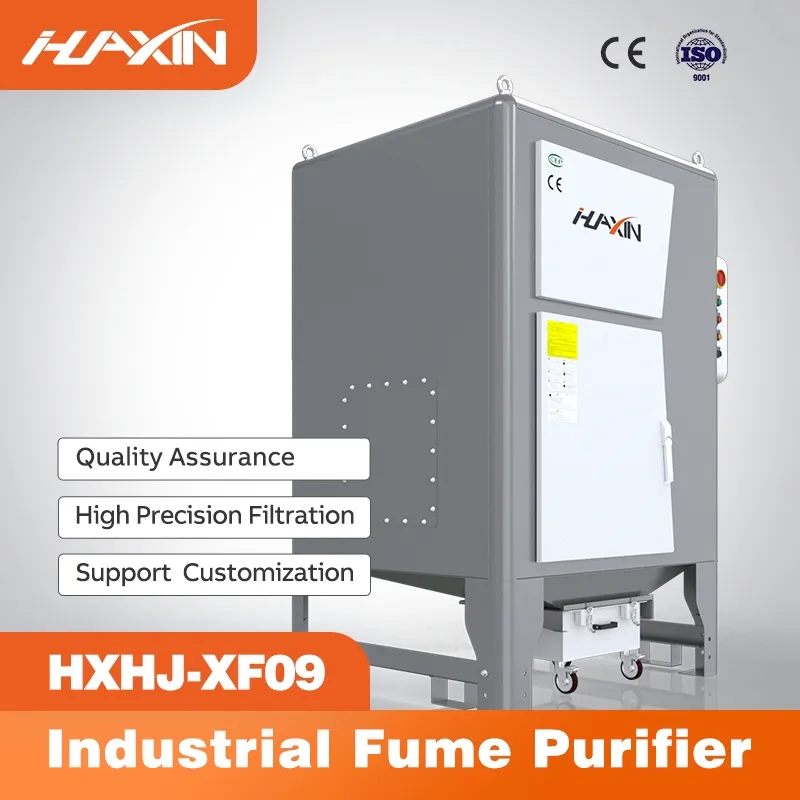

XF09	9000	11	117	99.99%	77±3	160014002500
XF12	12000	15	156	99.99%	77±3	160017002500
XF16	16000	18.5	208	99.99%	77±3	200017002700
XF20	20000	22	260	99.99%	77±3	210022002800

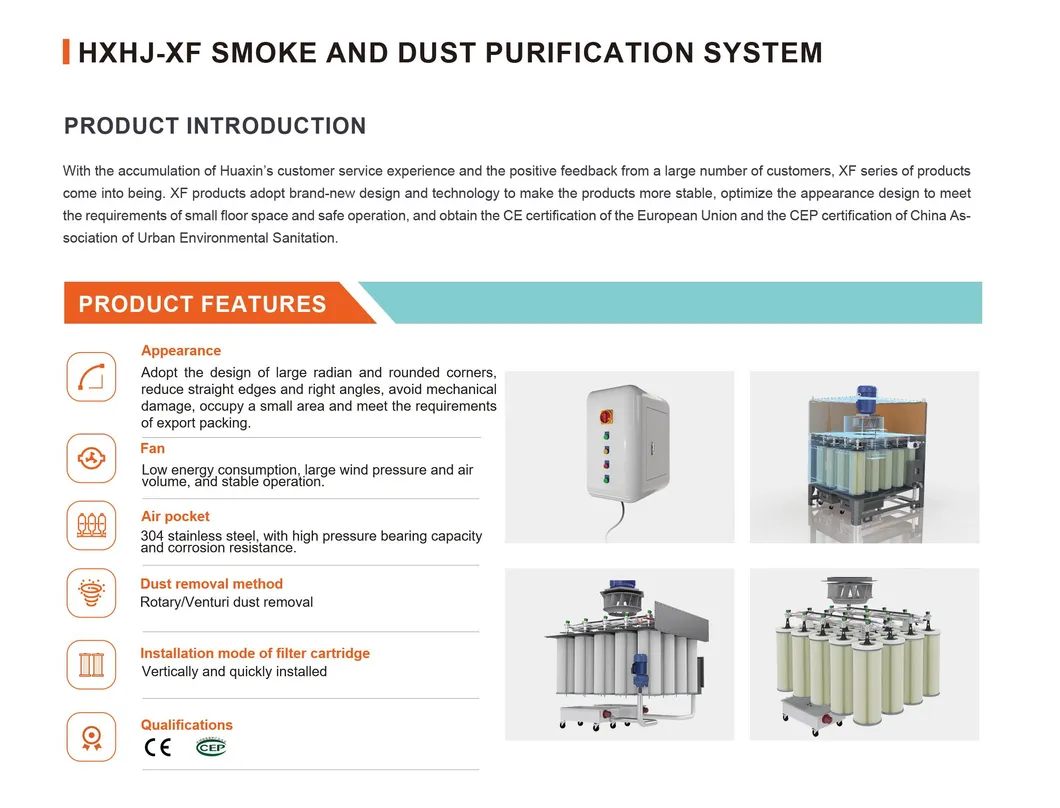

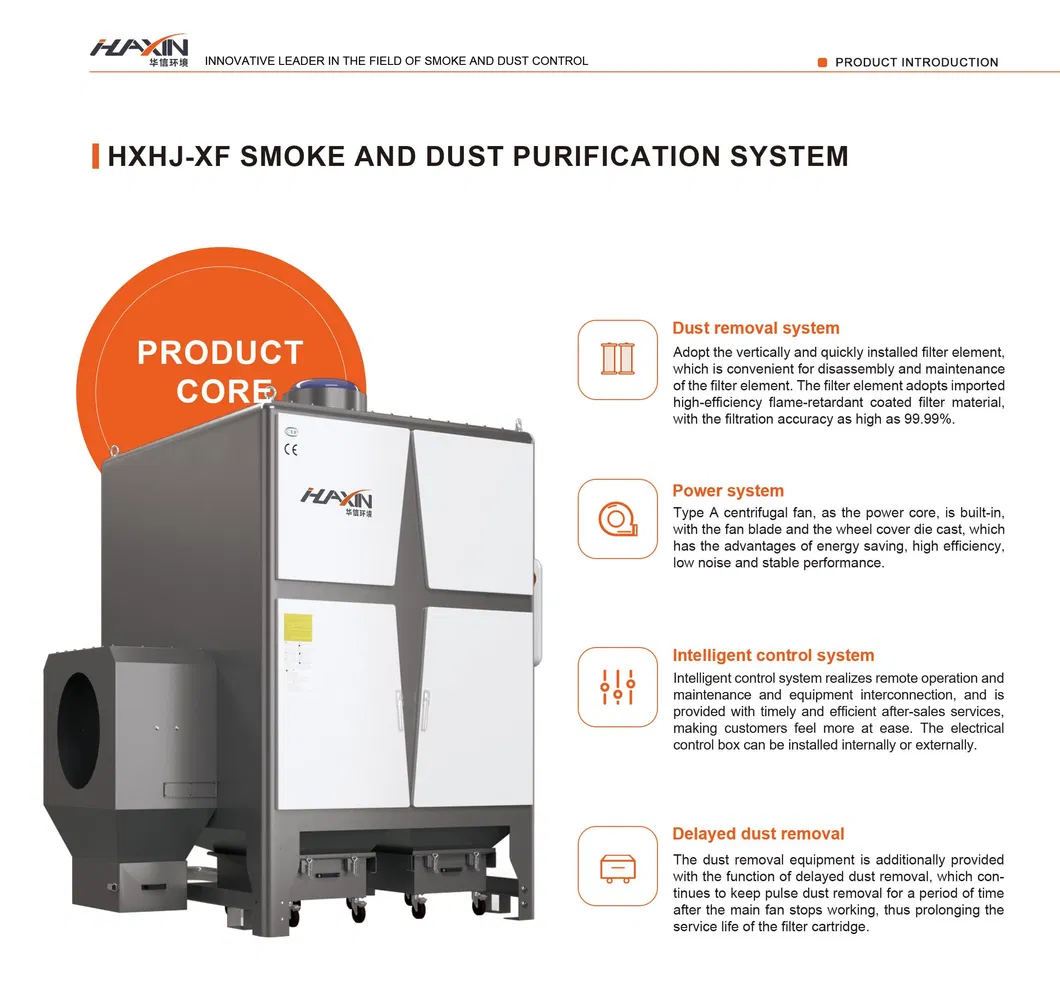

⭐ Key Advantages

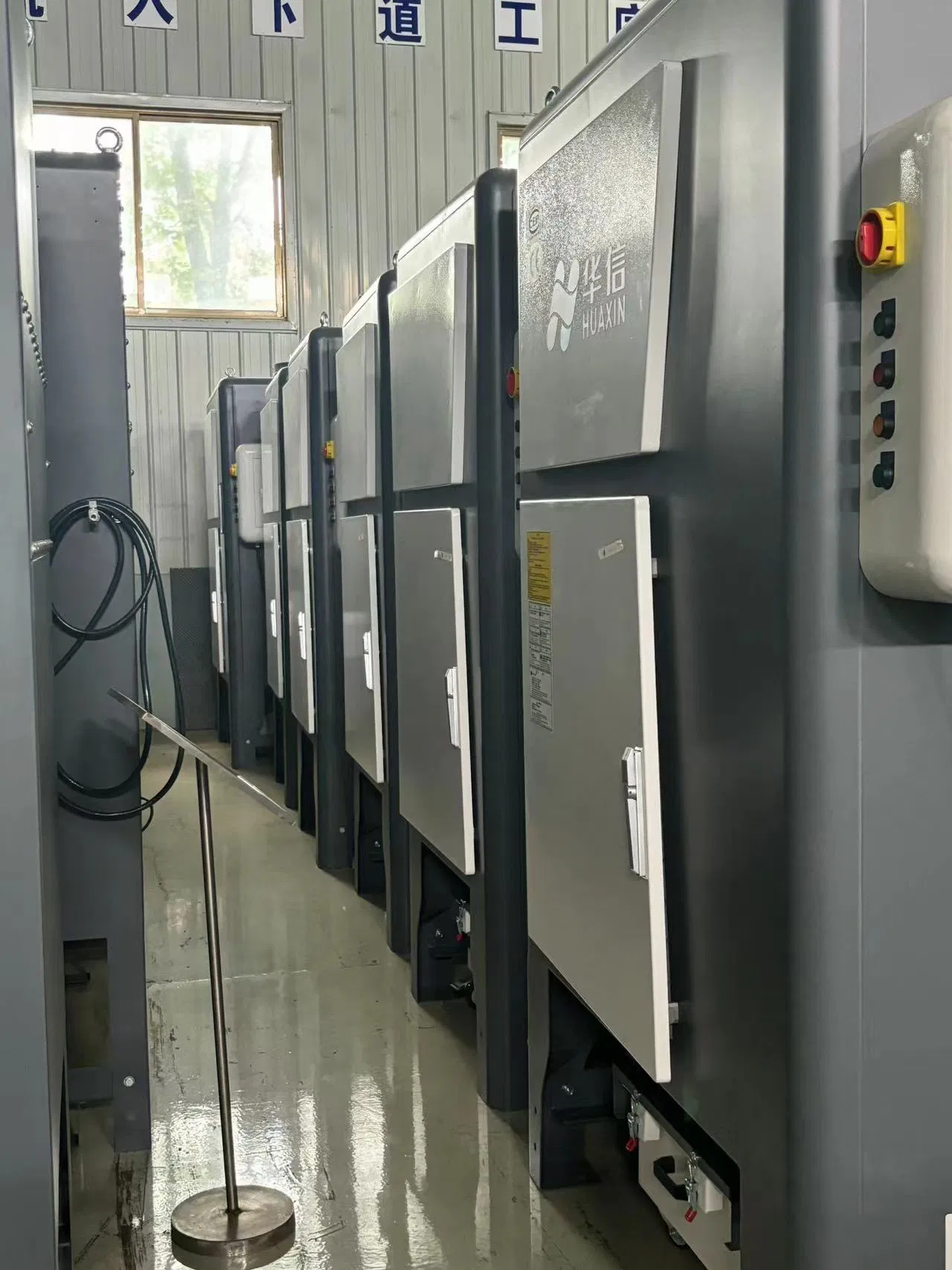

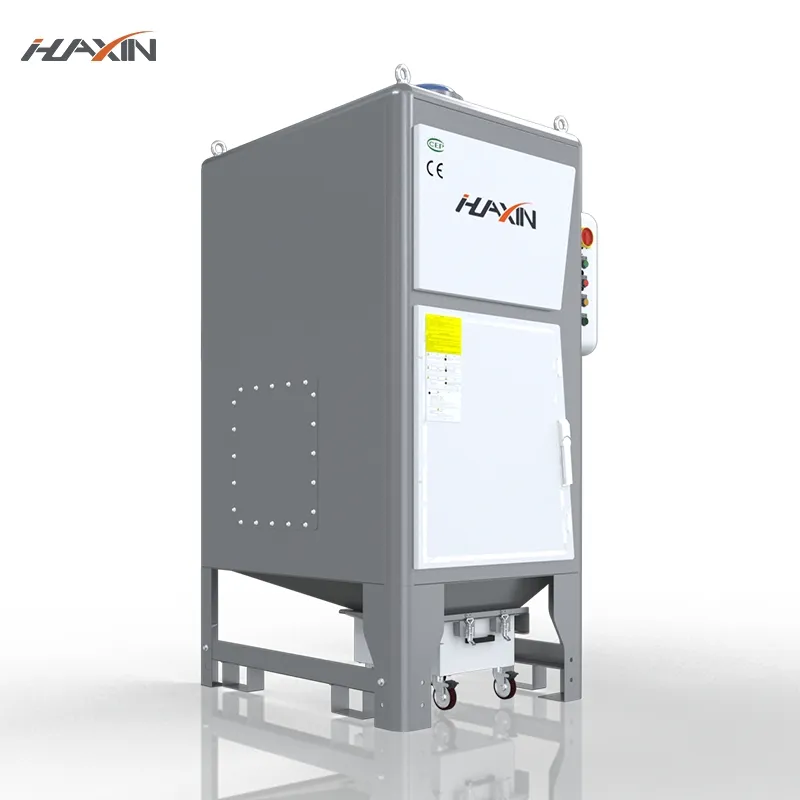

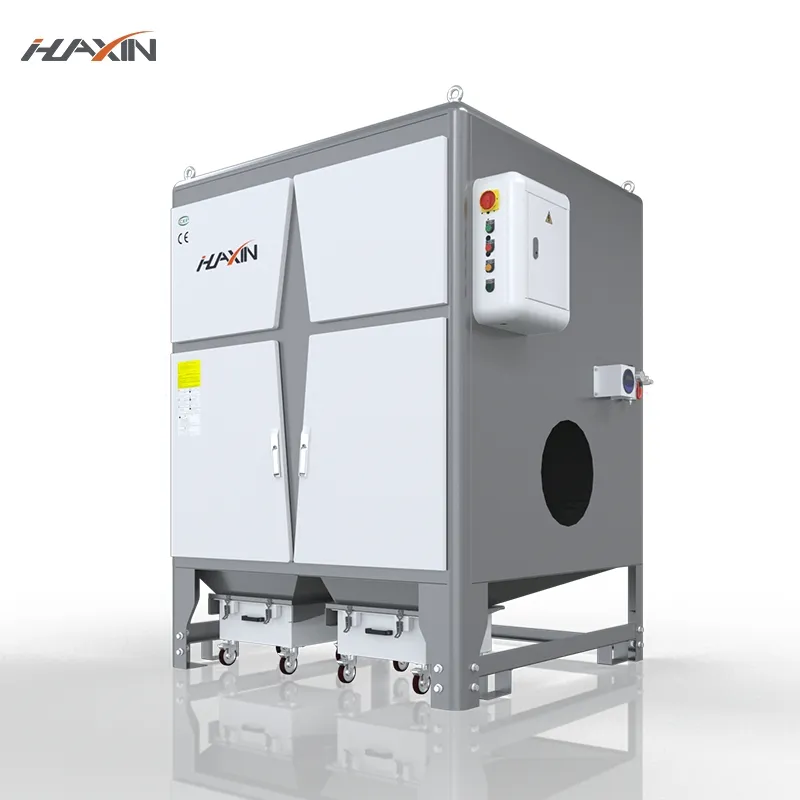

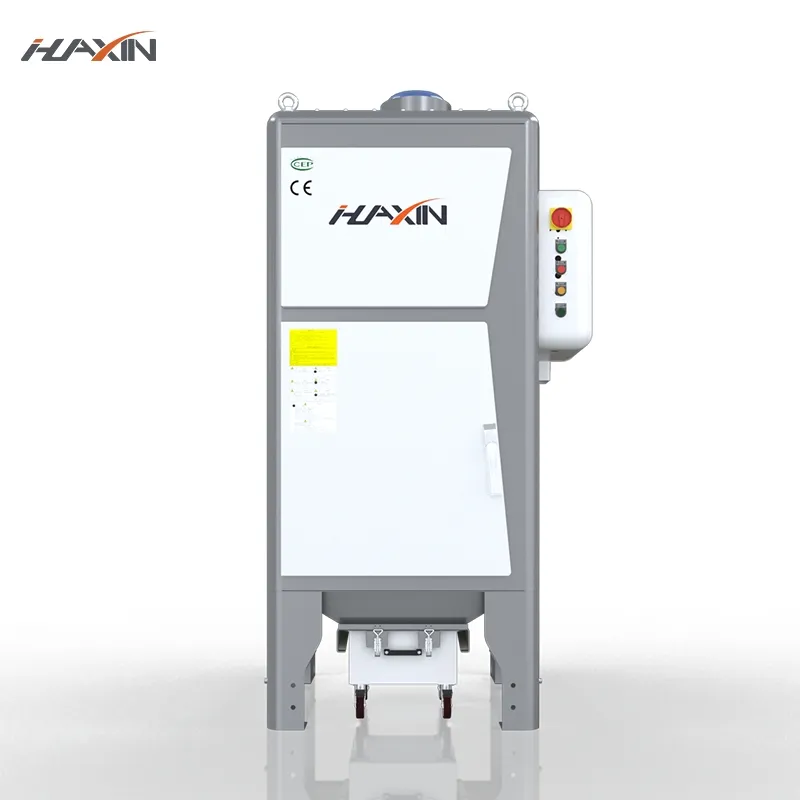

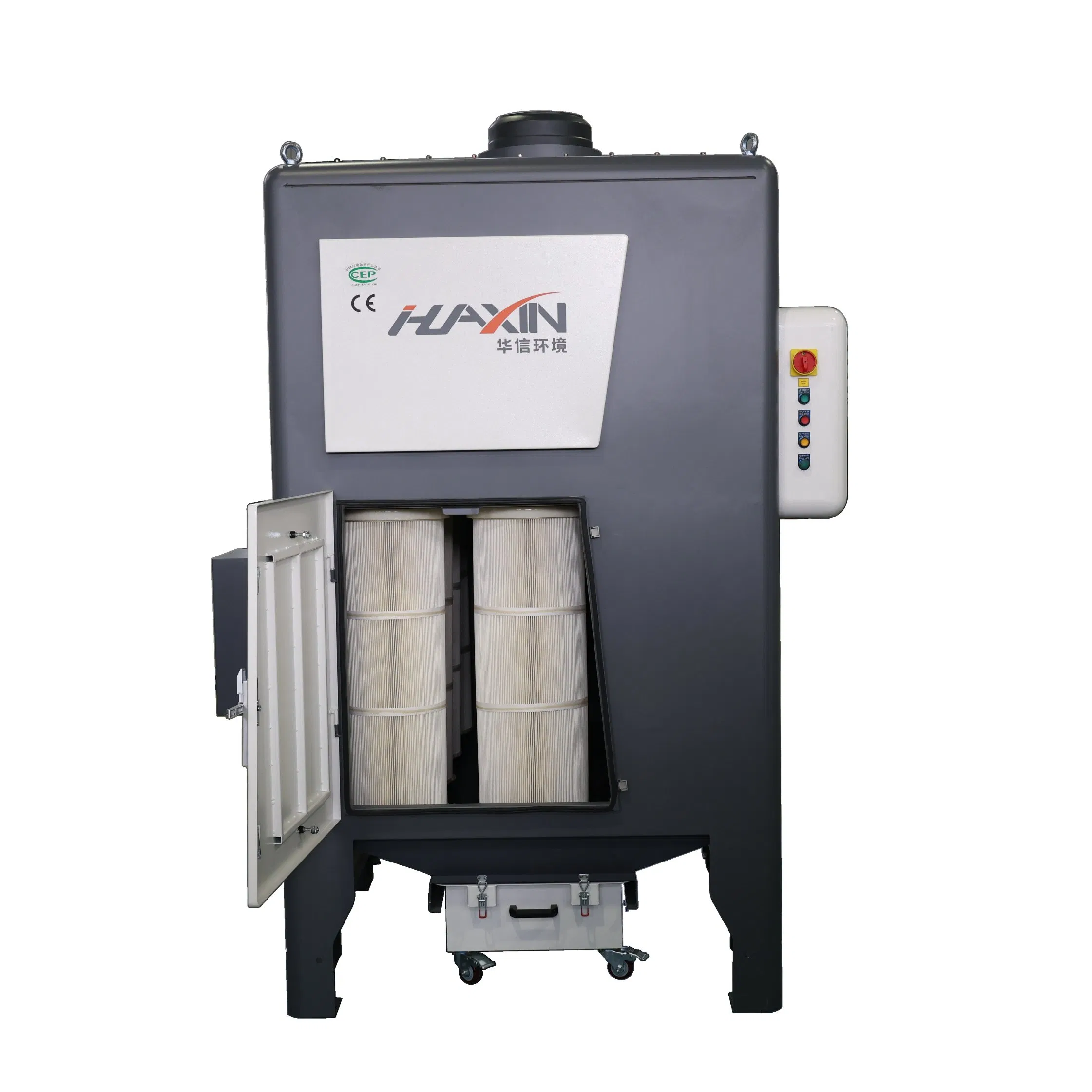

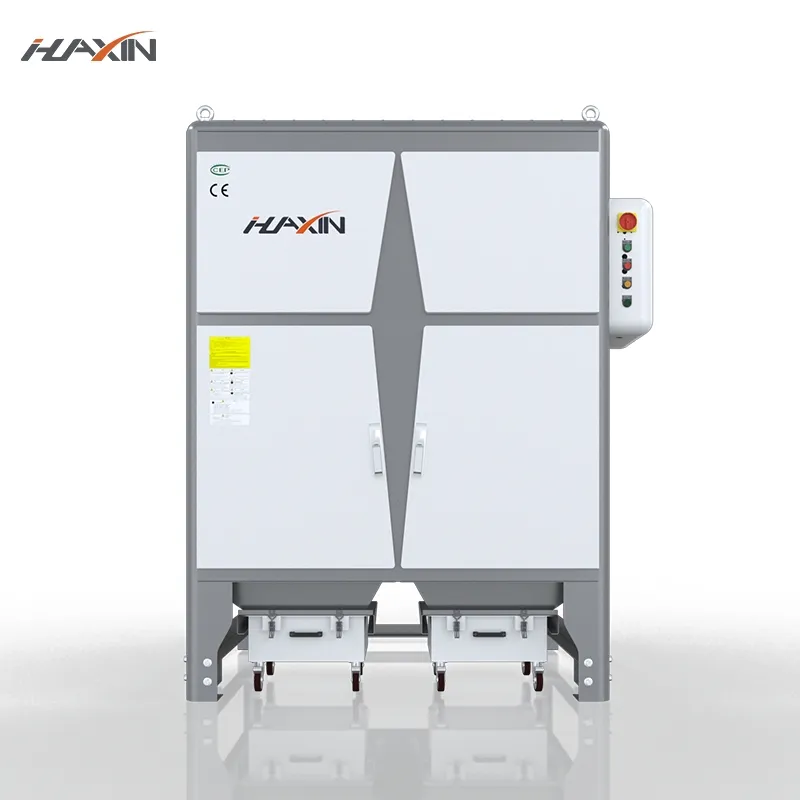

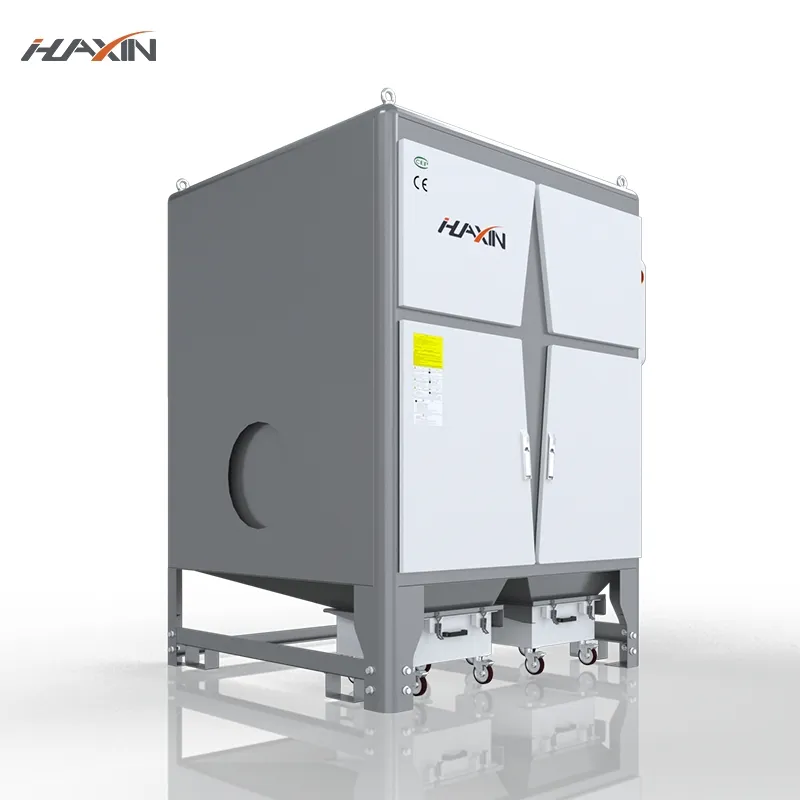

🔍 Detailed Photos

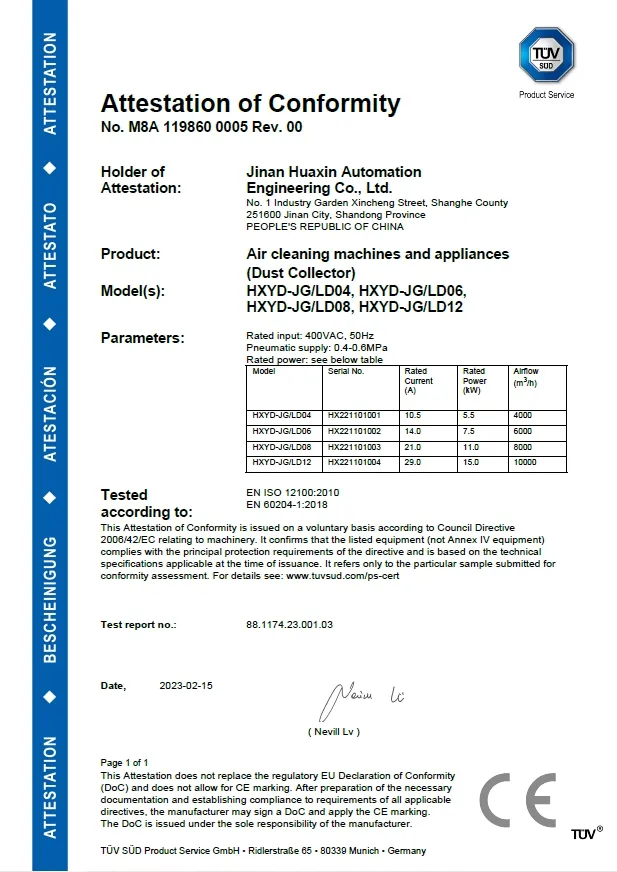

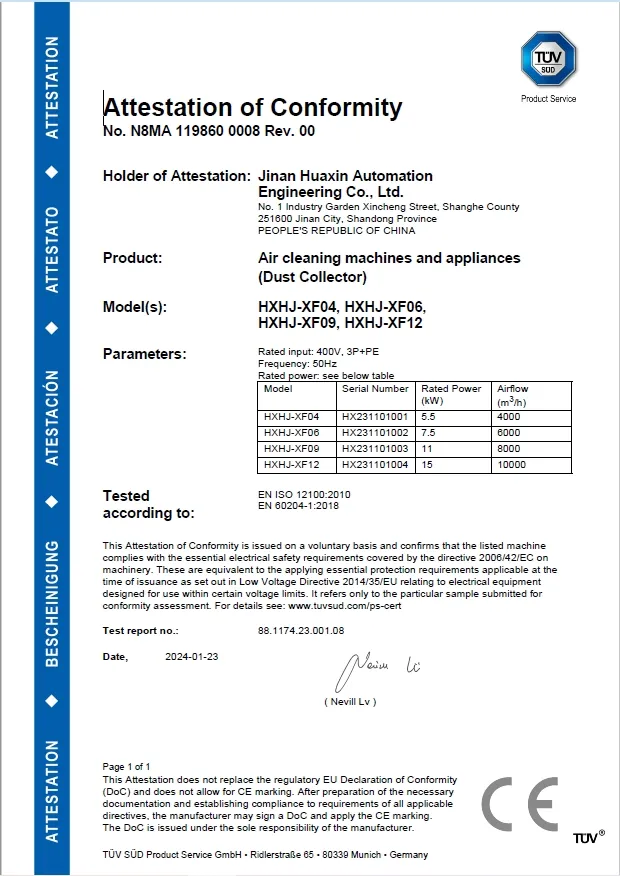

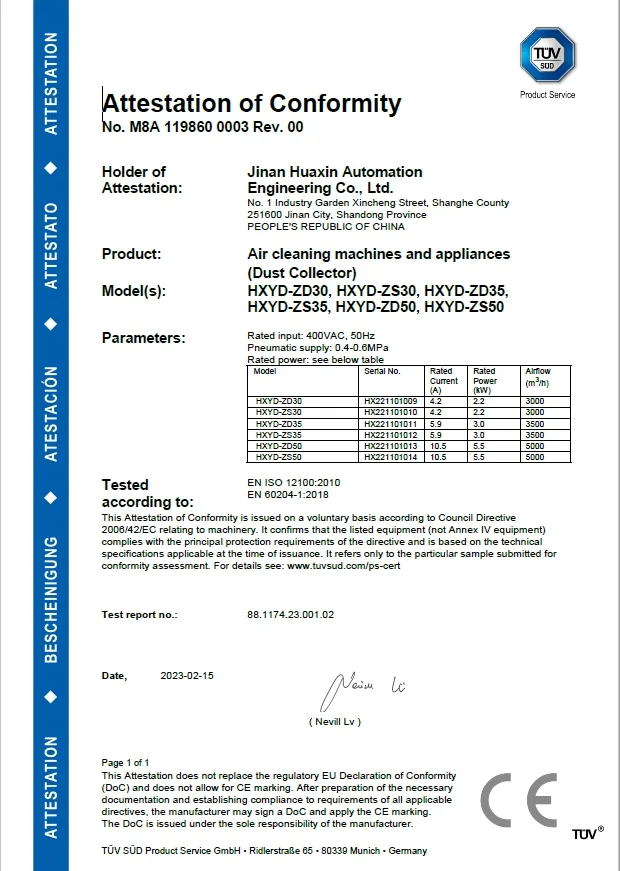

📜 Certifications

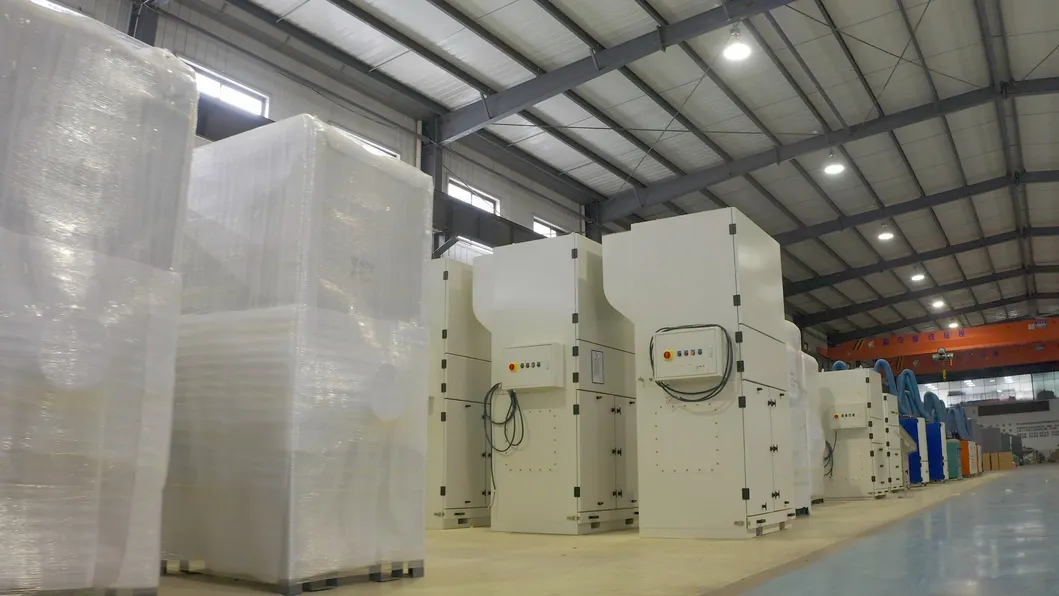

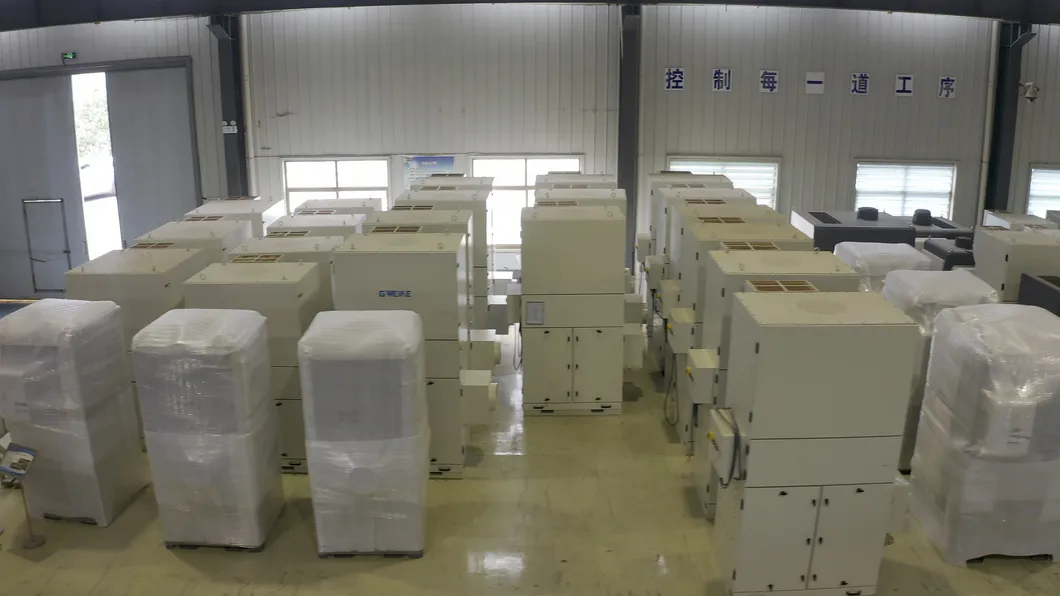

📦 Packaging & Shipping

Frequently Asked Questions

Q1: Does the system produce excessive noise? A1: No. The fans are equipped with sound insulation cotton to ensure low noise operation, typically staying below 80 decibels.

Q2: Why is the plastic spraying process used for surface treatment? A2: This process ensures the paint is durable and resistant to falling off, providing a much longer service life for the collector's exterior.

Q3: How do I choose the correct air volume for my laser machine? A3: Simply measure the diameter of the exhaust pipe on your laser cutting machine. Based on this measurement, we can calculate the exact air volume required for effective collection.

Q4: How do you prevent fire accidents from sparks during cutting? A4: We install high-quality spark catchers (baffle or swirl type). These use a labyrinth structure to extinguish sparks before they reach the filter material.

Q5: Do I need to vent the system through a chimney? A5: No. Because we use high-precision filter materials that capture 99.9% of particles down to 0.3um, the air is clean enough to be discharged directly indoors.

Q6: What is the warranty and after-sales policy? A6: We provide a one-year warranty. Maintenance is free during this period. After the warranty, we only charge for the cost of replacement parts.
