Automatic Fiber Continuous Laser Welding Machine
This hand-held laser welding machine consists of the latest generation of fiber laser generator, wobble welding head, and cabinet.
1
Simple operation, beautiful and smooth weld seam effect, and fast welding speed with no consumables needed.
2
Perfectly replaces traditional argon arc welding and electric welding for thin metal plates like stainless steel and galvanized plates.
Basic Specifications
Application
Electronic, Automotive, Manufacturing
Technical Class
Pulse Laser
Laser Classification
Fiber Laser
Type
Portable Welding Machine
Working Mode
Continuous / Modulation

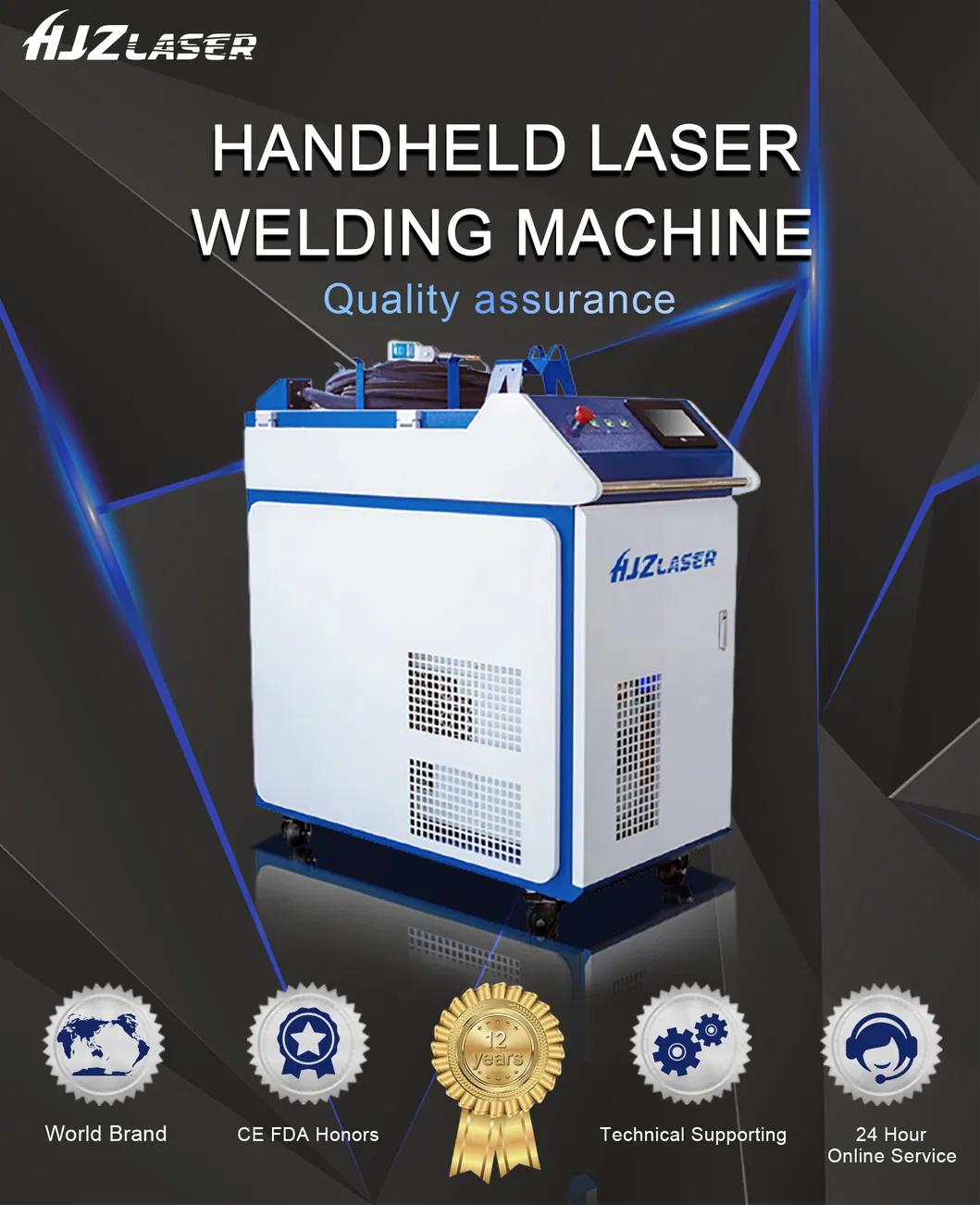

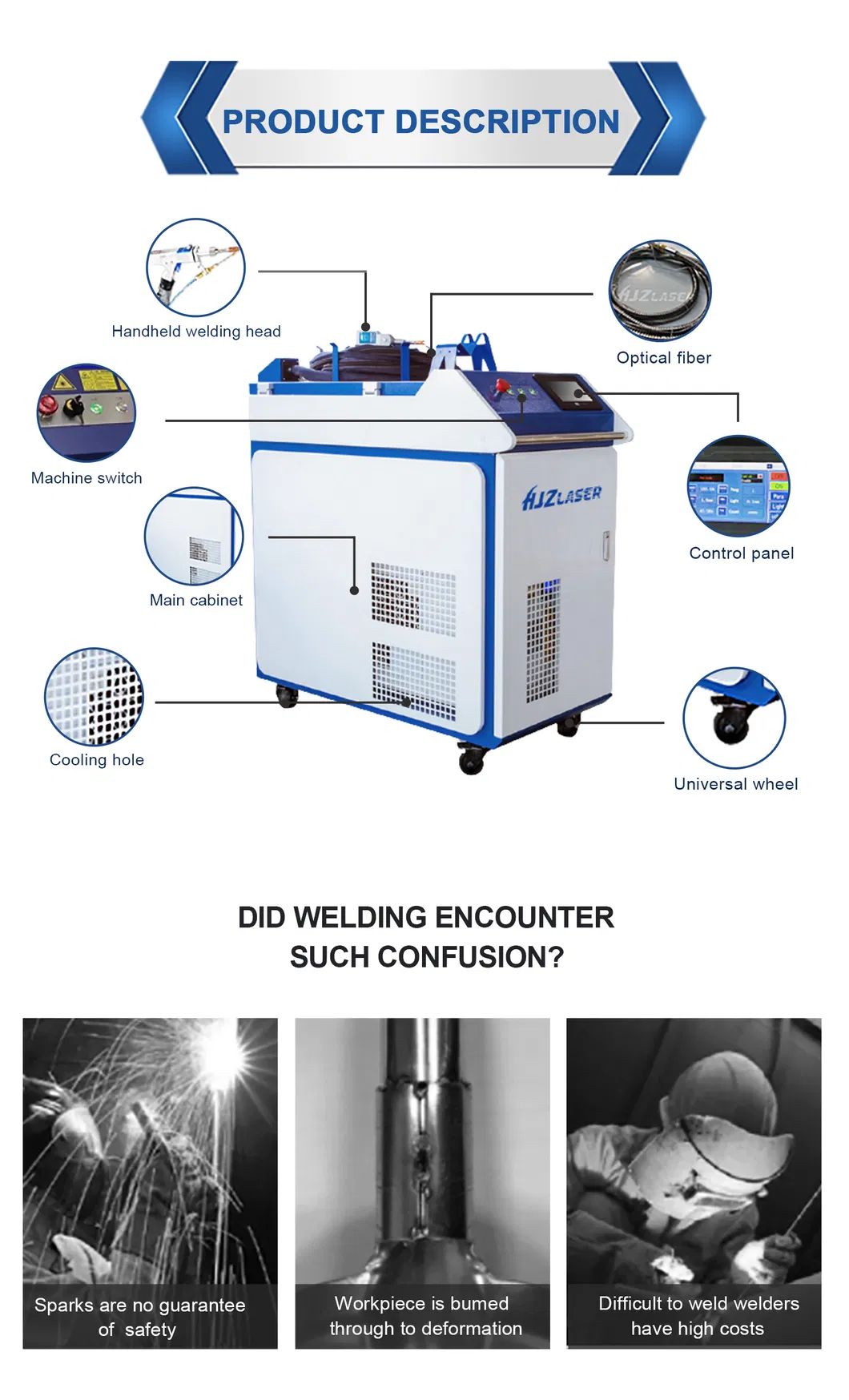

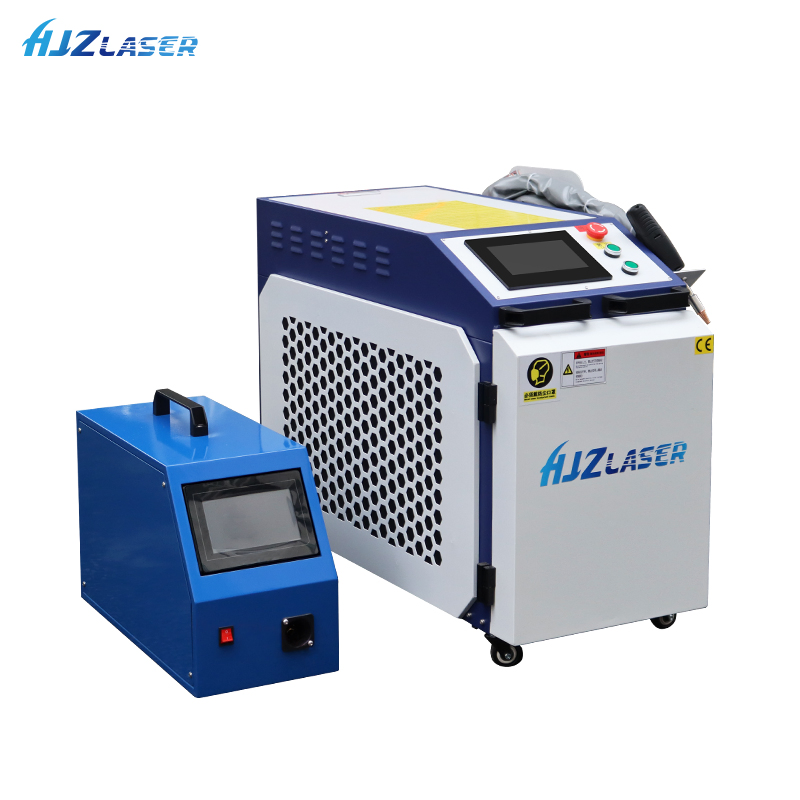

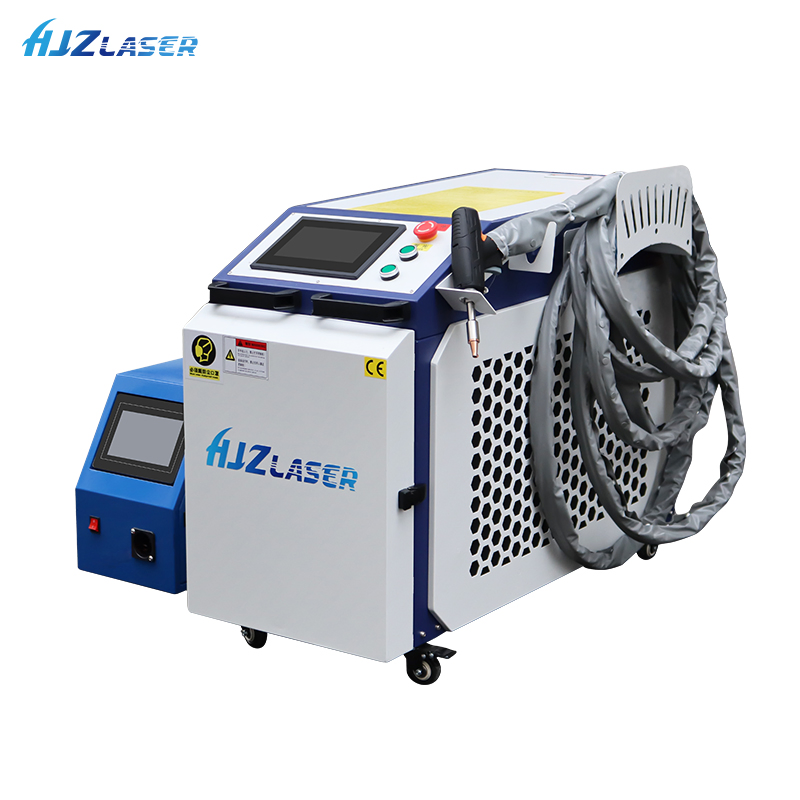

Product Display
Performance Advantages
✔
Smooth Welds: No deformation or welding scars, reducing the need for subsequent polishing and grinding.
✔
Wobble Head: Independently developed with adjustable spot width and strong fault tolerance for better formation.
✔
Efficiency: 2-10 times faster than traditional welding; one machine can replace at least two workers.
Process Comparison
| Comparison Factor |
Traditional Welding |
Standard Fiber Laser |
Our Professional System |
| Heat Input | Very High | Low | Low |
| Deformation | Big | Small | Small |
| Bond Strength | General | Good | Very Good |
| Follow-up Work | Polish Needed | Rarely Needed | No Polish Needed |
| Welding Speed | General | 2x Faster | 2x Faster |
| Wobble Welding | No | No | Yes |
| Spot Adjustable | No | No | Yes |
Technical Parameters
| No. |
Specification Detail |
Parameters |
| 1 | Laser Power | 500W, 800W, 1000W, 2000W, 3000W |
| 2 | Fiber Length | Standard: 10M (Support up to 15M) |
| 3 | Water Chiller | Industrial thermostatic water tank |
| 4 | Environment Temp | 15~35 ºC |
| 5 | Welding Thickness | 0.5 - 3mm |
| 6 | Welding Gap Req. | ≤0.5mm |

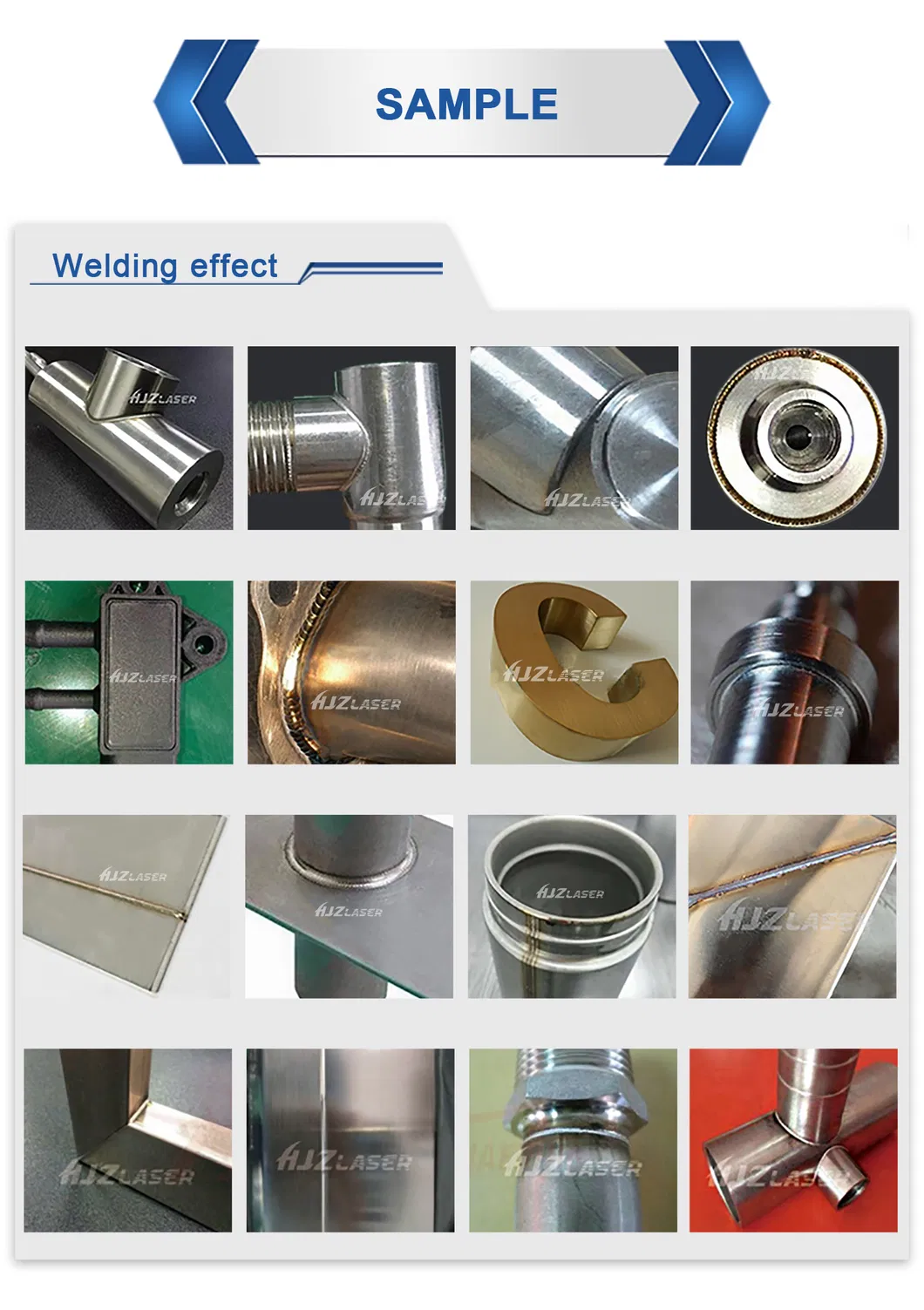

Industry Applications
Widely used in complex and irregular welding processes: Kitchen and toilet supplies, stairs, elevators, shelves, ovens, stainless steel doors/windows, guardrails, electric cabinets, and stainless steel furniture.
Packing & Quality
Frequently Asked Questions
Q1: Which machine model is suitable for my needs?
Please provide details regarding the products, material, size, and thickness you intend to weld. Providing a product picture helps our team advise the most suitable model.
Q2: How do I learn to operate the machine?
All shipments include comprehensive user manuals and operation videos. We also offer free technical training and can provide professional engineers for on-site installation and adjustment.
Q3: What is the typical delivery lead time?
For standard machines, the lead time is generally 10-15 days. For customized systems, the timeframe is determined after technical consultation.
Q4: What is the warranty period for the laser welder?
The warranty for the laser welding machine is 12 months. We recommend ordering an extra set of spare parts to ensure continuous production line operation.
Q5: What happens if a part breaks during the warranty?
Simply send the damaged part back to us, and we will provide a new replacement to keep your equipment functional and efficient.
Q6: Why choose fiber laser over traditional welding?
Fiber laser welding offers much lower heat input, minimal deformation, higher bond strength, and significantly faster speeds without the need for intensive polishing.
