Technical Specifications
Cooling System
Air Cooling
Technical Class
Pulse Laser
Laser Wavelength
Fiber Laser
Laser Classification
Solid Laser
Type
Optical Fiber Laser Marking Machine
Marking Method
Mask Pattern Marking
Pulse Reputation
20kHz < F < 100kHz
Marking Size
100X100mm (50X50-300X300 Optional)
Controlling System
Computer
Production Capacity
100 Per Months
Product Overview

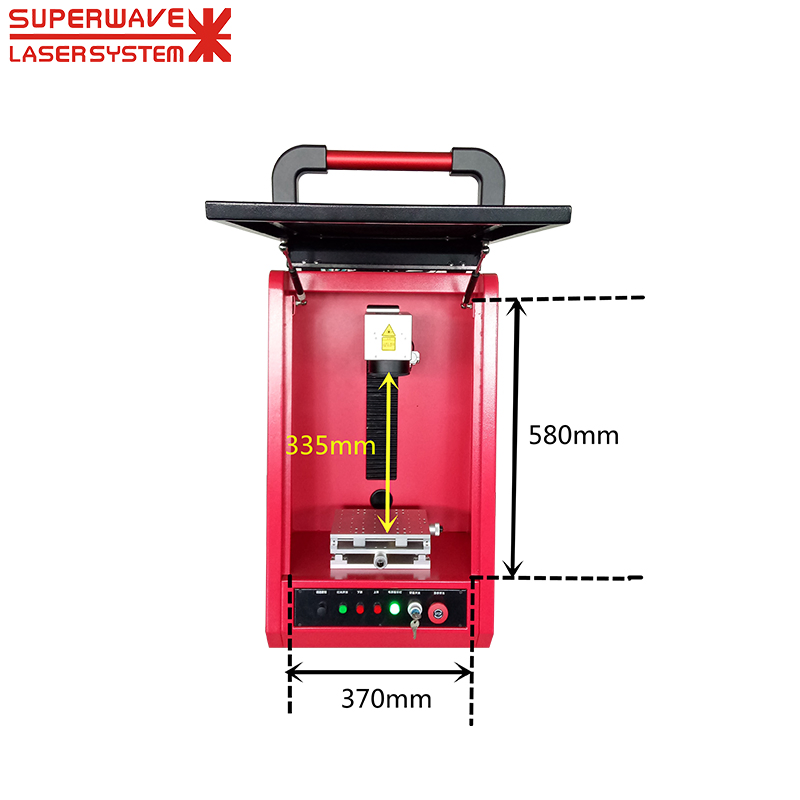

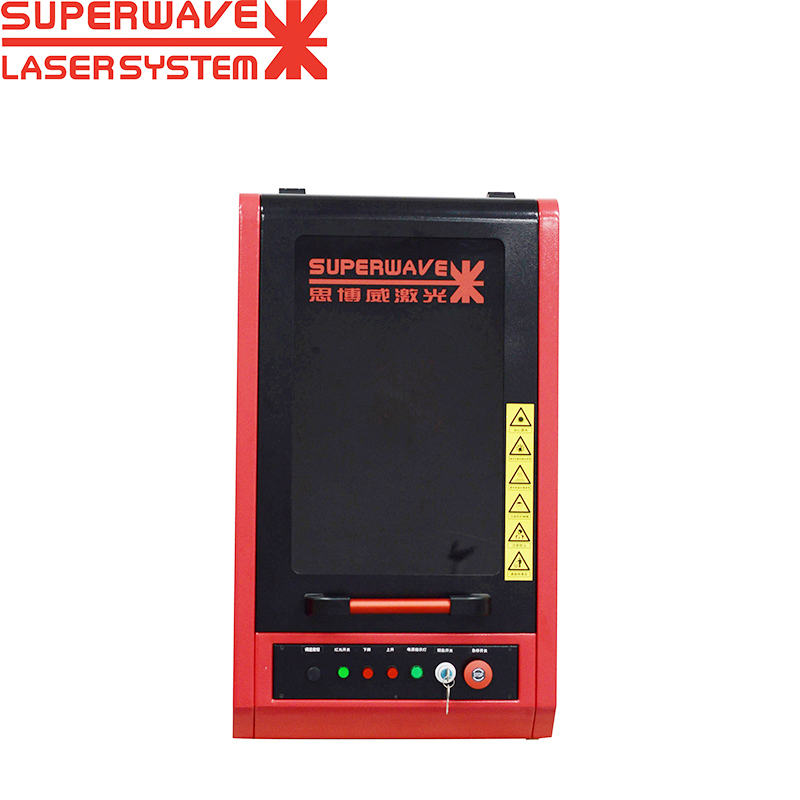

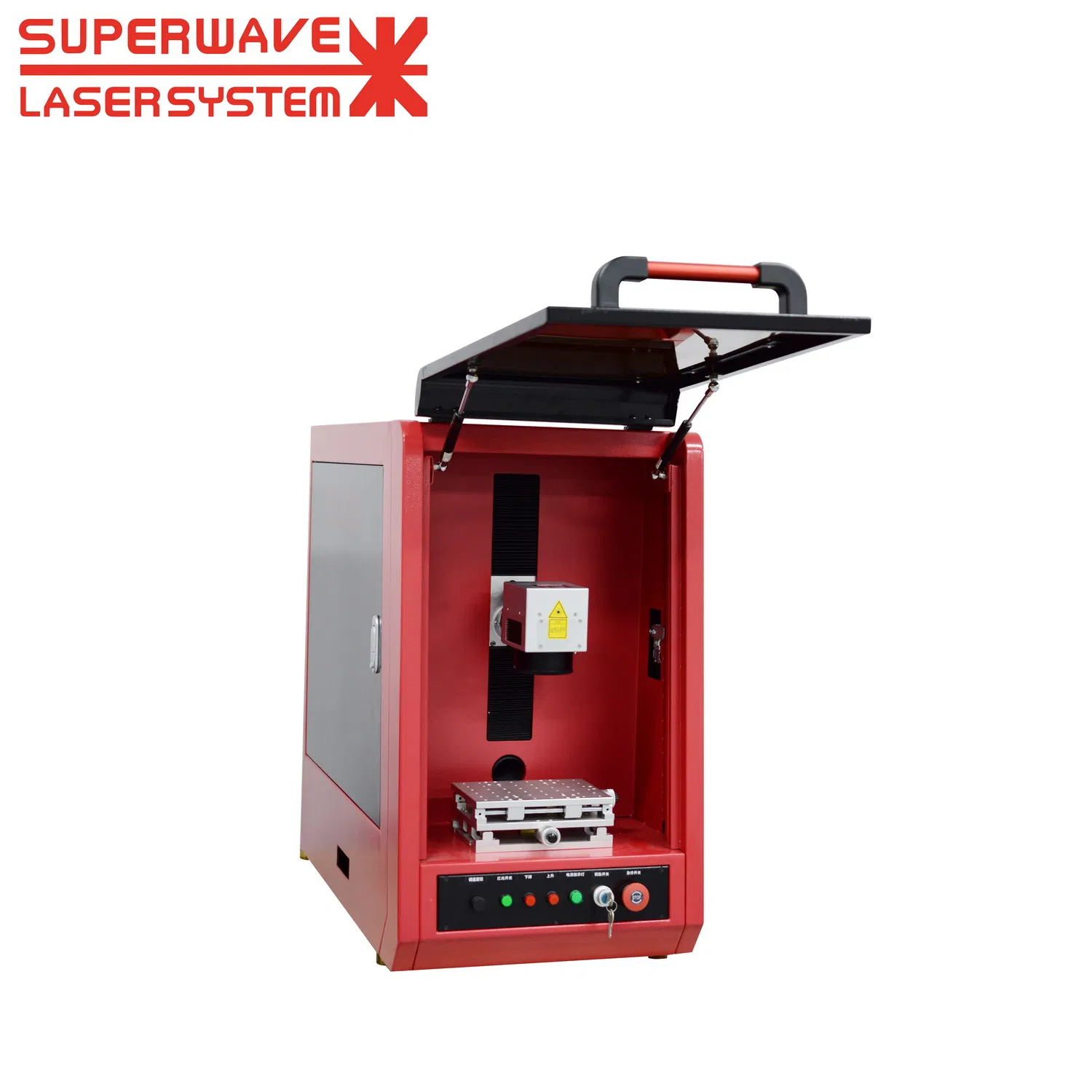

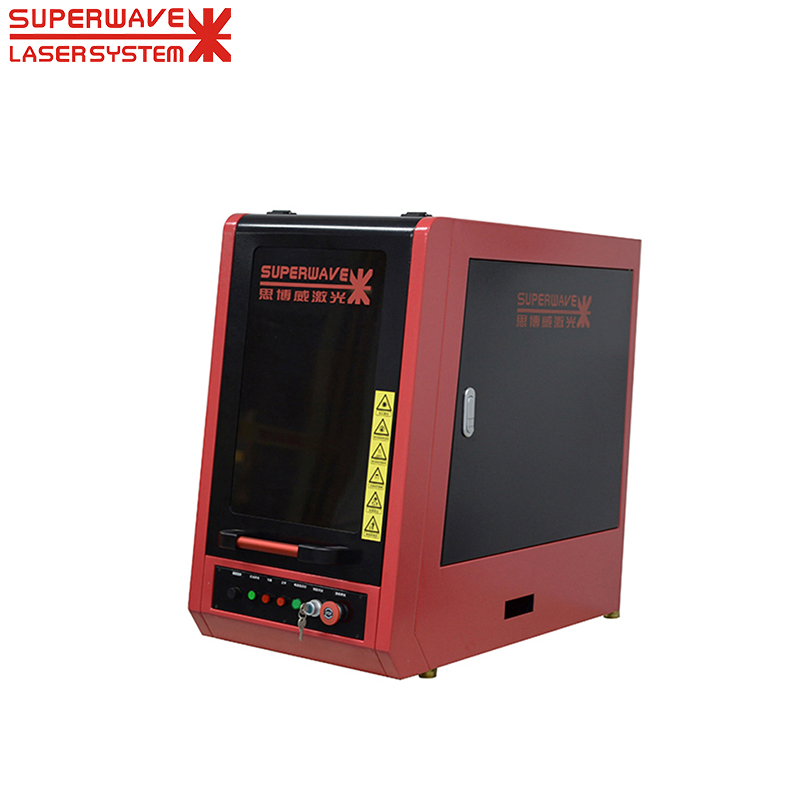

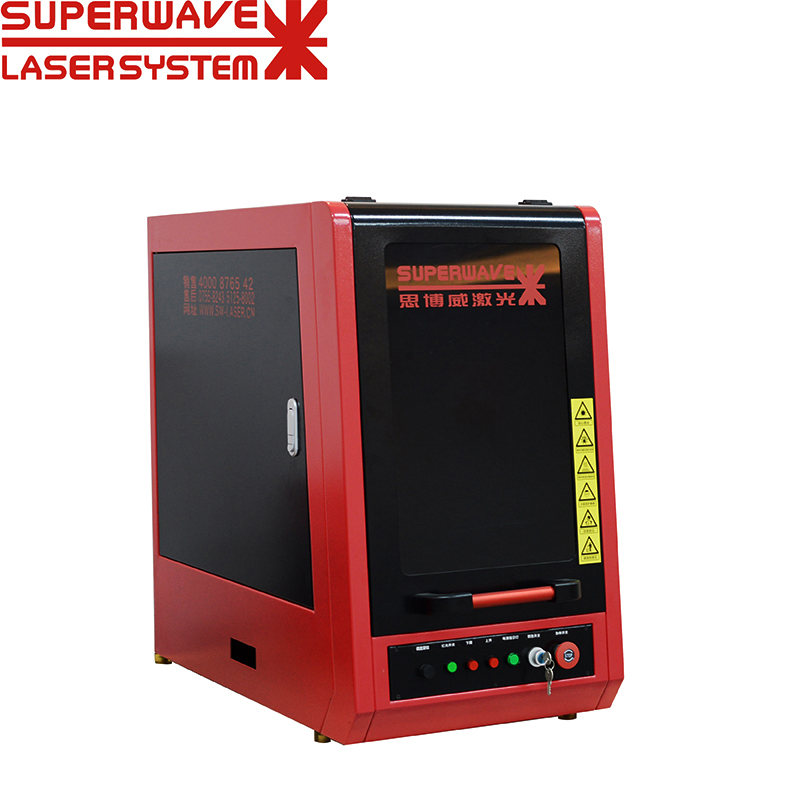

Portable Gold and Silver Cutting Machine Fiber Laser 50W Deep Engraving Jewelry Marking Portable Cutter and Engraver
Detailed Parameters
| Model |
SW-FLMB10 |
SW-FLMB20 |
SW-FLMB30 |
SW-FLMB50 |
SW-FLMB100 |
| Power | 10W | 20W | 30W | 50W | 100W |
| Beam Quality | M² < 1.3 | M² < 1.3 | M² < 1.5 | M² < 1.5 | M² < 2.0 |
| Wavelength | 1064nm |
| Min. Character | < 0.5mm |
| Marking Range | 100mmx100mm (50mm-300mm optional) |
| Speed | ≤7000mm/s |
| Rated Power | ≤0.5kW | ≤0.5kW | ≤0.8kW | ≤1kW | ≤1kW |
| Cooling | Air cooling |
System Description
The optical fiber laser markers feature high efficiency in electrical/optical conversion, and wind cooling is employed. The whole system is small in size, with high beam output quality, high reliability, super long service life, and saving energy. The markers are able to engrave beautiful images on metallic and plastic surfaces.
Key Features
- Small size with less power consumption
- High speed scanner head
- Stable property and performance
- Long lifetime: life expectancy is 100,000 hours
- Maintenance-free operation
- Red light preview: shows the marking position before operation
Applicable Materials and Industries
Applicable to fields with high requirements for depth, smoothness and fineness. Excellent for jewelry, clocks, watches, moulds, and bitmap marking.

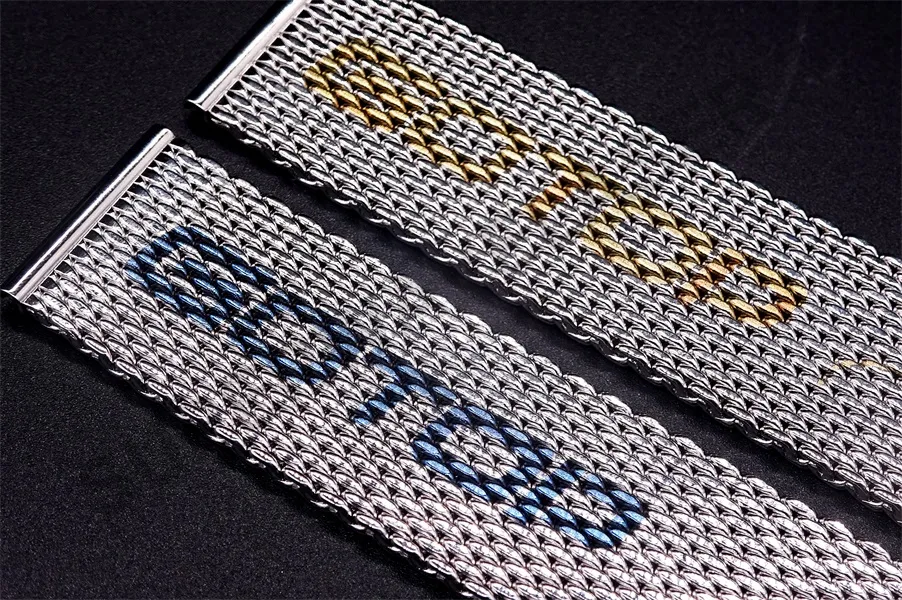

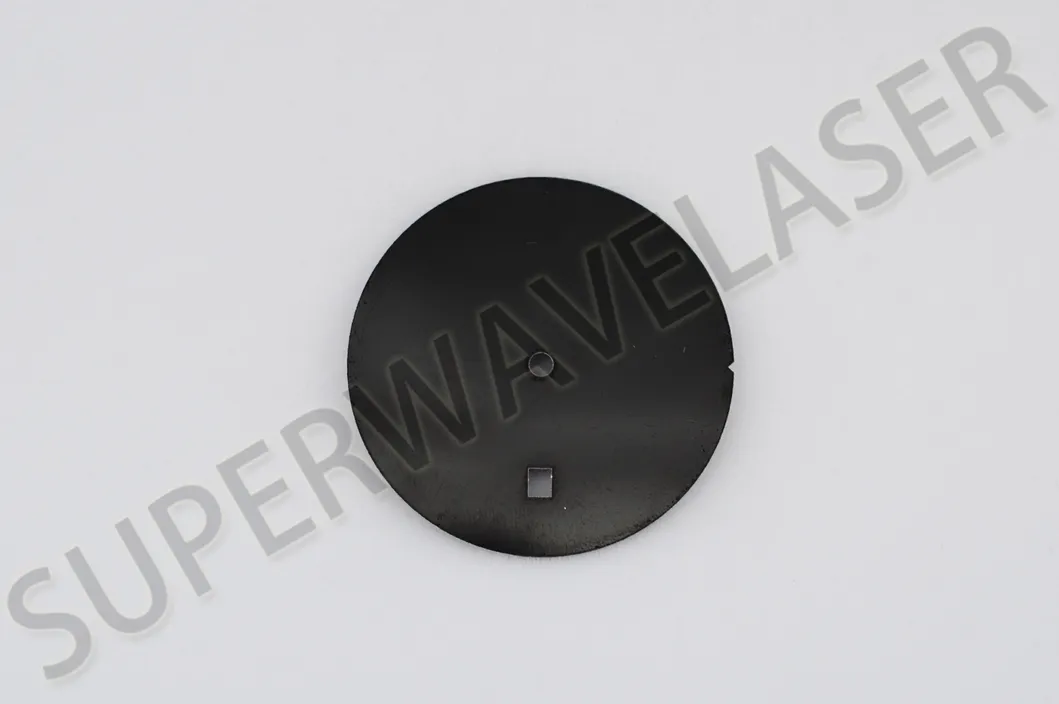

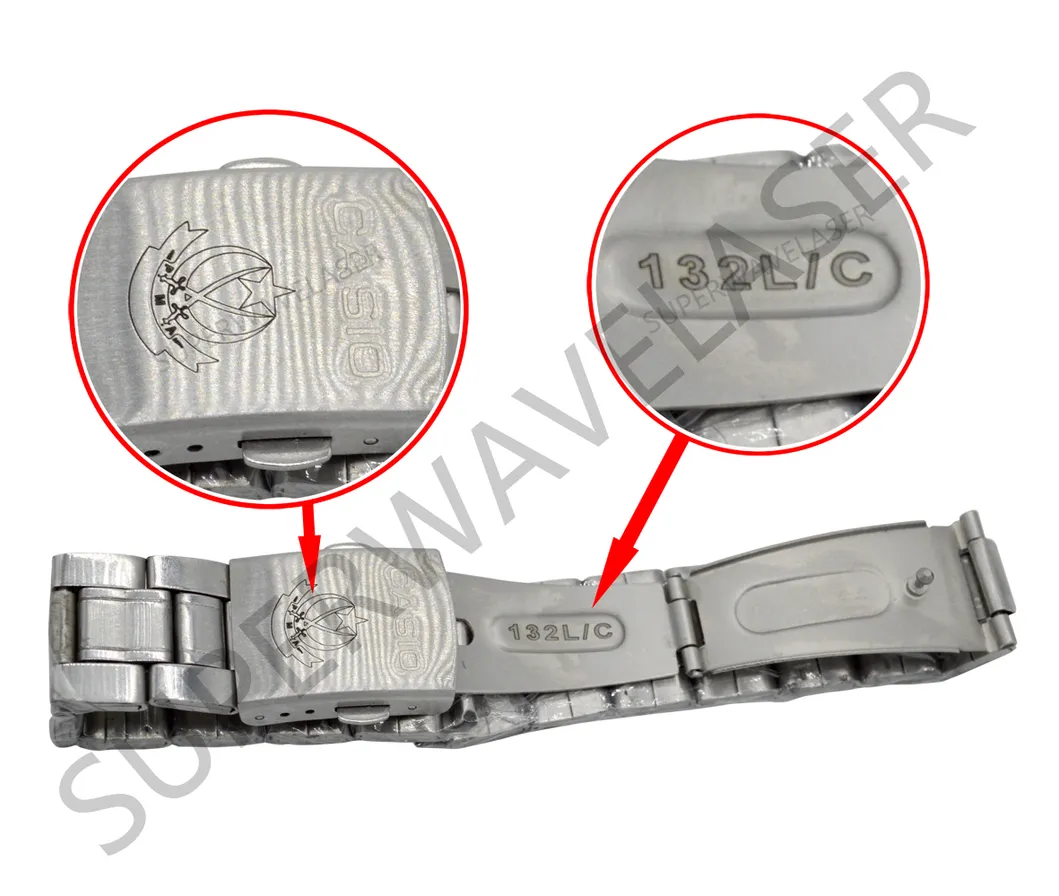

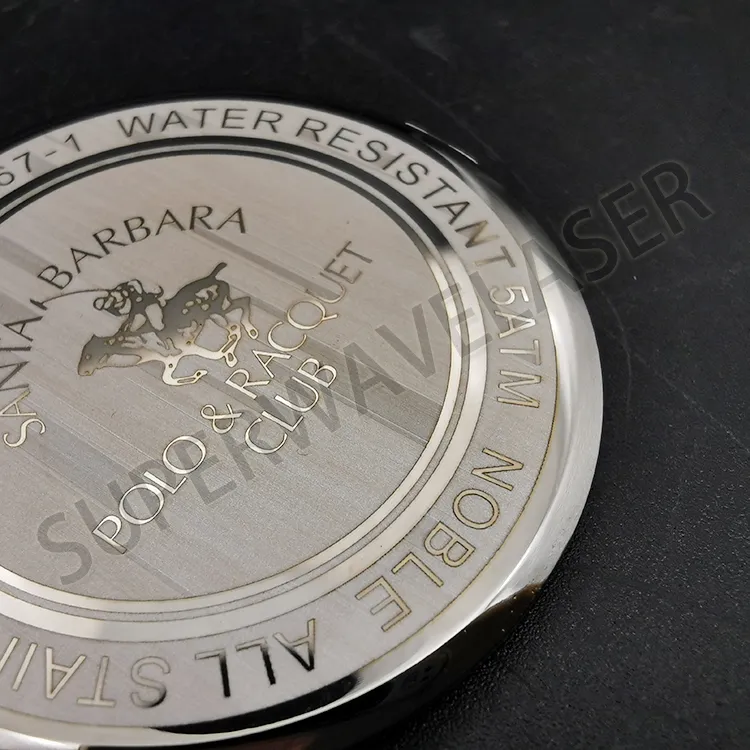

Sample Display
Product Details
Frequently Asked Questions
Which incoterms are supported?
All incoterms can be supported. We will select the most suitable freight options according to your specific request.
What is the warranty period for this machine?
Normally, the warranty is one year, which can be extended upon discussion. Our expert team is available to serve you even after the warranty period to ensure the machine runs well.
How do I operate the fiber laser machine?
We provide a user-friendly English operating manual and instruction videos. Additionally, our engineers are available to guide you via email and phone whenever needed.
What payment methods are accepted?
We accept TT, PayPal, and Western Union. For other payment methods, please confirm with us first.
Can I test samples before making a purchase?
Yes, you are welcome to send samples for testing. We will provide application sample videos, pictures, and can courier original samples back to you if needed.
What is the life expectancy of the laser source?
The fiber laser source has a long lifetime with an expectancy of approximately 100,000 hours with no regular maintenance required.
