| Model NO. | LM-30 |
| Laser Visibility | Visible |
| Applicable Material | Metal |
| Cooling System | Air Cooling |
| Technical Class | Continuous Wave Laser |
| Laser Wavelength | Fiber Laser (1064nm) |
| Model Options | LM-20 / LM-30 / LM-50 |
| Laser Source Power | 20/30/50/100W |
| Impulse Range | 20kHz - 100kHz |
| Marking Size | 100mm * 100mm |
| Min. Line Width | 0.001mm |
| Repeat Precision | ±0.001mm |
| Marking Depth | ≤0.2mm |
| Working Speed | ≤7000mm/s |
| Voltage | AC 220V / 50Hz |
| Control System | Windows Based |

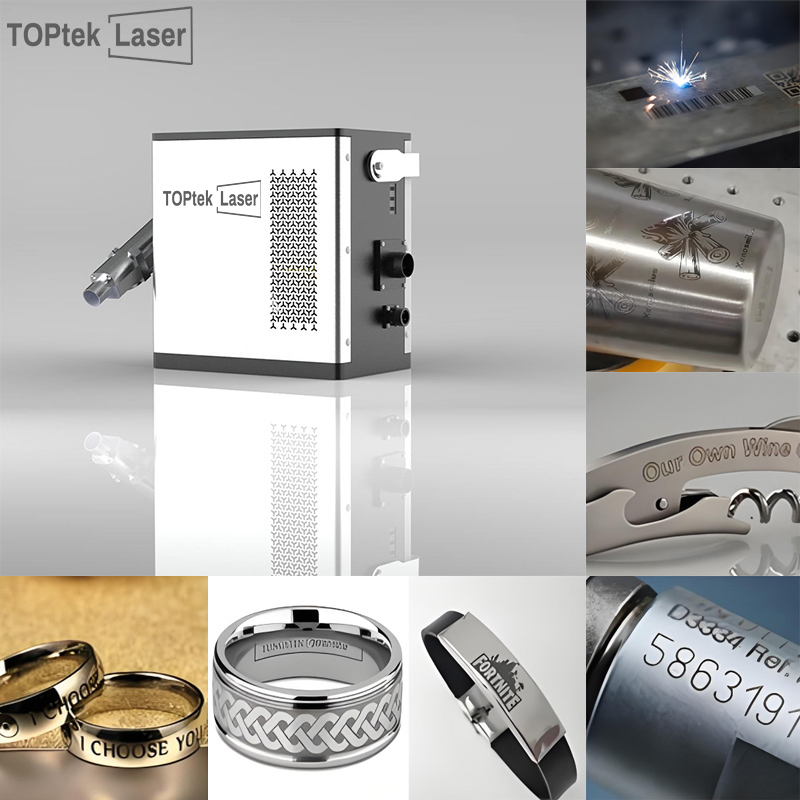

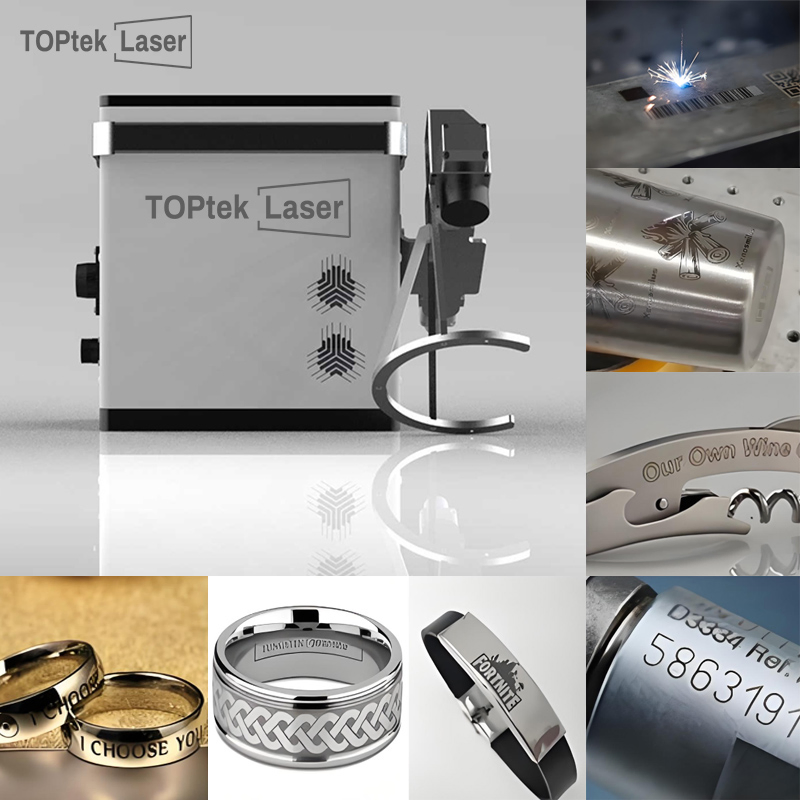

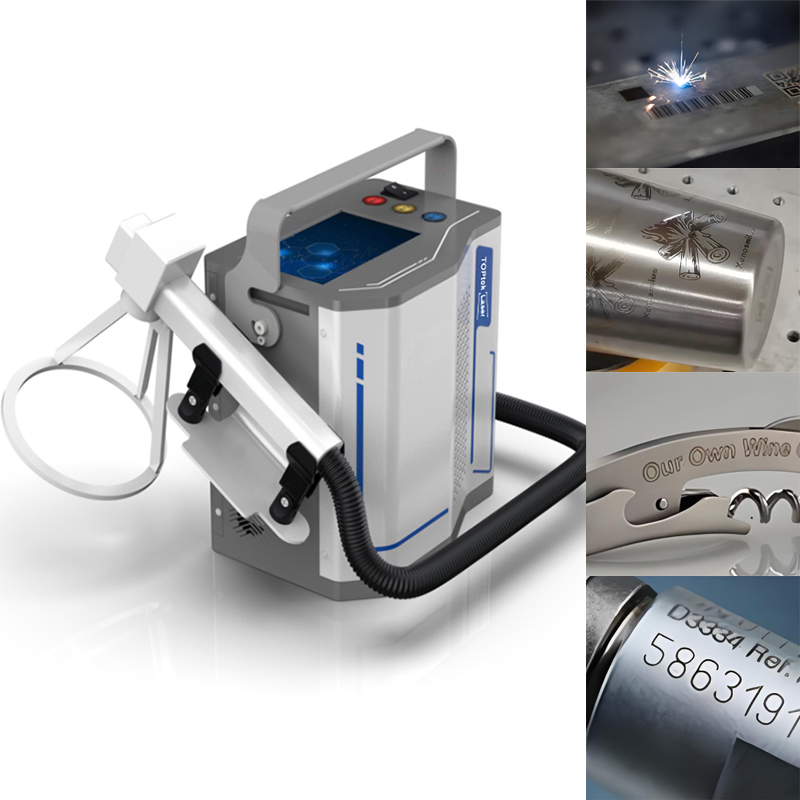

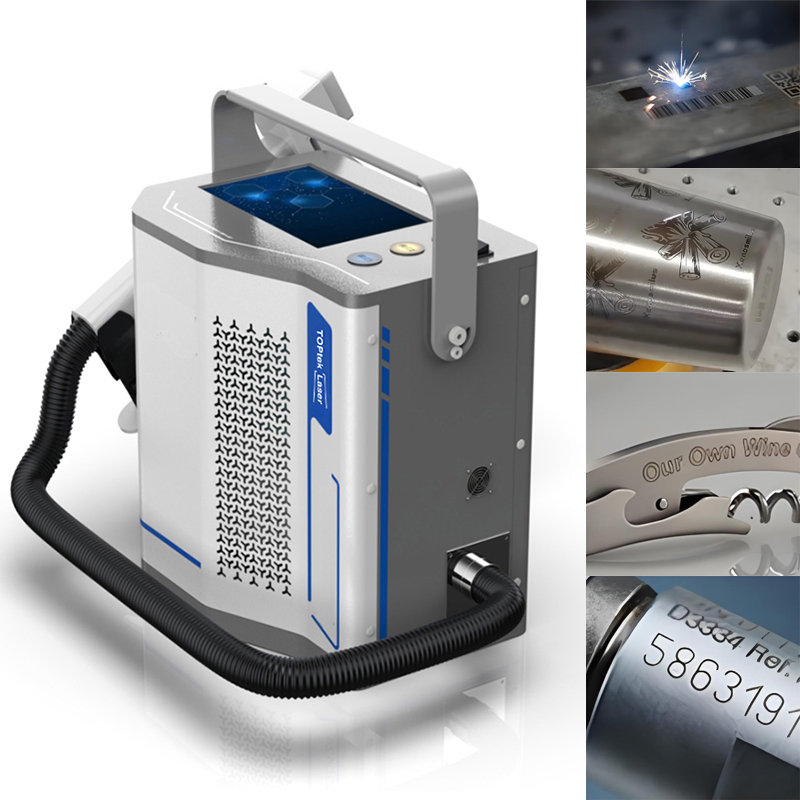

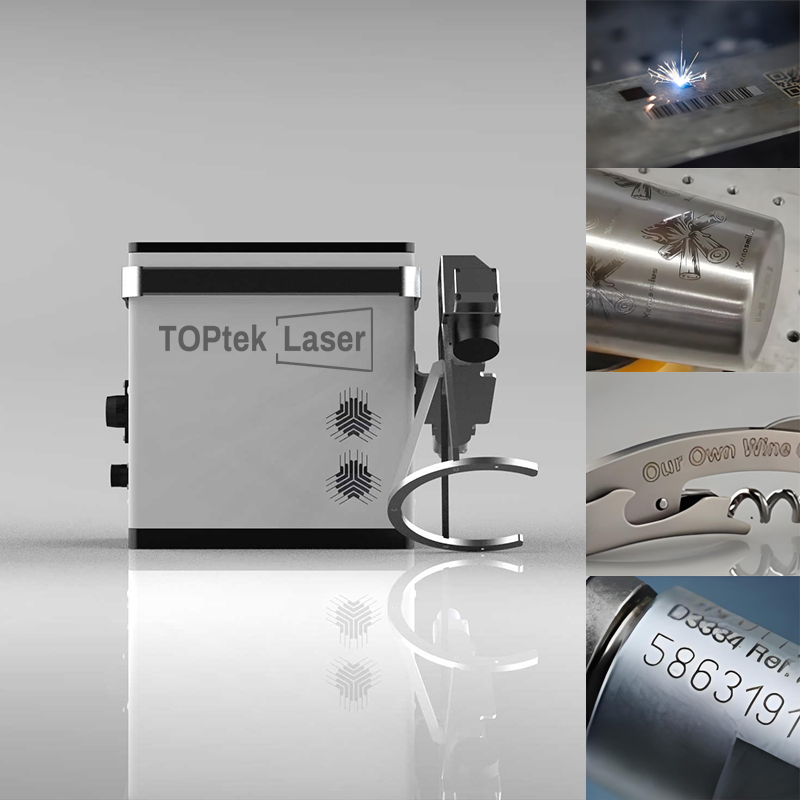

The fiber laser is specially used for marking, deep engraving, cutting stainless steel, carbon steel, gold, silver, copper, galvanized sheet and other metallic materials. Some non-metallic materials such as ABS, PVC, and other hard plastics can also be marked on the surface.
| Part Name | Brand | Model/Details |
|---|---|---|
| Laser Source | Max | PW-20W/30W/50W |
| Control System | Beijing BJJCZ | USB Card |
| Optical Galvanometer | Sino China | 110mm*110mm |
| F-theta Lens | Nanjing Wavelength | SL-1064 |
| Software | BJJCZ | EzCAD 2.0 |
| Power Supply | Taiwan Mean Well | RS-15-5V / RS-350-24V |

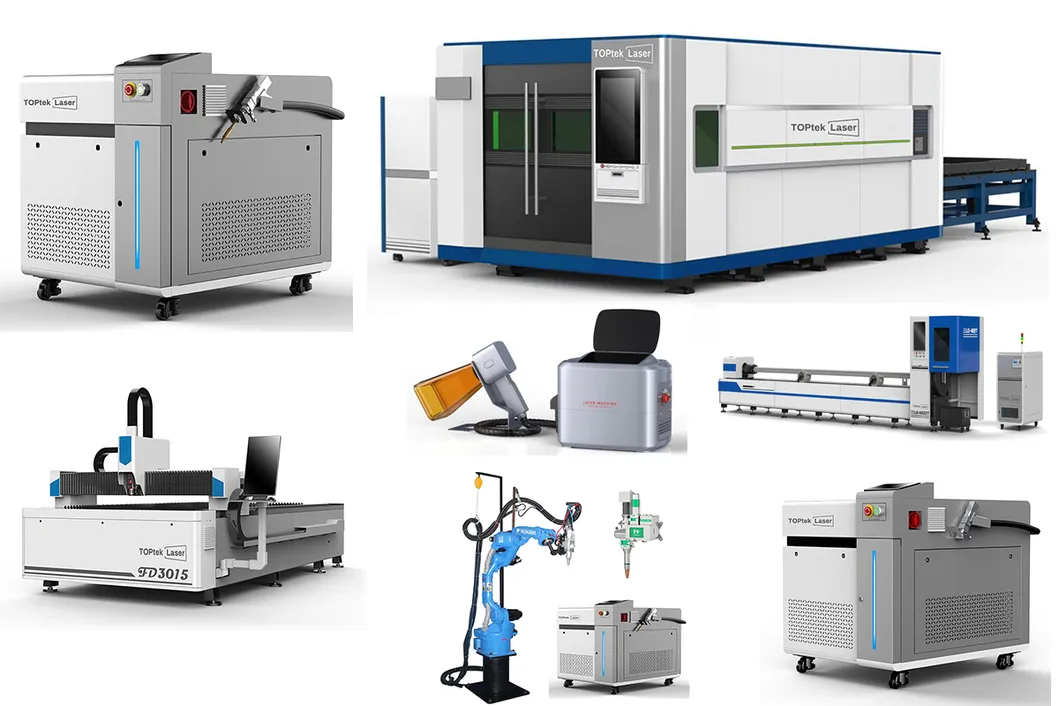

We are an innovative high-tech manufacturer specializing in Intelligent Laser Solutions, including automatic production lines, welding, cutting, cleaning, and marking systems. Our mission is to provide reliable industrial solutions to make your production smarter and faster.
