Precision 3D Laser Marking System for Electronics and Irregular Parts Mobile Phone Components

1 / 5

Precision 3D Laser Marking System for Electronics and Irregular Parts Mobile Phone Components

Customization:	Available
After-sales Service:	24 Hours Online After-Sales
Warranty:	2 Years

Send Inquiry

Product Description

Basic Information

Model NO.

FB-20/30/50W UV-5W CO2-30/60W

Laser Visibility

Invisible

Applicable Material

Metal

Cooling System

Air / Water Cooling

Technical Class

Continuous Wave Laser

Laser Wavelength

1064nm, 355nm, 10.6μm

Type

3D Laser Marking Machine

Marking Method

Scanning Marking

Origin

Anhui, China

Production Capacity

20 sets/Month

Product Description

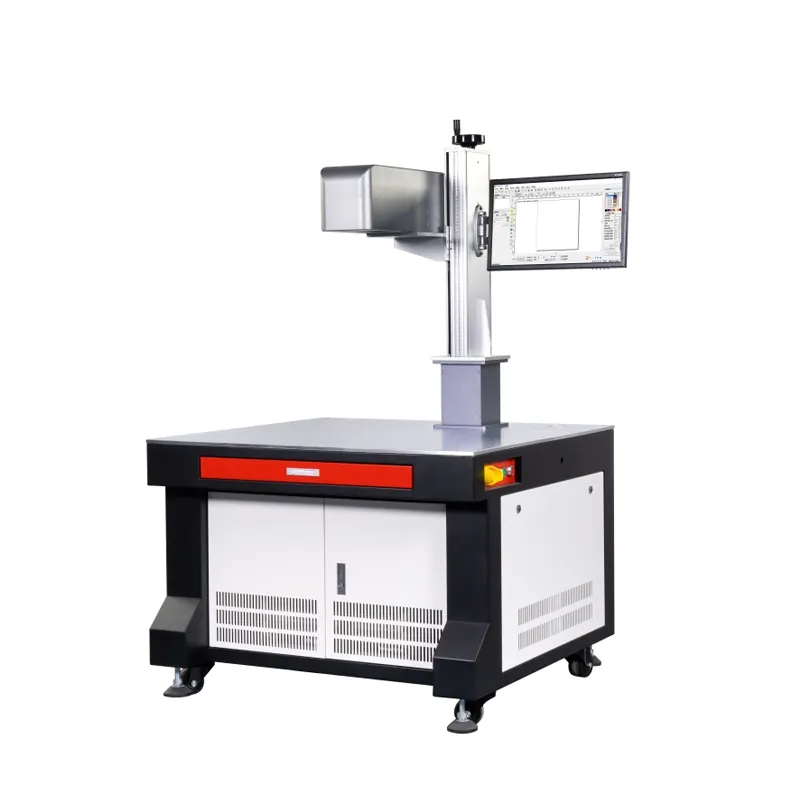

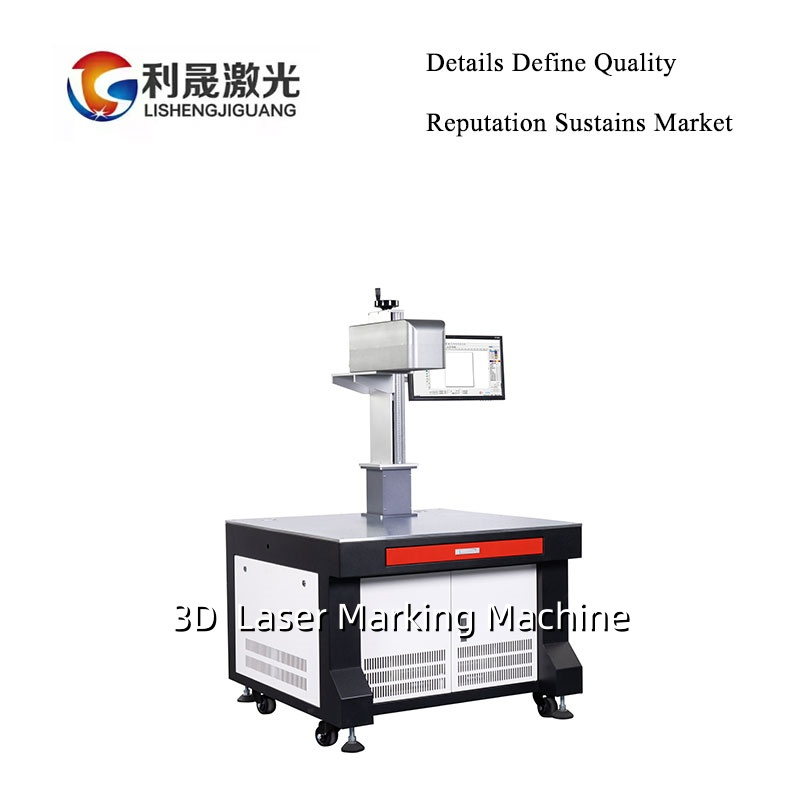

The 3D Laser Marking Machine is high-precision equipment designed for specialized laser processing needs such as automotive interior parts, 3D curved objects, and irregular planes. Unlike traditional 2D marking, which is limited to planar surfaces, this 3D system uses an advanced pre-focusing method and dynamic focusing mount.

Through sophisticated software control, the dynamic focusing lens adjusts the focal length in real-time, enabling accurate surface focusing on objects with varying heights and complex geometries.

Key Features

Enhanced Precision: Adopts pre-focusing optical mode with larger X/Y axis deflection lenses for better energy density and focusing accuracy.

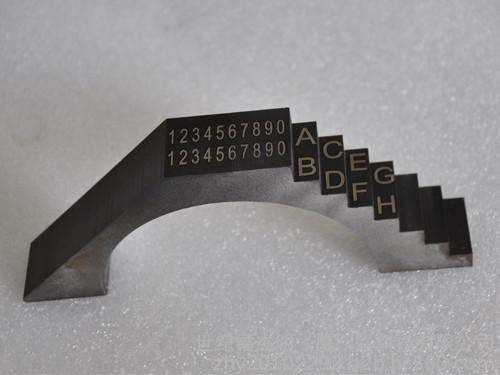

Multi-Height Marking: Capable of one-time marking on objects with different heights without manual adjustment.

Surface Versatility: Not limited by uneven or gradient surfaces, ensuring consistent deep engraving efficiency.

Rich Effects: Realizes black, white, and even multi-color marking on the same plane with high-quality results.

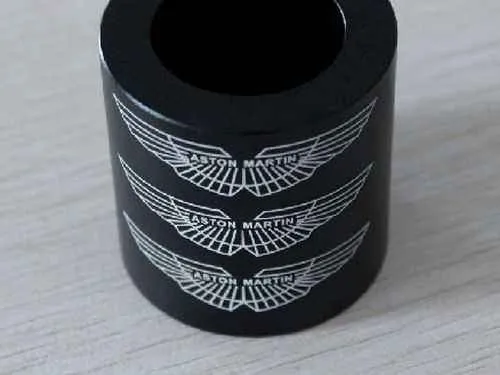

Automatic Adjustment: For 3D curved objects, it automatically adjusts the focal length to maintain precision.

Zero Distortion: Ensures no visible distortion in 3D projection marking applications.

Technical Parameters

Model	LS-3DFB-50/100W	LS-3DUV-10/20W	LS-3DCO2-60/120W
Applicable Wavelength	1064nm	355nm	10.6um
Galvanometer Aperture (mm)	10/20/30	10	30
Deflection Angle (°)	±11	±10	±11
Repeat Marking Angle (μrad)	8	8	8
8-Hour Drift (mrad)	≤0.3	≤0.3	≤0.5
Working Range (mm)	100x100 to 1000x1000	125x125 to 400x400	300x300 to 1200x1200

Application Scope

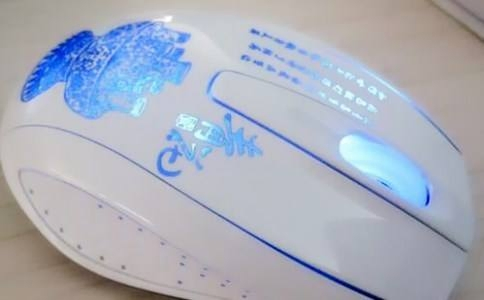

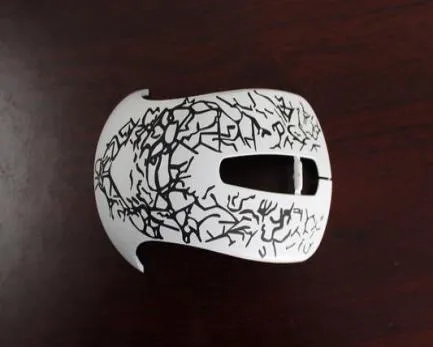

Ideal for laser marking on special-shaped products requiring processing on different surfaces, curved surfaces, inclined planes, and high-low surfaces. Perfectly suited for relief engraving, inner engraving, stone carving, and large-format industrial needs.

Frequently Asked Questions

Q1: Are you a manufacturer?

Yes, we are a professional manufacturer and factory specializing in industrial laser equipment.

Q2: How long is the delivery time for a 3D laser marking machine?

For standard machines, the lead time is 7-14 days. For customized or non-standard configurations, it ranges from 15 to 30 days.

Q3: What payment methods do you accept?

We accept various payment methods including T/T (Telegraphic Transfer), L/C (Letter of Credit), and other standard international payment options.

Q4: How do I know if the 3D laser system is suitable for my specific part?

Before ordering, we provide technical consultations. You can share your material type and part geometry, and our technical team will recommend the most suitable laser source and configuration.

Q5: Can this machine mark on curved metal surfaces?

Absolutely. The 3D laser marking machine is specifically designed for curved, inclined, and irregular surfaces where traditional 2D markers fail.

Q6: What is the benefit of the pre-focusing optical mode?

Pre-focusing allows for a larger deflection lens, which results in a larger laser spot transmission, superior focusing precision, and more effective energy distribution across complex 3D surfaces.
