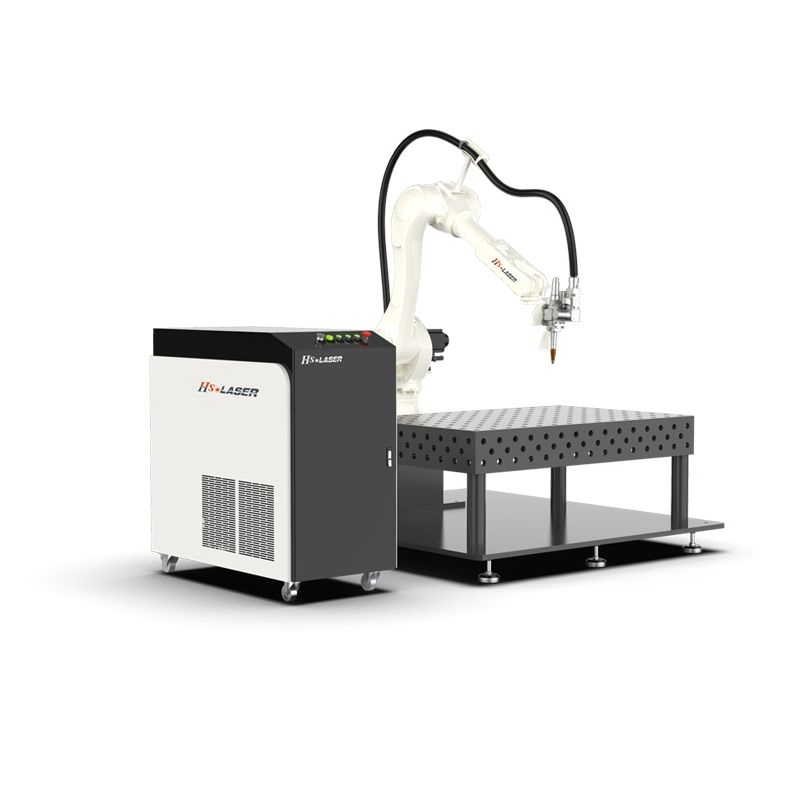

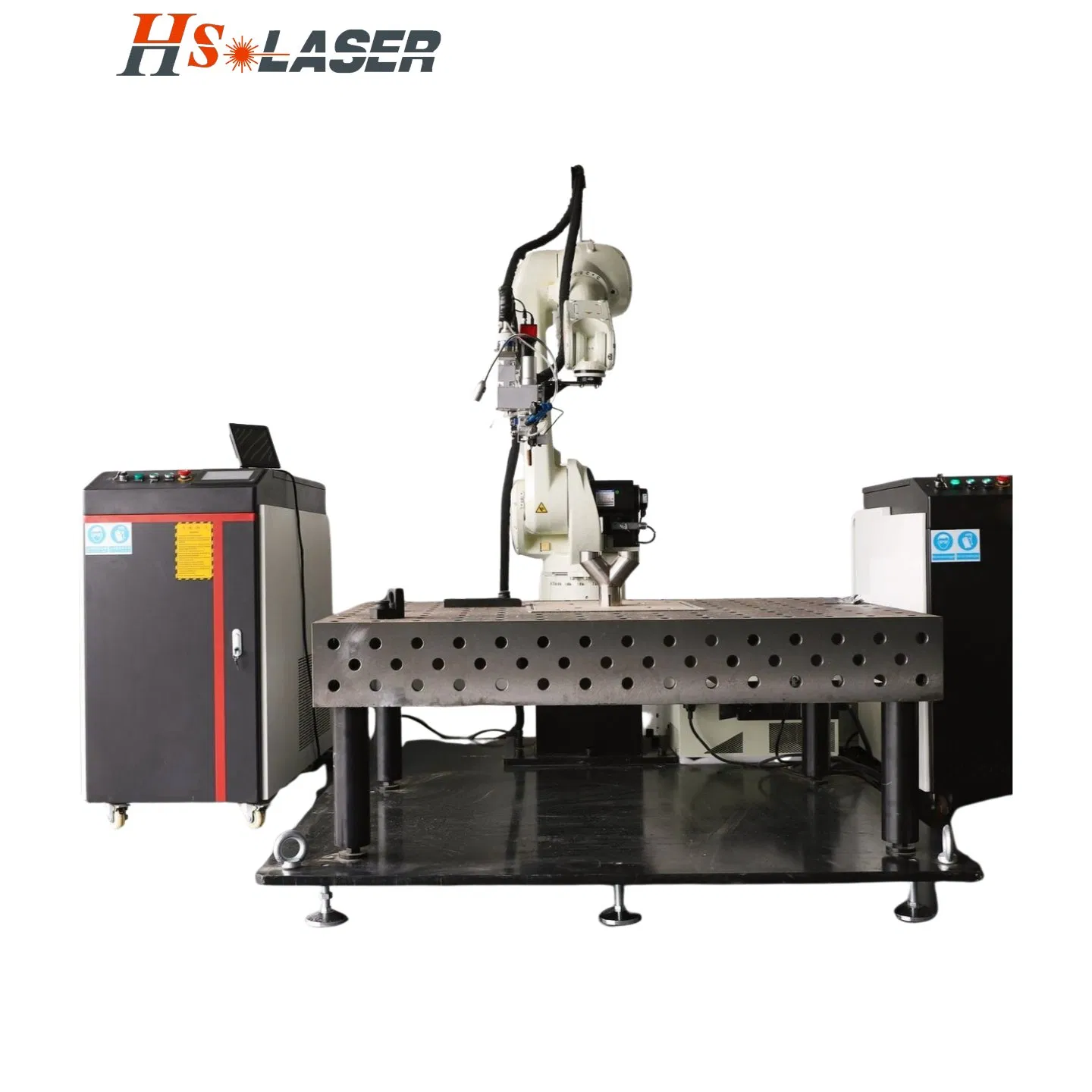

Raycus Laser Source Automatic CNC Robot Welder Industrial Laser Welding Arm System
Raycus Laser Source Automatic CNC Robot Welder Industrial Laser Welding Arm System
Raycus Laser Source Automatic CNC Robot Welder Industrial Laser Welding Arm System
Raycus Laser Source Automatic CNC Robot Welder Industrial Laser Welding Arm System
Raycus Laser Source Automatic CNC Robot Welder Industrial Laser Welding Arm System
1 / 5
Raycus Laser Source Automatic CNC Robot Welder Industrial Laser Welding Arm System
Raycus Laser Source Automatic CNC Robot Welder Industrial Laser Welding Arm System
Raycus Laser Source Automatic CNC Robot Welder Industrial Laser Welding Arm System
Raycus Laser Source Automatic CNC Robot Welder Industrial Laser Welding Arm System
Raycus Laser Source Automatic CNC Robot Welder Industrial Laser Welding Arm System

Raycus Laser Source Automatic CNC Robot Welder Industrial Laser Welding Arm System

Customization: Available
After-sales Service: Online Services
Warranty: 2 Years
Send Inquiry

Product Description

📋 Basic Information
Model NO.
HS-HW1500/ HS-HW2000/ HS-HW3000
Application
Automotive Industry, Manufacturing
Technical Class
Continuous Wave Laser
Control
Automatic
Laser Source
Raycus / IPG / Max / JPT
Welding Speed
10 M/Min
Robotic Brand
Kawasaki / ABB / Kuka / Yaskawa
Laser Type
Fiber Laser Source
Laser Power
1000W - 6000W
Axis
6 Axis Robot
Weight
650kg
Specification
1187*600*1200mm
💡 Product Description

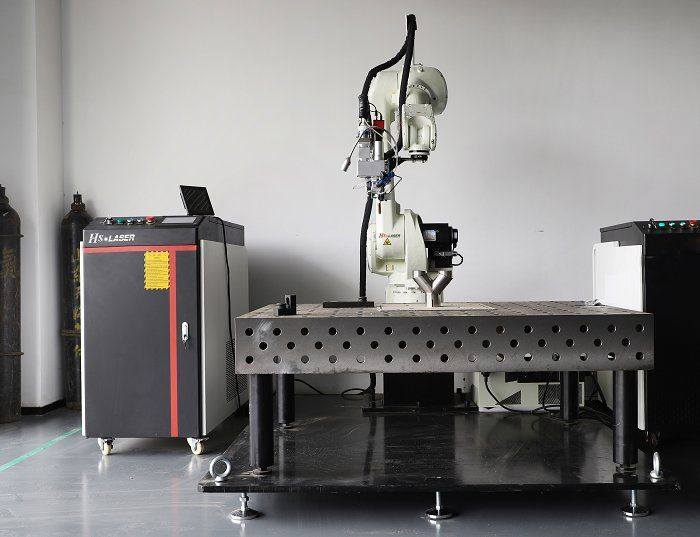

Robotic arm fiber laser welding machine is an efficient, automated, and low-cost solution for modern manufacturing. It is designed to weld complex geometries including planes, curved surfaces, arcs, circles, and polygons. Through a programmable robot control system, it realizes high-precision automatic welding functions.

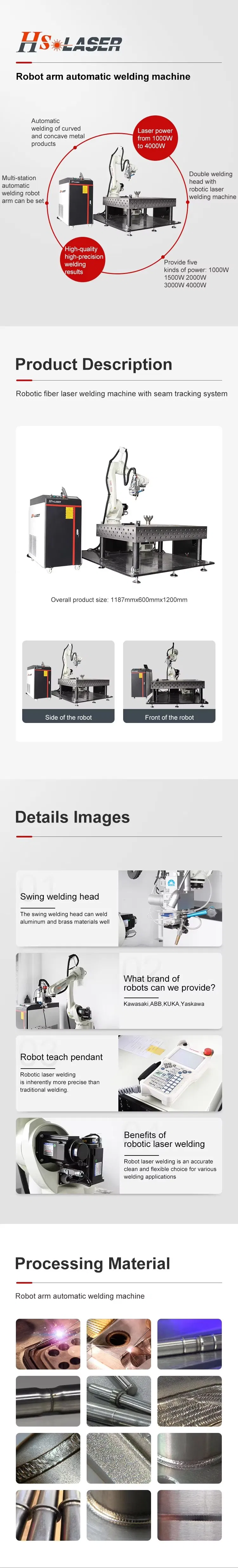

Fiber Laser Welding Arm System
📊 Technical Parameters
Parameter Name Specifications
Product Name Robot Fiber Laser Welding Machine with Seam Tracking System
Laser Power Range 1000W / 1500W / 2000W / 3000W / 4000W / 6000W
Laser Head Options Wsx / Raytools / Precitec
Drive Mode Electric / Servo Motor
Wavelength 1070-1080nm
Welding Speed 10 m/min
System Dimensions 1187*600*1200mm
Total Weight 650 Kg
🎖 Certifications

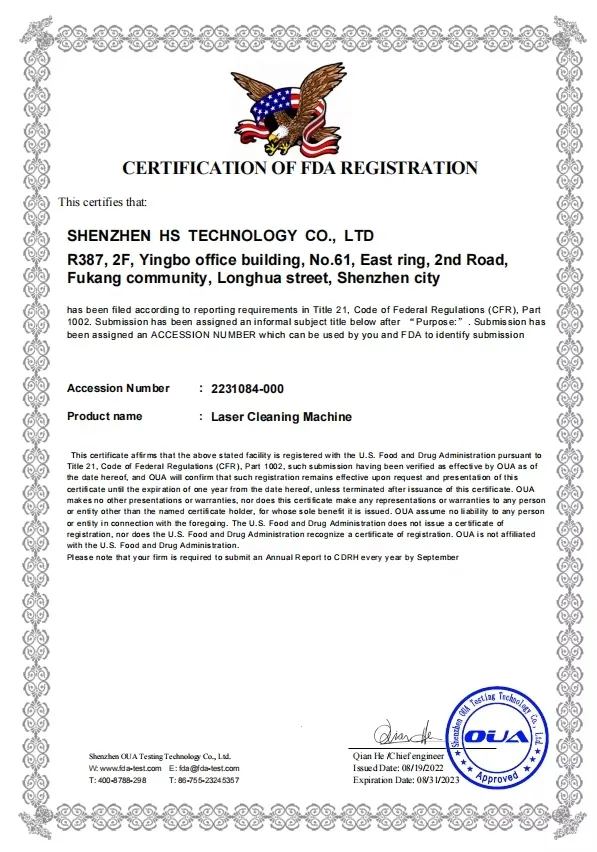

Certification 1

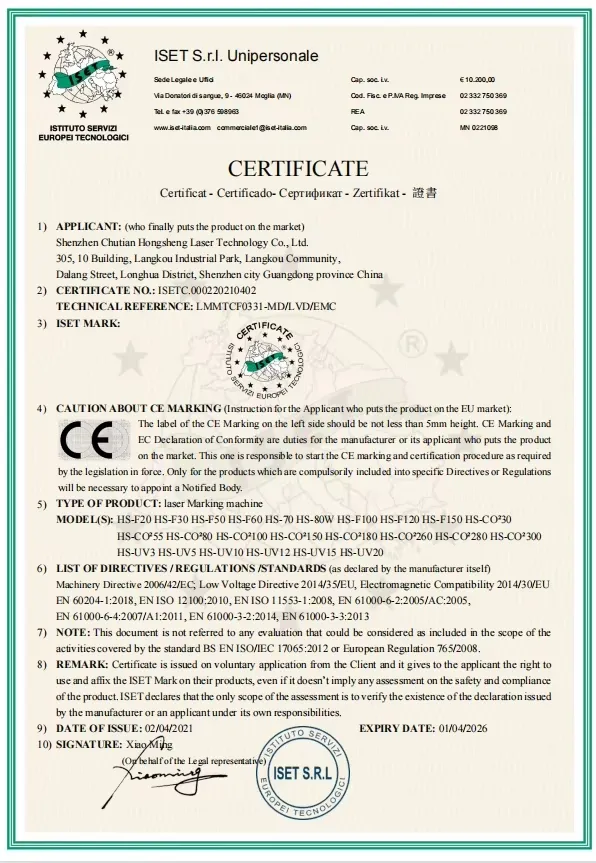

Certification 2

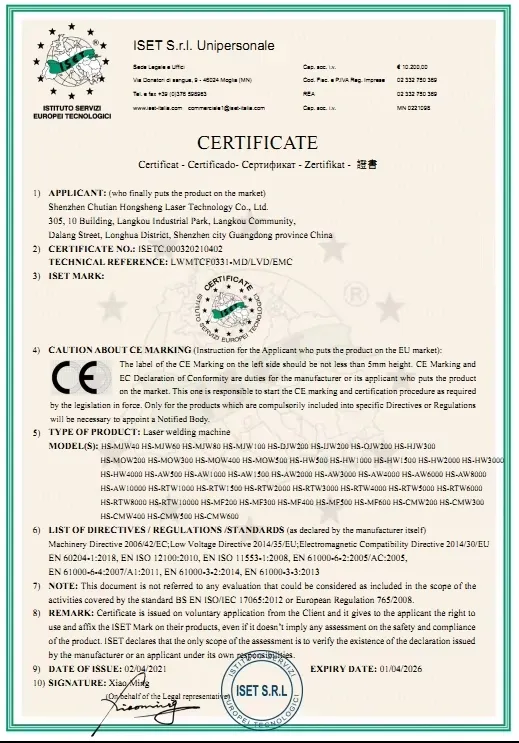

Certification 3

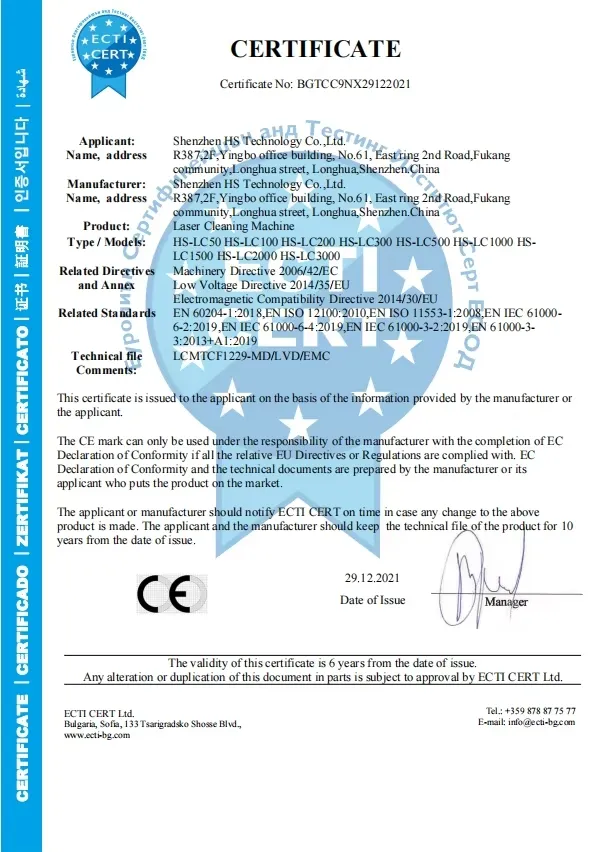

Certification 4

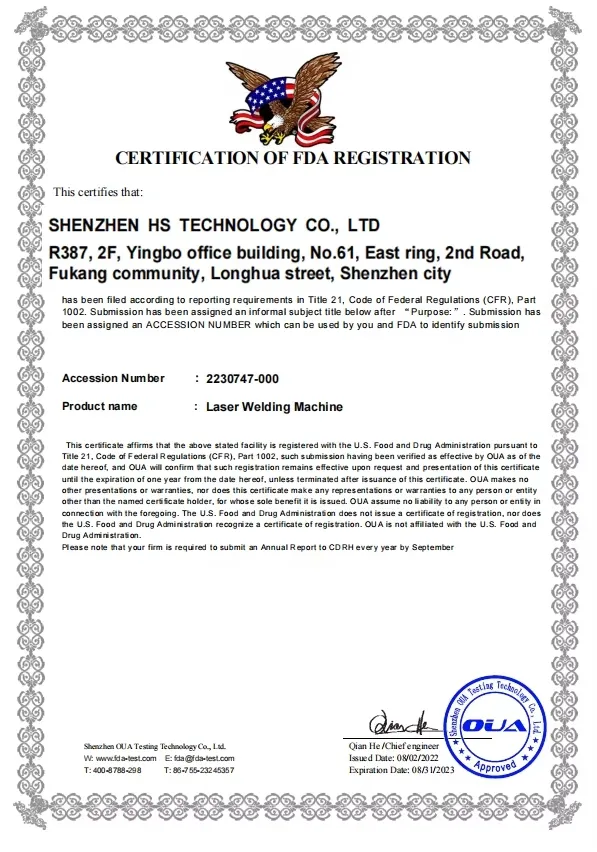

Certification 5

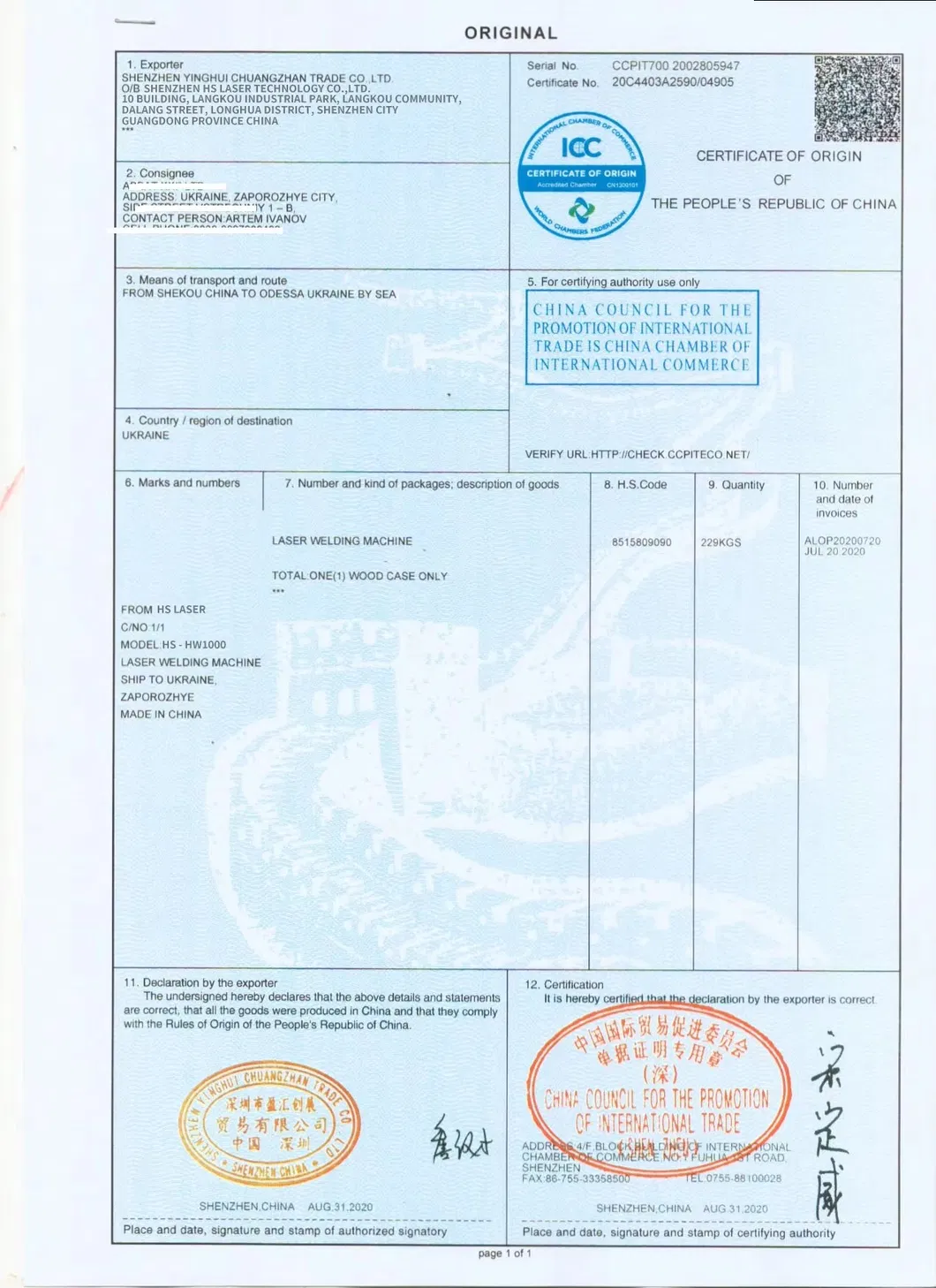

Certification 6
📦 Packaging and Delivery
The lead time for laser welding machines (orders less than 10 sets) is typically 10 to 15 working days. For laser cutting equipment, the lead time is at least 25 working days.

For lightweight equipment (under 100kg), delivery is usually handled via DHL, FedEx, or air freight. Heavier industrial equipment is shipped via sea under DDP, CIF, or FAC trade terms.
Packaging Details

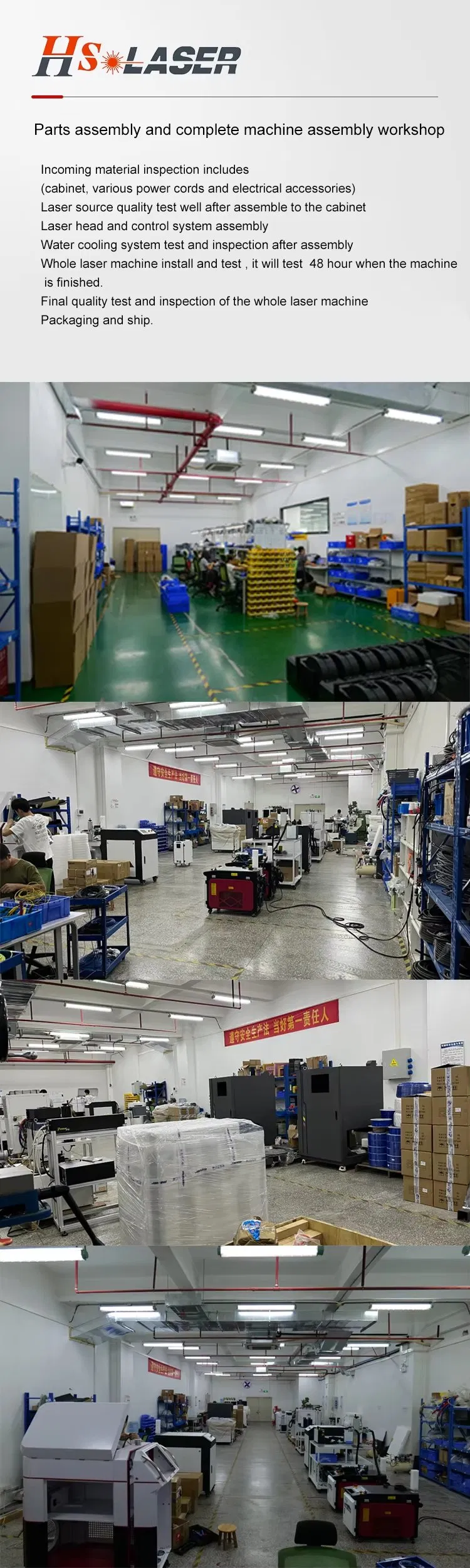

Delivery Process
❓ Frequently Asked Questions
What shapes can the robotic arm weld?
The system is fully programmable and can handle any plane, curved surface, arc, circle, and polygon path.
Which laser source brands are available?
We provide industry-leading laser sources including Raycus, IPG, Max, and JPT.
How fast is the welding process?
The machine offers a maximum welding speed of up to 10 meters per minute, depending on the material and power.
What is the typical lead time for an order?
For standard laser welding machines under 10 units, the lead time is 10-15 working days. Larger cutting systems take 25+ working days.
Is the machine easy to operate for new users?
Yes, the system is designed with a focus on ease of operation and features an automatic control system for simplified workflow.
What shipping methods do you offer for heavy equipment?
For heavy machinery like the 650kg robotic welder, we typically use sea freight with DDP or CIF terms to ensure safe and cost-effective delivery.
