Reliability 3D Fiber Laser Marking Equipment for Metal Nameplates

Customization:	Available
After-sales Service:	Support
Warranty:	2year

Basic Info.

Model NO.

BGC

Laser Visibility

Visible

Applicable Material

Metal, ABS, PVC

Cooling System

Air Cooling

Technical Class

Pulse Laser

Laser Wavelength

Fiber Laser (1064nm)

Product Name

3D Fiber Laser Marking Machine

Features

3D Dynamic Focusing Technology

Power Brand

Jpt/Raycus

Working Area

100*100 / 200*200mm

Average Power

50W/60W/80W/100W

Lifespan

100,000 hours

Product Description

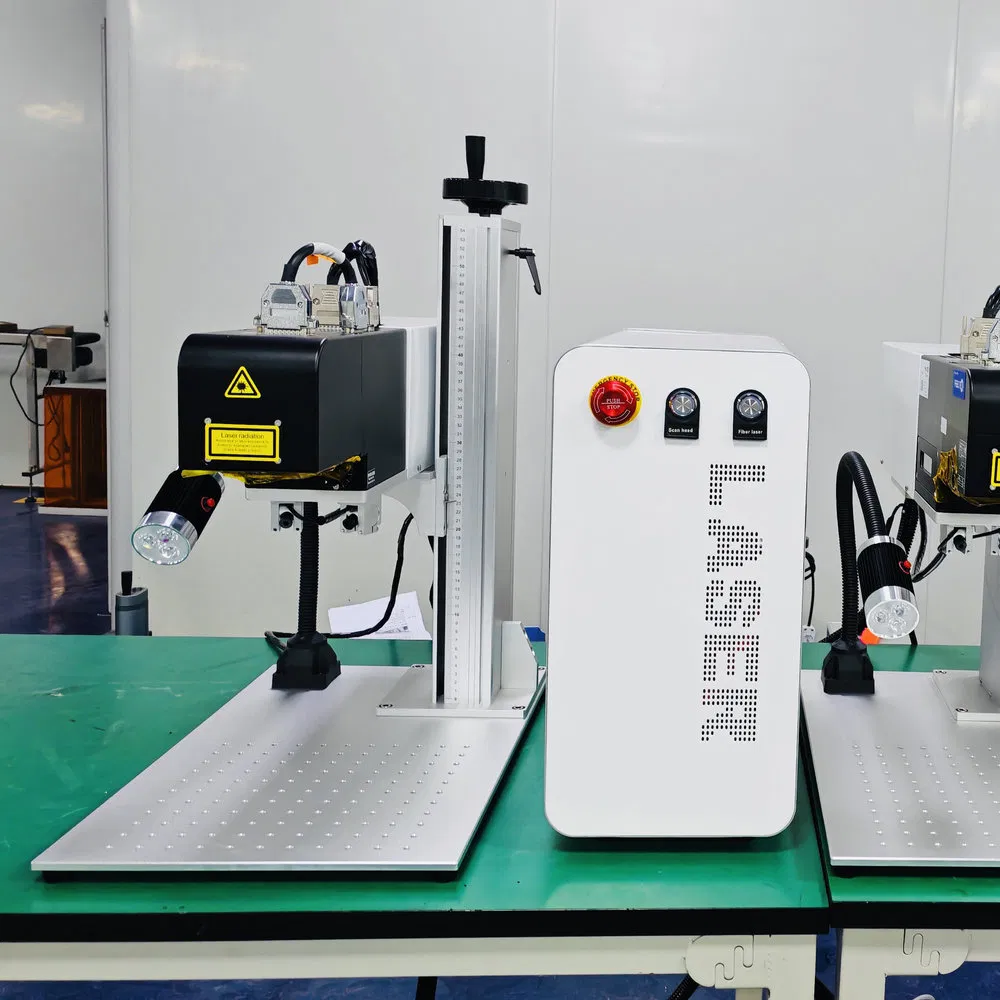

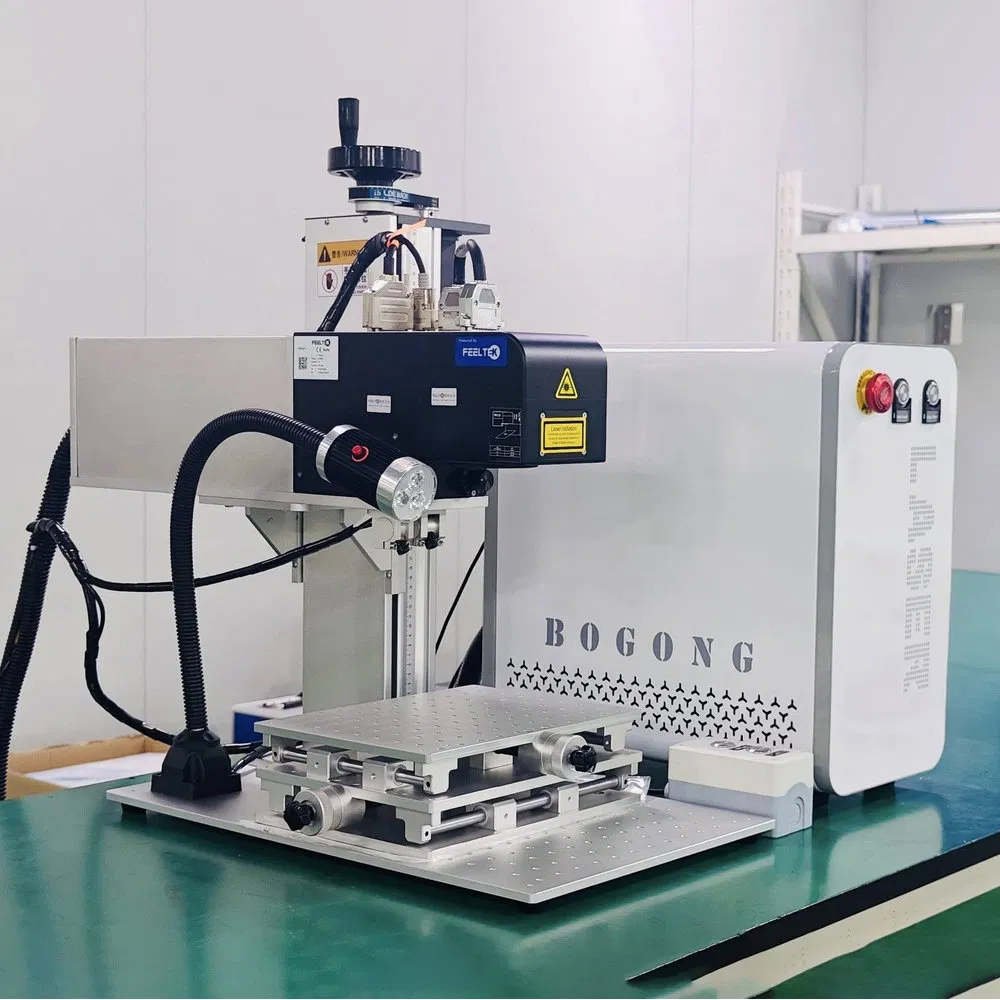

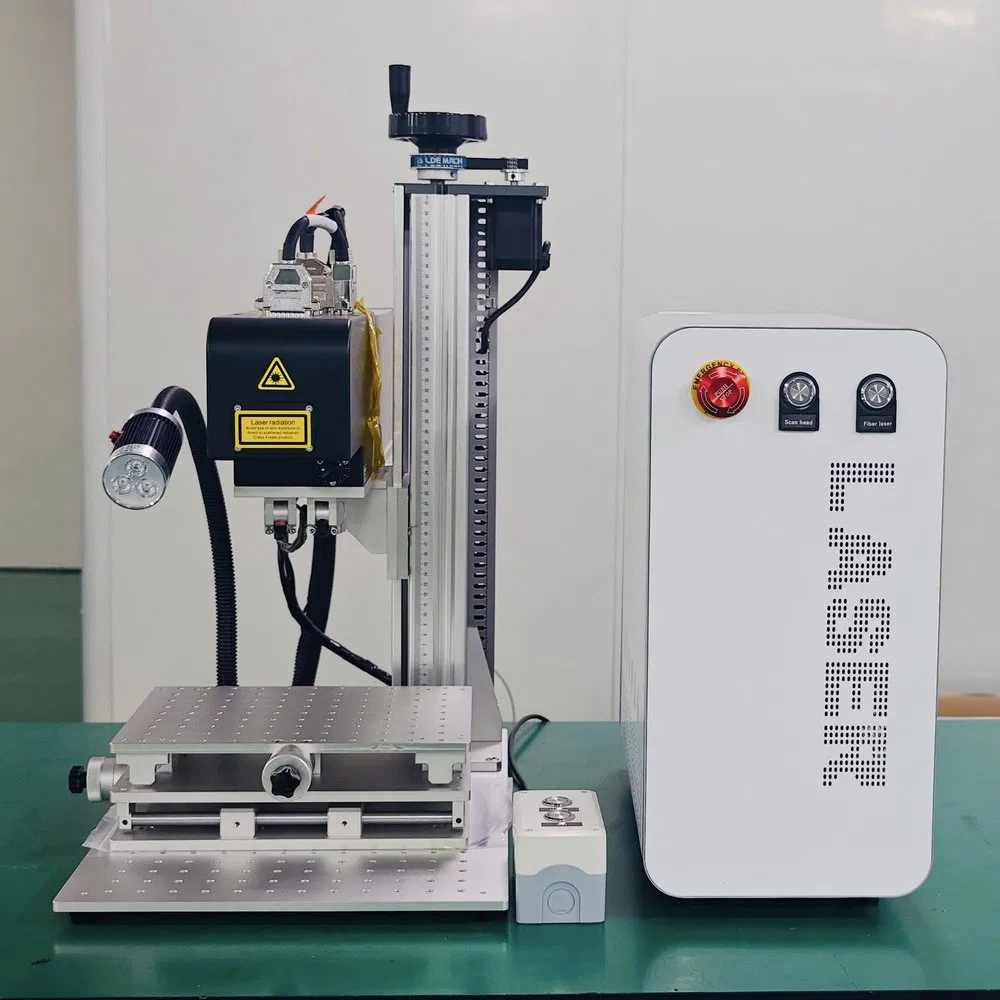

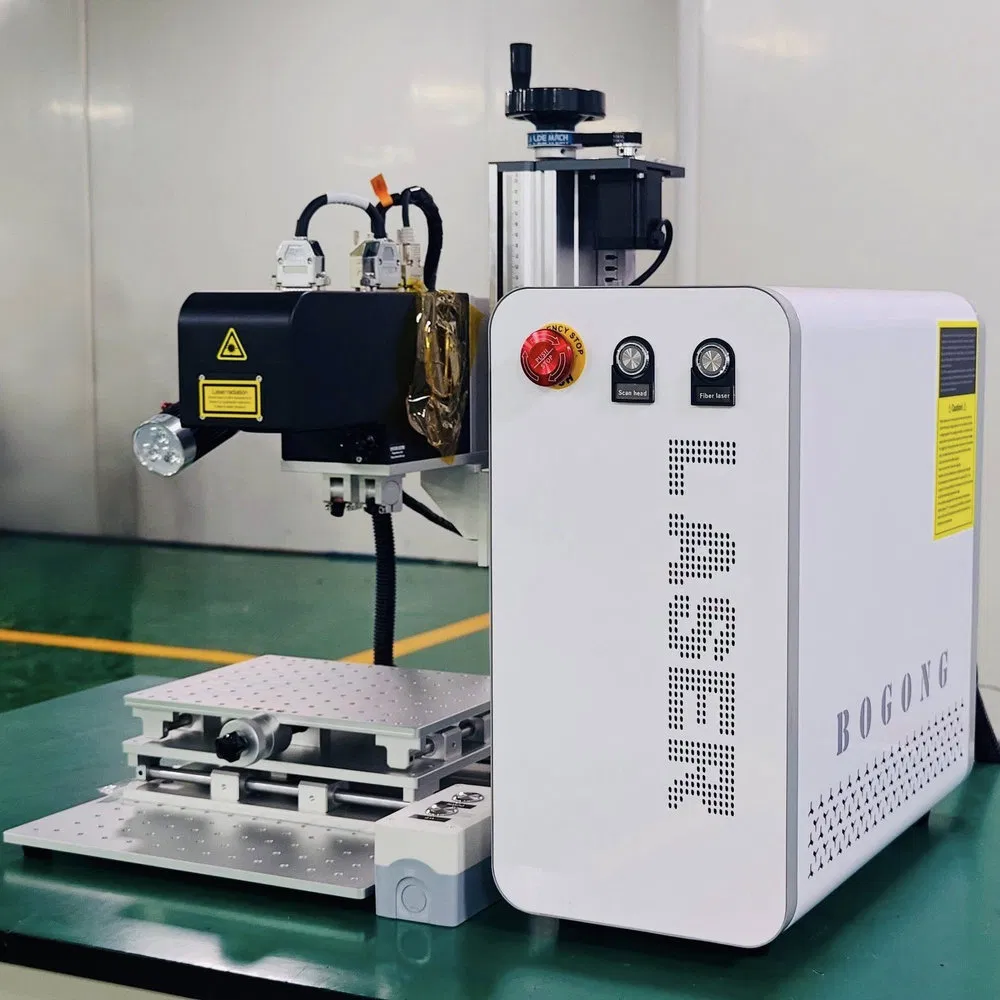

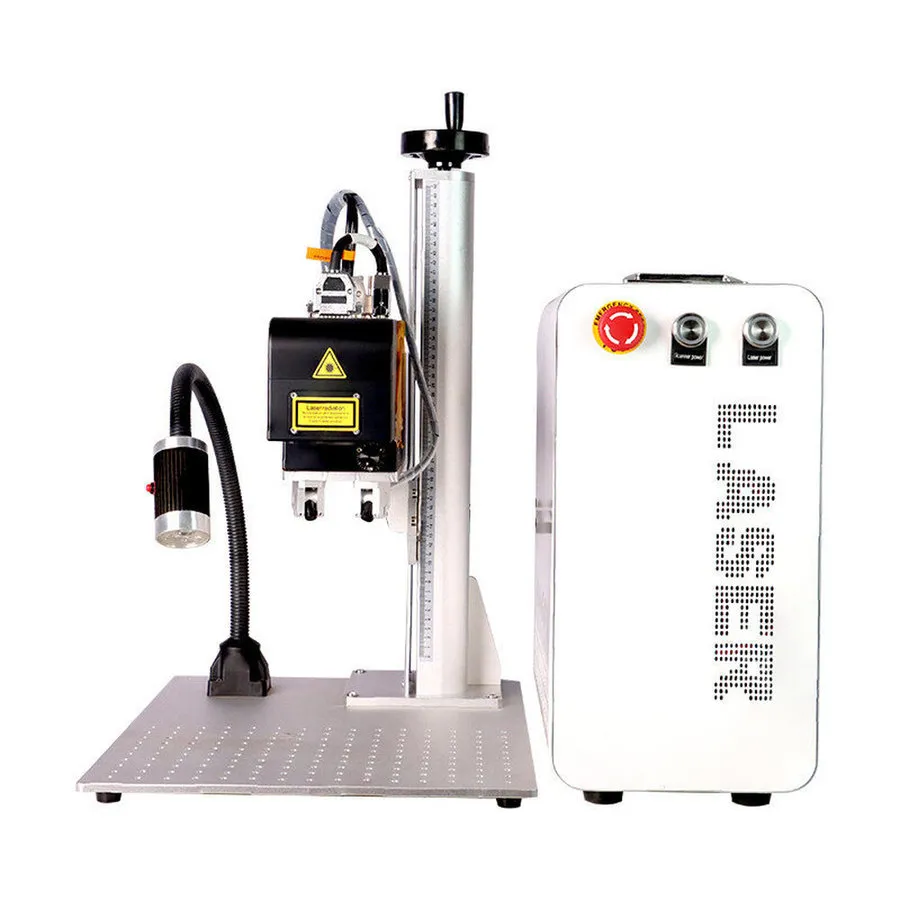

3D FIBER LASER MARKING MACHINE

This high-precision 3D fiber laser marking machine combines advanced laser engraving technology with a space-saving split-type design, making it the ideal solution for industrial metal marking and plastic engraving applications.

Available in multiple power configurations, this portable laser marking system delivers exceptional marking quality on all metal types, ABS plastics, and PVC materials. The innovative split-type mini laser marker features a separated workbench and laser unit, providing flexibility for diverse production environments.

Whether you need precision metal engraving, serial number marking, or logo branding, this compact laser marking machine delivers professional results with easy maintenance access.

Main Applications

Serial number engraving, batch codes, and traceability marking on metal components.
Production date stamping and quality control info for manufacturing compliance.
Precise marking of circuit boards, electronic components, and connectors.
Barcode and QR code engraving for inventory management.
Detailed engraving of brand logos on gold, silver, and platinum.
Personalized customization for rings, bracelets, and watches.

Technical Parameters

Technology Index		Specifications
Laser Parameters	Optical Maser	Fiber Laser
	Wavelength	1064nm
	Output Power	50W / 60W / 80W / 100W
	Modulation Frequency	50kHz ~ 100kHz
Galvo Parameters	Maximum Speed	7000mm/s
	Resolution	0.001mm
	Repositioning Precision	0.003mm
Output Char.	Marking Range	100100 mm (Optional 200200)
Fine Marking	Min. Line Width	0.01mm
Cooling	Cooling Way	Air Cooling

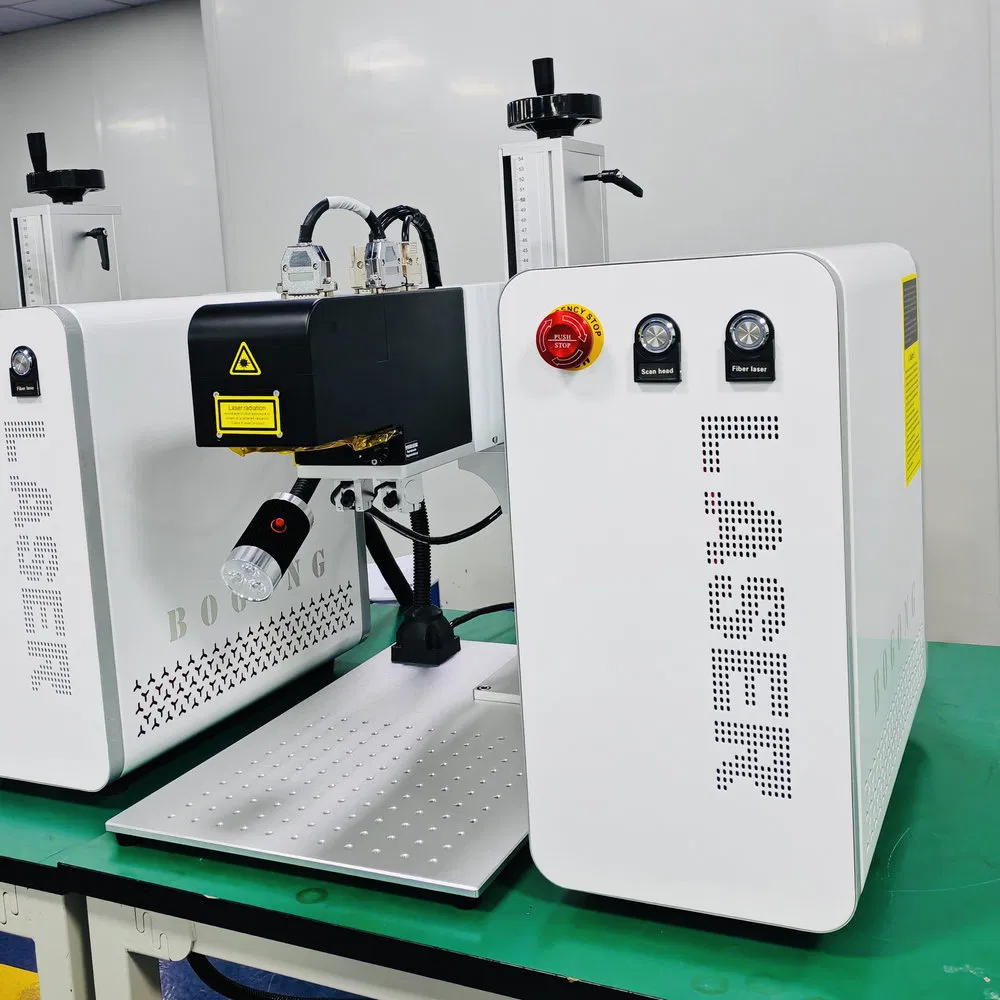

Detailed Photos

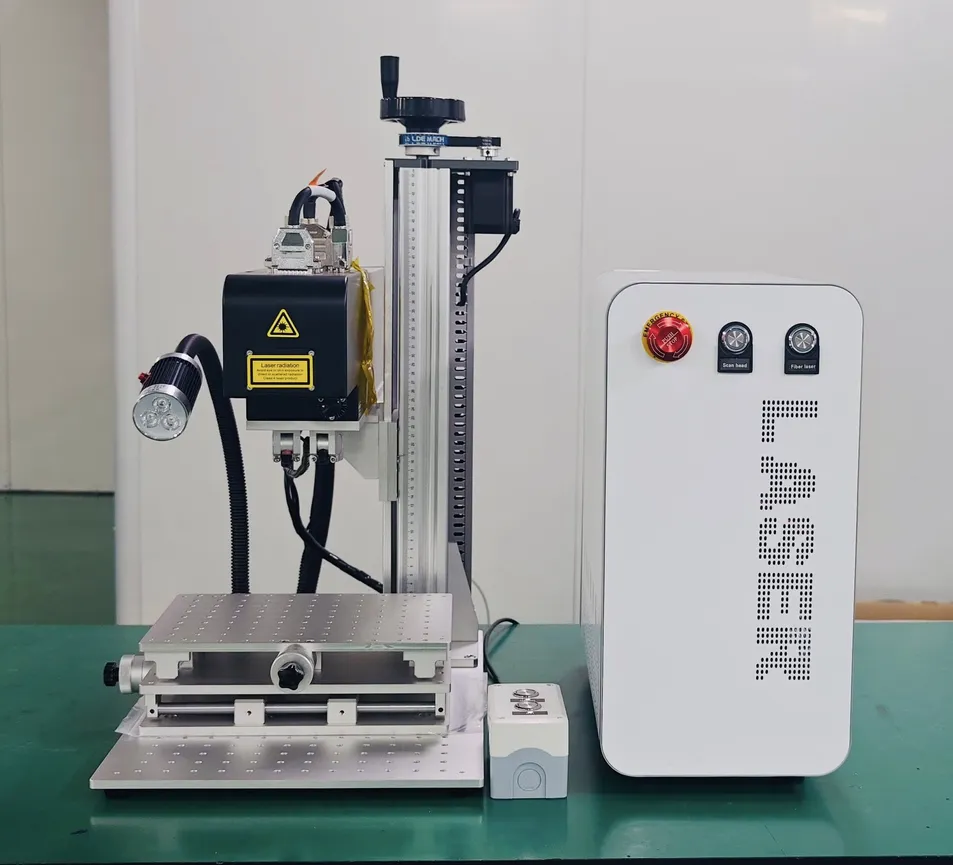

EXCEPTIONAL MATERIAL COMPATIBILITY

Capable of marking all metal types including stainless steel, aluminum, copper, brass, titanium, and precious metals. Compatible with ABS and PVC plastics. Delivers permanent, high-contrast results without consumables.

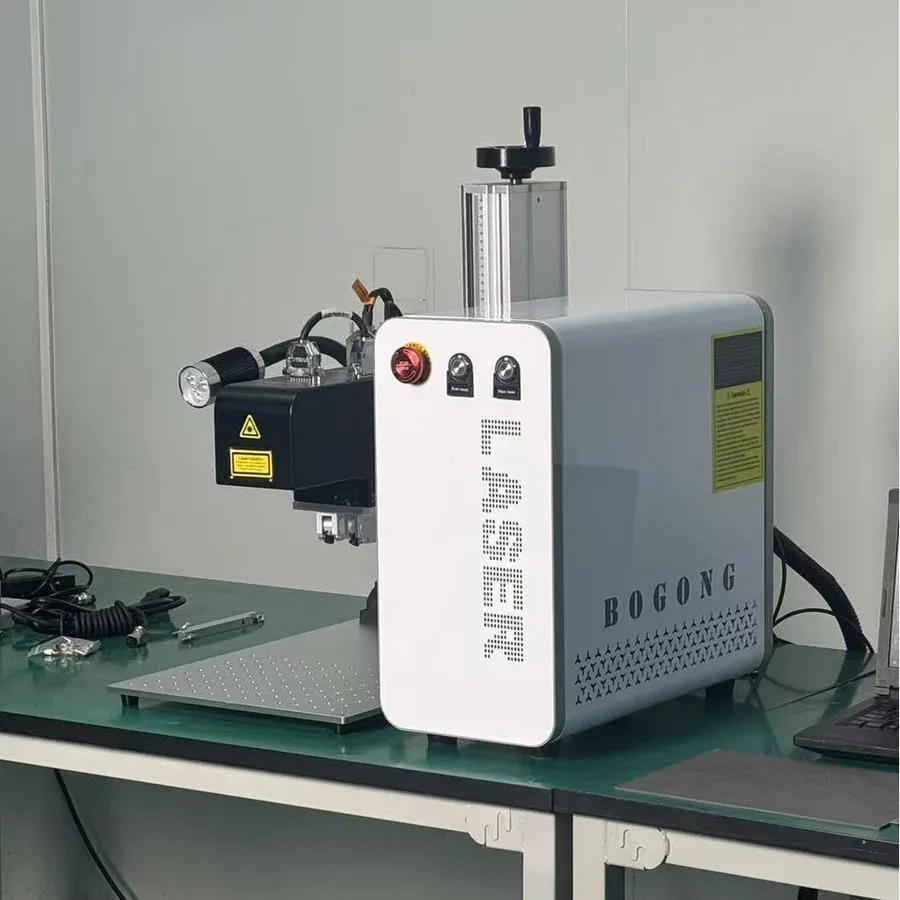

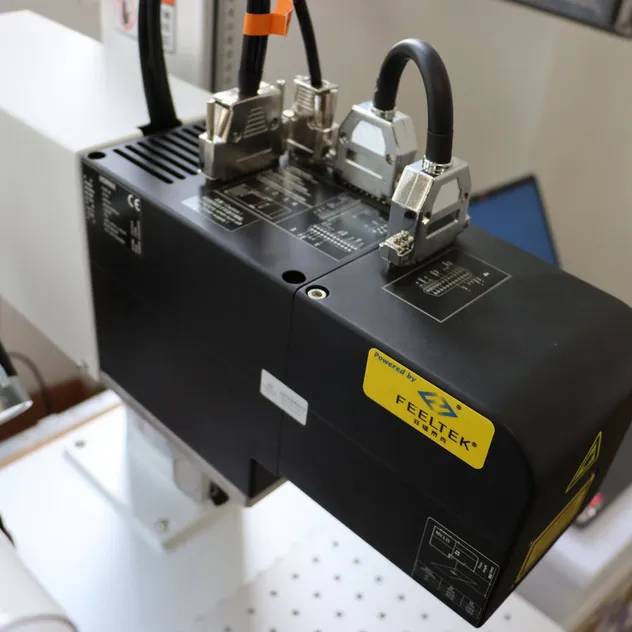

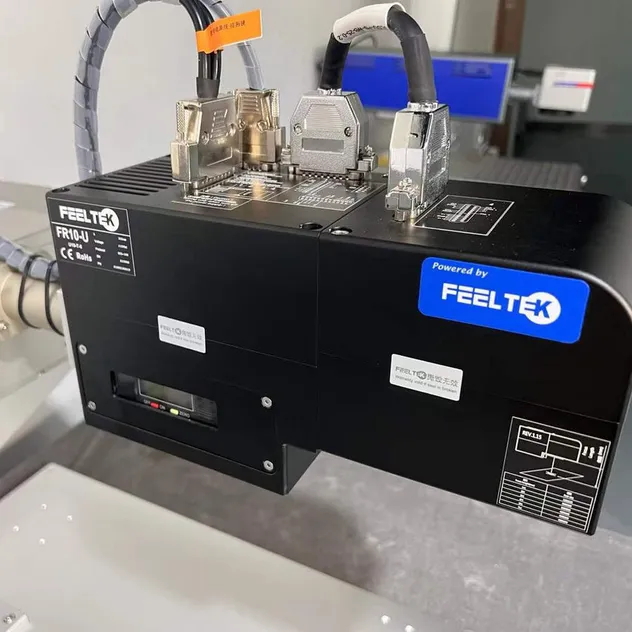

3D DYNAMIC FOCUSING TECHNOLOGY

Equipped with intelligent 3D dynamic focusing that automatically adjusts focal length for curved, irregular, and multi-level surfaces. No manual focus adjustment needed for 3D objects.

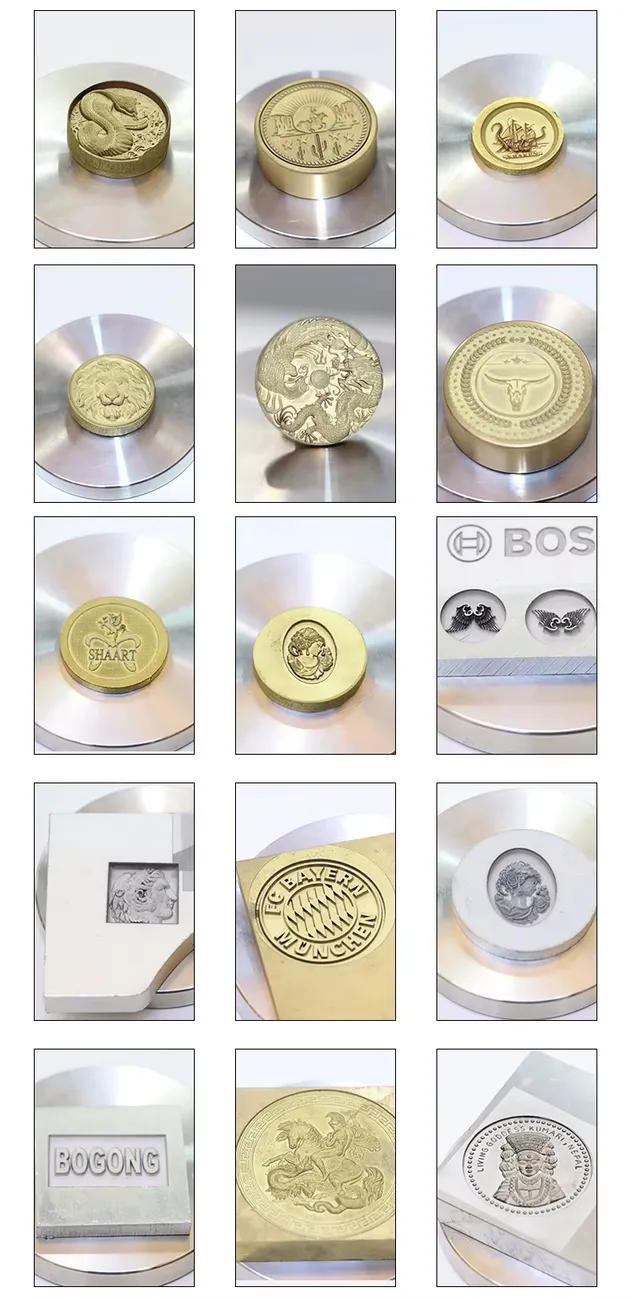

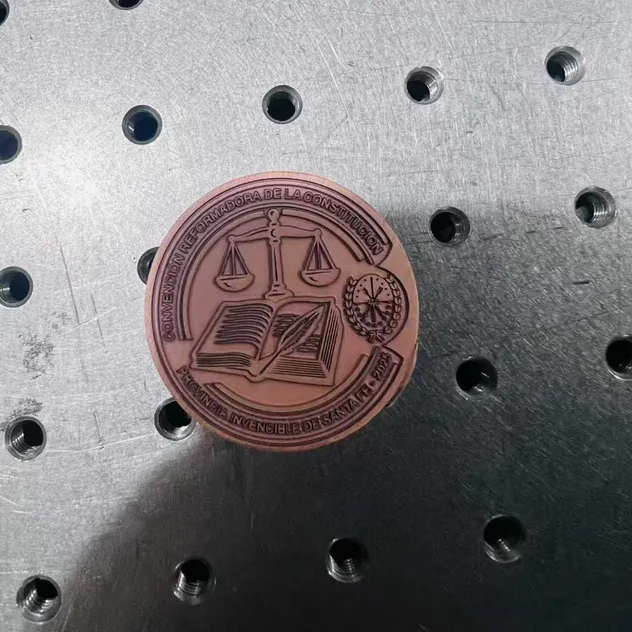

Sample Display

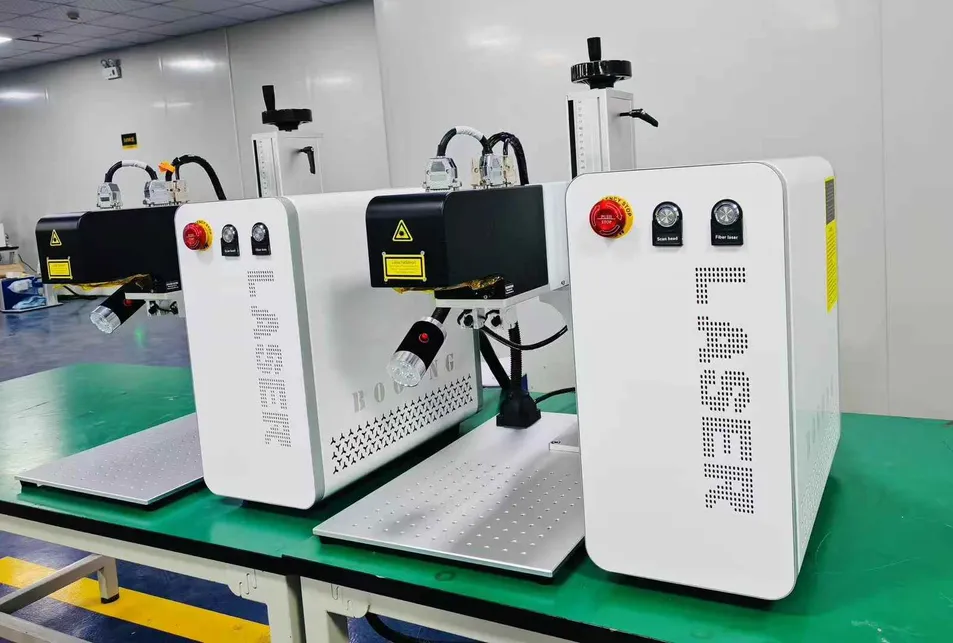

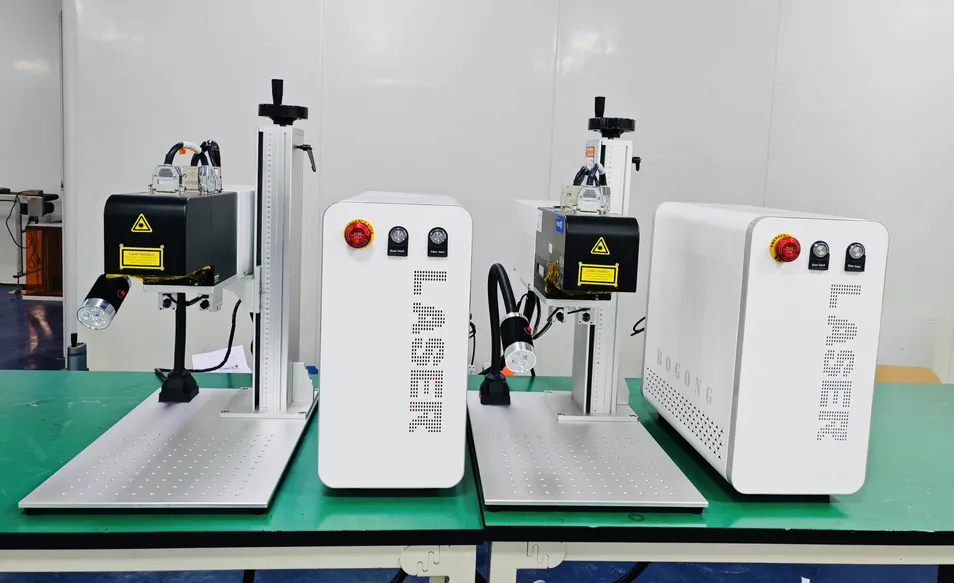

Factory Showcase

FAQ

How to select the suitable machine?

Please provide us with your material type and detailed marking requirements (words, pictures, or videos). We will recommend the most suitable model and configuration for your needs.

What is the lead time for delivery?

For standard machines, the delivery time is 3-7 days after payment. For non-standard or customized machines, the delivery time is typically 7-15 days.

Do you offer different cabinet styles for 3D laser engraving?

Yes, we provide floor-type 3D cabinet laser engraving machines as well as small/compact cabinet versions to suit different workspace requirements.

How is the 3D laser engraver transported?

For MINI or portable models, you can choose express shipping (DHL/FedEx) to your door, or choose Air or Sea freight depending on your budget and urgency.

What is the warranty and after-sales service?

The machine comes with a 3-year warranty and free maintenance during this period. We also provide online video technical support and can assist with reproduction process training.

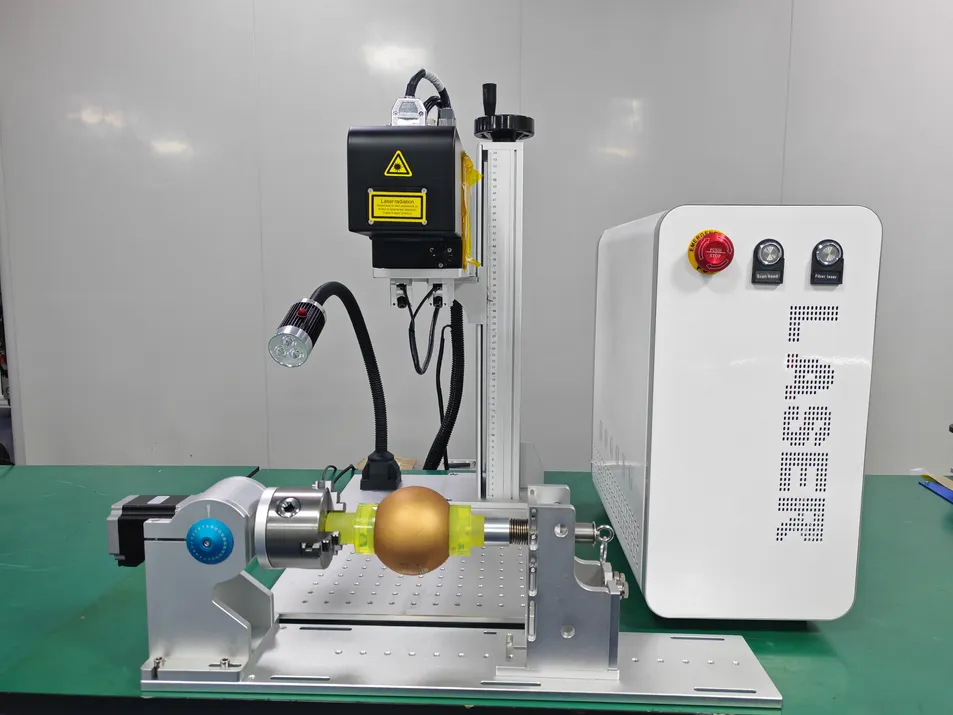

Can the machine mark on curved surfaces?

Yes, the 3D dynamic focusing technology automatically adjusts the focal length for curved, irregular, and multi-level surfaces, ensuring consistent quality across complex geometries.
